LINGV

O/LASER: Prototyping Concept of Dialogue

Information System with Spreading Knowledge

Kamil Ek

stein and Tom

s Pavelka

Laboratory of Intelligent Communication Systems,

Dept. of Computer Science and Engineering,

University of West Bohemia,

Univerzitn

ı 22, 306 00 Plze

n, Czech Republic

Abstract. The presented paper introduces a scalable modular prototyping con-

cept and methodology framework for rapid development of domain-oriented di-

alogue information systems being developed at Laboratory of Intelligent Com-

munication Systems (LICS). The whole system consists of two practically stand-

alone aggregates of software modules and knowledge bases: A speech recogni-

tion and synthesis software—LASER, and a generic task-independent scalable

dialogue information system—LINGVO. The article describes the architecture,

design, and philosophy of the framework in details and discusses its beneﬁts al-

ready experienced while used to build a voice-driven dialogue application.

1 Introduction

In these days the speech and dialogue research facilities including universities, special-

ized private research companies, as well as market leaders can offer various kinds of

speech-enabling software. Such systems usually make it possible to build voice-driven

(mostly telephone operated) dialogue information systems that provide their prospec-

tive users with certain information from preselected domains, such as e.g. arrivals and

departures of trains, planes, public transportation vehicles at all, opening hours of some

institutions, exchange rates, telephone numbers, etc. The wider (containing more ex-

pressions) the operated domain is, the more accurate the system must be to successfully

satisfy requests of its users. As the overall recognition accuracy of even the state-of-

the-art systems is still far from being sufﬁcient to work on wide domains, the designers

must back up on highly restrictive techniques giving the user in fact no chance to mis-

lead the system—the dialogue then might look like the following (“S” is the system,

“U” is the user):

S: Hello, this is ARS—Airplane-ticket Reservation System.

Where would you like to ﬂy? Please, state the city.

U: Porto.

S: Do you mean Porto in Portugal? Please, reply “Yes” or “No”.

U: Yes.

S: When would you like to ﬂy? Please, state the date only.

U: Twelfth of April.

Ekštein K. and Pavelka T. (2004).

LINGVO/LASER: Prototyping Concept of Dialogue Information System with Spreading Knowledge.

In Proceedings of the 1st International Workshop on Natural Language Understanding and Cognitive Science, pages 159-168

DOI: 10.5220/0002665301590168

 SciTePress

S: What class would you like to ﬂy? Please, reply “Business” or “Economy”.

U: Economy.

S: What is your credit card number? Please, read the number ﬁgure by ﬁgure.

One, two, three, four, ﬁve, six.

S: A seat in economy class is booked for you on 12

April, ﬂight to Porto, Portugal.

Your credit card number is 123456. Is it correct? Please, reply “Yes” or “No”.

U: Yes.

S: Okay. Thank you. Good bye.

As you can see, the dialogue is acceptable for, say, novice user

. But an experienced

one would for sure like to “speed up” the dialogue causing the system to get confused

and terminate the dialogue immediately by means of some kind of escape utterance.

Usually the commercial systems put the user through to a human operator after the

escape utterance. Clearly, the above depicted situation is an implementative solution

of a human-computer dialogue but it is only a crutch after all. A full-featured, mature

human-computer interaction on the given topic should look e.g. like this (“S” is the

system, “U” is the user):

S: Hello, this is ARS—Airplane-ticket Reservation System.

How can I help you?

I want to book a seat on ﬂight to Porto on April, 12

Do you mean Porto in Portugal?

U: Well, of course, do you ﬂy to any other Porto?

S: There is Porto in Corsica where you may get via Calenzana.

U: Oh, I see. But I want to Porto in Portugal.

S: What class would you like to ﬂy?

U: I prefer economy class.

S: What is your credit card number?

U: Twelve, thirty four, ﬁfty six.

A seat in economy class is booked for you on 12

April, ﬂight to Porto, Portugal.

Your credit card number is 123456. Is it correct?

Yeah.

S: Okay. Thank you. Good bye.

Such a dialogue with computer is generally possible—we tested e.g. CSLU Toolkit

package (see [1]) to design it (for English). The DIS

worked well but the recognition

accuracy was below the acceptable level for public release, mainly because of very

wide grammar covering all the possible dialogue situations. The restrictive power of the

grammar was so weak that it was not able to suppress the invalid recognized utterance

hypotheses. Unfortunately, Czech language has properties that make this task even more

complicated as described in section 2.

Our LICS research group examined the publicly available dialogue information sys-

tems operated in Czech language with the goal to explore their dialogue strategies. The

Unfortunately some kind of understanding the whole matter and a good deal of obedience is

necessary. And these are in practical operation quite rare.

Dialogue Information System

160

results were discouraging: All three of Czech mobile telephone network providers have

automated support lines but these have no speech recognition at all and the interaction is

enabled by means of DTMF technique, i.e. pressing the buttons of a mobile phone as a

reply. The “dialogue” is in all three cases extremely time-consuming, irritating, and the

human operator is hidden very deep in the dialogue structure. The same was observed

in information systems of four big Czech bank houses and a public transportation DIS

of the city of Liberec (see [3]), but in the last named the speech recognition is present.

The previously depicted situation led the LICS team to start the development of a

dialogue information system prototyping concept which will make it possible to build

voice-driven applications without that high level of restriction in spoken interaction.

The whole framework is called LINGVO after an Esperantist word for “speech”.

The recognizer part is named LASER which is short for LICS Automatic Speech En-

gine/Recognizer. The fundamental inspiring idea of the whole design is to extract as

much information as possible at any level, and use it back at the lowest level possible.

2 Language Modelling Considerations

As the phoneme recognition accuracy can hardly exceed some 80 %

, the relatively high

utterance recognition accuracy (reported about 95-97 % in the state-of-the-art systems)

grounds in powerful, restrictive language modelling which is capable of rejection of

incorrect hypotheses (referred to as out-of-grammar hypotheses).

In Czech case the restrictive power of grammar (as well as statistical language mod-

els) is signiﬁcantly debilitated by syntactical properties of the language. At ﬁrst, Czech

language has free word order—a question “At what time does the plane to Porto de-

part?” may be translated like these:

Kdy odl

a letadlo do Porta?

Kdy letadlo odl

a do Porta?

Letadlo do Porta odl

a kdy

? (when)

4. Do Porta

odl

a letadlo kdy? (Porto)

Kdy do Porta odl

a letadlo

? (plane)

Kdy letadlo do Porta odl

? (departs)

The underlined word (translated in parentheses) is emphasised by the word order. The

following translations of the same question are considered strange (even if they are

understood by any Czech):

Kdy do Porta letadlo odl

Do Porta kdy letadlo odl

Letadlo do Porta, kdy odl

Any other possible grouping of the used words is considered out-of-grammar.

The previous example shows that any grammar constructed to accept all possible

forms of grammatically correct Czech sentence can generate up to 10 % of permutation

We used HTK for testing this hypothesis and reached 82.94% as the best value (i.e. with the

best setup of parameters established after a series of trials). The recognizer was trained using

30 minutes of speech uttered by 20 speakers.

161

of the used words, which obviously cannot help the recognizer to determine validity

of a hypothesis. The same situation happens while using statistical language models

(N-grams). They can suppress correctly recognized out-of-grammar hypotheses (which

means that the speaker uttered an out-of-grammar sentence) when N is high enough

Unfortunately such an ability does not improve the recognition performance.

Another property of Czech language is a full-featured ﬂection: Nouns, pronouns,

adjectives, and numerals are declined into 7 cases for each grammatical number (re-

sulting in 14 different forms of a word), and verbs are conjugated in a very complex

way (resulting in a nightmare of 223 different forms of a verb). Both declination and

conjugation is (mostly) sufﬁx-based. Misrecognized sufﬁx may end up in a completely

different meaning of the utterance. Taking the grammatical structure of recognition hy-

potheses into account may result in rejection of a generally correct hypothesis due to

any single misrecognized sufﬁx. Also the model perplexity rises signiﬁcantly.

We carried out a series of tests with HTK 3.2 toolkit trained with three corpora

made at LICS. The table below shows the best phoneme recognition accuracies for

each corpus:

Corpus

Accuracy

LICS AC 2002

71.45%

LICS AC Chess

82.94%

LICS AC Phonemes

72.48%

The values of phoneme recognition accuracy are relatively high. As opposed to these,

the utterance recognition accuracies reached by a voice-driven chess game recognizer

proves the inﬂuence of language models:

Grammar

Accuracy

Chess Grammar 1 – Most Restrictive

96.28%

Chess Grammar 2 – Normal

77.00%

The “Most Restrictive” grammar forces user to announce his or her intention in a very

tight manner. Such a language model is not acceptable for any Czech as it gives no

freedom of word ordering which is very natural for us. On the other hand the “Nor-

mal” grammar covers nearly all possibilities of free word order sentences applicable to

express a chess move. It results in a dramatic drop of performance.

3 System Design Considerations

As the grammar or statistical language model cannot play its restrictive role in Czech

language DIS, we decided to derive the restriction from dialogue course, generally

at any level of the dialogue system. To clarify the idea, let us consider the following

situation: The system is asking the user “Do you have a credit card?”. There is very

high probability that the user answers either “Yes” or “No”. We examined hundreds

of recordings and found only few rare cases when the user faced to a pure Yes/No-

question replied anything else—if he or she did so, the dialogue was not co-operative

at all anyway (see [2] and [6]).

Less than N = 3 has no effect in Czech language.

162

The points of a dialogue system design where an appropriate restrictive information

can be derived from, can be e.g. the following:

1. Acoustic Front-End (Signal Processing):

(a) Measuring fundamental voice frequency F

can tell whether the speaker is male

or female. Such knowledge can be used in (i) acoustic-phonetic decoder to

switch to an appropriate set of models (HMM) or neural nets (ANN) trained by

men or women respectively; (ii) language modelling to conceal the grammar

components for female forms (endings and other gender-speciﬁc phenomena).

(b)

Measuring prosodic parameters (e.g. overall loudness) to detect anger or stress

can help to switch to a human operator (if available) in due time.

Domain Analysis: May inﬂuence the language modelling knowledge base by means

of iteratively narrowing the vocabulary and grammar to the discussed domain plus

some escape utterances.

Data Analysis: Modiﬁes situation modelling knowledge bases to exclude dialogue

sequences leading to a query about a fact which is not known to the system or which

the system cannot answer for any reason.

Dialogue Manager: Being the main decisive mechanism of the dialogue system,

the dialogue manager is a source of wide set of information: For example following

the dialogue situation can result in considerable restriction of a language model

in those branches where the user has lesser freedom of choice and thus possible

interaction is predictable according to the dialogue scenario.

4 System Architecture Description

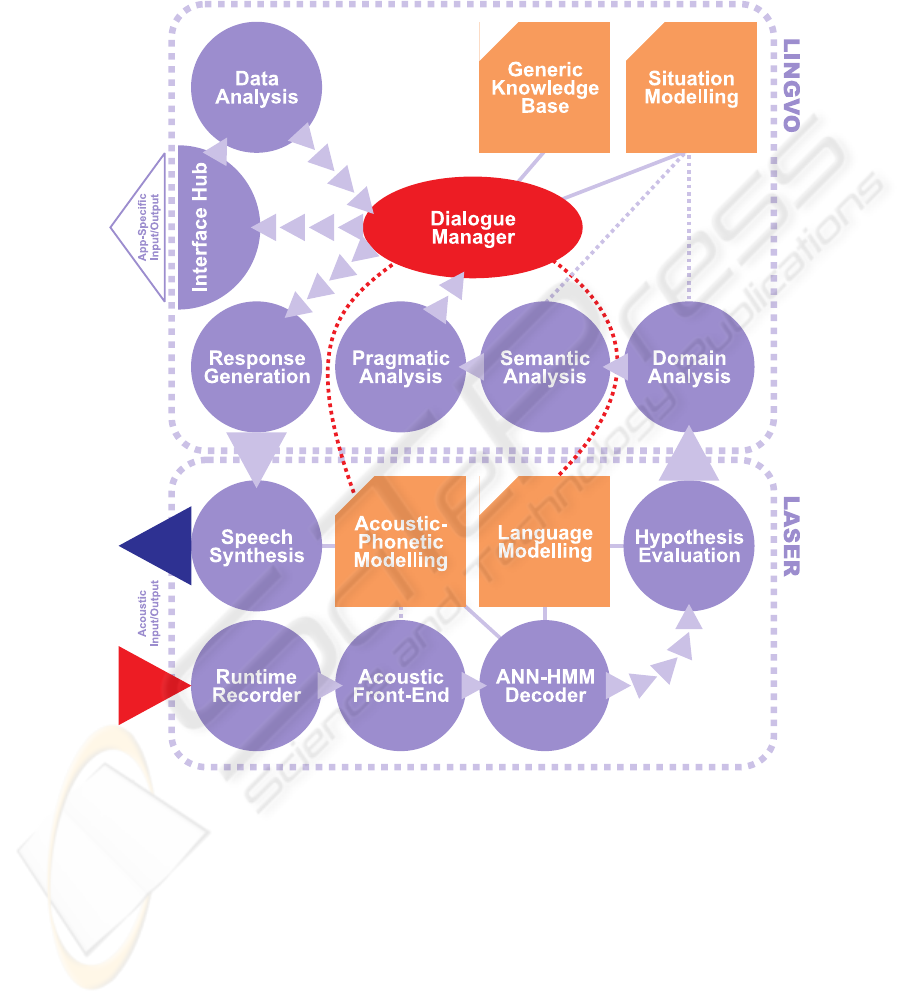

Figure 1 depicts schematically the architecture of the whole LASER/LINGVO frame-

work. The whole prototyping concept has been designed to enable applying of mod-

elling restrictions according to knowledge acquired all around the system.

Modules and functional units of the system design are described in detail below:

4.1 LASER—Speech Recognizer

1. Run-time Recorder (LRec): Controls computer audio device(s) and records an

incoming speech into a stream of digital data. Incorporates VAD and AGC

. Pa-

rameter setup (sample rate, quantization) is user-adjustable via conﬁguration ﬁle

and/or command line options.

2. Acoustic Front-End (LAFE): Transforms the recorded digitized speech signal

into a stream of parametric vectors used for further processing. The contents of

the parametric vector is user-adjustable by a script in SACL/PDL language which

deﬁnes the exact way to treat the signal. Possible processing options include preem-

phasis, smoothing, windowing (Hamming, etc.), power spectral density estimates

(smoothed), spectral warping (Mels), MFCC, PLP, liftering, mean and deviation

normalization, and many others (see [4]).

VAD stands for Voice Activity Detection, and AGC means Automatic Gain Control.

163

Fig.1. Architecture of the LASER/LINGVO system: Circular elements present executory

modules (routines, programs, software tools), rectangular elements stand for knowledge bases

(ﬁles, databases, expert systems), triangular arrows show data ﬂow throughout the system, solid

lines connect parts that exploits one another, and dotted lines connect those that share and/or

enriches knowledge bases.

164

3. ANN-HMM Acoustic/Phonetic Decoder (LDec): Decodes the spoken (acoustic)

utterance represented by parametric vectors into a phonetic information (series of

phonemes represented by transcription alphabet symbols) by means of proposing

recognition hypotheses based on acoustic and language modelling. Artiﬁcial neural

network (namely MLP) estimates posterior probabilities of phonetic class assign-

ment for each parametric vector. These values are used as output probabilities b

states of HMMs of phoneme-like units (see [7]).

4. Hypothesis Evaluation: Searches the proposed recognition hypotheses in the shape

of word lattice and, according to the language modelling knowledge base (and thus

information provided by upper level of the design, e.g. dialog manager), accepts

(N) the most probable way(s) through the lattice, i.e. the valid hypothesis.

5. Speech Synthesis (LSyn): Shares the acoustic-phonetic knowledge base to pro-

duce audible speech output.

6. Acoustic-Phonetic Modelling Knowledge Base: Contains models of acoustic phe-

nomena and their phonetic class assignment in form of numeral parameter sets for

HMM (matrices of a

and b

, transition and emission probabilities). This knowl-

edge base can be enriched by external knowledge according to the proposed design

concept of gathering and spreading knowledge: (a) The acoustic front-end (LAFE)

module can determine whether the prospective speaker is male or female and cause

switching to the appropriate set of acoustic-phonetic models instead of using both

two—resulting performance improvement is estimated about 10%; (b) the same

piece of information can come from dialogue manager (as Czech strongly differen-

tiates grammatical gender).

Language Modelling Knowledge Base: Contains language models, i.e. grammar

in e.g. extended Backus-Naur form (EBNF), numeral parameter sets of N-gram sta-

tistical models, etc. This base can be also strongly inﬂuenced by spreading knowl-

edge from upper parts of the design: The information from situation modelling

base (via dialogue manager) can suppress grammar branches that will not be used

for sure in the next user’s reply. Our contemporary technical solution of this task is

a re-generation of the used grammar before each utterance analysis.

4.2 LINGVO—Dialogue System

1. Domain Analysis: At this point, a decision about what domain does the utterance

belong to is taken. According to such a knowledge, an appropriate situation models

are passed to the dialogue manager. Also an off-topic sentence can be identiﬁed

here and the dialogue manager is consequently alerted to switch to an “escape”

scenario. The module is based mainly on the vocabulary and syntax analysis (see

[5] and [8]).

Semantic Analysis: Analyses the utterance with the goal to ﬁnd the meaning of

it, i.e. expressed intention of the speaker in communication towards the system.

Semantic analysis is grounded on microsituation theory and several other semantic

formalisms (see [5]): The method tries to ﬁll in predeﬁned semantic frames (data

structures) using the information contained in the sentence—those frames that are

ﬁlled more than certain given level are declared valid semantic hypotheses and

passed to the next module.

165

3. Pragmatic Analysis: Veriﬁes whether the semantic hypothesis is accomplishable

given the contents of domain-speciﬁc databases. Pragmatic analysis also contributes

to quantitative formulation of the cooperativeness level between the user and the

system. Such an information helps to select suitable dialogue strategies within the

situation modelling base (via dialogue manager).

4. Data Analysis: Scans the data produced by controlled (subordinated) applications

and returned to the dialogue system through interface hub. The module is respon-

sible for ﬁltering singularities from the data and translating the data into semantic

frames so that dialogue manager can operate on them.

5. Interface Hub: Ensures communication with controlled (subordinated) applica-

tions such as relational databases, system terminals, game engines, etc.

6. Response Generation: Translates ﬁlled-in data frames back to human speech in

the form of a sequence of phonetic symbols, which is further passed to the speech

synthesizer.

7. Generic Knowledge Base: Contains common facts needed to decode incomplete

semantic frames or those carrying implicit entries like e.g. local date and time,

position of the running system, etc. In the other words it holds a system-speciﬁc

description of the world.

Situation Modelling Knowledge Base: Contains dialogue and subdialogue scenar-

ios derived out of long-lasting research of real human-human dialogues, dialogue

templates, and behavioural patterns (see [2]). This module is a prominent source of

knowledge used to restrict recognizer grammar.

5 Current State of Implementation

The following units and modules are fully functional:

LASER Recognizer Unit—Provides the system with either the best recognized

sentence hypothesis or N-best hypotheses. The experimental hybrid ANN/HMM

decoder (see [4]) may be optionally replaced by HTK/ATK-based decoder. Imple-

mented also as DLL

, the recognizer may be utilised by various simple speech-

enabled applications too.

2. Domain Analysis

Interface Hub

4. Response Generation

Interface routines (written in Perl) enable to incorporate executive modules or data

from other systems, e.g. HTK, CSLU Toolkit or SPEX KIT. The Semantic and Prag-

matic Analysis modules, and the Dialogue Manager are partially implemented, i.e.

they are available in a simple form for testing and display purposes. Still they are not

ready as generic full-featured data-driven modules. Currently a co-operative effort is

exerted to bind LASER/LINGVO system to SPEX KIT dialogue platform (see [9]).

A complete methodology is prepared for the dialogue modelling: microsituations,

dialogue ﬂow, escape strategies, etc. Also several real recorded dialogues were mod-

elled using the methodology to verify its efﬁciency (see [6]).

Windows Dynamically Linked Library which can be loaded by an application at run time.

166

Several simple dialogue systems have been developed using the LASER/LINGVO

framework: (i) LChess—a chess game controlled by voice interaction; (ii) DOD@live—

a DIS for “Day of Open Doors” at DCSE answering questions of our prospective stu-

dents about the studies at our department; (iii) CIC (or City Information Centre)—a

municipality DIS providing information about city transportation, opening hours, etc.

(under development).

6 Results and Future Work

The way how the prototypes (see section 5) nowadays function (on an isolated Windows-

based workstation with a headset) does not allow an extensive testing under real operat-

ing conditions. We performed a simple test during the above mentioned “Day of Open

Doors” when 113 uninitiated

students talked to the DOD@live dialogue system proto-

type. The results were as follows:

Wrong system response 6.81%

Correct system response 93.19%

| Correct hypothesis (A) 59.09%

| Wrong hypothesis (B) 34.09%

State (A) means that the recognizer provided the system with correct hypothesis and

the system subsequently took an appropriate action (response) so that the user was sat-

isﬁed. State (B) is a situation when the recognizer provided the system with (partially)

incorrect hypothesis but the system was still able to derive the meaning of the utterance

and take an appropriate action (response) to satisfy the user.

The weakest point of current LASER/LINGVO implementation state is deﬁnitely

the semantic and pragmatic analysis as these modules can act as efﬁcient restriction

of recognition hypotheses. Also a rejection mechanism for totally out-of-dialogue hy-

potheses with high recognition score (Hypothesis Evaluation module) works at dispu-

tatious level of accuracy leading the system to dead ends.

Our future work will be focused towards implementing data-driven algorithms for

semantic and pragmatic analysis. Another important branch is to improve the dialogue

manager core to (i) handle exceptional dialogue states, (ii) support escape strategies,

and (iii) cover wider ﬁeld of dialogue situations (i.e. make the frame processing more

generic). Moreover we’d like to incorporate some recently presented NLP techniques

suitable for Czech language but unfortunately these are usually too theoretic and too

demanding to be implemented in a real-time response system.

7 Conclusion

The dialogue information system paradigm described in the previous paragraphs has

been proposed and built mainly because of the need of a design concept enabling to

increase the cooperative performance between a human and a machine. Such result is

strongly dependent on the speech recognition and semantic analysis accuracy as these

They were not previously instructed how to speak to the system and what to say.

167

are key components in the process of artiﬁcial understanding of speech. The design was

penetrated with a fundamental idea of highest possible modelling restriction so that the

decoding algorithms have lesser freedom and thus gaining better results. The need for

such a scheme came out of syntactical properties of Czech language for which both

grammar and statistical language models allow too many possibilities and thus it can

hardly help to reject invalid recognition hypotheses. The original idea of restricting the

recognition grammar according to the position dialogue scenario was extended to the

other parts of the framework and resulted in a general scheme of dialogue information

system with spreading of extracted knowledge.

Acknowledgement

This research has been supported by Research Grant MSM 235200005.

References

Johan Schalkwyk, Paul Hosom, Ed Kaiser, Khaldoun Shobaki: CSLU-HMM: The CSLU Hid-

den Markov Modeling Environment. Center for Spoken Language Understanding, Oregon

Graduate Institute of Science & Technology, USA (2000)

Schwarz J., Matou

sek V.: Automatic Analysis of Real Dialogues and Generation of Training

Corpora. In: Proceedings of the Int. Conference EUROSPEECH 2001, Volume 4. Aalborg,

Denmark (2001) 2201–2204

Nouza J.: Speech Processing Technology Applied in Public Telephone Information Services.

In: Proc. of 4th World Conference on Systemics, Cybernetics and Informatics (SCI 2000), vol.

IV. Orlando (2000), USA 308–313

stein K., Mou

cek R.: Detection of Relevant Speech Features Using Driven Spectral Anal-

ysis (The LASER Case). Proceedings (CD) of 4

International PhD Workshop Information

Technologies and Control. Institute of Information Theory and Automation, Prague, Czech

Republic (2003)

5. Moucek R., Ek

stein K.: Municipal Information System. Proceedings (CD) of 4th International

PhD Workshop Information Technologies and Control. Institute of Information Theory and

Automation, Prague, Czech Republic (2003)

Lorenzov

a, E.: Psycholingvistick

a anal

yza komunikace

clov

eka s dialogov

ym informa

ım

syst

emem (Psycholinguistic Analysis of Communication Between Human and Dialogue In-

formation System). M.A. Thesis (in Czech only). University of West Bohemia, Plze

n, Czech

Republic (2003)

Pavelka, T.: Hybrid Speech Recognizer Implementation. M.Sc. Thesis. University of West

Bohemia, Plze

n, Czech Republic (2003)

8. Bene

s, V.: S

emantick

a anal

yza dom

enov

e rozt

ıd

ych dialog

u (Semantic analysis of domain

dependent dialogues). M.Sc. Thesis (in Czech only). University of West Bohemia, Plze

Czech Republic (2003)

SPEECH EXPERTS GmbH: Whitepaper, www.speech-experts.com, Regensburg, Ger-

many (2003)

168
