Securing Mobile Agent Based Tele-Assistance Systems

Sergio Pozo, Rafael. M. Gasca, and María Teresa Gómez

Department of Computer Languages and Systems

Faculty of Computer Engineering, University of Seville

Avda. Reina Mercedes S/N, 41012 Seville, Spain

Abstract. Nowadays the scientific community is trying to design new

techniques in the search for solving security problems in mobile agent

technology. There are now some industry initiatives for using agents in real

environments which need a solution for some of their security problems.

Companies offering assistive service are getting cost reduction due to tele-

assistive technologies. In this paper we present a proposal based on secure

tunnels to add confidentiality and integrity to any agent platform, present or

future, without making any changes to its source-code. Our system is currently

implemented and working as part of a complete mobile multi-agent system used

for tele-assistance. During our research we have also detected many other

problems regarding the tunnelling approach.

1 A new perspective of security in mobile multi-agent systems

There are a growing number of elderly people in Europe. Tele-assistive technologies

are getting a lot of importance in cost reduction for companies and public insurance.

Elderly community is also benefiting from a new era of comfort and additional

services, such as continuous monitoring, full-time contact with relatives, new

diversion services, etc. Relatives are also benefiting from this new kind of tele-

assistance that lets them be in close contact with insurance centers and their family.

As tele-assistive or tele-care technologies cope with personal data, there are even

specific laws about this data treatment. Depending on the data sensitiveness stored

and treated by the companies (public or private) they need to use different protection

technologies.

A relatively new approach to design and implement tele-care services is to use

mobile multi-agent technology. Different classes of agents may be used to perform a

large number of local and remote assistance and supervision tasks, such as sensorial

data collection, alarm notification, health conditions monitoring, etc.

This new paradigm has a lot of practically unresolved security-related problems.

Systems and users are exposed to access policy violations, communications integrity

and/or confidentiality, system crashes, information theft, information modifications,

etc. These problems and others added from the use of mobile agent technologies

Pozo S., M. Gasca R. and Teresa Gómez M. (2004).

Securing Mobile Agent Based Tele-Assistance Systems.

In Proceedings of the 1st International Workshop on Tele-Care and Collaborative Virtual Communities in Elderly Care, pages 63-72

DOI: 10.5220/0002666000630072

 SciTePress

needs to be resolved before any mobile multi-agent system could be used for a tele-

care system, etc.

Since the very beginning of our research, our goal has been to provide a generic

method for the protection of agents and agent platforms in a production environment.

This solution needs to be deployable in current systems without further delays or new

research and with a minimal effort.

In this paper we present an alternative and working way of protecting agents and

platforms using existing tools and technologies in order to create secure tunnels. The

work is structured as follows: first we present a very brief introduction to current

threats of platforms and mobile agents and current theorical solutions to the problem

of mobility vs. security. Then we indicate the goals for our system architecture.

Finally we propose a secure tunnel alternative to securing communications. We finish

the paper indicating the conclussions and future work in this research line.

2 Current threats in mobile agent technology

There are several security threats in the agent paradigm (for both mobile and static

agents), which allows at least two classifications [1], depending on the type of threat

and on the entity of an agent environment which carries out an attack [1]. We have

stressed the importance of security implications in a tele-care environment.

The most secure location for an agent is its home platform. Although neither agents

nor home platforms are invulnerable, a number of conventional techniques can be

applied to construct adequate defenses. Each time an agent migrates, there are

security risks, and so it is needed a way to transmit this trusted environment to other

platforms to which agents may travel. The greatest problem with multi-hop MAS is

just the trust relationship which can be established in single-hop MAS between two

platforms thanks to the security mechanisms derived from Client/Server architecture.

These trust relationships are not transitive, nor have they to be bilateral.

2.1. General considerations

There are some practical solutions for securing communications in multi-hop MAS,

but the vast majority of them include restrictions on itineraries. There are other

alternatives based on the usage of a transport level protocol (usually SSL) to secure

communications, and it has been applied with success to some agent platforms [2].

However, some of them are static MAS [3] and all solutions are directed towards a

specific MAS. For tele-care it is need a mobile MAS and no itinerary-restriction.

The design and implementation of the agent platform itself is also of great

importance. Java is a powerful language for implementing error-free MAS, but also

the design phase is decisive in an application security development cycle.

2.2 Securing platforms and agents

Existing protection ongoing researches can be divided into solutions for protecting

platforms and solutions for protecting agents [1].

Software-Based Fault Isolation [5], Safe Code Interpretation, State Appraisal [6], Path

Histories [7, 8], Proof Carrying Code [9] are current research lines for protecting

platforms and Partial Result Encapsulation, Execution Tracing [10], Environmental

Key Generation [11], Computing with Encrypted Functions [12], Obfuscated Code

[13] are for protecting agents.

3 Security goals for the architecture

We propose to divide protection techniques into three categories: protecting

platforms, protecting agents and protecting communications. Our work is focused in

the third category, providing no direct protection to platforms or agents themselves.

Our solution provides protection to the communication channel and platform

authentication between platforms. Our system also indirectly provides protection to

platforms, forming a secure agent community.

We were looking for a solution that provides integrity, confidentiality, data origin

authentication, mobile multi-agent system independence, compliance with standards,

existence of cryptographic acceleration hardware and cost-saving and reuse of

existing infrastructure.

Aglets [14] have been used for our reference implementation in the lab, since it is

Open Source, multiplatform, easy to develop, has strong mobility (maximum mobility

in a Java-coded MAS), high acceptance and relatively good documentation [15].

4 TLS, SSH2 and proprietary-protocol secure tunnels

Tunnelling is the capability of encapsulating one protocol within another, using this

second protocol to traverse network nodes. A secure tunnel is one which encapsulates

an insecure protocol (like FTP or HTTP) within a secure one (like SSL). Tunnels may

also be used to bypass firewalls and are vulnerable to denial of service attacks, since

they use a public and untrusted network as transmission media.

Due to the independence which the secure communications system must have from

any mobile MAS, research has focused on systems which generate application-

independent secure tunnels.

4.1. Stunnel

Stunnel [16] is an application which acts as SSLv3 server and/or client, providing a

secure SSL-based secure tunnel (wrapper) for insecure protocols or applications with

the only need of the installation of the application in each of the systems that needs to

secure. Stunnel is distributed under a GPL license and has versions for Microsoft

Windows, some flavors of UNIX and many other OS. Stunnel also supports

cryptographic accelerator hardware and client and server authentication with X.509

digital certificates (as SSL does).

The way Stunnel works is wrapping ports on the client and server systems (Fig. 1). It

wraps the port the real service has assigned at the server (e.g. 4000 in Aglets server to

another port, say 4001), and at clients it creates a local port the client service has to

communicate with to access the Aglets network service (say 4001). The client

connects to its 4001 local port. Then Stunnel wraps the connection and redirects the

request to the 4001 port on the server node, which is also a port wrapped by Stunnel.

The server-side Stunnel unwraps and redirects data to Aglets platform on port 4000

(which is usually blocked by a firewall to prevent direct external access).

Authentication (server and optionally client) also takes place in the process at the

beginning of the communication (like in whatever other SSL connection).

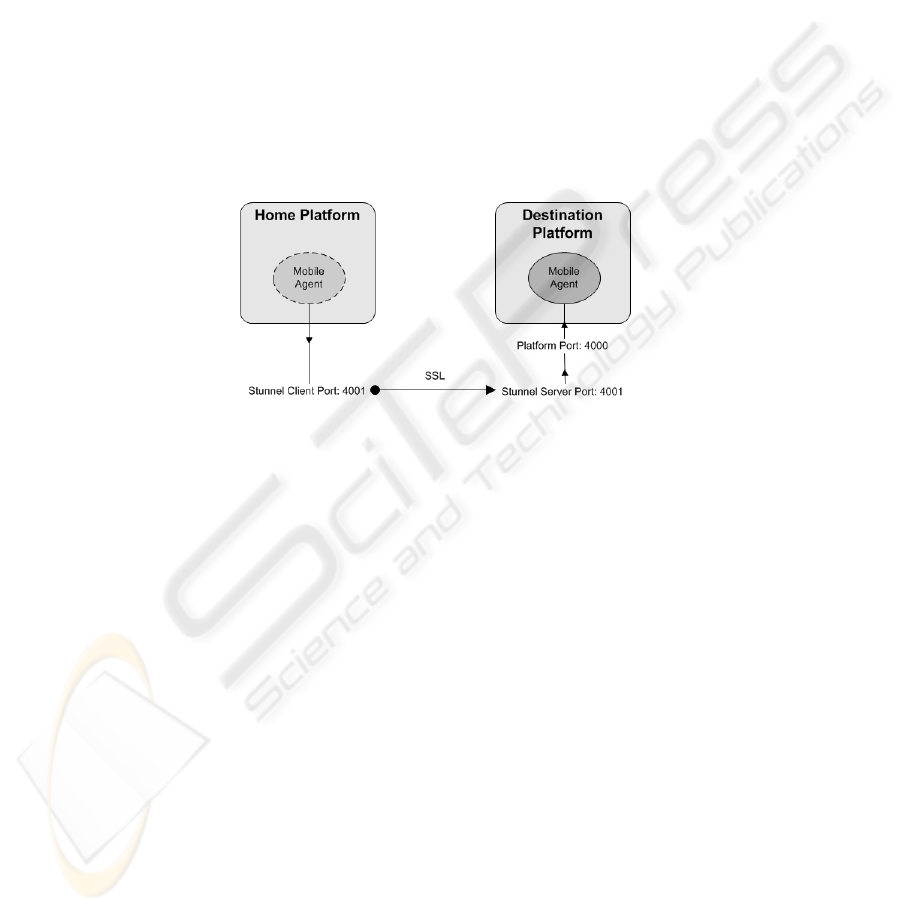

Fig. 1. Example Stunnel port-wrapping mechanism

In the case of a mobile MAS, the server and client ports are the ones where the mobile

agent platform resides, although in the agent paradigm does not exist the concept of

server and client, we will use them to refer to the platform where the agent dispatches,

that is the source or client platform, and the platform where the agent moves to

(destination or server platform). These roles of the platforms are always changing in

multi-hop mobile MAS, and are inverted from the natural ones of a typical

Client/Server architecture (Fig. 1)

A typical mobile multi-agent community can be modeled as some nodes that act as

home platforms for the vast majority of agents, and other nodes that play the role of

intermediate or visit nodes. The number of visit nodes is usually far bigger than the

number of home nodes in a typical multi-agent community. Although any node can

create an agent and become a home node, in real applications with multi-agent

systems, the community is usually divided into platforms that create the majority of

agents (sources) and other platforms that doesn’t create mobile agents (destinations).

We have detected some problems regarding Stunnel during our research with secure

tunnels. Stunnel features are summarized in Table 1. The most important ones are as

well discussed.

Table 1. Stunnel features

Feature Explanation Can be solved?

UDP tunneling Stunnel cannot wrap UDP protocol. No

Node

authentication

Stunnel uses digital certificates. A lot of

certificates need to be issued.

N/A

Integrity

checking

As Stunnel uses SSL protocol, it also uses the

same mechanisms of data integrity.

N/A

Port-range

mapping

Stunnel cannot map a range of ports in a

unique process.

Tunnel dodging

Problems with Stunnel and all protocol

wrappers in general.

Yes

IP address

routing

When using IP addresses as basic

authentication mechanism and NAT servers.

Yes

• Node authentication. A feature derived from using SSL is the need to use digital

certificates for node-authentication. At least a digital certificate needs to be used in

each destination platform. Client-authentication (source nodes) is optional in SSL.

Another authentication problem is derived from the fact that the role of server

and client nodes are inverted from the natural ones of a typical Client/Server

architecture, where the lesser number of nodes are the servers (and are the only

ones that really needs digital certificates). With the Stunnel approach it is needed to

create at least a digital certificate for each destination node of a community;

furthermore as the role of each platform is always changing in multi-hop mobile

MAS, each node needs a digital certificate. That is not a big problem with small

communities, but with bigger or small but easily growing ones, it could be a strong

restriction, because we must maintain a community-restricted PKI, and deploy

strong authentication mechanisms for nodes to prevent tampering of certificates. A

beneficial collateral effect derived from the deployment of strong authentication

systems and PKI infrastructure is that no agent coming from external parties can be

injected in our community. It is a natural isolation mechanism.

Fig. 2. Multiple destination Stunnel setup

• Port mapping. Stunnel communication model have some problems regarding the

way it maps ports. Stunnel needs to map separate ports with separate IP addresses

for each destination platform in order to be able to establish the tunnels (that is, it

cannot map a range of ports or a range of IP addresses). One Stunnel process is

needed on each source platform (5Mb) for each destination to which the agents

may travel to. On a network with 2000 possible destinations, the RAM required on

the each source platform would become unfeasible (10,000 Mb of RAM, or 10Gb).

It should be taken into account that the source platform is always client (Fig. 2.)

Another problem is that some agent platforms (such as Aglets) work on a fixed

but user-configurable port for agent migration, but it uses a random port from a

range for message transmission. Due to design restrictions of Stunnel, this actually

means having one Stunnel process for each possible messaging port, which is

totally unfeasible for the same reason as before (there could be 1000 ports in the

range, and each Stunnel process requires 5Mb). Multiply this quantity of needed

RAM to the one obtained from running one more Stunnel process for each possible

destination and you could easily need a Terabyte-capable system to run an

effective SSL-tunnelled mobile MAS in large communities.

• Tunnel dodging. Since Stunnel is external and transparent to the application which

uses it, when an agent is asked for a handler or proxy in order to be able to

reference it, the platform gives the address and port of the system where it is

residing. It does not give the port where Stunnel is located, but the real platform

port, and so the communication, if established, is going to be untrusted (bypassing

Stunnel). Some agent platforms provide a proxy mechanism to encapsulate its

transmission protocol in another protocol, creating a tunnel for it. This is the case

of Aglets, where it is possible to define an HTTP proxy (host and port) to use when

transferring agents. That is, Aglets encapsulates ATP over HTTP, and then HTTP

requests are encapsulated in SSL through Stunnel and transmitted.

• IP address routing. There is a problem related to private IP addresses, NAT servers

and some mobile MAS platforms (such as Aglets). This problem is not related to

tunneling itself but to specific agent platform design itself. If the mobile MAS

platforms have private IP addresses and are behind NAT servers, the agents need to

traverse that NAT server, which is going to change the IP address of the packets to

the one the NAT server has. Some mobile MAS hardcode the home platform IP of

the home platform in the agent on dispatch. This address is then compared with the

one of the packets arriving at the destination platform, and if it is not the same, the

agent will be discarded. This is a general problem with NAT and could not be

easily resolved because it depends on the design of each mobile MAS platform.

Some mobile MAS tries to resolve the hardcoded IP address of dispatched agent,

but if the address is in the private range it is not possible to resolve it unless there is

an available DNS server that has registered that private IP.

4.2 Secure Shell (SSH2)

SSH is a protocol for securing network services over an insecure network. It is

traditionally used for protecting insecure UNIX protocols such as telnet, rlogin, etc.

Moreover SSH can be used to secure other services creating a wrapper around them

using a local port redirection scheme very similar to the one used by Stunnel. SSH is

widely accepted by the scientific community as being a trusted security protocol.

SSH architecture is very similar to SSL or TLS one, and provides basically the

same functionality. SSH can use different authentication schemes such as preshared

secret or digital signatures. It also uses Diffie-Hellman key agreement protocol (such

as TLS) and HMAC integrity hash. Different implementations of SSH protocol can

use different encryption algorithms. SSH features are summarized in Table 2.

There are several implementations of SSH protocol, ranging from Open Source to

commercial ones and for a wide variety of operating systems. Although very similar

to Stunnel at protocol level and working way of OpenSSH implementation, this

application has been considered for its wide acceptation.

Table 2. SSH (OpenSSH) implementation features

Feature Explanation Can be solved?

UDP tunneling SSH doesn’t support UDP. No

Node

authentication

Stunnel uses digital certificates. A lot of

certificates need to be issued.

N/A

Integrity

checking

SSH uses HMAC hashes.

N/A

Port-range

mapping

OpenSSH cannot map a range of ports in a

unique process.

Tunnel dodging

Problems with SSH and all protocol wrappers

in general.

Yes

IP address

routing

When using IP addresses as basic

authentication mechanism and NAT servers.

Yes

4.3 Zebedee

Zebedee [18] is another Open Source application used to create secure tunnels with

implementations in Windows, UNIX, Linux, Java and Ruby. Zebedee (from its

documentation) has a small memory footprint and low wire protocol overhead.

Zebedee does not use SSL, but a plain Diffie-Hellman protocol for key agreement

and a symmetric key cryptographic algorithm, Blowfish. Zebedee does not provide

any features for data integrity.

In counterpart, Zebedee solves some of the design and implementation problems of

Stunnel, providing us with a more flexible way of creating tunnels. In exchange we

get a weak authentication mechanism and no integrity checking. Zebedee also

supports compression (through zlib and bzip2 libraries) with a selectable range of

speed and efficiency. It doesn’t support cryptographic acceleration hardware because

it isn’t based on standards.

• Tunneling of UDP protocol. Zebedee can be used to tunnel UDP protocols, but

even in UDP-mode the created secure tunnel uses TCP protocol to wrap it.

• Node authentication. Zebedee permits a sort of really weak identity checking

mechanism for authentication (it is not possible to use digital certificates for

authentication): one based on IP addresses, and the other based on the generation

of a private and permanent key, that is used (along with the modulus and generator

of the Diffie-Hellman phase) for the generation (usign a hash function not

specified) of a public fingerprint which needs to be copied in every Zebedee server

it needs to communicate with.

As neither the private key nor the modulus and generator change, and although

Zebedee uses session keys that change regularly, this identity checking scheme is

vulnerable to known-plaintext attacks. Zebedee documentation also points that its

identity checking mechanism is also vulnerable to man-in-the-middle attacks.

• Port mapping. Zebedee can also map a range of IP addresses and ports for

destination platforms in only one process, thus releasing the huge RAM constraint

of Stunnel on big agent communities and the random port selection when sending

messages in some agent platforms, thus improving the maintenance of the

architecture.

Table 3. Zebedee features

Feature Explanation Can be solved?

UDP tunneling Zebedee uses TCP to wrap UDP protocol. N/A

Node

authentication

Really weak authentication scheme based on

IP addresses.

Integrity

checking

Zebedee does not support any integrity

checking mechanism.

Port-range

mapping

Zebedee can map a range of ports in a unique

process.

N/A

Tunnel dodging

Problems with Zebedee and all protocol

wrappers in general.

Yes

IP address

routing

When using IP addresses as basic

authentication mechanism and NAT servers.

Yes

In spite of its weak authentication mechanisms, this weakness can be used to simplify

security maintenance, as it doesn’t need any private secret to be permanently stored at

any platform (it should be remembered that key generation is automatic). Adding

nodes to the infrastructure is straightforward, simple and cost-effective, although very

insecure. A PKI isn’t needed this time, but the need of the DNS still remains.

The lack of standards supported by Zebedee, weak authentication mechanisms, lack

of integrity checking mechanisms, and the impossibility to resolve private IP address

routing make Zebedee a near-unusable alternative to Stunnel or SSH. Zebedee

features are summarized in Table 3.

4.4 Security and availability problems with TCP-based secure tunnels

In addition to the exposed problems in all secure tunnel architectures, whether it is a

SSL-based system or a proprietary one, there is another serious security and

availability problem related to all TCP-based tunneling systems.

The capability of inferring TCP sequence numbers (commonly named blind

spoofing attack) have been a fact for many years [19]. This can be used to inject

packets in an open TCP conversation or to send connection termination packets to one

or both parties, causing severe delays and in the end a DoS failure [17]. It is possible

to carry out the attack injecting packets from a third party before tunnel establishment

(although it is difficult to carry on a blind spoofing attack out of a LAN), since TCP-

based secure tunnels doesn’t authenticate TCP packets until the tunnel has been

established.

5 Conclusions and future research

Mobile multi-agent systems introduce a lot of security issues. Some of them are new

and others are very similar to client-server paradigm ones. The majority of the

solutions are directed towards a concrete mobile MAS or are rather theoretic. Mobile

MAS applications can be used nowadays by the industry in tele-care services, since

there are even commercial MAS platforms. But as programming languages are

becoming multiplatform, it is clearly needed multi-platform security solutions for at

least some of the security issues they have. A tele-care service is even more

restrictive.

We propose in this paper a new approach for protecting agent communications using

secure tunnels implemented using existing applications and protocols. We were

looking for a cheap, multi-platform and generic solution to several mobile MAS

platforms. This solution is easily applicable to any service, including tele-care ones.

Our work is focused on protecting communications, but also provides some

collateral effects that improve the protection of agents and platforms. Using a key

distribution scheme (i.e. a PKI) for our community, guarantees that only agent

platforms whose digital certificate have been signed by the certificate authority of the

community PKI can communicate with other platforms of the community.

Our solution provides privacy, integrity checking and a basic form of

authentication scheme that needs to be extended to be usable in a large production

environment. Our solution is also mobile MAS independent and very low cost.

Existing tele-care agent applications can obtain a direct benefit with very few or even

no modifications at all.

We have studied in depth the solutions that secure tunnel applications can provide

to existing agent platforms, using Aglets as the reference platform. During the study

new non-security related problems have also been detected (for example, routing of IP

addresses and authentication scheme of some agent platforms). Some of them have

been solved, but others are limitations of the applications that have been tested. There

are some other applications we have not tested (such as SSLWrap) because they

provide the same functionality to the ones that have been tested. We kept the most

representative and actual ones.

Since our solution is a preventive technology, it cannot provide predictive or

detection capabilities on its own. Neither human access control nor authentication has

been considered, since these issues are complex enough to dedicate its own research

efforts. These lines are areas for future research. There is also some room to research

in order to provide solutions to the new problems created by these secure wrappers, to

the ones that still remain after our solution, and finally for performance testing of the

proposed solutions.

References

1. W. Jansen, T. Karygiannis: Mobile Agent Security. NIST Special Publication 800-19,

October 1999.

2. L. M. Silva, P. Simoes, G. Soares, P. Martins, V. Batista, C. Renato, L. Almeida, N. Stohr:

JAMES: A Platform for Moble Agents for the Management of Telecommunication

Networks. Proceedings Intelligent Agents for Telecommunication Applications, IATA’99,

Stockholm, Sweden, August 1999.

3. A. Puliafito, O. Tomarchio: Design and Development of a Practical Security Model for

Mobile Agent System. 7

IEEE International Symposium on Computers and

Communications, ISCC’02.

4. S. Fischmeister, G. Vigna, R. A. Kemmerer : Evaluating the Security of Three Java-Based

Mobile Agent Systems. 5

IEEE International Conference on Mobile Agents (MA’01).

Atlanta, Georgia, USA, December 2001.

5. R. Wahbe, S. Lucco, T. Anderson: Efficient Software-Based Fault Isolation, October 1998.

6. W. Farmer, J. Guttman, V. Swarup: Security for Mobile Agents: Authentication and State

Appraisal. Proceedings of the 4

European Symposium on Research in Computer Security

(ESORICS), September 1996.

7. J. J. Ordille: When Agents Roam, Who Can You Trust? Proceedings of the First Conference

on Emerging Technologies and Applications in Communications, May 1996.

8. D. Chess, B. Grosof, C. Harrison, D. Levine, C. Parris, G. Tsudik: Itinerant Agents for

Mobile Computing. IEEE Personal Communications, vol.2, no. 5, October 1995.

9. G. Necula, P. Lee: Safe Kernel Extensions Without Run-Time Checking. Proceedings of the

Symposium on Operating System Design and Implementation (OSDI), October 1996.

10. G. Vigna: Protecting Mobile Agents Through Tracing. Proceedings of the 3

ECOOP

Workshop on Mobile Object Systems, June 1997.

11. J. Riordan, B. Schneier: Environmental Key Generation Towards Clueless Agents. Mobile

Agents and Security, Springer-Verlag, Lecture Notes in Computer Science No. 1419, 1998.

12. T. Sander, C. Tschdin: Protecting Mobile Agents Against Malicious Hosts. Mobile Agents

and Security, Springer-Verlag, Lecture Notes in Computer Science No. 1419, 1998.

13. F. Hohl: Time Limited Blackbox Security: Protecting Mobile Agents From Malicious

Hosts. Mobile Agents and Security, Springer-Verlag, Lecture Notes in Computer Science

No. 1419, 1998.

14. D. B. Lange, M. Oshima: Programming and Deploying Java Mobile Agents with Aglets.

Addison-Wesley, 1998. ISBN 0-201-32582-9.

15. J. Altmann, F. Gruber, L. Klug, W. Stockner, E. Weippl: Using Mobile Agents in Real

World: A Survey and Evaluation of Agent Platforms. 5

International Conference on

Autonomous Agents, 2

Workshop on Infrastructure for Agents, MAS, and Scalable MAS

at Autonomous Agents. Montreal, Canada, May 2001.

16. W. Wong: Stunnel: SSLing Internet Services Easily. SANS Institute, November 2001.

17. A. Pankratov: Trivial Denial of Service Attack against TCP-based VPN. Security Focus,

April 2003.

18. N. Rinsema: Secure (and free) IP Tunneling using Zebedee. SANS Institute, June 2001.

19. M. Zalewski: Strange Attractors and TCP/IP Sequence Number Analysis. BlindView

Corporation, 2001.
