Compositional Construction of Web Services Using Reo

Nikolay Diakov, Farhad Arbab

Dutch National Research Institute for Mathematics and Computer Science (CWI),

P.O. Box 94079, NL-1090 GB Amsterdam, The Netherlands

Abstract. A Web Service can represent a unit of business logic that an organi-

zation exposes to other organizations on the World Wide Web. The recent ef-

forts of the industry to agree on a common definition for Web Services resulted

in the Web Services (WS) standard that governs how one defines, advertises

and uses Web Services. Composition of primitive Web Services into complex

ones presents the next challenge for the industry. Existing proposals for lan-

guages for service composition (also called choreography of Web services)

typically come from the business process modeling community and often lack

foundations in theoretical computer science and possibilities to address compo-

sition from a more general perspective than business process applications only.

In this paper we present our work-in-progress on compositional construction of

Web Services using the Reo coordination language. The Reo language has a

strong formal basis and promotes loose coupling, distribution, mobility, exoge-

nous coordination, and dynamic reconfigurability. We carry out this work

within the context of the Cybernetics Incident Management (CIM) project.

1 Introduction

The main purpose of e-business consists of the automation of business processes

using software applications. Service-oriented computing focuses on describing the

externally observable behavior of such software applications. The Web Services

standard applies the ideas of service-oriented computing to the Web. A Web Service

represents a reusable piece of business logic that an organization can expose to other

organizations via the World Wide Web. Fig. 1 shows the organization of the main

ingredients of the WS standard [10] in a layered fashion.

Transport layer: H T T P , S M T P , e tc

XM L m essaging layer: SOAP

Service description layer: W S D L

Service

p u b lic a tio n /

discovery:

UDDI

Service

com position:

BPEL4W S,

WSCI, etc

Core W S

Fig. 1. WS layered architecture

Diakov N. and Arbab F. (2004).

Compositional Construction of Web Services Using Reo.

In Proceedings of the 2nd International Workshop on Web Services: Modeling, Architecture and Infrastructure, pages 49-58

DOI: 10.5220/0002666400490058

 SciTePress

The service transport layer has the responsibility for transporting messages between a

provider and a requestor of a Web Service. The XML messaging layer has the re-

sponsibility for the encoding of messages using a common XML format such as the

SOAP protocol [14], so that both sides can have a common understanding of the

structure of a message. The service description layer describes the public interface of

a Web Service using the Web Services Description Language (WSDL) [15]. Service

publication and discovery allows publishing and searching for Web Services using

the Universal Description, Discovery and Integration (UDDI) [16]. The SOAP,

WSDL, and UDDI specifications constitute the core of the WS standard. These speci-

fications have reached a mature state wherein many major software vendors have

committed to incorporating WS into the basic infrastructure of their products.

Automation of business processes across organizational boundaries has become a

recent trend in e-business. This trend reflects the need for explicit modeling of long-

running interactions and complex dependencies among different organizations. The

WS composition layer (Fig. 1) facilitates this need by allowing one to build new Web

Services out of simpler ones. At present, the industry has not agreed upon a common

specification for service composition. Business Process Execution Language for Web

Services (BPEL4WS) [17] and the Web Service Choreography Interface (WSCI) [18]

constitute two examples of candidates for a service composition specification stan-

dard.

Current proposals for a Web Service composition standard suffer from two major

types of problems [8]: (a) proposals often reflect some company interests in specific

domain issues, which makes them inadequate for treating more general problems in

service composition, and (b) proposals have operational semantic problems due to

their lack of a strong formal basis. These two problems contribute to the insufficient

expressive power of existing proposals in terms of a more theoretical perspective on

component composition (one can generally view Web Services as components). Fur-

thermore, it seems that current proposals for Web Service composition do not provide

sufficient expressive power to support coordination of distributed activities, for ex-

ample, as in transactions. We see this as the reason for the appearance of the WS-

Coordination [13] as a standardization activity that tries to fill this gap separately

from the composition of Web Services. The work described in this paper addresses

the problems we mentioned so far altogether using the Reo coordination language.

2 The Reo Coordination Language

Reo presents a paradigm for composition of software components based on the notion

of mobile channels. Reo enforces an exogenous channel-based coordination model

that defines how designers can build complex coordinators, called connectors, out of

simpler ones. Application designers can use Reo as a “glue code” language for com-

positional construction of connectors that orchestrate the cooperative behavior of

component instances in a component-based system. One can find an introduction to

Reo in [1], and a detailed elaboration on the language and its model in [2]. The Reo

coordination language provides, among others, the following features:

− Loose coupling among components;

− Support for distribution and mobility of heterogeneous components;

− Exogenous coordination (i.e., by third parties);

− Dynamic reconfigurability;

− Formal semantics based on a coinductive calculus of flow [3] and (alternatively)

on constraint automata [4].

5.2 Basic concepts

Reo does not say much about the application components, whose activities it coordi-

nates. From the point of view of Reo, a system consists of a number of component

instances, communicating through connectors that coordinate their activities. Reo

assumes that a component instance contains one or more active entities (e.g., proc-

esses, agents, threads, actors, etc.), which communicate with entities outside of their

component instance only through input/output operations that they perform on a (dy-

namic) set of channel ends connected to the component instance. Reo completely

abstracts from the details of the communication within a component instance. Instead,

Reo focuses on the inter-component-instance communication, which takes place ex-

clusively through connectors.

Reo allows compositional construction of a connector out of simpler connectors,

where channels represent the atomic connectors. A channel has precisely two channel

ends. Reo introduces two types of channel ends: sink and source. A sink dispenses

data out of its channel. A source accepts data into its channel.

Reo models a connector as a graph of nodes and edges, where zero or more chan-

nel ends may coincide on every node, every channel end coincides on exactly one

node, and an edge exists between two nodes if and only if there exists a channel

whose channel ends coincide on those nodes.

When a component instance knows a channel end, any active entity inside it can

perform Reo operations on that channel end.

5.2 Reo operations

Reo defines the following operations, which relate to the manipulation of the connec-

tor topology: create, forget, join, split, and hide. The create operation creates a chan-

nel (of some defined type) and makes the channel ends available to the performer of

the operation. With the forget operation a component instance tells Reo that it does

not need a channel end anymore. The join operation allows joining of two nodes

identified by two channel ends, each coincident with one of the nodes. The split op-

eration allows for splitting a node into two nodes by specifying the channel ends that

the performer requires to coincide on the new nodes. The hide operation allows the

performer to protect the topology of a node designated by some coincident channel

end, making subsequent join and split fail on channel ends coincident with that node.

Reo defines the following operations, which allow input/output of data: connect,

disconnect, wait, read, take

, write, and move. The connect operation connects the

performer to a channel end by providing exclusive access to the node (and thus all

channel ends coincident with it) on which this channel end coincides. The disconnect

operation releases a previously established connection. The wait operation allows the

performer to wait for some condition on a channel end. The read operation allows the

performer to non-destructively read data from a sink. The take operation does the

same as read but it also removes the data from the sink. The write operation allows

the performer to write data to a source. The move operation allows the performer to

move a channel end to another location. Note that changing location does not change

the topology of the connector or the connection status of the moved channel end.

5.3 A useful set of primitive channels

Reo assumes the availability of an arbitrary set of channel types, each with well-

defined behavior. As an example, we present the following non-exhaustive set of

channel types, each with some distinctive properties: Sync, Filter, SyncDrain, Sync-

Spout, LossySync. A Sync channel has a source and a sink. Writing a message suc-

ceeds on the source of a Sync channel if and only if taking of a message succeeds at

the same time on its sink. The Filter channel behaves like the Sync except that it loses

all data that do not match the specified pattern of the Filter. A SyncDrain has two

sources. Writing a message succeeds on one of the sources of a SyncDrain channel if

and only if writing a message succeeds on the other source. A SyncSpout has two

sinks. A SyncSpout channel serves as an unbounded source of data that matches cer-

tain pattern on both of its sinks. A LossySync channel has a sink and a source. The

source always accepts all data items. If the sink does not have a pending read or take

operation, the LossySync loses the data item, otherwise the channel behaves as a

Sync.

3 Composing Web Services Using Reo

Consider an example in which some organization wants to offer a “Holiday Reserva-

tion Service” (HRS) that allows customers to organize holiday travels (Fig.2).

HOtel

Reservation

Service (HORS)

Flight

Reservation

Service (FRS)

Reservation

Service

(

CRS

)

Holiday

Reservation

Service (HRS)

Connector

Sync channel

Source channel end

C G

SyncDrain channel

Sink channel end

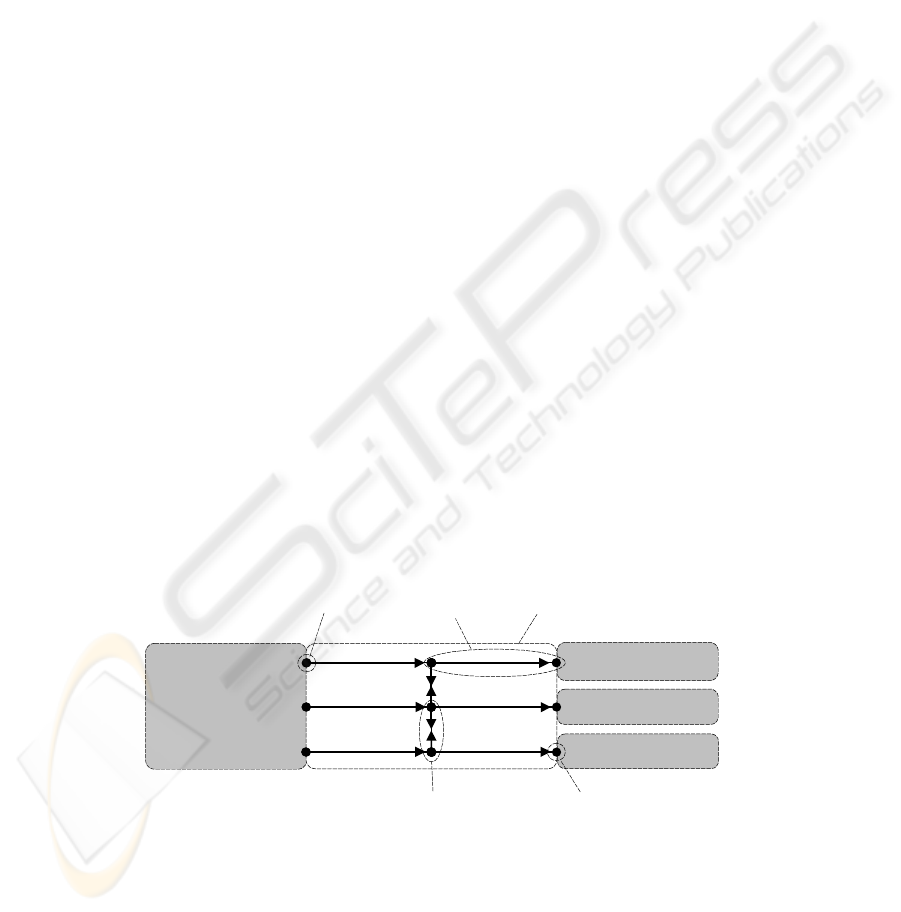

Fig. 2. Committing a transaction modeled with Reo

For simplicity, we assume that organizing a holiday requires making reservations for

a hotel, for a flight and for a car. Some other organizations offer services each doing

part of the job: hence the HORS, FRS and CRS services. Again for simplicity, we

assume that the HRS service has already negotiated with a client a selection of proper

flight, hotel and car. As the last thing before asking the customer to pay, the HRS

service needs to “commit” a transaction containing each of the reservations. Now, a

holiday reservation should only succeed when all other three reservations succeed.

We model the “commit” part of the behavior of the HRS service using a “barrier

synchronization” connector in Reo consisting of six synchronous channels and two

synchronous drain channels, organized together as in Fig.2.

The HRS service makes “commit” requests on channel ends A, B, and C in any or-

der and at times it needs to. According to the semantics of the barrier synchronization

connector, the three “commits” of the HRS system will succeed (the success condi-

tion for the holiday reservation) if and only if the three reservations at the HORS,

FRS and CRS services, respectively, succeed at the same time.

This example illustrates the ease with which Reo allows construction of connectors

that exhibit complex behavior such as transaction support. The simple composition

rules of Reo yield a surprisingly expressive power that enables the construction of

different types of communication infrastructures, such as peer-to-peer, shared data

space, software bus, etc., out of a very small set of primitive channel types [2], [11].

4 Reo Coordination Middleware

In order to use Reo for efficient construction of software applications such as Web

Services, we need to build a Reo coordination middleware.

A middleware coordinates the interactions among application components by pro-

viding functionality that bridges the gaps between software applications and the low-

level hardware and software [5]. A coordination middleware consists of system soft-

ware that provides a set of reusable common services and programming mechanisms

for coordination of component behavior. Coordination middleware simplifies the

development of distributed software applications by offering high-level abstractions

for programming of component compositions, conceptually closer to an application

model defined using a coordination language, than the low-level programming meth-

ods offered by most existing component middleware technologies.

Transport layer

Reo coordination layer

Reo component layer

Application layer

Fig. 3. Reo coordination middleware

We model a Reo coordination middleware as two separate layers between the trans-

port layer and the application layer (Fig. 3). The Reo coordination layer provides the

basic Reo functionality, such as basic channels and operations on their channel ends.

The Reo component layer provides the minimum services and tools necessary for

building, deploying and executing application components with Reo.

5 Reo-enabled Web Services

We consider Web Services as a class of software applications. In order to facilitate

this class with a Reo coordination middleware, we need to provide an additional ad-

aptation layer – the Reo WS layer (Fig.4). We do this in a layered fashion, because

we wish to allow the mutual coexistence of both Web Services and “pure” (non-Web

Services) Reo components.

Some transport layer

Reo coordination middleware

Reo WS layer

WS1

WS2

Composite

Reo

connector

Fig. 4. Layered representation of a composite Web Service

The Reo WS layer effectively allows making a Reo component out of any Web Ser-

vice. This way Web Services can interact with Reo components and vice versa. Fur-

ther, we consider two ways to construct the Reo WS layer: (a) as an alternative trans-

port layer for the Web Services technology, and (b) as a collection of adapters. We

view these two approaches as complementary, because each has its own pros and

cons.

5.1 Reo Transport for Web Services

The WS standard separates the definition of messages exchanged with a Web Service

from the way the distributed environment communicates these messages to and from

a Web Service. We use this feature of the WS standard to define a Reo Transport For

Web Services – RT4WS (Fig. 5).

Some transport layer

Reo coordination middleware

Reo WS layer

WS1

WS2

Reo

connector

Reo Transport 4WS (RT4WS)

RT4WS Binding

Composite

Fig. 5. Reo transport for Web Services

WS providers who choose the Reo coordination middleware need to select the

RT4WS for use with their Web Service. In order to do this in a generic way, the pro-

vider needs to use a special binding for the Reo transport. The RT4WS binding de-

fines how a provider sends messages with a particular transport (i.e., allows the pro-

vider to bind the service to the transport).

A Reo-enabled transport (potentially) allows for an efficient and transparent inte-

gration of the Reo middleware with an arbitrary existing Web Service. We regard the

fact that the provider must actually install the new transport in his infrastructure in

order to enable his Web Services for Reo as the main drawback of this approach.

5.2 WS Adapters for Reo

In the second approach we define two types of adapters (Fig. 6): Reo WS provider

adapters and Reo WS requestor adapters.

Some transport layer

Reo coordination middleware

Reo WS layer

WS1

WS2

Reo

connector

Reo WS

provider

adapter

Reo WS

requestor

adapter

Composite

Fig. 6. Reo adapters for Web Services

The Reo WS provider adapter mediates all communication between the Reo coordi-

nation middleware and a Web Service. Effectively, the Reo WS provider adapter

appears to a Web Service as a typical WS requestor using one of the transports origi-

nally supported by the Web Service to make requests to the Web Service. On the

other hand, the Reo WS provider adapter appears as a special Reo component that

offers the functionality of the Web Service to other Reo-enabled Web Services or

“pure” Reo components. In a similar way, the Reo WS requestor can connect to a Reo

WS provider adapter, and appears to a typical WS requestor as a normal Web Ser-

vice. This allows a requestor (e.g., a composite Web Service) to use other Reo-

enabled Web Services or “pure” Reo-components as if they behaved as “normal”

(non-Reo-enabled) Web Services. Effectively, both adapters play the role of addi-

tional tiers between a service provider and a service requestor that enable their inter-

action with a Reo-enabled infrastructure provided by the Reo coordination middle-

ware.

Providers of Web Services need not do anything to allow their Web Services to in-

teract with Reo components, e.g., for the purpose of participating in a composition

with other Web Services. We consider this as the main advantage of the adapter ap-

proach. In fact, the WS provider need not know that someone “adapts” its Web Ser-

vices for use with the Reo infrastructure. We view possible performance degradation,

if any, resulting from the multiple transport protocols used in every adapter, as a

disadvantage of this approach. This problem often appears in multi-tier system.

6 Coordination Middleware based on MoCha

In this section we describe our high-level architecture of a coordination middleware

using the MoCha middleware. This architecture uses Web Services as a Reo compo-

nent model by following the transport approach we discussed earlier.

MoCha stands for Mobile Channels middleware [7], [9]. A mobile channels mid-

dleware provides channel communication with dynamic reconfiguration capabilities.

Mobile channels provide to components transparent support for mobility within a

distributed environment.

Transport: Java RMI

MoCha layer

easyMocha chocoMoCha

Full Reo coordination layer

Reo component layer

Applications: Java-based

Fig. 7. The MoCha middleware

The MoCha middleware (Fig. 7) implements a subset of the Reo functionality, limited

to direct component-to-component connections. The MoCha middleware constitutes

our first step toward a full Reo coordination middleware implementation. MoCha

uses Java RMI as a distributed processing environment. MoCha has three basic com-

ponents: the MoCha layer, easyMocha layer, and chocoMocha layer. The MoCha

layer provides the basic channel communication. The easyMoCha layer provides a

more extensive and user friendly interface together with the ability of keeping the

consistency of channel-end references for easier development of applications on top

of the MoCha layer. The chocoMoCha layer provides operations that allow compo-

nents to connect to and disconnect from MoCha channel ends. In order to become

fully Reo compliant, MoCha needs an additional layer that adds the concept of nodes

and operations such as join and split, among others, on Reo nodes. The MoCha layer

does not provide a component model, therefore we need an additional Reo component

layer to use MoCha in component-based applications. The work presented in [7]

describes a first version of such a component layer.

We use the MoCha prototype to build a Reo transport for Web Services. Fig. 8

shows the resulting coordination middleware architecture for WebServices.

Transport layer: Java RMI

MoCha

easyMocha chocoMoCha

Application layer

Mocha Transport 4WS (MoCha4WS)

MoCha4WS Binding

Reo component layer: Web Services

Fig. 8. Coordination middleware architecture for Web Services based on MoCha

The MoCha, easyMocha, and chocoMoCha layers constitute the bottom layer of the

coordination middleware. In order to integrate MoCha with Web Services we make a

MoCha4WS transport layer and a MoCha4WS Binding layer that allows the use of

this new transport. This effectively makes Web Services appear as a Reo component

layer, which designers can use to build applications imbued with the features that Reo

provides.

7 Conclusions

In this paper we presented our ongoing work on compositional construction of Web

Services. We use a coordination language, Reo, that promotes loose coupling, distri-

bution, mobility, exogenous coordination, and dynamic reconfiguration. We propose

Reo as a modeling language in which designers implement Web Service composi-

tions. The strong formal basis of Reo guarantees possibilities for both model checking

and verification, as well as well-defined execution semantics of a Web Service com-

position. As such, we consider Reo complementary to the existing languages (typi-

cally coming from the business process modeling community) for service composi-

tion.

We aim at producing a prototype coordination middleware that allows designers to

build robust and reconfigurable composite Web Services.

8 Acknowledgements

The authors would like to thank Juan Guillen-Scholten for his help on the MoCha

middleware. We carry out this work within the context of the Cybernetics Incident

Management (CIM) project, SENTER project nr. TSIT2021, The Netherlands.

References

1. Arbab, F., Mavadatt, F. “Coordination through channel composition”. In “Coordination

Languages and Models: Proc. Coordination 2002, volume 2315 of Lecture Notes in Com-

puter Science, Springer-Verlag, pp. 21-38.

2. Arbab, F. “Reo: A Channel-based Coordination Model for Component Composition”. To

appear in “Mathematical Structures in Computer Science”, 2004.

3. Arbab, F., Rutten, J.J.M.M. “A Coinductive Calculus of Component Connectors”. In the

Proceedings of 16th International Workshop on Algebraic Development Techniques

(WADT 2002), Lecture Notes in Computer Science 2755, Springer, 2003, pp. 35--56.

4. Arbab, F., Baier, C., Rutten, J., Sirjani, M. “Modeling Component Connectors in Reo by

Constraint Automata”. To appear in Electronic Notes in Theoretical Computer Science,

2004.

5. Schantz, R. E., and Schmidt, D. C. “Middleware for Distributed Systems: Evolving the

Common Structure for Network-centric Applications,” Encyclopedia of Software Eng.,

Wiley & Sons, New York, 2001; also available at

http://www.cs.wustl.edu/~schmidt/PDF/middleware-chapter.pdf

7. Guillen-Scholten, J.V., Arbab, F., de Boer, F.S., and Bonsangue, M.M. “A Channel-based

Coordination Model for Components”, in the Proceedings of 1st International Workshop on

Foundations of Coordination Languages and Software Architectures, ENTCS 68.3, Elsevier

Science, 2002.

8. Van der Aalst, W.M.P. “Don't go with the flow: Web services composition standards ex-

posed”. Trends and Controversies, IEEE Intelligent Systems, issue Jan/Feb, 2003.

9. Arbab, F., F., de Boer, F.S., Guillen-Scholten, G.V., Bonsangue, M.M. “MoCha: A Middle-

ware Based on Mobile Channels”. In the Proceedings of the 26th Annual International

Computer Science Software and Applications Conference (COMPSAC'02).

10. Web Services site. http://www.w3c.org/2002/ws/

11. Arbab, F. “Abstract Behavior Types: A Foundation Model for Components and Their

Composition”. In the Proceedings of the First International Symposium on Formal Methods

for Components and Objects (FMCO 2002), LNCS 2852, pp.33-70, 2003, The Netherlands.

12. The CIM project official web page. http://www.almende.com/cim

13. F. Cabrera et al., “Web Services Coordination (WS-Coordination)”, August 2002,

http://www.ibm.com/developerworks/library/ws-coor/

14. XML Protocol Group, “SOAP 1.2”, W3C Recommendation, June 2003,

http://www.w3c.org/2000/xp/Group/

15. E. Christensen, F. Curbera, G. Meredith, and S. Weerawarana, “Web Services Description

Language (WSDL) 2.0”, W3C, November 2001, www.w3.org/TR/wsdl20/

16. Universal Description, Discovery and Integration (UDDI) protocol 3.0, November 2004,

http://www.uddi.org/

17. F. Curbera, Y. Goland, J. Klein, F. Leyman, D. Roller, S. Thatte, and S. Weerawarana,

“Business Process Execution Language for Web Services (BPEL4WS) 1.1,” May 2003,

http://www.ibm.com/developerworks/library/ws-bpel

18. Web Services Choreography Interface 1.0 specification, December, 2003,

http://wwws.sun.com/software/xml/developers/wsci/
