Detecting Critical Situation in Public Transport

R. M. Luque, F. L. Valverde, E. Dominguez, E. J. Palomo and J. Mu

noz

Department of Computer Science, University of M

alaga, M

alaga, Spain

Abstract. This paper presents a system information applied to video surveillance

to detect and identify aggressive behaviors of people in public transport. A com-

petitive neural network is proposed to form a background model for detecting

objects in motion in the sequence. After identifying the objects and extracting

its features a set of rules are applied to decide if an anomalous behavior is or

not considered aggressive. Our approach is integrated in a CCTV system and is

a powerful support tool for security operators to manage to detect in real time

critical situations in public transport.

1 Introduction

Research in video surveillance systems has been an area in which scientiﬁc community

has made a lot of number of contributions for the last years [1–3]. Developing systems

to detect the movement of the objects in a scene could be applied to a wide range of

potential applications, such as a security guard for important buildings, trafﬁc surveil-

lance in cities and highways, or supervision of suspicious behaviors in supermarkets.

However, the increase of the research in video surveillance has not generated a huge rise

of intelligent surveillance systems in operation. At present, passive supervision systems

keep being used in many areas, in which the number of cameras exceeds the capability

of human operators to analyze and monitor them.

The aim of this work is to develop an intelligent video surveillance system to ana-

lyze people behavior in public transport [4]. This paper is really focused on detecting

unlucky events like hostile behaviors in public transport, using the steady cameras situ-

ated in these areas. These behaviors are relatively simples and based on action - reaction

principle, in which a person is attacked by another person who is the aggressor. In this

case, an event is thrown by the system to security people for checking if the signal

received is signiﬁcant.

In this work an unsupervised competitive neural network [5] is proposed for ob-

jects segmentation in real time. The proposed approach is based on competitive neural

network to achieve background subtraction. This neural network is designed to serve

both as an adaptive model of the background in a video sequence and a classiﬁer of

pixels as background or foreground. Neural networks posse intrinsic parallelism which

can be exploited in a suitable hardware implementation to achieve fast segmentation of

foreground objects.

The rest of the paper is organized as follows; section 2 shows a system overview

and the interactions between human and machine; section 3 and 4 present a new pro-

posed segmentation method and describe the object tracking phase; section 5 describes

how the critical events are detected. Results and conclusion follow in section 6 and 7,

respectively.

Leite R. and Brazdil P.

A Meta-learning Approach to Improve Progressive Sampling.

DOI: 10.5220/0002668800250034

In Proceedings of the 4th International Workshop on Pattern Recognition in Information Systems (ICEIS 2004), pages 25-34

ISBN: 972-8865-01-5

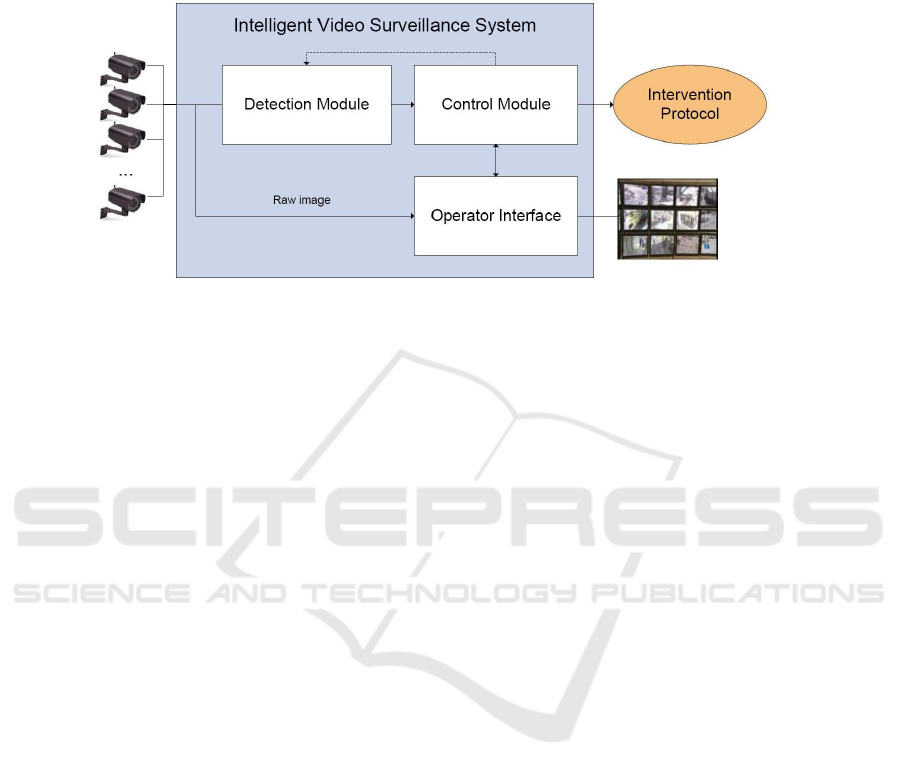

Fig. 1. Video surveillance system scheme.

2 A System Overview

Most video surveillance systems (SVS) require human interaction to detect critical sit-

uation. Usually, the number of cameras installed in SVS exceed the human capability

and it is generally accepted that guards frequently miss incidents clearly visible on

CCTV monitors. The vast majority of installed CCTV cameras remain unwatched and

incidents are not likely to be detected while they are occurring.

In this work additional functionalities are added to the current surveillance systems,

improving their effectiveness and becoming in a support tool for security enterprises.

This information system analyzes an input sequence obtained through CCTV cameras,

and informs about possible suspect behaviors in the passengers of the public transport.

An overall scheme of proposed system is shown in Fig. 1. A speciﬁc number of

cameras can be connected to analyze independently each scene observed. A detection

module manages to detect and extract features of the movement objects in the scene

to, subsequently, inform about a suspect anomalous behavior. In this case, the operator

validates or not the detected aggression through the user interface, by observing the

sequence in which the action is performed.

The control module interacts with the other modules to keep synchronizing the sys-

tem and executing an intervention protocol proposed by the company when an aggres-

sion is conﬁrmed. This conﬁrmation is sent towards to the detection module to learn

what kinds of anomalous detected behaviors are right. Raw and processed images are

shown to the security operators in the output monitors.

Certain information is required to decide what measures are taken in the intervention

protocol when an aggression is detected. A short sequence in which the aggressive

behavior is observed, the position of the vehicle inside its trajectory, the next station

where passengers get off, and the time to arrive to that station are some parameters

utilized to determine the immediate actions to perform.

Several steps are required by a typical video surveillance system to reach the ob-

jective. Detection module scheme of proposed system is observed in Fig. 2. At ﬁrst, a

video object segmentation method is required to obtain the objects in movement of the

PRIS 2004 - 4th International Workshop on Pattern Recognition in Information Systems

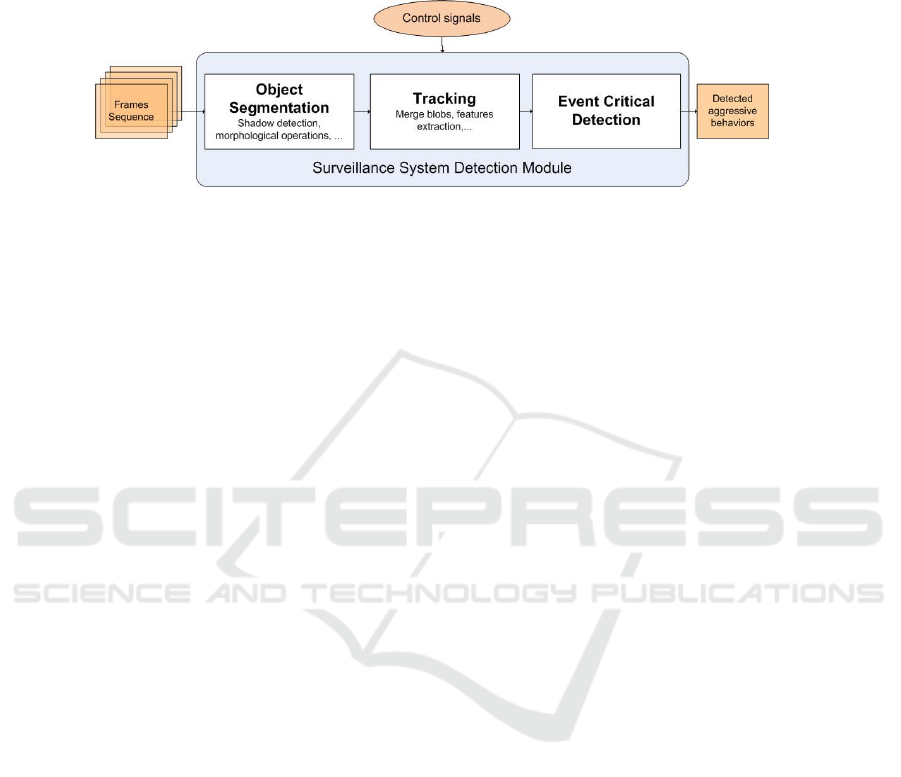

Fig. 2. Detection module architecture.

stream. A comparison among different techniques can be found in some works [6, 1, 7].

Next section describes in detail the proposed method to obtain the objects belong to the

foreground.

In the second step and using the segmentation output, a tracking algorithm is applied

to identify the objects in several frames of the sequence. A matching between each blob

(or set of blobs) and an object previously recognized is done. In the literature, many

works can be found about tracking people [2]. Finally, a set of rules have been employed

to determinate possible dangerous movements. These events could be the reason of a

critical situation in the analyzed stream.

3 Object Segmentation

This process aims at segmenting regions corresponding to moving objects from the rest

of an image. Subsequent phase such as tracking and behavior recognition are greatly de-

pendent on it. It usually involves environment modeling, segmentation motion, shadow

detection and object classiﬁcation.

Many works based on motion detection and, more concretely, on background sub-

traction using ﬁxed cameras as the CCTV cameras installed in public transport can be

found [8, 9, 4, 10]. All of these methods try to effectively estimate the background model

from the temporal sequence of the frames and, subsequently get objects in motion of

the scene.

The goal of the proposed video object segmentation algorithm is to be able to clas-

sify the pixel in a frame of the sequence as foreground or background, based on statistics

learned by a neural network approach (NA). These statistics are learned from the frames

observed in the video sequence. Each pixel is modeled by a competitive network and,

by using its color components (RGB), the input pixels are classiﬁed as background or

foreground at each frame.

Our model performs a clustering based on a crisp-fuzzy hybrid neighborhood. For

each neuron, there is a value r

, representing the crisp neighborhood of the correspond-

ing synaptic weight w

: N

= {x : kx−w

k ≤ r

}. The fuzzy neighborhood of neuron

j is given by a membership function µ

deﬁned over the entire input space, and taking

values in the interval (0, 1).

The use of this hybrid neighborhood allows us to better assign an input pattern to a

class or category:

A Meta-learning Approach to Improve Progressive Sampling

– If the input pattern x belongs to N

, the network assumes that the best matching

category for x is the associated to w

– If the input pattern x does not belong to any crisp neighborhood, its most likely

category is represented by the neuron achieving the maximum value of the mem-

bership function for this particular input.

Usually, the membership function present in this model is of the form:

(x) = e

−k

(kx−w

k−r

)

(1)

The value of the parameter k

is related to the slope of the function. The higher its

value, the higher its slope is. For a great value of k

, the fuzzy neighborhood of w

will

be more concentrated around N

The synaptic potential of the neuron j is deﬁned as

(x) =



1, if x ∈ N

(x), otherwise

(2)

the winning neuron (with index denoted as q(x)) will be the one receiving the maximum

synaptic potential:

q(x)

= max

(x) (3)

The objective of this model is to study the color space associated to each pixel in

the video sequence and to determine, at every step, the most likely category to which it

belongs, according to the hybrid crisp-fuzzy neighborhood which measures the mem-

bership of every pattern to a given category.

The learning rule used by each network to model the input space is the standard

competitive learning rule:

q(x)

(t + 1) = w

q(x)

(t) + λ · (x − w

q(x)

(t)) (4)

where λ is the so-called learning rate parameter, usually decreasing to 0. It can

be viewed as the stochastic gradient descent technique to minimize the squared error

function (also named distortion function):

F (W ) =

− w

q(x

)

(5)

where W represents a matrix whose rows are the w

When the segmentation results have been obtained, it will be necessary applying ad-

ditional techniques to obtain clear foreground regions. We are usually analyzing indoor

scenes (inside of a car train or in a building hall) so, it is probably objects in motion

cast shadow on the background, confusing with foreground pixels and interfering in the

correct detection of the scene objects. There are many shadow detection methods pub-

lished [11] but the majority of them depend on scene features, types of shadow found

{ slighter, darker, sharper,. . . }, technique applied, etc. In [12], an overall review about

them can be found. In our system, we develop the proposed technique cited in [13]. It

is based on the RGB pixels vectors in shadow regions are in the same direction that the

PRIS 2004 - 4th International Workshop on Pattern Recognition in Information Systems

(a) (b) (c) (d)

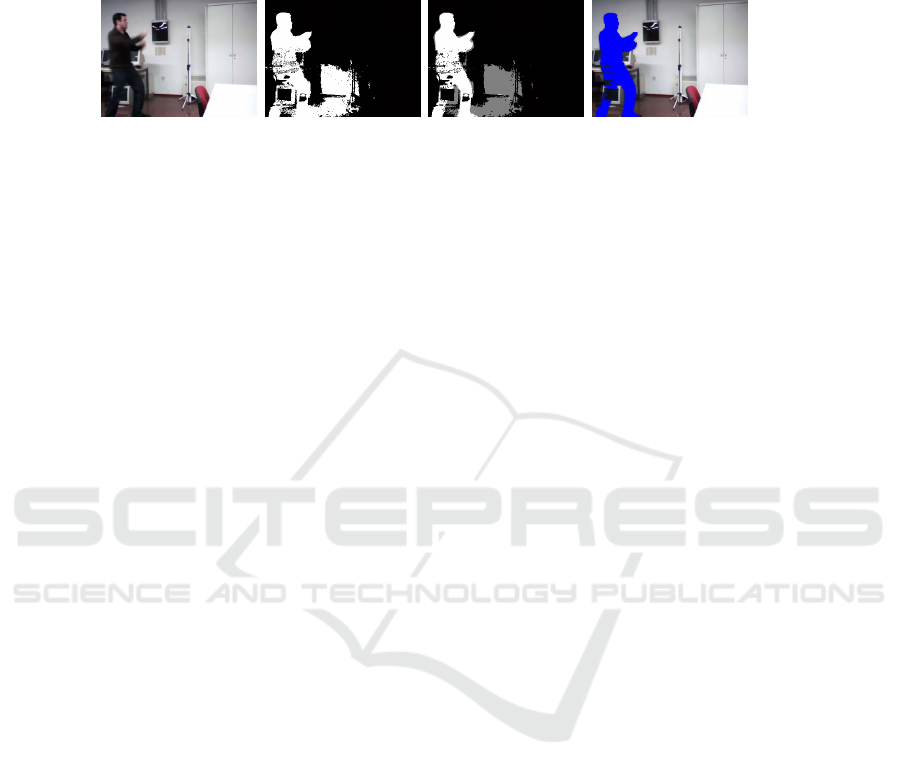

Fig. 3. An example of the objects detection algorithm is presented. (a) original frame in raw form.

(b) segmentation result using the NA. (c) shadow detection is applied. (d) enhanced frame using

morphological operations.

RGB vectors of the same pixels in the background, with a little variation and a smaller

brightness between shadow pixels and background pixels. The results can be viewed in

3(c).

Additionally, morphological operations have to be applied to eliminate one-pixel

thick noise and to ﬁll those objects with pixels not correctly identiﬁed as foreground.

As the ﬁnal step of foreground region detection, a binary connected component analysis

is applied to the foreground pixels to assign an unique label to each foreground object

and grouped them into an initial blobs. We can observe the results of this mechanism in

3(d).

4 Tracking

In an object tracking phase, it is necessary to achieve a correspondence among obtained

blobs and identiﬁed objects in motion. This tracking object must be sufﬁciently robust to

overcome potential problems at the segmentation stage. It is possible to ﬁnd incomplete

objects in the scene, caused by an object becomes temporally occluded (by some ﬁxed

background object) or an object splits into pieces (due to a person depositing an object

in the scene or a person is being occluded by small object).

To solve these situations, we have implemented a simple mechanism to merge ob-

tained blobs based on their proximity. The system computes some features needed for

each blob according to its size and aspect. With this information and the area and posi-

tion of the objects previously identiﬁed, we can determinate which speciﬁc blobs belong

to these tracked objects.

Our approach manages to solve person blobs merged, making a restriction in the

scene based on the kind of events to detect. For our purpose of detecting aggressive

actions, such as a ﬁght, it is not essential to distinguish people who are within a blob.

This situation would be starting in previous frames while the object features are being

processed, and it would be deﬁnitely identiﬁed when the merging blobs occurs and the

movement of the new merger object can be also considerate suspicious.

Typically, some aggressive behaviors involve the movement of some body parts,

hence with just the features computed previously is not possible to recognize with what

body part the aggression has been committed. Some works [14][15] try to obtain the

position of these parts to decide more efﬁciently in critical situations, if an arm or a

leg has caused damage to another person. However, this tracking body parts has cer-

A Meta-learning Approach to Improve Progressive Sampling

(a) (b)

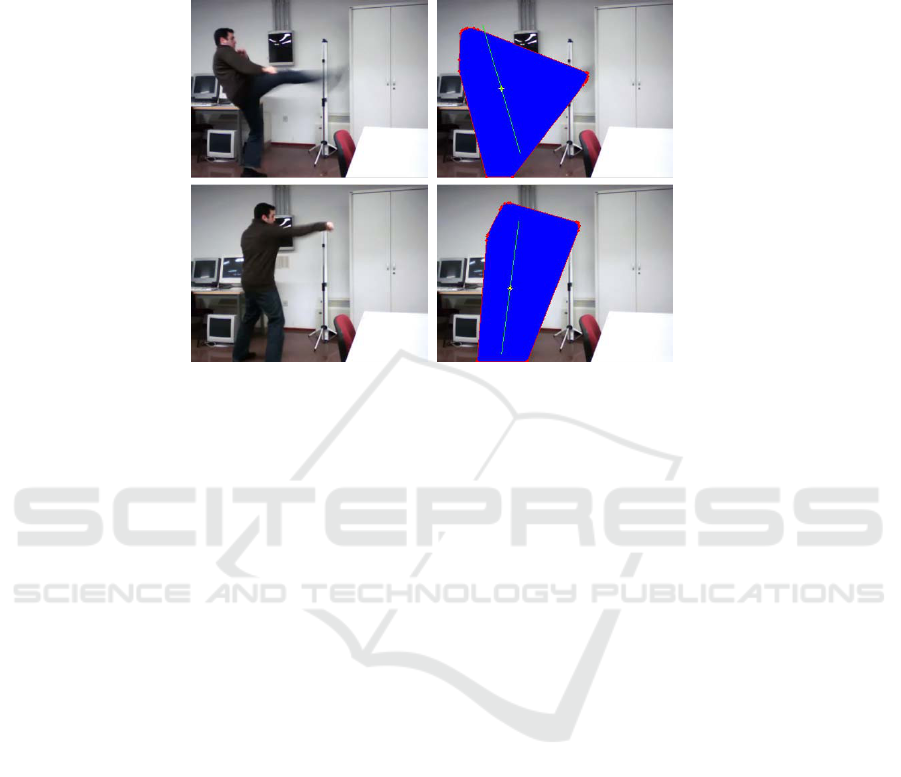

Fig. 4. The convex hull of the object has been calculated. (a) originals frame in raw form. (b) A

polygonal ﬁgure has been calculated. In the upper-left image, we can deduce an arm in motion.

In the lower-left image, a silhouette of a kick could be inferred.

tain complexity and could provoke the overall system does not carry out with temporal

requirements.

An intermediate solution is to ﬁnd the convex hull object, namely the minimum pos-

sible area where all the object points are contained [16]. Thus, in a state of aggression,

the position of the points which have led to an increase in the object area are known

(one of the vertices of the polygon), and we can estimate which kind of extremity it is,

the speed increase from the previous frames, making the system more robust to possi-

ble errors or false positives. Figure 4 shows the convex hull of the object in a concrete

frame.

Therefore, some features of the identiﬁed objects are extracted to achieve the aim

of detecting aggressive behaviors in people of the sequence. Some of them are:

– The centroid of the object

– Its bounding box

– Object convex hull

– The number of the blobs to belong it and their positions

– Its area and the object orientation based on its major axes.

With these parameters, trajectories of single persons are easily obtained (Fig. 5). Our

system is capable of dealing with possible object occlusions by computing a estimated

trajectory using data of the previous frames. Object speed in these uncommon situations

will be gained in terms of the median speed of the rest of the frames processed.

PRIS 2004 - 4th International Workshop on Pattern Recognition in Information Systems

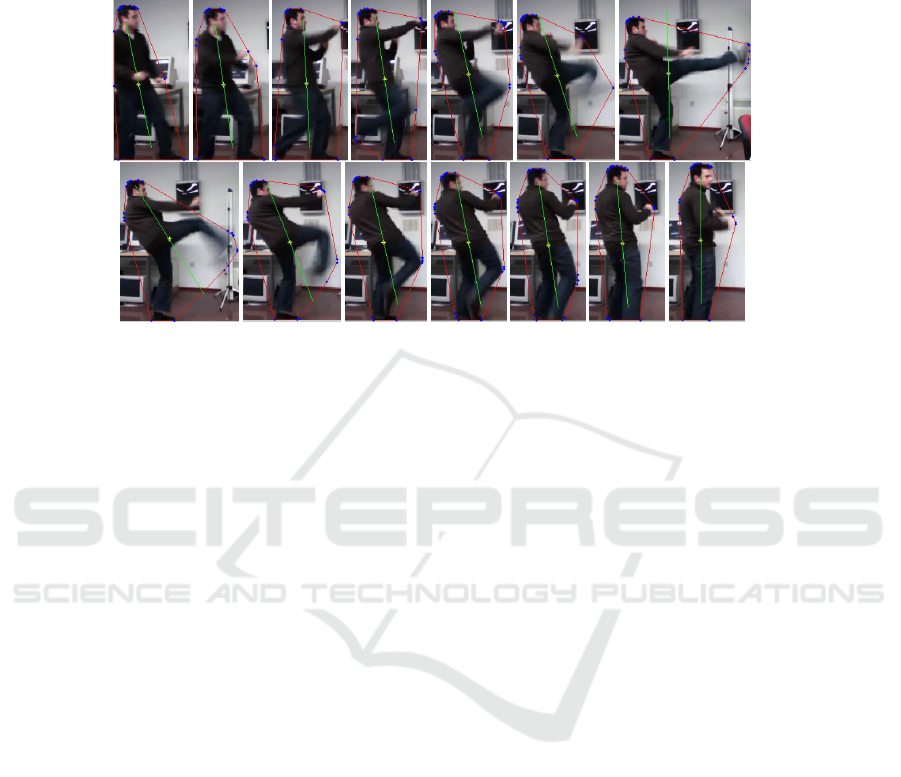

Fig. 5. Convex hull, centroid and principal axis of an person along several consecutive frames.

5 Detecting Critical Events

The information provided by the tracking task allows us to analyze the interactions

between objects that appear on the scene, as well as detect events that might be con-

sidered unusual or suspicious. An automatic surveillance system is capable to identify

some kind of diverse events like detection of abandoned luggage in buildings, unusual

movements of passengers, people falling down, people walking in dangerous areas such

as railway lines, aggressive behavior, etc.

In this work a set of rules are used for ﬁghts detection and dangerous behaviors. De-

tecting attacks on public transport is the focus at this work, using the existing CCTV in

those places. The system informs to the personal security which must conﬁrm whether

the detected event is relevant or not.

An attack is composed by an active object and a passive object. Aggressive events

are considered when an object is performing the action of assault, and another object

reacting after that aggression. The system has three possible states (normal, suspect

and aggression) about people behavior. The normal state is deﬁned as no detection of

uncommon behavior. The suspect state is deﬁned by the detection of a person who is

committing an aggression, whereas an aggression-state is deﬁned by the detection of

this aggressive person and an assaulted person.

A number of simpliﬁcations are considered to make this detection. For example, in

public transport is not common to ﬁnd people running or moving quickly through the

wagon, hence the speed of the movement of objects is one of the main parameter for

determining anomalous behavior.

In this sense, an aggressor individual is detected by analyzing several features: the

irregular motion of the object centroid, a quick variation of the width and height of the

object or the change in the area of the object convex hull. Moreover, a sudden change

of distances of the vertexes of the object convex hull to its main axis, involves a sudden

movement of the limbs of a person, either a possible kick or a possible punch.

A Meta-learning Approach to Improve Progressive Sampling

The detection of an assaulted individual involves the previous detection of the ag-

gressor person. The union and division of the objects recognized, the variation of the

centroid object and the position of the alleged victim are signiﬁcant signs to identify an

aggression. A variation of the angle of the main axis of the object which envelop the

victim provokes a fall or an attempt to dodge the blow.

6 Results

The proposed surveillance system has been applied to a set of proof sequences to show

the validity of our method. These sequences have been grabbed in our laboratory and try

to simulate some possible critical situations related with aggressive behaviors happened

in public transport.

(a) (b) (c)

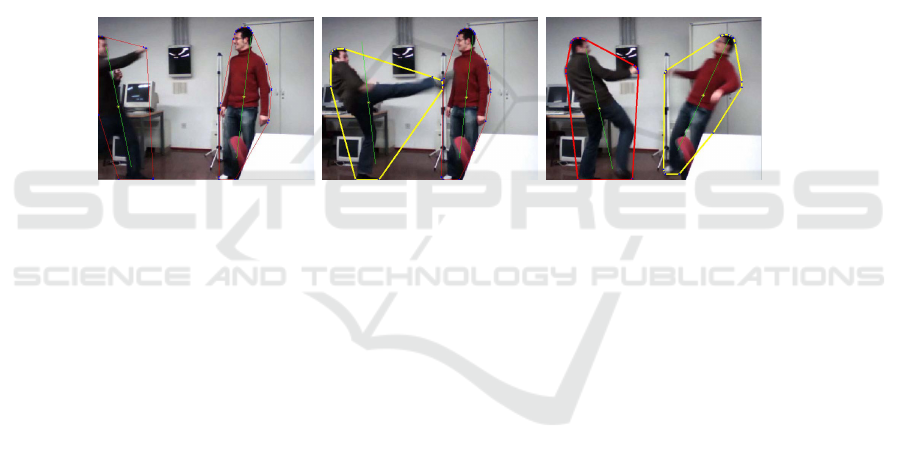

Fig. 6. Detecting of an aggressive behavior. In 6(b) an attack is detected. In 6(c) the reaction of

the other person is observed.

They are middle-sized with 264x352 and they are captured through a web cam for

domestic use. Our system has been proved in a standard PC with 3 GHz and 1 Gb of

RAM memory. Despite using a low cost hardware, we have achieved very good results,

like we can observe in Fig. 6. According to the previous section, initially, the system has

detected a suspect behaviour in the left person (Fig. 6(b)) and, this aggressive behavior

is conﬁrmed when the reaction of another person is observed (Fig. 6(c)). To prove our

detection technique of aggressive person a low people-density situation is assumed.

Figure 7 shows another kind of critical scene. We have represented a situation in

which a person, who is sitting on a seat, is severely beaten by another person who is

standing and moving along the public transport. We can observe the sudden movement

of one person and the reaction of another one.

A similar scene happened in 2007 in a metro in Spain can be observed in Fig. 8 in

which a man is hitting a girl with his leg. A sudden change in the area and the silhouette

of the objects is detected, therefore a anomalous behaviors is identiﬁed. In this case, the

reaction of the assaulted person is less obvious than in Fig. 8 and its movement has not

been detected as an anomaly. The conﬁrmation of security people would validity the

suspicious behavior recognized.

We have to take into account the dependence of a good result in the segmentation

phase. Without a great detection of the objects in motion is not possible develop a

tracking system and, subsequently, detect and analyze simple people behaviors.

PRIS 2004 - 4th International Workshop on Pattern Recognition in Information Systems

(a) (b) (c)

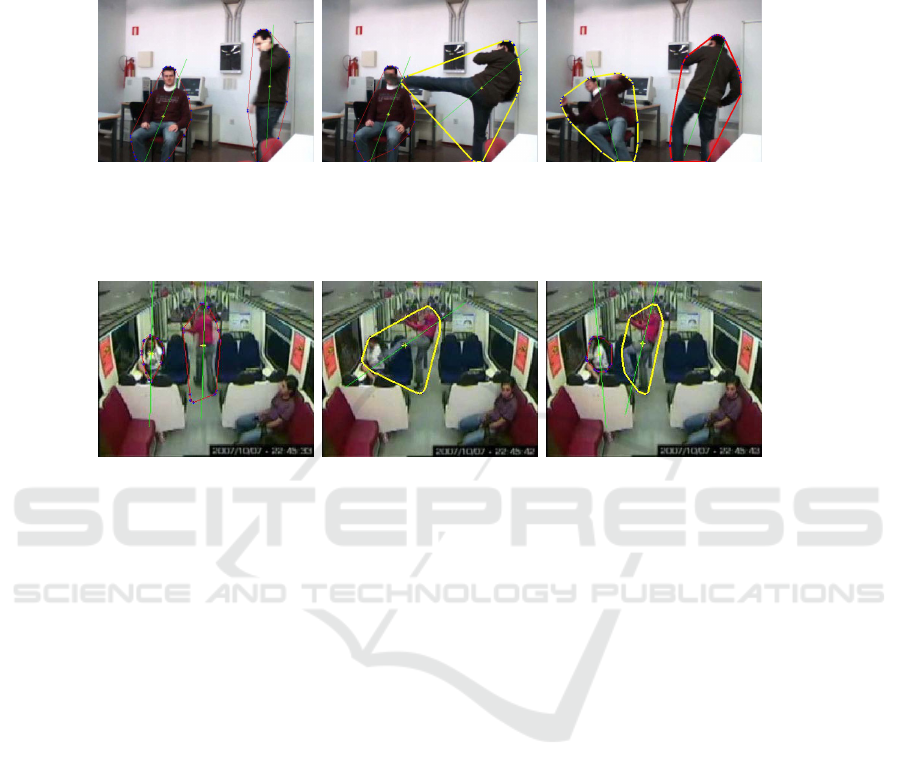

Fig. 7. Simulation of a public transport scene. In 7(a) two so-called passengers are observed. In

7(b) an aggression is being identiﬁed. The reaction of the assaulted person can be viewed in 7(c).

(a) (b) (c)

Fig. 8. Real scene in a public transport. In 8(a) two persons are detected. In 8(b) a sudden union

between the two objects is found. A suspicious event keeps detecting in 8(c).

7 Conclusions

In this paper we have presented an information system for video surveillance in public

transport which is very useful to detect aggressive behavior in real time. Human inter-

action is only necessary to conﬁrm the alarm in case of aggressive behavior is detected.

In this case, the information about the critical event (video of critical situation, real time

location of the transport, next step, time to reach next step, video of actual situation,. . . )

is provided by the system.

The proposed video surveillance system has been successfully applied to process

real-time video sequences (more than 25 fps) using only a conventional PC and a low

cost camera. Moreover, the speed of the proposed segmentation, can be improved in

a parallel hardware implementation using ﬁeld programmable gate arrays (FPGA). In

addition, scalability is one of major advantages of neural networks, therefore we plan

to design new neural models with new functionalities.

Acknowledgements

This work is partially supported by Junta de Andaluc

ıa (Spain) under contract TIC-

01615, project name Intelligent Remote Sensing Systems.

A Meta-learning Approach to Improve Progressive Sampling

References

1. Hu, W., Tan, T., Wang, L., Maybank, S.: A survey on visual surveillance of object motion

and behaviors. IEEE Transactions on Systems, Man, and Cybernetics, Part C: Applications

and Reviews 34 (2004) 334–352

2. Yilmaz, A., Javed, O., Shah, M.: Object tracking: A survey. Acm Computing Surveys 38

(2006) 13–58

3. Fuentes, L., Velastin, S.: Tracking people for automatic surveillance applications. Pattern

Recognition and Image Analysis, Proceedings 2652 (2003) 238–245

4. Haritaoglu, I., Harwood, D., Davis, L.: W4: real-time surveillance of people and their activ-

ities. IEEE Transactions on Pattern Analysis and Machine Intelligence 22 (2000) 809–830

5. Hertz, J.: Introduction to the theory of neural computation. Addison-Wesley (1995)

6. Piccardi, M.: Background subtraction techniques: a review. In: IEEE International Confer-

ence on Systems, Man and Cybernetics. (2004) 3099–3104

7. Radke, R., Andra, S., Al-Kofahi, O., Roysam, B.: Image change detection algorithms: a

systematic survey. IEEE Transactions on Image Processing 14 (2005) 294–307

8. Lo, B., Velastin, S.: Automatic congestion detection system for underground platforms. In:

Proceedings of 2001 International Symposium on Intelligent Multimedia, Video and Speech

Processing, 2001. (2001) 158–161

9. Stauffer, C., Grimson, W.: Learning patterns of activity using real-time tracking. IEEE

Transactions on Pattern Analysis and Machine Intelligence 22 (2000) 747–757

10. Elgammal, A., Duraiswami, R., Harwood, D., Davis, L.: Background and foreground mod-

eling using nonparametric kernel density estimation for visual surveillance. In: Conference

on Computer Vision and Pattern Recognition. (2002) 1151–1163

11. Mikic, I., Cosman, P., Kogut, G., Trivedi, M.: Moving shadow and object detection in trafﬁc

scenes. In: International Conference on Pattern Recognition. (2000)

12. Prati, A., Mikic, I., Trivedi, M., Cucchiara, R.: Detecting moving shadows: Algorithms and

evaluation. IEEE Trans. on Pattern Analysis and Machine Intelligence 25 (2003) 918–923

13. Horprasert, T., Harwood, D., Davis, L.S.: A statistical approach for real-time robust back-

ground subtraction and shadow detection. In: Proceedings of IEEE ICCV’99 FRAME-RATE

Workshop. (1999)

14. Park, S., Aggarwal, J.: Segmentation and tracking of interacting human body parts under

occlusion and shadowing. In: Workshop on Motion and Video Computing. (2002) 105–111

15. Ju, S., Black, M., Yacoob, Y.: Cardboard people: a parameterized model of articulated image

motion. In: Proceedings of the Second International Conference on Automatic Face and

Gesture Recognition. (1996) 38–44

16. Barber, C., Dobkin, D., Huhdanpaa, H.: The quickhull algorithm for convex hulls. ACM

Transactions on Mathematical Software (TOMS) 22 (1996) 469–483

PRIS 2004 - 4th International Workshop on Pattern Recognition in Information Systems
