Privacy Enforcement Embedded in Mobile Services

Ronald van Eijk, Mortaza Bargh, Alfons Salden and Peter Ebben

Telematica Instituut, P.O. Box 589, 7500 AN, Enschede, The Netherlands

Abstract. Next generation mobile services in business-to-employee (B2E)

settings put very high demands on the privacy protection features of context-

aware, personalization and adaptation enabling technologies. To this end we

propose a middle agent framework that allows parties to securely exchange

personal or business sensitive contextual information independently of the

available networks. In order to demonstrate our privacy enforcing middle agent

framework, we build a scheduling service, in which the middle agents

collectively arrange an update of a meeting between employees by adapting

location and time on the basis of privacy and scheduling policies of the

traveling employees themselves or the companies they work for. We developed

and deployed this scheduling service on a LEAP agent platform and used a

PDA to communicate with the middle agents on the server using WLAN and

GPRS networks.

1. Introduction

Mobile services must be very highly resilient in a heterogeneous and dynamic

environment, where service components are generally distributed over many physical

domains –such as networks and terminals –and administrative domains. Mobile

service provisioning consequently requires a sophisticated and intelligent service

broker [1] that initiates, maintains and terminates such services securely and

privately.

A truly generic solution to the optimization problem of a secure and private mobile

and distributed service brokerage can be provided by collective intelligent agent

systems [2]. Following them, we propose a functional problem-solving environment

for agent-based service brokerage problems. Our problem-solving approach,

however, also provides novel agent-based brokerage mechanisms to enforce the

privacy of the parties involved by protecting the information and behavior of mobile

end-users or their agents acting on their behalves. In this respect intermediary security

and privacy issues like which information you want to share with whom and how, are

as important aspects as data (transmission) security aspects. Here we focus on

intermediary privacy enforcement of service brokerage by trusted third parties [1].

Mediation makes fraudulent logging, processing and tracing of user or employee

behavior impossible, because such user behavior cannot be identified with that of a

specific individual or employee. Furthermore, the disclosure of private or business

van Eijk R., Bargh M., Salden A. and Ebben P. (2004).

Privacy Enforcement Embedded in Mobile Services.

In Proceedings of the 3rd International Workshop on Wireless Information Systems, pages 42-49

DOI: 10.5220/0002669000420049

 SciTePress

information is restricted to entrusted parties.

In order to automate privacy enforcement and business security in delivering mobile

services we extend the middle agent framework proposed in Decker et al. [3]. (see

section 2). The middle-agents help to locate and to connect the service provider and

the service requester in a private way. We demonstrate the added value of the middle

agent framework in building a scheduling service that protects privacy in a mobile

B2E setting (see Section 3).

2. Privacy Protection Strategies

In its simplest form, a sub-service is requested by a Requester (R) from a Provider (P)

that has access to the resources to deliver this service. A Requester Agent (R

) and a

Provider Agent (P

) represent R and P, respectively. Note that such agents are not

just software agents, but it might also be a piece of hardware, the user herself/himself,

etc.

and P

are in possession of their own preference and capability information,

respectively. An agent that deals with preference or capability information that is

neither a requester nor a provider is called a middle-agent (denoted by M

). Any

agent (R

, P

or any other 3

party agent, e.g. M

) that is informed of both

preferences and capabilities is in a position to make a decision. Using this approach,

the privacy issues involved in sub-service brokerage can now be resolved by ensuring

that only entrusted parties can access the preference and capability information.

Upon close investigation of the nine classes of Middle Agents mentioned in Decker

et al. [3] (each corresponding to one specific combination of R

, M

and P

being

aware of the preferences and capabilities at the time of decision-making), we

distinguish the following four main privacy enforcement strategies. For each strategy

we will mention the most probable decision-making authority (see Fig. 1 for an

illustration):

, M

and R

Preferences known by

Capabilities known by

egotiation methods

MA’s role

RA’s role

PA’s role

Fig. 1. Categories of decision-making strategies.

1. For strategies within region 1, none of the actors has both preferences and

capabilities information at his disposal. Here we propose to use negotiation

strategies that are widely studied in AI and multi-agent systems to reach an

agreement. Hereby, the R

and the P

(or their representative M

in the role of a

front-agent or anonymizer) can withhold the sensitive information regarding the

preferences and capabilities (for example, the price range that they are willing to

pay for the service). Of course, as in real life, on the one hand agents may try to

learn about the preferences and the capabilities of their opponents (by studying

their behaviors for a long period of time). But on the other hand, each agent may

do its outmost to hide such information (or deceive the opponent by its behavior).

2. For strategies within region 2, an M

is aware of both preferences and

capabilities

when it is a broker, recommender, introducer, or arbitrator. As an

entrusted entity, such an M

is allowed to make a decision on behalf of the

others, when acting as a broker, or to provide support, while acting in the other

three cases.

3. For strategies within region 3, an R

solely (or together with another agent) is in

the position of making a decision based on full information of preferences and

capabilities. This is the case when M

has acted as a yellow pager, recommender

or arbitrator.

4. For strategies within region 4, a P

solely (or together with another agent) is in

the position of making a decision based on full information of preferences and

capabilities. This is the case when M

has acted as a blackboard, introducer or

arbitrator.

Note that it depends on the organizational role of an agent whether a decision-making

authority will be in favor of the requester, the provider or both.

3. Scheduler Agent System

In this section, we outline how to design and implement a location aware

personalized scheduling service, called Scheduler Agent System (SAS), using our

middle agent framework presented in section 2. Enforcing privacy in provisioning of

such B2B and B2E services is a prerequisite for successful M-commerce applications

[4].

3.1 B2E scenario underlying SAS

Our SAS aims at realizing personalization, device and time-critical aspects, and

location-awareness of mobile services in a common B2E setting, as illustrated by the

following scenario. Assume that three employees, each from a different company A,

B or C, have scheduled a meeting in a city (service initiation phase). They all have to

drive to this city to attend the meeting and when it is finished, each of them has to

drive to their home or to a second meeting. However, on his way, one attendee (or

some monitoring agent) listens to the traffic information on the radio, reporting about

a traffic jam on the way to the meeting point. Given this situation, since he is not able

to make the planned meeting on time, he activates his Scheduler Agent (SA) to

rearrange the meeting somewhere else and at some later point in time (service

maintenance phase). The employees work for different organizations with different

security or privacy policies. Because of these policies one of the employees (thus,

also the corresponding SA) may not be willing to share his current location or

schedule with the others.

3.2 Implementation of SAS

The SA’s can be conceived as the main enablers of the “scheduling service” in the

brokerage plane that deliver the service of arranging a scheduled appointment for the

employees. During negotiation phases the SA’s will access and collect all required

information about preferences, locations, schedules and privacy policies. This

information will be taken into account during the negotiation and will be hidden from

the other SA’s when necessary.

System Architecture

For our implementation we used the LEAP agent platform, see [5]. Within this Java-

based and FIPA compliant agent platform, agents communicate by sending FIPA

ACL messages [6]. The platform has a Directory Facilitator (DF) agent where other

agents can register and expose their service and functionality. Furthermore, the

platform inhabits an Agent Management System (AMS) agent that takes care of all

agents’ life cycles. The overall platform also takes care of the communication

between agents, so that local names can be used when sending messages and agents

are not aware of the actual physical location of other agents.

JADE/LEAP Containers

))

((

GUI Agent on

user’s wireless

device

Databases

Server

Environment

(

)

DAA

Access Point

Profiles

Schedules on

MS Exchange

server

Distances

Yellow-

e MAs

otiatin

ents

Broker MAs

Container 1 Container 2

Fig. 2. Simplified SAS architecture.

One or more local servers will host, besides schedule data and profile information, the

containers (runtimes) of the LEAP platform hosting all SA’s. The LEAP platform

hosts several agents and connects them logically, even when they run at several

different physical locations (different servers and devices). In addition to the AMS

and DF agents, the following types of agents can be distinguished on the platform of

the SAS (see Fig. 2):

− One Scheduler Agent (SA) for every employee, located on a LEAP main

container in a server machine,

− A Database Access Agent (DAA) agent on each server machine,

− One Graphical User Interface (GUI) agent for each end-device.

The SA’s on the server are able to access the schedule of their corresponding users.

For privacy reasons, the SA’s are not allowed to access schedules of other users. In

order to avoid that the SA’s need to have knowledge about the way the data is stored

in the database, a separate Database Access Agent (DAA) is used to facilitate data

exchange between the SA’s and the database. The DAA accesses the schedule of a

user and his/her profile data. Harmony® for MS Exchange® was used to enable the

JAVA based DAA to login, extract and update appointment information of schedules

on an MS Exchange server.

Each client device (notebook or Compaq iPAQ) is a portable device that runs a LEAP

peripheral container and is able to communicate over a wireless link (WLAN as well

as GPRS). The peripheral agent container hosts one single GUI agent. This is

basically a very simple agent, since it is only used to provide a way to interact with

the user, so the user can use it to activate his/her SA on the server to cancel or

reschedule an appointment. We successfully implemented the system using PDA’s

and notebooks connected to the server using WLAN or GPRS networks. The main

negotiation functionality has been implemented into the SA’s. The interaction and

negotiation functionality of these agents will be explained in detail in the next

sections

3.3 Middle-agents in SAS

This section elaborates on the different agents as implemented in SAS and their

middle agent roles (see [3] for definitions of roles).

DF’s as yellow-page middle agents

All FIPA compliant agent platforms provide yellow page services that allow agents to

search for other agents and inspect the services they offer. In our platform the DF,

automatically created upon platform launch, provides this functionality. The GUI

agent on the device of the user that initiates the rescheduling uses the DF to contact

and activate its corresponding SA. Then, this SA uses the DF to find the names of

the agents that represent the other attendees of the meeting to be rescheduled.

DAA’s as broker middle agents

An SA is programmed to perform a specific task and it will search for the information

it needs to carry out its task. Part of the information can be obtained from schedules

and databases. Therefore, the SA can access the DAA for the following information:

− Schedule of the corresponding employee’s meeting times and locations,

− Travel times to the location of next and consecutive meeting.

In the current implementation the user has to enter his current position on his device

manually. The DAA logs into the MS Exchange server as one of the users and

extracts information from the corresponding schedule. On the other hand, user

preferences are stored in databases, to be requested from and accessed by the DAA’s.

The DAA is a trusted-third party in our implementation and it will refuse any direct

request for schedules or locations from outsider agents. In other words, it will only

access the schedule of the user that corresponds to the SA that made the schedule

request (See Fig. 3). It will only do so if this agent provides the proper username and

corresponding password required to access the schedule. The DAA has a front-agent

middle-agent role on behalves of databases.

SA’s as negotiating middle agents

The agent that triggers the rescheduling process, referred to as the initiator, can be

considered as a R

that requires resources (time) from the responding agents to set a

meeting. The responders have to provide time and thus can be considered as a P

. We

assume that R

and P

(s) do neither share their strategies nor share the main part of

user preferences directly. Also they do not give this information to an M

to decide.

Generally R

(the initiator) is not aware of the capabilities (available time-space slots)

of P

(the responder) or even R

may not be authorized to reschedule the meeting by

itself. Therefore, R

and P

will have to negotiate (as in case 1 of section 2.1). In

other words, our SA’s are negotiating agents.

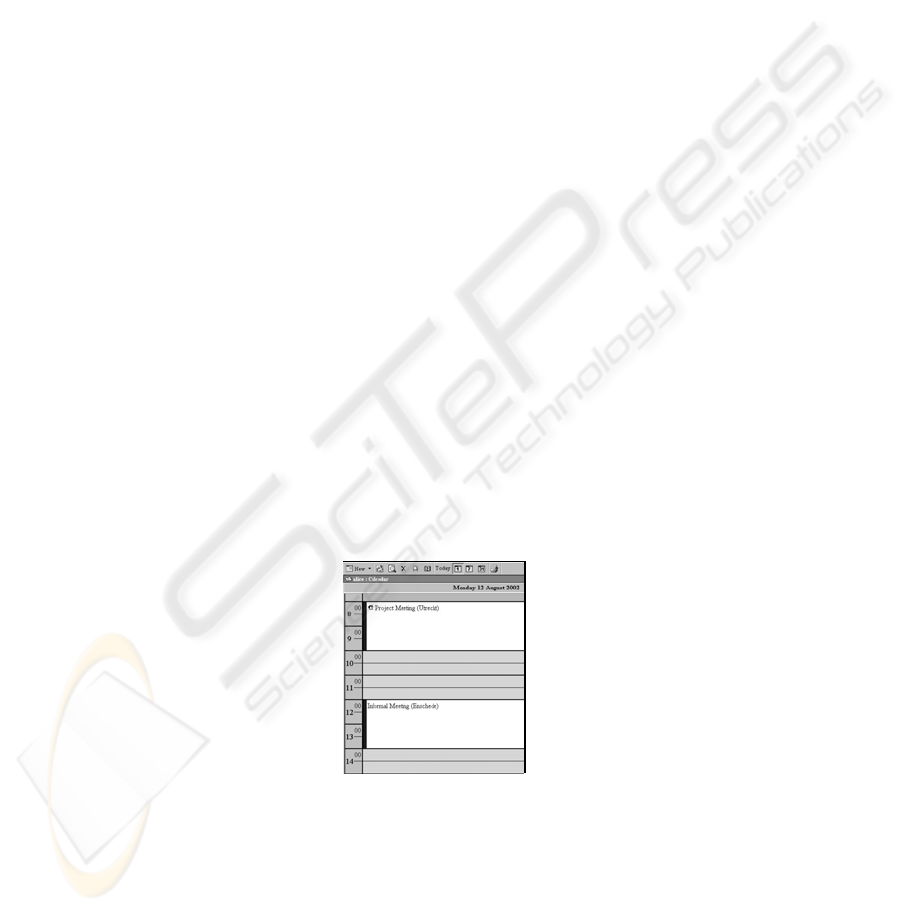

Fig. 3. Each Scheduler Agent can request today’s schedule of its user from the DA agent.

Due to the key roles of SA’s in realizing the SAS brokerage, this section elaborates

on the details of interaction between these SA’s. Based on the FIPA Iterated Contract

Net Interaction Protocol (ICNI protocol), a fully functional interaction algorithm was

developed and implemented for the SA’s, including the possibility to query, collect

and process information from other agents. An important feature in the ICNI protocol

is the distinction between initiator and responder. The initiator starts and manages the

interaction. It sends a Call for Proposal (CFP) message, setting the conditions under

which the responders would have to act after an agreement; evaluates the proposals

sent back by the responders; continues negotiation by rejecting proposals or finishes

it by accepting them. The responder role is assigned to all other participants in the

interaction. Responders can respond to a CFP by defining a proposal and sending a

PROPOSE message.

After the initiator has received the information about travel times from its own

current location and about his schedule for today, it will ask the responders to supply

similar information about their corresponding employees. However, because of

privacy policies of other agents, the responders may not be willing to share such

information. Based on possibly limited amount of information, the initiator prepares

his first CFP. Within this CFP he puts a proposal including time and location for the

new meeting. When the responders receive a CFP, they will request and process

similar information about their own users in the same way.

The following steps are taken in the negotiation:

1) First Call for Proposal from Initiator.

The initiator defines a full proposal and calls for it by sending his proposal as part of a CFP

message. Each proposal for a meeting can be described by a few parameters: subject, names of

attendees, start time, end time and location. The SA’s will exchange proposals by

communicating to each other their accepted parameter values. This implies that the initiator

calls for a possible location and asks the responders to do a proposal. For example, when it is

close to Amsterdam, it sends a message like CFP(Amsterdam?) to all responders.

2) Proposals from Responders.

The responders can respond to a CFP by sending a REFUSE (if they refuse the proposal

completely) or a PROPOSE message. When the proposal in the CFP fits their requirements the

proposal to be sent back is equal to the proposal that was in the CFP, i.e.

PROPOSE(Amsterdam). However, when the proposal in the CFP does not fit the

requirements, an adjusted alternative proposal will be sent back e.g. PROPOSE(Utrecht).

3) Reject or Accept Proposals.

Because there is no interaction between the responders, most intelligence is in the initiator,

who has to define a proposal in its CFP that will fit all other responders at the same time. This

is different from a standard auction-like protocol where the responders try to bid in a smart

way. The interaction is finished when all responders answer to a specific CFP by sending the

same proposal back. Because after each negotiation step, all parties will give way (willing to

accept locations requiring more travel time), at some point, most locations will be acceptable.

4) Finish and deliver service

Under normal conditions (no REFUSE or NOT UNDERSTOOD messages), the interaction is

finished when all responders answer to a specific proposal in a CFP by sending the same

proposal back. Another situation that may finish the interaction is when all responders

coincidently respond by sending the similar alternative and this alternative is acceptable for the

initiator. In both cases, the initiator will send ACCEPT message to all responders and the agents

will have to update schedules and notify the employees they represent.

3.4 Negotiation Strategies

A basic strategy has been defined and implemented where each SA mainly varies the

location of the meeting in their proposals during the negotiation, i.e. the issue to

negotiate about is location and travel time. The agents acts in a competitive way and

starts to bid from the their own most preferable location with respect to travel time,

even when this is not expected to fit the other users requirements at all. Thus, the

responders will not immediately accept this.

4. Conclusion

Future services require dynamic binding of business and customer preferences and

embedding privacy enforcement in the service provisioning process. We worked out a

functional problem-solving environment for service brokerage based on an agent

paradigm. Our environment ensures the privacy of the parties involved using novel

agent-based brokerage mechanisms. To this end, the middle-agent framework of

Decker et al. [3] is exploited in different brokerage steps enforcing service privacy.

By deploying an appropriate middle-agent, privacy enforcement follows. Therewith,

the middle-agents collectively realize the brokerage of the mobile service, preserving

the privacy of the actors involved. A scheduling service has been developed based on

privacy protecting middle agents that reschedule a meeting arranged among traveling

employees of different companies. It clearly proved the feasibility of enforcing

privacy in a B2E setting by means of our proposed methodology.

References

1. M.M. Lankhorst, H. van Kranenburg, A. Salden, and A.J.H.Peddemors (2002). "Enabling

Technology for Personalising Mobile Services," HICSS-35, January 2002, Hawaii, USA.

2. D. Wolpert and K. Tumer (1999). “An Introduction to Collective Intelligence”, Tech

Report NASA-ARC-IC-99-63; In: Jeffrey M. Bradshaw, editor, Handbook of Agent

Technology, AAAI Press/MIT Press, 1999.

3. K. Decker, K. Sycara and M. Williamson (1997). “Middle Agents for the Internet”,

Proceedings of the 15th International Joint Conference on Artificial Intelligence, Nagoya,

Japan, August 23-29, 1997.

4. P. Langendoerfer. (2002). “M-Commerce: Why it does not fly (yet?)”, SSGRR2002,

L’Aquila, Italy, 2002.

5. F. Bergenti and A. Poggi (2001). “LEAP: a FIPA Platform for Handheld and Mobile

Devices”. Presented at ATAL 2001,

http://leap.crm-paris.com/

6. FIPA, Foundation for Intelligent Physical Agents,

http://www.fipa.org/.
