A Multi-Stage Approach to Asymmetric Legacy

Information Integration

Y. Tang

, J.B. Zhang

, C.H. Tan

, M.M. Wong

and T.J. Ng

Singapore Institute of Manufacturing Technology, 71 Nanyang Drive, Singapore 638075

Abstract. Ensuring data integrity in the process of integration with heterogene-

ous legacy systems has proven to be a very challenging task because of the

"asymmetric" nature of the integration. This paper first identifies and describes

the major issues in the integration process with legacy information systems. A

generic five-stage integration approach is then proposed to address the issues in

a systematic manner. The proposed data manipulation and infusion methodolo-

gies together with the schemata and how they can help isolate the heterogeneity

of the integrated systems and provide high transparency to the applications are

then discussed. In addition, we shall discuss how event-driven active mecha-

nisms can be applied to ensure a high level of integrity, flexibility, availability

and reliability for the asymmetric integration with heterogeneous legacy sys-

tems. The proposed framework has been validated in an industrial project, and

has enabled the seamless integration and continuous information flow between

a new corporate information system and the legacy production and material

handling systems.

1 Introduction

The advent of computers and the wide acceptance and implementation of information

technology (IT) have brought about tremendous benefits to many organisations espe-

cially in terms of data storage, information processing, distribution and controlled

access. For most organisations, various IT systems have been implemented at differ-

ent time periods. As a result of this, data and information of an organisation are scat-

tered around in many isolated and disparate information systems that are developed at

different times, with different technologies and on different platforms. Driven by

increasing intensified competition, today’s manufacturing companies are forced to

find ways to integrate their internal information resources in a seamless manner. By

doing so, their competitiveness will be enhanced by way of improved efficiency and

reliability in information acquisition, processing and dissemination. This will lead to

better and more effective decision support capabilities, and allow collaboration

amongst various departments of the organisation, as well as supply chain partners.

However, “seamless integration” has so far been more of a wish than a realization,

due to the difficulties that are faced in dealing with the heterogeneity, obsolete tech-

Tang Y., B. Zhang J., H. Tan C., M. Wong M. and J. Ng T. (2004).

A Multi-Stage Approach to Asymmetric Legacy Information Integration.

In Proceedings of the 2nd International Workshop on Veriﬁcation and Validation of Enterprise Information Systems, pages 50-59

DOI: 10.5220/0002671100500059

 SciTePress

nology and semantic discrepancies inherent in legacy information systems. The “het-

erogeneity” of information systems can be classified into the following levels [7]:

• Platform level (hardware, operating system and network protocol)

• Data management system level (data query languages such as SQL, data imple-

mentation models such as object, relational, hierarchical and network database)

• Location level (where the data resides)

• Semantic level (multiple, replicated and conflicting representations of similar facts)

To some extent, technologies such as SQL, ODBC, JDBC and CORBA have

helped to resolve issues that are related to platform and data management system

heterogeneities. However, despite much effort spent by the scientific community,

semantic discrepancy is still an open and largely unsolved problem [12].

Data extraction, transformation and loading (ETL) for data warehouse is software

that can be used for the extraction of data from several sources, cleansing, customiza-

tion and insertion into a data warehouse [14]. Although ETL tools can be used with

legacy information systems, their focus is on historical information rather than current

(operational) data. In this paper, data integration for dynamic environments will be

discussed. The focus is on integration on demand rather than integration in advance to

allow for "continuous flow" of information between dynamic systems such as produc-

tion control, MES, and so on.

A Federated Database System (FDBS) is a collection of autonomous database sys-

tems that cooperate to provide a combined view of individual data stores [10]. We

feel that the conventional approaches of FDBS are inadequate for the integration with

legacy information systems since it is difficult to make changes in all legacy systems

so as to extract data from local stores and transform data according to the "federation

requirement". The typical integration processes with legacy information systems will

be asymmetric, i.e., the majority of data transformation jobs are carried out in the new

environment rather than distributed throughout the individual systems.

Hence, in this paper, we are proposing an architectural framework and the tech-

niques to address issues relating to the integration of legacy information systems with

new information systems. The ultimate challenge is to ensure data availability, data

integrity, and maximum system flexibility for the asymmetric integration with legacy

information systems. Typical constraints of asymmetric integration include:

• Changes are not allowed to be made to the legacy information system due to high

integration costs, unavailability of the human expertise, or the mission critical na-

ture of such systems does not permit disturbances to be introduced;

• Further additional loading of the legacy information system is not allowed because

of the limited system capacity;

• Unique identifiers for data entities to be shared cannot be provided by legacy sys-

tem, even though such unique identification is required by the receiving systems.

The objective of this work is therefore to design an integration framework that will

allow reconfigurable event-driven and on-demand data exchange between the inte-

grated systems, including legacy information systems. Related work such as ETL for

data warehouse and Federated Database System are reviewed in Section 2. In Section

3, we will discuss the major challenges in legacy information system integration and

propose a five-stage integration approach. Active mechanisms to ensure data integrity

are present in Section 4. Section 5 describes industrial implementations, and finally,

Section 6 provides the conclusion.

2 Related Work

In this section, we will review some related work in the fields of databases and in-

formation systems integration, and discuss their suitability to be used in legacy

information systems integration.

2.1 Data Extraction, Transformation and Loading (ETL) for Data Warehouse

Data extraction, transformation and loading (ETL) are the set of functions, which

reshape relevant data from source systems into useful information that will be stored

in the data warehouse [6]. It includes the following major functions:

• Data Extraction. This function deals with numerous data sources in diverse data

formats by capturing data from various sources such as transaction logs, database

triggers, application source codes, and by comparing the timestamps of records.

• Data Transformation. This function converts raw data into the format that is

usable in the data warehouse. It often involves the following steps: selection,

splitting/joining, conversion, summarization and enrichment.

• Data Loading. This function involves populating the data warehouse tables for the

very first time and applying ongoing changes in a periodic manner.

ETL tools have been extensively studied to supply data warehouse with clean data

(e.g., [1], [6], [8] and [14]). We have evaluated and found that some ETL techniques

are suitable for the proposed data integration framework. Since the main purpose of

data warehousing is to perform data mining and decision support, the standard ETL

tools tend to focus on historical information rather than current (operational) data. In

contrast, we focus more on data integration in dynamic environments (such as the

manufacturing information system model that will be studied in section 3), and this

requires integration on demand, rather than integration in advance.

2.2 Federated Database System

The Federated Database System (FDBS) was introduced to provide a uniform access

to information that is physically distributed [10]. A FDBS is defined as a collection of

autonomous database systems that cooperate to provide a combined view of individ-

ual data stores. Various models and methodologies for FDBS have been proposed by

numerous researchers [2], [9] and [12]. In general, the architecture is made up of a

few layers, including, for example, Local Schema, Component Schema, Export

Schema, Federated Schema, and External Schema. Each layer presents an integrated

view of the concepts that characterize the underlying layer, and taken together, sup-

ports the distribution, heterogeneity and autonomous features of the FDBS.

However, the aforementioned FDBS architecture requires individual component

databases to extract data from their local stores and transform the extracted data ac-

cording to the "federation requirement". While this approach works for newly estab-

lished database systems, it faces great difficulties when dealing with legacy

information systems that were developed years or decades ago that do not support the

latest database technologies, not even support the de-facto database language, SQL.

In most cases, the legacy information systems in an enterprise may not be replace-

able or even upgradeable, due to the high costs and organizational risks, or techno-

logical limitations that are associated with such reengineering [11]. They are usually

mission-critical and not modifiable without a thorough study and understanding of the

original design. Many of these systems are often running near their full capacities and

the hardware platforms are no longer upgradeable or even supported by the original

vendors. As a result, the integration processes between newly developed systems and

legacy systems are normally asymmetric. In other words, the majority of data trans-

formation jobs have to be carried out in the new environment rather than distributed

in all component systems including legacy databases. As such, the conventional ap-

proaches of federated database system are inadequate for the integration with legacy

information systems. Hence, an architectural framework that is suitable for legacy

information systems integration is needed.

3 A Generic Framework for Legacy Information Integration

3.1 Challenges in Legacy Information Systems Integration

In this section, a typical scenario is presented to highlight the major integration issues

that this paper aims to address. The information integration in this example comprised

of two independent heterogeneous databases within a manufacturing company; one

Inspection Result

Production Report

Production

Management

System

New Enterprise

Information System

Production

Plan

Stock

Control

System

Material Reorder

Rejection

and return

Order

Management

System

Production

Result

Delivery Order

Supplier Manufacturer Distributor

Order

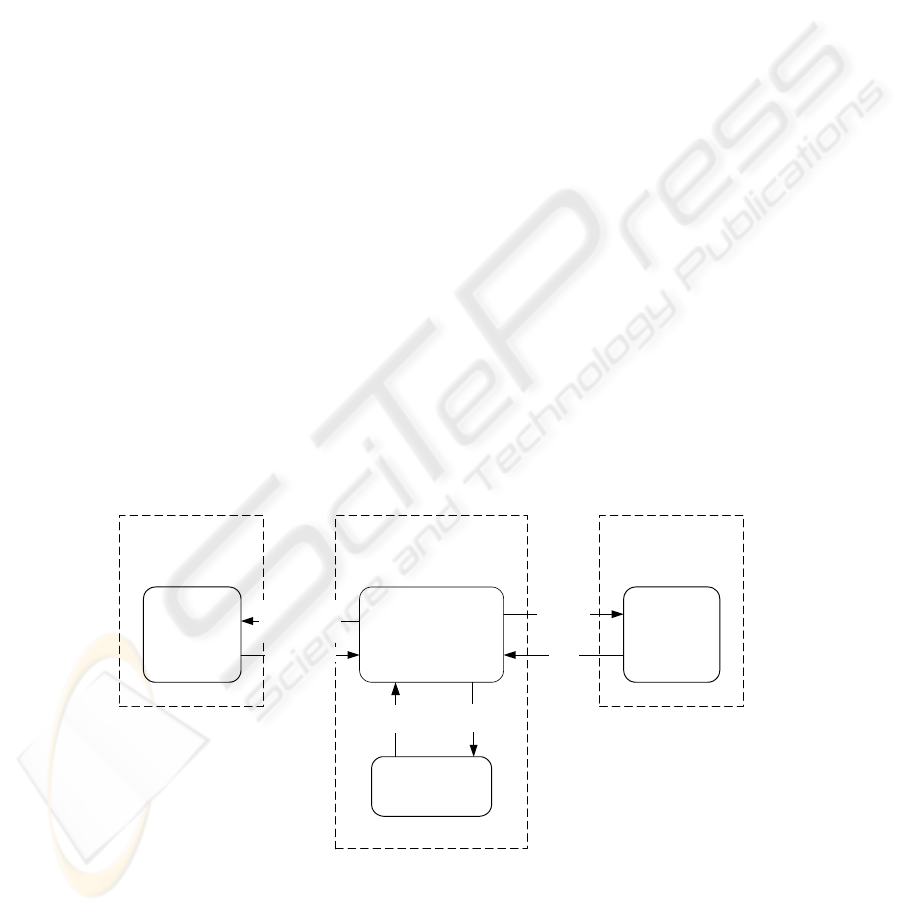

Fig. 1. Inter-Organizational data flow

being a legacy Production Management System (PMS) for real-time production con-

trol and quality management, and the other being a new Enterprise Information Sys-

tem (EIS) that supports production planning, inventory management and management

report. The new EIS also acts as the communication gateway with the information

systems of supply chain partners, transferring material usage information to the up-

stream material supplier and finished production order information to the downstream

distributor. The flow of data amongst these systems is shown in Fig 1.

The Production Management System was developed many years ago together with

the production lines, and is already running near its full system capacity. Before the

new EIS is introduced, there were several isolated computer systems in the manufac-

turing company for planning, reporting and so on. The new EIS needs to integrate

seamlessly with these disparate information systems of the organization as well as

those of the supply chain partners, to reduce the manual data entries and re-entries

which are labor-intensive and error-prone. The most problematic part is interfacing

with the legacy PMS, which mainly transfers production data from the PMS to the

EIS. The key issues to be addressed in this example include:

• The implementation has to be carried out in the new EIS as much as possible in

order to minimize disruptions in the legacy information system.

• Both periodic batch processing and real-time transaction-based data exchange has

to be supported.

• The PMS maintains the production data on a daily basis and transfers all daily

production results to the EIS several times a day, without differentiating data that

have already been transferred by previous transfer sessions.

• As a data repository for the PMS but also an entity in the supply chain, the EIS has

to differentiate data entities transferred from the PMS in different batches, as por-

tions already included in the management reports or passed to supply chain part-

ners cannot be altered any more.

This example represents the situation that is commonly found in many other indus-

try sectors in addition to manufacturing. It is therefore important to establish a generic

approach that can be applied to solve a class of legacy information systems integra-

tion problems that are typified in Fig 1.

3.2 The Architecture Framework

The proposed data integration framework for legacy information systems integration,

given in Fig 2, adopts a five-stage integration approach with the following key proc-

esses: Extraction, Filtration, Aggregation, Reconciliation and Infusion. The corre-

sponding data repositories that support these processes are: Interface Schema, Local

Schema, Consolidated Schema, Integrated Schema and Application Schema. Each

stage presents an integrated or processed view of the data that has been manipulated

in the previous processes. The characteristics of each stage of the integration process

and the corresponding schema are discussed in the following sub-sections.

3.2.1 Extraction Process with Interface Schema

The first stage of the integration process is the Extraction process. The Extraction

process operates on a set of interface tables and protocols that serves as the direct

communication interface with the legacy systems. Taking the system heterogeneities

into consideration, the data extraction process may be performed in many forms,

ranging from the tightly coupled data exchange technology to loosely coupled data

batch conversion, import and processing. If the source system is a RDBMS that sup-

ports transaction logs or database triggers, or if the source application can be modi-

fied to capture the new data in real-time, the data extraction is immediate. However,

features such as transaction logs or database triggers are normally not available in

legacy systems and modification of the legacy programs may not be feasible. In this

case, deferred data extraction will be the only option, and the interface schema will

provide a snapshot of the data in the legacy system, transferred by a periodically

batch process. Most ETL tools for data warehouse also contain Data Extraction stage.

3.2.2 Filtration Process with Local Schema

Owing to different functionalities of the EIS and PMS, raw data in the interface

schema that is obtained from the legacy system, needs to be filtered before it can be

used by the EIS, and the Local Schema only contains data that is of interest to the EIS.

Logically, the data filtration processes should reside in the data source system, as it

has far better control over how data can be filtered. For example in a FDBS, a filter-

ing processor is usually applied between the Component Schema and Export Schema

of each component DBS. In the case of legacy integration however, this may not be

practical as it is critical to minimize the disruptions, uncertainties and risks that any

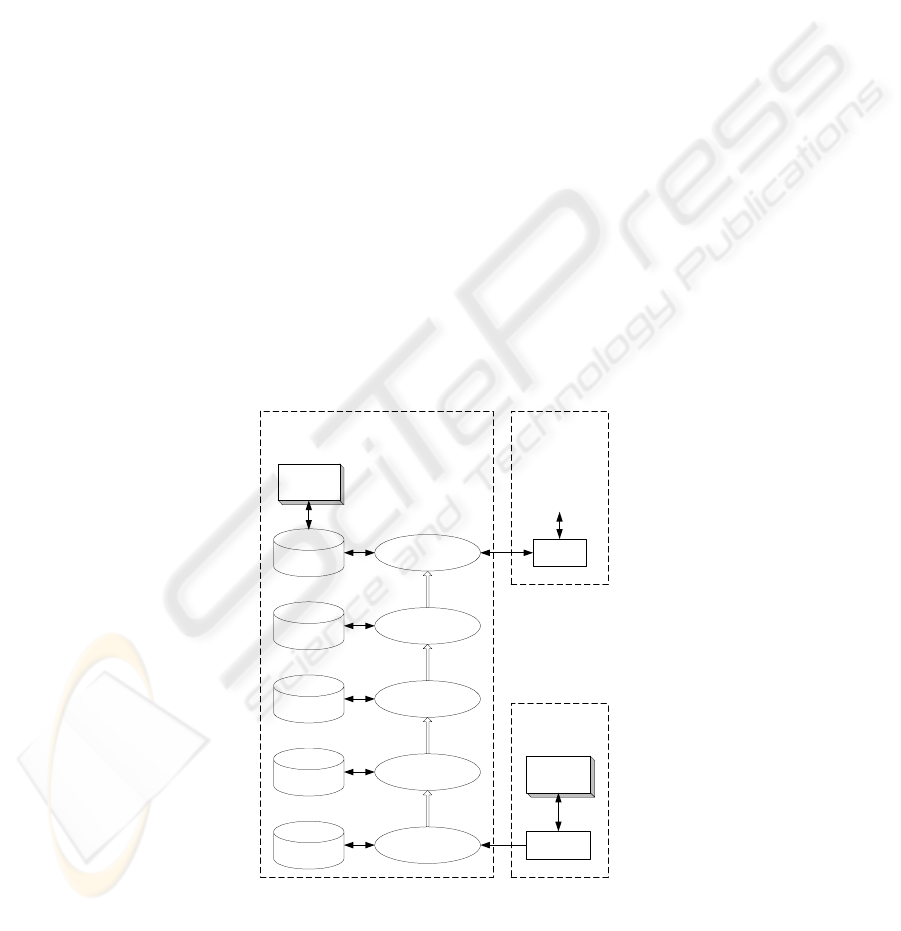

Fig. 2. The five-step integration approach

New Enterprise

Information System

Legacy Data

Source

Legacy System

3rd Party

Information

System

...

Extraction

Local

Application

Local

Application

Filtration

Aggregation

Reconciliation

Infusion

Interface

Schema

Local

Schema

Consolidated

Schema

Integrated

Schema

Application

Schema

modification may introduce to the legacy system. Consequently, the integration tasks

have to be performed by the new EIS.

3.2.3 Aggregation Process with Consolidated Schema

Different systems manipulate production related information at dissimilar levels of

detail. For the same attribute of a data entity, the EIS and PMS may take on different

values. For example, WIP statuses in the PMS like "Operation Start", "QA Testing",

and "Reworking" could all mean "In Operation" for the EIS. In the Aggregation stage,

a combination process will convert existing attributes to a common attribute defini-

tion by using the system-mapping dictionary and then merge all entities that have the

same common attribute definition. It provides attribute definition transparency for the

upper layers by isolating the semantic heterogeneities of the integrated systems.

Solving semantic incompatibilities for database schema integration has been stud-

ied in the database realm for a long time [3], [11], [12]. To establish relations with the

entities of a legacy database is extremely difficult, because the semantics of legacy

system could be in a default or implicit form. Apart from collecting semantic knowl-

edge from available schemata and data-dictionaries, the integration designer also

needs to collect information from the legacy system administrator, user and historical

data. The acquisition and representation processes of semantic knowledge for legacy

system are highly domain-specific and cannot be performed automatically.

3.2.4 Reconciliation Process with Integrated Schema

A major challenge that the legacy system integration architect has to face is how to

ensure data integrity, especially if the legacy system cannot distinguish whether or

not the data has been transferred in earlier updating sessions, and therefore always

provide the entire set of data. The situation will be further compounded when the

legacy system cannot even provide unique identifiers for the data entities that are

transferred.

As an example, a PMS may accumulate records of rejected raw material that are

generated by the quality control stations, and transfer to an EIS several times a day.

There could be multiple entries for the same type of materials, by the same quality

control station, but at different times. The timestamp of the data may be available but

it will change when the materials are reworked or retested. The EIS needs to differen-

tiate the data received from the PMS in different updating sessions, as the previously

received data has already been communicated to the material supplier. Data capture

that is based on date and time stamp using the normal data extraction technique of

ETL approach is not feasible in this environment.

In order to satisfy the foregoing requirement, the Reconciliation process is intro-

duced. An accompanying Integrated Schema serves as a repository for data entities

that have already been previously transferred and assigned with unique identification

values. The summarized data of the entries in the Consolidated Schema, which is now

distinguishable, will be compared with existing records in the Integrated Schema.

Only net quantities that represent the "new" records will be appended into the Inte-

grated Schema and assigned with unique identifications. As a result, the Reconcilia-

tion stage resolves system heterogeneities that are caused by differences in the timing

and frequency of data exchange.

3.2.5 Infusion Process with Application Schema

The Application Schema is the working domain for the local application of EIS. The

Infusion process provides the last stage abstraction and transformation of data from

the PMS. It prepares data in accordance to the standard required by the EIS local

application, and merges them with other existing data in the Application Schema.

In certain situations, the local application is allowed to enter new records or ma-

nipulate existing records transferred from the legacy system, in case the legacy sys-

tem or the integration interface has been down for a period of time. However, this

kind of manipulation brings about another consideration to the design of the Infusion

process. When the key value of incoming record from the legacy system matches with

the key of an existing record, either a constructive merge or a destructive merge could

be used, and the selection will have to be based on the nature of the individual tables.

3.3 Flexibility of the Proposed Framework

The generic five-stage integration approach presented in this paper addresses the

general issues that are faced in most legacy information systems integration situations.

However, it is possible that in a specific implementation, not all stages of the integra-

tion process are needed. Instead, variations to the integration processes can be made

based on the following guidelines:

• In cases where the data source systems are able to perform data filtration according

to the requirements of the target system, the Filtration process and the Local

Schema can be considered as redundant.

• If a common data-mapping dictionary exists and is available to all integrating

parties, and the data source systems are able to perform the necessary consolida-

tion, there is no need for the Aggregation process and Consolidated Schema.

• When the data exchange is in real-time and transaction-based, and all transferred

data entities have unique identities in all integrated systems, the Reconciliation

process and the corresponding Integrated Schema are not required.

4 Active Mechanisms to Ensure Data Integrity

Ensuring data integrity is critically essential for multi-source information integration.

Due to the technological limitations of legacy systems, many data integrity con-

straints have been embedded in the application code or may have to be enforced in

manual operation procedures. This will give rise to the possibility of potential data

integrity violations in legacy information systems integration.

Event-driven active mechanisms are devised in this work to overcome the violation

of data integrity constraints. Instead of stopping the data processing or simply reject-

ing the data when a violation occurs, active mechanisms allow recovery procedures to

be invoked with minimal interference to the business process. Such active behaviour

can be generally expressed by the Event-Condition-Action rules (or ECA-rules) in

active database systems ([4], [5] and [13]). As an example, a typical active rule to

recover from the above mentioned constraint violation could be defined as:

rule

Uniqueness_Constraint_Recovery

event which potentially violates the uniqueness constraint

condition the data entity does not have an Aggregation process with Consolidated Schema

action reroute the process and include the necessary data preparation for the next stage

Duplicated records will be consolidated by the re-introduced Aggregation process

and stored in the Consolidated Schema. The Reconciliation process will be carried

out on the assumption that there is no occurrence of exception yet. Supported by

active rule mechanisms, the integration framework is configurable and adaptable in

real-time.

5 Industrial Applications

The proposed five-stage integration approach together with active mechanisms pro-

vides a flexible integration framework that will ensure a high level of data integrity

and availability when dealing with problematic integration of legacy systems. The

methodology has been validated and implemented in an industrial project, and has

enabled the seamless integration and continuous information flow between a new

corporate information system and the legacy production and material handling sys-

tems. The successful implementation has eliminated a tremendous amount of manual

data entry activities that are tedious and error-prone. The commissioned system has

been proven to be reliable and robust, while guaranteeing data integrity.

Integration with legacy systems in a heterogeneous environment is an unavoidable

task for many information system developments and seamless integration with guar-

anteed data integrity, availability and reliability is always crucial. The methodology

described in this paper can be applied to a wide range of industries such as

manufacturing, logistics and the service industries.

6 Conclusion

This paper has identified and analyzed critical issues in information infusion from

multiple data sources, especially with regard to legacy information systems. The limi-

tations of conventional approaches such as ETL for data warehouse and Federated

Database System (FDBS) architecture have been discussed. A generic five-stage

integration framework has been proposed to resolve problems that are commonly

faced in legacy information systems integration. It can be used as a generic reference

architecture for the design and implementation of legacy information systems integra-

tion. The five-stage approach has been applied to an industrial application involving

the integration of several legacy information systems, including a realtime control

system for manufacturing material handling and inventory management.

The data manipulation processes together with the schemata, isolate the heteroge-

neities of the integrated systems and maintain the integrity of data. Event-driven ac-

tive mechanisms for integrity violation recovery provide a measure of flexibility to

the generic framework. In actual implementations, the number of integration proc-

esses and the corresponding schema layers could be varied from system to system, or

even from one type of data to another within the same system. A high level of integ-

rity, flexibility, availability and reliability is ensured for the asymmetric integration

with heterogeneous legacy information systems.

References

1. Cui, Y., Widom, J.: Lineage Tracing for General Data Warehouse Transformations.

The Int. J. on Very Large DBs, Vol. 12-1, (2003) 41-58.

2. Kaji, I., Kato, S., Mori, K.: Autonomous Data Consistency for Cooperative Appli-

cations to Fairly Ally the Data in Heterogeneous Systems. Proc. Int. Workshop on

Autonomous Decentralized Syst. (2000) 196–204.

3. Lukovic, I., Mogin, P.: An Approach to Relational Database Schema Integration.

IEEE Int. Conf. on Syst., Man, and Cybernetics, Vol. 4, (1996) 3210-3215.

4. Mylopoulos, J., Gal, A., Kontogiannis, K., Stanley, M.: A Generic Integration

Architecture for Cooperative Information Systems. Proc. First IFCIS Int. Conf. on

Cooperative Inf. Syst., (1996) 208 -217.

5. Paton, N. and O. Diaz: Active Database Systems. ACM Comput. Surveys, Vol. 31-

1, (1999) 63-103.

6. Paulraj Ponniah: Data Extraction, Transformation and Loading, in Data Warehous-

ing Fundamentals. Wiley Publication, (2001) 257-290.

7. Peter McBrien and Alexandra Poulovassilis: Distributed Databases, in Advanced

Database Technology and Design. Mario Piattini. London, (2000) 291-327.

8. Rifaieh, R., Benharkat, N. A.: Query-Based Data Warehousing Tool. Proc. the

fifth ACM Int. workshop on Data Warehousing and OLAP, (2002) 35-42.

9. Roantree, M., Keane, J., Murphy, J.: A Three-Layer Model for Schema Manage-

ment in Federated DBs. Proc. 13

Hawaii Int. Conf. on Syst. Sci., (1997) 44-53.

10.Sheth, A. and Larson, J.: Federated Database Systems for Managing Distributed

Heterogeneous and Autonomous Databases, ACM Comput. Surveys, Vol. 22-3,

(1990) 183-236.

11.Song, W.W.: Integration Issues in Information System Reengineering. Proc. 20th

Int. Compt. Software and Applications Conf., (1996) 328 -335.

12.Thiran, P., Hainaut, J.-L., Bodart, S., Deflorenne, A., Hick, J.-M.: Interoperation

of Independent, Heterogeneous and Distributed Databases. Proceedings. 3rd IFCIS

Int. Conf. on Cooperative Inf. Syst., (1998) 54 -63.

13.Turker, C., Conrad, S.: Towards Maintaining Integrity of Federated Databases.

Proc. the 3

Basque Int. Workshop on Inf. Technol., BIWIT '97, (1997) 93-100.

14.Vassiliadis, P., Simitsis, A.: Conceptual Modeling for ETL Processes. Proc. the 5

ACM Int. workshop on Data Warehousing and OLAP, (2002) 14-21.
