Service Discovery Infrastructure for Heterogeneous

Wired/Bluetooth Networks

Elena Pagani, Stefano Tebaldi, and Gian Paolo Rossi

Computer Science Dept., Universit

a degli Studi di Milano

Abstract. Speciﬁcations of some applications based on the Bluetooth protocol

stack have already been standardized by the Bluetooth Special Interest Group.

Those applications can however be accessed inside a piconet, while Bluetooth

devices belonging to different piconets are not able so far of cooperating in a

distributed application. In this paper, a framework is proposed that allows a Blue-

tooth device to search for services provided by other devices, also in case they

are connected to different piconets that communicate through a wired network.

The proposed framework has been implemented on a testbed platform and its

suitability has been tested by using it to distribute a ﬁle transfer service over a

heterogeneous network.

Keywords: Bluetooth, heterogeneous networks, service discovery and access,

testbed deployment.

1 Introduction

The Bluetooth technology [1,2] has been designed with the purpose of replacing ca-

bling amongst neighbor devices, for instance to connect computers and mobile phones

to external devices and accessories via wireless links. Ongoing standardization of Blue-

tooth makes it an interesting solution to rapidly deploy wireless infrastractures using

low cost, easily available devices such as PDAs, notebooks and cellular phones.

Application characteristics have been speciﬁed [2], that allow to deploy distributed

services based on the Bluetooth protocol stack. Those applications are not compliant

with the TCP/IP protocol stack and so far they can involve only Bluetooth devices

(BDs) belonging to the same piconet. The usage of those services is supported by the

Service Discovery Protocol (SDP), which allows to discover information about how to

conﬁgure the Bluetooth protocol stack to interoperate with another device; SDP is only

usable inside a given piconet. As a consequence, a BD is not able to establish a session

with a remote BD connected to a different piconet.

This work presents BSDA (Bluetooth Service Discovery and Access), an infrastruc-

ture that supports communication sessions between two BDs belonging to different

piconets that are connected through a wired network. An extension of SDP is proposed

This

work has been partially supported by the Italian Ministry of Education, University and

Research in the framework of the FIRB ”Web-Minds” project.

Pagani E., Tebaldi S. and Paolo Rossi G. (2004).

A Service Discovery Infrastructure for Heterogeneous Wired/Bluetooth Networks.

In Proceedings of the 1st International Workshop on Ubiquitous Computing, pages 170-179

DOI: 10.5220/0002671301700179

 SciTePress

that allows a BD to retrieve information about the services available on other BDs, in-

dependently of their current location, and about the protocol stack conﬁguration needed

to exploit those services. This extension includes mechanisms to deal with BDs dynam-

ically changing the piconet to which they are connected over time.

2 Related works

In literature, some infrastructures have been proposed that provide device and service

location functionalities.

Service Location Protocol

(SLP) [3] has been proposed by the IETF to discover the

services available in an intranet. It supplies the IP address and port number of the hosts

providing the service. It is suitable for wired networks, while supporting host (and thus,

service) mobility involves a large control overhead to update the location information.

SLP supports the discovery of services deﬁned by IANA and identiﬁed by a URL, and

it is based on the TCP/IP protocol stack.

JINI

[4] allows to access Java programs, or Java applications supplied by devices

running a JVM. The service discovery is performed by multicasting a request to lookup

servers. The service is accessed by downloading from a lookup server the Java code

either implementing the service, or implementing the interface to communicate with

the remote server.

Salutation

[5] supports service and device discovery and access in presence of

highly mobile system participants. Salutation is independent of underlying communi-

cation protocols and end host architectures, but for each transport protocol adopted in

the network it requires a Transport Manager able to interoperate with that protocol. Ser-

vice discovery and access is supplied by a pool of Salutation Managers (SLMs), which

are organized in a backbone. The SLMs represent the system bottleneck as they have

in charge both the provisioning of users with information about the available services

and the set-up of the client-server connections. Mechanisms must be deployed to allow

users to discover SLM addresses.

Microsoft developed

Universal Plug and Play

(UPnP) [6] for the service and device

discovery in LANs. To exploit UPnP, a host has to execute the control point code, that

allows to discover the available services and access them on the remote devices. UPnP

can be used for services based on the TCP/IP protocol stack. Bluetooth devices could

participate in UPnP infrastructures through bridges supporting the interoperability be-

tween the two systems.

2.1 Service Discovery Protocol (SDP)

SDP [1] supplies functionalities to discover the services available in a Bluetooth pi-

conet. A service is described via a service record, which contains a list of service

attributes. These service attributes are described in the corrisponding proﬁle [2], and

their knowledge is needed to exploit the service. The most important attributes are the

ServiceClassIDList

and the

ProtocolDescriptorList

. The

ServiceClassIDList

is a list of

Universally Unique Identiﬁers (UUIDs) identifying the service classes that the service

171

implements, while the ProtocolDescriptorList describes the Bluetooth protocol stack to

be used to access the service, and the needed parameter conﬁguration.

Any Bluetooth device carrying services also runs an SDP server to make those

services available to other hosts. The SDP server maintains the records for the services

existing on the device identifying each record with a unique handle, and it interacts with

the SDP clients residing on devices willing to access remote services. A client looks

for a service by specifying a service search pattern that is the list of UUIDs that must

characterize the service. A service record matches the search pattern if it contains all the

UUIDs listed in the pattern. A client may as well browse through the services available

on a given device. The services belong to groups, each one of which is identiﬁed by a

UUID that is recorded in the service records: the groups are arranged in a hierarchical

structure. A client can discover all the services belonging to a group by using the group

UUID as the search pattern.

SDP adopts a request/response communication scheme; three kinds of requests can

be generated by a SDP client:

ServiceSearchRequest: it is used to locate services whose records match the search

pattern;

ServiceAttributeRequest: it is used to retrieve attribute values from a speciﬁc record,

characterized via its handle;

ServiceSearchAttributeRequest: it combines the functionalities of the two requests

above, that is, it allows to retrieve attribute values concerning the services satisfying

the search pattern.

Requests are sent to a speciﬁc Bluetooth device, by having the SDP client that estab-

lishes a L2CAP connection with the SDP server. A SDP client could browse through

the services available in its communication range only by performing the inquiry pro-

cedure to discover the BDs in range, and then by repeating the above step for each one

of them separately.

3 Bluetooth Service Discovery and Access (BSDA)

BSDA (Bluetooth Service Discovery and Access) allows a BD to make its own services

available to other BDs, and to search for services provided by other BDs, independently

of their geographical location. In particular, the involved BDs may belong to different

piconets, connected through a wired network. BSDA is based on SDP. With BSDA a BD

is able to both browse through the services offered by a speciﬁc BD, and characterize all

the BDs providing a given service. Moreover, a BD is able to retrieve the service record

describing a particular service, and as a consequence to actually exploit the service.

In Fig. 1, we show the system we consider. BDs are connected in piconets. The role

of master is assigned to a device equipped with a wired network interface, thus also act-

ing as Access Point (AP) to the ﬁxed network infrastructure. SDP is exploited by BDs

inside piconets to ﬁnd the AP and to exchange information about the available services.

The service discovery functionalities are mainly in charge to the Home Agents (HAs).

A Home Agent is a ﬁxed host in Internet that works as a central repository for informa-

tion about the services offered by BDs and is queried to discover which services a BD

172

supplies. More than one HA can exist in the system. Each BD is associated with one HA

and an HA can serve more than one BD. The AP allows a BD to interact with the HAs to

advertise its own services and discover services of other BDs. The communication be-

tween two BDs occurs through the APs to which they are connected. Usually, communi-

cations between an AP and an HA are based on the UDP protocol. Yet, long messages

could be generated, that do not ﬁt into an UDP message. In this case, TCP is used instead

to avoid problems related with message fragmentation. When exporting Bluetooth ser-

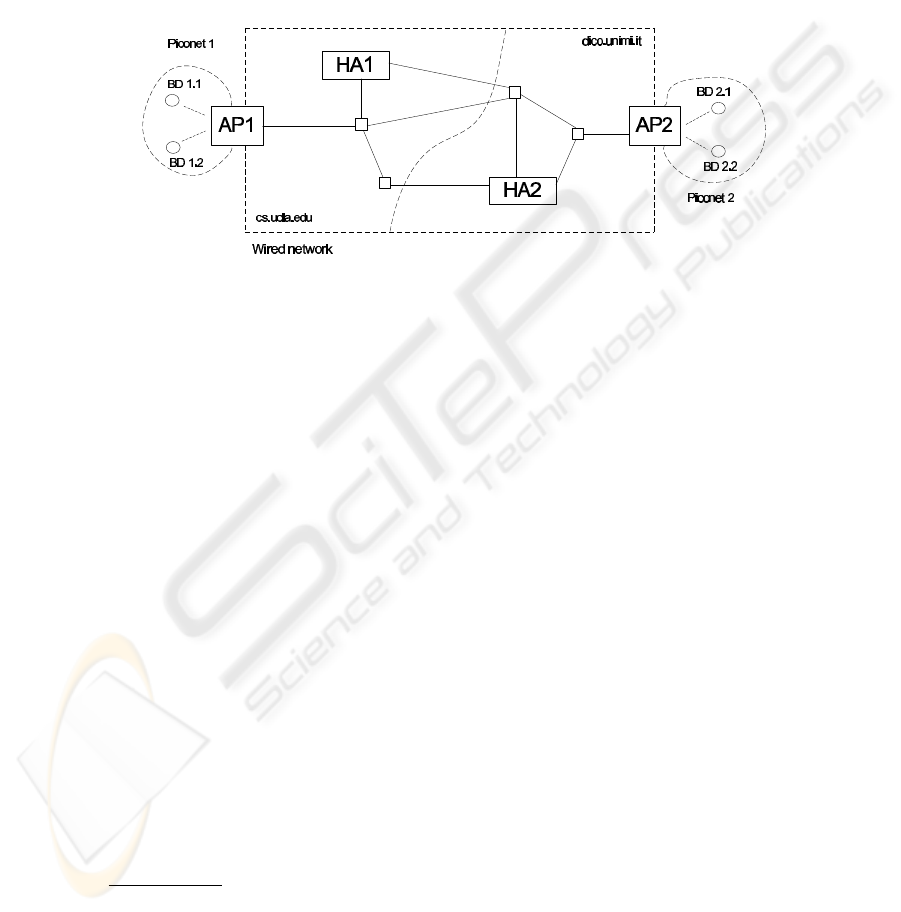

Fig.1. BSDA operational environment

vices in Internet, an addressing scheme must be devised alternative to the 48-bit BD ad-

dress used inside piconets. That scheme must be independent of the current BD’s loca-

tion, while it can be a mnemonic name that allows users to easily indicate the BD whose

services are searched for. As the naming scheme we use a URL, that is associated to

each BD, and has the form: "Bluetooth://"<HAAddress>"/"<id-device>

; with <HAAddress> either the symbolic hostname or IP address of the Home Agent

which maintains the information about the BD, and <id-device> the symbolic name for

the speciﬁc BD. As an example, a user Bob working at the Computer Science Dept. of

the UCLA may have a PDA equipped with a Bluetooth interface card, and exploiting the

local Home Agent, whose associated URL is "Bluetooth://HA1.cs.ucla.edu/BobPDA".

BSDA includes procedures to publish the services supplied by the BDs, to search for

services provided by other BDs, and to establish a session through the wired/wireless

network to exploit a service. For the sake of simplicity, we initially assume that BDs do

not move. We then explain how the protocol copes with BDs that dynamically change

the piconet to which they belong.

A BD wishing to make its local services available through Internet, besides of stor-

ing the appropriate service records in its own SDP server, must advertise them to its

HA, via its own AP (Service Registration procedure). The BD requests its AP to regis-

ter the BD’s services at the appropriate Home Agent, by sending it a Registration

message containing the BD’s URL. Upon reception of this message, the AP sends an

SDP request to the BD to discover all the services the BD makes available. The ser-

vice records obtained this way are used by the AP to build a Registration message

E.g., messages carrying information about several services.

173

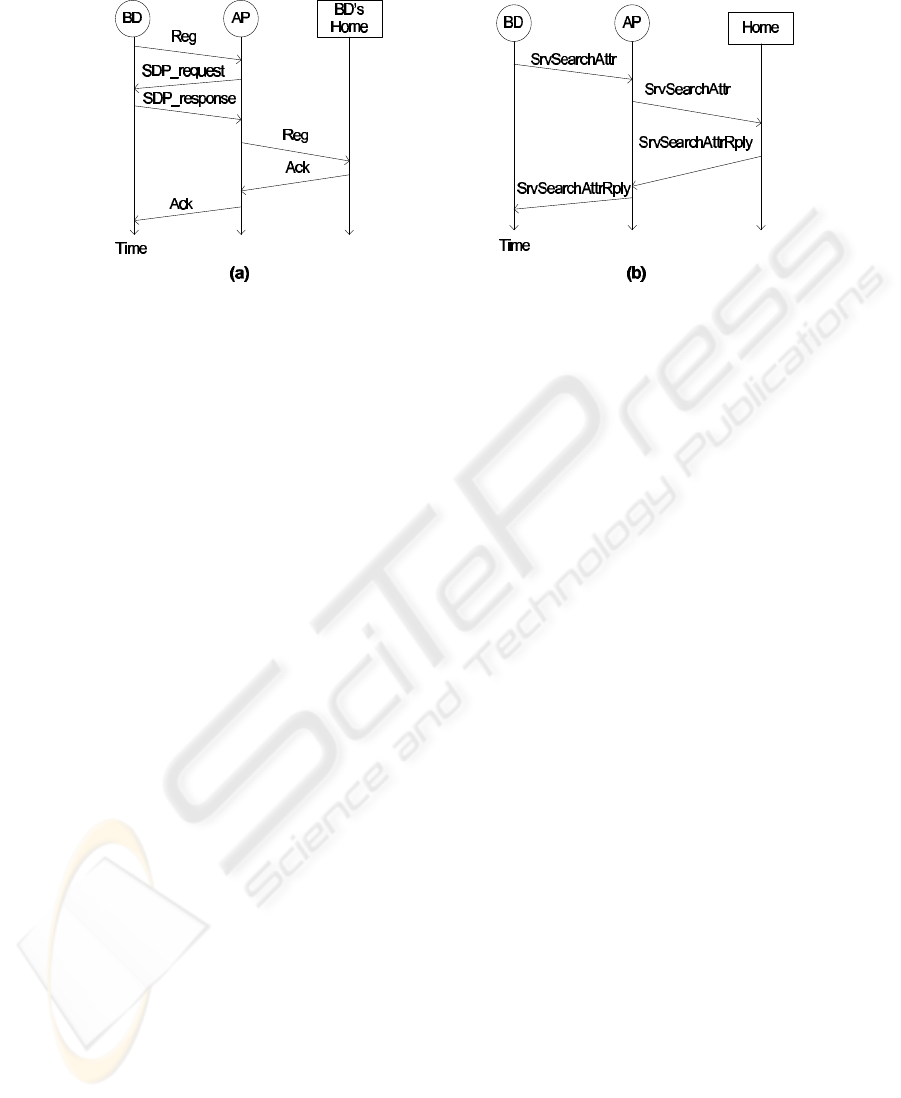

Fig.2. (a) Registration procedure. (b) ServiceSearchAttribute procedure.

that the AP sends to the HA indicated in the BD’s URL, thus replicating them at the

HA repository. In Fig. 2(a), we show the communication pattern for the registration

procedure.

The HA repository can be queried by exploiting BSDA when a BD wants to ac-

cess a service of another device (Service Search procedure). Two kinds of searches

can be performed: either a BD can perform a query about the services supplied by

a speciﬁc BD, or it can request an HA the identities of all the BDs registered at it

that provide a certain type of service. In both cases, the BD directly communicates

with its own AP, that then takes in charge the communication with the appropriate

HA. In the former case, the service client BD (BD

) sends to its own AP (AP

) a

ServiceSearchAttribute message, containing the URL of the BD searched for

and an SDP service search pattern. This message is a modiﬁcation upon the homony-

mous SDP message. The URL indicates AP

which is the HA to contact, while the SDP

search pattern is the set of UUIDs to be used to select the appropriate service records

among those the HA owns concerning the BD server indicated in the URL. As an ex-

ample, consider a user Alice whose portable PC P C

exploits the HA at the Computer

Science Dept. of the University of Milan. If Alice wants to perform a ﬁle transfer to

Bob’s PDA, a connection must be established between P C

and its current AP. Then,

the P C

’s ServiceSearchAttribute message must be forwarded by that AP to

HA1.cs.ucla.edu,

without

the need of contacting the P C

HA. In Fig. 2(b), we show

the communication pattern for the processing of the ServiceSearchAttribute

messages. The ServiceSearchAttributeReply contains the address of the AP

to which the BD searched for is currently connected, and the service records satisfying

the query.

In case a device wants to discover all the devices registered at a given HA and sup-

plying certain services, the client BD sends to its AP a ServiceSearchmessage con-

taining the URL of the HA to be contacted and the SDP search pattern that the service

records must match. The client may as well indicate the maximum number of matches

it wants in response. The communication pattern is similar to that of Fig. 2(b). The

ServiceSearchReplymessage contains the URLs of the BDs satisfying the query;

174

the client BD may then reﬁne the search by issuing a ServiceSearchAttribute

for one of the obtained URLs. Once a client BD has obtained the address of the server

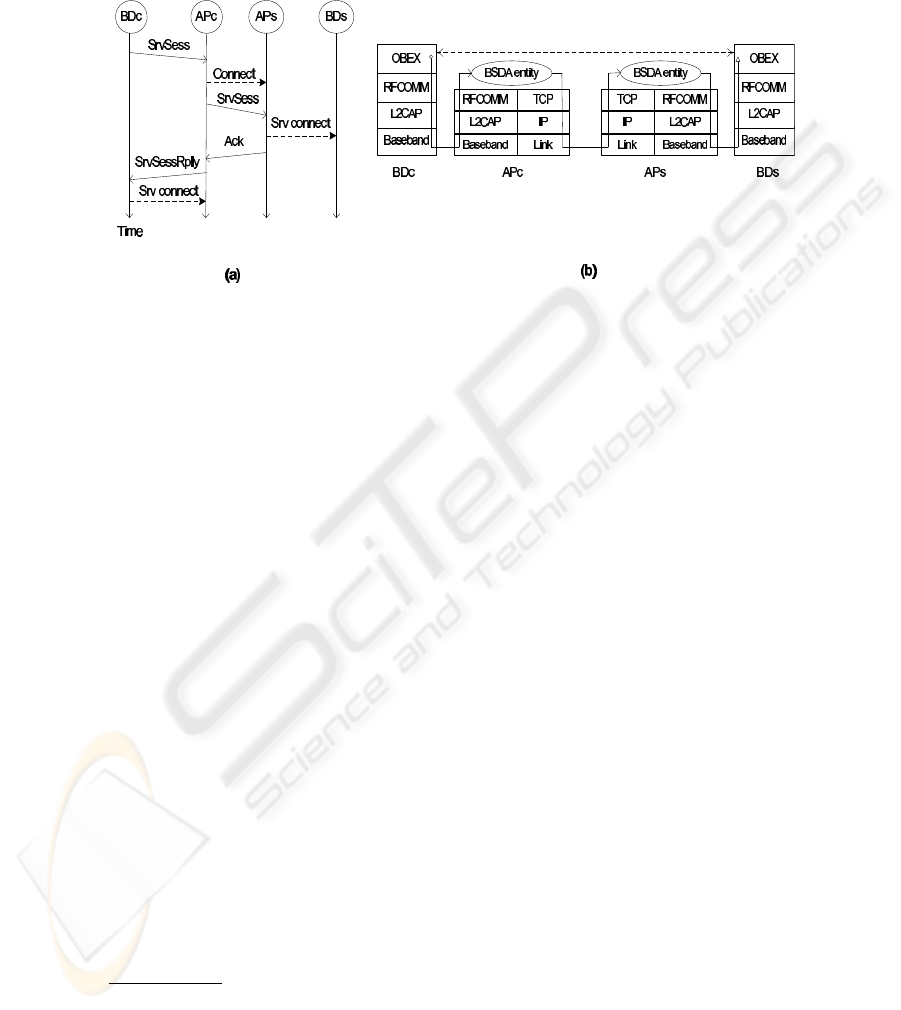

Fig.3. (a) ServiceSession procedure. (b) Protocol stacks and connections used during an OBEX

Object Push session.

BD’s current AP, and the service record with the proﬁle of the service the client wants

to exploit, a session can be set up to access the service. Let BD

be the client BD with

access point AP

and BD

be the server BD connected to the access point AP

. In

order to build a session, AP

simulates to be the service entity for BD

, and it connects

to AP

that in turn simulates to be the client entity for BD

. To this purpose, BD

sends to AP

a ServiceSession message, containing the AP

address, the BD

URL and the service record of interest. AP

starts a BSDA entity acting as server for

the desired service, able to accept the BD

connection request. Then, AP

sends the

ServiceSession to AP

, which starts a BSDA entity acting as client, that estab-

lishes a connection with BD

. If this procedure is carried out successfully, then AP

sends an Acknowledgement to AP

. AP

sends BD

a ServiceSessionReply,

possibly specifying the correct session parameters, if they are different from those spec-

iﬁed in the service record. This may for instance occur if the RFCOMM channel that

should be used to connect to the server

is already in use on AP

, and then AP

has to

use a different value. When BD

receives the reply, it is able to set up a session with

and to use the service. All the service messages sent by either BD

or BD

are

received at their respective APs, where they are encapsulated by the BSDA entities to

be forwarded to the other AP, which decapsulate the service message and transmits it

to the local BD. The described procedure is shown in Fig. 3 (a). It is worth to notice

that the BSDA entities are completely unaware of the service characteristics and im-

plementation details. Their unique task is to appropriately encapsulate and decapsulate

messages to transfer them between heterogeneous protocol stacks (Fig. 3(b)).

As an example, let us suppose that a BD

wants to utilize the OBEX Object Push

capability [2] of another BD

that is not in communication range, but that is available

According to the service record

175

through AP

. BD

sends its own AP

a ServiceSession request containing the

OBEX Object Push service record previously obtained via a ServiceSearchAttribute

request. This service record may be as follows:

Service Name: OBEX Object Push

Service Class ID List:

"OBEX Object Push" (0x1105)

Protocol Descriptor List:

"L2CAP" (0x0100)

"RFCOMM" (0x0003)

channel: 4

"OBEX" (0x0008)

then sets up an RFCOMM serverlistening on channel 4, as indicated in the Protocol

Descriptor List attribute. This RFCOMM server allows BD

to establish the ser-

vice connection with AP

. AP

then establishes a connection with the remote AP

which the server BD

is connected and sends it the ServiceSession message. The

receiving AP

establishes an RFCOMM connection with the local BD

by using the

information contained in the service record and replies with an Ack message. When

the source BD

receives the ServiceSessionReply from its own AP

, it connects

to AP

and starts using the service. Figure 3(b) shows the protocol stacks and the es-

tablished connections among the entities participating in the session. The OBEX client

does not create the RFCOMM connection with the real OBEX server, that is not in

communication range, but with its own AP that will send data received from the OBEX

client to AP

to which the OBEX server is connected. AP

will send the data to desti-

nation.

3.1 Mobility support

So far, we assumed that BDs never move. When a BD moves from one piconet to

another, its AP changes and as a consequence the information maintained on its HA

becomes stale.

To prevent the usage of outdated information, the entries in the HA repository

are maintained according to a soft-state approach: an AP must periodically send a

Registration message to the HAs of the BDs it is currently connected to, or those

BDs information is removed. If no change is needed to the information held by the

HA, those periodic messages could contain just the URL of the BD whose entry must

be refreshed, thus saving bandwidth. This mechanism guarantees that old information

is deleted from the HA also in case the AP crashes or it becomes disconnected. On

the other hand, if an AP notices that it lost the connection to a BD, it may expedite

the updating of the corresponding HA information by sending it a Deregistration

message, which provokes the BD’s entry deletion. This message can be as well gen-

erated by a BD requiring its AP to remove it from its HA, because it is not anymore

willing to provide other BDs with its own services.

In spite of these mechanisms, it is not guaranteed that an AP does not contact an-

other AP not anymore supporting a given BD, because of the network latency. Simi-

larly, an HA may receive a request concerning either a BD which deregistered, or a BD

176

whose entry is expired. If an AP receives a message addressed to a BD currently not

connected to it, then the AP issues an error message in reply. If an HA receives a query

concerning a BD such that either is currently disconnected or the HA has no informa-

tion for it at the moment

, the HA replies with either a ServiceSearchReply or

a ServiceSearchAttributeReply containing an error code. In both cases, the

client should perform a retry after some time, when the information about the sought

BD has been updated.

4 Protocol implementation and testing

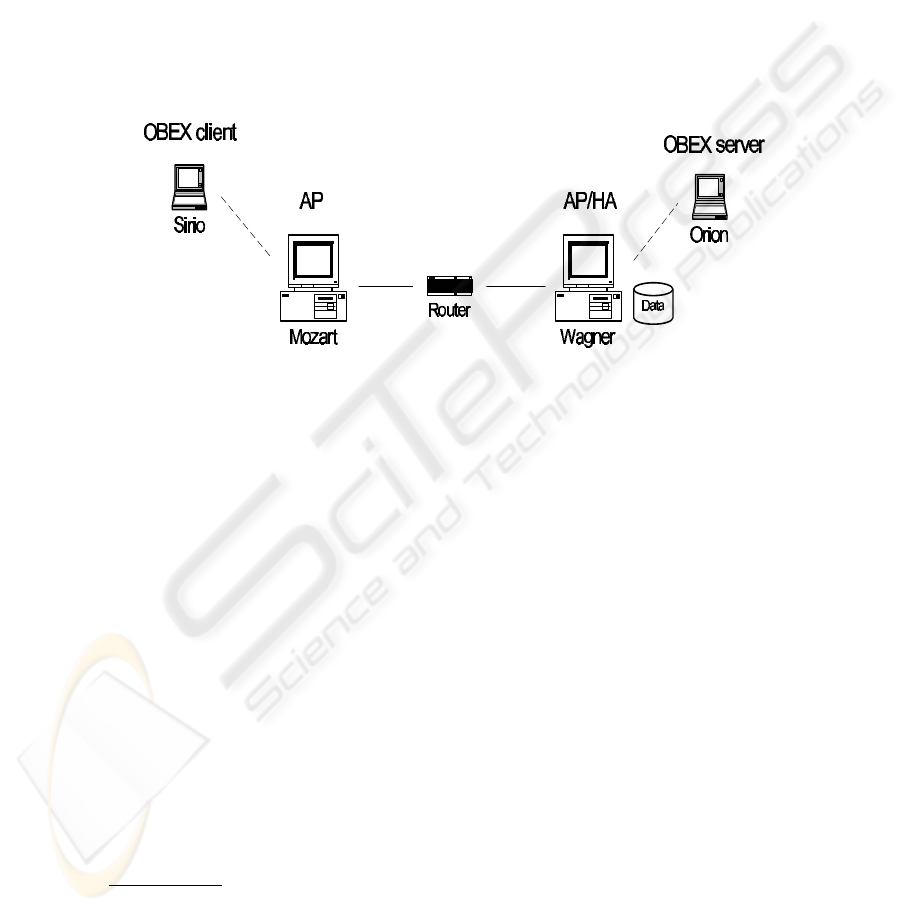

Fig.4. Layout of the test network

We implemented the proposed solution on a testbed platform. We use two note-

books and two desktop PCs each of them equipped with a ‘Ericsson ROK 101’ Blue-

tooth module. The notebooks work as BDs and the PCs as APs. One of the PC acts

also as Home Agent for the BDs. In Fig. 4, we show the layout of our testbed net-

work. All the four machines run RedHat Linux with Kernel 2.4.18 and use BlueZ

(http://bluez.sourceforge.net) as the Bluetooth protocol stack. We tested

our protocol with the OBEX Object Push service. Sirio acts as OBEX client and

Orion as OBEX server. The goal is to transfer a ﬁle from Sirio to Orion even

if they are not directly connected. BlueZ does not include the OBEX protocol, thus

we used OpenOBEX (http://openobex.sourceforge.net). All the software

modules that constitute the system were implemented in C. In the following, we provide

a brief description of the testbed implementation.

Two relevant data structures have been implemented, namely the HA repository

and a structure recording the characteristics of the connections an AP has active with

its own BDs and possibly other APs. The communications channels shown in Fig. 4

are implemented through sockets. The information maintained in the HA repository for

each registered BD is: the BD’s URL, the address of the associated AP, the list of its ser-

vices, a timestamp indicating the registration time and the active ﬂag indicating whether

The BD’s status is expired at the HA.

177

the registration is still active or not. If the active ﬂag is 0, the HA can either remove the

entry, if it needs memory, or maintain it and update it when the corrisponding BD re-

registers again. In the latter case, the non-active entries are not considered in replying

to the queries. The entry ﬁelds are initialized upon the reception of a Registration

message. The timestamp value is obtained using the gettimeofday() function. An

entry is considered valid if its timestamp is lower than 120 seconds. Every service

session involves two connections: one between two APs, that is a TCP (or UDP) con-

nection and one between AP and BD, that is a Bluetooth connection. As a consequence,

every AP needs a mechanism to associate these two types of connection to properly

forward the data among them. Each AP stores a list containing a mapping of wired and

Bluetooth sockets for each service-related connection. An AP monitors all its network

connections exploiting the select() system call. Based on which socket becomes ac-

tive the AP acts accordingly. At the bootstrap, Sirio and Orion have to ﬁnd an AP.

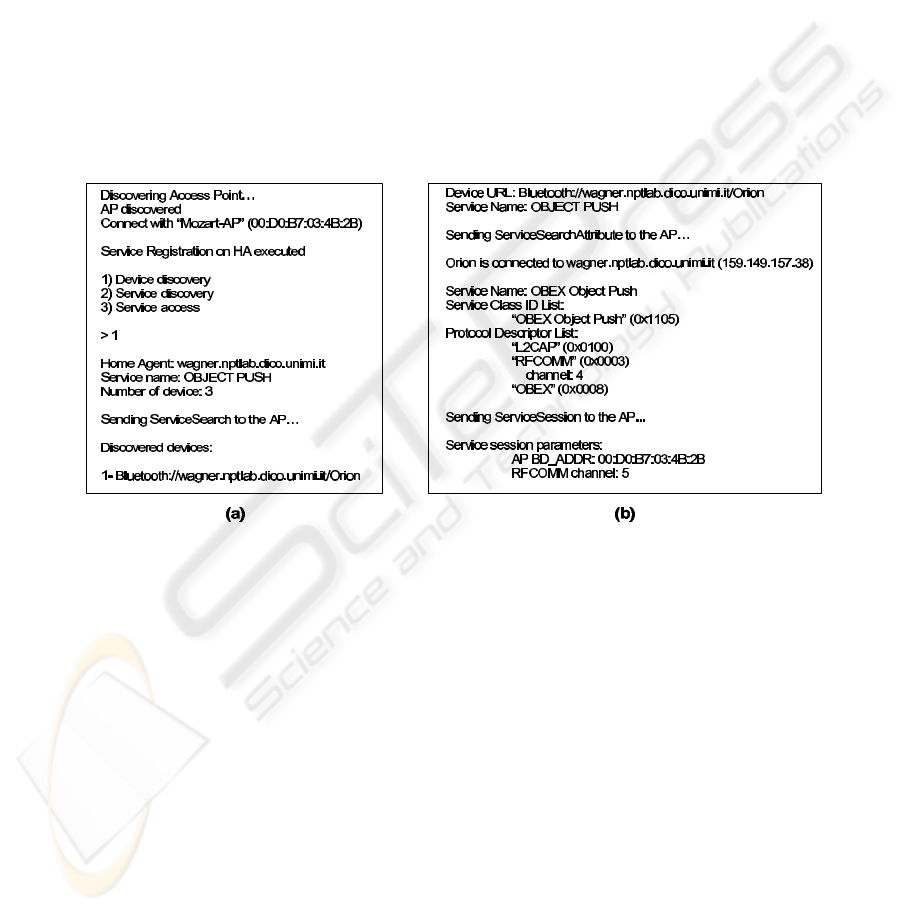

Fig.5. BD command interface example: (a) Sirio registration and device discovery; (b) service

search and access on Sirio.

When the connection with the AP is established, a command interface is shown to the

user. Using this interface, the user can exploit BSDA to discover BDs having desired

services, to obtain speciﬁc information on these services and to exploit them.

In Fig. 5, we show the user interface provided by a BD. In Fig. 5(a), the Sirio

user chooses to discover which BDs have the OBEX Object Push service. It provides

the HA address and the name or UUID of the service and obtains the URLs of the BDs

that match the search pattern (in this case only Orion). In Fig. 5(b), the BD obtains the

speciﬁc information about the service and asks its own AP to establish a service session.

As we can see, Sirio obtains in reply the needed parameters to exploit the service via

Mozart. These parameters are used as input for the OBEX client code included in

OpenOBEX.

178

5 Concluding remarks

In this work, we present an original infrastructure supporting the access of Bluetooth

services by Bluetooth devices located in a piconet different from that of the server

device. The infrastructure has been implemented on a testbed platform and its suitability

has been analyzed by exploiting it to guarantee the remote accessibility of a ﬁle transfer

service based on the Bluetooth protocols.

As a future work, we plan to perform measurements with the testbed implemen-

tation, to perform a ﬁne tuning of the timer used for the soft-state maintenance of the

entries in the HA repositories. A peer-to-peer infrastructure could be designed, connect-

ing the Home Agents, that would allow to extend the service search range. Moreover,

we are studying the possibility of adapting the infrastructure to be used in a scatternet,

that is, an ad hoc wireless network obtained by connecting several piconets.

References

1. Bluetooth Special Interest Group:

“Bluetooth V1.1 Core Speciﬁcations”

. May 2001,

http://www.bluetooth.org.

2. Bluetooth Special Interest Group:

“Bluetooth V1.1 Proﬁle Speciﬁcations”

. Feb. 2001,

http://www.bluetooth.org.

3. Guttman E. and Perkins C. and Veizades J. and Day M.:

“Service Location Protocol - Version

2”

. RFC 2608, IETF, June 1999. Work in Progress.

4. Sun Microsystems:

“Jini Architectural Overview”

. Technical White Paper, 1999,

http://www.jini.org.

5. The Salutation Consortium:

“Salutation Architecture Speciﬁcation (Part-1)”

. Version 2.1,

1999, http://www.salutation.org.

6. Microsoft Corporation:

“Understanding Universal Plug and Play”

. White Paper, 2000,

http://www.upnp.org.

179
