Secure Routing with the DSR Protocol

Asad A. Pirzada and Chris McDonald

School of Computer Science and Software Engineering

The University of Western Australia

35 Stirling Highway, Crawley, WA 6009, Australia

Abstract. An ad-hoc network is a spontaneous network that emerges

when two or more wireless nodes pledge to help each other. As the wire-

less range of these nodes is usually limited so each node commits to

forward the packets on behalf of its neighbours in accordance with a pre-

deﬁned routing protocol. Dynamic Source Routing (DSR) is one of the

widely used routing protocols that is currently undergoing extensive re-

search and development. DSR is based on source routing, but the routes

are discovered not on a periodic basis but on an as per requirement ba-

sis. The control and data packets traverse the network in accordance

with the list of IP addresses held by each packet. As this list is mutable,

it creates a potential vulnerability that is frequently exploited by mali-

cious nodes. By adding, deleting or modifying IP addresses in the list,

malicious nodes can control and monitor the ﬂow of network traﬃc. Sim-

ilarly, transmission of routing packets in clear text, also discloses vital

information about the network topology, which is again a potential se-

curity hazard. This necessitates that the routing and data packets must

be obscured and authenticated prior to usage. In this paper we present

a novel and pragmatic scheme for securing the Dynamic Source Routing

protocol that protects against a number of attacks carried out against

mobile ad-hoc wireless networks.

1 Intro duction

Present ad-hoc wireless networks make use of the Internet Protocol (IP) at the

network layer primarily due to standardization and compatibility reasons. This

also facilitates to integrate ad-hoc networks with wired networks and a multi-

tude of other hardware devices using IP in the protocol stack. Each node of the

ad-hoc network acts similar to a mobile IP router [1] and endeavours to uphold

a reliable ﬂow of network traﬃc. Due to a variety of factors including dynamic

topology, energy constraints and uni-directionality of the links, standard intra-

router protocols cannot be directly applied to mobile ad-hoc wireless networks.

In addition, as the routers are moving majority of the time, the network is void

of any single traﬃc concentration point, a basic requirement of all standard rout-

ing protocols. Several types of routing protocols have been specially developed

for ad-hoc networks and have been classiﬁed into two categories as Reactive

and Proactive [2]. In Reactive Routing Protocols, in order to conserve a node’s

A. Pirzada A. and McDonald C. (2004).

Secure Routing with the DSR Protocol.

In Proceedings of the 3rd International Workshop on Wireless Information Systems, pages 24-33

DOI: 10.5220/0002676200240033

 SciTePress

2 Asad A. Pirzada et al.

battery, routes are only discovered when required, while in Proactive Routing

Protocols routes are established prior to use and hence avoid the latency delays

incurred while discovering new routes. For eﬀective operation, routing proto-

cols for ad-hoc networks require that all participating nodes display benevolent

behaviour. This is more than often diﬃcult to achieve in open networks and

requires some out-of-band mechanism for establishing and maintaining trust in

the network [3]. Cryptographic mechanisms are still a major tool enforcing mu-

tual trust relationships among the wireless nodes for the protection of routing

protocols.

Security in mobile ad-hoc wireless networks is a two-fold problem. One is the

security of the routing protocols that enable the nodes to communicate with each

other and the second is the protection of the data that traverses the network on

routes established by the routing protocols. In this paper after Introduction, in

Section 2 we describe some recent secure routing protocols for ad-hoc networks,

which were developed to counter known attacks. In Section 3 we recommend a

scheme for securing the Dynamic Source Routing protocol. A security analysis

of the proposed scheme is presented in Section 4 and Section 5 oﬀers some

concluding remarks.

2 Previous Work

To protect an ad-hoc network from modiﬁcation, impersonation and fabrication

attacks [4] a routing protocol must fulﬁl a set of requirements [5] to ensure

that the discovered path from source to destination functions properly in the

presence of malicious nodes. A number of secure routing protocols have been

recently developed that conform to most of the requirements. A comparison of

these protocols [6] revealed that the secure routing protocols employ a variety of

cryptographic tools to protect the underlying routing protocol. However, these

protocols have been developed as a practical response to speciﬁc problems that

arose due to attacks on ad-hoc network routing protocols. Consequently, these

protocols only cover a subset of all possible threats and are not ﬂexible enough

to be integrated with each other. Some of the recent secure routing protocols

are explained in the following sub-sections.

2.1 ARIADNE

ARIADNE [4] is an on-demand secure ad-hoc routing protocol based on the

Dynamic Source Routing (DSR) protocol that protects against node compromise

and relies only on extremely eﬃcient symmetric cryptography. The security of

ARIADNE is based upon the secrecy and authenticity of keys that are kept

at the nodes. ARIADNE prevents a large number of Denial-of-Service attacks

from malicious or compromised nodes. ARIADNE provides assurance that the

target node of a route discovery process can verify the initiator, that the initiator

can verify each transitional node that is on the path to the destination present

in the ROUTE REPLY message and that no intermediate node can reduce the

Lecture Notes in Computer Science 3

node list in the ROUTE REQUEST or ROUTE REPLY messages. Route Discovery is

performed in two stages: the Initiator ﬂoods the network with a ROUTE REQUEST

that solicits a ROUTE REPLY from the Target. During route discovery the Target

authenticates each node in the node list of the ROUTE REQUEST and the Initiator

authenticates each individual node in the node list of the ROUTE REPLY.For

node authentication, ARIADNE has three alternative techniques i.e. TESLA

(Timed Eﬃcient Stream Loss tolerant Authentication) [7], Digital Signatures,

or pair-wise shared secret keys.

2.2 ARAN

The Authenticated Routing for Ad-hoc Networks (ARAN) [5] secure routing pro-

tocol is an on-demand routing protocol that identiﬁes and shields against malev-

olent actions by malicious nodes in ad-hoc networks executing the DSR protocol.

ARAN relies on the use of digital certiﬁcates and can successfully operate in the

managed-open scenario where no network infrastructure is pre-deployed, but a

small amount of prior security coordination is expected. ARAN provides authen-

tication, message integrity and non-repudiation in ad-hoc networks by using a

preliminary certiﬁcation process that is followed by a route instantiation process

that guarantees end-to-end provisioning of security services. ARAN requires the

use of a trusted certiﬁcate server. All nodes are supposed to keep fresh certiﬁ-

cates with the trusted server and should know the server’s public key. Prior to

entering the ad-hoc network, each node has to apply for a certiﬁcate that is

signed by the certiﬁcate server. The certiﬁcate contains the IP address of the

node, its public key, a timestamp of when the certiﬁcate was generated and a

time at which the certiﬁcate expires, along with the signature by the certiﬁcate

server. ARAN accomplishes the discovery of routes by a broadcast route discov-

ery message from a source node, which is replied to in a unicast manner by the

destination node. All the routing messages are authenticated at every hop from

the source to the destination, as well as on the reverse path from destination to

source

3 Securing the DSR Protocol

3.1 DSR Protocol

The DSR protocol [8] is an on-demand routing protocol. Its most interesting

feature is that all data packets sent using the DSR protocol have absolutely no

dependency on intermediate nodes regarding routing decisions, as each carries

the complete route it traverses. When a node requires a route to a particular

destination, it broadcasts a ROUTE REQUEST packet. Each recipient node that has

not seen this speciﬁc ROUTE REQUEST and has no knowledge about the required

destination rebroadcasts this ROUTE REQUEST after appending its own address

to it. If this ROUTE REQUEST reaches the destination or an intermediate node

that has a route to the destination in its ROUTE CACHE, it sends a ROUTE REPLY

4 Asad A. Pirzada et al.

packet containing the complete route from the source to the destination. The

source node may receive a number of such route replies and may decide to select

a particular route based upon the number of hops, delay or other such criteria.

All nodes forwarding or overhearing any packets must add all usable routing in-

formation from that packet to their own ROUTE CACHE. For route maintenance,

intermediate nodes that ﬁnd any route broken, returns a ROUTE ERROR packet

to each node that had sent a packet over that particular route. The major vul-

nerabilities present in the DSR protocol are:

Deceptive alteration of IP addresses. During propagation of the ROUTE

REQUEST packet, intermediate nodes add their IP addressees to it for route cre-

ation. However, any malicious node may modify, delete or add IP addressees to

create routes as per its own requirement. Doing so enables malicious nodes to

launch a variety of attacks in the network including creation of worm-holes and

black-holes.

Deceptive alteration of Hop Count. The hop count ﬁeld of the IP packet

usually informs the recipient of the total number of hops that the packet has

traversed so far. So malicious nodes may increase this number so as to portray

longer routes or decrease it for shorter routes. By doing so a malicious node

is able to degrade or upgrade routes, thereby creating a topology that is most

favourable to it.

3.2 Secure DSR Protocol

Securing the DSR protocol can be divided into the following three broad cate-

gories:

1. Key Exchange

2. Secure Routing

3. Data Protection

Key Exchange. Most of the current key exchange protocols are dependent

upon a central trust authority for initial authentication. A variant of the cen-

tral trust authority is the Distributed Public-Key Model [9] that makes use of

threshold cryptography to distribute the private key of the Certiﬁcation Author-

ity (CA) over a number of servers. Whatever the case may be, the requirement

of a central trust authority in such a dynamic environment is considered both

impractical and unsafe, as such an entity may not always be accessible and it

also creates a single point of failure. Similarly, key exchange using a Key Distri-

bution Server [10] creates a similar set of problems. We suggest that all nodes,

before entering a network, procure a one-time public and private key pair from

the CA along with the CA’s public key. After this, the nodes can negotiate ses-

sion keys among each other, without any reliance on the CA, using any suitable

key exchange protocol for ad-hoc networks [11]. These session keys are used for

Lecture Notes in Computer Science 5

securing the routing process and subsequently the data ﬂow. To avoid multi-

ple peer-to-peer encryptions during broadcast or multicast operations, a group

session key may be established between immediate neighbours using a suitable

Group Keying Protocol [11]. This mechanism absolves the ad-hoc network of

superﬂuous requirements and provides necessary elements to secure both rout-

ing and data in presence of malicious nodes by providing security services like

authentication, non-repudiation, conﬁdentiality and integrity.

Secure Routing. The Dynamic Source Routing protocol operates at the sec-

ond layer of the TCP/IP protocol suite. The source node that requires a route

to a destination broadcasts a ROUTE REQUEST packet, each intermediate recip-

ient node retransmits the packet, if not a duplicate, and the ﬁnal destination

unicasts a ROUTE REPLY packet back to the original sender. For route mainte-

nance it uses ROUTE ERROR packets that inform active users of route failures. The

ROUTE REQUEST and ROUTE REPLY packets are usually modiﬁed by the interme-

diate nodes so as to add necessary routing information to these packets. The core

security related problems linked to ad-hoc networks originate due to the route

development by the intermediate nodes. It is therefore, imperative that only au-

thorized nodes are allowed to update routing packets and malicious nodes be

avoided at all costs. To restrict modiﬁcation of routing packets by intermediate

nodes, we recommend peer-to-peer symmetric encryption of all routing infor-

mation. All routing control packets between nodes are ﬁrst encrypted and then

transmitted. The sequence of steps for route discovery and route maintenance is

as follows:

Route Request

1. Any Node ‘x’ desiring to establish communication with another Node ‘y’ ﬁrst

establishes a group session key K

with its immediate neighbours (nodes that

are a single hop away) as shown in Fig. 1.

2. It then creates the ROUTE REQUEST packet as per the routing protocol spec-

iﬁcations.

3. The ROUTE REQUEST packet is then encrypted using the group session key

and broadcasted.

4. All intermediate recipient nodes that share the same group session key de-

crypt the ROUTE REQUEST packet and, if required, modify it according to the

routing protocol speciﬁcations.

5. The intermediate nodes that do not possess group session keys with their

immediate neighbours, initiate the group session key exchange protocol.

6. After establishing the group session key, the intermediate nodes encrypt the

ROUTE REQUEST packet using the new session key and rebroadcast the packet.

7. Steps 4 to 6 are followed until the ﬁnal destination Node ‘y’ receives the

packet.

6 Asad A. Pirzada et al.

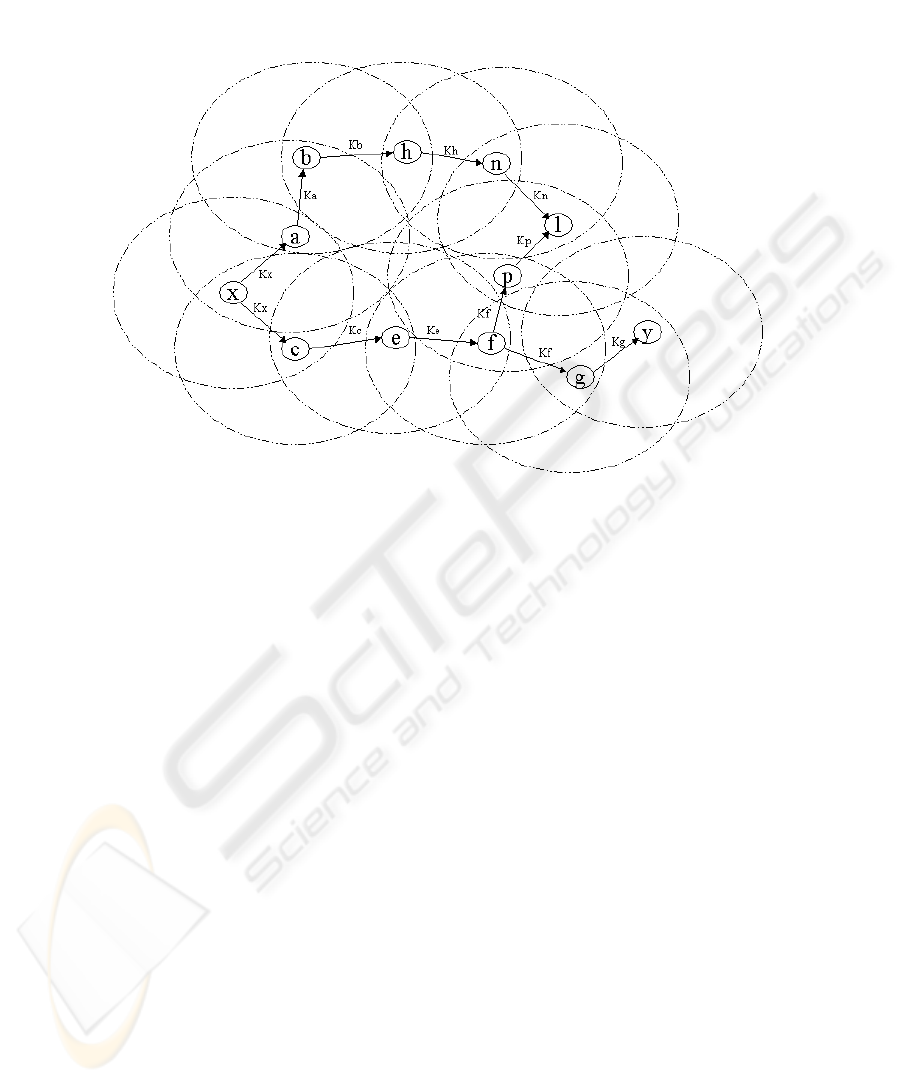

Fig. 1. Point-to-Point Establishment of Secure Routes

Route Reply

1. In response to the ROUTE REPLY packet Node ‘y’ creates a ROUTE REPLY

packet as per the routing protocol speciﬁcations.

2. The ROUTE REPLY packet is encrypted using the last group session key (K

in this case) that was used to decrypt the received ROUTE REQUEST packet

and is unicast back to the original sender.

3. If any of the intermediate nodes has moved out of the wireless range a new

group session key is established.

4. All recipient nodes that share the forward group session key decrypt the

ROUTE REPLY packet and, if required, modify it according to the routing

protocol speciﬁcations.

5. The ROUTE REPLY packet is then again encrypted using the backward group

session key and unicast towards Node ‘x’.

6. Steps 4 and 5 are repeated until the packet is received by Node ‘x’.

To avoid key synchronization problems it is recommended that each node

maintain a table indexed by Node ID as the primary key along with associated

group members and session keys as shown in Fig. 2. The table also helps establish

secure routes with other nodes with which a chain can be established using the

available session keys. A secure chain is highlighted in the ﬁgure between Node

‘x’ and ‘y’.

Route Maintenance. In a mobile ad-hoc network, established routes may be

broken due to a variety of reasons. However, the underlying routing protocol

Lecture Notes in Computer Science 7

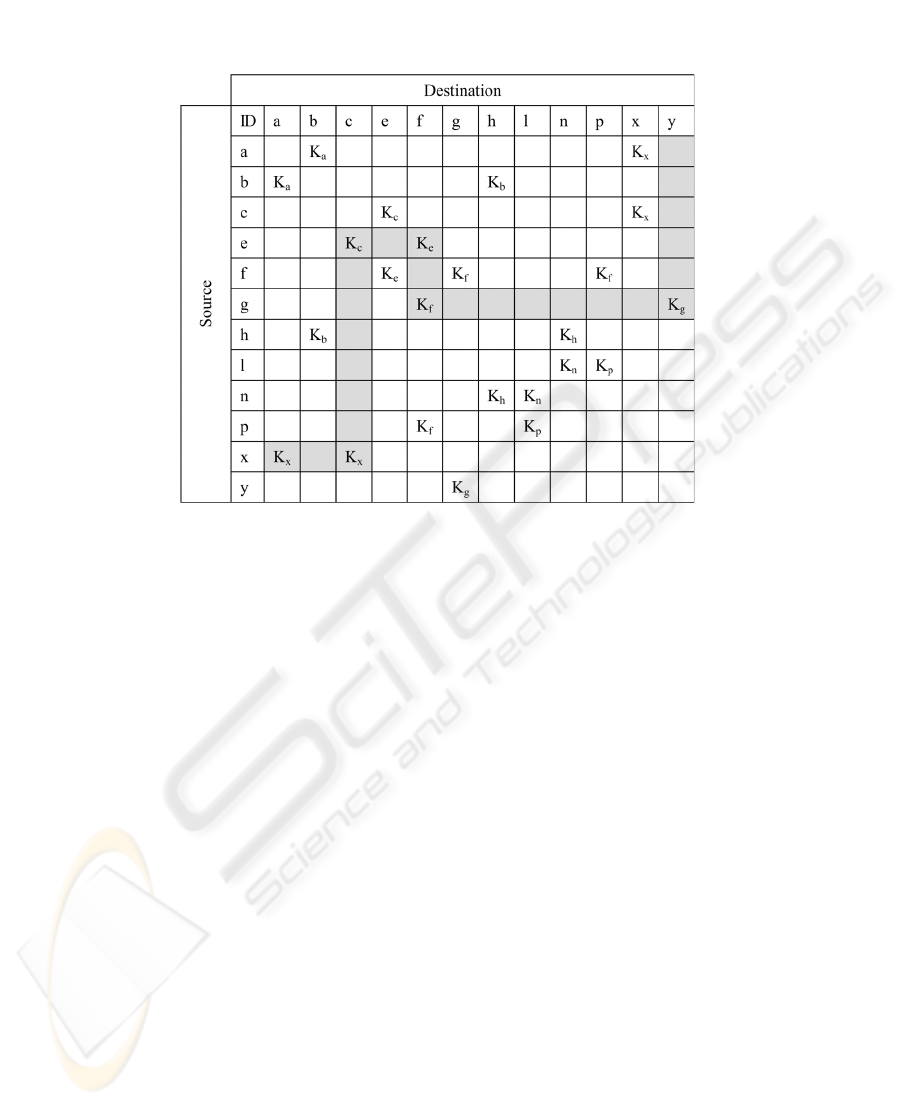

Fig. 2. Session Key Table

takes care of such events by either gratuitously repairing them or sending a

ROUTE ERROR packet to inform the nodes currently using the route. All messages

associated with route maintenance also need to be authenticated and protected

from eavesdropping. If a packet is received for an inoperative route the recipient

node takes the following steps:

1. The node detecting the broken link creates a ROUTE ERROR packet as per the

routing protocol speciﬁcations.

2. This packet is then encrypted using a group session key in the direction of

the recipient node using the Session Key Table and is multicast back to the

recipients.

3. If any of the intermediate nodes has moved out of the wireless range a new

group session key is established.

4. All recipient nodes that share the group session key decrypt the ROUTE ERROR

packet, and if required, modify it according to the routing protocol speciﬁ-

cations.

5. The ROUTE ERROR packet is then again encrypted using the group session

key and is multicast back to the recipients.

6. Steps 4 and 5 are repeated until the intended recipients receive the ROUTE

ERROR packet.

Data Protection. Once protected routes have been established, secure data

transfer is relatively straightforward. To ensure connection conﬁdentiality a source

node adopts the following steps:

8 Asad A. Pirzada et al.

1. Any node ‘x’ desiring to establish an end-to-end secure data channel, ﬁrst es-

tablishes a session key K

with the intended node ‘y’ using the key exchange

protocol as shown in Fig. 3.

2. It then symmetrically encrypts the data packet using the session key K

and transmits it over the secure route.

3. The intermediate nodes simply forward the packet in the intended direction.

4. When the encrypted data packet reaches the destination it is decrypted using

the session key K

5. Steps 2 to 4 are followed for all further data communication.

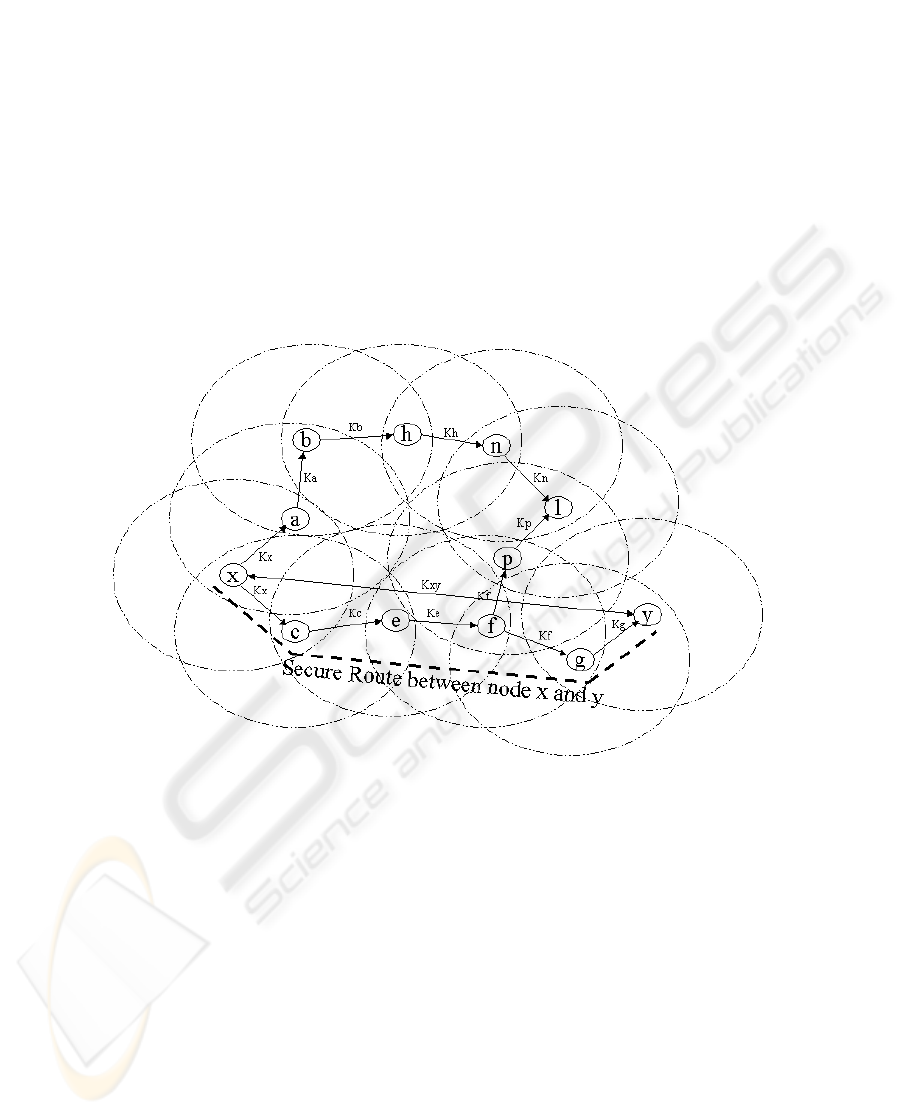

Fig. 3. End-to-End Establishment of Secure Routes

4 Security Analysis

In this section we discuss how the presented security scheme deﬁes possible at-

tacks in an ad-hoc network. As discussed earlier, the basis of a security infrastruc-

ture is primarily dependent on the initial key exchange providing authentication.

Other security services like conﬁdentiality, integrity and non-repudiation all rely

on the accuracy of the authentication service. Key revocation, being an impor-

tant issue has not been addressed in the scope of this paper, primarily because it

requires the presence of an omnipresent, and often omniscient, trust authority,

which we have already deemed inappropriate for such a dynamic environment.

We now discuss how this scheme satisﬁes the seven requirements of any secure

routing protocol:

Lecture Notes in Computer Science 9

4.1 Authorized nodes to perform route computation and discovery

The authentication and key exchange protocol ensures that only authorised

nodes are able to perform the route discovery. As the routing control pack-

ets are encrypted and authenticated by each forwarding node, malicious nodes

will not be able to create fallacious routing packets.

4.2 Minimal exposure of network topology

As all routing information is encrypted between nodes, an adversary will gain

no information regarding the network topology from passive eavesdropping.

4.3 Detection of spoofed routing messages

Spooﬁng of either the MAC or IP addresses does not provide any beneﬁt to the

adversary until the time the authentication protocol is assumed to be secure. As

the initial authentication links a number of identities to each node’s private key,

the spooﬁng node will have to create a similar private key prior to launching any

attack.

4.4 Detection of fabricated routing messages

Malicious nodes cannot inject fabricated routing messages into the network as

each routing packet is secured through an encryption key, which provides the

beneﬁt of conﬁdentiality, authentication and integrity at the same time. To fab-

ricate a routing message the session key needs to be compromised, which is not

possible until the time the key exchange protocol is assumed to be secure.

4.5 Detection of altered routing messages

Routing messages are relayed between the nodes in an unintelligible format. If

the symmetric cipher also provides the integrity then the alteration of routing

messages is virtually impossible. Addition of a keyed hash for better integrity

checking may be considered only after a cost-beneﬁt analysis.

4.6 Avoiding formation of routing loops

The proposed scheme ensures that routing loops cannot be formed through ma-

licious action. Routing loops usually occur if a malicious node is able to spoof,

alter or fabricate legitimate routing packets.

4.7 Prevent redirection of routes from shortest paths

Shortest paths are created usually by decrementing the number of addresses

in the source routing protocol. The scheme is designed in such a manner that

routing packets are only accepted from authenticated immediate neighbours.

This ensures that an adversary cannot inject such routing packets unless an

authorised node ﬁrst authenticates it.

10 Asad A. Pirzada et al.

5 Conclusion

In this paper we have presented a scheme for securing the Dynamic Source Rout-

ing protocol used in mobile ad-hoc wireless networks. The secure DSR protocol

provides requisite measures for protection of route discovery and transfer of data.

These measures can be exercised independently without a central trust authority

with nodes negotiating session keys independently. Nodes are, however, required

to register themselves once with a Certiﬁcation Authority, prior to joining a net-

work. The scheme is based upon point-to-point and end-to-end encryption using

symmetric key-based mechanisms. Nodes desiring secure communication, exe-

cute any standard authentication and key exchange protocol to acquire session

keys. These keys are subsequently used in point-to-point encryption for route

discovery and end-to-end encryption for data packets. Malicious nodes trying to

launch passive or active attacks against the network are thwarted through ef-

ﬁcient key veriﬁcation mechanisms and a multi-layered enciphering scheme. To

highlight its viability we have discussed its resistance to a number of attacks

speciﬁc to ad-hoc networks.

References

1. Corson, S., Macker, J.: Mobile Ad hoc Networking (MANET): Routing Protocol

Performance Issues and Evaluation Considerations. IETF RFC 2501 (1999)

2. Royer, E.M., Toh, C.-K.: A Review of Current Routing Protocols for Ad-Hoc

Mobile Wireless Networks. IEEE Personal Communications Magazine, Vol. 16(2)

(1999) 46–55

3. Pirzada, A.A., McDonald, C.: Establishing Trust In Pure Ad-hoc Networks. Proc.

of 27th Australasian Computer Science Conference (ACSC04) Vol. 26(1) (2004)

47–54

4. Hu, Y-C., Perrig, A., Johnson, D.B.: Ariadne - A Secure On-Demand Routing

Protocol for Ad Hoc Networks. Proc. of MOBICOM (2002) 12–23

5. Dahill, B., Levine, B.N., Royer, E., Shields, C.: ARAN - A Secure Routing Protocol

for Ad Hoc Networks. Proc. of ICNP (2002) 78–87

6. Pirzada, A.A., McDonald, C.: A Review of Secure Routing Protocols for Ad hoc

Mobile Wireless Networks. Proc. of 7th International Symposium on DSP for Com-

munication Systems (DSPCS03) and 2nd Workshop on the Internet, Telecommu-

nications and Signal Processing (WITSP03) (2003) 118–123

7. Perrig, R., Canetti, D., Tygar, Song, D.: The TESLA Broadcast Authentication

Protocol. RSA CryptoBytes (2002) 2–13

8. Johnson, D.B., Maltz, D.A., Hu, Y.: The Dynamic Source Routing Protocol for

Mobile Ad hoc Networks (DSR). IETF MANET, Internet Draft (2003)

9. Zhou, L, Haas, Z.J.: Securing Ad Hoc Networks. IEEE Network Magazine

Vol. 13(6) (1999)

10. Pirzada, A.A., McDonald, C.: Kerberos Assisted Authentication in Mobile Ad-hoc

Networks. Proc. of 27th Australasian Computer Science Conference (ACSC04)

Vol. 26(1) (2004) 41–46

11. Carman, D.W., Kruus, P.S., Matt, B.J.: Constraints and approaches for distributed

sensor network security. Technical Report #00-010, NAI Labs (2000)
