A Wireless Data Stream Mining Model

Mohamed Medhat Gaber

, Shonali Krishnaswamy

, and Arkady Zaslavsky

School of Computer Science and Software Engineering, Monash University,

900 Dandenong Rd, Caulfield East, VIC3145, Australia

Abstract.

The sensor networks, web click stream and astronomical applications

generate a continuous flow of data streams. Most likely data streams are generated in

a wireless environment. These data streams challenge our ability to store and process

them in real-time with limited computing capabilities of the wireless environment.

Querying and mining data streams have attracted attention in the past two years. The

main idea behind the proposed techniques in mining data streams in to develop effi-

cient approximate algorithms with an acceptable accuracy. Recently, we have pro-

posed algorithm output granularity as an approach in mining data streams. This ap-

proach has the advantage of being resource-aware in addition to its generality. In this

paper, a model for mining data streams in a wireless environment has been proposed.

The model contains two novel contributions; a ubiquitous data mining system archi-

tecture and algorithm output granularity approach in mining data streams.

1 Introduction

The process of data mining had been centralized, and then distributed among

the data sources for bandwidth preservation and privacy contrarians of transferring

the data. The dissemination and increasing power of wireless devices have stimulated

the need for wireless data mining. In this scenario, the mobile device is receiving or

generating a high data rate stream of information that should be analyzed in real time.

Projects found in [5][20][21][23] demonstrate the need for data stream analysis

techniques and strategies in a wireless environment that can cope with the high data

rate and deliver the analysis results in real time in resource constrained environments.

There is a need for a wireless data mining architecture that efficiently can cope

with limited capabilities of the computing and communication power in a wireless

environment. RA-UDM is our proposed system architecture in mining data streams in

a wireless environment. RA-UDM is a resource-aware ubiquitous data mining system

architecture that has the advantage of generality and adaptability. The adaptability of

this system is a result of using algorithm output granularity in mining data streams.

The algorithms proposed so far in the literature in mining data streams try to de-

velop approximate solutions that have only one pass or less on the incoming stream.

Recently, algorithm output granularity (AOG) [14], [15] has been proposed as an

approach in mining data streams. AOG is a resource-aware adaptable approach in

mining data streams. In this paper, we present a ubiquitous data mining architecture

that incorporates the AOG approach in mining data streams.

The paper is organized as follows. Section 2 presents the related work in mining

data streams. The proposed ubiquitous data mining system architecture is discussed in

section 3. The algorithm output granularity approach is discussed in section 4. Sec-

Medhat Gaber M., Krishnaswamy S. and Zaslavsky A. (2004).

A Wireless Data Stream Mining Model.

In Proceedings of the 3rd International Workshop on Wireless Information Systems, pages 152-160

DOI: 10.5220/0002676301520160

 SciTePress

tion 5 shows the application of algorithm output granularity to different mining tech-

niques. Finally, we conclude the paper and show our future work in section 6.

2 Related Work

There are different algorithms proposed to deal with the high speed feature in min-

ing data streams using different techniques. In this section, we present the related

work in mining data streams. Clustering data streams has been studied in [16], [10],

[7], [1], [27], [22], [3], [6], [9]. Data stream classification has been studied in [11],

[19], [12], [30]. Extracting frequent items and frequent itemsets have been studied in

[8], [13], [24]. Thorough discussion about data streams could be found in [17], [18],

[25], [26]. The main focus of the above algorithms is how to reduce the number of

passes and the number of instances being tested in order to have an efficient ap-

proximate algorithm. AOG approach in mining data streams is distinct by being re-

source-aware. In the following section, the wireless data mining system architecture

that incorporates AOG approach is illustrated.

3 RA-UDM System Architecture

The research so far in the UDM field does not pay much attention of how to ex-

ploit the increasing computation power of mobile devices in the data mining task.

Motivated by this fact and the increasing need for resource-aware data analysis sys-

tems in commercial and scientific applications for the huge data streams generated

continuously, we propose a new resource aware UDM system that incorporates our

approach in mining data streams using algorithm output granularity. Figure 1 shows

our resource aware ubiquitous data mining (RA-UDM) system architecture. The dif-

ferent components of the systems are explained in details in this section.

Resource-aware Component

Local Resource Information: This module has the ability to inform the sys-

tem about the mobile device resources’ measurement such as the available memory,

CPU utilization, battery consumption… etc. The quantification of the performance of

data mining algorithms from the energy consumption of the mobile device perspec-

tive has been studied experimentally in [4]. Preliminary results for resource-aware

data mining in a distributed environment were shown by Parthasarthy [29]. He shows

how data mining algorithms could be adapted to network resource constraints.

Context-Aware Middleware: This component can inform the system by the

environmental information such as the available communication channels and the

effective bandwidth.

Resource Measurements: This module acts as a resource measurement re-

ceiver from both local and environmental resources.

Solution Optimizer: This module determines the data mining task scenario

according to the available information about the local and environmental resources.

153

The module is responsible for the initiation of the data mining task and calculation of

the initial parameters for the data mining technique.

Mobile Light-Weight Data Analysis Agent

Light-Weight Data Mining Agent: This module is the core of our system.

It has the ability to perform the data mining task faster than data stream rate. If the

device can not achieve the required accuracy according to the incoming data rate, it

sends a data mining request to a data mining server. If the resource measurements

indicate that the agent is not able to continue a current process with the specified

accuracy, the agent can move to another device to continue this process.

Incremental Learning and Knowledge Integration: This module has the

ability to update the current stored results with the incoming new data from data

sources or knowledge from the server by interacting with the data mining module.

Data Stream Generator: If the mobile device generates data streams such

as context information for a mobile device, or on-board sensor readings in astronomi-

cal applications [TAC02].

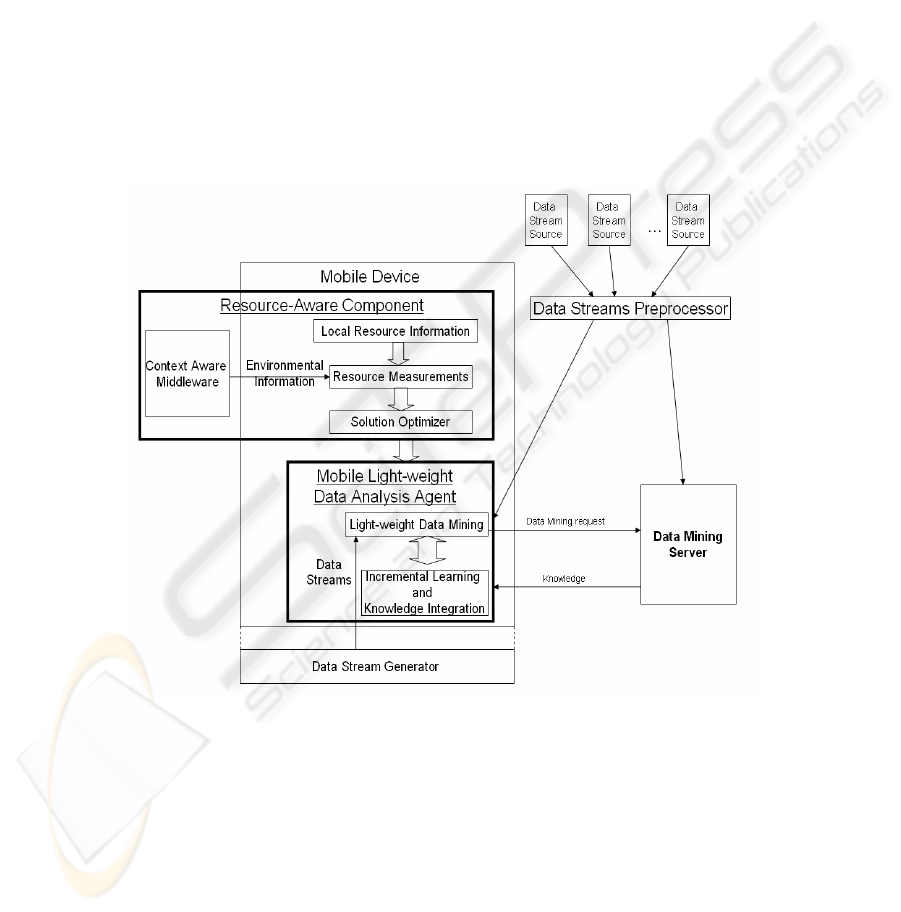

Figure 1: The Proposed System Architecture

Data Mining Server: The server can run the data mining applications upon the

mobile device requests. This could be done in two cases: a) when the mobile device

does not have the capability to achieve the required accuracy due to the high data

rate; b) when the mobile device needs to compare between the accuracy of the light-

weight algorithm and the one hosted by the server especially for the very high data

rate.

154

Data Stream Preprocessor: can filter and aggregate the data streams sent to the

mobile device or the data mining server.

At the heart of RA-UDM is the light-weight analysis tool. This tool uses AOG ap-

proach for its adaptability and being light-weight. The next section discusses the

ideas behind AOG approach in mining data streams.

4 Algorithm Output Granularity

The approach uses data rate adaptation from the output side. We use algorithm out-

put granularity to preserve the limited memory size according to the incoming data

rate and the remaining time to mine the incoming stream without incremental integra-

tion. The algorithm threshold is a controlling parameter that is able to change the

algorithm output rate according to the data rate, available memory, algorithm output

rate history and remaining time for mining without integration.

The algorithm output granularity approach is based on the following axioms:

a) The algorithm rate (AR) is function in the data rate (DR), i.e., AR =

f(DR). The number of generated cluster centers per unit time for example depends on

the data rate.

b) The time needed to fill the available memory by the algorithm results (TM) is

function in (AR), i.e., TM = f(AR). The time needed for example to fill the available

memory by cluster centers depends on the algorithm rate.

c) The algorithm accuracy (AC) is function in (TM), i.e., AC = f(TM). That is if

the time needed to fill the available memory is enough to the algorithm at the highest

data rate without sampling, aggregation or algorithm granularity, this would be the

best solution. The higher the algorithm granularity, the more accurate the algorithm

output will be.

The controlling threshold is a parameter in each of our light-weight mining algo-

rithm that controls the algorithm rate according to the available memory, the remain-

ing time to fill the main memory without any incremental integration and the data

rate. To demonstrate our approach in mining data streams, we define the following

terms:

Algorithm threshold: is a controlling parameter built in the algorithm logic that

encourages or discourages the creation of new outputs according to three factors that

vary over temporal scale:

a) Available memory.

b) Remaining time to fill the available memory.

c) Data stream rate.

Output granularity: is the amount of generated results that are acceptable accord-

ing to specified accuracy measure. This amount should be resident in memory before

doing any incremental integration.

Time threshold: is the required time to generate the results before any incremental

integration according to some accuracy measure. This time might be specified by the

user or calculated adaptively based on the history of running the algorithm.

155

Time Frame: is the time between each two consecutive data rate measurements.

This time varies from an application to another and from one mining technique to

another.

The main steps for mining data streams using our proposed approach:

1) Determine the time threshold and the algorithm output granularity.

2) According to the data rate, calculate the algorithm output rate and the algo-

rithm threshold.

3) Mine the incoming stream using the calculated algorithm threshold.

4) Adjust the threshold after a time frame to adapt with the change in the data

rate using linear regression.

5) Repeat the last two steps till the algorithm lasts the time interval threshold.

6) Perform knowledge integration of the results.

After discussing the algorithm output granularity approach in mining data streams,

we show the application of this approach in clustering, classification and counting

frequent items.

5 Algorithm Output Granularity based Mining Techniques

In the following subsections, we show the application of the algorithm output

granularity to clustering, classification and frequent items. All these algorithms have

been developed and tested and proved high efficiency in running time accompanied

with acceptable accuracy. Empirical results for LWC could be seen in [14][15].

5.1 LWC

In this section, our one-look clustering algorithm (LWC) is explained and dis-

cussed. The algorithm has two main components. The first one is the resource-aware

RA component that uses the data adaptation techniques to catch up with the high-

speed data stream and at the same time to achieve the optimum accuracy according to

the available resources. The process starts by checking the minimum data rate that

could be achieved using data adaptation techniques with an acceptable accuracy. If

the algorithm can catch up with the minimum data rate, the RA component tries to

find a solution that maximizes the accuracy by increasing the data rate. Otherwise the

algorithm should send a data mining request to a data mining server that can achieve

the minimum acceptable accuracy.

The other component is the LWC algorithm. The algorithm follows the following

steps:

1- Data items arrive in sequence with a data rate.

2- The algorithm starts by considering the first point as a center.

3- Compare any new data item with the centers to find the distance.

4- If the distance for all the centers is greater than a threshold, the new item is

considered as a new center; else increase the weight for the center that has

the shortest distance between the data item and the center by 1 and let the

new center equals the weighted average.

5- Repeat 3 and 4.

156

6- If the number of centers = k (according to the available memory) then create

a new centers vector.

7- Repeat 3, 4, 5, and 6.

8- If memory is full then re-cluster (integrate clusters) and send to the server if

needed.

We have performed experimental evaluation and compared our algorithm with k-

means. The results showed that our algorithm outperforms k-means in running time

with an acceptable accuracy [14].

5.2 LWClass

In this section, we present the application of the algorithm output granularity to

light weight K-Nearest-Neighbors classification LWClass. The algorithm starts with

determining the number of instances according to the available space in the main

memory. When a new classified data element arrives, the algorithm searches for the

nearest instance already in the main memory according to a pre-specified distance

threshold. The threshold here represents the similarity measure acceptable by the

algorithm to consider two or more elements as one element according to the element

attributes’ values. If the algorithm finds this element, it checks the class label. If the

class label is the same, it increases the weight for this instance by one, otherwise it

decrements the weight by one. If the weight becomes zero, this element will be re-

leased from the memory. The algorithm granularity here could be controlled by the

distance threshold value and could be changing over time to cope with the high speed

of the incoming data elements.

5.3 LWF

In this section, we present light-weight frequent items LWF algorithm. The algo-

rithm starts by setting the number of frequent items that will be calculated according

to the available memory. This number changes over time to cope with the high data

rate. The main idea behind the algorithm is the algorithm output granularity. The AG

is represented here by the number of frequent items that the algorithm can calculate as

well as the number of counters that will be re-set after some time threshold to be able

to cope with the continuous nature of the data stream. The algorithm receives the data

elements one by one and tries to find a counter for any new item and increase the item

for the registered items. If all the counters are occupied, any new item will be ignored

and the counters will be decreased by one till the algorithm reaches some time thresh-

old a number of the least frequent items will be ignored and their counters will be re-

set to zero. If the new item is similar to one of the items in memory according to a

similarity threshold, the average of both items will be allocated and the counter will

be increased by one. The main parameters that can affect the algorithm accuracy are

time threshold, number of calculated frequent items and number of items that will be

ignored and their counter will be re-set after some time threshold.

157

6 Conclusions and Future Work

We have described a wireless data stream mining model. The model has two novel

contributions that have the advantage of generality and adaptability. The ubiquitous

data stream mining architecture is the first contribution. The architecture has the ad-

vantage of being applicable to any application.

The algorithm output granularity is the second contribution. AOG is an adaptable

data stream mining approach. The implementation of this architecture with the adop-

tion of AOG in mining data streams is our ultimate goal in this project. The potential

applications of the system vary from astronomical, web, and business applications.

References

1. C. Aggarwal, J. Han, J. Wang, P. S. Yu, “A Framework for Clustering Evolv-

ing Data Streams”, Proc. 2003 Int. Conf. on Very Large Data Bases

(VLDB'03), Berlin, Germany, Sept. (2003).

2. B. Babcock, S. Babu, M. Datar, R. Motwani, and J. Widom. Models and issues

in data stream systems. In Proceedings of PODS, (2002).

3. B. Babcock, M. Datar, R. Motwani, L. O'Callaghan: Maintaining Variance and

k-Medians over Data Stream Windows, to appear in Proceedings of the 22nd

Symposium on Principles of Database Systems (PODS 2003).

4. R. Bhargava, H. Kargupta, and M. Powers: Energy Consumption in Data Analy-

sis for On-board and Distributed Applications. Proceedings of the ICML'03

work

shop on Machine Learning Technologies for Autonomous Space Applications,

(2003).

5. M. Burl, Ch. Fowlkes, J. Roden, A. Stechert, and S. Mukhtar, "Diamond Eye: A

distributed architecture for image data mining," in SPIE DMKD, Orlando, April

(1999).

6. M. Charikar, L. O'Callaghan, and R. Panigrahy. Better streaming algorithms for

clustering problems In Proc. of 35th ACM Symposium on Theory of Computing

(STOC), (2003).

7. L. O'Callaghan, N. Mishra, A. Meyerson, S. Guha, and R. Motwani. Streaming-

data algorithms for high-quality clustering. Proceedings of IEEE International

Conference on Data Engineering, March (2002).

8. Graham Cormode, S. Muthukrishnan What's hot and what's not: tracking most

frequent items dynamically. PODS 2003: 296-306

9. Mayur Datar, Aristides Gionis, Piotr Indyk, Rajeev Motwani: Maintaining

Stream Statistics Over Sliding Windows (Extended Abstract) in Proceedings of

13th Annual ACM-SIAM Symposium on Discrete Algorithms (SODA 2002).

10. P. Domingos and G. Hulten, "A General Method for Scaling Up Machine

Learning Algorithms and its Application to Clustering", Proceedings of the

Eight eenth International Conference on Machine Learning, 2001, 106--113,

Williams town, MA, Morgan Kaufmann. (2001)

11. P. Domingos and G. Hulten. Mining High-Speed Data Streams. In Proceedings

158

of the Association for Computing Machinery Sixth International Conference on

Knowledge Discovery and Data Mining, pages 71--80, (2000).

12. V. Ganti, Johannes Gehrke, Raghu Ramakrishnan: Mining Data Streams under

Block Evolution. SIGKDD Explorations 3(2): 1-10 (2002).

13. C. Giannella, J. Han, J. Pei, X. Yan, and P.S. Yu, "Mining Frequent Patterns in

Data Streams at Multiple Time Granularities", in H. Kargupta, A. Joshi, K.

Siva

kumar, and Y. Yesha (eds.), Next Generation Data Mining, AAAI/MIT,

(2003).

14. Gaber, M, M., Krishnaswamy, S., and Zaslavsky, A., Adaptive Mining Tech-

niques for Data Streams Using Algorithm Output Granularity, Proc. of The

Aus-

tralasian Data Mining Workshop (AusDM 2003), Held in conjunction with the

2003 Congress on Evolutionary Computation (CEC 2003), December, Canberra,

Australia, Springer Verlag, Lecture Notes in Computer Science (LNCS). (2003)

15. Gaber, M.M., Krishnaswamy, S. and Zaslavsky, A. (2004). Cost-Efficient Min-

ing Techniques for Data Streams. In Proc. Australasian Workshop on Data

Min-

ing and Web Intelligence (DMWI2004), Dunedin, New Zealand. CRPIT, 32.

Purvis, M., Ed. ACS. (2004)

16. S. Guha, N. Mishra, R. Motwani, and L. O'Callaghan. Clustering data streams.

In Proceedings of the Annual Symposium on Foundations of Computer Sci

ence. IEEE, November (2000).

17. L. Golab and M. Tamer Ozsu. Issues in Data Stream Management. In

SIGMOD Record, Volume 32, Number 2, June 2003, pp. 5--14.

18. M. Henzinger, P. Raghavan and S. Rajagopalan, Computing on data streams,

Technical Note 1998-011, Digital Systems Research Center, Palo Alto, CA,

May (1998).

19. G. Hulten, L. Spencer, and P. Domingos. Mining Time-Changing Data

Streams.

ACM SIGKDD (2001).

20. H. Kargupta. CAREER: Ubiquitous Distributed Knowledge Discovery from

Heterogeneous Data. NSF Information and Data Management (IDM) Work-

shop (2001).

21. H. Kargupta, R. Bhargava, K. Liu, M. Powers, P. Blair, M. Klein, K. Sarkar

and D. Handy: Vehicle Data Stream Mining (VEDAS): An Experimental Sys

tem for Mobile and Distributed Data Stream Mining. Information Mining for

Automotive and Transportation Domain workshop. Madrid, Spain (2003).

22. E. Keogh, J. Lin, and W. Truppel. Clustering of Time Series Subsequences is

Meaningless: Implications for Past and Future Research. In proceedings of the

3rd IEEE International Conference on Data Mining. Melbourne, FL. (2003).

23. Kargupta, H., Park, B., Pittie, S., Liu, L., Kushraj, D. and Sarkar, K.

MobiMine: Monitoring the Stock Market from a PDA. ACM SIGKDD

Explorations. January (2002). Volume 3, Issue 2. Pages 37--46. ACM Press.

24. G. S. Manku and R. Motwani. Approximate frequency counts over data

streams. In Proceedings of the 28th International Conference on Very Large

data Bases, Hong Kong, China, August (2002).

159

25. S. Muthukrishnan , Data streams: algorithms and applications. Proceedings of

the fourteenth annual ACM-SIAM symposium on discrete algorithms. (2003)

26. S. Muthukrishnan, Seminar on Processing Massive Data Sets. Available

Online:

http://athos.rutgers.edu/%7Emuthu/stream-seminar.html, (2003).

27. Carlos Ordonez. Clustering Binary Data Streams with K-means .ACM DMKD

(2003).

28. B. Park and H. Kargupta. Distributed Data Mining: Algorithms, Systems, and

Applications. To be published in the Data Mining Handbook. Editor: Nong Ye.

(2002).

29. S. Parthasarathy: Towards Network-Aware Data Mining. In International

Workshop on Parallel and Distributed Data Mining, along with IPDPS (2001).

30. S. Papadimitriou, C. Faloutsos, and A. Brockwell, “Adaptive, Hands-Off

Stream Mining”, 29

International Conference on Very Large Data Bases

VLDB, (2003).

160
