Supporting the sky

Computer mediated co-operation to fly aircraft

E. Kesseler

NLR, P.O. Box 90502, 1006 BM Amsterdam, The Netherlands

Abstract. To fly aircraft many people from various organizations have to co-

operate. The justifiable strict safety requirements have led to very strict

allocation of responsibilities and corresponding separation of tasks. Over the

years every party has developed its own proprietary system. The resulting

patchwork of systems exhibits a slow response to the current market-driven

changes at increasingly unaffordable costs. In the general domain service-

driven network-centric solutions are used. To assess the feasibility of these

solutions for air transport a prototype for air transport has been realized.

For the prototype a multi national consortium has been established. Our

project experience yields some lessons learned about computer support to

facilitate such co-operation.

1 Introduction

Flying commercial air transport involves the cooperation of many people from

various organizations. Actors include airlines, charter operators, airports, passenger

security, air traffic management, ground handling, meteorological offices, aircraft

maintenance, etc. For each actor there may be a large number of organizations

fulfilling this activity. To illustrate the significant number of organizations involved,

IATA already represents 270 airlines and IACA another 36 with many airlines not

affiliated. For airports ACI bundles 554 organizations from 169 countries operating

over 1500 commercial airports. The current commercial fleet consists of 21551 jet

aircraft plus 13025 turbo-prop aircraft. The 41 European Civil Aviation Conference

(ECAC) member states each operate their own air traffic control organizations.

The various accidents in the early history of air transport, combined with the

continued high profile of current air transport mishaps, make ensuring the current

high levels of safety a prime concern for the survival of a viable air transport industry.

To ensure these safety levels, the various sectors of the industry each have

implemented self-improving safety systems. Due to historic reasons the systems of

e.g. pilots, air traffic management, passenger security, airport operations and aircraft

maintenance are independent. Most of these systems are national, based on very

generic international treaties, sometimes complemented by European regulations and

enforced by national legislation with their national interpretations. Each actor has a

dedicated system, optimized to support its activities. The result is a patchwork of

proprietary procedures and systems.

Over the decades air transport has shown significant long-term growth, despite its

Kesseler E. (2004).

Supporting the sky Computer mediated co-operation to ﬂy aircraft.

In Proceedings of the 1st International Workshop on Computer Supported Activity Coordination, pages 51-60

DOI: 10.5220/0002676900510060

 SciTePress

cyclical nature. Each party deals individually with the various bottlenecks as they

manifested themselves, leading to ever more dedicated and locally optimized

solutions. The current patchwork of systems already can not cope with the current

levels of traffic for the high-density parts of the European airspace and major airports.

The many improvement ideas are all based on every actor being able to access and

share all relevant information. This allows optimization taking the constraints of other

actors into account. Table 1 lists the major integrated air traffic management concepts

of the last decade. When a concept has several phases, all have been included in Table

1, separated by slashes. The time-to-market, typically around a decade, indicates the

beginning of a transition period. Full deployment usually takes another decade. Even

in the fiercely competitive telecom industry deployment takes four to ten years for

infrastructure items, but for new services can come down to a few months [9]. With

the notable exception of EUROCONTROL’s

short-term CDM Airports, none of these

concepts have been implemented.

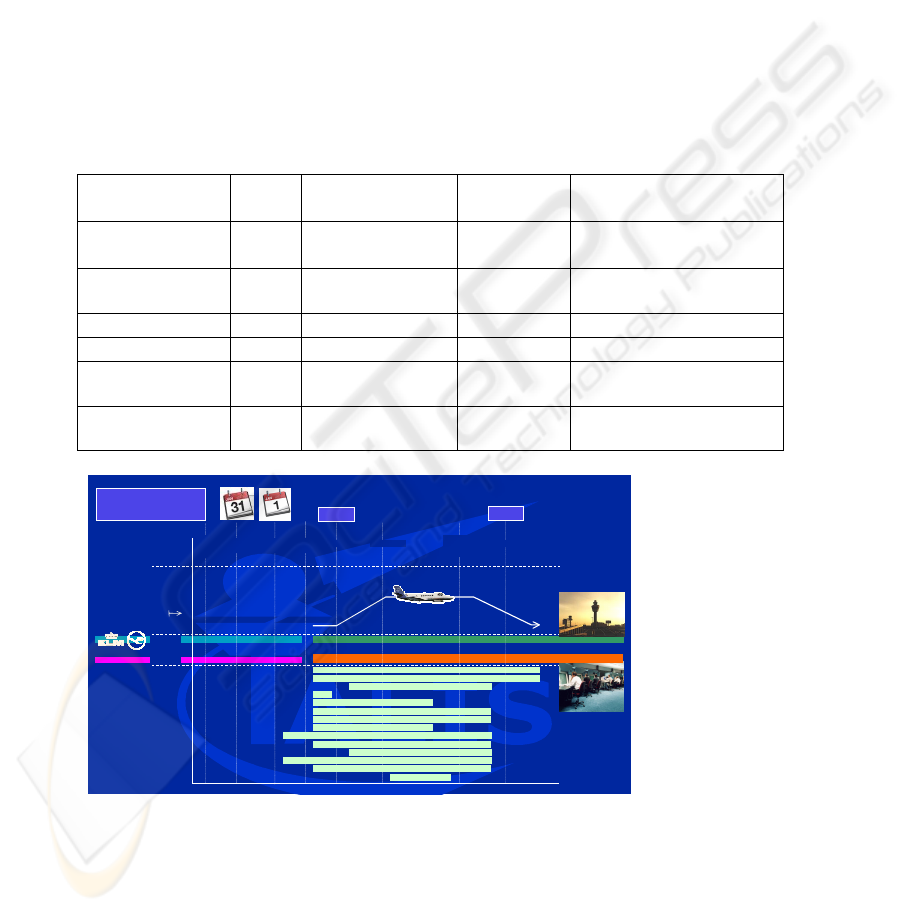

Table 1 Overview air traffic management concepts

Concept plus

originator

Year Time-to-market

(years)

# of services # services implemented

in 2004

ATLAS-

SUATMS EU

1993 12-17 5 None

Gate-to-gate

EUROCONTROL

1997 8/13/18 8/6/4 None

Free flight US 1998 4/7 5/3 None

DAG-TM FAA 1999 6 15 None

COOPATS

EUROCONTROL

2001 9/14 11/3 None

CDM Airports

EUROCONTROL

2002 3 13 12

APP

ACC

APP

ACC(s) ACC(s) ACC(s)

APP

IFPS IFPS IFPS

Flight

Events

ATM

Phase

Units and

Facilities

Involved

Data link

Services

Strategic

Planning

Pre-Tactical

Planning

Tactical

Planning

Ground

Movement

Climb-Out En-Route Arrival Post-Arrival

CFMU CFMU

ATM FMPs

AMCs

CFMU

FMPs

TWR

IFPS IFPS IFPS

FMPs FMPs FMPs

TWR

ACM

ACL

CAP

DCL

DSC

PPD

FLIPCY

DYNAV

D-FIS

COTRAC

SAP

ATSAW

COSEP

AUTOPS

Prof ile

Planned

Flight

Data

Day

Prior

Day of

Operation

Request

Start-Up

Take-Off Cruise Level

Parameter

from

Destination

Landing

EUROCONTROL

AMSTERDAM - LISBON

12345-7 1015 12 15 KL16 93

123456- 2035 22 35 KL16 97

10:15

12:15

Fig. 1. Air transport services concept

Fig. 1 depicts the kind of concepts being considered, using EUROCONTROL’s

Co-operative Air Transport Services (COOPATS) [4] as an example. Some services

related to flight planning by the airline start well before the preparation of the actual

flight. The required services change during the execution of the flight.

General domain information

technology can integrate the

systems of the various

stakeholders involved into a

network-centric system-of-

systems, a virtual enterprise.

Such co-operation improves

the combined performance of

all stakeholders involved. In

various other domains, which

lack air transport’s safety

concerns, such improvements

have already been achieved.

The Total Information Sharing

for Pilot Situational

Awareness Enhanced by

Intelligent Systems (TALIS)

project [1], realizes a

prototype of such a

network-centric architecture.

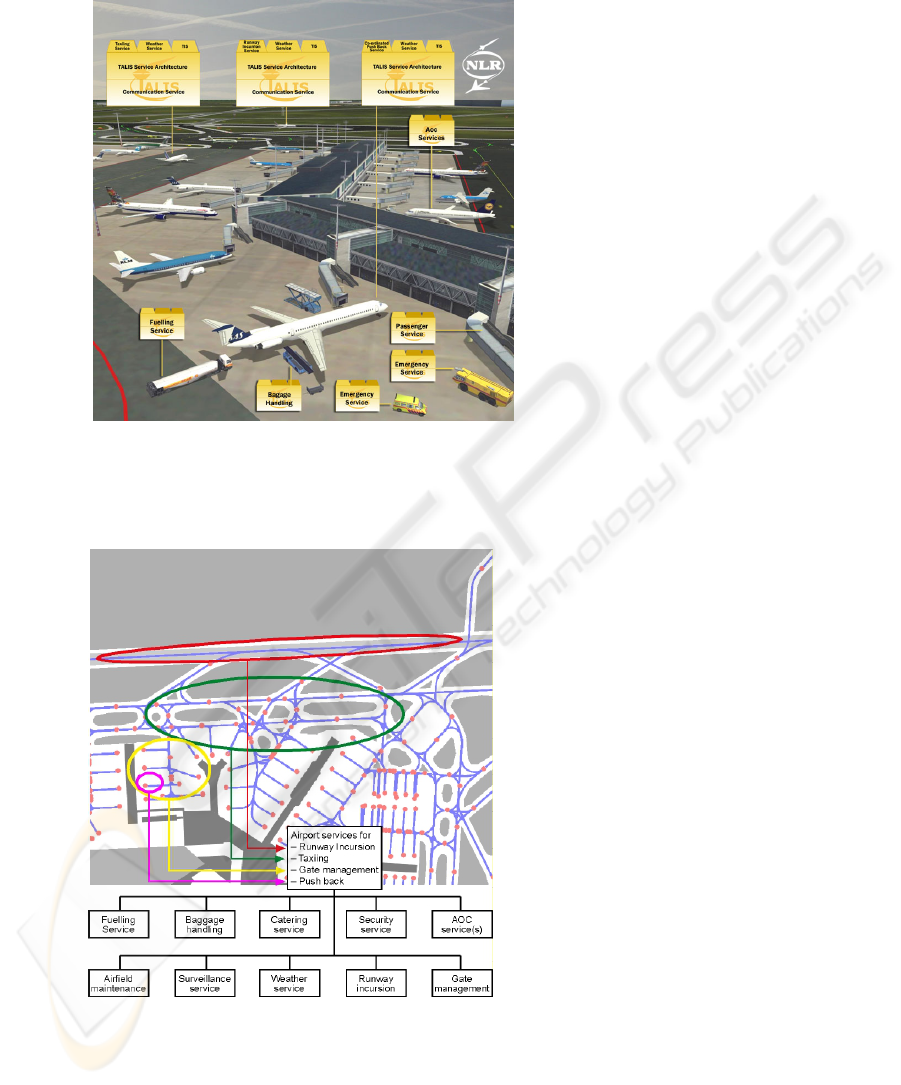

Fig. 2. Conceptual overview of the TALIS network-centric architecture

. The completed prototype, consisting of the middleware and two sample

applications, demonstrates the technical feasibility of this network-centric approach.

Fig. 2 provides a conceptual overview of the prototype.

The network-centric architecture

supports services for all flight

phases. Fig. 3 demonstrates the

integration of various actors at

the airport. The pilot-oriented

sample service illustrates the

kind of optimisation that the

prototype aims to support.

Also at an airport the pilot

information-needs are flight-

phase dependent. A coordinated

pushback service will allow the

pilot to improve the reliability of

on-time pushback. For this the

pilot needs amalgamated

information from, e.g., fuelling

services, baggage-handling

services, catering services,

security services and Airline

Fig. 3. Pilot-oriented sample service

Operations Center (AOC) about transfer passengers. This pushback service

optimizes utilization of the taxiway linking the various gates and prevents aircraft

from blocking each other or ending up in the wrong take-off order. Subsequently

taxiing-services guide the aircraft to the correct runway, optimized for the other

airfield traffic, its departure timeslot and taking possibly adverse weather or airfield

maintenance restrictions into account. Finally, runway incursion services, using

surveillance services, improve the safety during take-off.

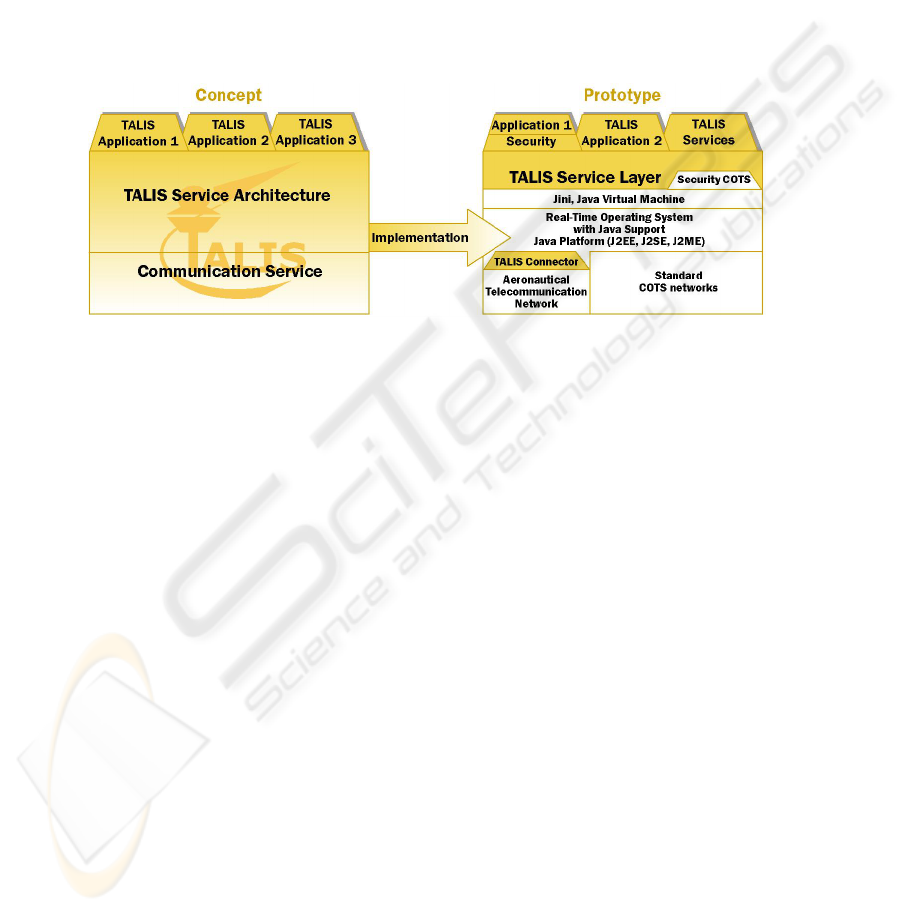

Fig. 4 shows how the prototyped network-centric architecture builds upon various

Commercial off-the-Shelf (COTS) components, which in turn support various

hardware platforms, from small mobile wireless equipment (Java Micro Edition,

J2ME) to standard PC-based hardware with standard communication (Java Enterprise

Edition, J2EE). The TALIS services, which enable the actual co-operation between

the users, will run on top of the prototyped architecture. Once a service is connected

to the network-centric architecture, all other services in the network can connect to it,

either to provide input or use the result.

Fig. 4. TALIS architecture overview

The TALIS prototype consists of four parts:

• The federated architecture (FAR) to implement the network-centric idea. The

FAR is denoted as TALIS service architecture in Fig. 2;

• Two application services to demonstrate the capabilities of the prototype

infrastructure. The first service (MET) provides pilots with in-flight weather

updates. Current weather information allows pilots to optimize their flight,

demonstrating tangible benefits, like shorter flights and fuel reduction to pilots

and airlines;

• Traffic Information Services (TIS), to provide the pilot with in-flight airport

information like runway-in-use, visibility etc. This service reduces voice

congestion on scarce frequencies and reduces pilot workload during a busy flight

phase.

During realization of the prototype, the activities to provide a portable

demonstration platform for dissemination purposes were formalized into the fourth

part called the Verification Platform (VPR).

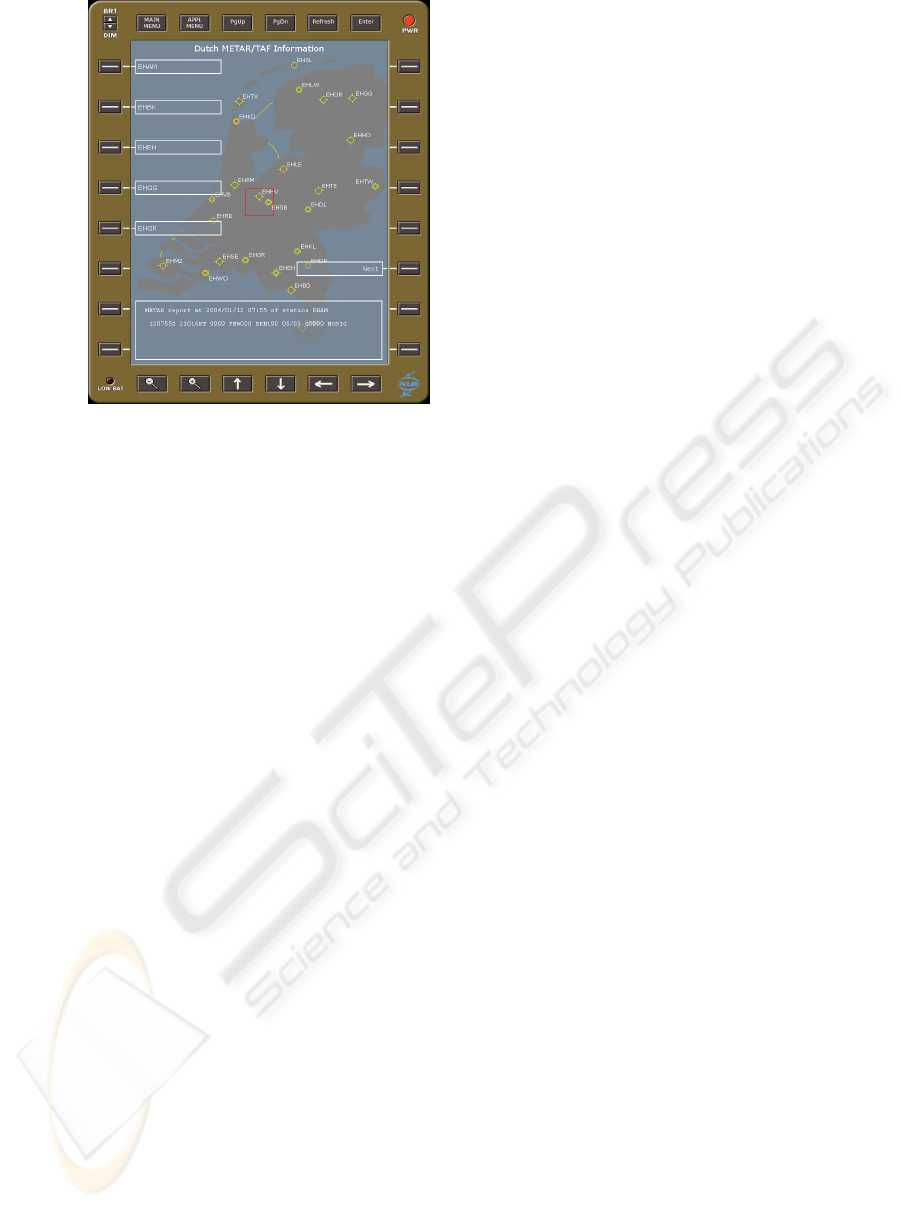

Fig. 5 shows the realization of the airborne part of the MET application. To improve

pilot acceptability, the display layout closely resembles other cockpit displays. The

left column of buttons lists available airports based on current aircraft position. The

text box at the bottom provides meteorological information for the selected airport in

the compact format pilots are familiar with. To illustrate the independence of the

actors and their systems, the airport is referred to as EHAM by pilots, Amsterdam by

passengers, AMS on luggage labels, Schiphol for local passengers and the

meteorological office and AAS for the gate handler.

The next section provides the users’

response from every type of actor. The

subsequent section analyses the

computer-supported process of the multi-

national consortium that realized the

prototype.

Fig. 5 TALIS workbench MET application, airborne side

2 User response

To assess whether the air transport community is open to network-driven services, for

at least two organizations of each type of actor presentations/demonstrations were

given, followed by interviews. To prevent a national bias, a total of 13 actors from six

European countries have been consulted. All recognize the problem and acknowledge

the need to optimize their co-operation using computer based information exchange.

As a monopolistic service by nature, air traffic management service providers have

no problem with providing their information. They express a reactive attitude: their

customers, i.e. the airlines, have to ask for it first. As a new system for an air traffic

management center typically takes at least a decade to realize, their time-to-market is

in multiple years.

The current challenge for airports is to keep the data obtained from the various

actors consistent and base them on uniformly defined moments in the aircraft turn

around processes. Services based on these data are not yet within their time horizon.

Being closer to the customer their time-to-market is several months to year(s).

The regulator’s role is to approve those operational applications that could infringe

the safety. They express interest in the new technology but will only take actions once

a product is being submitted for certification. In the European Union the regulatory

scene is changing due to evolution from National regulators and Joint Aviation

Authorities to the European Aviation Safety agency (EASA) at European Union level,

temporarily reducing their available effort for new technologies. Unfortunately the

various proposed services need different types of certification [6].

Conventional airlines, due to the harsh economic realities after September 11, 2001

need a business case per application. Their time-to-market is years, except when a

competitor gets there first. Competition derived concerns limits their willingness to

share information considered sensitive.

Following their US examples, low cost carriers are becoming very successful in

Europe as well. Using the Internet to sell the majority of their tickets, they are used to

network-driven services. They want to restrict the required capabilities to data

exchange to ease certification. Their time-to-market is a few months at most with a

similar short return-on-investment. Potential next steps are flexible depending on

continuously monitored consumer changes and experience gained.

To conclude the advantages of a service-driven network centric concept are

recognized by all actors. Facing the harsh economic realties, and not used to

innovation beyond a single user community, no one is willing to take the first step.

Consequently for the first service the time-to-market should be a couple of months,

with a very affordable investment. This implies that it can not be a certifiable service.

Fortunately many ideas for such non-certifiable services are available. An impeccable

user interface will be key for user acceptance.

3 Process experience

This section assesses the co-operation between the consortium members realizing

the prototype. The conclusions will be based on metrics, which are derived using the

goal-question-metric paradigm of [2] that served us well in some previous analysis.

3.1 Project organization

The consortium comprises five carefully selected partners from four different

European countries, supplemented by a European institute, which formed the

project-specific consortium. Each partner effectively has a veto right. The main

disciplines and corresponding contributions of each partner are:

• Deployment of one application of which it provided the detailed specification;

• The airborne part, which it provided, and certification issues, which were studied;

• The infrastructure, which it specified and verified, and certification issues, which

were studied;

• Deployment of the other application, which it realized, and the infrastructure.

This activity is combined with consortium management;

• Deployment of both applications, which it realized.

At project start the objectives and the network-centric concept were sufficiently

mature. The details of the two pilot applications were to be determined. In the air

transport industry the waterfall model is the standard for safety-critical software

development and compatible with the mandatory airborne DO-178B [8] certification.

To accommodate the requirement for a drastically reduced time-to-market, the USDP

paradigm was chosen, even though none of the partners had experience with it.

The change request administration depicted in Fig. 6 shows some remarkable facts:

• All changes relate

to the specifications

of the four

components, none

were submitted to

other process

artifacts, including

software. As the

completion of build

1 kept shifting,

most code was only

submitted to the

project repository shortly before project completion. The change administration

before that date was the responsibility of the developing partner and hence is

invisible in the Fig. 6;

• One team member submitted 30 changes to downscale his TIS component. These

changes explain the peaks at month 19 and month 25 and part of the peak at month

11-13. This preceded the client reviews in month 15 and 26;

• Another member submitted 10 changes to clarify and downscale his application,

which explains the remaining part of the month 11-14 peak;

• The remaining four changes clarified some requirements. The additional change

with respect to Table 2 relates to a withdrawn and resubmitted change.

The USDP process assumes a spiral model with several deliveries and subsequent

adaptations of the requirements based on user feedback on the partial delivery. The

change administration reflects that the project maintained the single iteration waterfall

process familiar to all partners. The time-to-market and adaptability advantages of the

spiral model were not realized. Breaking down the requirements into smaller ones

could have helped.

3.2 Requirements and design phase

Table 2 provides some data about the realization of the prototype.

Table 2 Overview TALIS prototype realization

FAR MET TIS VPR

# requirements build 1/2/3 22/7/7 54/14/- 10/13/8 15/2/3

# identified requirements 66 118 108 26

# requirements test/inspect 2/34 68/- 31/- 20/-

# rejected requirements 3 34 3 1

# pages 90 85 97 80

# review comments (high/medium/low) 23/29/1 12/-/- 20/-/- 36/8/-

# approved/rejected changes 4/5 2/- 27/3 -/-

Analysis (man month) 22 9 18 5

Implementation (man month) 100 41 39 1

K Lines of Code 32.2 17.6 18.9 COTS

# of classes 106 65 75 COTS

Change Request per Project Month

123456789101112131415161718192021222324252627282930

Project Month

Number of Change Requests

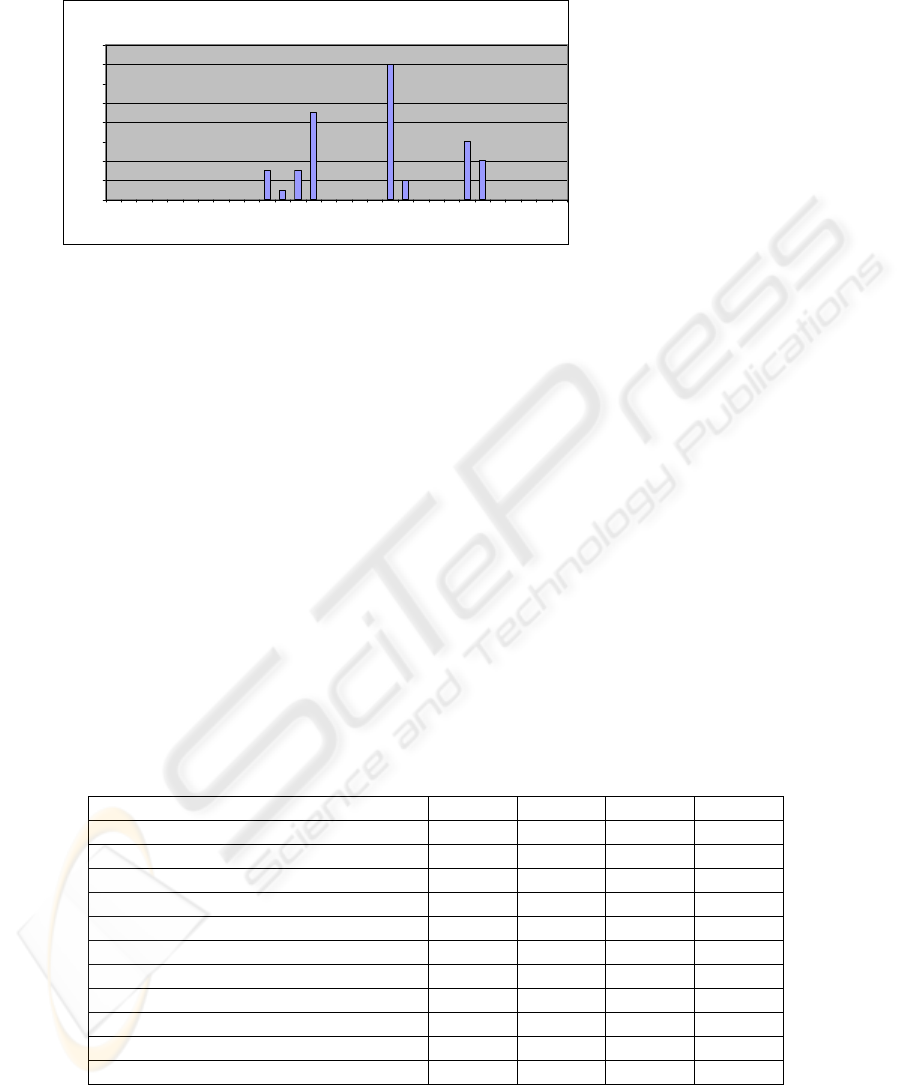

Fig. 6. Change request during project

From Table 2 and some project information the following can be derived:

• Up to now, 1.5 month prior to the project end, build 1 has not been completed.

Many hard requirements have been postponed to future builds;

• The first row provides the numbered requirements. The second row lists the

amount of identifiable requirements based on current wording. The requirements

could have been phrased in smaller, separately identifiable units to ease

incremental implementation and testing;

• FAR uses inspection as verification method where test could have been used

more often;

• The many rejected MET requirements reflect the user belonging to one

organization and the analyst and the designer belonging to another.

Communication and elucidation was done by discussing the detailed

requirements;

• The document volume combines the requirements and the UML use cases;

• The number of review comments per page of specification is low, indicating

friendly reviewing, as e.g. [5] found 1.1 comment per requirements page of

which they rated 45% as critical;

• The many approved TIS changes reflect severe downscaling of this application;

• The VPR consists only of COTS, which requires a limited installation effort;

• Project management including quality assurance accounted to an additional 15%

of the total project budget. However this figure reflects the reality of the

maximum acceptable to the customer (the European Union). The remaining

management is included in each partners’ budget, in our case an approximate

10%. Such figures are in line with our other international projects.

3.3 Project communication

Traditionally in multi-national projects face-to-face meetings are held regularly to

align the views, the partner’s ambitions and to guide the project. For this purpose 46

meetings were planned, evenly split between the sites of the partners. In order for one

partner to save costs, frequent formal teleconferences and even more frequent e-mail

(averaging 230 per month between the 10 technical team members) replaced

meetings. Fig. 7 depicts the actual communication pattern to date, mid month 29. The

analysis of Fig. 7 combined with some project process information yields:

• The teleconferences tended to focus on project management issues in stead of on

technical issues;

• Maybe a technology to simultaneously share graphical information, used a/o to

express the requirements and the design, could improve this. Five levels of co-

operation from communicative to concerted are recognized in [3]. The project

needs the latter to achieve the required flexibility in service definition and time-

to-market. For concerted cooperation group support technologies are needed [3].

These could have been used at affordable costs;

• For one sticky management issue a videoconference has been held between two

partners in month 23. Due to the additional face-to-face contact this proved to be

efficient and cost-effective. Still this facility has not been used since;

• The first build kept

shifting, depriving

the project team

from feedback to

shape the next build.

Limiting the first

build would support

the USDP micro

deliveries and

comply with a short

time-to-market;

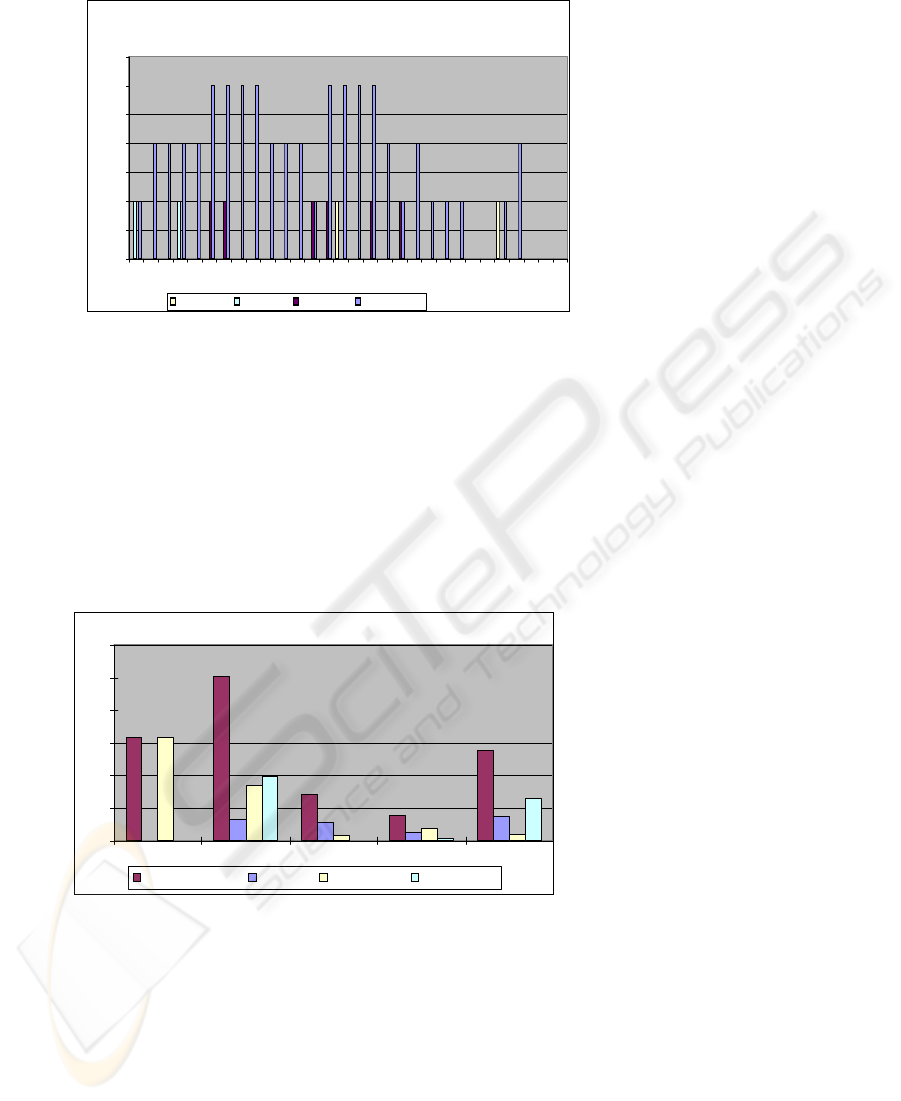

Fig. 7. Project communication means used

As an aside in month 26 a much smaller application mimicking an electronic flight

bag taxiing application was realized using 1.5 man month. In the last few days, many

small upgrades were implemented, including user comments from actors like pilots.

This application was realized within one partner, with people literally walking into

each other’s office. This prototype generated ideas for a second prototype that was

realized from scratch. It contains more additional electronic flight bag capabilities and

network-centric capabilities. It took a mere additional 2.5 man month. These two

activities demonstrate the feasibility of the USDP approach for air transport and its

value in obtaining user feedback. This success supports the view of [7] that a virtual

team requires information rich media like face-to-face meetings to achieve its goals.

The size of the most

recent version of the

documentation is depicted

in Fig. 8. The most recent

version comprised 57% of

all documentation in the

configuration-controlled

archive. Previous versions

of the same documents

make up for the other

43%. Fig. 8 combined

with the previous

information leads to the

Fig. 8. Most recent document version size per work package

following observations:

• Only 17% of all documentation is a technical deliverable. Note that as testing is

not completed yet, the usually sizable test report documentation is excluded;

• Consortium level management documentation (WP1) amounts to 24% of the total

using 15% of the effort;

• The certification study (WP5) produced 21% of the documentation using 11% of

the effort;

Documentation size

500

1000

1500

2000

2500

3000

WP1 WP2 WP3 WP4 WP5

All, latest version

Technical

Management

Support tech

Communication per Project Month

0,5

1,5

2,5

3,5

123456789101112131415161718192021222324252627282930

Project Month

Project communicaation

Client review full meeting sub-meeting teleconference

• WP2, WP3 and WP4 work package management and quality assurance of

contributed 27 % to the documentation using 10% of the effort;

• The remaining 11% are primarily white papers. The electronic management style

and the resulting lack of face-to-face discussions lead to most technical exchange

being performed by exchanging white papers. Only the final result becomes a

technical deliverable.

4 Conclusions

The various air transport actors have confirmed the need for computer assisted

cooperation. Our COTS based prototype is acknowledged as a feasible solution. A

final validation needs actual deployment, for which the first service needs careful

selection and an impeccable user interface.

The distributed consortium achieved its goal. Our cooperation shows that for a

traditional waterfall implementation model electronic communication can replace

nearly all meetings, even for a newly formed, dedicated consortium. To achieve the

intended fast response to market driven changes a spiral model is required which

assumes a closer co-operation. Affordable computer-support like group support

facilities might facilitate the required co-operation in stead of the proven method of a

multitude of face-to-face meetings. The one case of video conferencing achieved its

objectives as effectively as a traditional meeting.

References

1. Anonymous: TALIS project website, http://talis.eurocontrol.fr/, (2004 Jan)

2. Basili, V.R., Caldiera, G., Rombach, H.D.: Goal Question Metric Paradigm, Encyclopedia

of Software Engineering 1, New York: John Wiley & Sons, (1994) 528-532, 1994

3. Chen, F. Romano, N.C., Nunamaker, J.: An Overview of a Collaborative Project

Management Approach and Supporting Software, Americas conference on information

systems

4. EUROCONTROL: Towards Co-operative ATS, The COOPATS Concept,

EUROCONTROL DIS/ATD/AGC/MOD/DEL 01, (2000 Nov)

5. Gantner, T., Barth, T.: Experiences on defining and evaluating an adapted review process.

Proceedings of the 25th international conference on Software engineering (2003 May). 506-

511 http://www.icse-conferences.org/2003/

6. Kesseler E.: Consistent safety objectives and COTS versus fragmented certification

practices and good safety records. 3rd IEEE SIIT conference (2003 Oct) 121-133.

7. Ramesh, V., Dennis, A.R.: The object oriented team: lessons for virtual teams from global

software development, HICSS 35, 2002

8. RTCA, EUROCAE: DO-178B / ED12BL: Software Considerations in Airborne Systems

and Equipment Certification., (1992 Dec)

9. Sherif, M.H.: When standardization is slow? International journal of IT standards &

standardization research 1, (2003, Jan-Mar) 19-32
