A Mobile Agents Platform for Telecare and

Teleassistance

L. M. Camarinha-Matos, João Rosas, Ana-Inês Oliveira

New University of Lisbon / Uninova Monte Caparica, 2829-516 Caparica, Portugal

Abstract. In order to facilitate the development and integration of new services

for telecare there is a need for the design and development of an open and

flexible infrastructure into which services and supporting resources can be

easily plugged in. A mobile agents based approach for such infrastructure was

developed in the TeleCARE project and its architecture and implemented

prototype are discussed.

1 Introduction

Teleassistance and provision of remote care to elderly living alone at home represents

a very demanding case of distributed system. Developments in this area have to cope

with some important requirements, namely:

• Openness, in order to accommodate a growing number of new services and

supporting devices.

• Support for heterogeneity, as different users have different needs and might

possess a diversity of legacy systems (e.g. computers, home appliances, domotic

infrastructures).

• Scalability, in order to allow the integration of a variable number of users in a

telecare community.

Furthermore, this area represents a very sensitive domain in the sense that it deals

with critical data about individuals, raising issues of security, and the need to

guarantee a high continuity of service. These are in fact some of the pre-requisites to

guarantee social acceptance of any new approach to the introduction of technology in

elderly care.

In spite of recent developments in computer networks and pervasive computing,

effective implementation of telecare systems still requires the development of open

and flexible infrastructures offering some form of plug-and-play functionality. With

different organizations developing different products and services, in a variety of

different areas, there is a need for a common platform into which all these

development may be plugged so that interoperability is possible.

In this context, one of the main aims of the IST TeleCARE project was the design

and development of a generic platform that allows progressive addition, at a minimal

cost, of new care services, home appliances, and monitoring / assistance devices. A

mobile agents approach is adopted as the base development paradigm. Although

M. Camarinha-Matos L., Rosas J. and Oliveira A. (2004).

A Mobile Agents Platform for Telecare and Teleassistance.

In Proceedings of the 1st International Workshop on Tele-Care and Collaborative Virtual Communities in Elderly Care, pages 37-48

DOI: 10.5220/0002677100370048

 SciTePress

different approaches could have been considered (e.g. transaction-based or web

service-based), the mobile agents approach offers some potential benefits in face of

the requirements of this domain. In particular:

• Moving the code to the places where actions are required enables real-time

response and autonomy and continuity of service provision, with reduced

dependency on network availability and delays;

• Since new mobile agents can be built and sent for remote execution whenever

needed, higher levels of flexibility and scalability are achieved.

The TeleCARE Extended MAS Platform. The TeleCARE platform is developed on

top of AGLETS [1]. AGLETS, as a mobile agents framework, provides basic inter-

platform mobility and communication mechanisms. Nevertheless, in order to

implement security, a critical issue in the elderly care domain, such basic mechanisms

need to be extended. This paper is focused on the multi-agent related components and

extensions of the TeleCARE platform, the gray areas in Fig. 1.

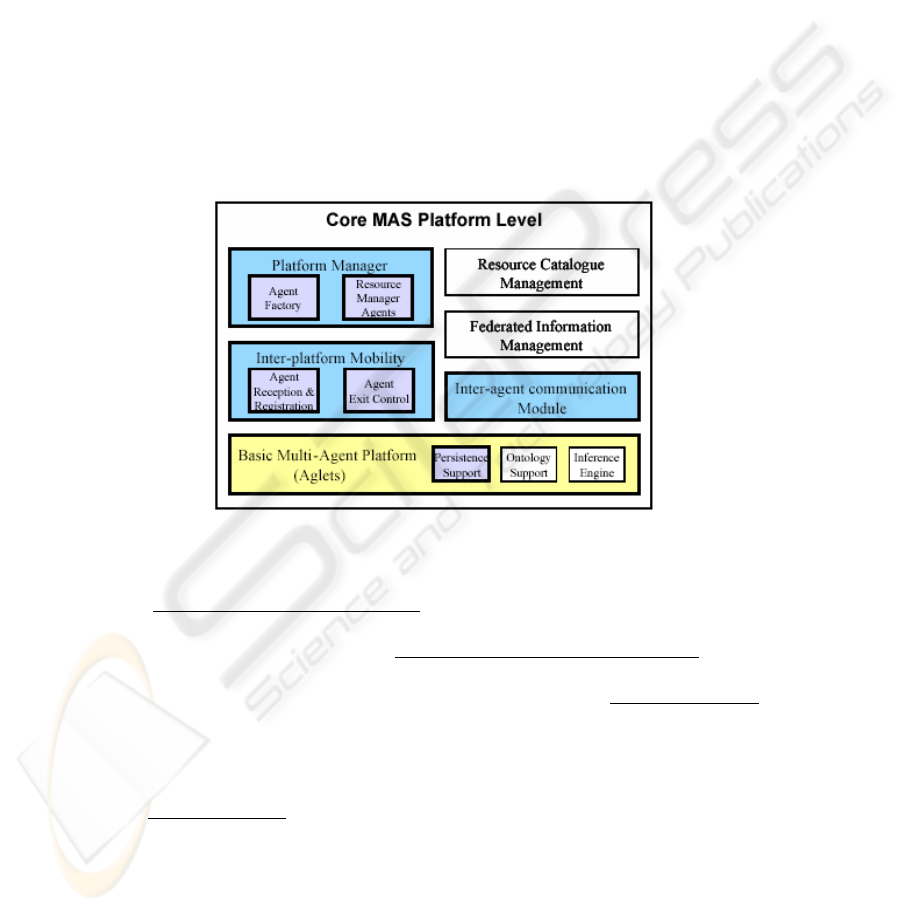

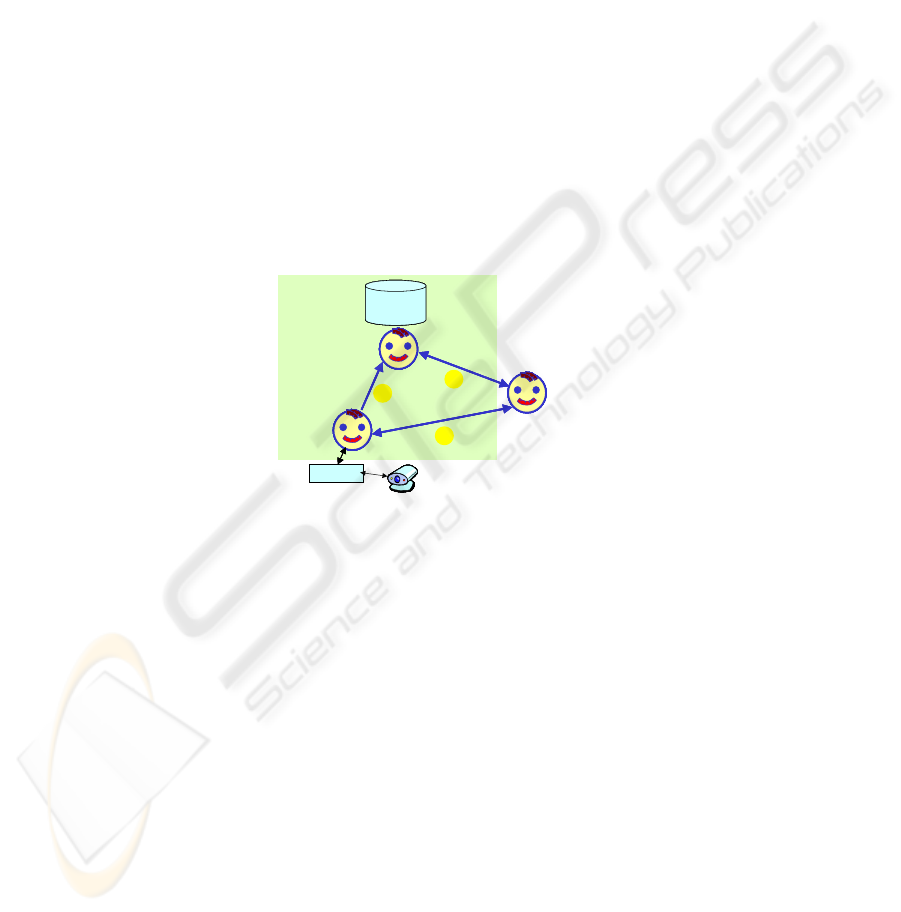

Fig. 1. Modules of the TeleCARE Core MAS Platform

The Inter-Platform Mobility module controls the processes involved in agent

migration, such as permissions to leave from/enter into a node and keeping a registry

of the agents at each node. The Inter-agent Communication Module

provides

extended message communication mechanisms, such as the inclusion of sender’s

identification and the support for FIPA ACL [5]. Finally, the Platform Manager

responsible for the configuration and specification of the operation conditions of each

TeleCARE node.

Before discussing in details these components, it is necessary to introduce two

fundamental entities: the TeleCARE abstract agent and its Passport class.

The TeleCARE agent

abstract class (TCAgent) is the base class for all other agents

created in the TeleCARE system. This class defines methods for controlling the

agent‘s life cycle, such as methods for dispatching, deactivating and disposing an

agent; methods for communication, and methods for persistency support mechanisms.

Although some of these features are already provided by the basic AGLETS SDK

platform, the TCAgent wraps them and extends the basic functionalities by inclusion

of: (i) agent registering and localization, (ii) communication through highly structured

content messages, and (iii) permanent and fail-safe agent execution.

Each TeleCARE agent has a passport

that constitutes its “proof of identity”. It is

the official “travel document” recognized by any TeleCARE site of the community.

Therefore, any mobile agent that intends to migrate to another platform must have a

valid passport. The passport structure (see Fig. 2.) is composed of several

substructures: TAL (TeleCARE Agent Locator), TLAID (TeleCARE Logical Agent

Identification), Validity and Itinerary. The TAL is a system level identifier that is used

by the system to locate an agent. With the information provided by TAL, the system

can find the proxy of any agent no matter where it is. The TLAID is a logical identifier

that is used to locate an agent using human understandable data and it comprises two

sub-structures, which are the TLAD (TeleCARE Agent Data) that contains specific

human readable data on the agent and the TLUD (TeleCARE User Data) that contains

human readable data on the user who created the agent. The field Validity is used to

assign the time duration of the agent’s passport. Finally, the Itinerary represents a list

of the last visited hosts (in case of mobile agents).

TAL

Passport

The Aglets

identification

Platform where the

Agent was created

TAL

TLAID

TLAID Validity Itinerary

AgletID hostOrigin hostCurrent agentName agentType userRole userID

Platform where the

Agent is currently living

Logical name of

the Agent, given

by the Developer

The category of the

Agent: System,

Resource, etc.

Category of the user who

created the Agent: Doctor,

Nurse, Relative, Elderly, etc.

The identification of the

user who created the

Agent: Mary, Joseph,

etc.

Duration time

of the Passport

List of the last

visited sites

domainNode

TLAD

TLUD

Domain node of the

TeleCARE VO to which

hostOrigin belongs to

TeleCARE

Agent Locator

TeleCARE

Logical Agent

Identifier

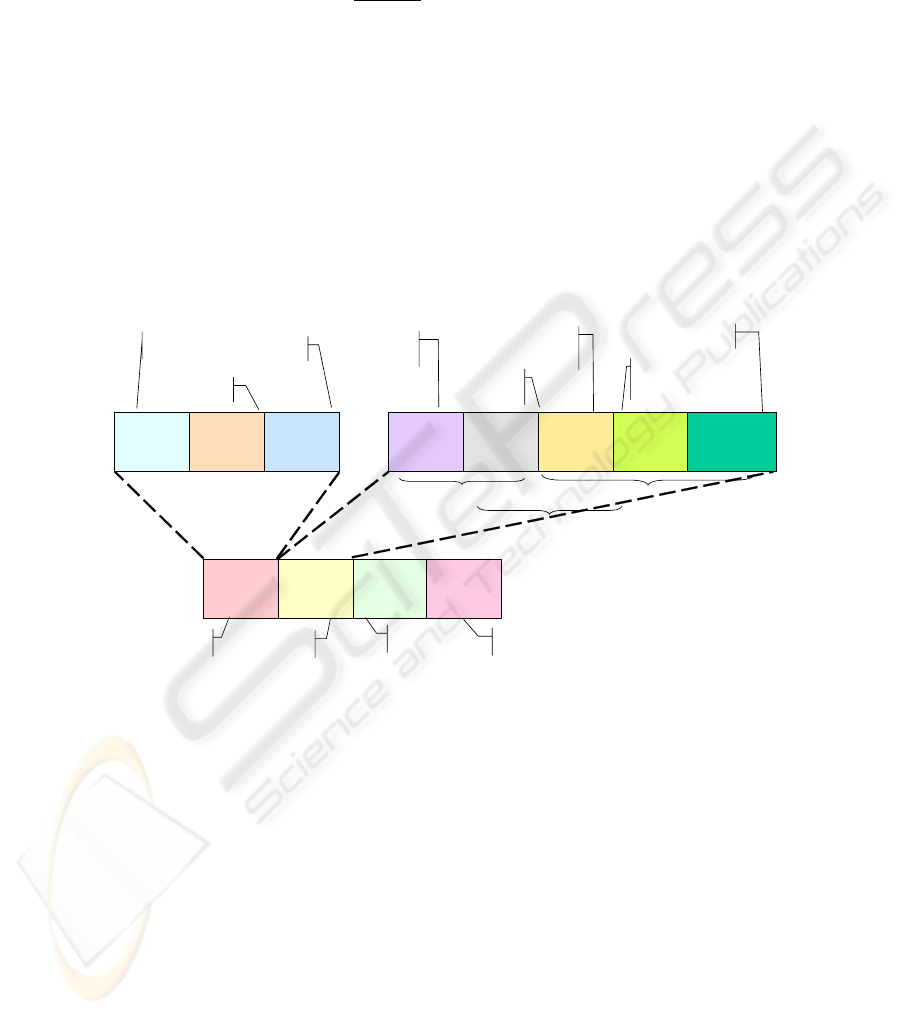

Fig. 2. The TeleCARE agent’s Passport structure

2 Inter-Platform Mobility

Since the TeleCARE system is intended to operate in a geographically distributed

system and the application domain is particularly demanding in terms of reliability it

is important to implement security means to prevent harm from malicious agents. For

this purpose it was necessary to extend the basic mobility mechanisms provided by

AGLETS. These extensions are implemented through the inter-platform mobility

support agents, a set of stationary agents that provide the main functionalities of the

Inter-Platform Mobility (IPM) module: AgentRegistry (AR), AgentReceptionControl

(ARC) and AgentExitControl (AEC). From the IPM perspective, each TeleCARE

node is seen as illustrated in Fig. 3. The ARC and AEC participate in the processes of

controlling the migration process in terms of the accessibility of the nodes based on

the agents’ passports.

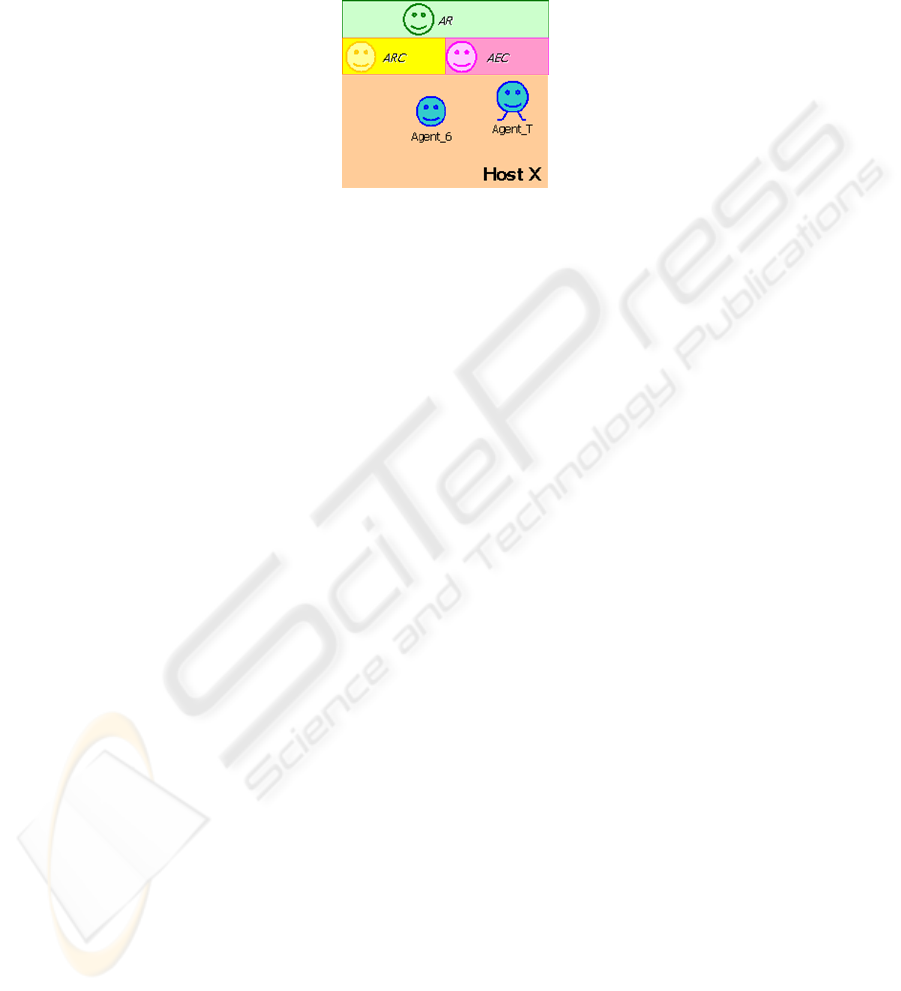

Fig. 3. The IPM view of a TeleCARE node

Agent Registry. The class AgentRegistry stores a record for each agent that lives at

the local host and/or was created at local host and which is currently running in a

remote platform. The registration consists of a copy of the passport of each agent.

AgentRegistry performs the registration of agents by sending and receiving

messages to/from other System Agents (AgentExitControl and

AgentReceptionControl). For instance, when an agent is created its passport must be

registered in order that it can live in the TeleCARE system, by sending a message of

type “REGISTRATION” to AgentReceptionControl. To verify and accept as valid the

passport of the new agent, the AgentReceptionControl will send a message to

AgentRegistry with type “REGISTER” in order to register the agent in the TeleCARE

platform.

When an agent travels to another location it must require its registration at the

destination platform. After that, its register at the departing platform must be updated

or removed, depending whether the local platform is its origin host or not. These

actions are taken care of by the AgentReceptionControl and AgentExitControl and the

result is communicated to AgentRegistry with the purpose of performing the needed

changes in the agents registry.

Agent Reception Control. The agent AgentReceptionControl functions as a

gatekeeper of incoming agents that wish to enter in a TeleCARE node. The

application agents will interact with this agent through messages of type

“REQUEST_VALIDATION” and “REGISTRATION”. In both cases, if the

verification process is successful, the AgentReceptionControl will send a message of

type “REGISTER” to AgentRegistry, so that the agent can be registered at the local

platform.

Whether an arriving agent is accepted or not in the local platform, the

AgentExitControl of the remote (departing) platform is notified.

Agent Exit Control. The AgentExitControl is responsible to implement the

functionalities of the exit control module. Thus, it includes methods to control if an

agent has permission to travel, and to check if the destination is an available and valid

TeleCARE platform. Like the other two classes above, this class does not have public

methods so the only way to access its functionalities is through messages.

When an agent is about to travel, it has to require permission for traveling from the

AgentExitControl of its current node by sending a message of type

“REQUEST_TRAVELLING_PERMISSION”, and also by sending its passport and

specifying the destination platform. The AgentExitControl verifies the passport of the

agent in order to know if it has traveling permission, and also verifies if the

destination is an available and valid TeleCARE platform. If the response is positive

for both conditions, the agent can travel to the intended destination.

Immediately after an agent arrives to a destination, it requires from the local

AgentReceptionControl to be registered in the platform, by sending a message of the

type “REQUEST_VALIDATION” together with its passport. The passport is verified

by the AgentReceptionControl, which sends a response to the incoming agent. If the

passport is valid, the AgentReceptionControl sends a message of type

“REGISTER_UPDATE” to the AgentExitControl instances running at the local host,

last host, and origin host of the mobile agent. This will lead to a registration of the

agent at the local platform, a removal of its register from the last platform registry,

and an update of its register at the origin platform, as illustrated in Fig. 4.

If the verification process of the agent’s passport results fails, the agent is disposed

and its respective registers, both at last host and origin host, are erased.

Host A

Agent_1 at Host A

Agent_ZatHostB

Host B

Agent_2 at Host B

Agent_ZatHostB

Agent_2Agent_2

Agent_1Agent_1

Agent_ZAgent_Z

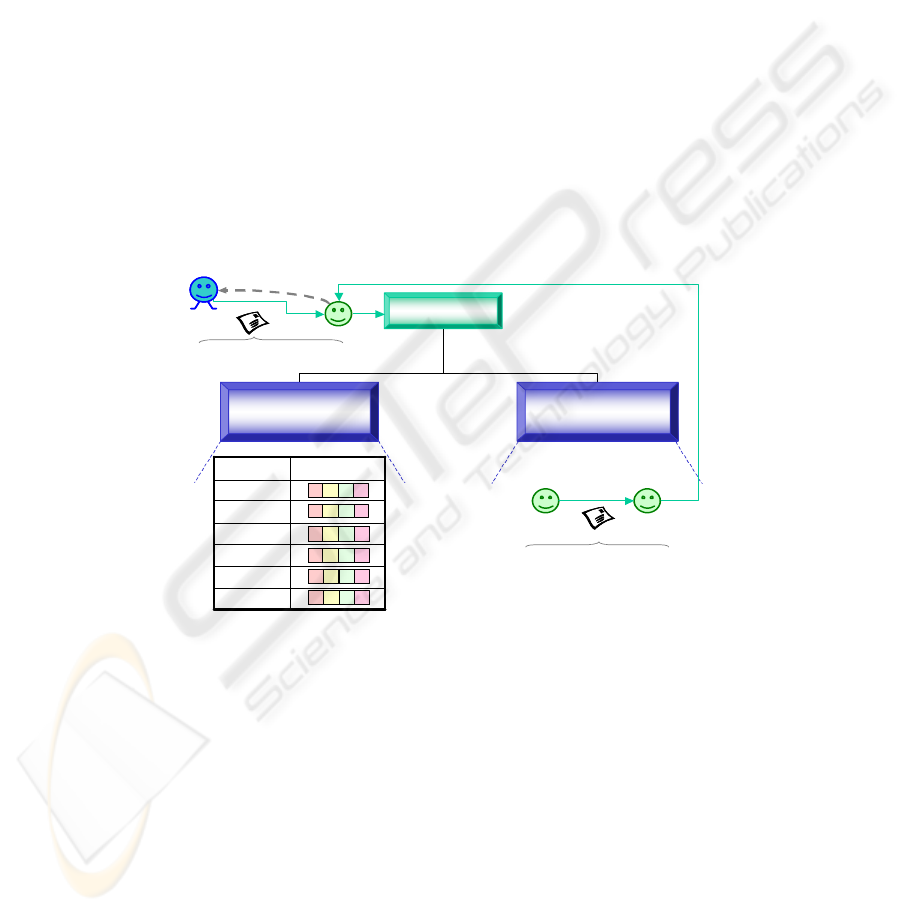

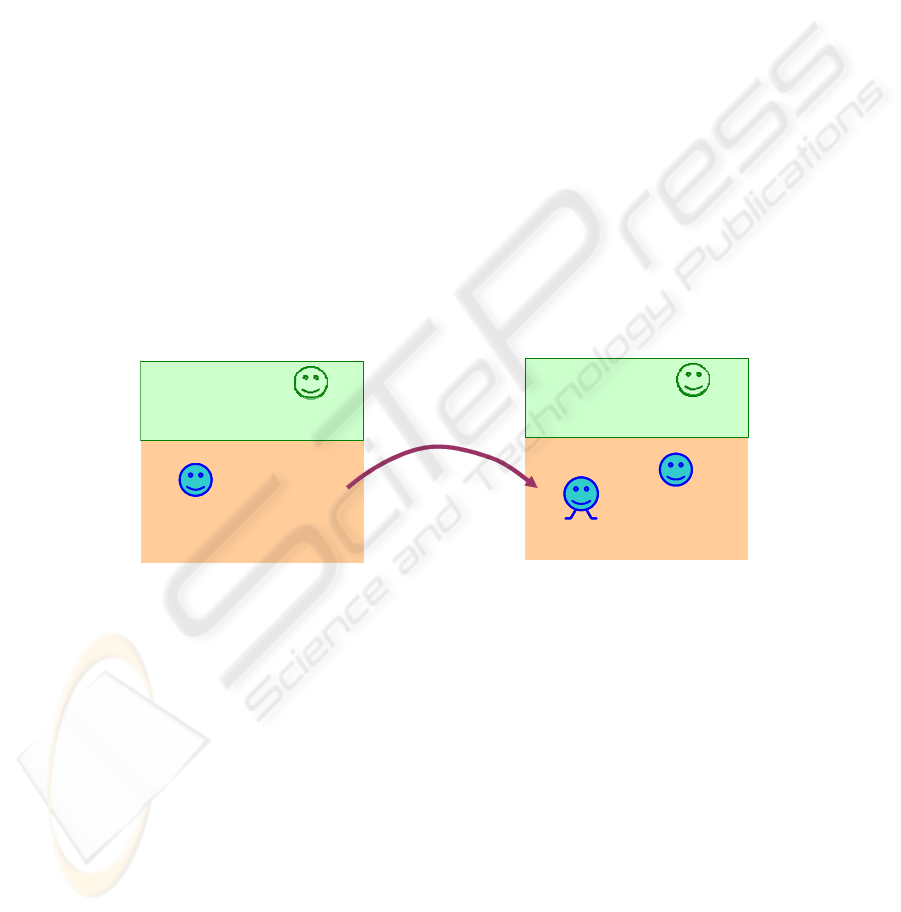

Fig. 4. After Agent_Z has traveled to Host B, the AR of the original platform is updated. This

way any agent can be located, provided that at least its original platform is known.

Through the operation of these three system agents it is possible to achieve some

degree of privacy and security since it is possible to configure which kind of agents

are allowed to perform their tasks is each platform.

3 Inter-Agent Communication

The objective of extending the AGLETS basic message exchange mechanism is to

have additional functionality needed for the adequate operation of the TeleCARE

Platform in terms of reliable communication. Whenever an agent wants to send a

message to another agent, it first has to locate the receiver. The localization process is

driven by the values of the agent’s TLAID. Whenever an agent receives a message,

the message must include the sender’s identification and other details so that a

validation of the message can be made by the receiver. The implemented approach is

to encapsulate the sender’s passport in the message structure. This result in a new

structure called TCMessage.

Communicating with an Agent. Since AGLETS is the base of the TeleCARE

platform, the basic communication mechanism between agents follows the directives

of agent communication in AGLETS, mainly in terms of the proxies of the agents.

Although the proxy mechanism is appropriate to deal with distributed environments,

it is not sufficient in some aspects, namely: it is not human readable and it is unsafe as

by using the AGLETS’s broadcast the agent’s proxies are available to any agent, even

malicious ones.

Therefore, in TeleCARE the communication process resorts to the agent’s passport

information when a message needs to be sent to an agent. The passport’s TLAID and

TAL structures are used to locate an agent or set of agents. By specifying the values

(not all required) for the TLAID attributes as a search pattern, the TAL of the matched

agent(s) is (are) obtained and the communication can proceed (see Fig. 5.).

Agent 3

Agent 2

Agent 1

AEC

ARC

TCPassportAgent ID

Agent 3

Agent 2

Agent 1

AEC

ARC

TCPassportAgent ID

Location

Consult Table

Consult Remote

Agent Registry

location != localhost

location = localhost

Local AR

<FIND_TAL

TLAID

location

MessageMessage

Agent 1

Local AR Remote AR

<FIND_TAL,

TLAID

location

Fig. 5. Process of locating an agent based on the values of the passport’s TLAID; after the

desired agent is found, the message is sent.

FIPA ACL Messages. One of the features integrated in the TeleCARE MAS

platform as an extension to AGLETS is the possibility to communicate using FIPA

ACL Messages, which allows transmission of messages with high structured content.

An example of an ACL message can be seen in Fig. 6.

(inform

:sender

ent -identifier :name i)

:receiver

(set (a

ent -identifier :name

))

:content

"weather(toda

, snowin

:in

reply -to

round -4

:lan

rolo

:ontology

bt-auction

:protocol

a -contract -net

)

getPerformativ

getLanguag

setOntolog

setPerformativ

setLanguag

getOntolog

getConten

setConten

getAllReceive

addReceive

getSende

setSende

Fig. 6.

Example of an ACL message. For each element of the message, the correspondent ACL

methods for the definition/extraction of the content are indicated.

4 Platform Management

The platform management functionalities are used to ensure that the platform is

working adequately. This sub-system of the TeleCARE platform consists of three

basic modules, which are: Platform Manager, Agent Factory, and Resource Manager.

The Agent Factory (AF) is the module that helps service developers in the

implementation of Vertical Services (VS). It also assists in the instantiation process of

the TeleCARE agents. Finally, the module Resource Manager (RM) provides a

common and abstract way of dealing with devices and appliances in TeleCARE.

The Platform Manager. The Platform Manager (PM) is the component of the

TeleCARE platform architecture responsible for the configuration and specification of

the operating conditions of the platform in each node, and it specifically includes

System configuration, Login, and System supervision functionalities.

When starting the TeleCARE system there are some attributes that distinguish each

site, which are the site name, type and URL. The initial user interface is shown in Fig.

7., which illustrates the entry point for all platform management functions.

Depending on the site type, the users may have different configuration

authorizations. At the user’s site, it is only allowed to launch the subscribed services.

At the Care Center sites it is possible (for users with the right authorization level) to

configure the various operating parameters for a given community, such as the users

(Fig. 8.), elderly, disabilities, relationship types between persons, user roles, and

nodes information.

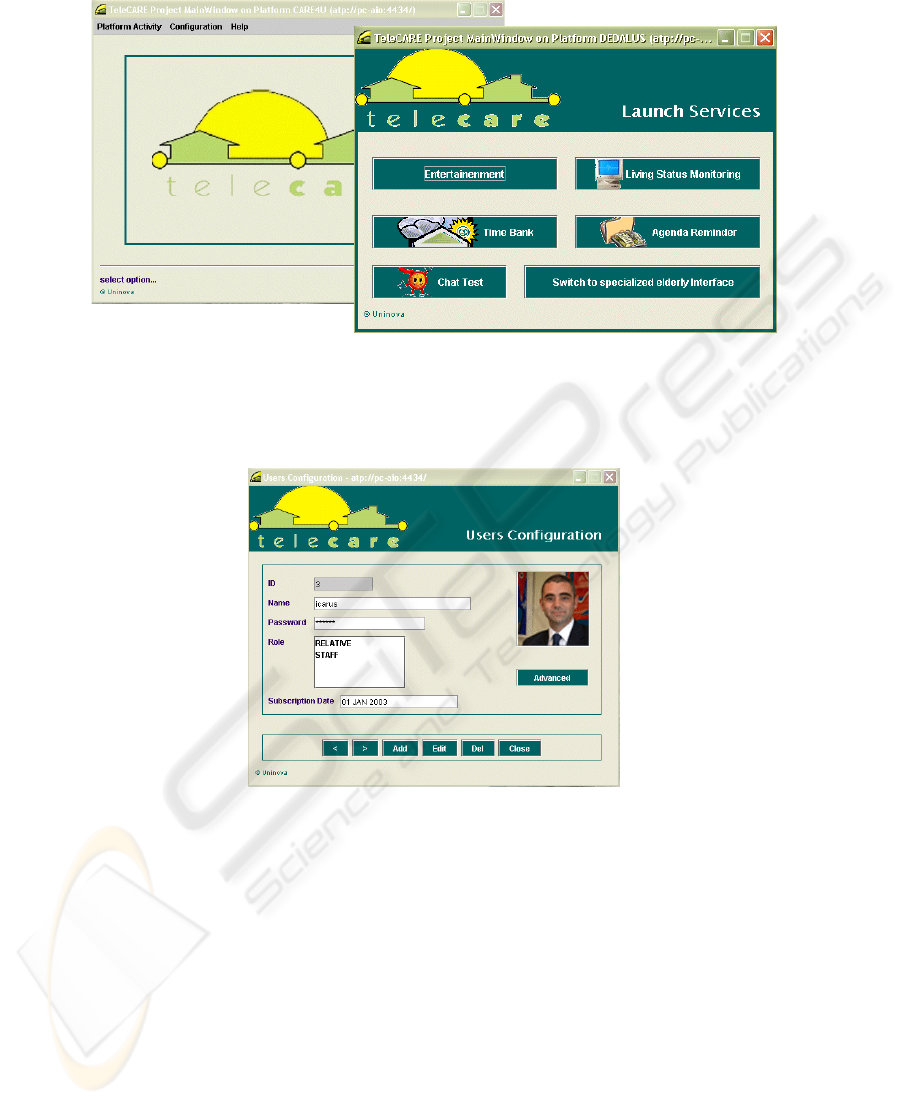

Fig. 7. Entry point of the Care center (left window) and user site (right window).

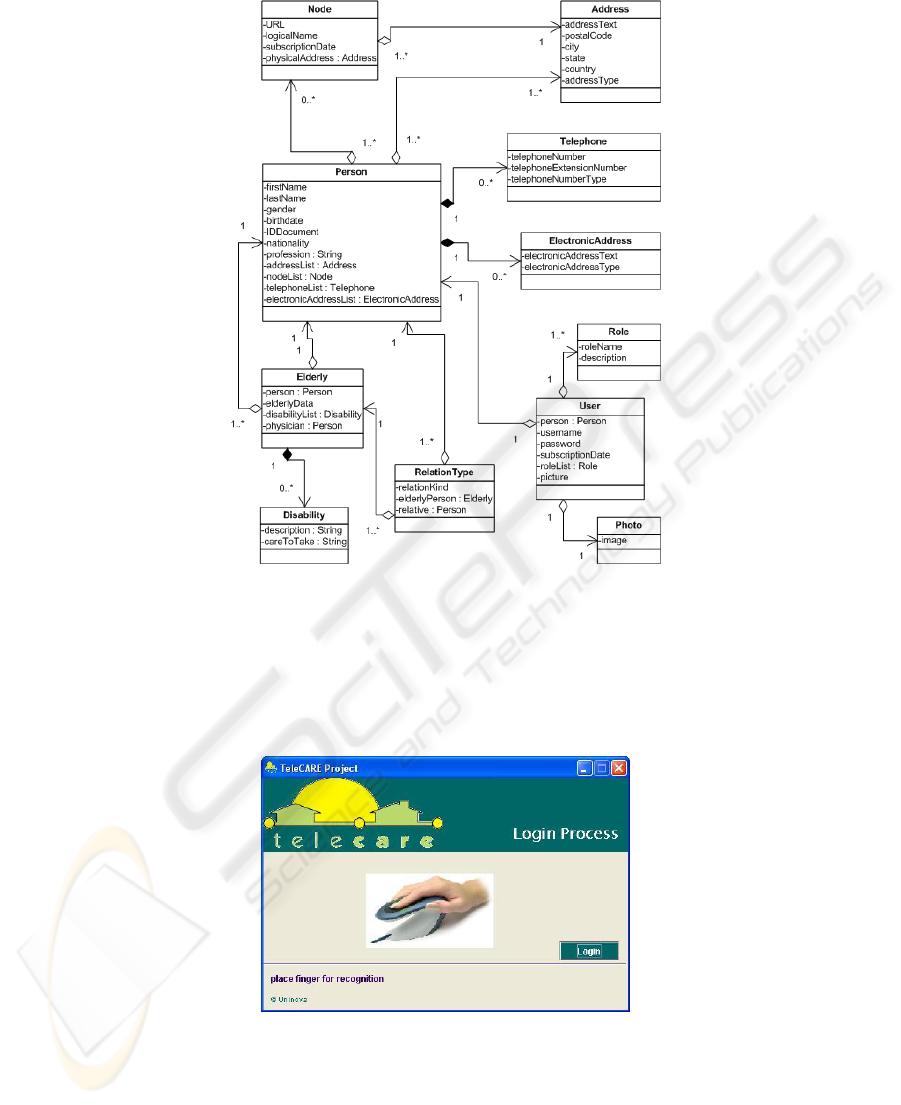

All of this information is structured according to a common ontology (Fig. 9.)

followed in all components of the TeleCARE system development.

Fig. 8. Users configuration

The access rights to services are granted according to the user’s role category, that

is, the users inherit the access rights from the roles they perform. The roles specify

authorization to allow / deny access to the platform, to types of resources or specific

resources, to types of services or specific services, etc.

Fig. 9. Common Ontology in the TeleCARE system

As TeleCARE deals with critical information related to the various elderly

members, it is necessary to authenticate the users during the login, namely in the case

of the care center. For this purpose a biometric identification system (based on finger

print recognition) is integrated in the platform (Fig. 10.).

Fig. 10. Biometric identification based on finger print recognition

Whenever a user launches an agent, the TeleCARE system fills in the agent’s

passport with the information of its user (namely the user ID, user role, etc.). Thus, an

agent that has been created through the Telecare platform can never forge a passport

with false information.

The Resource Manager. Resource Managers are the agents responsible to provide

access to the hardware resources and appliances when requested by upper level

Vertical Services running in the TeleCARE platform. For each resource (e.g. sensors

and home appliances) in each node, a specific agent – Resource Manager – has to be

developed. This agent is responsible for granting access to the resource functionalities

and for checking the access rights whenever another agent requests access to the

resource. Although the details of each Resource Manager depend on each particular

device, most of the structure of all Resource Managers is common. Therefore, and in

order to facilitate the development of new resource managers, a generic template or

skeleton – Resource Manager Agents (REMA) – is provided.

The approach used for the Resource Managers and resources integration is based

on the UPnP specification [6]. The descriptions of the resources are published in a

Resource Catalog Management agent (RCAM), allowing the vertical services (clients)

to discover them (Fig. 11.).

Resources

Catalog

Resource

Manager

Agent

Resource

Catalog

Agent

UPnP

“Client”

Agent

“Publish”

“Discover”

“Invoke”

Resources

Catalog

Resource

Manager

Agent

Resource

Catalog

Agent

UPnP

“Client”

Agent

“Discover”

Fig. 11. Resources publishing/discover and invocation

The vertical services interact with the resources via the corresponding Resource

Managers, using ACL messages.

The Agent Factory. The Agent Factory (AF) is the module that assists service

developers in the implementation of their services, and also in the instantiation

process of the TeleCARE agents. The main functionalities of this module are a

minimal set of agent classes with pre-defined mission types, the generation of

advanced services by experts, the agent’s passport assignment, and a library of agent

skeletons and protocols to build agents in the TeleCARE system.

5 Agents Persistency Support

Reliability is a major requirement for the TeleCARE platform and persistency of

agents is an important element of it. Persistency is a mechanism that allows storing

critical information about the running activities of the agents. Whenever a system

crashes, they can be resumed when the system is restarted.

The TeleCARE platform provides semi-automatic support for persistency based on

the AGLETS built-in snapshot mechanism. Snapshot images of agents can be stored

at critical states of the agent’s life cycle, such as: at the creation of the Agent, just

after the Agent arrives to a new location, and when the Agent is activated. The

developer can also use this mechanism at any point of the agent’s code assumed to be

critical. If there is a system failure, the last snapshot of the Agent is restored and its

execution can be resumed with the information stored in that snapshot. The

TeleCARE’s persistency support also verifies if the agent is compliant with the

persistency mechanism.

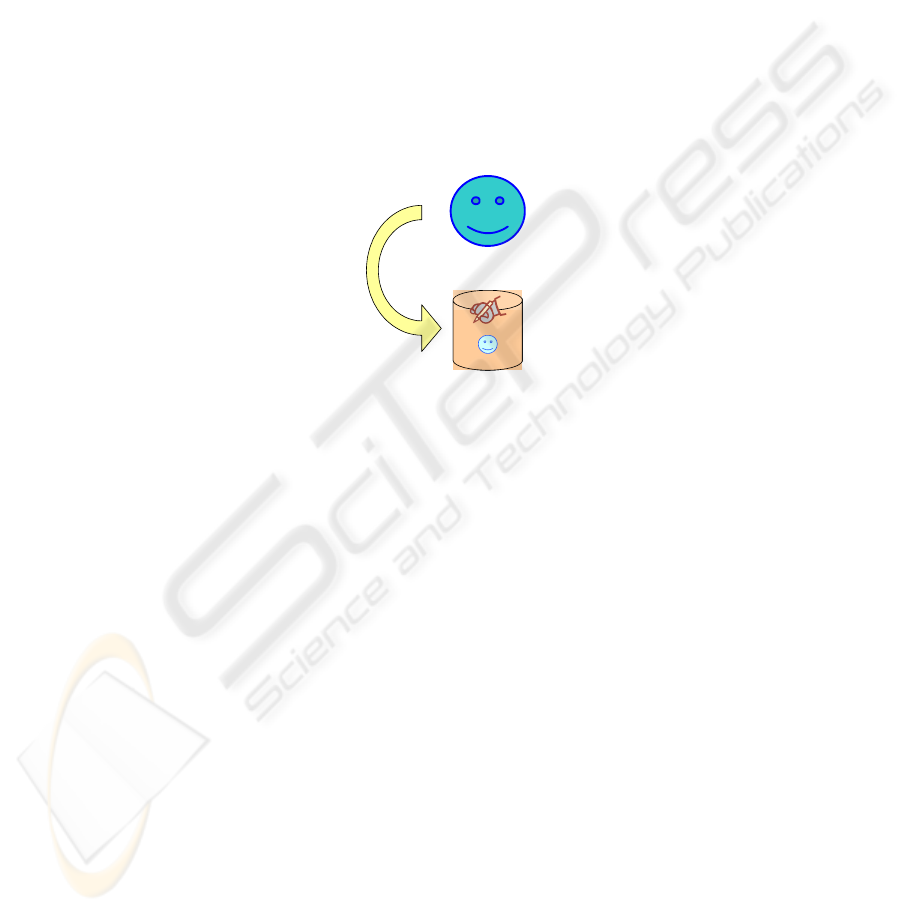

the Agent

Agent’s snapshot

in disk

snapshot

Fig. 12. Basis for persistency in TeleCARE

6 Conclusions and Further Work

The mobile agents based platform developed in TeleCARE offers a flexible set of

functionalities that proved effective in supporting the development of several vertical

services for elderly care. The acquired experience shows however that a proper use of

the wide range of functionalities by service developers requires some guidance. For

instance, deciding whether to use a mobile agent for a specific mission or a simple

exchange of messages might not be a simple decision for programmers less familiar

with the underlying machinery of the multi-agent platform. The development of some

form of assistance, namely in terms of the Agent Factory, is one direction for further

work.

A preliminary validation of the platform functionalities was performed via the

implementation of various vertical services that make an extensive use of the offered

mechanisms. A minimal filed assessment was also made by interaction with some

potential software developers but a more extensive field assessment of the

functionalities and concepts included in the platform is still necessary.

Acknowledgements. This work was funded in part by the IST program of the

European Commission. The authors thank the contribution of the TeleCARE

consortium members.

References

1. Aglets API Documentation, v. 2.0.2; Java Aglet Community. From

http://aglets.sourceforge.net/

2. Camarinha-Matos, L. M.: TeleCARE Preliminary architecture Design. Deliverable 2.1, IST

project 27607, A Multi-Agent Tele-Supervision System for Elderly Care (2003)

3. Camarinha-Matos, L.M.; Afsarmanesh, H.: A Multi-Agent based Infrastructure to Support

Virtual Communities in Elderly Care. To appear in International Journal of Networking and

Virtual Organisations (2004)

4. Camarinha-Matos, L. M.; Castolo, O.; Rosas, J.: A Multi-Agent based Platform for Virtual

Communities in Elderly Care. In Proceedings of ETFA’03 – 9

Int. Conf. on Emerging

Technologies and Factory Automation, ISBN 0-7803-7937-3, pp 421-428, Lisboa,

Portugal, 16-19 Sept (2003)

5. FIPA ACL Message Structure Specification. Foundation for Intelligent Physical Agents.

From http://www.fipa.org/specs/fipa00061/XC00061E.html

(2002)

6. Universal Plug and Play Device Architecture. Universal Plug and Play Forum. From

http://www.upnp.org/download/UPnPDA10_20000613.htm (2000)
