An Access Control Model for Geographic Data

in an XML-based Framework

Bat-Odon Purevjii

, Toshiyuki Amagasa

, Sayaka Imai

, and Yoshinari Kanamori

Department of Computer Science

Faculty of Engineering, Gunma University

1-5-1 Tenjin-cho, Kiryu, Gunma 376-8515, Japan

Graduate School of Information Science

Nara Institute of Science and Technology

8916-5 Takayama, Ikoma, Nara 630-0192, Japan

Abstract. XML is accepted as a standard format for data exchange on the Web.

XML security research has mainly been focused on textual documents since its

origin. The previous works are not appropriate in the context of geographic

data, which comprises spatial and non-spatial data. Controlling access to those

data was a troublesome task because of proprietary and composite data formats

of GISs and complex data structures of spatial database systems. Besides

allowing flexible integration of geographic data, XML offers us methods to

deploy access control for these systems. In this paper we propose an access

control model for Web GIS, in which controlled access depends on spatial

extents of geographic data, by employing XML, and XML-based 2D vector

graphic format SVG. We show its utility in the domain of Internet Mapping into

the application of public safety and disaster management for national and local

governments.

1 Introduction

Recent Web and XML technologies allow us to transfer from conventional

Geographic Information System (GIS) to Web/Human GIS. As a result, every user on

the Internet can retrieve geographic information using communication devices, such

as PCs, mobile phones, and PDAs, independent of his/her location. The GIS paradigm

is shifting from expert-oriented GIS to low-cost consumer oriented GIS which

provides an open and rich information container for typical users on the Internet.

Internet Mapping is the major integral part of Web GIS, which can be implemented

either within GIS or separately by using XML technologies as glue. The W3C’s

Scalable Vector Graphics (SVG) [15] has become a new visualization format of such

geographic and map data on the Internet

[6, 13].

In fact, major GIS vendors started to support the format in their product families.

This work is partially supported by JSPS Grant-in-Aid for Scientific Research (B) No.

15300029.

Purevjii B., Amagasa T., Imai S. and Kanamori Y. (2004).

An Access Control Model for Geographic Data in an XML-based Framework.

In Proceedings of the 2nd International Workshop on Security in Information Systems, pages 251-260

DOI: 10.5220/0002677402510260

 SciTePress

Such powerful Web GIS and online interactive maps support facilities for

collecting, manipulating, sharing, visualizing, and analyzing geo-related information

and human related information. Since there is no geographical boundary for accessing

such private information, there arises specific security concerns in this context.

Applications for ensuring public safety [7, 14], such as disaster management,

homeland security, emergency medical services, crime and terror analysis are

emerging and have been under the attention of nations for the last few years. When

we face a big disaster, it is important to be able to make quick access to geographic

and personal data at any level of government, non-government, and private entities

for minimizing damage and saving lives [7, 14]. Thus, offering a large amount of

personal information with real world spatial positions and addresses, privacy

protection is inevitable in this incorporated environment. Such open and rich

information sources may be used by various kinds of users for aggressive purposes.

In this paper we introduce a technique to protect sensitive information in a Web

GIS environment by developing an XML-based geographic access control model. In

particular, we consider spatial extents and levels-of-details (LoD) of geographic data

to regulate access.

The remainder of this paper is structured as follows: Section 2 introduces related

work and Section 3 provides a demonstrative scenario that sketches the access control

policies and requirements. Section 4 presents a brief introduction to SVG vector

format and XML foundations. The underlying XML-based geographic data model is

presented in Section 5 and the access control model formulation is introduced in

Section 6, respectively. Section 7 describes spatial access control enforcement

algorithm. Finally, section 8 gives concluding remarks and future improvements in

this area.

2 Related Work

Controlling access to XML documents in the context of text data have received

notable efforts and the data security community has proposed several models and

systems.

Damiani, et al. [3] and Bertino, et al. [1] have developed access control systems

and prototypes in which fine-grained and content-dependent control of XML

document fragments are realized. Damiani, et al. [4] presented a model for selectively

controlling access to fragments of SVG graphics. Authorization objects are defined by

explicit object IDs and implicit conditions on the objects. Kodali, et al. [8] have

proposed a model for enforcing control to SMIL movies. S. De Capitani di Vimercati

[5] has considered temporal aspects of XML and proposed an authorization model for

Temporal XML documents.

Since these previous proposals are considered to be inappropriate in a geographic

context, we extend them and propose an XML-based access control model by taking

into account the peculiarities of geographic data. Specifically, we consider spatial

extents and LoD of XML-based geographic data to regulate access.

Chun, et al. [2] have proposed a novel model for protecting a geo-spatial image

database by developing an indexing structure for geo-spatial data. However, they did

not consider XML formats and map data.

252

3 Motivation and Demonstrative Scenario

Within a framework of a disaster management system for local and national

governments, various kinds of users, (organized as teams, such as administrative,

rescue, medical, research and inhabitants etc.,) interact with the system dynamically

depending on their needs and responsibilities

. The teams are allowed to access only

relevant information to execute their job functions, e.g. a medical team has access to

the detailed information of invalids and/or people who need special care during a

disaster, such as concrete address, current position of invalids, physical condition, etc.

On the other hand, a rescue team has access to detailed information of all houses and

buildings within the danger area, such as the number of people, the house condition,

pictures and detailed information of surrounding buildings, and personal data of

members of households etc.

The members of a team need to be classified into levels depending on their

administrative units: from local to national (such as area, district, town, city,

prefecture and nation). Furthermore, members in the same team at the same

administrative unit level are divided into distinct administrative regions, depending on

their locations.

Before introducing requirements for access control in such a working environment,

we describe some geographic data concepts briefly. In Figure 1 we can see a map

fragment depicting layers of geographic information with an instance of descriptive

data of a geographic feature (e.g. a building) in a Web GIS environment.

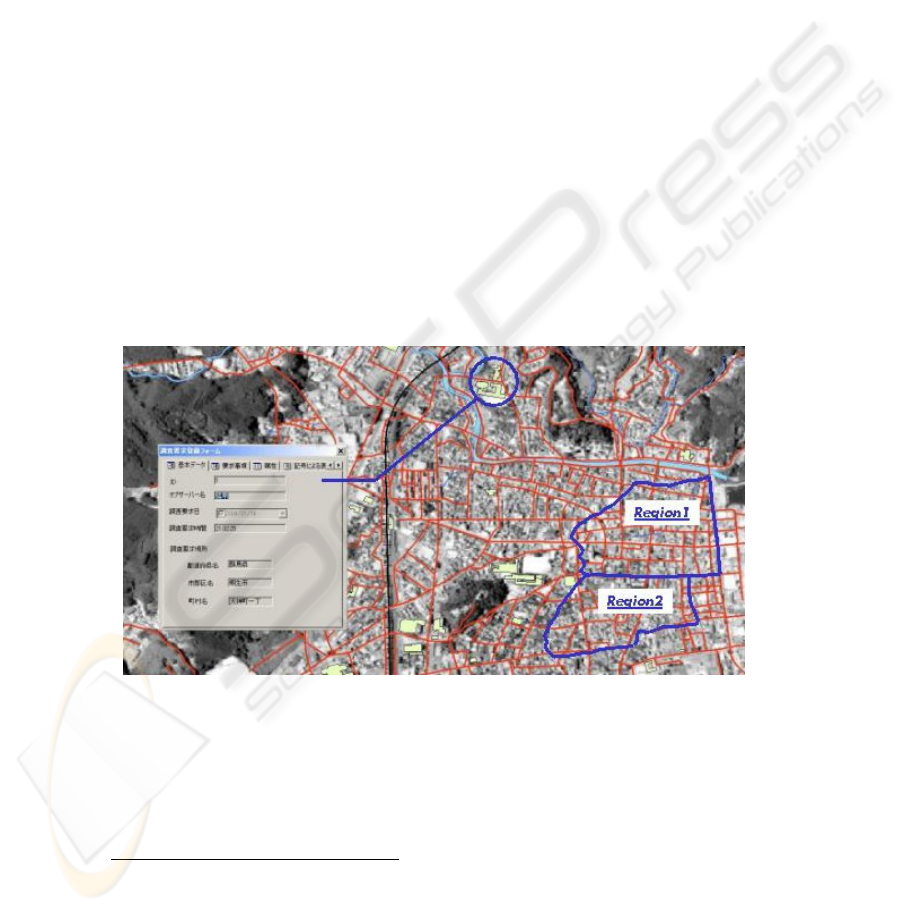

Fig. 1. Fragment of a map in a Web GIS environment.

The descriptive data handles alphanumeric properties of features, and is called the

non-spatial component of geographic data. In our case, it can be detailed information

of the building. They are stored in a database behind the Website. Besides having

descriptions, features have spatial extents, geometry and topology, and are called the

The intention here is to introduce conceivable security requirements in our model but not to

illustrate a robust emergency system.

253

spatial component of geographic data. At the conceptual level, an instance of

geographic data is called a geographic object

[11].

When a user clicks on a feature, the database query will be issued and related

descriptive data is rendered as shown in Figure 1. In a conventional geographic

context, users are allowed to access both spatial and non-spatial components of

geographic data without any types of security limitations. However, according to

security policies in the beginning of this section, only users who belong

administratively to Area1 (on the right side of Figure 1) might be allowed to access

geographic objects within this region only, but not in Area2 or in any of the remaining

regions. Area1 and Area2 become a bigger administrative region, and the principle

should function at this level and for all higher levels up to the national level.

To summarize, the following requirements are derived:

• Flexible organization of various kinds of users by employing any possible

combinations of role-based, ID-based and profile-based paradigms;

• Controlling access to geographic objects based on spatial extents;

• Permissions to access geographic data with several LoD;

4 Basic Concepts

4.1 XML basics

To derive a data model of an XML document, graphs and trees are widely

employed. XML expresses information using four basic components: elements,

attributes, data values, and hierarchy/graph. XML elements are tagged and they

contain data values or other elements recursively. Elements may have one or more

attributes and the attributes define properties of the elements. In this paper we use a

directed graph to structure components of XML because of its expressive power.

Vertices of the graph represent elements and attributes, and edges represent

relationships between them. We define an XML document as follows:

Definition 1 (XML document). An XML document is a tuple d=(V

, V

, E, Tg, Vl,

’

), where:

- V

is a set of vertices representing elements,

- V

is a set of vertices representing attributes,

- E is a set of edges,

- Tg is a set of element and attribute names,

- Vl is a set of element and attribute values,

- r is the root of an XML document,

is a function that associates edges and vertices.

Here we use an ordered model of an XML document. Each vertex representing an

element contains the graph-wide unique identifier.

We use terms geographic data and geographic object interchangeably later on.

254

4.2 Overview of SVG

Scalable Vector Graphics (SVG) [15] is an XML-based markup language used to

describe and integrate two-dimensional vector graphics, raster images and text. Basic

geometric/graphics elements are: rectangle, circle, ellipse, line, polyline, polygon, and

finally the path object. Graphics in SVG format can be semantically reached and are

highly structured. Objects in this structure can be grouped, styled and composed into

higher-level objects. SVG offers a number of important advantages over raster

formats, especially when it comes to displaying map graphics. The advantages

include:

• SVG works well across platforms, output resolutions, and a range of bandwidths

• SVG fully supports the DOM (Document Object Model) and is fully scriptable

• SVG offers greater structural control than other raster and vector graphic formats

5 Geographic Data Model based on XML

The geometric attributes of geographic data are used to effectively store and retrieve

such data. In order words, the attributes define only the physical properties of those

data. Hence, we need to specify a data model which is capable of expressing

geographic objects on a high level before proceeding to the definitions of the access

control model.

In GIS, information is organized into layers and a layer consists of homogeneous

geographic objects/features (i.e., objects having the same structure). To model

geographic data in XML, we employ XML and XML-based graphic format SVG.

Generally, SVG has five kinds of elements, including graphics/geometric elements,

non-rendered text elements, rendered elements by references, reference elements, and

container elements. The geometric elements (listed in section 4.2) are the main

building blocks of features of geographic data. Thus, we assume classifications of

SVG elements as only two, geometric and non-geometric, for formal definitions. IDs

of layers, features and SVG elements are unique and can be the graph-wide identifiers

or can be defined by the ID attributes of elements. Let LR be a set of layers and FT a

set of features.

Definition 2 (SVG map). A SVG map is a tuple sm=(

V ,

V , E

, Tg

, Vl

Esm

, G

), where:

geo

∪

nongeo

is a set of vertices, where

geo

are vertices

representing geometric elements and

nongeo

V are vertices representing non-

geometric elements, respectively.

is a set of vertices representing attributes of all kinds of elements,

- E

is a set of edges representing relationships among elements;

- Tg

is a set of element and attribute names,

- Vl

is a set of element and attribute values.

255

- r

is a SVG root element,

Esm

is a function that associates edges and vertices,

A feature can be denoted by listing identifiers of geometric elements in SVG.

Definition 3 (A feature in a SVG map). A feature in a SVG map, denoted by ft, is

a set of identifiers of geometric element in sm, that is, ft={id

, id

,... , id

}, with id

∈

{id

| v ∈

geo

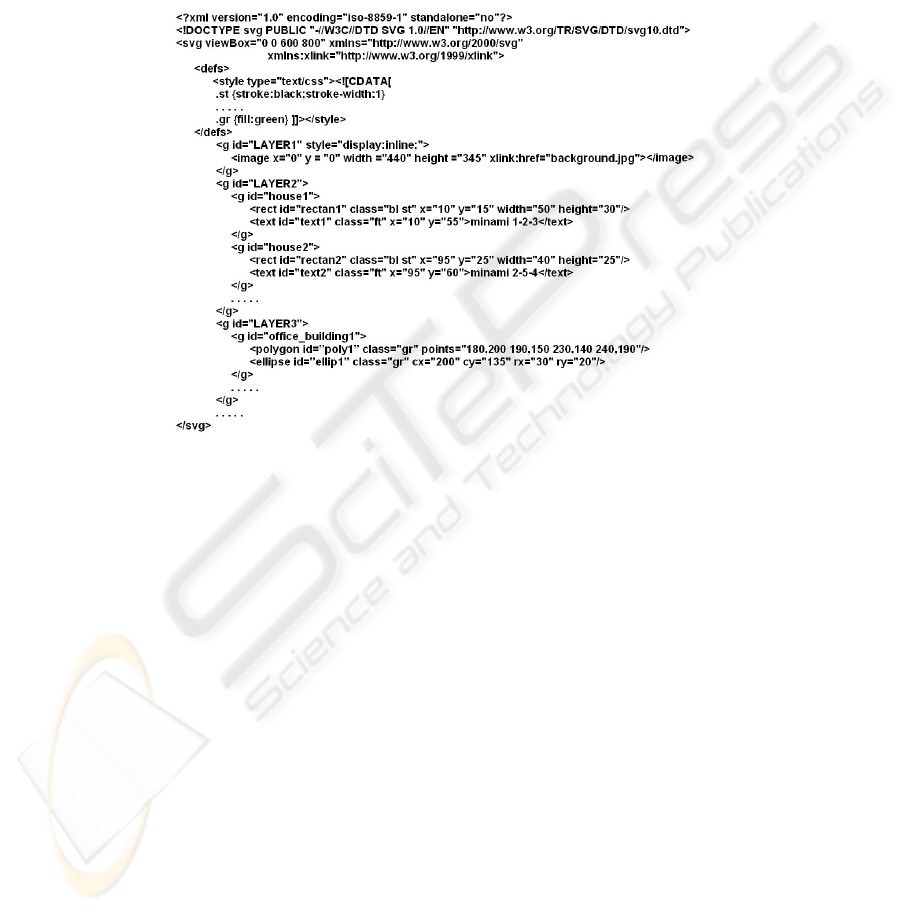

Fig. 2. An example of SVG, presenting a layered map including features.

Consequently, a layer can be denoted by listing identifiers of features or directly

by its own unique ID. A very simple SVG map example is shown in Figure 2.

For definitions of the components of descriptive data of geographic objects, XML

formulations are employed. We denote the set of descriptive data as XML description

database.

Definition 4 (XML description database). An XML description database denoted

by db is a XML document formulated by Definition 1.

The definitions of records and tables can be done by listing XML element

identifiers of the XML description database. Thus, we denote a set of records as RD

and a set of tables as TB, respectively.

Definition 5 (Feature-description mapping). Feature-description mapping

(depicted in Figure 3) is a one-to-one relation from feature set FT to record set RD. In

order words, there is a function fdm: FT → RD where each ordered pair (a, b), a ∈ FT

and b ∈ RD, is unique and is connected by an ID/key.

256

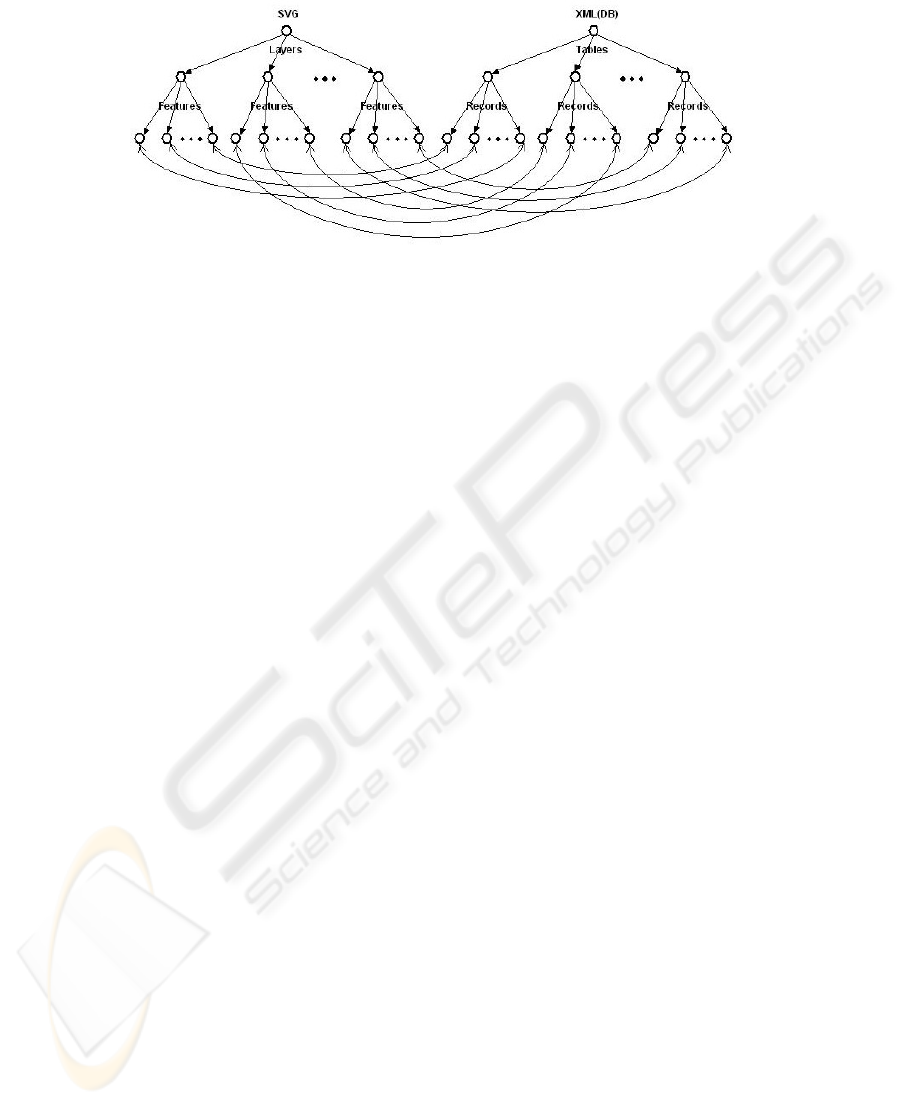

Fig. 3. Feature-description mapping

6 XML-based Geographic Access Control Model

6.1 Authorization object

We define authorization objects directly in terms of XML element identifiers and/or

by XPath and XQuery expressions [1, 3] in our model. However, in order not to lose

semantics and structural organizations of geographic data, we should define

authorization objects by identifiers of features and layers or spatial extents of them. In

addition, defining authorizations on each feature is impractical since geographic data

hold huge amounts of geographic information that leads the authorizations base to

become too large and unorganized. Instead, we define authorization objects at a layer

level in authorizations and use spatial extents to filter protection objects within a

region in a layer.

6.2 Authorization subject

We employ the integrated approach of user ID, profile and role-based paradigms in

our system. Thus, an authorization subject represented as a tuple, (uid, profile, role-

set), where uid is the unique ID of a user, profile is a set of user properties, and role-

set is a set of role names. Profile in turn is a tuple (name, address, work), where name

is a user name, address is an affiliation address and work is an affiliation function,

respectively. The users can be modeled and organized by role hierarchies like any

other role-based models. In our current proposal we utilize a role-graph structure such

as [9] and will develop more flexible structures in further works.

Definition 6. (Authorization subject) An authorization subject specification is the

form, structured as XML document:

<ELEMENT subject (uid, profile, role

<ELEMENT> uid (#PCDATA)

<ELEMENT> role (#PCDATA)

257

<ELEMENT> name (#PCDATA)

<ELEMENT> address (#PCDATA)

<ELEMENT> work (#PCDATA)

6.3 Authorization

An authorization in the model is specified as follows:

Definition 7 (Authorization). An authorization a is a tuple (auth-subj, auth-obj,

oper_reg, LoD, md), where: auth-subj is the authorization subject specification as

defined in Definition 6, auth-obj is the authorization object specification defined as

layers, md is a set of action modes like view, insert, update, delete, all, etc., oper_reg

and LoD are the values which define a set of operative regions and LoD the subject

allowed to access. Currently, the LoD is defined only on the descriptive database part

of objects and the values of LoD range from 3 to 1, i.e. from fine-detailed to coarse-

detailed.

Example 1: A

= ((su123, null, adm), {layer

, layer

k+1

, layer

k+4

}, regionL2-1, 1,

{all}): This authorization allows the subject, who is included in role administrative

and uid = su123 to execute all action modes (view, insert, update and delete) on

objects inside regionL2-1 on layer

, layer

k+1

and layer

k+4

with detail level 1.

Example 2: A

= ((su456, null, medical), {layer

k+1

, layer

k+2

}, regionL1-1, 2, {view}):

This authorization allows the subject, who is included in role medical and uid = su456

to execute view mode on objects inside regionL1-1 on layer

k+1

and layer

k+2

with

detail level 2.

In the following section we introduce a spatial access control enforcement

algorithm.

7 Spatial Access Control Enforcement

Although access control enforcement is quite similar in many systems [12], in order

to manage access control spatially a spatial indexing structure on authorization objects

is needed [2]. Chun, et al. [2] have chosen a variant of quadtree, which belongs to the

space-driven approach and the main memory access method. To manage access

control spatially and effectively for geographic data, however, we need a secondary

memory structure and the data-driven approach with LoD support [10]. Since,

typically, geographic databases occupy several gigabytes of storage and the

distribution of geographic objects on a plane is rambling. Due to space limitation, we

will present such an indexing structure in another paper.

Here, we describe spatial access control enforcement in an easier way by

employing R-tree based indexes, such as R*-tree. Data values of x, y coordinates of

SVG geometric elements express positions of features in a SVG map. Consider

features in the SVG map as indexed by R-tree on those values and the leaf nodes of

the tree contain IDs of features of the SVG map.

258

To describe our algorithm we have used literals, because our intention is to give a

clear explanation rather to be efficient or provide well-formalized listing. The

enforcement algorithm comprises the following main stages:

Step 1. Authorizations evaluation: Determine the set of suitable authorizations

for the user’s request.

Step 2. Spatially authorized objects calculation. Retrieve IDs of features by

traversing R-tree indices of authorized layers by window queries on the

operative region set values of the requestor.

Step 3. Elimination of unnecessary IDs. By employing a complex elimination

algorithm or using an address-matching function, check and eliminate IDs of

features, which do not reside in authorized administrative regions of the

requestor.

Step 4. Retrieval of corresponding records. By the extracted IDs, parse and

retrieve corresponding records with appropriate LoD from the XML

description database. Retrieval of records with appropriate LoD can be done

by XQuery expressions.

Step 5. Document rendering. Form a final view of the SVG map only with

spatially authorized features and render for the requestor.

During navigation with the map, the requestor can access/see only authorized

features. The descriptive data of the features will be depicted on the allowed LoD as

well. In Figure 4 we can see an instance of a user (who is allowed to access features in

regionL2-1 with LoD 1) view, which rendered after considering corresponding

authorizations.

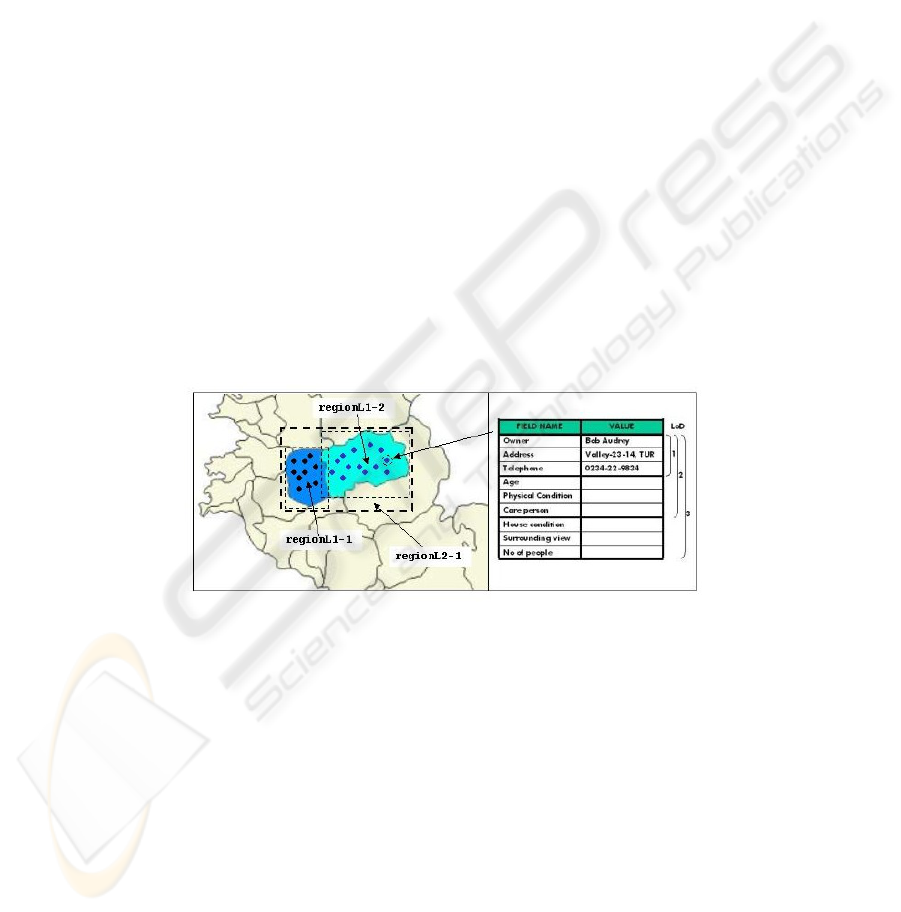

Fig. 4. An instance of a user view.

8 Conclusions and Future Work

In this paper we have presented an XML-based access control model for regulating

access to geographic data considering spatial extents and LoD. We have shown its

utility in the domain of Internet Mapping into the application of a disaster

management framework for national and local governments.

Since the work is derived from our preliminary results, a number of improvements

and investigations need to be done. The performance issues will be evaluated and

259

efficiency improvements will be conducted. Temporal constraints of access control

will also be integrated into the model.

References

1. E. Bertino and E. Ferrari, “Secure and selective dissemination of XML documents”, ACM

Transactions on Information and System Security (TISSEC), Vol. 5, No. 3, pp. 290-331,

August 2002.

2. S. A. Chun and V. Atluri, “Protecting Privacy from Continuous High-resolution Sattellite

Surveillance”, Data and Application Security: Developments and Directions, (eds.) Bhavani

Thuraisingham, R. Van de Riet, K. R. Dittrich and Z. Tari, Kluwer Academic Publishers,

2001.

3. E. Damiani, S. De Capitani di Vimercati, S. Paraboschi, and P. Samarati, “A Fine-Grained

Access Control System for XML Documents” ACM Transactions on Information and

System Security (TISSEC), Vol. 5, No. 2, pp. 169-202, May 2002.

4. E. Damiani, S. De Capitani di Vimercati, E. Fernandez-Medina, and P. Samarati, “An

Access Control Sytem for SVG Documents”, 16-th IFIP Conference on Data and

Application Security, University of Cambridge, UK, July 2002.

5. S. De Capitani di Vimercati, “An Authorization Model for Temporal XML Documents”,

Proc. of the 17th ACM Symposium on Applied Computing, Madrid, Spain, March 2002.

6. R. George, " GIS meets XML: SVG - Scalable Vector Graphics", http://www.web-

maps.com/svg-gis.html, 2001.

7. S. Kakumoto, Y.Kosugi, M.Hatayama and H.Kameda, “Development of Spatial Temporal

Geographic Information System”, Technical Report of the Geographical Survey Institute / 1-

No.275-2, March 2002.

8. N. Kodali and D.Wijeseker, “Regulating Access to SMIL formatted Pay-per-view Movies”,

ACM Workshop on XML Security, George Mason University, Fairfax VA, USA November

2002.

9. S. Osborn and Y. Guo, “Modeling Users in Role-Based Access Control” Fifth ACM

Workshop on Role-Based Access Control, Berlin, July 2000.

10. P. van Oosterom. “The Reactive-tree: A Storage Structure for a Seamless, Scaleless

Geographic Database”, In proceedings Auto-Carto 10, Baltimore, March 1991.

11. Ph. Rigaux, M. Scholl, and A. Voisard, “Spatial Databases - with applications to

GIS”, Morgan Kaufmann, 2002.

12. P. Samarati and S. De Capitani di Vimercati, "Access Control: Policies, Models, and

Mechanisms" in Foundations of Security Analysis and Design, R. Focardi and R. Gorrieri

(eds), LNCS 2171, Springer-Verlag 2001.

13. DBx Geomatics, SVG mapping, http://www.dbxgeomatics.com/svg.asp

14. FGDC “Homeland Security & GIS” http://www.fgdc.gov/publications/homeland.htm

15. W3C, Scalable Vector Graphics, http://www.w3.org/Graphics/SVG/

260
