A comparison of UML and OWL in the travel domain

Jennifer Sampson

Department of Computer and Information Science,

Norwegian University of Science and Technology,

Trondheim, Norway

Abstract. Recent research has focused towards determining the efficacy of

using UML as an ontology modelling language [6, 7, 8, 12]. In this paper we

compare the use of UML with the Web Ontology Language – OWL for

modelling the travel domain. One conclusion resulting from this study is that

OWL and UML were devised with different motivations, and for supporting

different types of application domains. Owl benefits from a solid theoretical

basis in description logic, which means it has a well defined semantics, formal

properties are well understood, and there are known reasoning algorithms and

implementations of the language. In addition to the model comparison we

propose an ontology quality framework. The quality framework is one step

towards defining quality measures for ontology modelling.

1 Introduction

Ontology can be described as ‘what there is’, and relies on the use of specific terms to

construct a description of reality. In the context of the Semantic Web we think about

ontology as referring to the consensual and formal description of shared concepts in a

domain. Ontologies are said to be a way to aid communication between humans and

machines and also between machines for agent communication. A number of

recommendations have been proposed for languages that support the creation of

ontologies for such communication and understanding, however, now the research

question is to determine whether people and organizations will actually use these

languages to help achieve the ‘Semantic Web’ vision. In addition, the problem is not

so much associated with creating ontologies but with providing support for reasoning

and mapping between ontologies. The challenge is to create a language which is

formal enough to support machine to machine processing and also one which is

simple to use and understand.

2 UML

The Unified Modelling Language (UML) is a standard language for writing software

blueprints [5] whose constructs originate from object oriented programming. The

OMG [15] state that UML is a language for documenting: software systems,

modelling business systems and other non-software systems. The language is for

Sampson J. (2004).

A comparison of UML and OWL in the travel domain.

In Proceedings of the 2nd International Workshop on Web Services: Modeling, Architecture and Infrastructure, pages 36-48

DOI: 10.5220/0002678300360048

 SciTePress

specifying and constructing object-oriented systems, and also for visualising and

documenting such systems. The three building blocks of the language are: things,

relationships and diagrams. Booch, Rumbaugh and Jacobson [5] describe the three

building blocks, firstly, ‘things’ are the abstractions that are first-class citizens in a

model; relationships link the ‘things’ together and the diagrams group ‘interesting’

collections of things. In UML ‘things’ may be either: structural, behavioural,

grouping or annotational. The UML defines several graphical diagrams such as: the

use case diagram, the class diagram, behaviour diagrams and implementation

diagrams. However, in this particular exercise we are mainly concerned with the use

of the UML class diagram for modelling a travel agency domain.

Baclawski, et al. [3] have undertaken research to use UML class diagrams to

develop and display complex DAML+OIL ontologies. They also researched the

differences between UML and DAML+OIL and provide initial suggestions on how to

overcome the differences. While there are similarities between UML and knowledge

representation languages, the fundamental problem with extending UML for ontology

development, is due to the important distinction between knowledge representation

approaches and object-oriented approaches: that of monotocity [3]. They comment,

“Both RDF and DAML+OIL are monotonic: asserting a new fact can never cause a

previously known fact to become false. By contrast, UML and other OO systems are

typically not monotonic. There are many forms of nonmonotonic logic, but the one

that is closest to UML and OO systems is a logic that assumes a closed world” [3].

While Baclawski, et al. [3] attempted to provide rules for translating UML concepts to

DAML+OIL concepts they came to the conclusion that some of the concepts are

significantly incompatible. For example, the ‘property’ concept of DAML+OIL

although similar to the UML ‘association’ concept, they claim it cannot be mapped

easily. Indeed, they suggest, “this is the main obstacle to using UML (and UML

tools) for DAML-based ontology development” [3]. However they do propose

extensions to the UML metamodel, with the motivation of making UML more

acceptable to the knowledge representation community as the “preferred graphical

notation for KR languages” [3].

3 What is OWL?

Owl is one such Web ontology language developed by the Web-Ontology Working

Group whose main goal was to provide a semantic markup language for

disseminating and sharing ontologies on the World Wide Web. There are a wide

variety of languages for explicit specification, Owl is a description logic based

ontology language. The Web Ontology Group [20] explicitly say that OWL “is

designed for use by applications that need to process the content of information

instead of just presenting information to humans”. They go further and claim that

“OWL facilitates greater machine interpretability of Web content than that supported

by XML, RDF, and RDF Schema (RDF-S) by providing additional vocabulary along

with a formal semantics” [20].

OWL comes in three different versions to allow for the different communities of

implementers and users. In effect, this means the Web Ontology group have provided

three increasingly expressive sublanguages; OWL Lite, OWL DL and OWL Full. As

the name implies, OWL Lite, is a ‘trimmed’ down version of OWL DL and OWL

Full, mostly to support those users who require a language to construct classification

hierarchies and to define simple constraints. Whereas OWL DL (where DL stands for

Description Logic) is to support users who “want the maximum expressiveness while

retaining computational completeness (all conclusions are guaranteed to be computed)

and decidability (all computations will finish in finite time)” [20]. OWL DL is a

‘fuller style’ of using OWL as it contains all OWL language constructs, but the use of

these constructs is restricted through Descriptive Logic. The WebOnto group

designed OWL DL to “support the existing Description Logic business segment and

to provide a language subset that has desirable computational properties for reasoning

systems” [23].

When the limitation of the language constructs is relaxed a full version of the

language – OWL Full is presented. According to the Web Ontology group OWL Full

is to make available features which may be of use to many database and knowledge

representation systems, but which violate the constraints of Description Logic

reasoners. In the description of OWL the working group have described a high-level,

abstract syntax for both OWL Lite and OWL DL. In addition they use two formal

semantics for OWL. First a model-theoretic semantics to provide formal ‘meaning’

for OWL ontologies. Model theoretic semantics is to define the semantics of the

concepts in terms of a set theoretic interpretation of the concepts in logic. Second they

extend RDF semantics to provide formal semantics for OWL ontologies depicted as

RDF graphs (this is for OWL Full).

3.1 Historical background - RDF and DAML+OIL

OWL is one of the recommendations from the W3C towards making the notion of the

‘Semantic Web’ feasible. OWL builds on earlier languages for enabling the Semantic

Web, the progression went from XML, XML Schema, RDF, RDF Schema to OWL.

The Web Ontology Working Group [20] comment that,

“The first level above RDF required for the Semantic Web is an ontology language

what can formally describe the meaning of terminology used in Web documents. If

machines are expected to perform useful reasoning tasks on these documents, the

language must go beyond the basic semantics of RDF Schema”.

OWL has been developed as a vocabulary extension of RDF (the Resource

Description Framework). The purpose of RDF is to produce a language for the

exchange of machine-understandable information using the Web [21]. RDF is mostly

for capturing metadata about Web resources. RDF is a graphical formalism using

XML syntax and semantics, for representing metadata and describing the semantics of

information in a machine-processable way. RDFS was proposed to extend RDF with

schema vocabulary (e.g. class, property, type, subclassOf etc) to add meaning to the

modelling primitives. However, one problem with RDFS is that it lacks a clear,

formal semantics. In addition it relies on DAML+OIL to ‘give’ it the semantics,

which makes RDFS not such a satisfactory schema layer Semantic Web language

[16]. Moreover, the progression from RDF to Owl came by the way of two other

languages, OIL and DAML. DAML and OIL were merged to extend the description

logic subset of RDF. The W3C Web Ontology Working Group have developed OWL

as a revision of the DAML+OIL web ontology language. They claim that OWL is

essentially stable as a web ontology language. Nonetheless they recognize that the

modelling primitives of OWL are still informally stated.

4 Travel domain description

The domain we have modelled is for supporting and providing information for

customers regarding travel and accommodation options between cities [1]. This

domain was chosen for pedagogical reasons, in future research we will be comparing

different ontology languages in the medical domain. At this stage of the research the

purpose was to establish a method for comparing ontology languages.

The following sentences were derived from the natural language description of the

scenario.

A Client may request many Travel Itineraries. An

Itinerary is for one Client.

An Itinerary comprises one or more Travel Legs. One

Travel Leg is for one client Itinerary.

An Itinerary may comprise Accommodation Detail. One

Accommodation Detail is for one client Itinerary.

A Travel Leg uses one Transport Means. One Transport

Means is required for many Travel Legs.

A Travel Leg follows one Travel Route. One Travel Route

is required for a Travel Leg.

Underground (Bus, Aircraft, Vehicle, Train, Ferry,

Ship) is a Transport Means.

A City may have many Tourist Attractions. A Tourist

Attraction is located in one City.

A City may have many Airports. An Airport is located in

one City.

A City is located in one Country. A Country has many

Cities.

A Country is located in one Continent. A Continent

contains many Countries.

A Travel Route involves one arrival City. An arrival

City is part of many Travel Routes.

A Travel Route involves one departure City. A departure

City is part of many Travel Routes.

A Travel Route is provided through a Transport Company

Schedule. A Transport Company Schedule provides many

Travel Routes.

A Transport Company supplies one or more Transport

Company Schedules. A Transport Company Schedule is

provided by one Transport Company.

A City provides many Accommodation types. An

Accommodation type is located in many cities.

A B&B is a type of Accommodation

A Hotel is a type of Accommodation

A Hotel is either a Chain or Privately Owned

A Hotel has many rooms (at least one). A room belongs

to one Hotel.

A Room is classified as having one facility type group.

A Facility Type is provided by many Rooms.

4.1 UML model in the travel domain

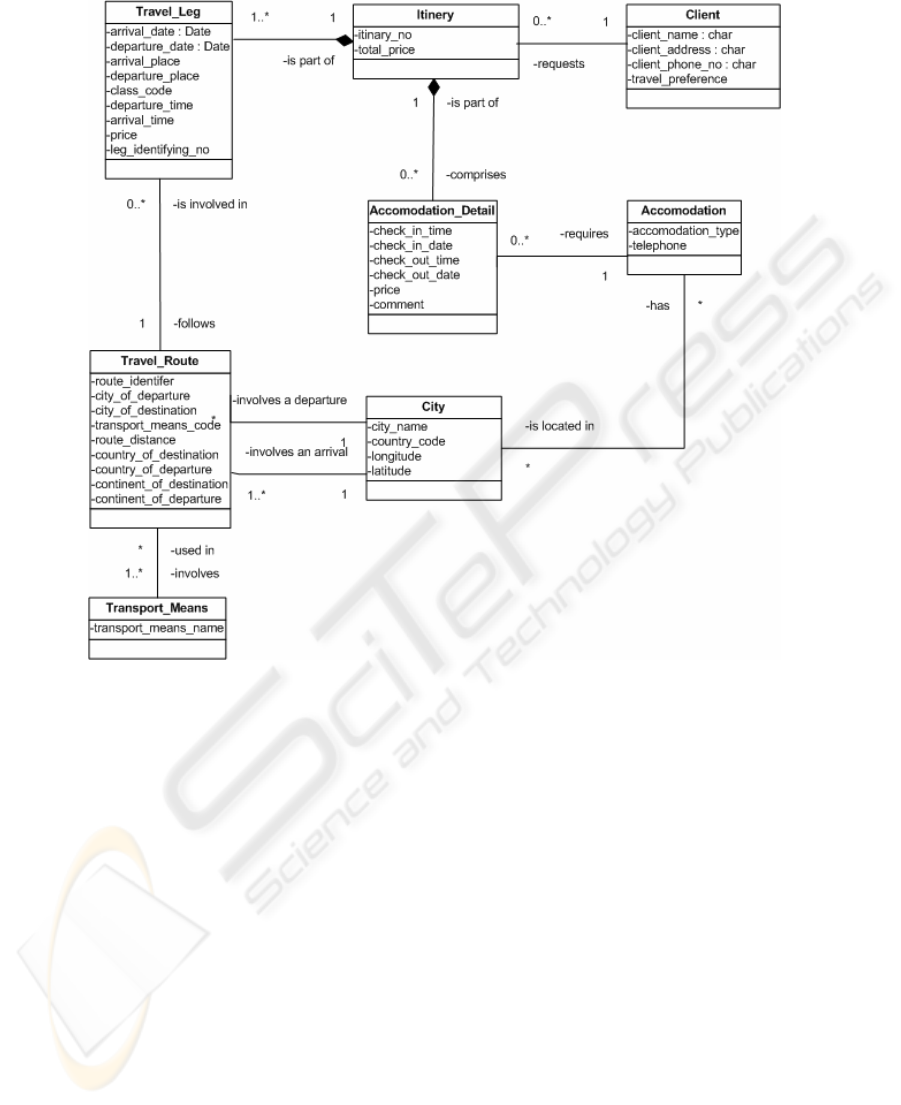

The UML class diagram for the scenario travel domain is shown in Figure 1. We

recognise the model represents our interpretation of the scenario and is not necessarily

the only correct representation of the travel domain. In addition the model has been

constructed using the natural language description of [1] for pedagogical purposes.

The domain serves as a basis for comparing two languages for ontology modelling,

one using UML and the second using OWL. Due to the size and complexity of the

travel domain, property details for some classes are not illustrated at Figure 1. We

made several assumptions when completing the modelling task. First, a travel leg

involves only one type of transport, for example a plane, train or car. Second, a travel

leg is one ‘leg’ of an entire journey. Third an itinerary is made up of at least one travel

leg. The travel domain was created using a UML class diagram to describe five

clusters of information within the domain. These are: information about the client and

the travel plans for that client, modes of transportation, travel schedules and travel

routes, cities and attractions, and accommodation options.

Fig. 1. One portion of the UML Class diagram

4.2 OWL Model

We used the Protégé OWL plugin [18] as a tool for developing the OWL travel

model. Protégé is an integrated software tool used to develop knowledge based

systems.

Example Object property and Inverse properties in OWL/RDF source code

<owl:ObjectProperty rdf:ID="has_Itinerary">

<rdfs:range rdf:resource="file:/C:/ Protege_2.0_beta /Owltravel.owl#Itinerary"/>

<owl:inverseOf>

<owl:ObjectProperty

rdf:about="file:/C:/ Protege_2.0_beta Owltravel.owl#has_client"/>

</owl:inverseOf>

<rdfs:domain rdf:resource="file:/C:/Protege_2.0_beta /Owltravel.owl#Client"/>

</owl:ObjectProperty>

The class taxonomy is shown at Figure 2.

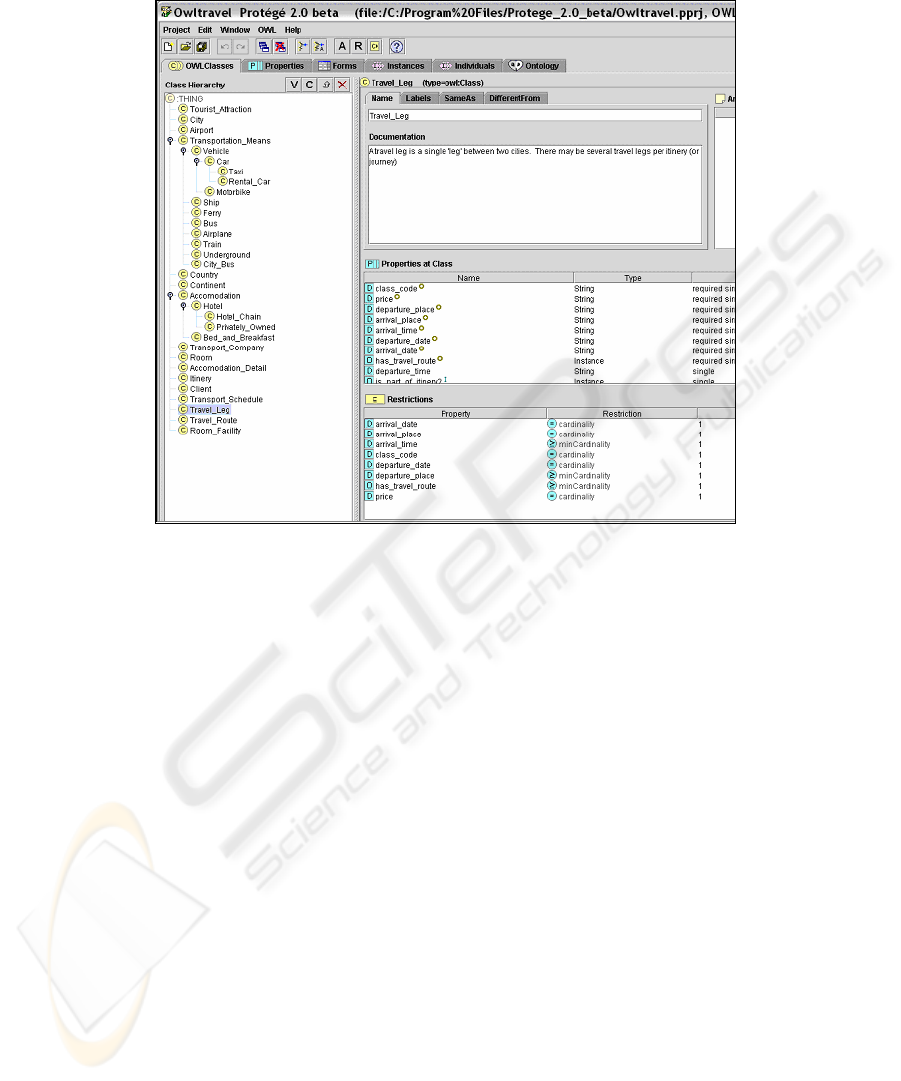

Fig. 2. OWL taxonomy in Protégé

5 Model comparison

This section describes the quantitative analysis which was performed when

comparing the OWL and UML models. The quantitative analysis is not an exhaustive

measure of the difference between UML and OWL concepts, instead the metrics

provide a simple comparison between model elements in the generated UML and

OWL models. Nonetheless we believe the quantitative method used may be a useful

pedagogical tool for model comparison.

5.1 Concepts occurring in both models.

There are sixteen classes Client, Itinerary, Travel_Leg, Accomodation_Detail, City,

Country, Continent, Airport, Travel_Route, Transport_Company_Schedule,

Transport_Company, Transport_Means, Accommodation, Room, Room_Facility,

Tourist_Attraction in the UML and OWL models. There are fifteen subclasses:

Underground, Bus, Train, Vehicle, Airplane, Ferry, Ship, Taxi, Rental_Car, Car,

Hotel_Chain, Hotel, Privately_Owned, B&B in both models. In addition, a total of

eighty-eight basic properties exist within these classes. There are fifteen

generalisations in the UML model and fifteen subclasses in the OWL model.

5.2 Concepts occurring in the control model not specified in the observed model.

The UML class model is obviously different from a pragmatic perspective as it is

graphical representation of the natural language description, whereas the OWL model

as presented in Protégé uses a tree structure. The OWL/RDF source code can also be

generated within the Protégé environment. The constructs observed in the UML

model which do not appear in the same form in the OWL model are the relationships

(associations) between classes. The domain, range and cardinality are declared using

the Association construct in UML. In addition we have added three constraints using

OCL and pseudocode to the Class definitions in the UML model.

5.3 Concepts occurring in the observed model not specified in the control model.

The OWL ontology model contains slots (properties) within each class which

represent the relationships between classes, for example: has_city_of_destination and

has_city of arrival in the Travel_Route Class. There are twenty-six properties of this

type in the OWL model, eight of these object properties are inverse properties. The

domain, range and cardinality are declared using object properties in OWL. In

addition, instances have been added to the OWL ontology model (Twenty-seven

instances). This is not to say that the UML language does not support instances, but it

is not appropriate to show instances of a travel execution in a class diagram.

5.4 Observation Instrument: Model Element Comparison

We created four initially 0-valued matrices, where observation and control model

elements formed the rows and columns. The first matrix specifies all model elements

in the UML model. The second matrix specifies all model elements in the OWL

model. The third matrix was to measure the correctly represented observed data. To

do this we calculated where for each element in the UML model there was a

corresponding element in the OWL model, where the element in OWL model

described the same referent (phenomena), that is, denoted with same domain term

(symbol). In other words, we checked the occurrences of the UML model terms that

are used in the OWL model to denote referents (“things/phenomena”) as considered

relevant to the domain, regardless of any language symbols that are used to specify it.

This matrix concerns the correspondence between the elements both in the control

and in the observed model. The results of the analysis are presented at Table 1.

Table 1. Precision, Recall and Fallacy Measures for Correctly Represented Model Elements

PrecisionRep = Correctly Represented / Represented

RecallRep = Correctly Represented / Existing Correct

0.919355

FallacyRep=(Represented-Correctly Represented)/Existing Correct

The intuition is that precisionRep measures the correctness of representation for

the OWL language model (1), recallRep measures the OWL language model’s

capability to represent (0.92), and fallacyRep measures the failure of the OWL

language model representation in the context of the travel domain description (0).

These results are as we expected because the same classes and properties are defined

in both models. However, these results do not show whether the model elements are

specified in the same way in each model. A fourth matrix was created to measure

correctly specified observed data. We calculated where for each element in the OWL

model there was a corresponding element in UML where the element in UML and the

OWL model describe the same referent (phenomena), and in the same way, that is,

uses equal language constructs. In other words, we checked the occurrences of the

OWL model terms that are used in the UML model to denote referents

(“things/phenomena”) as considered relevant to the domain, when expressed by same

or synonymous language symbols in the UML language. Likewise, this matrix is non-

trivial, since it concerns the correspondence between the elements both in the control

and in the observed model. The results of the analysis are presented at Table 2.

Table 2. Precision, Recall and Fallacy for Correctly Specified Model Elements

PrecisionRep = Correctly Specified / Represented

0.608187

RecallRep = Correctly Specified / Existing Correct

0.55914

FallacyRep = (Represented - Correctly Specified) / Existing Correct

0.360215

Using the measures for correctly specified observed data, we have measured the

stricter, yet also more realistic metrics for the OWL language model, such as

correctness of specification (0.6), capability to specify (0.56), and failure to specify

(0.36) in the context of the travel domain. These results reflect the difference in how

relationships (incl. domain, range and cardinality) are established in OWL compared

to UML. UML associations allow the specification of business rules between

Classes, for example: A City may have many Tourist Attractions. A Tourist

Attraction is located in one City. In OWL, to model a similar notion, we use

properties (usually prefixed with has_) for example has_location and

has_tourist_attraction. This is an example of where we are modelling the same

referent using different language constructs. Only where we set-up inverse

relationships in OWL are we modelling the similar two-way business rules

(associations) in UML. In the UML class diagram we use Associations between

classes to model relationships whereas in OWL we use functional properties, object

properties and inverseOf constructs. Associations in UML also provide the domain

and range for associations between objects. In OWL we use rdfs:domain and

rdfs:range to specify the domain and range of owl:ObjectProperty. We use

owl:DatatypeProperty for defining properties of owl:class.

The matrix results only provide a simple comparison between model elements in

UML and OWL, which were useful as a pedagogical aid. The next section describes

a more general framework for evaluating ontology models.

6 Quality Evaluation

Despite the considerable level of interest in the creation and use of ontologies, there

have been few attempts to define a systematic framework within which their quality

can be evaluated. Research has been undertaken to establish frameworks for

conceptual modelling [10,11,17] because conceptual modelling is similar to ontology

modelling we can extend these frameworks to be useful for determining ontology

model quality. Atkins [2] addressed the need for quality in the context of conceptual

data modelling. She developed a framework based on the work of [10,13]. The

framework was used in her research for assessing the final products of the INTECoM

development [2]. Her adapted quality framework is shown at Figure 3. The

INTECoM framework is useful for assessing the quality of ontology models because

it introduces the importance of measuring the procedural quality of the model as well

as the quality of the language used. Introducing procedural quality is also one step

towards defining rigor in ontology construction. As yet there are no formal steps for

creating ontology models. However there are several guidelines which are commonly

cited as a basis for ontology development [9, 14]. In the paper ‘Ontology 101’, Noy

and McGuinness provide a useful knowledge engineering methodology to ontology

construction which consists of the following steps: defining the classes, arranging the

classes in a taxonomic hierarchy, defining slots and allowed values, and filling in the

values for slots for instances. The first step towards measuring procedural quality

would be (at a minimum) ensuring the steps and guidelines of [14] are followed.

As [10] suggests, a model is a representation of statements taken from a domain

and expressed using some form of formal grammar or language. However, their

framework only illustrates a static position and does not recognise the dynamics of

model construction. Thus Atkins [2] includes a new concept of process. This reflects

that not only are the constructs of a language used to represent the information within

a domain but that some form of process (or method) is also required to build any

particular ontology model. While Lindland et al [11] define the links of semantics,

relating the model to the domain, and syntax, relating the model to the modelling

language, the new link of procedure relates the model to the process by which it is

constructed [2]. This gives rise to the procedural quality shown on the diagram at

Figure 2. The overall goal of procedural quality is that the process by which model

construction had occurred is explicit and has been followed appropriately.

Fig. 3. Quality framework for ontology modelling (adapted from [2])

quality

Ontology

Domain

Participant

Knowledge

Language

udience

Interpretation

semanti

qualit

syntacti

ragmati

qualit

erceive

semanti

qualit

socia

qualit

Process

rocedura

qualit

structura

qualit

The above quality framework is useful because it not only addresses the model quality

in terms of syntactic, semantic and pragmatic quality but also emphasises the need for

procedural quality. Procedural correctness requires that the process by which the

model is constructed is explicitly laid down and that the relevant activities have been

completed satisfactorily [2]. Figure 3 presents a quality framework adapted from [2]

for use in determining ontology model quality.

“Perceived Semantic Quality” can be measured through checking semantic

completeness and semantic correctness. The means to achieve semantic completeness

involves a subjective user confirmation that their view is complete. For example when

using Owl all business rules should be represented using properties and inverse

relations. In a subjective manner we can say that the OWL model is complete

according to the natural language description provided. However, we have not

captured all properties that would appear in the subclasses for transport means and

accommodation. The means to achieve semantic correctness requires that each class

has a complete set of correct and relevant examples. Each instance created in OWL

should be verified by subject matter experts. Perceived semantic correctness can not

be measured formally. However, we can create instances using Protégé which could

then be verified by a domain expert.

Pragmatic quality can be measured through the subjective measure of pragmatic

correctness, that is the model is a) understandable and b) understood. We suggest the

use RML (Referent Modelling Language) developed by [19] to provide a graphical

notation for OWL. The tree structure in OWL is understandable, however the RDF

source code as generated by Protégé is not so clear. There is a potential for the use of

RML to provide a graphical representation of the OWL ontology, because we can

convert an RML model into Description Logics with respect to OWL semantics and

syntax. We could then convert the description logic into statements which could be

verified by domain experts.

Procedural quality is measured through procedural correctness. Procedural

correctness can be facilitated through the research of [14] on ontology construction.

The primary steps are: class definition, formation of the taxonomic hierarchy, slot

definition and allowed values, and instance creation.

Syntactic correctness requires a syntactic check of all model constructs. OWL

follows an abstract syntax for OWL Lite and OWL DL [22] and exchange syntax for

transformation to RDF graphs. The Protégé ontology editor tool enforces the abstract

syntax of OWL Full. In our case the travel ontology has the classification of OWL

Full through the OWL syntax checker.

Semantic correctness may be achieved through consistency checking which

requires the language to be a formal logical language. OWL uses model-theoretic

semantics for OWL ontologies written in the abstract syntax. A model-theoretic

semantics in the form of an extension to the RDF semantics provides a formal

meaning for OWL ontologies as RDF graphs (OWL Full). However, because OWL is

based on RDF Schema, which is not a satisfactory schema-layer-Semantic Web

language [16], OWL must provide the semantics for RDFS. This is a problem

according to [16] because RDFS does not distinguish the modelling information in the

ontology level with that in the language.

Social Agreement may be facilitated through a subjective rating by the designer

that any conflict between users of the model is based in their individual perception of

the model rather than in its structure.

Structural quality goals - simplicity and flexibility are to establish that the ontology

model contains the minimum number of classes and properties necessary to represent

the required statements. Whether to model a specific distinction (such as train, bus, or

airplane transport) as a property value or as a set of classes depends on the scope of

the domain. “Subclasses of a class usually (1) have additional properties that the

superclass does not have, or (2) restrictions different from those of the superclass, or

(3) participate in different relationships than the superclasses” [14]. With respect to

the natural language description provided the OWL travel ontology model contains

the minimum number of classes and properties necessary to represent the required

statements, however the ‘real’ complexity of such a domain is not captured in the

model.

7 Conclusion

The OWL model was developed subsequent to the UML model; we need to consider

the possibility of different results if the OWL model had been developed first. The

way the analysis was performed also presumes there is only one ‘correct’ way to

represent the Travel Domain. There are many implications resulting from this

assumption, first just because the observed model uses different model elements to

represent the same referent does not mean that one language is more ‘correct’ than the

other. In this case the most meaningful measure for comparison is a syntactic one,

because it describes only missing or different constructs of the language and not

differences in meaning. However, like [16] we believe that OWL and UML have

different motivations and application domains. In a sense this means we are

comparing “apples with oranges”. The strength of OWL is that it has a strong

foundation in description logic, this means that the modelling primitives in OWL can

be mapped onto description logics and hence support the provision of reasoning.

Whereas, in UML, reasoning over the object constraint language (OCL) is still under

research. The results from the matrices did not include the ability (or not) to add

instances. Indeed, in this respect the comparison would be meaningless because UML

class diagrams are not typically for representing instances.

The quality framework presented in this paper, represents a starting point for

establishing measures for achieving quality in ontology modelling. Future research

may involve the comparison of more than one semantic-web enabling language for

modelling such a domain. In addition it would be useful to compare the results found

in this study with others using different domains.

Acknowledgements

This work is partially supported by the Norwegian Research Foundation in the

framework of Information and Communication Technology (IKT-2010) program –

the ADIS project.

References

1. AIFB Case.: NL description of the traveling domain at URL: http://km.aifb.uni-

karlsruhe.de/eon2002 (2002)

2. Atkins, C.: INTECoM: An integrated conceptual data modelling framework, Unpublished

Thesis, Department of Information Systems, Massey University, New Zealand (2000)

3. Baclawski, K., Kokar, M.K., Kogut, P.A., Hart, L., Smith, J., and Letkowski, J.: Extending

the Unified Modelling Language for ontology development, Software Systems Model,

Special Issue UML 2002, vol 1 (2002) 1–15

Berners-Lee, T. Hendler. J, and Lassila, O.: The Semantic Web, Scientific American. (2001)

5. Booch. G, Rumbaugh. G, and Jacobson, I.: The Unified Modeling Language User Guide.

Addison Wesley (1999)

6. Chang. W.W.: A Discussion of the Relationship Between RDF-Schema and UML. W3C

Note, URL http://www.w3.org/TR/NOTE-rdf-uml/

Aug (1998)

7. Cranefield, S. and Purvis, M.: UML as an ontology modelling language. In Proceedings of

the Workshop on Intelligent Information Integration, 16th International Joint Conference on

Artificial Intelligence (IJCAI-99). (1999)

Cranefield, S.: UML and the Semantic Web, Feb. 2001. ISSN 1172-6024. Discussion paper. (2001)

9. Gruber, T. R.: A Translation Approach to Portable Ontology Specifications, Knowledge

Acquisition, 5(2), (1993) 199-220.

10. Krogstie, J., Lindland O.I and Sindre, G.: Towards a deeper understanding of Quality in

Requirements Engineering, Proceedings of 7th CAiSE, Jyvaskyla, Finland (1995)

11. Lindland, O.I., Sindre, G and Sølvberg, A.: Understanding Quality in Conceptual

Modelling, IEEE Software, March (1994) 42-49.

12. Melnik, S.: Representing UML in RDF. URL http://www-db.stanford.edu/˜melnik/rdf/uml/

(2000)

13. Moody, D. and Shanks, G.: What Makes a Good Data Model? A Framework for Evaluating

and Improving the Quality of Entity Relationship Models, The Australian Computer Journal,

30(3) (1998) 97-110

14. Noy, N. and McGuinness, D.L.: “Ontology Development 101: A Guide to Creating Your

First Ontology''. Stanford Knowledge Systems Laboratory Technical Report KSL-01-05 and

Stanford Medical Informatics Technical Report SMI-2001-0880, March (2001)

15. OMG Inc.: OMG-Unified Modeling Language Specification, v1.5. An Adopted Formal

Specification of the Object Management Group, (2003)

16. Pan J. and Horrocks, I.: Metamodeling Architecture of Web Ontology Languages. In: Cruz

I. F. et al. (Eds.). The Emerging Semantic Web. IOS Press. (2002)

17. Pohl, K.: The three dimensions of requirements engineering: A Framework and its

applications, Information Systems, 19(3) (1994) 243-258.

18. Protégé.: The Protege Project.http://protege.stanford.edu (2000)

19. Sølvberg, A.: Data and what they refer to. In: P.P.Chen et al.(eds.): Conceptual Modeling,

Lecture Notes in Computer Science, Springer Verlag, (1999) 211-226

20.Web Ontology Working Group.: OWL Web Ontology Language Overview W3C

CandidateRecommendation 18 August 2003, http://www.w3.org/TR/2003/CR-owl-features-

20030818/ (2003a)

21. Web Ontology Working Group.: RDF Vocabulary Description Language 1.0: RDF Schema

(2003b)

22. Web Ontology Working Group Working Draft, http://www.w3.org/TR/2003/WD-rdf-

schema-20030123/ 23 January (2003)

23. Web Ontology Working Group.: OWL Web Ontology Language Reference W3C Candidate

Recommendation 18 August 2003, http://www.w3.org/TR/2003/CR-owl-ref-20030818/

(2003c)

24. Web Ontology Working Group.: OWL Web Ontology Semantics and Abstract Syntax.

W3C Candidate Recommendation 18 August 2003, http://www.w3.org/TR/2003/CR-owl-

semantics-20030818/ (2003d)
