Collaboration-based veriﬁcation of

Object-Oriented models in HOL

Kenro Yatake , Toshiaki Aoki , and Takuya Katayama

Japan Advanst Institute of Science and Technology,

1-1 Asahidai Tatsunokuchi Ishikawa 923-1292, Japan

PREST JST

Abstract. This paper presents a methodology to verify Object-Oriented models

based on object collaborations using the HOL theorem prover. The advantage of

the collaboration-based veriﬁcation is to be able to prove invariants that range

over the whole system. In our theory, collaborations are deﬁned to be sequences

of function application and invariants are proved by structural induction on the

system state. We explain the outline of the veriﬁcation.

1 Introduction

A lot of veriﬁcation methodologies of Object-Oriented (OO) models based on state-

charts have been proposed [4] [5]. In these methodologies, properties of individual

classes are veriﬁed by applying model checking to their state-charts with appropriate

abstraction. But this technique becomes unrealistic when it comes to prove properties

involving multiple classes as it needs to construct a global state space, which often

results in state explosion.

For the veriﬁcation of properties that are global in systems, we propose a veriﬁcation

methodology based on a viewpoint of object collaborations. In our approach, collabo-

rations are deﬁned as sequences of function application on a global state space which

is represented by an abstract type and invariants are proved by structural induction on

the system state. We implemented an OO theory for the veriﬁcation in HOL theorem

prover [2]. HOL is armed with plentiful mathematical libraries and powerful data-type

deﬁnition package and is suited to handle various types that appear in the target system.

In this paper, we explain the outline of the veriﬁcation.

2 Overview of veriﬁcation

The veriﬁcation schema using our theory is shown in Fig. 1. Veriﬁcation starts with

deﬁning a class model. Fig. 2 (above the middle bar) shows the class model of a simple

library system. It deﬁnes the static structure of the system like class diagrams of Uniﬁed

Modeling Language (UML [1]).

The class model is input to the theory generator and the HOL theory speciﬁc to

the model is constructed. The theory is deﬁned based on the object store. It represents

a memory that stores the data of objects which exist in a system and is deﬁned to be

Yatake K., Aoki T. and Katayama T. (2004).

Collaboration-based veriﬁcation of Object-Oriented models in HOL.

In Proceedings of the 2nd International Workshop on Veriﬁcation and Validation of Enterprise Information Systems, pages 78-80

DOI: 10.5220/0002678400780080

 SciTePress

Theory

generator

HOL theory

Collaborations, Invariants

Class model

HOL

Q.E.D

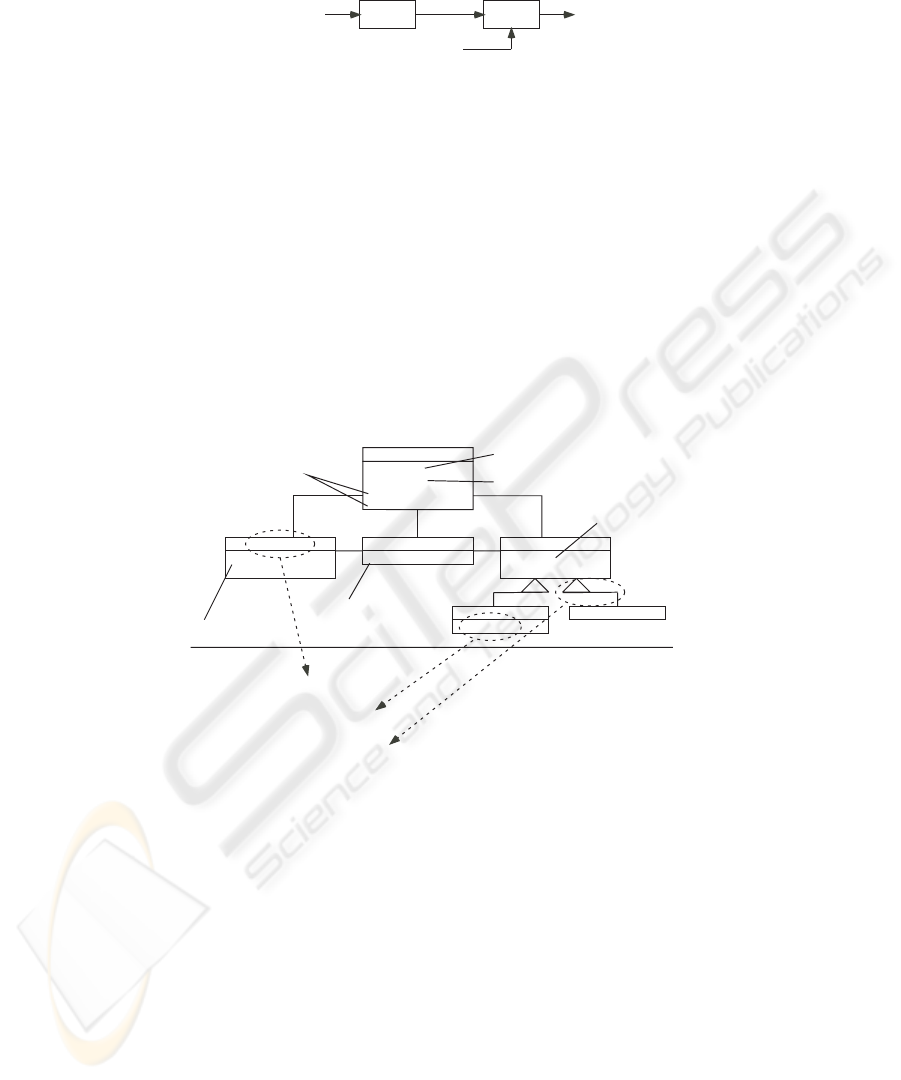

Fig.1. The veriﬁcation schema

an abstract type. Objects are deﬁned to be references to their data in the store and are

able to send and receive messages via references. Various constants are introduced in

the theory by mapping from the elements in the class model as shown in Fig.2. For

example, corresponding to the class customer, two constants customer_new and

customer_ex are introduced in theory. They are operators to create new customer

object in the store and to test if the object exists in the store, respectively. These opera-

tors are characterized by the ﬁrst axiom, which says ”the newly created object is alive

in the store”. Likewise, corresponding to each attribute and inheritance relationship,

read and write operators for the attribute and object type cast operators are introduced,

respectively.

book

isbn:num

iid:num

title:string

item

days:num

lend

cid:num

name:string

customer

max:num

days:num

nextcid:num

nextiid:num

library

maximum number of items

a customer can borrow

maximum number of days

a customer can keep an item

next customer ID

and item ID

to be issued

customer ID

item ID

remainning days

the customer can

keep the item

Constants:

customer_new : customer -> store -> customer # store

customer_ex : customer -> store -> bool

book_get_isbn : book -> store -> num

book_set_isbn : book -> num -> store -> store

item_cast_cd : item -> store -> cd

cd_cast_item : cd -> store -> item

Axioms:

!s. let (cst,s1) = customer_new s in customer_ex cst s1

!bk n s. book_ex bk s ==>

(book_get_isbn bk (book_set_isbn bk n s) = n)

!cd s. cd_ex cd s ==>

(item_cast_cd (cd_cast_item cd s) s = cd)

Fig.2. Class model of a library system and the theory

After the construction of the theory, developers deﬁne collaborations as sequences

of function application using the primitive operators on the store and built-in functions

provided by HOL. Deﬁning collaborations is just like programming in functional lan-

guage and high level functions provided by HOL facilitate the deﬁnition.

Invariants are deﬁned as predicates on the store and are proved by structural in-

duction on the system state: i.e. as a base step, prove that the initial state satisﬁes the

invariant and then, as inductive steps, prove that each collaboration maintains it. The

following is a global invariant we proved about the library system which is expressed

by Object Constraint Language (OCL [3]). This says ”the total number of items lent by

all customers is equal to the number of items unavailable”.

library

customer.lend->size = item->select(lend->size>0)->size

3 Related works

A lot of works including [7] [8] has proposed theories to verify OO programming lan-

guage. Our theory is similar to them but different in that it is for the veriﬁcation of

analysis models, where we can use not only basic types of programming languages but

high abstract types that appear in the system domain.

4 Conclusions and future work

This paper has presented a methodology of OO model veriﬁcation based on collabo-

rations in HOL. Collaborations are expressed as sequences of function application and

deﬁned by operators introduced in the theory corresponding to the model elements.

Invariants that are global in the system are proved by induction on the system state.

As a future work, we are considering to develop a collaboration-based design method-

ology based on our OO theory. We are currently interested in applying our theory to

layered designs [6], where systems are constructed incrementally as layers of collabo-

rations. We expect that an effective proof methodology can be established by clarifying

the relationship between layered collaborations and dependency of their invariants.
