Can

Fuzzy Mathematics enrich the Assessment

of Software Maintainability?

Gerardo Canfora, Luigi Cerulo, and Luigi Troiano

RCOST - Research Centre on Software Technology

Department of Engineering - University of Sannio

Palazzo ex-Poste, Viale Traiano 82100 Benevento, Italy

Abstract. Software maintainability dep ends b oth on qualitative and

quantitative data. Existing maintainability models aggregate data into

hierarchies of characteristics with given dependencies. However, data

used to score the characteristics can be uncertain or even completely

unknown. Therefore, it would be meaningful to evaluate sensitivity of

the aggregated result, i.e. the maintainability, with respect to the un-

certainty and incompleteness of data. In addition, real cases require an

aggregation model able to evaluate the impact of changing the depen-

dencies among the characteristics in the hierarchy on the maintainability.

In this paper we argue that fuzzy mathematics can help to solve these

problems. In particular, we show how a fuzzy aggregation mo del can be

adopted to evaluate maintainability according to a hierarchical model.

1 Introduction

Most maintainability assessment models describes maintainability as a function

of directly or indirectly measurable attributes A

, . . . , A

, that is:

M = f(A

, A

, . . . , A

) (1)

Software metrics are used to quantitatively characterize the attributes. Metrics

are then aggregated into a single index expressing the level of maintainability.

This approach is fast, simple, and consistent, basing its robustness on the widely

studied ﬁelds of software metrics and empirical software engineering.

Often, the models that link metrics to maintainability are hierarchical, i.e.

measurable attributes are aggregated into intermediate characteristics, and these

are further aggregated into the ﬁnal maintainability level. For instance, the stan-

dard ISO/IEC 9126 [1] derives maintainability from four characteristics: analyz-

ability, changeability, stability, and testability. However maintainability charac-

teristics as prescribed by ISO/IEC 9126 are still too abstract to develop a metric

directly. More detailed models are proposed by Berns [2], Sneed and Merey [16],

and Oman et al. [14]. Each of these models derives the maintainability index

by aggregating lower level attributes according to a hierarchical view of main-

tainability. In particular, Oman et al. [14] develop a tree structured model con-

taining 92 known maintainability attributes starting from 35 published works

Canfora G., Cerulo L. and Troiano L. (2004).

Can Fuzzy Mathematics enrich the Assessment of Software Maintainability?.

In Proceedings of the 1st International Workshop on Software Audits and Metrics, pages 85-94

DOI: 10.5220/0002679000850094

 SciTePress

on software maintainability. In this model Software Maintainability depends on

management, operational environment, and target software system, as depicted

in Fig.1.

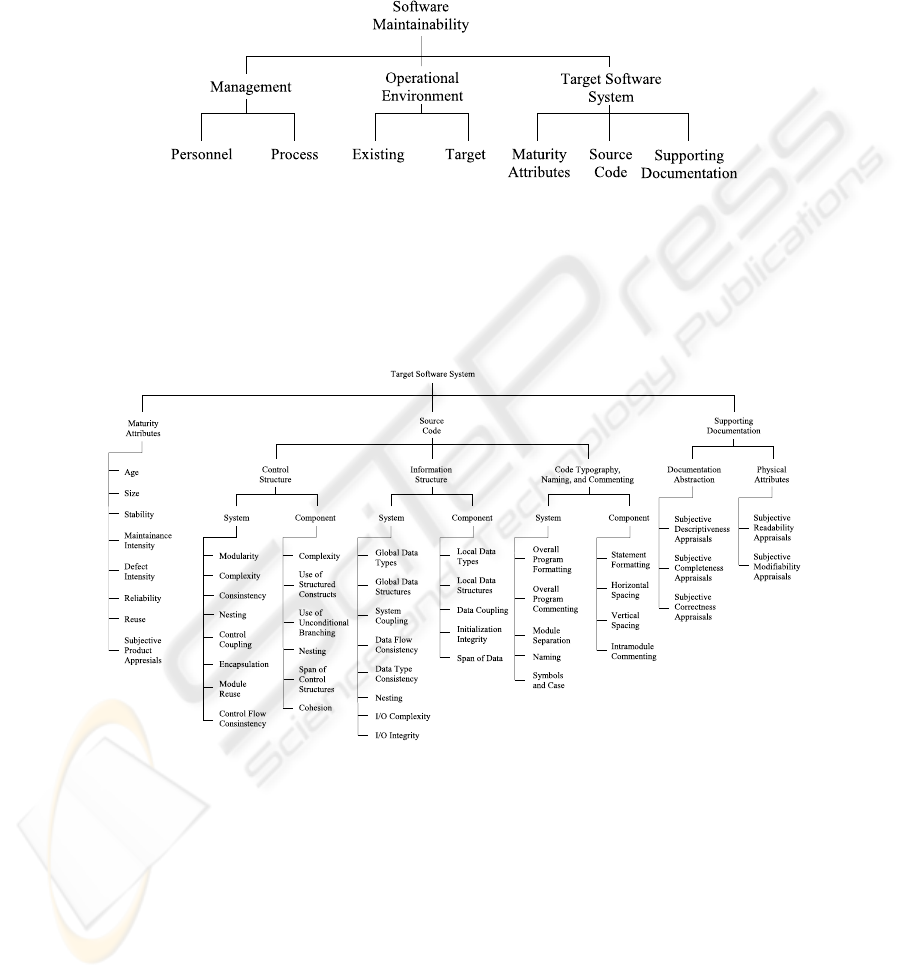

Fig. 1. Maintainability characteristics [14]

For the sake of simplicity, in our reasoning we focus on the target software

system sub-tree as depicted in Fig.2.

Fig. 2. Maintainability attributes [14]

Looking at the model, we notice that quantitative metrics come along with

qualitative attributes. For instance, evaluating software maturity, we ﬁnd quanti-

tative measurements such as age, size, defects intensity, together with qualitative

assessments such as installation complexity appraisals, programming language

complexity appraisals, development eﬀort appraisals. This information is usually

collected by means of questionnaires [15], to which interviewed people answer

by selecting a verbal judgment close to their own opinion. This is in accordance

with the fact that software maintainability needs to take into account human

factors and not just internal and structural factors.

For each attribute a software metric is deﬁned and the following aggregation

model is presented:

M =

i=1







j=1







(2)

where:

– W

is the weight inﬂuence of maintainability characteristic C

– W

is the weight inﬂuence of maintainability attribute A

–

is the metric measure of maintainability attribute A

Usually quantitative and qualitative data aimed to assess software maintain-

ability are simply aggregated together by means of numeric operators, sometimes

forgetting scale assumptions and manipulation constraints.

There is a predicative model underlying Eq.(2), since product can be as-

sumed as an and-like operation, whilst average as a compensation operation, as

discussed later. Another relevant aspect to take into account regards uncertainty

of information deriving from vagueness and incompleteness of data. Vagueness is

due to impreciseness and ambiguity of human judgments. Moreover, data could

be not fully available. Both vagueness and incompleteness induce a higher un-

certainty and unpredictability of maintainability index.

In the attempt of building a model that simulates the way humans make eval-

uations we should pay attention to the way quantitative data are transformed

into qualitative assessments. Predicative models require to express predicates

on quantitative data on which evaluations of software products are based. Such

predicates are expressions of judgments regarding quantitative data. An exam-

ple is the well known rule of keeping the McCabe cyclomatic complexity [10]

lower than or equal to 7 in order to keep complexity manageable. Predicates

map quantitative data onto qualitative judgments. This mapping has been of-

ten assumed implicitly; even the simple normalization of data can b e seen as

qualitative assessment of quantitative data.

In order to consider issues discussed above, key points of our research are

– a continuum of aggregation models should be explored to have a broader

view of software maintainability;

–

qualitative data are relevant as well as quantitative data in software main-

tainability assessment;

–

data could not be fully available;

–

attributes and characteristics can have a diﬀerent weight into determining

the overall maintainability.

Our hypothesis is that fuzzy mathematics, and in particular fuzzy aggrega-

tion mo dels can adequately address all these issues. In particular we claim that

a predicative model based on fuzzy rules represents an insightful way to address

the problem of assessing software maintainability. Such a model is able to high-

light logical dependencies among characteristics and attributes that aﬀect the

overall maintainability and its uncertainty. The whole problem can be viewed as

a Multi-Criteria Decision Making (MCDM) problem [9], thus suggesting the use

of an aggregation model. The reminder of this work is organized as follows: in

Section 2 we present a fuzzy aggregation model namely OFNWA; Section 3 con-

tains an example of application; Section 4 closes the paper with some concluding

remarks and future works;

2 Fuzzy aggregation and hierarchical maintainability

models

2.1 A continuum of aggregation models

We use Ordered Fuzzy Number Weighted Averaging (OFNWA) [5] to address

the need for a continuum of aggregation models. OFNWA derives by the concept

of Ordered Weighted Averaging (OWA) introduced by Yager [17]. It is deﬁned

(n)

, ..., A

) =

i=1

(3)

where B

, . . . , B

is a decreasingly ordered disposition of fuzzy numbers A

, . . . , A

so that B

is the i-th largest element. Weights are such that

i=1

= 1 (4)

Conversely from usual weighted average, in OWA/OFNWA aggregation model

weight w

is not associated with the i-th element but with i-th largest one. There

are three special cases of OWA operators [17].

= w

∗

= [

1 0 . . . 0]

∗

, . . . , a

) = max

i=1,..,n

)

= w

∗

= [

0 0 . . . 1]

∗

, . . . , a

) = min

i=1,..,n

)

= w

ave

= [

1/n 1/n . . . 1/n]

ave

, . . . , a

) =

i=1

(5)

More in general, families of OWA/OFNWA operators can be derived by par-

ticular weight distributions [11, 12, 19]. OWA/OFNWA operators oﬀer an ideal

bridge between and-like operators and or-like operators. An important measure

associated to OWA/OFNWA operators is orness (aka attitude of character, σ)

[17], deﬁned as

σ =

n − 1

n−1

i=1

(n − i)w

(6)

It is easy to verify that

∗

= 1

ave

= 0.5

∗

= 0

(7)

Orness can be interpreted as a measure of aggregation severity: the higher it

is, the more attention to worse attributes is paid. It provides a measure of the

distance between the set of and-like operators and the set or-like operators. When

orness is 0, OWA aggregation corresponds to min operation, that is the biggest

among the and-like operators. Conversely, when orness is 1, OWA aggregation

corresponds to max operation, that is the smallest among the or-like operators.

With orness equal to 0.5 we get the arithmetic average.

2.2 Incompleteness of data

Maintainability assessment often deals with incomplete and uncertain data. This

is something we need to take into account when questionnaires are adopted to

collect data [8], as incompleteness and uncertainty of data aﬀect the information

made available to software engineers for decision making. It has been argued

[4] that although incompleteness and uncertainty contribute to make decision

eﬀects more unpredictable, it is useful to keep their eﬀects separate. Information

is uncertain when we are not sure about the “value” assumed. Information is

incomplete when it is not completely available, so that we can have certain in-

formation but incomplete and vice-versa. For instance, let us consider all cases

where it is not possible to provide an answer to a questionnaire, checking the

“Don’t Know” box (DK), or when a quantitative measure is not available. Tra-

ditional numeric approaches simply ignore any source of uncertainty. However,

taking uncertainty into account is a key to manage risks and to improve the

eﬀectiveness of decision making. Numbers with indeterminateness [5] represent

a way to deal with DK answers and more generally with incomplete data [4].

Numbers with indeterminateness are deﬁned as

F = ξ · I + ζ · F

(8)

where F

is the numeric component, I is the indeterminate element, the coeﬃ-

cient ξ is called indeterminateness, and ζ = 1−ξ is called determinateness. While

keeps all available qualitative and quantitative data, I represents “total ig-

norance”: we assume not to be able to describe it by any membership function.

Thus I does not belong to the realm of ordinary numbers. It is a primitive en-

tity that can be just considered symbolically. We can use ξ as direct measure

of information incompleteness. When ξ = 0 (ζ = 1) information is complete; on

the opposite side ξ = 1 (ζ = 0) means information is not complete at all.

2.3 Relevance of criteria

Aggregation as deﬁned in Eq.(3) does not deal with the relevance of attributes

and characteristics. When a characteristic/attribute is irrelevant, it should be

not considered at all; otherwise it must be took into account. We can describe

this reasoning using the following set of propositions

i,1

: if imp(C

) is high

then aggregation should consider C

i,2

: if imp(C

) is low

then aggregation can ignore C

where imp(C

) is the relevance associated to characteristic/attribute C

. Ignor-

ing a characteristic/attribute means that aggregation result is independent of

it: the result does not change no matter which value it assumes. These rules

are applied in sequence to each criterion. Thus, we will consider the aggregation

applied to diﬀerent subsets of criteria, including also the empty one. In that

case we are not able to derive the result. This produces a number with inde-

terminateness, as described in [5], whose ξ depends on the relevance given to

characteristic/attribute and the completeness of available data.

2.4 Quantitative and qualitative data

In [7] we have proposed a formal characterization of transformations on quanti-

tative data into qualitative assessments by means of judgment functions, and we

discussed how the usual mathematical properties (i.e. derivative and measure)

of functions have a semantic interpretation in the light of qualitative assessment

of data. Brieﬂy, a judgment function is a map that transforms measures into

judgments

ψ : Ξ 7→ Υ (9)

where Ξ is the quantitative measurement domain and Υ is called the judgment

domain. To better qualify the concept of judgment we can refer to it as [7]

dimension of measure associated to the qualitative perception of objects. If we

assume Υ to be a scale, we can look at function ψ as a derived measure. If we

consider also that the aggregation itself is a map between judgments, the result

can be viewed as a derived measure. A judgment function transforms quantities

measuring an object attribute to a degree of criteria satisfaction. Thus judgment

domains and functions can be characterized in terms of some semantic properties.

3 An example of application

As an example of application we used the OFNWA aggregation model to as-

sess maintainability of a small open source software project (about 6 KNCSS

)

Thousand of Non Comment Source Statements

according to model depicted in Fig.1 and Fig.2. The project regards the devel-

opment of a Linux device driver for the Emu10k chipset used in some PC Sound

Cards (http://sourceforge.net/projects/emu10k1/). By inspecting the CVS tree

at SourceForge, we got data about the project history since it started in 2001.

We derived most of the software metrics by inspecting the driver source code

trough the HP-MAS tool [13]. We investigated other sources of data such as bug

reports, change logs, patches, and diﬀs, in order to derive other metrics such as

age, size, stability, maintenance intensity, defect intensity, reliability, and reuse.

Qualitative attributes, such as product and document appraisals, have been as-

sessed by the use of questionnaires ﬁlled in by researchers in our group. All data

we used in the evaluation process with a brief description are available on our

web site (http://cise.rcost.unisannio.it). In Tab.1, we report the average percent

ﬁt at various category level using Eq.(2).

Table 1. Results by applying Eq.(2)

Category

Weighted formula

Maturity

46.03

Source Code

59.99

Do cumentation

40.62

Maintainability

11.21

Then, we applied the OFNWA aggregation to assess the system maintain-

ability by using a tool we developed [3]. The results are shown in Fig.3, Fig.4

and Fig.5. Graphs show how maintainability and characteristics scores change

depending on the diﬀerent perspective given by diﬀerent level of orness (Eq.(6)).

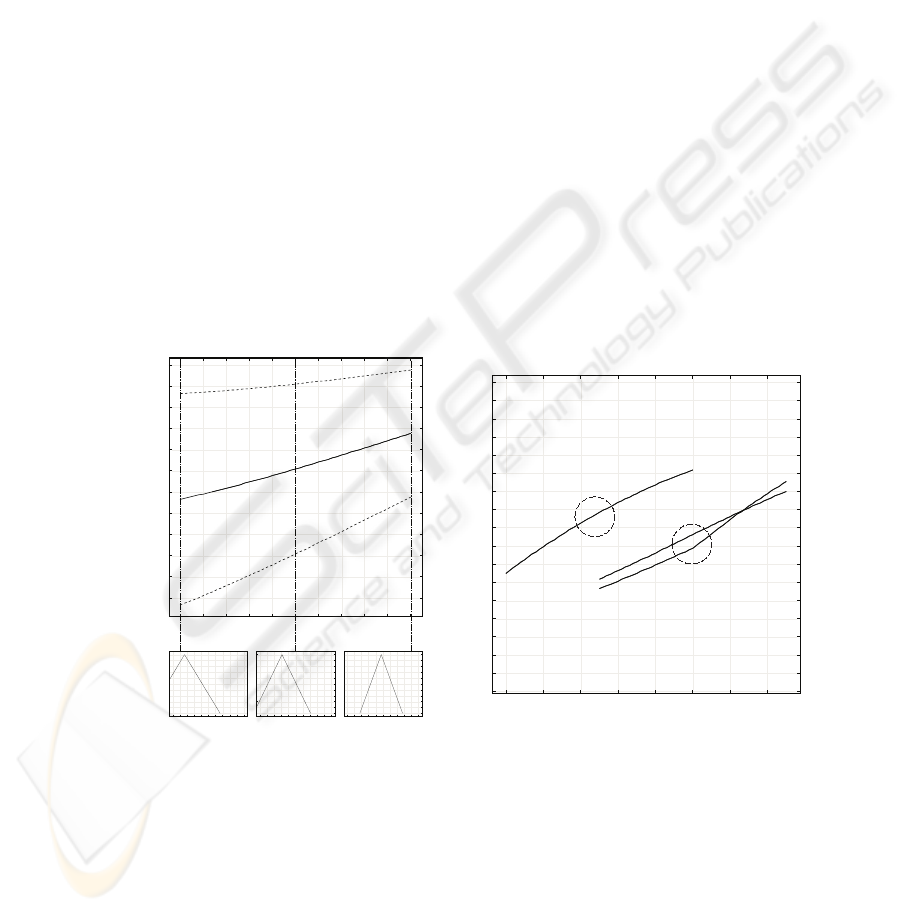

In particular, Fig.3 shows maintainability score for low orness levels. The result is

in accordance with Tab.1. It is made by a continuous sequence of fuzzy numbers

whose uncertainty is bounded by dotted lines. We notice that maintainability

grows with higher levels of orness: the higher is the level of orness, the more rel-

evance is given to better characteristics, the better it is the aggregation result.

Our analysis is restricted to low levels of orness (σ ∈ [0, 0.5]), due to the fact that

maintainability is viewed as composed by complementary characteristics. Thus,

an and-like aggregation is required, and this is consistent with low levels of or-

ness. Dotted lines give an information regarding uncertainty of maintainability.

This means the maintainability index, whose prototypic value is marked by the

continuous line, varies within the band, with values shading toward the borders

marked by dotted lines. Moreover Fig.3 makes a section view of maintainability

index at some speciﬁc orness values, showing the resulting fuzzy numbers.

We can go further in our analysis wondering in which direction to invest in or-

der to improve the software maintainability. Thus, we need to investigate target

software characteristics. Fig.4 shows how the assessment of each characteristic

varies within an interval of orness values. In particular the source code character-

istic has been evaluated for low levels of orness, since it is considered composed

by complementary sets of sub-characteristics. Therefore the aggregated value is

computed by means of an and-like aggregation. The result is in accordance with

Eq.2 (see Tab.1). The dotted circle in Fig.4 highlights the area of maximum sim-

ilarity between OFNWA aggregation and the original Oman et al. model [14].

Indeed, the value in Tab.1 has been computed as weighted product, that is part

of and-like aggregations, of source code sub-characteristics. The value improves

for higher levels of orness. Diﬀerently, the score assigned to documentation and

maturity is in accordance with Tab.1 when the orness is about σ = 0.5. This

concords with the weighted averaging formula used for their evaluation.

However Fig.4 allows us to have a broader view of result than the simple

application of Eq.(2), providing visibility of surrounding values provided by the

continuum of models. In this way we are able to make a deeper analysis. The

source code is good enough and no urgent operation is required on it to improve

maintainability. Moreover, we notice that although documentation and matu-

rity have pretty much the same score in Tab.1, their proﬁles shown in Fig.3

are diﬀerent. Documentation evaluation exhibits a larger variation within the

considered orness range. This means the most of documentation attributes have

been judged as bad or good, with a few judgments in the average. Thus, a tar-

geted improvement of some documentation asp ects entails an improvement in

software maintainability. Such considerations would not have been possible with

traditional numerical techniques.

-0.3

-0.2

-0.1

0.0

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

0.00 0.05 0.10 0.15 0.20 0.25 0.30 0.35 0.40 0.45 0.50

orness

0.0

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

0.9

1.0

0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0

0.0

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

0.9

0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0

0.0

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

0.9

0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0

1.0

possibility

maintainability

Fig. 3. Maintainability

-0.4

-0.3

-0.2

-0.1

-0.0

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

0.9

1.0

1.1

1.2

1.3

0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7

orness

Source Code

Maturity

Documentation

maintainability

Fig. 4. Maintainability characteristics

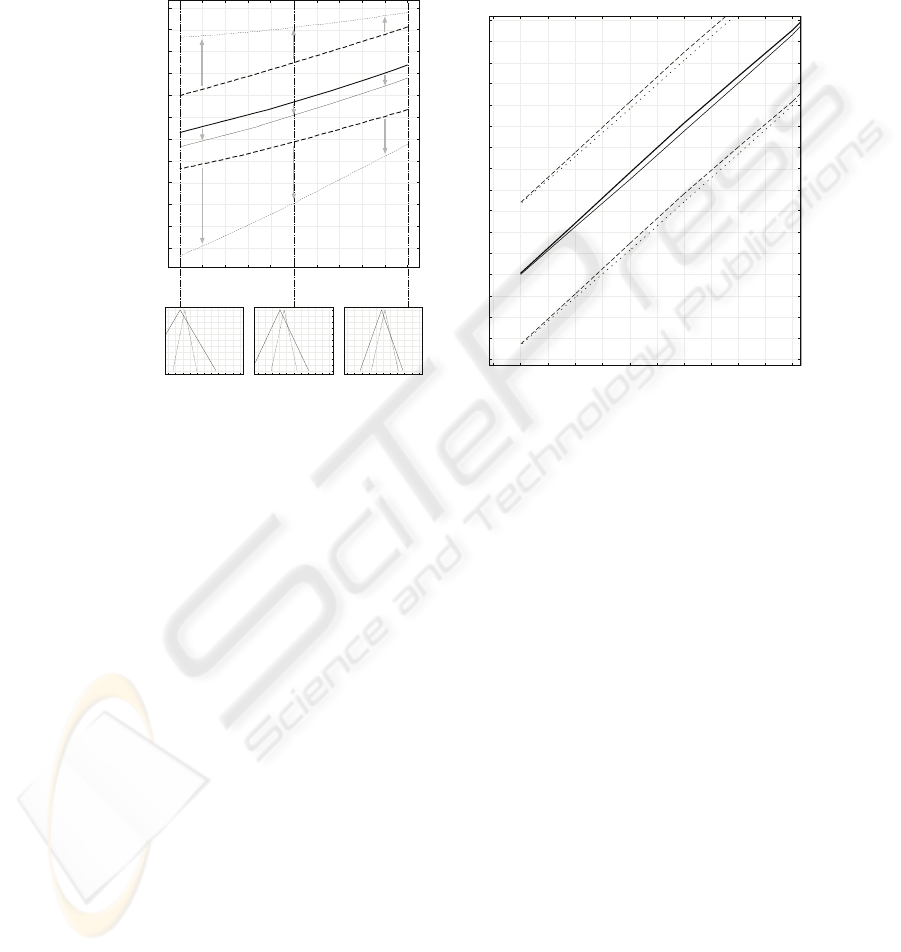

Finally, Fig.5 shows how maintainability changes when some answers are not

provided (DK). In particular we considered subjective appraisals about docu-

mentation and maturity not provided. We notice that although there is just a

slight variation in prototypic values (continuous lines), there is a much larger

variation in uncertainty. Therefore, the decision graph suggests that we cannot

be conﬁdent in the result and we really need to get data not provided. Instead

Fig.6 shows an example in which DK answers do not aﬀect heavily the proﬁle of

maintainability.

-0.3

-0.2

-0.1

-0.0

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

0.00 0.05 0.10 0.15 0.20 0.25 0.30 0.35 0.40 0.45 0.50

orness

0.0

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

0.9

1.0

0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0

0.0

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

0.9

1.0

0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0

0.0

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

0.9

1.0

0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0

maintainability

possibility

Fig. 5. Maintainability variation (1)

-0.20

-0.15

-0.10

-0.05

-0.00

0.05

0.10

0.15

0.20

0.25

0.30

0.35

0.40

0.45

0.50

0.55

0.60

-0.05 0.00 0.05 0.10 0.15 0.20 0.25 0.30 0.35 0.40 0.45 0.50

orness

maintainability

Fig. 6. Maintainability variation (2)

4 Conclusions and future works

This paper has shown how fuzzy mathematics can be used to assess the main-

tainability of a software system according to a hierarchical mo del, namely [14].

The advantage of using fuzzy mathematics is twofold:

– to consider the vagueness and incompleteness of available data, as well as

mixing quantitative and qualitative data;

– to analyze how the maintainability change when considering diﬀerent kinds

of aggregation among characteristics and attributes.

Of course, more sophisticated models can be considered, for example by con-

sidering multi-expert evaluations of subjective attributes. In short, the aim of

this paper is not to provide a deﬁnitive model, but to demonstrate how, using a

fuzzy aggregation model, a rich set of analysis on software maintainability can

be performed, thus empowering managers and decision makers.
