Towards a More Intuitive Specification and Automatic

Verification of System Properties with FBT: A Tool for

Translating Interval Formulas into Büchi Automata

Miguel J. Hornos

Dpto. de Lenguajes y Sistemas Informáticos. University of Granada

E.T.S. Ingeniería Informática, Periodista Daniel Saucedo, s/n. 18071 Granada, Spain

Abstract. This paper presents the FBT (FIL

to Büchi automaton Translator)

tool which automatically translates any formula from FIL (Future Interval

Logic) into its semantically equivalent Büchi automaton. There are two advan-

tages of using this logic for specifying and verifying system properties instead

of other more traditional and extended temporal logics, such as LTL (Linear

Temporal Logic): firstly, it allows a succinct construction of specific temporal

contexts, where certain properties must be evaluated, thanks to its key element,

the interval; and secondly, it also permits a natural, intuitive, graphical repre-

sentation. The underlying algorithm of the tool is based on the tableau method

and is specially intended for application in on-the-fly model checking. In addi-

tion to a description of the design and implementation structure of FBT, we

also present some experimental results obtained by our tool, and compare these

results with the ones produced by another tool of similar characteristics (i.e.

based on an on-the-fly tableau algorithm), but for LTL.

1 Introduction

The FBT (FIL to Büchi automaton Translator) tool presented in this paper automati-

cally translates a formula from FIL (Future Interval Logic) [11] into its semantically

equivalent Büchi automaton. The underlying algorithm [6] is based on the tableau

method [13], and is specially intended to be applied to on-the-fly model checking.

Until very recently, the integration of both approaches (tableau and on-the-fly) for an

interval logic was considered unfeasible for this type of logic. For this reason, we

consider FBT to be not only an innovation but also an important achievement.

Traditional temporal logics, such as LTL (Linear Temporal Logic) [10], allow

rea-

soning about the relative ordering of events in a system. However, we must formulate

quite intricate expressions with them in order to describe a temporal context in which

certain requirements or properties must only be satisfied within it. This, together with

the fact that these logics do not have an intuitive representation, such as a semanti-

cally equivalent graphical notation, has lead many system designers to believe that

they are difficult to use as formal description languages for the requirement specifica-

tion of systems, and that many of the specifications created with them are formulas

which are too complicated to understand. All of this has hindered a more extended

J. Hornos M. (2004).

Towards a More Intuitive Speciﬁcation and Automatic Veriﬁcation of System Properties with FBT: A Tool for Translating Interval Formulas into Büchi

Automata.

In Proceedings of the 2nd International Workshop on Veriﬁcation and Validation of Enterprise Information Systems, pages 26-33

DOI: 10.5220/0002680600260033

 SciTePress

use of the mentioned logics as specification languages during the analysis phase of

the development cycle of industrial applications. Unlike these logics, the formal

specification language FIL which our tool uses, allows the succinct construction of

bounded temporal contexts, thanks to its key element, the

interval

, which defines

such contexts clearly and concisely. In addition to the textual representation of its

formulas, this logic also has a natural, intuitive, graphical representation, called GIL

(Graphical Interval Logic) [1], and both the textual and graphical representation are

semantically equivalent.

This paper is organized as follows. Section 2 introduces the textual syntax of FIL

and the graphical syntax of GIL, and also the semantics associated with these. Section

3 describes the design structure and implementation of FBT, while Section 4 presents

some of the experimental results obtained, and compares these with the results ob-

tained with another similar tool (i.e. based on an

on-the-fly tableau

algorithm), but

with LTL as the specification formalism. Finally, we present the conclusions and

related lines of research which we would like to follow in the future.

2 Specification Formalism

Since our purpose is to specify the temporal properties of a system in a formalism

that is very close to the way in which a human being reasons, we shall use a proposi-

tional, linear-time temporal logic, which uses an intuitive, graphical representation for

its formulas. This logic, called GIL (Graphical Interval Logic) [1], allows us to carry

out logical reasoning at the level of time intervals instead of instants. Nevertheless, its

primitive elements are instants. An interval is therefore formed by identifying its end-

points, which are instants satisfying certain properties. These points are searched for

in the global context representing an infinite sequence of states corresponding to a

system execution. Once the end-points of an interval have been located, the semantics

of the nested formula (to the interval) is restricted to the subtrace delimited by these

points. Each interval therefore represents a specific temporal context.

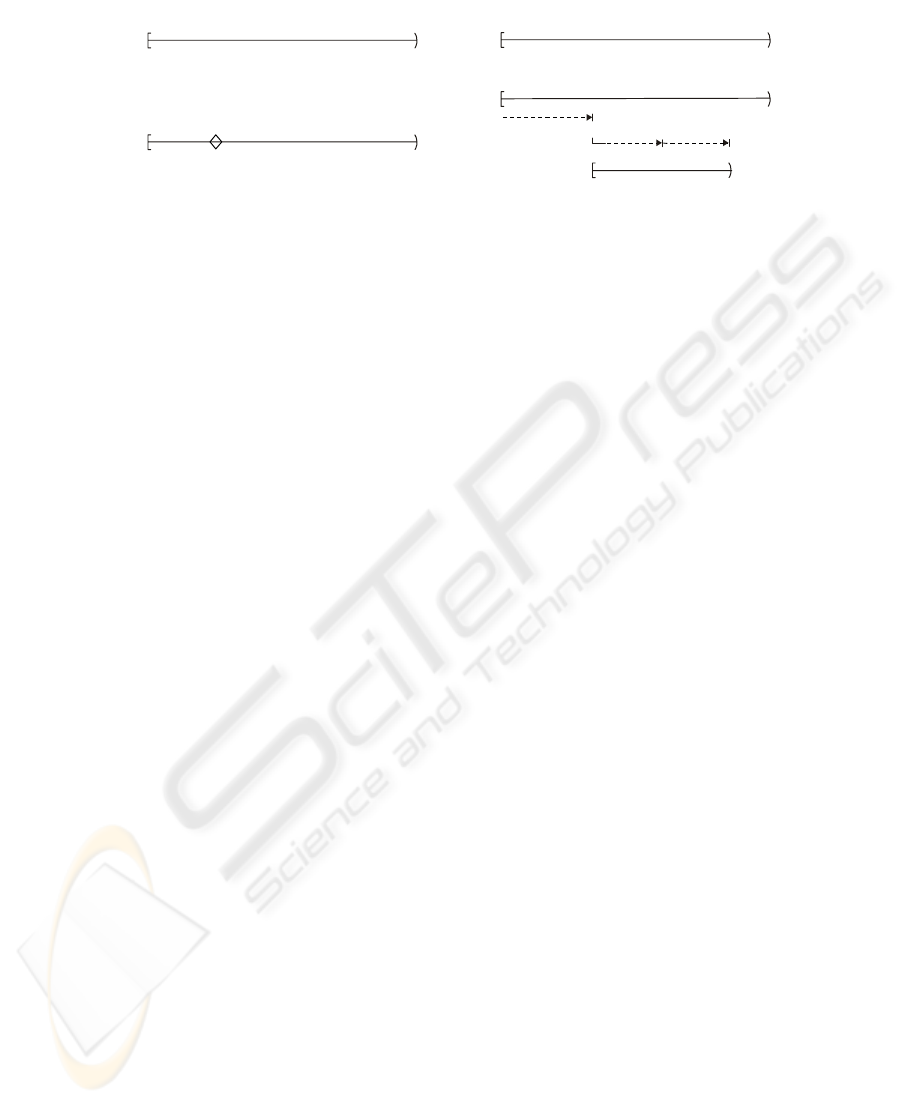

The first three graphical formulas in Figure 1 show the basic types of properties

that can be expressed over an interval. Thus, (a) is an

initial property

, which states

that the formula

expressing such a property holds at the first state of the interval,

where

is drawn left-justified below its left end-point; (b) represents an

invariant

property

over the interval, where

is placed below it and indented to the right of its

left end-point to express that

holds at every state of the interval; and (c) give us an

eventuality property

stating that

eventually holds at some state within the interval,

where a diamond is placed on it with

left-justified below the diamond.

In the formulas explained,

can be any GIL formula, even another interval for-

mula, and the intervals in them can represent the global context or a subinterval ex-

tracted from a larger interval. Each end-point of a subinterval is defined by a

pattern

represented by a horizontal concatenation of dashed search arrows, where

search targets are left-justified below the arrowheads. Thus, the formula (d) in Figure

1 states that

is an initial property in the subinterval extracted from the global context

by using a first search that locates the earliest state at which

holds (its left end-

point), and from this, the right end-point is located by searching for the formula

from the state where

is found.

(a)

(b)

(c)

(d)

Fig. 1. GIL formulas expressing different types of properties

Every GIL formula is read from top to bottom and from left to right. The topmost

interval represents the global context. Formulas can be composed using the usual

infix Boolean operators laid out horizontally or vertically. Further details about the

visual syntax of GIL can be found in [1].

FIL (Future Interval Logic) [11] is the textual representation used for defining the

semantics of GIL. The equivalence between the textual formulas of FIL and the cor-

responding graphical formulas in GIL is established in [1]. The

syntax of FIL

for a

finite set

of primitive propositions, where

∈

is defined as follows:

::==

| ¬

∨

I f

/* FIL formulas */

::== [θ

|θ

) | [−|θ

) | [θ

|→) /* Intervals */

::== →

| →

,θ

/* Search patterns */

A FIL formula is

purely propositional

when it does not contain any interval. Oth-

erwise, it is an

interval formula

, with its structure given by

, where

represents an

interval and

represents any other FIL formula nested to it. All the intervals are half-

open, including their left but not their right end-point. Each interval end-point is de-

fined by a

search pattern

, which is either a sequence of one or more searches or a

trivial

pattern (represented by − or →). Each

, e.g. →

, locates the first point in

the reflexive future (which includes the current state) where the target formula

holds. When several searches are sequentially composed, such as in →

,→

, each

subsequent search begins in the state located by the previous search; the last of these

therefore locates the end-point of the interval that such a pattern defines. The

trivial

search pattern

− leaves us at the point where we are, while → takes us to the end of

the current context.

The other standard constructs of Propositional Logic are defined as abbreviations

of certain expressions, i.e.

∨¬

=¬

, ¬¬

∧

¬(¬

∨¬

) and

⇒

∨

. The

restricted

syntax presented above for FIL can be extended with several

LTL temporal operators, defined as other abbreviations. Thus, since the logical con-

stant

can only hold in the null context, the formula [→¬

|→)

can never therefore

be satisfied in a trace in which ¬

holds at some state, with this formula being

equivalent to 

. Its dual, ¬[→

|→)

, states that there is some instant in the future

where

holds, which is why it is equivalent to ◊

. The operator

strong until

is defined

¬[→(¬

∨

)|→)¬

. The complete FIL formal semantics can be found in

[11]. The FIL formulas corresponding to the GIL ones in Figure 1 are: (a)

, (b) 

, and (d) [→

|→

,→

)

3 Design and Implementation of FBT

Figure 2 describes the structure of the different classes of FIL formulas considered in

the design and implementation of FBT, using a class diagram in UML (Unified Mod-

eling Language) [12].

Fil

is an abstract class that defines the elements which are

common to the different types of formulas, defined in its subclasses, which are:

FilA-

tom

, the class that represents the literals (atomic propositions, negated or not);

Fil-

Constant

stands for the logical constants (

);

FilJunct

implements the conjunc-

tions and disjunctions of (two) FIL formulas, while

FilIff

does something similar, but

with equivalences and exclusive disjunctions; and

FilInterval

, the class that builds

interval formulas, comprising two search patterns which attempt to locate each end-

point of the interval, and a FIL formula nested to it. An instance of the class

Search-

Pattern

is a sequence of zero (if it is a trivial pattern) or more FIL formulas, as many

searches as comprise that pattern.

Fil

1 nested_formula

SearchPattern

0..N searches

FilAtom FilJunct FilIff FilIntervalFilConstant

Fig. 2. UML class diagram representing the different types of FIL formulas

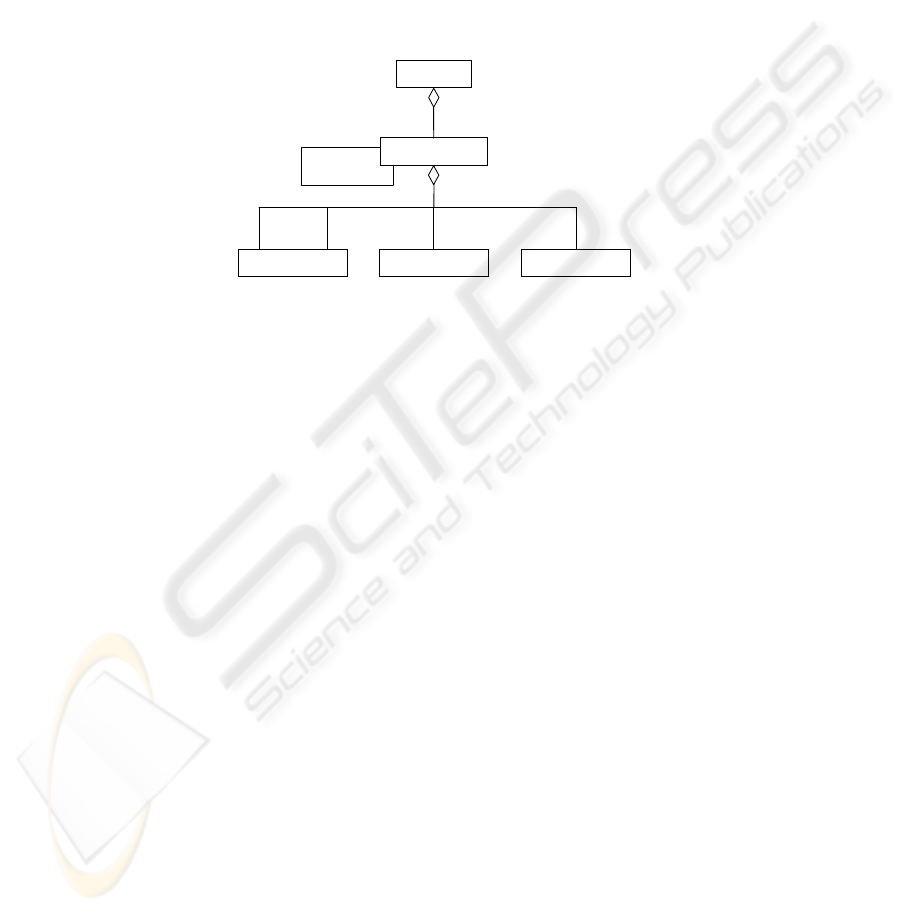

The UML class diagram shown in Figure 3 describes the structure of the graph that

FBT generates from a FIL formula.

FilGraph

is therefore the class representing the

graph, which is formed by the aggregation of nodes (i.e. objects of class

Fil-

GraphNode

). Two nodes of the graph are related if a transition exists between them.

This has been represented by means of an association with two role names:

predeces-

sor

and

successor

. The structure of each node is constituted for the aggregation of the

following sets of (zero or more) FIL formulas:

•

New

: Temporal properties that must hold in the node and have not yet been proc-

essed. When a node has been processed completely, this set is empty.

•

Old

: Formulas that must hold in the node and have already been analysed.

•

: Temporal properties that must be satisfied in all the next nodes (i.e. states

which are its immediate successors). This set can only contain interval formulas,

since these are the only FIL formulas that can postpone their fulfilment.

•

Literals

: Literals stored in

Old

The implementation of FBT is based on the C++ code of LBT (LTL to Büchi

automaton Translator) [8], a tool of similar characteristics, since it is based on an on-

the-fly tableau algorithm [3], but with LTL as the specification formalism. Conse-

quently, both tools share the same input and output interface, and the syntax and

notation for all the formula components that are commonly accepted by both, i.e. the

logical constants, literals, propositional operators and temporal operators of LTL. Our

initial intention was to integrate FBT into M

ARIA

[9], a tool that performs on-the-fly

model checking. This was the main reason for reusing part of the LBT code in order

to make integration easier, since LBT is the translator used in M

ARIA

. Obviously, we

have had to incorporate a series of specific classes and functions for the analysis of

interval formulas, which are not present in LTL. We have also implemented a series

of heuristics in order to improve and optimise the code; we have therefore managed

to generate automata with fewer nodes and edges and in less time, and to determine

the accepting states more quickly. The FBT input and output interface as well as

additional details about the tool design and implementation can be found in [5].

FilGraph

FilGraphNode

FilAtomFil FilInterval

nodes

successor

OldNew Literals

1..N

predecessor

1..N

0..N

0..N0..N 0..N0..N

Fig. 3. Structure in UML of the graph generated from a FIL formula

4 Experimental Results

As FBT has been implemented from the LBT code, this section not only presents

some experimental results obtained with our tool, but also those generated by LBT

for the same or equivalent specifications, in order to compare both tools.

FBT recognizes not only the unique temporal operator of FIL, i.e. the interval, but

also the following temporal operators of LTL:  (

always

henceforth

) and its dual

◊

(

eventually

), and U (

until strong

) and its dual V (

release

), but as abbreviations of

the corresponding FIL interval formulas. FBT therefore accepts LTL formulas, such

as the one shown in the following example, but automatically transforms them into

their equivalent ones in FIL, which are the ones that it really stores and processes.

Example 1: For the input specification ◊p0

∧

◊p1, FBT processes the FIL formula

¬[→p0|→)

∧

¬[→p1|→)

in order to build its semantically equivalent automaton,

which is graphically represented in Figure 4 using the tool G

RAPH

[2]. It should

be noted that each edge is labelled with the conjunction of literals (in prefix notation)

that enables that transition. The upper number labelling each node is its state identi-

fier, while the lower numbers identify the acceptance conditions that it satisfies. The

initial state is always shaded and numbered 0. In order to compare the automata gen-

erated by FBT and LBT, we count the number of nodes, edges and acceptance condi-

tions, as well as the number of states that satisfy each condition. Since both tools

produce

generalized Büchi automata

the resulting automaton generally have

accep-

tance conditions; each one defines a set of accepting states,

(with

=1..

), which

contains those states that satisfy it. The automaton in Figure 4 has 9 nodes (the initial

node is not considered), 20 edges (the ones leaving the initial node are counted), and

two acceptance conditions (

=2), the first (identified by the number 0) is satisfied by

six states (nodes 3, 4, 5, 7, 8 and 13), while the second one (identified by the number

1) is satisfied by another six (nodes 3, 4, 7, 11, 13 and 14). When

>1, if we want to

obtain a

classic

Büchi automaton, i.e. one with only one set of accepting states,

, we

only need to obtain the states that are in the intersection of the sets

(i.e.

∩

There are therefore four accepting states in our example (nodes 3, 4, 7 and 13).

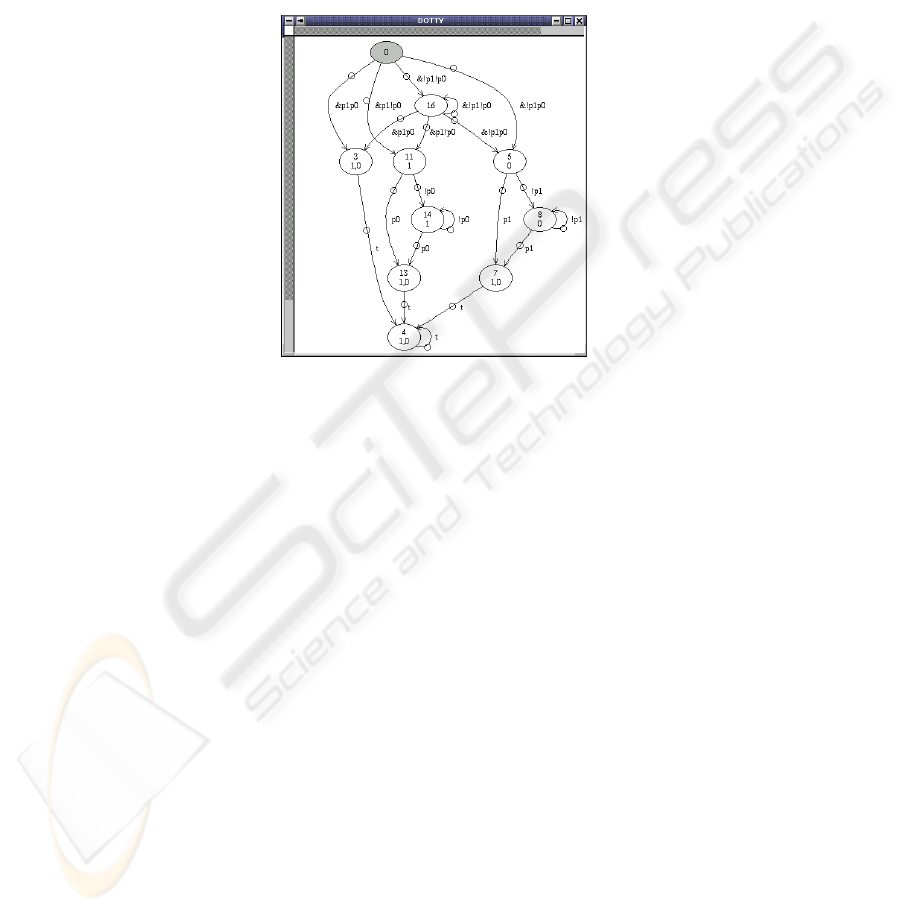

Fig. 4. Büchi automaton generated by FBT for the formula ◊p0

∧

◊p1

Table 1 gathers the values counted in the automata generated by FBT and LBT for

various specifications. The one explained in Example 1 is shown in Case 5. Each case

occupies two rows: the first row corresponds to the results obtained with LBT, and

the second row is for those produced by FBT. It should be noted that in the second

one, the input specification is represented in the extended syntax of FIL, while the

processed formula is expressed in its restricted syntax. We can observe that for the

simplest specifications (Cases 1 and 2), we obtained the same values in the automata

generated by both tools. However, for slightly more complex specifications (Cases 4,

5 and 6), FBT generally produces smaller automata than those obtained with LBT.

The formulas containing either the operator U or its dual V are usually the exception

to this rule, since for these, LBT usually produces automata which are slightly sim-

pler than those generated by FBT (Case 3). This is due to the fact that the correspond-

ing interval formula which is analysed by FBT attempts to “simulate” the property

that these operators represent more naturally. Something similar happens in the oppo-

site way with interval formulas: since LBT does not admit interval formulas, it is

necessary to resort to appreciably more complicated expressions (Case 7) in order to

provide it with an equivalent LTL formula, as Example 2 explains.

Example 2: Since LBT does not recognize the formula [→p0|→p1)¬p2, we must

input an equivalent LTL formula. The semantics associated with this interval formula

indicates that it holds whenever one of the following four conditions is fulfilled:

1. p0 does not hold in the future, i.e. the LTL formula ¬p0

holds.

2. p1 never holds in the future, i.e. ¬p1 is true.

3. p1 precedes p0, which is expressed as p1

¬p0 in LTL. This formula asserts that in

the first state where p1 holds as well as in all the previous ones to it ¬p0

holds.

4. Either p0 and p1 hold in the same state or p0 holds strictly before p1 and (in this

case) ¬p2 is invariantly satisfied from the instant in which p0 holds until p1 is ful-

filled. Both conditions are formulated in LTL as ¬p1

(p0

∧

¬p2

p1).

Consequently, the equivalent formula to [→p0|→p1)¬p2 that must be inputted

into LBT is the disjunction of the previous four LTL formulas, i.e. ¬p0 ∨ ¬p1 ∨

¬p0 ∨ ¬p1

(p0

∧

¬p2

p1). The interval formula clearly expresses the ex-

plained property more concisely and elegantly. Moreover, the analysis carried out by

FBT produces a simpler automaton (see Case 7 in Table 1).

Table 1. Comparison of results obtained with LBT and FBT

Specification Size Accept statesing

Input Processed Nodes Edges

|∩F



1 2 0



[

→

p0|

→

)

1 2 0

◊

3 6 1 2

◊

[→p0|→)

3 6 1 2

¬[→(¬p1∨ p2)|→)¬p2

4 9 1 3

◊◊

6 13 2 4, 5 3

◊◊

[→

[→p1|→)

|→)

4 8 2 3, 3 2

◊

∧

◊

13 29 2 8, 8 4

◊

∧

◊

[→p0|→)

∧

[→p1|→)

9 20 2 6, 6 4



◊

p1 ⇒



◊

9 19 2 7, 7 5



◊

⇒



◊

[

→

[

→

p1|

→

)

→

)

∨

[

→

[

→

p2|

→

)

→

)

5 15 3 4, 3, 4 2



∨



∨

(p0

∧

p1)

17 33 2 15, 14 12

[→p0|→p1)



[

→

p0|

→

p1)[

→

p2|

→

)

12 25 2 9, 9 7

5 Conclusions and Future Work

In this paper, we have presented the FBT tool, which is specially intended to be ap-

plied to the automatic verification of systems, using the on-the-fly model checking

method and FIL formulas. We have adopted this logic as the specification formalism

of our tool for two reasons: firstly, its ability to express succinctly limited temporal

contexts in which certain properties must be satisfied; and secondly, its natural, intui-

tive, graphical representation, which makes the specifications easier to develop and

understand.

We have also included class diagrams illustrating the design and implementation

structure of FBT, and some experimental results which we have compared with the

results obtained with LBT for the same or equivalent formulas. The automata gener-

ated by both translators are of a similar complexity, but those produced by FBT are

slightly simpler in most of the analyzed cases. As a good specification formalism is

the one that describes the most frequently used properties in verification with specifi-

cations that are relatively short and not difficult to check in practice, we can conclude

that FIL is a good specification formalism and that FBT is a good tool for the effi-

cient translation of its formulas into Büchi automata.

In future work, we intend to supply FBT with a graphical editor for GIL formulas,

so that the specifications can be pictorially provided, instead of in the textual syntax

of FIL. GILED [7] is an editor of this type that automatically translates the graphical

specifications created with it into the corresponding FIL formulas. The idea is to

adapt this editor or to build one of similar characteristics for FBT. We also intend to

integrate our translator into an on-the-fly model checking tool. Although FBT has

been designed so that it may be easily incorporated into the model checker of M

ARIA

[9], it can also be adapted to be integrated into other more popular finite-state verifi-

cation tools such as SPIN [4].
