Aingeru: an Innovating System for Tele

Assistance of Elderly People

Alberto Tablado, Arantza Illarramendi, Miren I. Bag¨u´es

, Jes´us Berm´udez,

and Alfredo Go˜ni

University of the Basque Country, Donostia, Spain

Abstract. In this article we present the main features of Aingeru, a

system that provides a new kind of tele assistance service. The purpose

of developing Aingeru has been to overcome the main constraints that

tele assistance services nowadays present: they are passive (they react

only when the user requires it); their coverage is limited; and, they do

not monitor automatically vital signs.

By contrast, Aingeru, by using PDAs (Personal Digital Assistants),

wireless communications and semantic web and agent technologies, pro-

vides a service with the following features: it is active (it reacts auto-

matically in the face of anomalous situations); it can work anywhere and

anytime; and, it can monitor vital signs and generate an alarm when nec-

essary. Furthermore Aingeru permits physicians and relatives concerned

with Aingeru users to consult data about them through the web.

The main focus of the paper is on presenting the architecture of Aingeru

and three asp ects that are used in its development: agent technology,

semantic web techniques and web services which constitute the pillars to

obtain the new tele assistance features provided by Aingeru.

1 Introduction

It is a reality that the numb er of elderly people is growing and so, the number

of these people that live alone. Although many of them can manage themselves,

it is also true that they feel a kind of defenceless situation and many of them

sign a contract with companies that oﬀer a tele assistance service.

These tele assistance services, although they accomplish an interesting and

necessary function, present the following main constraints: they are passive, their

coverage is limited and they do not monitor vital signs.

Having as a goal to overcome the previous constraints, we are developing

the system Aingeru

, that is our proposal for a new way of tele assistance

This work is supported by a grant of the Basque Government.

All authors are members of the Interoperable DataBases Group, online at

http://siul02.si.ehu.es. This group is part of the Department of Computer Lan-

guages and Systems, at the University of the Basque Country in Spain. This work

is mainly supported by the University of the Basque Country and Diputaci´on Foral

de Gipuzkoa (cosupported by the European Social Fund).

Aingeru is the word in the Basque language for expressing the notion of guardian

angel.

Tablado A., Illarramendi A., I. Bagüés M., Bermúdez J. and Goñi A. (2004).

Aingeru: an Innovating System for Tele Assistance of Elderly People.

In Proceedings of the 1st International Workshop on Tele-Care and Collaborative Virtual Communities in Elderly Care, pages 27-36

DOI: 10.5220/0002681100270036

 SciTePress

for elderly people. Hence, apart from supporting the functionalities provided

by current tele assistance services, Aingeru also oﬀers: an active assistance by

using stationary agents that behave in the face of anomalous situations without

a direct intervention of the user; an anywhere and anytime assistance by using

wireless communications and PDAs; and the monitoring of vital signs by using

sensors that capture the values of those signs and feed a decision supp ort system

that analyzes them and generates an alarm when necessary.

Concerning related works, we classify tele assistance systems in two groups.

In the ﬁrst group, we include those systems that provide limited coverage, such

as existing tele alarms. The main features of those systems are the following: they

use wired phone communications to contact tele assistance services providers,

their coverage is restricted usually to the user’s home and their activation is

triggered by the user, generally using a button. Therefore, they do not support

an active anywhere and anytime assistance. In the second group we include more

advanced systems. Some of them focus their eﬀorts on oﬀering an active assis-

tance (e.g. TeleCare [1]) while others use PDAs and take advantage of wireless

communications to provide anywhere and anytime assistance (e.g. doc@HOME

[2] and TeleMediCare [3]). In the majority of the last kind of systems, PDAs are

used only as intermediary elements and their goal is merely reduced to transmit

data from sensors to a central computer where data analysis is made. They do

not take advantage of the ability of the PDAs to carry out a certain pre-analysis

before sending data to the central computer. Notice that wireless communica-

tions are slow, expensive and unstable so, analysis made in the PDA can save

communication costs and can permit to detect anomalies earlier. Other related

works use diﬀerent “devices” to provide anywhere and anytime assistance (e.g.

Sensatex [4] and SILC [5]).

Aingeru goes one step further by providing not only anywhere and anytime

assistance using wireless communications and PDAs, but also a high quality

assistance. The combined use of three technologies: agents, semantic web and

web services constitutes the core that diﬀerentiates Aingeru from other related

works.

In the rest of this paper we ﬁrst present a brief introduction to the global

architecture of Aingeru. Then, we explain the main features of: the agents that

take part in Aingeru, the semantic web tools developed, and the web services.

Next, we show some performance features and we ﬁnish with the conclusions.

2 Overview of the Global Architecture of Aingeru

The goal of this section is to present brieﬂy the main features of the Aingeru

architecture. As can be observed in Fig. 1, there are ﬁve diﬀerent types of com-

ponents:

–

User PDA. Each person monitored by Aingeru carries a PDA. Its main

goal is twofold, ﬁrst to monitor the user and then, when special circum-

stances require, to be the link between the person and the center (Control

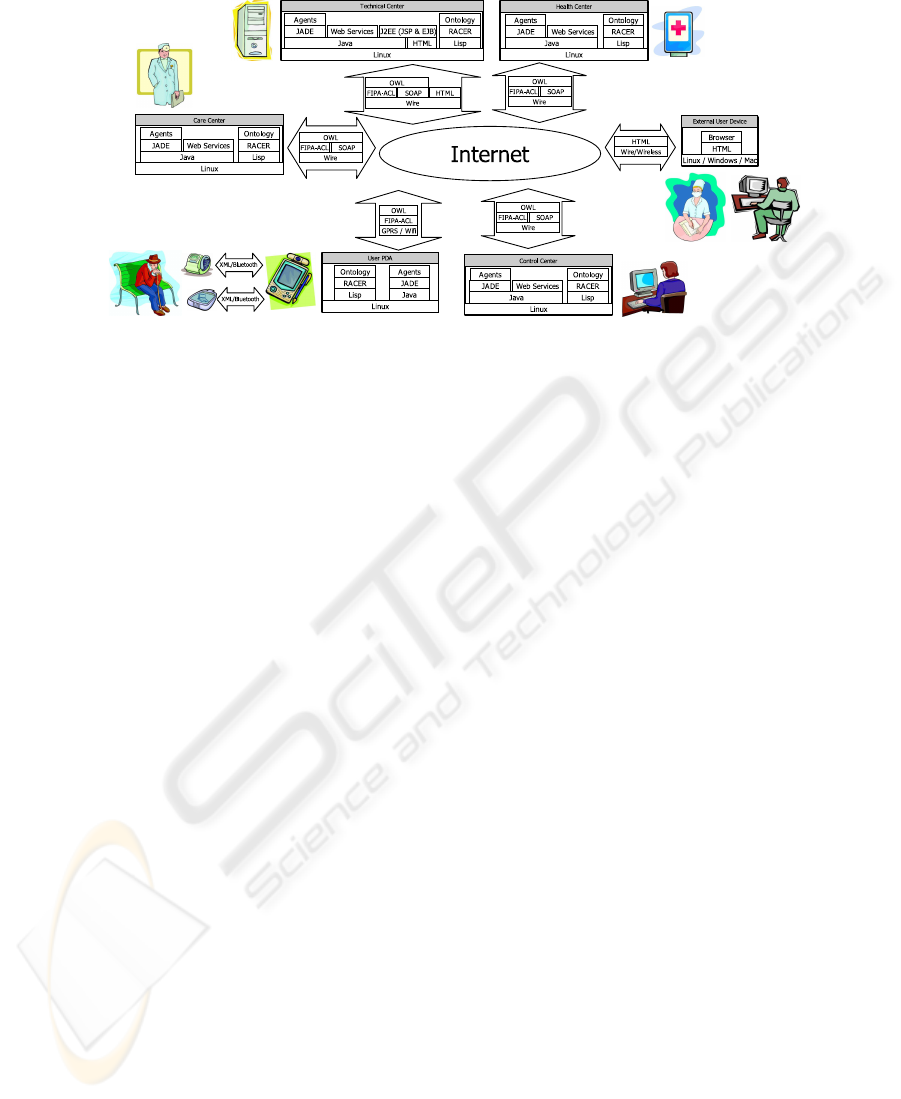

Fig. 1. Architecture of .

Center) resp onsible for monitoring her/him. Three are the basic functions

of PDAs: manual activation of an alarm (when the user feels bad, or some-

thing is happening in his environment and he wants to notify it, he presses

the button that appears in the interface and an alarm is activated in the

Control Center), automatic activation of an alarm (the PDA receives data

sent by sensors related to pulse, mobility, etc., and an agent situated at the

PDA analyzes these data in order to activate an alarm when an anomalous

situation is detected) and agenda services (PDAs provide their users with

classical agenda services, such as remembering when they have to visit the

doctor, etc.). In each PDA two ontologies are incorporated: MedOnt and

OperOnt (they are described in Sect. 3) and several agents.

– Control Centers are the centers in charge of monitoring people. Their

main task is to react in the presence of user alarms and to take the ade-

quate actions. In a computer of each Control Center are incorporated: the

OperOnt ontology, several agents, web services and a database that contains

data about monitored users. The OperOnt ontology permits the agents to

communicate at a semantic level.

–

Care Centers are the public health centers for primary assistance. Part

of the application must run in Care Centers in order to provide

users with new functionalities such as: accessibility of physicians

to data stored in the user PDA, direct insertion of medical appointments

in the PDA, etc. In a computer of each Care Center are incorporated: the

OperOnt ontology, several agents, web services and a database that contains

clinical data.

–

Health Centers correspond to hospitals. In order to interoperate with

system, in a computer of each Health Center are incorporated:

the OperOnt ontology and some deployed web services.

–

Technical Center. The goal of this center is the development and support

of the application. For example, there is an agent in this center,

in charge of sending new software releases and activating them, in the cor-

responding component of the global architecture.

Concerning communication aspects among the components, in

Fig. 1 we can observe the diﬀerent levels that are used. At the physical level,

the wired or wireless communication appears. At the transp ort level, FIPA is

used for inter agent communications and SOAP for web services. At the appli-

cation level, agents and web services communicate through terms described in

ontologies written in OWL

3 Distinctive technologies of Aingeru

3.1 Agents in Aingeru

As we have mentioned in the introduction, one pillar of is the use of

agents. There are software agents working in the various elements that take part

of its architecture (i.e., in the PDA, Control Centers, etc.). Moreover, all kinds

of agents that take part in the system are described in the OperOnt

ontology (explained in Sect. 3.2), with the goal of making them interoperable

with external applications.

For the implementation of those agents, we have selected the JADE Agent

System platform [8, 9] for the following reasons among others: standards com-

pliant, it adheres to the latest FIPA standards; lightweight, as some parts of

must run in PDAs (JADE has versions that can run on J2ME/MIDP

compliant devices, like phones and watches); ﬂexibility, it allows us to use dif-

ferent transport drivers to convey messages among agencies; Moreover, we make

use of the authentication mechanism supported by JADE and the SSL proto-

col to transmit sensitive data among agents. If additional security is required,

message content is also encrypted.

There are other systems that also promote applying agents in Health Care

[1, 10, 11, 12, 13]. However, as far as we know, they do not put special emphasis

on combining the agent technology with the use of PDAs.

3.2 Semantic Web Techniques

Two formal logic-based ontologies that are machine understable have been de-

ﬁned for the system: MedOnt and OperOnt (see [14] for more details).

Medical Ontology (MedOnt).

To oﬀer a high quality assistance is one of the

aims of the system. This means that not only will generate an

alarm when the user requires it, but also when the system autonomously detects

anomalous situations. Thus, its behaviour is reactive when the user’s health is

in danger. In our opinion, the latter feature is a step forward in the ﬁeld of tele

OWL [6, 7] is an ontology representation language from the Semantic Web forum.

assistance applications. In order to accomplish the goal of detecting anomalous

situations, two components are necessary: ﬁrst, sensors that capture users’ vital

signs values such as temperature, pulse, etc. and then, a decision support system

that analyses the captured values. Knowledge for the decision support system

is represented by a formal domain ontology called MedOnt. Ontology terms

describe states of illnesses that elderly people can suﬀer from as well as states

generated by the values captured by the sensors.

So far, to build the prototype, we deal with a “toy” MedOnt on-

tology that we have built with the collaboration of physicians (see Fig. 2). For

example, in this ontology we can observe the Pulse>120 term. This term de-

scribes that the pulse of the user is above 120 beats per minute.

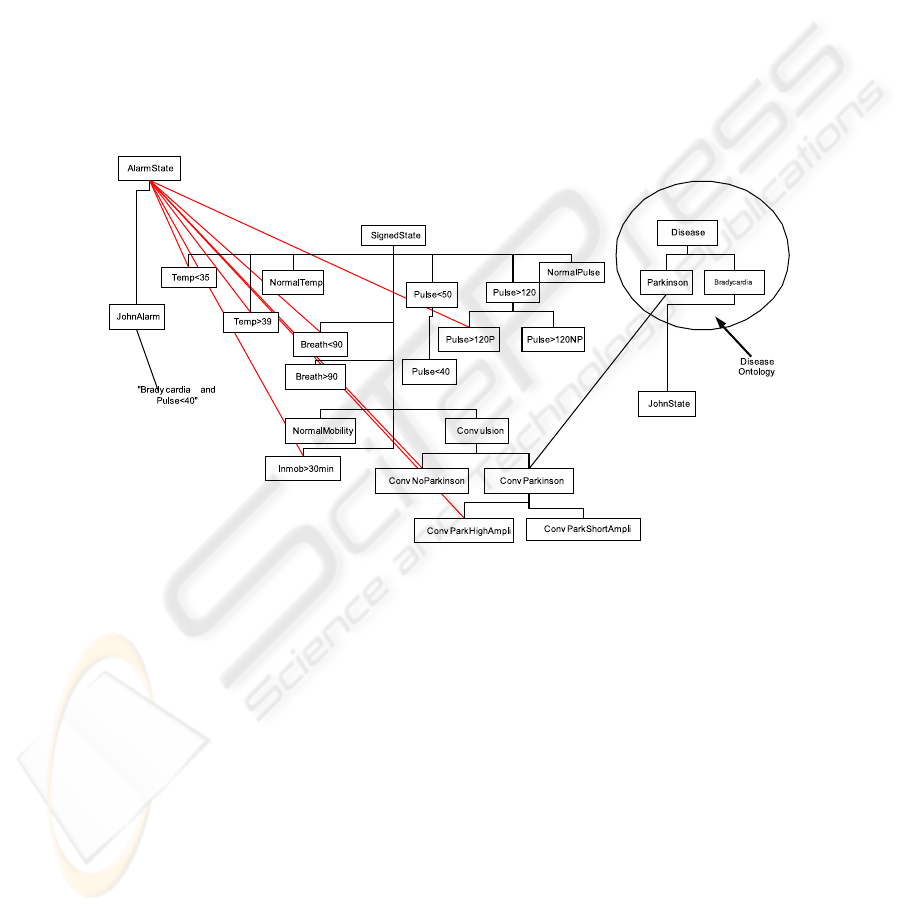

Fig. 2. Graphic representation of a fragment of a personalized MedOnt.

The JohnAlarm term illustrates the desirable customization of the MedOnt

ontology loaded into each user’s PDA. The JohnAlarm term is a kind of

AlarmState that subsumes the potential anomalous situations of the user John.

We consider customization a very interesting feature because every single person

has peculiarities added to general symptoms.

There are also some terms in the MedOnt ontology that describe situations

combining signs detected by sensors with states of diseases. For example, the

term Convulsion describes the situation when the Mobility Sensor reports shak-

ing over a certain threshold and ConvParkinson describes the state of the kind

of Convulsion of a person who suﬀers from Parkinson disease.

Operational Ontology (OperOnt). Another goal that we planned to reach

when developing the system was to have a semantic representation

of the agent communications framework. Such a formal representation facili-

tates: (i) the interoperability of with other related systems, (ii) the

understanding of features by external actors, and (iii) the

evolution.

So far, the OperOnt ontology

is basically divided into three interrelated

areas of descriptions: (i) actors, which interact using various kinds of messages,

(ii) messages with diﬀerent purposes and dealing with diﬀerent kinds of contents

and (iii) subjects representing the kinds of message contents. Next we outline

each area, but we want to stress that there are axioms in the OperOnt ontology

that describe their interrelationships.

– Actors. We divide this area into human agents, software agents and

web services. Human agents are classiﬁed into two groups: on one hand

users and, on the other hand all those people who are concerned

with the user assistance, from sanitary people to relatives. Software agents

are described taking into account their location and their goals (for instance,

whether they work in a PDA or in a computer, if they are attending a sensor

or interacting with an ontology, and so on). Web services are described on

the basis of their functionality.

–

Messages. Considering the standards-compliant principle in , we

have included descriptions of messages according to their functionality in

FIPA [15] protocols. Message descriptions are based on three FIPA proto-

cols: FIPA Request Interaction Protocol, FIPA Subscribe Interaction Pro-

tocol and FIPA Query Interaction Protocol. Kinds of messages that appear

in OperOnt are: Agree, Cancel, Failure, Refuse, Query, Subscribe and

Inform.

–

Subject of Messages. This area describes terms about the subject or the topic

concerning the message. For example, InputOutput, Location, Urgency,

Emergency, Sensor, Hospital, Appointments, Medicines and Dump de-

scribe diﬀerent subjects of messages.

Both ontologies — MedOnt and OperOnt — are speciﬁed in OWL to take

advantage of semantic web technology and its richer primitives for class and

property descriptions. Furthermore, OWL supports datatype descriptions using

XML Schema [16], so we are able to deal with properties with integer values or

with structured values such as HL7

[17] rows.

Moreover, for the reasoning process we selected the RACER [18] system,

which covers all the OWL constructors we need; in particular, it deals with

reasoning about individuals of classes, which is crucial in our framework.

See http://siul02.si.ehu.es/Aingeru/OperOnt.owl for an OWL speciﬁcation of

the OperOnt ontology.

HL7 is the ﬁrst health care data interchange standard.

3.3 Web Services

One interesting feature that can be incorporated to the tele assistance services

is the possibility of allowing external persons (relatives, physicians) to consult

data about monitored persons (only authorized users will be allowed to consult)

through Internet. The goal of this feature is accomplished in by web

services that have been developed using JAX-RPC and speciﬁed by WSDL. As

examples of those web services we can mention:

– Vital Signs: A web service exported by the Care Center. It provides infor-

mation about user vital signs in real-time. Authorized actors (physicians,

for example) can obtain data about the current values of the sensors that

monitor the user.

– Location: A web service exported by the Technical Center. It provides in-

formation about the current location of the user. Location information is

managed by the Location Agent residing in the User Agency.

Moreover, the architecture of allows the incorporation of public

web services such as those that provide information about sports, weather fore-

casts, etc. Web Services are described in the OperOnt ontology in order to be

discovered and accessed by diﬀerent actors.

4 Feasibility Features of Aingeru at Work

As is being implemented, we cannot test it yet in a real environment.

For this reason, in this section we show some tests that we did in order to check

its feasibility in particular: (i) inﬂuence of the bandwidth in the time needed to

respond to alarms and (ii) capacity of the PDAs to support all the requirements

deﬁned in . Moreover, we compared, in one concrete scenario, local

data analysis versus remote data analysis.

Inﬂuence of the Bandwidth in the Time Needed to Respond the

Alarms.

In this test, we show how network communications severely reduce

the number of alarms that can be managed simultaneously (see Fig. 3.a). On

one hand, nowadays GPRS wireless communications provide around 80 kb/s

bandwidth, so each PDA can send only one alarm per second

. On the other

hand, a Control Center connected to internet using a 10 Mb/s link can handle

20 alarms per second. Therefore, the Control Center will b e able to cop e with

20 users simultaneously, a number greater than that supported by current tele

assistance services.

This frequency of alarms widely exceeds the actual behavior of the users of tele

assistance services as experts told us.

Capacity of the PDAs. In the PDA we need to run in a Java virtual machine,

Linux, RACER reasoner and JADE agent platform. Except for RACER (there

is not a version for PDAs yet

), all the others run in our test. More than this,

we also tested JADE, and we veriﬁed that it could manage up to 60 agents in

the PDA. Taking into account that so far we have developed only eleven agents

for the PDA, we concluded that will be able to operate in the PDA.

As RACER cannot be tested on a PDA, we run it in a normal computer and

we registered how much memory it consumed. In our tests, RACER never went

beyond 10 MB of RAM and, even when all other software was running in the

PDA, about 40 MB of RAM remained free. This means that RACER could be

run in the PDA.

(a) (b)

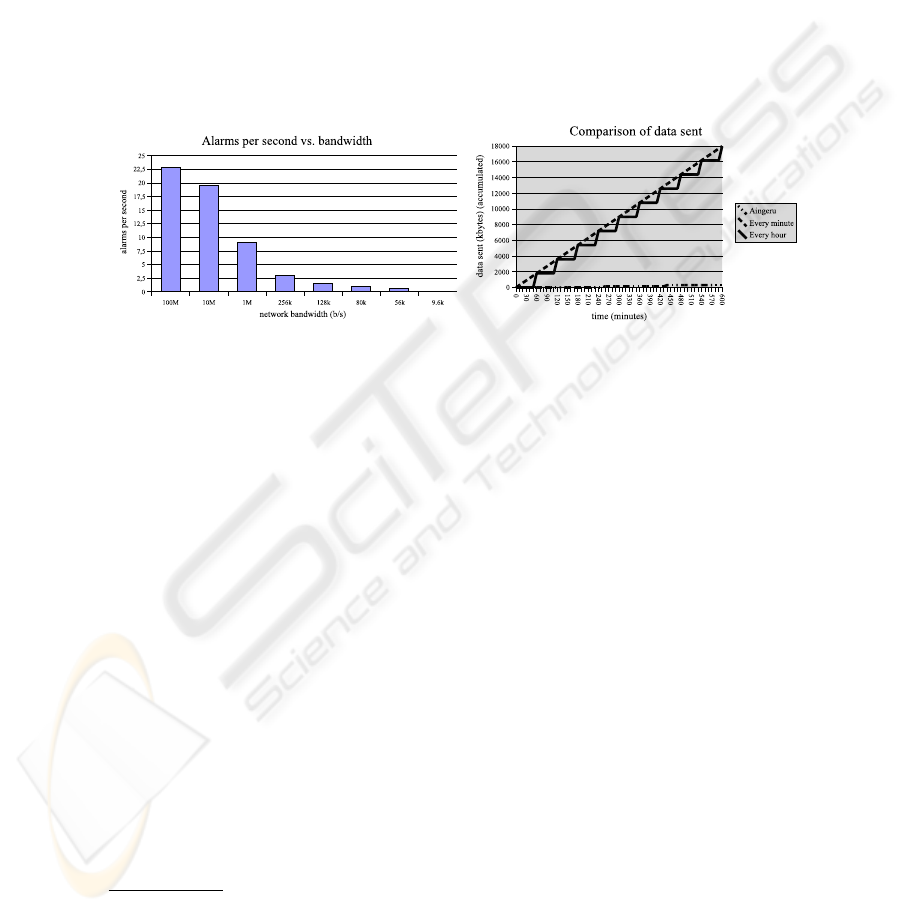

Fig. 3. Data sent by diﬀerent models and .

Local Analysis versus Remote Analysis.

Finally, we compared our ap-

proach of making local data analysis at the PDA with the other approaches that

advocate external data analysis. The comparison is based on communication

costs (how many bytes must be sent) in the following scenario: a user has to be

monitored via a 2-lead ECG sensor. It sends 250 samples of a byte every second.

In short, this conﬁguration sends 30 KB per minute. And, to perform this task,

we deﬁned three conﬁgurations. The ﬁrst one was , equipped with a

wireless ECG sensor and a wireless thermometer. The second and third ones had

the same sensors, but did not perform local analysis of the data received. These

two diﬀer in that they sent data at diﬀerent intervals: one (A) every minute and

the other (B) every hour.

Figure 3.b shows the data sent as time goes on. We simulated an alarm

at 260 minutes (four hours and twenty minutes) and 440 minutes (after seven

hours). The ﬁrst and most relevant fact is that the line that lies over X axis,

which represents , sends hardly any data, even though is

conﬁgured to send ﬁve minutes of ECG data within the alarm notiﬁcation.

We are working in collaboration with the authors of RACER to port it to the PDAs.

Related to communications costs, needs to send data only twice, in

contrast to other conﬁgurations. The A conﬁguration sends 30 KB of data every

minute (600 times) and the B conﬁguration, 1,8 MB every hour (10 times) for

a total of 18 MB. only sends 300 KB in the same interval and oﬀers

better assistance.

Furthermore, we analyzed the latency, that is, how long it takes since the risk

situation arises until the system knows about it. In A or B, the average time is

half of the time between data arrival, i.e., half a minute for A or half an hour for

B. can report the alarm in less than a second (only the time needed

to send the alarm over the network, because software components have response

times much slower). To ﬁnish, we want to mention that savings communication

costs implies also savings in battery consumption, which is relevant when working

with PDAs.

5 Conclusions

In this article we have presented the system, which main contribu-

tions can be summarized under two diﬀerent perspectives: one related to the

application domain; and, the other related to the technical issues.

Concerning the application domain, goes one step further in the

tele assistance service by providing: (i) anywhere and anytime assistance using

PDAs and wireless communications; and, (ii) a high quality assistance reacting

in the face of anomalous situations, mainly due to the use of agents and semantic

web technology.

With respect to technical issues, for the development of we have

built: (i) agents that are specialist in diﬀerent tasks, that can be executed in

the PDA and in other servers and that can communicate among them at the

semantic level using OperOnt ontology; (ii) two ontologies that allow sharing

knowledge, medical and operational, with other systems; and (iii) web services

that bring closer to physicians and relatives concerned with the users

of .

So far we have got only a limited prototype and as future work we plan to

work in the following directions: (i) deﬁning a mechanism that allows us to do

a semiautomatic customization of the domain ontology MedOnt, (ii) analyzing

the interest of changing the agent platform to another one that supports agent

mobility and (iii) incorporating the WSAI technology to improve the integration

of agents and WebServices.

6 Acknowledgements

The authors would like to thank Volker Haarslev and Ralf M¨oller for their help

in carrying RACER to PDAs.

References

[1] (2004, Feb.) Telecare, a multi-agent tele-supervision system for elderly care.

[Online]. Available: http://www.uninova.pt/

∼

telecare

[2] (2004, Feb.) doc@HOME. [Online]. Available: http://www.docobo.com

[3]

(2004, Feb.) TelemediCare. [Online]. Available: http://www.telemedicare.net

[4] (2004, Feb.) Sensatex. [Online]. Available: http://www.sensatex.com

[5] (2004, Feb.) Supporting Independently Living Citizens. [Online]. Available:

http://www.fortec.tuwien.ac.at/silcweb/SILC.htm

[6]

OWL Web Ontology Language Reference, World Wide Web Consortium

W3C Candidate Recommendation, Aug. 2003. [Online]. Available: http:

//www.w3.org/TR/owl-ref

[7] (2004, Feb.) Web-ontology (webont) working group. [Online]. Available:

http://www.w3.org/2001/sw/WebOnt/

[8]

(2004, Feb.) JADE. [Online]. Available: http://jade.cselt.it

[9] F. Bellifemine, A. Poggi, and G. Rimassa, “Developing multi-agent systems with

JADE,” in 7th International Workshop on Agent Theories, Architectures, and

Languages, 2000, pp. 85–99, Boston, MA.

[10] H. Mouratidis, G. Manson, P. Giorgini, and I. Philp, “Modelling an agent-based

integrated health and social care information system for older people,” in 15th

European Conference on Artiﬁcial Intelligence, 21 July 2002.

[11] S. L. Mabry, S. J. Kollmansberger, T. Etters, and K. L. Jones, “IM-Agents for

patient monitoring and diagnostics,” in 15th European Conference on Artiﬁcial

Intelligence, 22 July 2002.

[12]

A. Moreno and D. Isern, “Oﬀering agent-based medical services within the

AgentCities project,” in 15th European Conference on Artiﬁcial Intelligence, 22

July 2002.

[13]

L. M. Camarinha-Matos and H. Afsarmanesh, Advances in Automation, Multi-

media and Video Systems, and Modern Computer Science. WSEAS Press, 2001,

ch. Virtual Communities and Elderly Support, pp. 279–284, ISBN: 960 8052 440.

[14]

M. I. Bag¨u´es, J. Berm ´udez, A. Illarramendi, A. Tablado, and A. Go˜ni, “Us-

ing ontologies in the development of an innovating system for elderly people

tele-assistance,” in Proceedings of the International Conference on Ontologies,

Databases and Applications of SEmantics, ser. Lecture Notes on Computer Sci-

ence, vol. 2888. Springer-Verlag, Nov. 2003, pp. 889–905, Sicily, Italy.

[15]

(2004, Feb.) Foundation for Intelligent Physical Agents. [Online]. Available:

http://www.ﬁpa.org

[16] XML Schema Working Group, XML Schema Part 0: Primer, World Wide Web

Consortium Std., 2 May 2001.

[17] (2004, Feb.) Health Level Seven. [Online]. Available: http://www.hl7.org

[18]

R. M¨oller and V. Haarslev. (2004, Feb.) RACER: Renamed ABox and Concept

Expression Reasoner. [Online]. Available: http://www.fh-wedel.de/

∼

mo/racer/
