erifying user interface behaviour with model checking

Jos

e Creissac Campos

, Michael D. Harrison

, and Karsten Loer

Departamento de Inform

atica, Universidade do Minho

Campus de Gualtar, 4715-187 Braga, Portugal

Department of Computer Science, University of York

Heslington, York YO10 5DD, UK

Abstract. A large proportion of problems found in deployed systems relate to

the user interface. This paper presents an approach to the veriﬁcation of user

interface models based on model checking. The approach is intended to be used

early in design. The veriﬁcation is concerned with behavioural aspects of the user

interface and requires models that represent both the interactive aspects and also

capture important features of the context to allow restrictions of behaviour to

those that conform to appropriate human and environmental constraints. A tool

suite to support the approach is under development and is described. Future work

directions are put forward.

1 Introduction

Large software development projects typically do not beneﬁt from current software

engineering practices. It can be argued that the lack of use of these practices has led

to poor success rates in these developments. In a study carried out in North America it

was concluded that 40% of deployed systems had marginal gains, 40% were rejected,

and only 20% of the systems were considered truly successful (cited in [1, chapter 1]) .

Other studies have shown that a large proportion of problems found in deployed

systems relate to the user interface. “Although valid ﬁgures are difﬁcult to obtain there

seems to be general agreement to attribute somewhere in the range of 60-90% of all

system failures to erroneous human actions” [2]. However, as Leveson points out [3],

classifying a human-computer interaction problem as human error is too simplistic. In

most situations it is not clear whether the error lies with the “operator” of the system or

with the designers who have created the system.

There is clearly the need for a better integration of human-factors concerns into the

software engineering life-cycle. Despite the emphasis being placed on engineering more

reliable hardware and software systems, relatively little signiﬁcance has been attached

to human factors issues. Even a recent software development method such as RUP,

which is strongly based around the notion of Use Case, pays little attention to the design

of the user interface. This situation becomes more extreme with the introduction of

ubiquitous technologies where devices are embedded in complex user environments.

In this paper we argue (1) that there should be a closer integration of usability issues

into the software development life cycle; (2) that, more generally, there is need to take

Creissac Campos J., D. Harrison M. and Loer K. (2004).

Verifying user interface behaviour with model checking.

In Proceedings of the 2nd International Workshop on Veriﬁcation and Validation of Enterprise Information Systems, pages 87-96

DOI: 10.5220/0002681700870096

 SciTePress

a more careful account of context, including human use in the modelling and analysis

of the device. Section 2 discusses the gap between software engineering and interactive

systems development. Section 3 presents discount usability evaluation methods. Sec-

tion 4 and 5 propose an approach to usability analysis, and a accompanying tool based

on model checking. Section 6 discusses the the need for the use of constraints in the

analysis of interactive systems. Section 7 presents some directions for future work, and

ﬁnally section 8 draws some conclusions.

2 Developing the user interface

Usability concerns are typically not among the major concerns of software engineers

during the early stages of design. It is common to ﬁnd software engineers designing

the user interface as a last layer to be placed on top of the system above function or

business logic in order to enable users access to its functionality. This vision rests on the

assumption that all the application’s logic is at the functional level, and is independent of

the user interface. The user interface then is simply a passive information transmission

layer between the user and the “application”. Such approaches compromise the quality

of the software system that is being produced both in terms of the quality of the user’s

experience and the quality and maintainability of the implemented code.

User interface layers are, in practice, required to implement control logic. In current

applications, the control logic of the user interface is usually tightly coupled with the

logic of the functional layer. This happens both in terms of the state and behaviour

of user interface objects as they reﬂect the underlying function. Both layers must be

adequately designed so that they can co-operate in order to provide a high quality user

interaction.

An inadequate or non-existent design speciﬁcation leads to a user interface layer that

is developed in a more or less ad-hoc fashion. This problem is exacerbated by current

IDE tools which provide support for the design and construction of the graphical aspects

of the user interface, but provide little support for the design of the behavioural aspects.

This leads to a situation where the design or, more precisely, the implementation, will

require frequent update as problems are found and improvements requested.

3 Discount approaches to usability analysis

In order to address the above issues more effectively, better integration of human fac-

tors concerns into the software engineering life cycle is needed. This can be achieved by

considering usability issues from early in the development process. Lightweight tech-

niques are needed that enable reasoning about the usability of systems as early as pos-

sible so that design can be shaped by usability criteria and concerns.

Discount methods for the analysis of usability have been proposed that are cheaper

to apply than more traditional empirical methods. Two such methods are Heuristic Eval-

uation [4] and Cognitive Walkthroughs [5]. Heuristic Evaluation involves systematic

inspection of the design by means of guidelines for good practice in the design. It is as-

sumed that there are a number of general characteristics that all usable systems should

exhibit. Cognitive Walkthroughs, on the other hand, aim at analysing how well the in-

terface will guide the user in performing tasks. User tasks must ﬁrst be identiﬁed, and

the model of the interface (the device model) must be sufﬁciently detailed to cover all

possible courses of action the user might take. Analysis of how a user would execute

the task is performed by asking three simple questions at each stage of the interaction:

Will the correct action be made sufﬁciently evident to users? Will users connect the cor-

rect action’s description with what they are trying to achieve? Will users interpret the

system’s response to the chosen action correctly? To answer these questions, probable

courses of user action must be presumed and documented as so-called user models.

Discount approaches have the advantage that they do not require substantial plan-

ning, and can be used in the early stages before the design is implemented. They operate

on some informal representation of the design, for example a storyboard or a draft of the

user manual. However, because these methods are largely informal it is more difﬁcult to

perform them systematically and therefore ensure coverage. Additionally, the methods

rely on application by those who have sufﬁcient expertise to apply them correctly —

for example, interpreting any questions that are asked of the design appropriately. This

creates problems when technique application takes place in the context of a develop-

ment and analysis process that is carried out by software engineers who do not have

such skills. There is thus a need for an interdisciplinary development process involving

software engineers, human-factors experts and designers.

A complicating factor, when it comes to the analysis step, is the sheer size and com-

plexity of the models that must be considered when developing complex systems. At

worst the discount methods tend to focus on what could be called surface issues in the

interaction, with little consideration of more complex behavioural issues of the inter-

action between user and device that will arise in real usage conditions. It requires the

specialist analyst to raise the deeper questions. Techniques and tools are required that

enable a more thorough analysis of interactive systems in an interdisciplinary context.

4 Integrating usability analysis into software development

We have been working towards a method for the design of the user interface that in-

volves joint analysis by software engineers and human-factors experts. The approach

taken is that depicted in Figure 1. In it, design and veriﬁcation become part of the same

development process, where veriﬁcation is used to inform design decisions. Four main

steps can be identiﬁed for this type of approach: 1) selecting what to verify; 2) building

an appropriate model; 3) performing the veriﬁcation; 4) analysing the results.

Whenever usability issues must be considered, a model is built that captures salient

interactive features of the design. The model is used to capture the intended design, and

at this stage different alternatives can be considered.

It must be stressed that these models are not prescriptive but descriptive. That is,

they are used not to express how the system should be implemented, rather they are used

to express what system should be implemented. At this stage the system implementation

is not of interest, instead focus is on the interaction between the system and its users.

The aim of the approach is that it might be applied from the early design stages, when

the question is “what should be built?”, rather than “how should we build it?”.

Principles

Requirements

Usability experts

Model

Build

Select

Analysis

System

Design

Results

Analyse

Properties

Verify

Usability experts

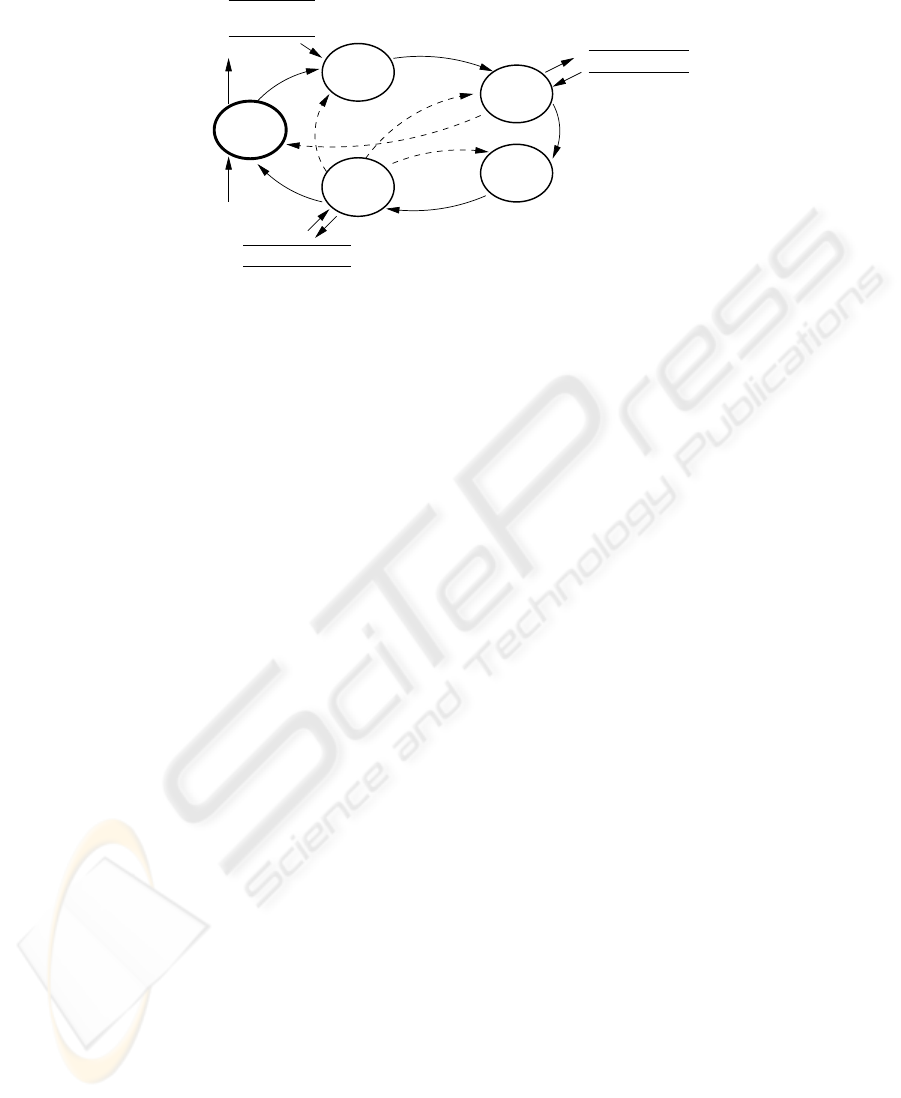

Fig.1. Integration of veriﬁcation in development

Once a satisfactory model is reached, the desired usability properties must be ex-

pressed and afterwards veriﬁed of the model. From an analysis point of view, the most

interesting situations are those where the veriﬁcation fails. In this case, the causes for

the failure must be analysed, this will lead to a new iteration of the process where either

the model or the property have been modiﬁed.

In order to enable the analysis of the behaviour of non-trivial systems, models are

built from components using a modelling language with rigorous semantics. Compo-

nents are described using the notion of interactor in the style of [6]: an object-like en-

tity which is capable of rendering (part of) its state into some presentation medium. The

state of each interactor is described by a set of attributes and annotated with the render-

ing relation. The behaviour is described by axioms in Modal Action Logic (MAL) [7].

The resulting MAL speciﬁcation is similar to a production systems’ style speciﬁcation

(see Figure below 3 for an example interactor model).

Properties that are to be checked of the system are written in Computational Tree

Logic (CTL) [8]. CTL enables the expression of properties over the behaviour of the

model. The properties that can be written/veriﬁed deal mainly with which states can or

cannot be reached. Typical properties include: X is an invariant (AG(X) — X holds in

all states of all behaviours); X is inevitable (AF(X) — for all possible behaviours, X will

eventually hold); X is possible (EF(X) — for at least one behaviour X will eventually

hold). Different combinations of the operators can be used to express more complex

properties.

5 A tool for automated usability analysis

A tool has been developed that enables the translation of interactive systems models

into the SMV model checker input language (i2smv) [9]. SMV [10] is a model checker

which uses CTL as the logic to express properties. Models are deﬁned as ﬁnite state

machines, and CTL is used to express properties over the behaviour of the models.

When the properties do not hold, SMV attempts to provide a counter-example in the

form of a trace leading to a state where the property does not hold.

Pitch Modes Altitude Velocity Climb Rate

000 0

OFF

NAV

SPD

SEL

0 00-

V.NAV

0 00

AP ON

IAS ALT

HDG

FMA

MCP

ILS

ALT

HOLD

SPD MACH

OFF

THRUST

LIM

EPR

SEL

MACH ALT

PITCHROLLARM

THROT

AUTO

OFF

MACH

0 00 0

IAS

LAND

AUTO

LOC

VDR

SPD

VERT

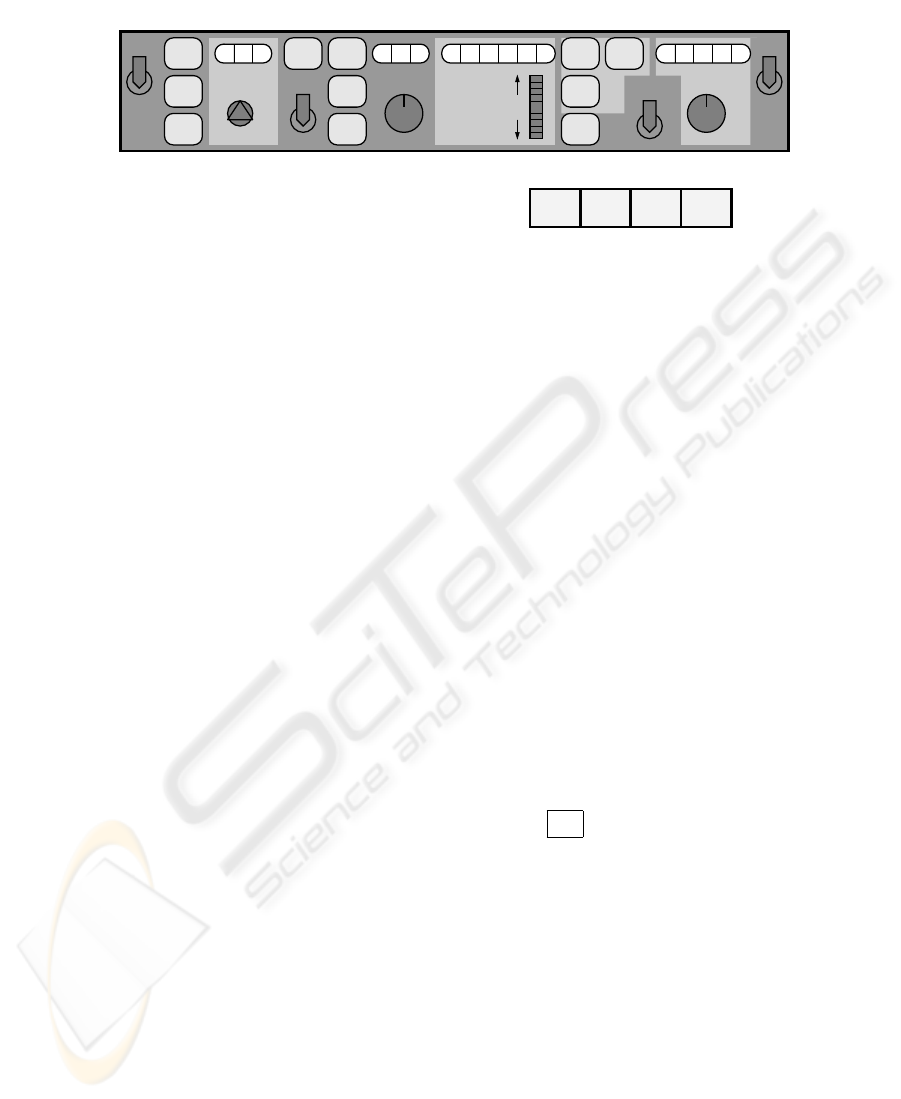

Fig.2. The Mode Control Panel (adapted from [15])

With the tool it becomes possible to perform an exhaustive search over an interactor

model’s behaviour in order to establish that certain properties hold (for example: usabil-

ity principles, access control rules and timing properties — which can all be formulated

in terms of safety or liveness properties [11, chapter 5], [12], [13]). From traces that are

generated by the model checker, the user behaviour can be extracted and interpreted.

A number of case studies have been carried out in order to access the validity of

the approach and the tool. In [14] the user interface of ECOM, an Audio-Visual Com-

munication System, is analysed. It is demonstrated how the integration of two different

mechanisms for the control of accessibilities in the system creates an user interface that

is difﬁcult to use.

In [9] the Mode Control Panel (MCP) of the MD-88 aircraft (see Figure 2) is anal-

ysed with respect to its predictability. More speciﬁcally, it was decided to analyse the

task of setting and acquiring a target altitude. Figure 3 shows an extract of the interactor

model developed for this purpose. The model covers the lighter coloured areas in Figure

2. It resorts to two auxiliary interactors: plane and dial. Interactor plane is used

to model the relevant physical features of the aircraft (altitude, velocity and climb rate).

Interactor dial is used to model the several dials and knobs present at the interface.

Other relevant features such as the pitch mode and the state of the altitude capture are

modelled as attributes. Actions are deﬁned for each event that can take place at the user

interface (both by user initiative - those annotated with

vis

— or by system initiative).

Finally, axioms are used to model the behaviour of the system. It is not the purpose here

to present a complete account of the case study (see [9] for further details). It sufﬁces

to say that the ﬁrst axiom deﬁnes the effect of changing the climb rate on the system,

the second the effect of the enterAC action (arming the altitude capture), the third and

fourth axioms set permission and obligation conditions on this last action, and the ﬁfth

axiom presented expresses an invariant over the state of the model. The complete model

has sixteen axioms.

In [9] the analysis was concerned with the capability of the system to acquire the

target altitude in response to the user setting the altitude capture mode. Note that the

system is analysed from the perspective of its interaction with the user. The model does

not try to express how the system is implemented. Rather, as with more traditional

interactor MCP

includes

aircraft via plane

dial(ClimbRate) via crDial

dial(Velocity) via asDial

dial(Altitude) via ALTDial

attributes

vis

pitchMode: PitchModes

vis

ALT: boolean

actions

vis

enterVS, enterIAS, enterAH, toggleALT

enterAC

axioms

[crDial.set(t)] pitchMode

=VERT

SPD ∧ ALT

=ALT

[enterAC] pitchMode

=ALT

CAP ∧ ¬ALT

per(enterAC) → (ALT ∧ |ALTDial.needle - plane.altitude|≤2)

(ALT ∧ |ALTDial.needle - plane.altitude|≤2) → obl(enterAC)

pitchMode=VERT

SPD → plane.climbRate=crDial.needle

...

Fig.3. Extract from the MCP model

discount usability evaluation methods, it captures what information and behaviour it

presents to users. A ﬁrst attempt at expressing the desired property in CTL was:

AG((plane.altitude < ALTDial.needle & ALT) ->

AF(pitchMode=ALT_HLD & plane.altitude=ALTDial.needle))

This reads: it always (AG) happens that if the plane is below the altitude set on the MCP

and the altitude capture is on then (AF) the altitude will always be reached and the pitch

mode be changed to altitude hold.

This model was translated into SMV using the i2smv tool, after checking a trace

was produced showing that the property did not hold. This trace identiﬁed a user be-

haviour that would lead the aircraft to abandon the altitude capture mode (for example,

by explicitly changing the pitch). Since the particular situation where the pilot would

want the target altitude to be acquired was of interest it was decided to redeﬁne the

property so that those behaviours would not be reported:

AG((plane.altitude < ALTDial.needle & ALT) ->

AF((pitchMode=ALT_HLD & plane.altitude=ALTDial.needle)

| (plane.climbRate = -1))

The attempt to check the property still failed, and the resulting trace highlighted a situ-

ation where an implicit mode change in the state of the system could create an altitude

bust incident (the aircraft climbing above the intended altitude). In short, there is a in-

termediate mode (used for smooth transition between altitude capture and altitude hold)

where the altitude capture is no longer armed and the plane is still acquiring the target

c) constrained

input space

b) prescribed user

behaviour (task)

only

"plausible"

behaviours

are explored

a) unconstrained

input space

all behaviours

are explored

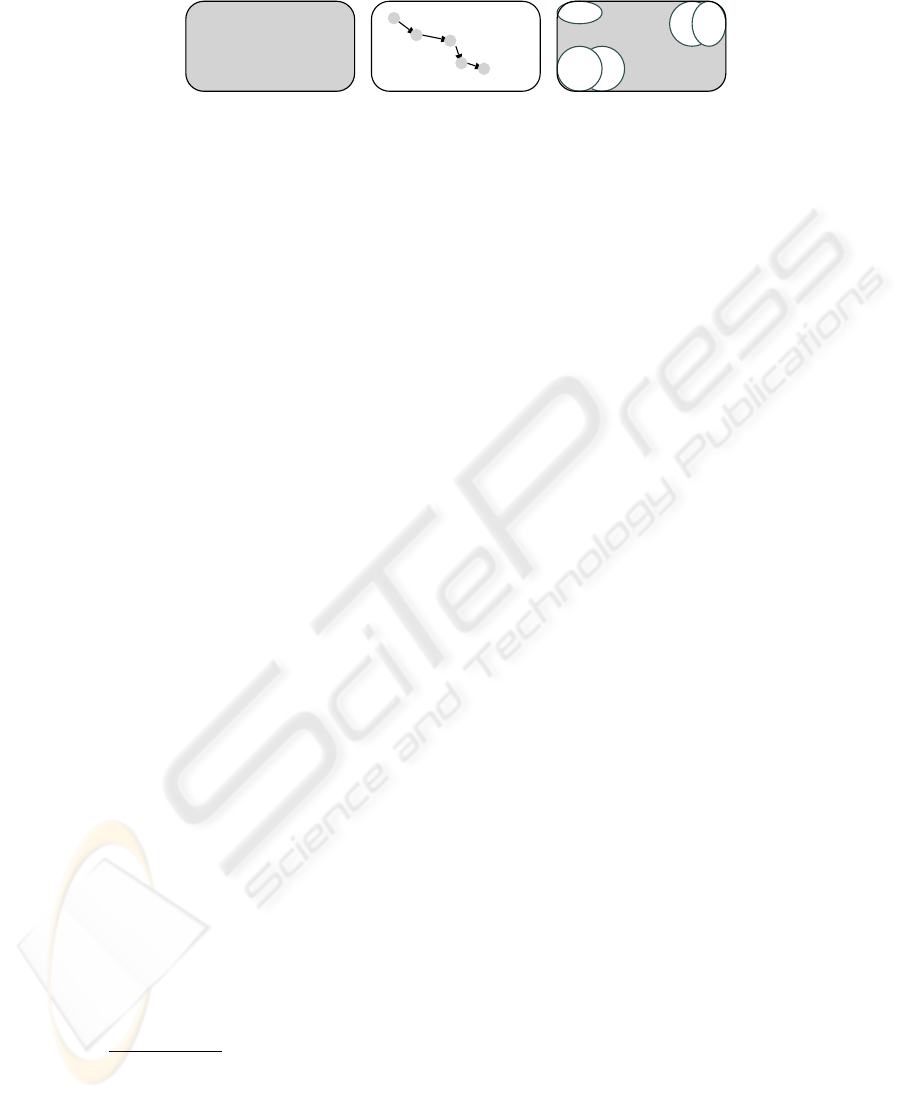

Fig.4. Illustration of the input spaces that are explored in different analysis strategies.

altitude. Actions by the pilot during this period can cause the plane to miss the target

altitude.

In an additional case study [16], the user interface of a simple mobile phone was

analysed and usability problems were found, that relate to the interference of the pro-

cessing of phone calls with the processing of SMS (Short Message System)

messages.

6 Context

An important role of the dialogue between the software engineer and the human factors

or domain expert is to impose rules or constraints to further limit the possible counter-

examples so that “interesting” traces can be discovered. In the case of the MCP model

this constraint was achieved both by introducing a further model (see [9]) of the physical

environment (in this case notions of altitude) and by adding properties to the initial CTL

property to further constrain the possible circumstances of interest.

In typical analysis methods for interactive systems it is either assumed that the pos-

sible behaviour, as reﬂected in typical use of the device, is limited to those represented

by a task — a description of what the user will do — or, alternatively, the device is

explored by investigating all possible behaviours limited only by the physical device

constraints. The approach described provides the additional opportunity to identify a

representation of environmental or behavioural constraints that can be used to analyse

sets of plausible behaviours and thereby provide opportunity to explore unexpected be-

haviours such as might occur through work arounds.

In other related work [11], model checking techniques were applied to analyse mod-

els of interactive systems, using the behaviour of the device under design, as well as

the detailed behaviour of relevant environmental components. User models were either

omitted, to achieve an exhaustive exploration of the space of user inputs; or the user

was described by a normative task speciﬁcation if the system was to be analysed with a

particular way of performing a user task in mind [13].

Three possibilities for the analysis of models of interactive systems may be appro-

priate:

1. No assumptions about the user are made at all: as a result the model checker will

explore all possible (combinations of) user inputs, see Figure 4a. The advantage

SMS is a service for sending text messages to GSM (Global System for Mobile communica-

tion) mobile phones, which has become very popular in Europe.

Ivy tool suite

Property Editor

Model Editor

XtrmSwing i2smv compiler

Reply Visualizer

Java/Swing code SMV

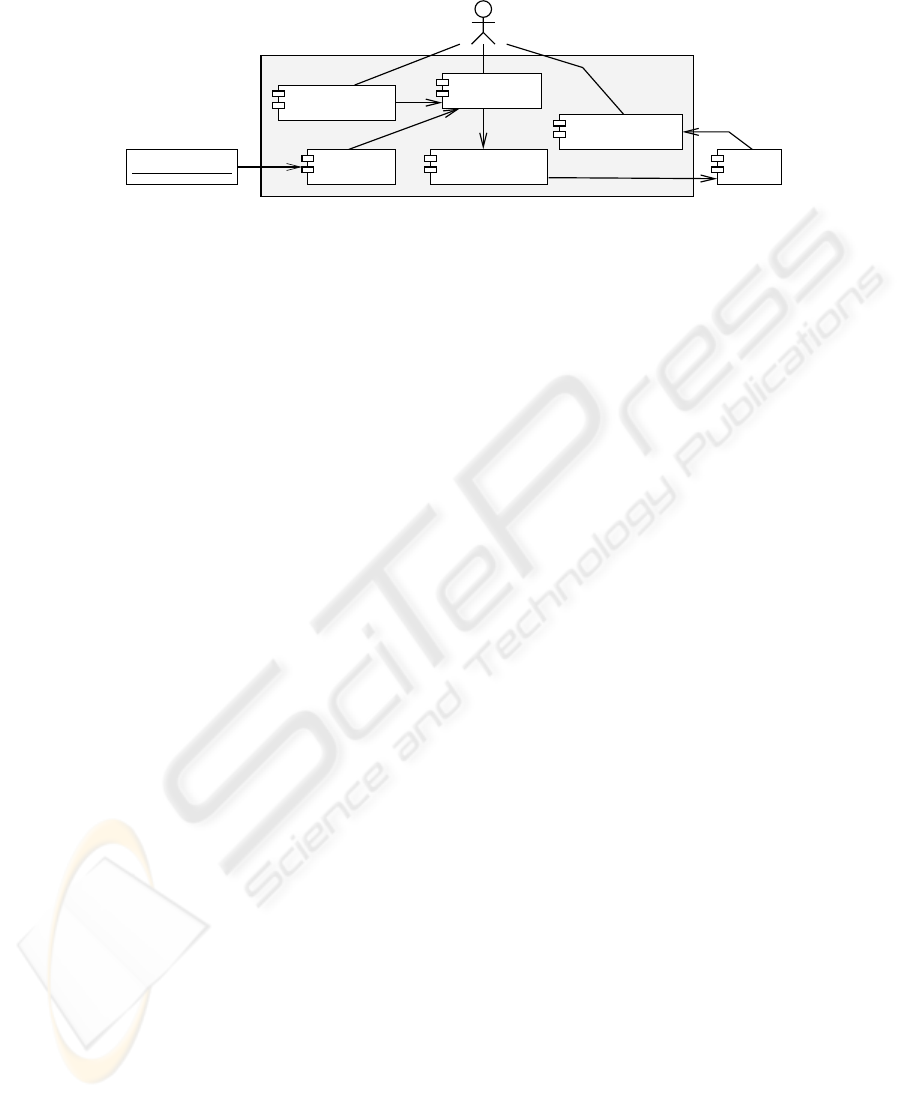

Fig.5. IVY architecture

of this approach is that behaviours are considered that were not anticipated by the

designer.

2. An instance of a particular user behaviour is modelled explicitly (see Figure 4b).

This behaviour may be derived from a task description. The aim here is to focus on

all possible responses of a device to a given user behaviour. The disadvantage of this

approach is that it is not very ﬂexible. It is hard to capture “similar” behaviours; for

example, behaviour where the user performs additional actions that are not relevant

for a given goal.

3. A set of general assumptions are made by the designer about the behaviour of

under-speciﬁed components. Such assumptions can be interpreted as constraints.

They “impose structure, restriction[s], or limitation[s]” on the model, and thereby

force the model checker to explore only a sub-set of the input space during the

analysis (see Figure 4c).

The advantage of this approach is that it is not necessary to engage in detailed

modelling of user behaviour and user tasks, as such an approach would have at least

two disadvantages. While user task models help focus the analysis of interactive system

behaviour in relation to a particular task, the restrictive view they provide of the user

and the world might rule out desirable design alternatives [17]. A second disadvantage,

the description of complex decisions (for example, as might be required in dynamic

function scheduling [18]) requires the development of complex user models. In the

context of the model checking analysis, the addition of user models contributes to the

state explosion problem.

7 Future Work

At this moment i2smv is a working prototype. It enabled the analysis of models during

the case studies, but it does not yet adequately support the analysis process. In order to

provide support, a tool is needed that can be used throughout the process, from mod-

elling to interpretation of results. We are developing a tool suite with that purpose in

mind. The architecture of the proposed tool suite is presented in Figure 5. In order for

a tool to be effective it must support the different activities identiﬁed in section 4. The

base architecture consists of a models’ editor, the i2smv compiler, and a trace visualiser

tool.

In order for this style of approach to be viable, it must itself be usable. Two of

the most problematic aspects are building the models and expressing the properties. To

address these issues we are considering two lines of work: developing a properties editor

module, and performing reverse engineering of the user interface code. The properties

editor module follows the ideas from [11]. Its main responsibility is to help the software

engineer in expressing properties of the model. Regarding reverse engineering, we have

started exploring the derivation of interactor models from Java/Swing code.

Traditional model based usability analysis techniques typically resort to some sort

of graphical description of user interfaces. This can create problems when analysing

software that resort to other presentation modalities other than graphical ones. For ex-

ample, software for visually impaired users. More abstract modelling notations such as

interactors can be of advantage since they move away from concrete details of the actual

presentation. This is an area to be explore by using the approach during the development

of a browser for visually impaired users.

8 Conclusions

In this paper it has been argued that a closer integration of usability issues into the soft-

ware development life cycle would be a positive contribution to effective user interface

design. Studies have shown that for large software development projects current soft-

ware engineering practices are still far from guaranteeing satisfactory solutions. Part of

the problem lies in the (lack of) design of the interaction between human and computer.

An approach for the integration of usability analysis into software development has

been presented based on software model checking. The approach, based on analysing

what systems should be implemented, differs from approaches such as [19, 20] where

the goal is to analyse how the systems should be implemented. There are other ap-

proaches to the model checking of interactive system models, see section 6 in [9] for an

overview. One of the main differences between those approaches and this work relates

to the role properties play in veriﬁcation. In all of the other approaches properties are

seen as expressing some fact about the system which, if veriﬁed, should guarantee the

system to be usable. Properties are typically statically determined, not for negotiation,

whereas here properties capture potential properties of the user in the context of the sys-

tem. The traces that are generated can be used to elicit scenarios representing examples

of usage which thereby aid the development of modiﬁcations to the property or indeed

new properties.

A prototype to support model checking based analysis of interactive systems in the

context of the approach has also been presented. Case studies have been carried out that

indicate the approach can be useful at early design stages to identify potential usability

problems. The development of a tool suite to support the proposed approach which is

based around the prototype has begun. Other directions for future work have also been

put forward.

References

1. Preece, J., et al.: Human-Computer Interaction. Addison-Wesley (1994)

2. Hollnagel, E.: Human reliability analysis: context and control. Academic Press, London

(1993)

3. Leveson, N.: Safeware: System Safety and Computers. Addison-Wesley Publishing Com-

pany, Inc. (1995)

4. Nielsen, J.: Usability Engineering. Academic Press, Inc (1993)

5. Lewis, C., Polson, P., Wharton, C., Rieman, J.: Testing a walkthrough methodology for

theory-based design of walk-up-and-use interfaces. In: CHI ’90 Proceedings, New York,

ACM Press (1990) 235–242

6. Duke, D.J., Harrison, M.D.: Abstract interaction objects. Computer Graphics Forum 12

(1993) 25–36

7. Ryan, M., Fiadeiro, J., Maibaum, T.: Sharing actions and attributes in modal action logic. In

Ito, T., Meyer, A.R., eds.: Theoretical Aspects of Computer Software. Volume 526 of Lecture

Notes in Computer Science. Springer-Verlag (1991) 569–593

8. Clarke, E.M., Emerson, E.A., Sistla, A.P.: Automatic veriﬁcation of ﬁnite-state concurrent

systems using temporal logic speciﬁcations. ACM Transactions on Programming Languages

and Systems 8 (1986) 244–263

9. Campos, J.C., Harrison, M.D.: Model checking interactor speciﬁcations. Automated Soft-

ware Engineering 8 (2001) 275–310

10. McMillan, K.L.: Symbolic Model Checking. Kluwer Academic Publishers (1993)

11. Loer, K.: Model-based Automated Analysis for Dependable Interactive Systems. PhD thesis,

Department of Computer Science, University of York (2003)

12. Schaad, A.: A Framework for Organisational Control Principles. PhD thesis, Department of

Computer Science, The University of York, UK (2003)

13. Loer, K., Harrison, M.: Towards usable and relevant model checking techniques for the

analysis of dependable interactive systems. In Emmerich, W., Wile, D., eds.: Proceedings of

Automated Systems Engineering: ASE’02, IEEE Press (2002)

14. Campos, J.C., Harrison, M.D.: Using automated reasoning in the design of an audio-visual

communication system. In Duke, D.J., Puerta, A., eds.: Design, Speciﬁcation and Veriﬁca-

tion of Interactive Systems ’99. Springer Computer Science. Springer-Verlag/Wien (1999)

167–188

15. Honeywell Inc.: SAS MD-80: Flight Management System Guide. Honeywell Inc., Sperry

Commercial Flight Systems Group, Air Transport Systems Division, P.O. Box 21111,

Phoenix, Arizona 85036, USA. (1988) Pub. No. C28-3642-22-01.

16. Campos, J.C.: Using task knowledge to guide interactor speciﬁcations analysis. In Jorge,

J.A., Nunes, N.J., e Cunha, J.F., eds.: Interactive Systems. Volume 2844 of Lecture Notes in

Computer Science., Springer (2003) 171–186

17. Vicente, K.: Cognitive Work Analysis. Lawrence Erlbaum Associates (1999)

18. Hildebrandt, M., Harrison, M.: The temporal dimension of dynamic function allocation.

In S. Bagnara, S. Pozzi, A.R., Wright, P., eds.: 11th European Conference on Cognitive Er-

gonomics (ECCE 11), Istituto di Scienze e Tecnologie della Cognizione Consiglio Nazionale

delle Ricerche (2002) 283–292

19. Havelund, K., Pressburger, T.: Model checking java programs using java pathﬁnder. Inter-

national Journal on Software Tools for Technology Transfer 2 (2000) 366–381

20. Holzmann, G.J., Smith, M.H.: Automating software feature veriﬁcation. Bell Labs Technical

Journal 5 (2000) 72–87
