Secure Communications in Multi-Agent Systems

Protecting KQML

Sierra J. M., Hernández J.C., Izquierdo A. and Ribagorda A.

IT security Group. University Carlos III of Madrid. Spain

Abstract. When multiagent systems use insecure networks their

communications must be protected in the same way that any other applications

that run over this type of channels. There is no doubt that multiagent systems

expansion will be joined to the Internet technology, and for that reason our

work tries to protect agents communications by a new security architecture and

an extension of the KQML. Our security architecture has been designed to be

installed over the RETSINA framework, which was specifically designed for an

open system, such is the Internet. The core of our proposal is a SEcurity

SubAgent Module, called SESAMO, which was expressly designed to easily

interact with the RETSINA components. The protection is based a public key

infrastructure that, in addition to an extension of KQML, will supply

authentication, non-repudiation, integrity and confidentiality services to agent

communications.

1 Introduction

KQML, Knowledge Query and Manipulation Language, permits autonomous and

asynchronous agents share their knowledge and work cooperatively for solving

problems. The possibilities of Multi-Agent Systems (MAS) increase considerably if

they use the Internet. But it is necessary to adapt the KQML to this open environment,

supplying to the agents security services such are confidentiality, integrity,

authentication and non-repudiation.

First aim of this security architecture is to effortlessly coexist with other

multiagent systems. Our proposal is designed to work over the RETSINA framework.

The core of our architecture is the SESAMO module (SEcure SubAgent MOdule).

This module supplies cryptographic capabilities to RETSINA Task Agents,

permitting them to establish secure communications with others. The SESAMO

module can be installed into a Host Agent or also allows that several agents (agents

connected by a private network or installed into the same machine) to share a single

SESAMO, we called that option Shared SESAMO. We also describe some other

functions that can be developed by SESAMO because its design can be used as a

communications security gateway between groups of agents.

Agents that want to interact directly with their parties can bypass our

architecture. A common situation could be that Task Agents just use the SESAMO

when the remote agent is asking for a secure connection, or when they want to

establish this type of connections with others. In the rest of situations they will

J. M. S., J.C. H., A. I. and A. R. (2004).

Secure Communications in Multi-Agent Systems Protecting KQML.

In Proceedings of the 2nd International Workshop on Security in Information Systems, pages 305-313

DOI: 10.5220/0002684803050313

 SciTePress

communicate openly with KQML. The SESAMO modules will communicate using a

security extension of KQML that we have designed. This extension is called KQML-

SE and is composed by three new performatives:

1. Cryptographic Capabilities Negotiation.

2. Both Parties Authentication messages.

3. Encapsulated KQML messages.

Our scheme is based on public key cryptography, and obviously this

environment needs the existence of a Public Key Infrastructure. This PKI will be used

for the authentication of agents and hence the architecture security relies on it. We

have designed another extension of KQML that provides the performatives needed for

the creation, renewal and cancellation of certificates, and also for the maintenance of

Certificate Revocation Lists (usually noted as CRL’s). All these topics will not be

treated in this paper because we would need some more extra space to describe its

behaviour and management. However, we are aware about the essential role that PKI

plays in our architecture.

2 Security Architecture

When we start this work we tried to develop architecture easy to place in a

Multi-Agent System. This architecture should introduce the minimum number of

changes, enabling an agent to integrate security services with no modifications on its

basic architecture. In this paper we concentrate our work in the well-know

architecture called RETSINA. In our proposal each agent (from now on, Host Agent)

has another sub-agent associated, called SESAMO (SEcurity Sub-Agent MOdule).

SESAMO module is in charge of dealing with all the KQML messages sent or

received by the Host Agent.

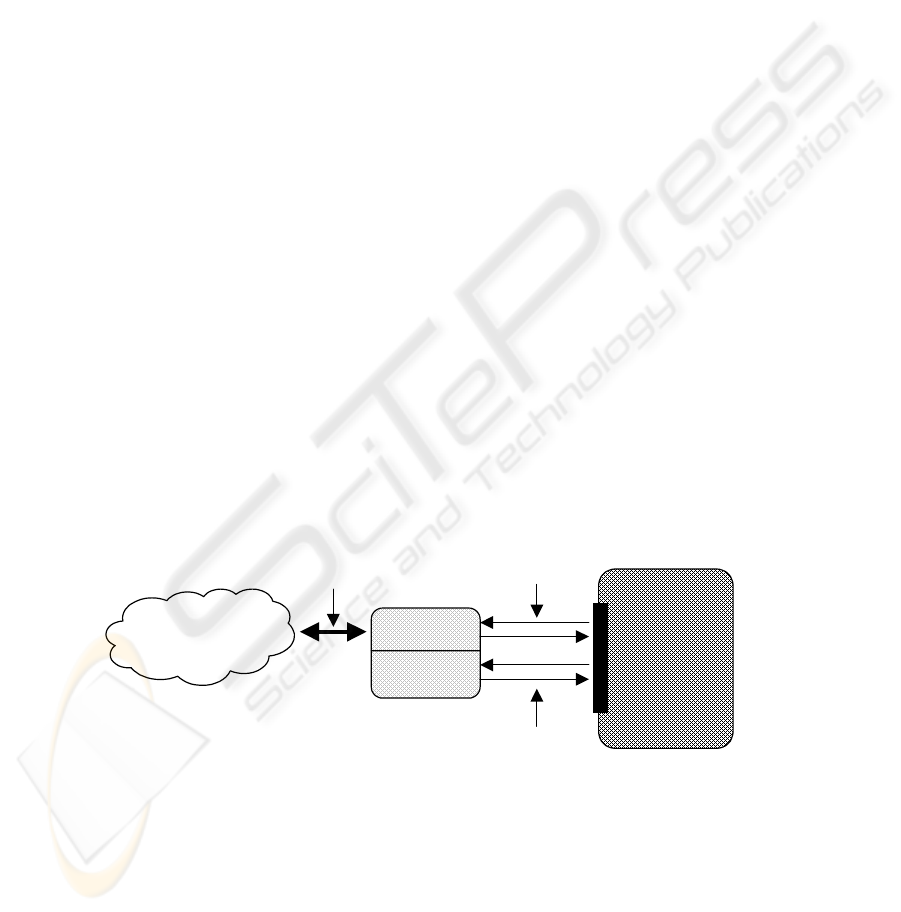

Fig. 1. : KQML-SE architecture based on the SESAMO

The SESAMO only manages performatives defined by our new ontology

PKCertificate. SESAMO has implemented all the cryptographic capabilities that the

Host Agent does not have; in this way the SESAMO will provide all the required

Host Agent

Security

Management

Connection

Management

Interne

SESAMO

Connection type

configuration

KQML

messages

KQML-SE

Messages

306

security services (authentication, non-repudiation, confidentiality and integrity). On

the other hand the agent will be working with no change, security services will be

applied by the SESAMO transparently to the Host Agent. The Host Agent only must

indicate to the SESAMO which messages will need protection.

The SESAMO will be divided into two parts, Security Management part, which

will be in charge of protecting the KQML messages exchanged between the Host

Agent and the other agent. And the second part, Connection Management, which will

be use by the Host Agent to specify to the SESAMO the connection features. The

Host Agent must indicate to the SESAMO what to do in case that other remote agent

does not have his own SESAMO. For example a Host Agent could block any message

that is not authenticated, in this case the SESAMO will be protecting his agent from

non-authenticated communications just keeping away from messages that does not

contains the PKCertificate ontology. The SESAMO could filter communications, for

example rejecting messages with certain source address, size, etc..

Another functionality that can be included into the SESAMO is a Connection

Features Database. Into this database will be stored the connection features of a pair

of agents (the Host Agent and the remote Agent). Using this database will be skipped

the main work of the Connection Management part of the SESAMO. This database

will be particularly useful when a Shared SESAMO is used (see Sharing a SESAMO

Agent section)

An important advantage of our design is that the communication is possible in any

case. If one of the parties does not have a SESAMO module, the other SESAMO can

bypass the common KQML messages (without the PKCertificate ontology) and

permits to establish the communication.

Table 1. : Optional functionalities of SESAMO module

Function Type

Encapsulating (KQML ↔ KQML PKCertificate).

Obligatory

Strong Authentication of both agents Obligatory

Digital signature of KQML messages Obligatory

Shared SESAMO Optional

KQML messages filtering Optional

Connection features Database Optional

3 KQML Security Extension. KQML-SE

The KQML security extension consists on four new performatives. These

performatives will be used in three steps. The first one is the negotiation of the

Cryptographic capabilities. The new performative designed is negotiation, which

enables to negotiate: Certification Authorities, Digital Signature Algorithm, Cipher

Algorithm and Digest Algorithm.

Once agents know the cryptographic capabilities one each other, it begins the

second step where is accomplished the authentication of the parties and the

establishment of a shared secret key (this key will be based on information supplied

307

by both parties). The performatives that support this second step are Auth-link and

Auth-challenge.

Finally, once the parties are properly authenticated and a ciphering key is

established, it is possible to set up a secure channel. The performative is called

Auth-private.

Next subsection describes the new parameters involved.

3.1 New parameters

3.1.1 :certificateCA(<Certification Authority 1><Certification Authority

2>,...)

Where the argument <Certification Authority X> is the identification associated to

one Certification authority (Thawte, VeriSign). This parameter is an enumeration of

the different certification authorities supported by the agent. It is a parameter of the

Negotiation performative.

3.1.2 :certificate (<Certification Authority><the certificate>)

The second argument is the certificate, which is a public key signed by a certification

authority (indicated in the first argument).

3.1.3 :connection-id (<NONCE_X><NONCE_Y >)

This parameter is used in the Auth-private performative and identifies a previous

negotiation.

3.1.4 :auth-key(<boole><key-type><SEED>)

First argument is a Boolean value. If this value is TRUE the session key must be

changed. The new key to use will be the result of a hash function calculated over the

concatenation of SEED, NONCE_X and NONCE_Y (the resulting digest could need

to be adapted to the encryption algorithm key size. This operation is done to ensure

that the new key depends from both parties.

If the first argument is FALSE, next arguments will be ignored because the agent is

signifying that, for the moment, the session key is valid. Any party of the

communication could indicate a key change when it considers appropriate. This

parameter is included into Auth-private and Auth-challenge performatives.

3.1.5 :signature(<<Key_ID><information signed>)

The second argument represents certain information digitally signed by the agent. The

first argument identifies the public key that must be used to check the signature. It is

included into Auth-link, Auth-challenge and Auth-private performatives and provides

Authentication and Non-Repudiation of the messages.

308

3.1.6 :algSecretKey (<alg1><alg2>...<algN>)

It indicates the different symmetric cipher algorithms supported by the agent that

sends this parameter into a Negotiation performative. Also it is used in Auth-link

performative, in this case an agent is indicating to its party the selection of certain

algorithm.

3.1.7 :algSignType (<alg1><alg2>...<algN>)

This parameter indicates the different digital signature algorithms supported by the

agent that sends the message. Can be used into a Negotiation performative and in

Auth-link performative but in this case it is signifying the selected algorithm

3.1.8 :algDigestType (<alg1><alg2>...<algN>)

This parameter indicates the different digest algorithms supported by the agent that

sends the message. Can be used into a Negotiation performative and also it can

appears in a Auth-link performative but in this case just with the algorithm selected

3.1.9 :mySESAMO (<SESAMO_ID><protocol><address>)

It is used into the Negotiation performative and indicates what SESAMO agent is

being used for protecting messages.

3.2 New Performatives

Into this section we will present the new performatives defined into KQML-SE.

Those performatives should be added to those included into RETSINA.

Table 2. New performatives for KQML-SE

Performatives Meaning

Auth-link Request of secure communication

Auth-challenge Acknowledge for Auth-link request

Negotiation Cryptographic capabilities negotiation

Auth-private KQML messages ciphered and encapsulated

In the following lines we describe the content of all these new performatives:

Name: Negotiation.

Description: Cryptographic capabilities negotiation between two SESAMO’s

Additional paramenters:

:mySESAMO (Only has to be used when a Shared SESAMO is used)

Ontology: PKCertificate

KQML Description:

Negotiation:

: sender <A>

: receiver <B>

309

: certificateCA<VeriSign><Thawte><Internal Domain >.....>

: mySESAMO <<X<tcpip><X@domain.com>>

: algDigestType<<MD5><MD4><SHA>...>

: algSecretKey<<DES><RC2>...>

: algSignType<<RSA><DSA>>

: ontology <PKCertificate>

Name: Auth-link

Description: Solicitud de comunicación segura.

Optional parameters:

:peer-address, only used when a shared SESAMO is used.

:algDigestType, list of digest algorithms supported.

:algSecretKey, list of symmetric algorithms supported.

Ontology: PKCertificate

KQML Description:

Auth-link

:sender <A>

:receiver<B>

:reply-with<expresion>

:algDigestTypeType<MD5>

:algSecretKey<DES>

:algSignType<RSA>

:certificate <<VeriSign><Certificate_A>>

:signature<<A_KEY> <Signature of (NONCE_A & A & B )>>

:content: <NONCE_A>

Name: Auth-challenge

Description: Acknowledge for Auth-link request

Ontology: PKCertificate

KQML Description:

Auth-challenge:

:sender <B>

:receiver<A>

:in-reply-to<expresion1>

:reply-with<expresion2>

:certificate <<VeriSign><CertificateB>>>

:auth-key<<T><DES><SEED ciphered by the public key of A>>

:signature<<KEY_B><Signature of (NONCE_A & NONCE_B &

SESSION_KEY)>>

:content: <NONCE_B>

Name: Auth-private

Description: KQML message ciphered and encapsulated.

Ontology: PKCertificate

KQML description:

310

Auth-private:

:sender <A>

:receiver<B>

:in-reply-to<expresion1>

:reply-with<expresion2>

:connection-id<<NONCE_A><NONCE_B>>

:auth-key< <FALSE> <><> >

:signature<<A_KEY><Signature of(KQML message)>>

:content <KQML message ciphered with SESSION_KEY1>

4 Sharing a SESAMO Agent

The SESAMO module can be shared among more than one Host Agent. In this way

all the KQML-SE messages must be sent to the SESAMO and the rest of non-

protected KQML messages can be sent by each agent itself. The advantages of this

approach are very interesting, because using a shared SESAMO the agents can be

working with KQML in the same way that they are already working. And, in case

they need a protected communication with other agent, they will use the SESAMO for

establishing a secure channel.

The SESAMO needs to implement extra software for the management of several

connections at the same time. This software will be able of storing the connection

features of every agent into the commented Connection Features Database. The

shared SESAMO is a distributed scheme. In this way any agent with authorization can

use a shared SESAMO. However this system has been designed for being used in a

community of agents connected by a private network (or agents that are running into

the same machine). The utilization of Shared SESAMO through insecure networks

needs additional protections that probably imply an excessive cost and more

complicated management.

SESSION_KEY is the digest of NONCE_A, NONCE_B AND SEED. The digest funcition

used is the agreed in the negotiation process.

311

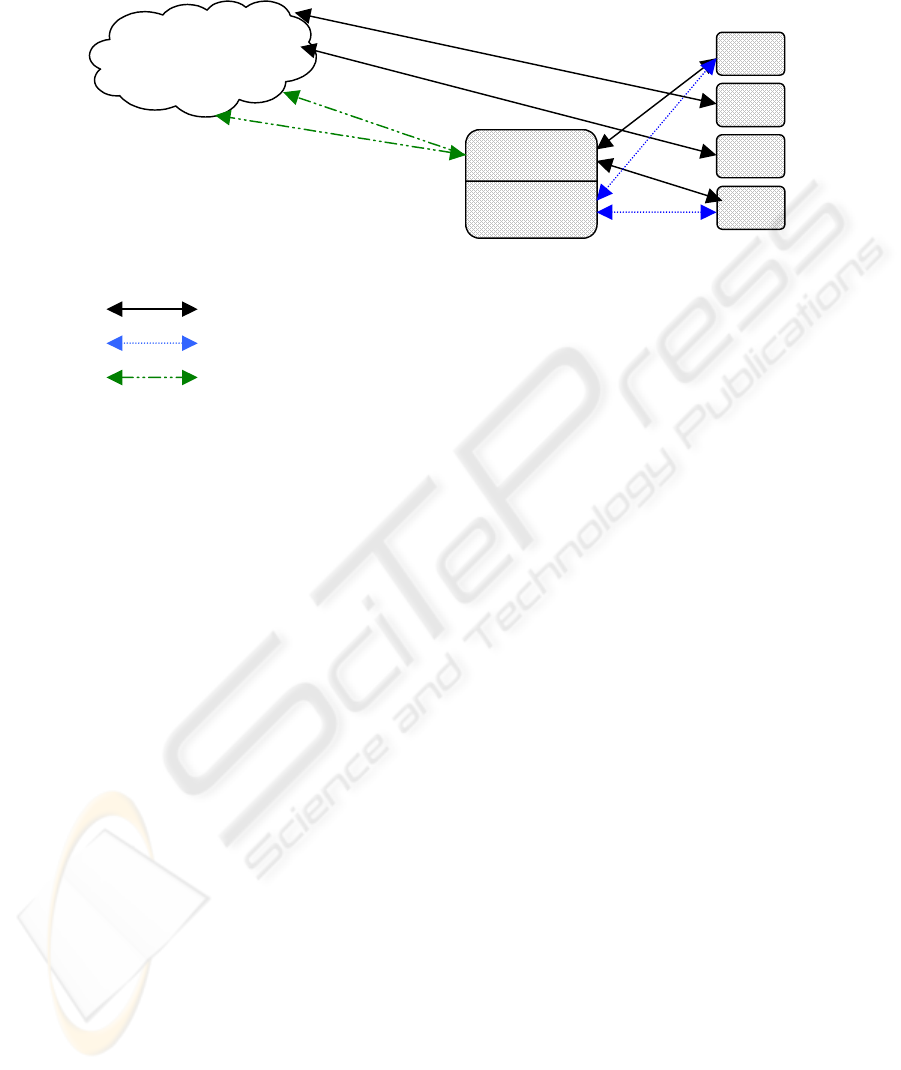

Fig. 2. KQML-SE architecture based on a Shared SESAMO

5 Conclusions

The expansion of the Internet has important implications for the MultiAgent Systems.

However the Internet features must be taken into account because all of them will be

inherit by the applications that run over it. With this document we tried to outline the

security architecture for protecting KQML communications. We are aware that the

implementation of our proposal is not completely described here, but this topic is

already open in our research group and we will report new contributions.

KQML-SE and SESAMO are part of a complete system with the objective of

providing secure communications. Foundations of this system are the public key

cryptography and the implementation of a Public Key Infrastructure. We have

developed an architecture for the management of PKI in a multiagent system, we have

called this module SPA –Security Proxy Agent-. Our work is based on the

contributions of Sycara about Security Agents.

Further research on this topic can be associated to the utilization of IPsec

framework for the communication of the agents (the new IP Security Protocol that

supplies authentication, integrity and confidentiality of IP packets). In this way the

SESAMO module can be substituted by an IPv6 implementation on the agents.

However, if we use IP security, it does not replace the task of the mentioned SPA

module. The combination of the SPA and IPsec protocol will be a next step for our

future research works.

Connection confi

uratio

KQML messa

KQML-SE messages

Security

Management

Connection

Management

Internet

Shared

SESAMO

Agent

312

6 References

[1] W. Timothy Polk, Donna F. Dodson, etc, Public Key Infrastructure: From Theory to

Implementation, http://csrc.ncsl.nist.gov/pki/panel/overview.html, NIST

[2] Tim Finin, Yannis Labrou, and James Mayfield, KQML as an agent communicatíon

language, in Jeff Bradshaw (Ed.), "Software Agents", MIT Press, Cambridge (1997).

[3] Carl M. Ellison, Bill Frantz, Butler Lampson, Ron Rivest, Brian M. Thomas, Tatu Ylonen,

Simple Public Key Certificate, http://www.clark.net/pub/cme/spki.txt

[4] Ronald L. Rivest, Butler Lampson, SDSI - A Simple Distributed Security Infrastructu,re,

http://theory.lcs.mit.edu/ cis/sdsi.html

[5] Bruce Schneier,Applied Cryptography, Second Edition, John Wiley and Sons, Inc., 1996.

[6] Matt Blaze, Joan Feigenbaum, Jack Lacy, Decentralized Trust management, In Proceedings

1996 IEEE Symposium on Security and Privacy, May, 1996.

[7] Sycara, K., Decker, K, Pannu, A., Williamson, M and Zeng, D., Distributed Intelligent

Agents. IEEE Expert, pp.36-45, December 1996.

[8] Tim Finin, James Mayfield, Chelliah Thirunavukkarasu, Secret Agents - A Security

Architecture for the KAML Agent Communication Language, CIKM'95 Intelligent

Information Agents Workshop, Baltimore, December 1995.

[9] Qi He, Katia P.Sycara. Personal Security Agent: KQML-Based PKI. October 1997.

313
