Ancient Document Recognition Using Fuzzy Methods

Cláudia S. Ribeiro, João M. Gil, João R. Caldas Pinto, João M. Sousa

Technical University of Lisbon, Instituto Superior Técnico, GCAR

Av. Rovisco Pais, 1049-001 Lisboa Portugal

Abstract. This p

aper proposes an optical character recognition system based on

fuzzy logic for 17th century printed documents. The process consists of two

stages: training with collected character image examples and new character

image classification. Training builds fuzzy membership functions from aligned

oriented features extracted using Gabor filters. These are used in classification

to select a most likely character group for new data. A post-processing stage

with a proposed modified Levenshtein word distance metric further improves

results. A success rate of 88% is achieved on a significant test set.

1 Introduction

Optical character recognition (OCR) is a practical application of state-of-the-art

image processing and pattern recognition developments. Current communication

facilities could allow broad distribution of vast libraries of books, newspapers,

magazines and all kinds of printed media, if quality, cost-effective OCR procedures

are available for mass digitizing. While modern printed text can be recognized very

accurately with commercially available software, performing OCR on material such

as gothic fonts, ancient typesets and handwriting is noticeably less successful.

This paper proposes a character recognition system specifically tailored to ancient

ocuments (17th century) and corresponding typesets based on a handwriting OCR

system using fuzzy logic [1]. The use of fuzzy classification [2] improves results by

providing larger tolerance for unstable typesetting and printing technologies. The

original modifications introduced to [1] are reported and explained along the article.

A modified probabilistic Levenshtein word distance metric is also proposed, coupled

with a post-processing system that is able to correct both character recognition and

word segmentation.

Unlike the original holistic system, recognition is performed from an analytic

perspective, i.e.,

by taking each character separately. The recognition procedure

works in two steps. The first step, training, considers sets of character images, known

as character groups, and combines their dominant graphical features. These are then

used to build fuzzy membership functions that, in a sense, describe the visual

attributes of every character group. For the second step, classification, a new character

image is compared to the training results. The closest match, dictated by a fuzzy

decision maker, is returned as the most likely classification. The final post-processing

S. Ribeiro C., M. Gil J., R. Caldas Pinto J. and M. Sousa J. (2004).

Ancient Document Recognition Using Fuzzy Methods.

In Proceedings of the 4th International Workshop on Pattern Recognition in Information Systems, pages 98-107

DOI: 10.5220/0002685600980107

 SciTePress

stage, based on spell checking, word distance metrics and probabilistic error

information, is able to increase recognition success further, by selecting character

corrections and improving word segmentation.

2 System Overview

This section intends to give an introduction to the general functioning of the

developed application. Fig. 1 displays a diagram representing schematically the

organization of the developed system and the streamlined design connecting its

components. The main application relies on a commercial OCR package, ABBYY

FineReader Engine [12], in order to obtain individual character images automatically.

This package also provides methods to segment entire words, as well as its own OCR

output. This information is used to build a manually classified character database,

which is applied in the training stage to build models for every known character. The

main module is then able to assign a most likely classification to other character

images, thus performing the intended OCR on characters with high error probability.

Word segmentation information, on the other hand, is considered and improved upon

in the final post-processing step, which also takes advantage of spell checking and

probabilistic error information.

FineReader

recognition

Fuzzy

OCR

Training

Post-

processing

filters

Fig. 1. System overview diagram

The underlying system for the recognition engine is based on a handwriting OCR

system using fuzzy logic [1]. The following sections describe the original changes

applied to this system in order to build the intended analytic recognizer.

3 Training

In this section, the fuzzy recognition training process is described, highlighting

particularly the several modifications performed on the original recognizer.

The dominant features of a character consist of what is more common not to

change between typing styles, such as the long vertical stroke in the b’s and t’s, for

example. In this paper their extraction is performed through Gabor filter banks, which

allow oriented feature extraction. The Gabor filter is a typical wavelet that offers

localized operations [3]. Part of its parameters specify the Gabor wavelet direction φ

Recognized

ASCII text

Document

metadata

[3], as shown in Fig. 2, and the image region from which we intend to extract

character features. Other parameters are character dependent, which means that the

estimation has to take into account the image and the thickness of the writing [3]. For

this reason, usually, their values are selected on a trial-and-error basis. For this paper,

12 wavelet directions were considered, from 0º to 180º.

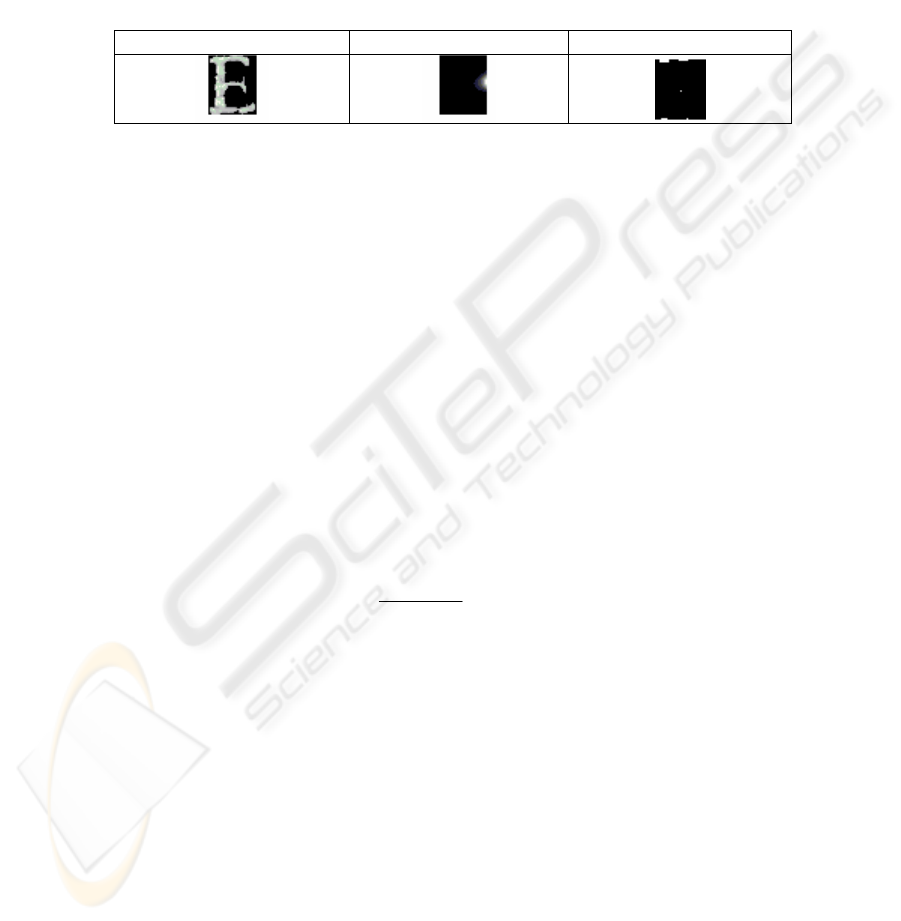

Original image Gabor filter (φ = 0º) After applying the filter

Fig. 2. Example of oriented feature extraction using Gabor filters

The filtering process is virtually identical to that in [1]. However, the original

system required a time-consuming alignment algorithm, needed to compensate for

variations in character spacing and shape and normalize word bounds. This procedure

was disabled because it can produce heavy distortion when feature match is not

effective. A single character has a smaller number of dominant features; printing

flaws, common in this context, complicate feature matching even further. Character

segmentation is also tight and accurate from the beginning.

As each training sample of the same character contains essentially the same

extracted features structure, the major structural components can be established by

adding the standardized images together, which forms the composite image for each

trained character. Character images are classified manually; ancient characters are

labeled as their present-day equivalent, therefore solving the problem of generating

standard ASCII text from these occurrences.

Unlike the original system as presented in [1], information regarding image aspect

ratios is also stored. The average aspect ratio ar

for each group j is defined as:

Iar

∑

)(

(1)

where I

j,k

is the k-th sample image for character group j, N

is the total number of

images for group j and ar(I) is the quotient between the width and the height of image

I. The ar

values are used as further assistance in the classification of new characters.

Before the classification process can take place, a set of fuzzy membership

functions is generated for each character group and each orientation based on the

extracted features of the training images. These intend to provide a description of the

image features for use within the recognition algorithm.

Membership function generation begins by thresholding the feature image. Upper

and lower thresholds H

and H

respectively are used to binarize the image [4], finding

the upper and lower boundaries for each feature. These thresholds depend on the

maximum intensity of the image and on constants c

and c

, set at 0.4 and 0.25,

respectively. These values are determined empirically [1], but a standard binarization

method [5] may also be effective. Two bounding rectangles are found around each

extracted feature [6], corresponding to each intensity threshold, as shown in Fig. 3(a).

100

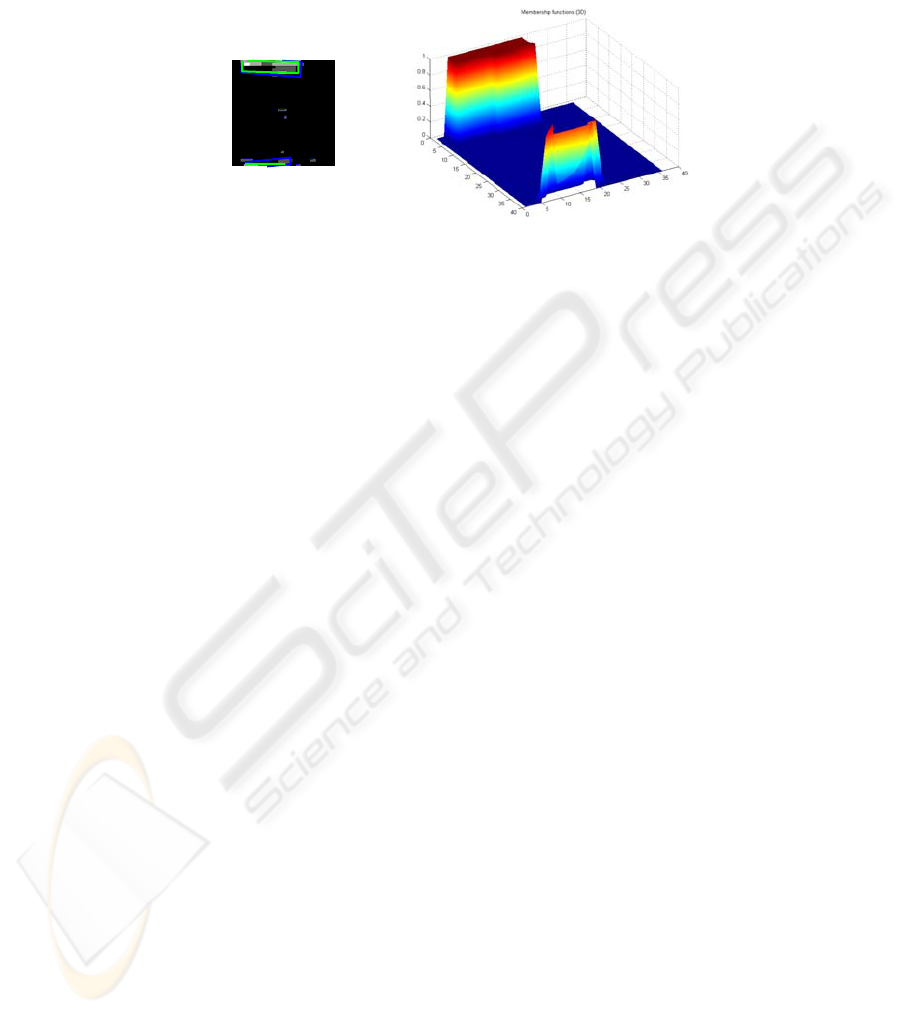

Fig. 3. (a) Bounding rectangles around extracted features; (b) Generated membership functions

Each rectangle pair is used to build a partial membership function. Its value µ(x, y)

is 1 in the inner rectangle area and zero outside the outer rectangle. The vertices of a

rectangle pair are linked based on Euclidean distance minimization. The intermediate

function values are interpolated [7], forming a twisted trapezoidal shape. To do so, the

domain is divided into 13 regions; the equations used to compute the function values

can be found in [1]. An example is graphically represented in Fig. 3(b).

The global membership function for a given orientation i, denoted as a

(x, y), is

defined as the maximum of the partial membership functions at each point, to deal

with cases in which features overlap, thus taking into account only the most relevant

feature. These maximum values are found continuously during the membership

function generation process, in order to minimize resource usage.

4 Classification

The next step in the OCR process is the classification of new characters. The input for

this stage is a character image V and the training structures. First, the image is run

through Gabor filter banks, a process already applied in the training phase. The

intensity of point (x, y) of the resulting image is denoted as V’

(x, y) for orientation i.

The objective is to compare the image features with the membership function

values. Weights w

(x, y) were assigned to each image point (x, y), for each orientation

i and each character group j, to measure its influence, related mostly to membership

function values. Similar points should be assigned a positive weight, and those that

prove dissimilarity should penalize the rating. Weights are calculated according to:

(x, y) = V’

(x, y), if a

(x, y) = 0 . (2)

(x, y) = w’

(x, y), if a

(x, y) ≠ 0 . (3)

Equation (2) assures that points where V’

is not zero, but the membership function

is, will be penalized. This happens when a feature does not match any of orientation i

for word group j. In this case, the value lowers the computed similarity rating. In [1],

a somewhat different formal notation is used, in part to account for the distinction

between the various partial membership functions. In this paper, the partial functions,

101

each corresponding to one feature, are iteratively combined, simplifying notation and

improving computational resource usage.

The rate of significance of point (x, y) in (3) is denoted by w’

(x, y). Being N

the

total number of character groups, w’

(x, y) is given by:

w’

(x, y) = 0, if N

= 0 . (4)

∑

×−

′

yxa

yxw

),(

)1(

),(

, if N

≠ 0 .

(5)

where N

is defined as the number of word groups, for each orientation and each

point, with a positive membership grade. It attempts to formalize the intuitive concept

that point (x, y) is a distinguishing factor among character groups, when only a

restricted set of groups has membership values for that point.

Character classification is based on calculating a similarity matrix S. Each row

refers to a feature orientation i and each column to a character group j. The matrix

entries S

are calculated as in [1]. The final classification step modifies the simple

additive weighted (SAW) method [8] used in the holistic recognizer [1]. The test

character is classified as belonging to the character group identified by the j

index,

which is defined as:

)(maxarg

ijij

′

∑

(6)

where v

, S’

and r

are determined by:

∑

yxi

yxa

),(

max

′

⎟

⎠

⎞

⎜

⎝

⎛

)(

min)(

Var

(7)

The new r

(V) factor compares the character image V aspect ratio with the average

aspect ratio ar

of class j. The value of r

(V) is never greater than 1 and decreases as

the correspondence between the two aspect ratios decreases. Therefore, matching an

image with a given class is more likely when the aspect ratios are more similar. This

change from [1] increases recognition success.

5 Post-processing

After the core OCR stage of the recognition has been performed, a post-processing

stage ensures that the final results are meaningful and as fine-tuned as possible. This

stage consists in using a dictionary and a word distance metric to improve the

incorrect recognition results which were caused by faded and misprinted characters,

irregular character and word spacing, speckles and smudges.

102

The dictionary used was GNU ASpell, a free open-source spell checker [9], which

can suggest a rich set of words as possible corrections. It is still necessary to select

one out of the several suggestions returned by the ASpell routines. In order to do so,

the suggestion “closest” to the original word can be found by using the standard

Levenshtein (also called edit) distance metric [10]. It is defined for strings of

potentially different lengths and considers the least-cost path from one string to

another, in terms of character insertion, deletion and substitution. The importance of

this versatile behavior lies in the fact that recognition can incorrectly separate single

characters into several or merge a couple of characters into one.

The Levenshtein metric requires an auxiliary function r that compares two

characters within a string, as defined by:

r(c

, c

) = 0, if c

= c

; r(c

, c

) = 0, if c

≠ c

. (8)

where c

and c

are string characters. Let w

and w

be two word strings and w(i) be

the i-th character in word string w. To compute the Levenshtein value for w

and w

of lengths m and n, respectively, a (m+1) × (n+1) matrix D must be built, with row

indices i = 0, 1, …, m and column indices j = 0, 1, …, n. The actual Levenshtein

distance L(w

, w

) is finally stored in D

m,n

. Matrix D is initialized by:

i,0

= i; i = 0, 1, …, m; D

0,j

= j; j = 0, 1, …, n . (9)

All other remaining values are calculated recursively by:

i,j

= min(D

i-1,j

+ 1, D

i,j-1

+ 1, D

i-1,j-1

+ r(w

(i), w

(j))) . (10)

Conventional spell checking systems are optimized for typing mistakes. It is useful

to take advantage of specialized information on the errors found when performing

recognition on ancient documents. By manually proof-reading and correcting raw,

unfiltered recognized data, statistical information is built about the most common

errors made by the OCR software. This knowledge is used to improve the results of

the two developed post-processing filters: a spelling corrector and a word splitter.

Word confidence is computed as the average of its character confidence values and

only words below a given confidence threshold are post-processed. The notation

→c

refers to an error consisting of misrecognizing true character c

as character c

while n(c

, c

) represents the number of registered c

→c

errors and N(c

) the number

of c→c

errors in the whole registry for every character c. The base concept of

character error probability p for given characters c

and c

is defined as follows:

0),(

=ccp

, if

0)(

;

)(

),(

ccn

ccp =

, if

0)(

≠

(11)

The error probability e(c) for character c is defined as the maximum of p(c

, c) for

every character c

. A character with error probability lower than a set threshold is not

considered by the fuzzy algorithm. Its original FineReader recognition is kept instead.

If a given word w is not found in the spell checker dictionary, spell correction

minimizes a given function across all suggested corrections s for the word w. This

function assigns a value to a possible correction according to the likelihood of the

recognition process making such a mistake. It should be greater for a lesser error

likelihood. The proposed function combines error probability information with the

103

Levenshtein algorithm. It is computed in exactly the same way as the standard

Levenshtein expression, except instead of (10), the following equation is used:

i,j

= min(D

i-1,j

+ 1, D

i,j-1

+ 1, D

i-1,j-1

+ 1 – p(w

(i), w

(j))) . (12)

The third argument to the min operator corresponds to a character substitution.

This expression allows for the use of the Levenshtein distance in association with the

previously collected data concerning common recognition errors.

Word splitting is also a word filter and its objective is potentially dividing a word

into two or more strings, correcting frequent pre-processing mistakes that join

adjacent words. These are mostly caused by extraneous graphical elements or printing

defects. Fig. 4 shows two words joined due to their proximity and smudges.

Fig. 4. Two words, “como” and “da”, joined by the extraction process

Word splitting works in text space and returns a list containing the words the

original is divided into. The notation w

stands for a split of a given word w into

two words w

and w

; w is the concatenation of w

with w

and w

can be empty, in

which case w and w

are equal. The pseudo-code for the algorithm is presented next:

WordSplit(Word w)

Find best division w1|w2 of w;

If w2 is not empty, ResultList = WordSplit(w2);

Else, ResultList = new empty word list;

Add w1 to front of ResultList;

Return ResultList.

A word can be recursively sub-divided by this process until the best possible

division is no division at all. Finding the best division of any given word is the crucial

step. Since evaluating word splits is not straightforward, a heuristic function v was

developed. The best division w

of w minimizes v(w, w

); w

is considered in the

recursive call to WordSplit. This heuristic uses a function s defined as:

s(w) = min {L(w, w

) : w

∈ S

} .

(13)

where L is the weighted Levenshtein applied in spell correction and S

is a set

containing all possible suggested corrections to w. Finally, the heuristic used is:

v(w, w

) = exp(a × s(w

)) × log(b × n) – c × n

. (14)

where a, b and c are positive parameters, adjusted empirically, and n and n

are the

lengths of words w and w

respectively. This heuristic combines three criteria,

assigning each one a certain degree of relevance. The priority factor is the value of

s(w

), i.e. the likelihood that w

corresponds to a legitimate isolated word, relying on

suggested words distance, since some characters may have been misrecognized. Next,

the new word length is taken into account. Splitting into many small words is

avoided, aiming instead towards larger, correct strings. Finally, the original word

length is considered, in order to scale the other values, which otherwise led to

104

disparate results among a set of words. The use of exponential-, logarithmic- and

linear-growth factors is based on the relative importance of each, adjusted through

experimentation. Although spell correction was presented first, it is executed last, so

that improperly separated words do not interfere with the spell correction, which was

built assuming that a given string is similar, in length and content, to the written word.

6 Results

In this section, test results, gathered for the purpose of analyzing the software

performance and correctness, are presented. Before large tests could be conducted, a

training character database was created from 1980 alphabetic characters, classified

manually. Recognition is possible once the training structure has been generated. In

order to test various development options, the training data from this database is used

in the classification of another previously identified 1580 character set, which works

as a validation set. The final system achieved a per-character success rate of 87.5%.

Fig. 5. Sample from 20 page test set

Verifying the results is very time-consuming, so the executed tests were selected

carefully within practical limits in order to be representative and closely convey the

application performance in an actual common usage environment. The main test set

consists of 20 pages acquired with variable scanning conditions, namely skewing and

paper see-through, with both non-italic and italic text. It contains 1886 words

consisting in 8034 characters, as segmented by the FineReader engine. The source

book [11] concerns Portuguese language orthography, providing a large variety of

characters and formatting properties. Fig. 5 shows a sample paragraph.

Table 1. Per-character success rates

System 20 page set success (%)

FineReader engine 86.9

Fuzzy recognizer 88.0

Per-character results for this test set are summarized in Table 1. Both systems

successfully classified between 87% and 88% of the 8034 characters. The

improvement introduced by the fuzzy recognizer is very slight, although consistent.

Many errors occur due to printing defects and strong similarity between certain key

characters. The fuzzy recognizer was unable to handle these problems, possibly owing

to its holistic origins and the limited distinctive feature set of character images. On the

other hand, the tests show that its performance is comparable to the FineReader

105

engine OCR, a sophisticated commercial software, virtually matched here by this new

fuzzy application.

An additional 12 page, 1590 word set, from a different book discussing the

Portuguese language, was also used for some tests. It has diverse typesets and several

printing problems, even though scanning quality is quite high. The two test sets were

used to assess the standard FineReader and fuzzy recognizer outputs with and without

post-processing filters. Table 2 shows the success rate for each of these cases in the

two test sets. Recognition output was analyzed on a word basis; any word with at least

one misclassified character is considered wrong; checking is case-insensitive and

graphical accents are ignored. The available Portuguese dictionary contains strictly

modern spelling, so it is unable to correct archaic words. An ancient Portuguese

dictionary would be an immense improvement; several well-recognized words were

actually damaged because their spelling is unknown to contemporary checkers.

Table 2. Per-word success rates

System

20 page set

success (%)

12 page set

success (%)

FineReader engine 62.9 34.6

Fuzzy recognizer 64.1 35.6

FineReader + post-processing 65.0 40.0

Fuzzy recognizer + post-processing 63.6 39.9

Per-word results can be considered unfair towards the FineReader and fuzzy

recognizers, because these are character-based and not word-based. Most wrong

words had few incorrect characters, explaining why analytic success rates are higher

than holistic rates. However, a per-word check was performed to enable a comparison

between the raw recognizer classification and the post-processed output. Table 2

shows that splitting and spell correction applied directly to the FineReader output

improved the results noticeably when the recognizer performance was weaker (a

nearly 16% improvement for the 12 page set), although there was little progress in the

larger experience. However, the fuzzy recognizer output did not equally improve

when post-processed. Results worsened for the 20 page set and were nearly identical

to the post-processed FineReader results for the smaller set. This may be explained by

fuzzy recognizer errors introduced when feature extraction fails or is insufficient.

These can misguide the spell checker by introducing unexpected characters, more so

because of the ancient spelling, unknown to modern dictionaries. Some post-

processing side-effects, such as the excessive splitting of misrecognized words, could

be minimized through parameter adjustments and, again, a more adequate dictionary.

7 Conclusions

This paper proposed an OCR system for 17th century documents based on fuzzy

pattern recognition. The processing sequence was presented, from the training stage to

the classification process, followed by post-processing according to language and

error probability data. Finally, test results and procedure were summarized.

106

Building upon the FineReader engine, recognition improvements were noticeable

with both fuzzy recognizer and dictionary-based post-processing. The former system

achieved a success rate comparable to that of a mature commercial software package

and is open to further enhancement. The output filters developed can increase the

output trustworthiness, especially if the appropriate dictionary resources are available.

Combining these two systems compatibly has not yet been fully accomplished.

Further work can include the development of an automatic parameter adjustment

system based on measurable properties of the documents being processed, the

definition of better word distance metrics, the introduction of more accurate heuristics

and the development of an ancient word dictionary for improved spell checking.

Acknowledgements

This work was partly supported by: the “Programa de Financiamento Plurianual de

Unidades de I&D (POCTI), do Quadro Comunitário de Apoio III”; the FCT project

POSI/SRI/41201/2001; “Programa do FSE-UE, PRODEP III, no âmbito do III

Quadro Comunitário de apoio”; and program FEDER. We also wish to express our

acknowledgments to the Portuguese Bibioteca Nacional, whose continuous support

has made possible this work.

References

1. R. Buse, Z.Q. Liu, J. Bezdek, “Word Recognition Using Fuzzy Logic”, in IEEE Transactions

on Fuzzy Systems, vol. 10, no. 1, Fev. 2001, pp. 65-76

2. João M.C. Sousa and Uzay Kaymak, "Fuzzy Decision Making in Modeling and Control",

World Scientific, Singapore and UK, Dec. 2002

3. R. Buse, Z.Q. Liu, T. Caelli, “A structural and relational approach to handwritten word

recognition”, in IEEE Trans. Syst., Man, Cybern., vol. 27, no. 25, Oct. 1997, pp 847-861

4. Parker, J.R., “Algorithms for Image Processing and Computer Vision”, John Wiley & Sons,

New York, USA, 1998

5. N. Otsu, "A threshold selection method from gray level histograms", IEEE Transactions on

Systems, Man, and Cybernetics, vol. 9, pp. 62-66, 1979

6. Godfried Toussaint, “Solving Geometric Problems with the Rotating Calipers”, in Proc.

IEEE MELECON'83, 1983, pp. A10.02/1-4

7. James D. Foley et al, “Computer Graphics – Principles and Practice”, Second Edition in C,

Addison-Wesley, Reading, Massachussets, USA, 1990

8. C. L. Hwang, K. Yoon, “Multiple Attribute Decision Making, Methods and Applications, A

State-of-the-Art-Survey”, Springer-Verlag, Berlin, Germany, 1981

9. K. Atkinson, GNU Aspell Homepage, http://aspell.net, GNU Project

10. V. I. Levenshtein, "Binary codes capable of correcting deletions, insertions and reversals",

Soviet Physics Doklady, vol. 6, pp. 707-710, 1966

11. Álvaro Ferreira de Véra, “Orthographia ou modo para escrever certo na lingua Portuguesa”,

17th century, available at Biblioteca Nacional

12. ABBYY FineReader Homepage, http://www.abbyy.com, ABBYY Software House

107
