Design Framework for Domain-Specific Service

Interfaces

George Feuerlicht, Sooksathit Meesathit

Department of Software Engineering, Faculty of Information Technology,

University of Technology, Sydney,

PO Box 123 Broadway Sydney NSW 2007 Australia

Abstract. Following the rapid evolution of Web services standards and

technologies over the last three years many organizations are now beginning to

make significant investments in the implementation of Web services

applications. However, so far only limited attention has been paid to design

issues for service-oriented applications. This paper describes a design

framework for domain-specific service interfaces. The design framework

provides guidance for transformation of a document-oriented message

specification into a definition of service interfaces that can be used to generate

Web services. We illustrate the design framework using an example based on

the Open Travel Alliance (OTA) specification.

1 Introduction

While some of the features required for the implementation of secure and reliable

e-business applications using Web services are still under development many

organizations are making significant commitments to Web services standards and

technology platforms. As with other technology platforms, the success of large-scale

development projects using Web services will to a large extent depend on effective

design and development methodologies used in the construction of application

systems. As Web services constitute basic building blocks of service-oriented

applications, decisions about what constitutes a service, which operations should the

service support, and what service interfaces should be exposed are of vital importance

and will determine the quality and reliability of Web services applications.

Specification of stable, well-designed Web service interfaces is a key requirement for

ensuring high level of interoperability in complex e-business applications. Web

services implementation projects conducted in the absence of a design framework are

likely to suffer from poor reuse and extensibility as poorly designed interfaces lead to

duplication of functionally and poor maintainability of applications. Web services

design is an active area of research, but at present there are no comprehensive design

frameworks that can be used to assist designers with large-scale Web services

projects. Most existing approaches describe Web services design in the context of

enterprise application development and rely on object-oriented methods or

component-based techniques. For example, Papazoglou and Yang [1] focus on Web

services composition based on business process analysis, transforming business

Feuerlicht G. and Meesathit S. (2004).

Design Framework for Domain-Speciﬁc Service Interfaces.

In Proceedings of the 2nd International Workshop on Web Services: Modeling, Architecture and Infrastructure, pages 109-115

DOI: 10.5220/0002686001090115

 SciTePress

process definitions to Web services interface definitions. The design methodology is

based on the concepts of coupling and cohesion and the resulting set of Web services

is described using a Web services flow language (e.g. WSFL). Levi and Arsajani [2]

use a component-based approach, first decomposing a business domain into main

business processes, describing these business processes in the form of use cases, and

then using this information to design software components. Other approaches include

methods based on Model-Driven Architecture (MDA) [3], and Design by Contract

methodology [4]. Hammond [5] proposes the use of UML activity diagrams to model

business processes and information flows, translating UML models into WSDL

descriptions. Alternatively, existing specifications of business processes defined using

e-business standard such as RosettaNet can be used as a starting point for Web

services design. Masud [6] demonstrates how RosettaNet PIP (Partner Interface

Process) specifications can be translated into WSDL and BPEL4WS definitions. Web

services are modeled from RosettaNet PIP specifications mapping actions and their

corresponding document schemas to Web service operations.

1.1 Design of Service Interfaces for e-Business Applications

In the context of e-business applications the use of Web services represents a shift

from a document-centric to a service-oriented model for e-business communication

[7]. This will have a major impact on the design and implementation methods used for

development of e-business applications, making most existing methods unsuitable.

Rather then considering the design of individual enterprise applications we focus on

the problem of defining industry domain-specific service interfaces. This is an

important distinction as the key benefits of service orientation can be only achieved if

a consistent set of Web service interfaces is defined and used across an entire industry

domain (e.g. travel). This ensures that service providers (e.g. airlines, hotels, etc)

publish the same service interfaces, avoiding the need to interpret the semantics of the

interface for individual cases. The task of designing domain-specific service

interfaces is conceptually similar to designing a programming API (Application

Programming Interface); such APIs are used extensively in programming

environments (e.g. J2EE). More recently, APIs are being defined to facilitate

interoperability for learning technology platforms under the auspices of the Open

Knowledge Initiative consortium [8]. This MIT led initiative aims to provide

specification for educational services in the form of Java APIs to enable the sharing

educational objects across universities. The benefits of standardized service interfaces

include reusability, extensibility, and maintainability and lead to significant

application development productivity gains. In this paper we describe a design

framework for Web service interfaces that uses a industry domain standard

specification as a starting point and produces interface definitions for Web services

(section 2). The approach is illustrated using a travel application example based on

the OTA (Open Travel Alliance) specification [9]. In conclusion (section 3) we

discuss the benefits of standardization of domain-specific Web service interfaces.

110

2 Domain-specific Service Interface Design

Existing e-business domain standards are a good starting point for developing

domain-specific service interfaces as they capture extensive domain expertise and

contain comprehensive business models for a given industry sector. Industry domain

standards have been defined in most industry sectors, using EDI (Electronic Data

Interchange) format, ebXML, RosettaNet, or various industry-wide specifications

such OTA (Open Travel Alliance), and HL7 [10]. Existing industry domain standards

are mostly document-centric, i.e. they use document exchange as an interoperability

mechanism. This limits the interoperability and scalability of e-business applications

as the number of business partners increases and the complexity of the specification

grows. Web services remove the need to use document exchange as the

interoperability mechanism by providing a homogeneous application deployment

environment irrespective of the underlying technology platforms used by individual

partner enterprise applications. The key benefit of this approach is that e-business

applications can be programmed, in effect creating virtual applications operating

transparently across multiple partner computing environments. The success of this

approach is critically dependent on designing a set of standard service interfaces for a

given industry domain that can then be used consistently across all applications.

2.1 Travel Application Example

We illustrate our design approach using an example Travel Application based on

the OpenTravel Alliance consortium specification. OTA defines message payloads

using XML Schema for various aspects of the travel business, including air travel,

hotel accommodation, and car rentals. Comprehensive message formats specify the

information required for various business transactions. For example,

OTA_AirAvailRQ message format is a schema specification for a request for flight

availability information given a pair of cities on a specific date for specific number

and type of passengers. OTA_AirAvailRQ message contains a large number of

schema elements including passenger travel preferences (e.g. diet, seating

preferences, etc.). OTA specification is based on the request/response paradigm, and a

corresponding response message (OTA_AirAvailRS) that contains information about

flights matching the request criteria is defined. The design of the messages is

optimized with respect to performance over slow networks, maximizing the amount

of information transmitted within a single message payload. Each message contains

complex data structures and inherently represents a complex business process that the

receiving partly needs to map to their enterprise applications. Using Web services to

transmit messages with such complex data structures, while possible (i.e. using the

document style binding), would not take advantage of the benefits of service-oriented

computing, and result in limited scalability characteristic of document-centric e-

business applications.

Our approach is to de-compose complex business processes into elementary

business functions (i.e. business functions that cannot be further decomposed) and

identify the corresponding information requirements. We note that although, this is a

111

bottom-up composition approach, we rely on previously performed top-down analysis

of information requirements and business processes implicit in the OTA message

structures and accompanying description of business processes.

2.2 Identifying Operations

Given the OTA message format specifications, the task is to convert it into a set of

well-defined (domain standard) service interfaces that can be used to accomplish a

given business process, for example airline travel booking. The first step in this

process is identification of operations; this is then followed by specification of input

and output parameters for each operation.

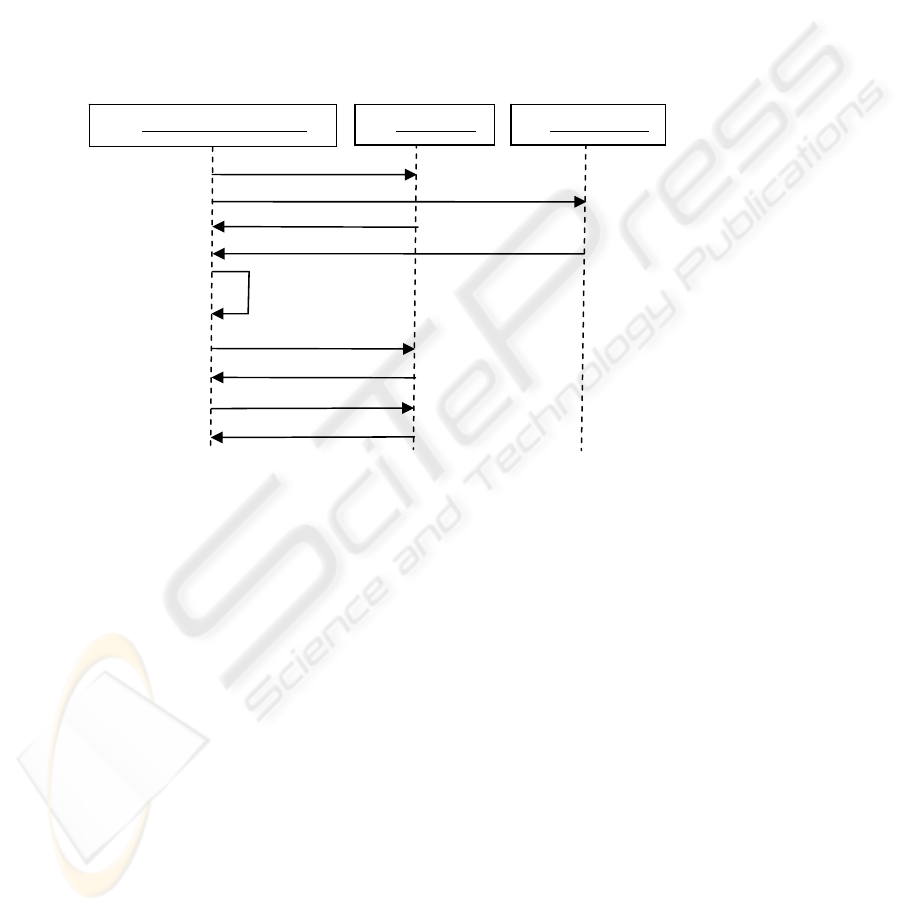

Figure 2. Air travel booking process represented as a Sequence diagram

Airline travel booking typically consists of several discrete operations that can be

modeled using a Sequence Diagram as illustrated in Figure 2. We make a number of

simplifying assumptions in our Travel Application example, including that the travel

agent interacts with only two airlines (KLM and Qantas), and that the flight is

between a single pair of departure and destination cities. We assume that the business

process operates in the following way:

The travel agent sends a travel availability request messages to both airlines

specifying the departure and destination city, the date of travel, and other relevant

information. When the responses from both airlines are received, the travel agent

selects a particular flight based on some criteria (e.g. price), and possibly, after

consulting the traveler, and makes a booking with the selected airline. Finally, the

travel agent makes a request for itinerary information; optionally this could be

followed by additional requests (e.g. request to add royalty points). We summarize the

steps in the Travel Booking business process below showing the corresponding OTA

message request/response messages in the parentheses.

irItinerar

SelectFlight

irAvailRS

AirAvailRQ

irAvailRQ

Travel.com:travel agent

KLM:airline

Qantas:airline

irAvailRS

irBookRS

AirBookRQ

112

1. Availability check (AirAvailRQ/AirAvailRS)

2. Flight booking request (AirBookRQ/AirBookRS)

3. Request for itinerary (AirItineraryRQ/AirItineraryRS)

4. Request for rules and conditions (AirRulesRQ/AirRulesRS)

5. Request to add royalty points (AirRoyaltyRQ/AirRoyaltyRS)

For completeness we also define a cancellation request

(AirCancelRQ/AirCancelRS) not specified by OTA. Individual messages in the

sequence correspond to elementary business functions. Elementary business functions

can be regarded as candidate Web services operations. Using this approach the

granularity of Web service operations is determined by the corresponding elementary

business functions. Larger granularity operations can be created by composition, i.e.

by implementing an interface that uses the basic operations to implement a more

complex business process. For example, the lowest airfare search operation

(LowestAirFareSearch) could be implemented using availability request operations

(AirAvailRQ) executed for various airlines, and by determining the minimum airfare.

We note here that we are not concerned with workflow aspects of the business

process, and purely use the Sequence Diagram as a modeling tool to facilitate the

design of service interfaces.

2.3 Defining Interfaces

Service interface definitions consist of specification of operations and assignment

of input and output parameters for each operation. Following the identification of

operations in section 2.2 above, the interfaces (input and output parameters) for each

operation are defined. As noted earlier (see discussion in section 2.1 above), the

original OTA messages contain complex data structures combining multiple business

functions into a single message, and include a large number of optional data items to

accommodate various customization requirements – this is characteristic of the

document-centric approach and leads to unnecessary dependencies that inhibit

evolution of the application. An important interface design goal is to minimize the

exposure of metadata in order to reduce inter-dependencies between applications. The

corresponding message structures need to be decomposed and relevant parameters for

individual operations identified. The interface should only contain parameters that are

required for a specific operation. For example, the original OTA AirAvialRQ message

contains many data items that are not directly required to check flight availability, and

the interface can be reduced to a relatively small number of input and output

parameters. It is useful to classify the operations according to the type of the request

performed. We classify operations into three types: query operations that execute a

query on a remote resource (e.g. availability check), transactions that perform a

transaction on a remote resource (e.g. booking request, or flight cancellation), and

document request (e.g. itinerary request). The type of operation determines the Web

services binding style; typically the binding style for query requests and transactions

is RPC (Remote Procedure Call), and for document requests is document. Other

approaches use different classifications, for example J2EE specification for Web

services design uses three categories: information Web services, transactions, and

business processes Web services [11]. Table 1 shows operations and the

corresponding interface definitions for the Airline Booking Service based on the

business process described in section 2.2 above.

113

Operations Type Input Output

AirAvail Query

(RPC)

OriginalLocation

DestinationLocation

DepartureDate

CabinPref {Optional}

Airline {Optional}

FlightNumber {Optional}

DepartureTime

ArrivalDate

ArrivalTime

Airline

FlightNumber

AirFare

AirBook Transaction

(RPC)

Airline

FlightNumber

DepartureDate

DepartureAirport

ArrivalAirport

TravelerName

BookingReferenceID

AirItinerary Document BookingReferenceID TravelerName

Airline

FlightNumber

DepartureAirport

DepartureDate

DepartureTime

ArrivalAirport

ArrivalDate

ArrivalTime

ActionCode

BaseFare

Taxes

AirCancel Transaction

(RPC)

BookingReferenceID CancellationID

CancellationFee

{Optional}

Table 1. List of operations and corresponding parameters for Airline Booking Service

As described in our earlier publication [7], given the specification of interfaces the

corresponding WSDL definitions for the Airline Booking Service can be generated,

and the Web service implemented and deployed.

3. Conclusion

In this paper we have presented a simple design framework for domain-specific

service interfaces and we have illustrated this approach using a travel example. The

approach uses industry domain document-centric message specification as a starting

point and produces a set of service interfaces that can be implemented using Web

services. Using this design framework we map message specifications to a sequence

diagram and then transform the sequence diagram into service interface definitions,

minimizing the exposure of metadata. The interface encapsulates details of the service

implementation, so that for example the AirCancel operation is implemented as an

RPC call with a single input parameter (BookingReferenceID).

114

Using standard service interfaces across an industry domain such as travel or

education results in an environment where e-business applications can be

implemented as a series of calls to remote services, with significant application

development productivity gains, and greatly improved application maintainability.

Service providers can expose additional (non-standard) service interfaces to provide

specialized business functions, if required. Another benefit of this approach is that

evolution can be supported via interface versioning, so that existing interfaces can be

maintained to support legacy applications. This avoids many of the problems

associated with evolution of document-centric, message-based standards (e.g. EDI).

In conclusion, service-oriented computing based on Web services standards and

technologies provides an opportunity to finally address many of the issues that inhibit

interoperability and automation of e-business applications. Industry standard service

interfaces are a key component of the service-oriented approach to e-business

applications. This paper illustrates how such interfaces can be developed from

document-centric message structures using a simple design framework.

References

1. Papazoglou, M.P. and J. Yang: Design Methodology for Web Services and Business

Processes. In Proceedings of the 3rd VLDB-TES Workshop. Hong Kong. Springer (2002)

2. Levi, K. and A. Arsanjani: A goal-driven approach to enterprise component identification

and specification. Communications of the ACM. Vol. 45:(10). (2002) 45 - 52

3. Frankel, D. and J. Parodi: Using Model-Driven Architecture™ to Develop Web Services.

IONA. (2002) http://portals.devx.com/assets/iona/2974.pdf

4. Meyer, B.: Object-oriented software construction. 2nd edn. Prentice Hall, Upper Saddle

River, N.J. (1997)

5. Hammond, J.: Introducing Web services into the software development lifecycle. Rational

software Corporation. (2002) http://www.rational.com/media/whitepapers/TP033.pdf

6. Masud, S.: Use RosettaNet-based Web services, Part 1: BPEL4WS and RosettaNet.

DifferentThinking. (2003)

http://www106.ibm.com/developerworks/webservices/library/ws-rose1/

7. Feuerlicht, J. Implementing Service Interfaces for e-Business Applications, The Second

Workshop on e-Business (WeB 2003), December 13-14, 2003, Seattle, USA.

8. Thorne, S. et al, OKI Architecture Overview, http://web.mit.edu/oki/learn/papers.html

(March, 2002)

9. OTA 2002, Available from: http://wwww.opentravel.org/2002a.cfm

10. HL7 Message Development Framework Version 3.3, December 1999, http://www.hl7.org/

11. Designing Web Services with the J2EE 1.4 Platform - Early Access. (2003)

http://java.sun.com/blueprints/guidelines/designing_webservices/

115
