Security in the Management of Networks with

SNMPv3

L. J. García Villalba, J. H. Ortiz Monedero and R. Paucar Curasma

Department of Computer Systems and Programming

Complutense University of Madrid (UCM)

Juan del Rosal, 8 – 28040 Madrid (Spain)

Abstract. This paper describes an experimental study of the security in the

management or monitoring of information from a host or teams of networks

through the protocol SNMP in version 3, that is characterized in regards to se-

curity authentication and access control. There is also developed an Manage-

ment Information Base (MIB) in ASNI language which will be read and written

using the SNMPv3 protocol in which is observed the authentication based on

the user. Finally some configurations are illustrated and results obtained from

the study.

1 Introduction

The proliferation of the data networks in the last decades, LANs as well as WANs,

and the relationship between them makes the aspects relative to their control and

management taken into account more and more each time, converting themselves into

something to which all those responsible for the networks have to pay great attention.

Given that the natural tendency of any network is to grow, there are added new

applications and users make use of the network, the management systems used need

to be sufficiently flexible to be able to support the new elements that have been added

without the necessity of making drastic changes in the network.

SNMP (Simple Network Management Protocol), in its different versions, is a

group of network management applications that use the services offered by TCP/IP

and that have become a standard. At the root of interests shown by the IAB (Internet

Activities Board) is the finding of a management protocol that was valid for the net-

work of the internet, with its necessities due to its large dimensions.

The SNMP protocol defines an interchange of network management information

where in the most basic form exists a system manager and an agent through databases

of information. This simplicity allowed deficiencies to be seen such as: problems in

the transfer of large quantities of information, little or no security, as well as the weak

mechanisms of authentication and privacy.

The capacities of SNMP for the basic management of the network are good. In

1993 SNMPv2 was introduced, which was revised in 1996. SNMPv2 was oriented to

correct the capacities of transmission of large quantities of information, nevertheless

J. García Villalba L., H. Ortiz Monedero J. and Paucar Curasma R. (2004).

Security in the Management of Networks with SNMPv3.

In Proceedings of the 2nd International Workshop on Security in Information Systems, pages 351-360

DOI: 10.5220/0002688303510360

 SciTePress

this version continued without offering any solution in respect to security and pri-

vacy. Specifically, neither SNMPv1, nor SNMPv2 can authenticate the source of the

management message, much less provide encryption for that message. In a manage-

ment network where authentication does not exist or is not possible there are possi-

bilities that unauthorized users could easily execute management functions or even

worse spy information when it is past from an agent to system manager. Due to this,

many implementations in SNMPv1/SNMPv2 are limited in their capacity to only

reading, which as a consequence, reduces the utilities of control and monitoring of

the network.

To correct this type of deficiencies, which are of such great importance due to the

evolution of the internet in the market, a work group was formed to generate a series

of standards that were proposed in RFCs 2271-2275 and whose result is SNMPv3 [1].

In these documents the specifications are defined for security and access control of

the networks managed with SNMP, and include the functionalities of versions

SNMPv1 and SNMPv2 respectively.

2 Fundamentals of SNMP

The fundamental to understand SNMP is to take into account three essential concepts

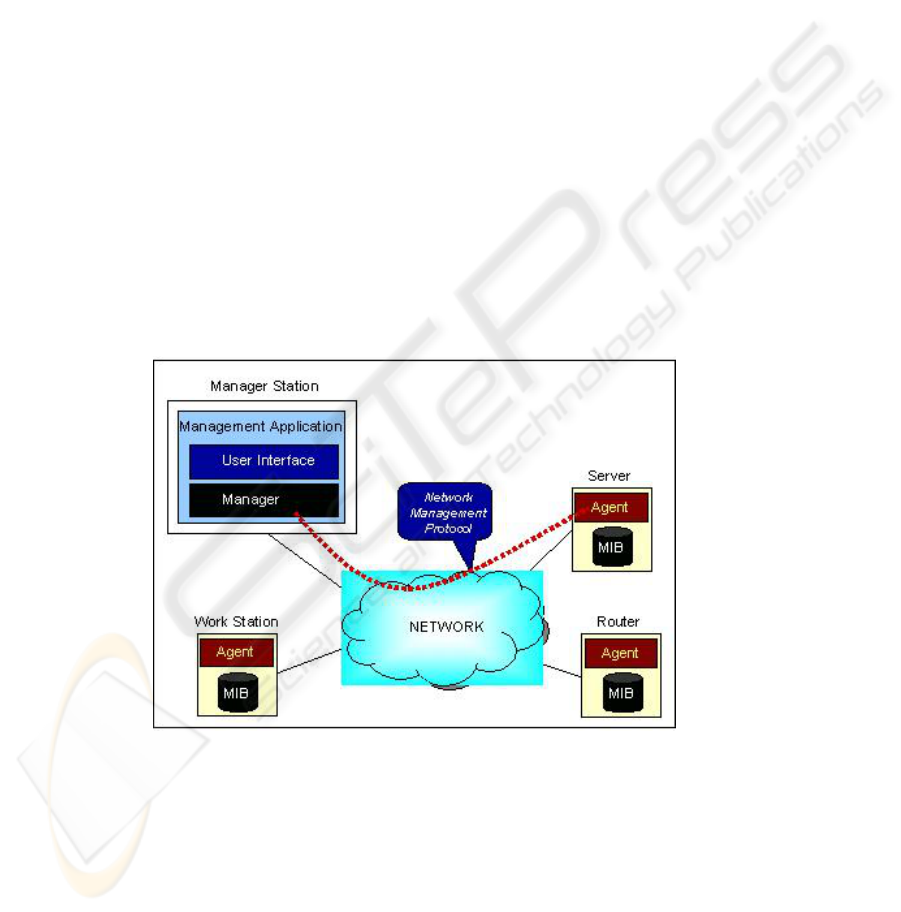

that have the function of interchanging information. In figure 1 the components of a

network management system are illustrated, which are a manager and an agent.

Fig. 1: Network Management System with SNMP.

In whatever configuration at least one management node has a software that supports

SNMP. The management station generally provides an interface to the administrator

of the network to control and observe the management processes in the network.

This interface permits the user to execute commands (for example deactivate a link,

read the IP address of one node and others) and provide general information of the

352

system. The main point of the network management system is a group of applications

that join the necessities in order to execute the functions. As a minimum a system will

include basic applications to develop monitoring functions, configuration control and

administration of the user accounts. More sophisticated systems may include more

elaborate applications for these categories with more possibilities for the correction of

errors.

On the other hand, the network devices when managed, including servers, work-

stations, personal computers, routers, etc. are equipped with a module that includes a

software agent. The agent is responsible:

• To collect and maintain information about the local environment.

• To provide information to the user of the network, either in the form of an an-

swer to a requirement or as an advisory message that abnormal something is

happening.

• To respond to the commands executed by the user to change or alter the opera-

tion parameters or local configuration.

To execute these functions each agent maintains an MIB that contains all of the in-

formation (recent as well as historical) about its local configuration and the traffic

that it manages. The management station will maintain a global MIB with the summa-

rized information from all the agents.

It is important to high-light that all management applications generally share a

common protocol in the entire network. This protocol provides the fundamental func-

tions to request information and execute commands to the agents. This protocol, in

our case SNMP, makes use of communication tools such as TCP/IP.

Specifically versions SNMPv1 and SNMPv2 consist of a group of documents that

define a network management protocol, a general structure MIB and a specific mem-

ber of MIB structured data for management purposes. In essence protocol provides

four functions:

Get Used by the manager to execute a requirement from an agent to an MIB.

Set Used by the manager to change some value in an MIB from an agent.

Trap Used by an agent to send an alert message to the manager.

Inform Used by the manager to send an alert message to another manager.

3 SNMPv3

To correct the security deficiency that SNMPv1 and SNMPv2 have presented until

now, a series of recommendations were written [2]. These recommendations are ori-

ented to define an architecture and new capacities. SNMPv3 is a interoperable net-

work management protocol, that provides access security to the devices by way of a

combination of authentication and encryption of packages that travel by the network.

The security capacities that SNMPv3 provides are:

Message Integrity Assures that the package is not violated during transmission.

Authentication Determines that the message comes from a valid source.

Encryption Encrypts the contents of a package as a form of prevention.

353

3.1 Architecture

SNMPv3 [3] provides models as well as levels of security. A model of security is a

strategy of authentication that is configured for the users and groups in which those

reside. The levels of security refer to the level permitted to a user inside of a model

of security. The combination of the two will determine which security mechanism

will be used when an SNMP package is handled. SNMPv3 includes three services:

authentication, privacy and access control. To provide these services in a sufficient

form, SNMPv3 introduces a new concept called Main, the which is no more than an

entity in the which the greater part of the services are proportioned or processed. A

Main may act in an individual form or in a particular role, as an application or a

group of applications or even as a combination of all of them. Essentially a Main

operates from a management station and sends SNMP commands to the agents. The

identity of the Main and that of the agent together determine the security capacity that

will be invoked, including authentication, privacy and access control.

It is possible to define SNMPv3 in a modular form. Each SNMP entity includes a

simple SNMP Engine. An SNMP Engine implements functions to send/receive, au-

thenticate and encrypt/decrypt messages, in addition to controlling access to the han-

dled objects. These functions are proportioned as services for one or more applica-

tions that are configured with the SNMP Engine to thus form the SNMP Entity as

illustrated in the figure 2.

Fig. 2. Management Architecture of SNMPv3.

The modular architecture that is presented provides some advantages listed as fol-

lows:

• The role of the SNMP Entity is determined by modules that are implemented

in that entity.

• The modular structure of the specifications allows the definition of different

versions of each module, which makes it possible for them to take certain ca-

pacities and aspects of SNMP without the necessity of going to a new version

SNMP ENTITY

SNMP APPLICATION

COMMAND

GENERATOR

COMMAND

GENERATOR

COMMAND

RESPONDER

COMMAND

RESPONDER

NOTIFICATION

ORIGINATOR

NOTIFICATION

ORIGINATOR

NOTIFICATION

RECEPTOR

NOTIFICATION

RECEPTOR

PROXY

FORWARDER

PROXY

FORWARDER

OTHER

SNMP ENGINE

DISPATCHER

MESSAGE PROCCESSING

SUBSYSTEM

MESSAGE PROCCESSING

SUBSYSTEM

SECURITY

SUBSYSTEM

SECURITY

SUBSYSTEM

ACCESS CONTROL

SUBSYSTEM

ACCESS CONTROL

SUBSYSTEM

354

and taking the complete standard, in this way the co-existence of various ver-

sions are maintained.

3.2 Elements of a SNMP Entity

They are the following:

SNMP ENGINE:

Dispatcher. Permits the concurrence of multiple versions of SNMP messages in the

SNMP Engine. It is responsible for:

• Accepting the PDUs (Protocol Data Units) from the applications so that later

they are transmitted through the network, and sending the incoming PDUs to

the applications.

• Passing the PDUs that leave to the Message Processing Subsystem so that they

are prepared, and passing the incoming PDUs to the same subsystem so that

they are extracted.

• Sending and receiving SNMP messages inside the network.

Message Processing Subsystem. Responsible for preparing messages to send and to

extract the data of the received information.

Security Subsystem. Provides the services of authentication and privacy of the mes-

sage. This subsystem potentially contains several security models.

Access Control Subsystem. Provides a set of services of authorization that an applica-

tion can use for the control of access of the messages.

SNMP APPLICATION:

Command Generator. Starts the PDUs SNMP Get, GetNext, GetBulk or Set Request

and processes the answer to a request that has been generated.

Command Responder. Receives the PDUs SNMP Get, GetNext, GetBulk or Set Re-

quest directed to the local system and later bring about the operation of the appropri-

ate protocols using access control, and generates an answer message to be sent to the

station that made the request.

Notification Originator. Monitors a system for a condition or a particular event and

generates a Trap or an Inform message based on the condition or event. A notification

originator should have a mechanism to determine where to send the message and

which SNMP version and security parameters to use when the message is sent.

Notification Receptor. Waits for the notification messages and generates answers

when a received message contains an Inform PDU.

Proxy Forwarder. Advances the SNMP messages. It is an optional application.

355

3.3 Message Processing

The model for message processing for SNMPv3 is generally defined in [3]. This

model is responsible for accepting the PDUs from the dispatcher, encapsulates the

messages and applies the USM (The User Security Model) [5] to insert the related

parameters with the security in the heading of the message. The message processing

model also takes charge of accepting incoming messages applying the USM to proc-

ess the security parameters that are found in the heading of the message and sends the

PDU to the dispatcher.

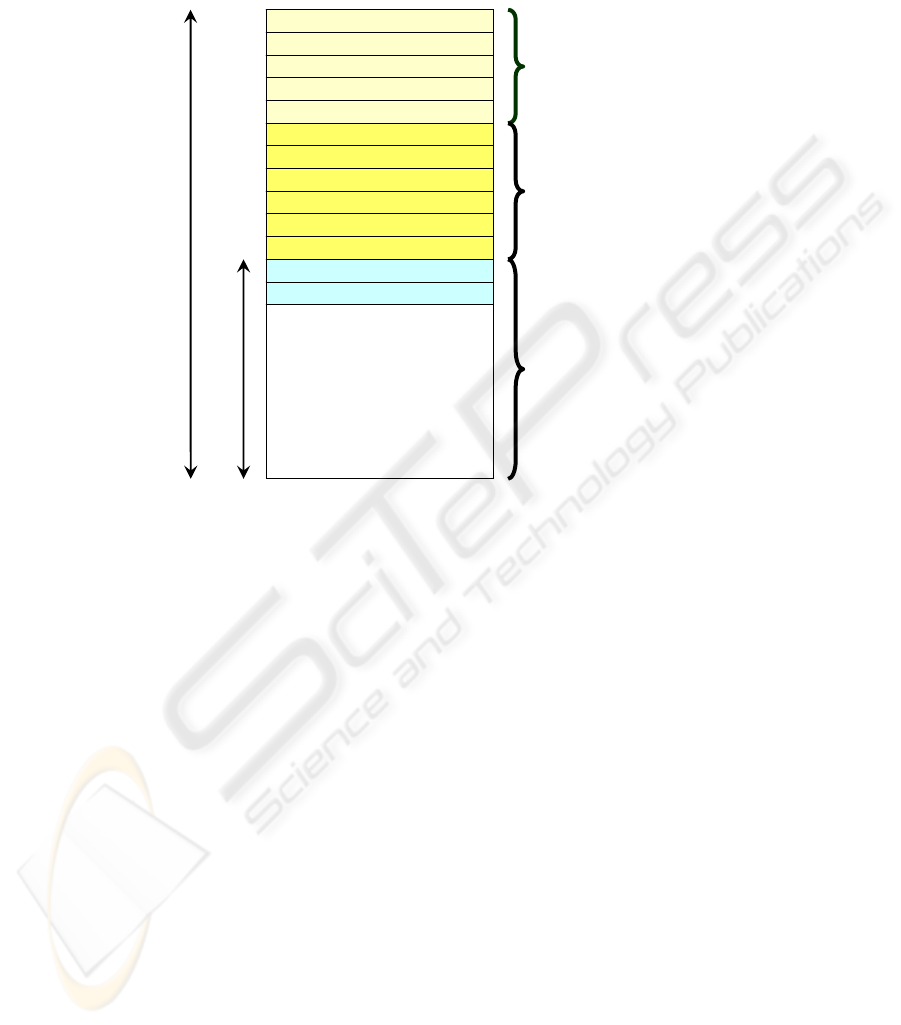

The structure of the message is illustrated in figure 4. The first five fields are gen-

erated by the incoming/outgoing message processing model. The following six fields

show the security parameters used by the USM. Finally the PDU together with the

ContextEngineID and ContextName constitute the PDU to be processed. The first

five fields are the following:

msgVersion: Configured for SNMPv3.

msgID: An identifier used among the SNMP entities to coordinate request and answer

messages. Its range is from 0 to 2

– 1.

MsgMaxSize. Refers to the maximum of a message in octets supported by the sender

with a range of 484 to 2

– 1. This is the maximum size that a entity that sends can

accept from another SNMP Engine.

MsgFlag. An array of octets that contains three flags in the three less significant bits.

• ReportableFlag: 1 is used for sent messages containing a request or an Inform

and 0 is used for messages containing an answer Trap or Report PDU.

• PriorFlag and AuthFlag: Are configured by the sender to indicate the level of

security applied to the message.

MsgSecurityModel. Is an identifier in the range of 2

– 1 that indicate the security

model used by the sender, so that the receiver has the knowledge which security

model he should use to process the message there exist reserved values: 1 for

SNMPv1, 2 for SNMPv2, 3 for SNMPv3.

The six following fields related with the security parameters and generated by the

USM include:

MsgAuthoritativeEngineID. Refers to the value of the source of a Trap, Response or

Report and to the destination of a Get, GetNext, GetBulk, Set or Inform.

MsgAuthoritativeEngineTime. Is an whole value in the range of 2

– 1 that repre-

sents the number of seconds from when the snmpEngineBoots of the SNMP Engine

was incremented.

MsgUserName. The principle user from which the message has been sent.

MsgAuthenticationParameters. Authentication Parameter. If the authentication is

not used, this value is null. This parameters generated using an algorithm called

HMAC.

356

MsgPrivacyParameters. Privacy Parameter. If the privacy is not used this value is

null. This parameter is generated using an algorithm called DES.

Fig. 3. Message Structure SNMP.

3.4 The Key for Authentication

The authentication mechanism in SNMPv3 assures that the message received was in

reality transmitted by the principle entity source that appears in the identifying header

of the message. In addition, this mechanism assures that the message was not altered

during transmission and that it was not in some way delayed or captured and later

resent by another source.

In the authentication process each principle and remote SNMP Engine that desires

to communicate should share a secret authentication key. The entity that sends pro-

vides authentication including in the message a code. This code is a contained func-

tion of the message, of the SNMP Engine and of the principle about time of transmis-

sion and the secret key that should only be known by the sender and the receiver. The

secret key should be configured initially by the administrator or user of the network,

who will carry these keys in the data bases of the agents and the users. This can be

done manually or using a secure form of data transmission.

When the receiving entity receives the message, it uses the same secret key to cal-

culate the authentication code of the message. If the calculated code in the receiving

side coincides with the value included with the sent message, then the receiver will

know that the message originated from a authorized user and the message was not

altered during transmission.

msgVersion

msgID

msgMaxSize

msgFlags

msgSecurityModel

msgAuthoritativeEngineID

msgAuthoritativeEngineBoots

msgAuthoritativeEngineTime

msgUserName

msgAuthenticationParameters

msgPrivacyParameters

contextEngineID

contextName

PDU

Generated/processed by

Massage Processing

Model

Generated/processed by

User Security Model

(USM)

Scoped PDU (Plaintext or

encrypted)

Scoped of Encryption

Scoped of Authentication

357

3.5 VACM (View-Based Access Control Model)

The Access Control Model makes possible the configuration of the agents to provide

different access levels to the MIB and the different managers. An agent can restrict

the access of its MIBs to one manager in particular in two ways: It can restrict the

access to only certain parts of the MIB. The agent can limit the operation that a man-

ager can use in certain portions of the MIB. The access control that is to be used by

an agent for each manager should be pre-configured. It essentially consists of a table

that details the access privileges of various authorized managers. The authentication

differs in that it is done by the user, the access control is done by a group, where a

group can be composed of a series of users. In figure 4 the logic of the functioning of

this method of access control is illustrated

4 Implementation of the MIB Module for SNMPv3

The MIB development is done following the structure of the standard SMI [7] in one

of the private nodes inside the intermediate node (internet) in figure 5 the structure of

the nodes that represent the MIB created with its respective whole objects is illus-

trated [8]. The code written in the language ASN.1, contains the tree structure of the

definition of the MIB. The final nodes indicate the whole objects that will be read or

written. These will be accessed by the user of users configured in the agent that sup-

ports the protocol SNMPv3.

5 Conclusions

Now a days, the same as many other protocols used in internet, SNMP was found

with the problems of security and privacy. For the which the SNMPv3 has the capac-

ity of authentication, privacy, and access control of the information. Giving great

confidence to the users of the market. As a change from the anterior versions, it is

characterized by the level of security that is presented based in the user. It is for this

that it has the necessity to create a user with its own respective key.

All of this was done in free distribution software such as Linux, using the SNMP

package the which contains management tools, configuration files among others,

being fundamental in the development of the MIB module.

Acknowledgements

Luis Javier García Villalba’s work is supported by the Spanish Ministry of Science

and Technology (MCYT, Spain) under Project TIC2002-04516-C03-03. This author

would like to express his appreciation to the Programa Complutense del Amo for

providing him a grant to stay at IBM Research Division. During part of this work he

358

was with the Information Storage Group at the IBM Almaden Research Center, San

Jose, California, USA (javiervi@almaden.ibm.com

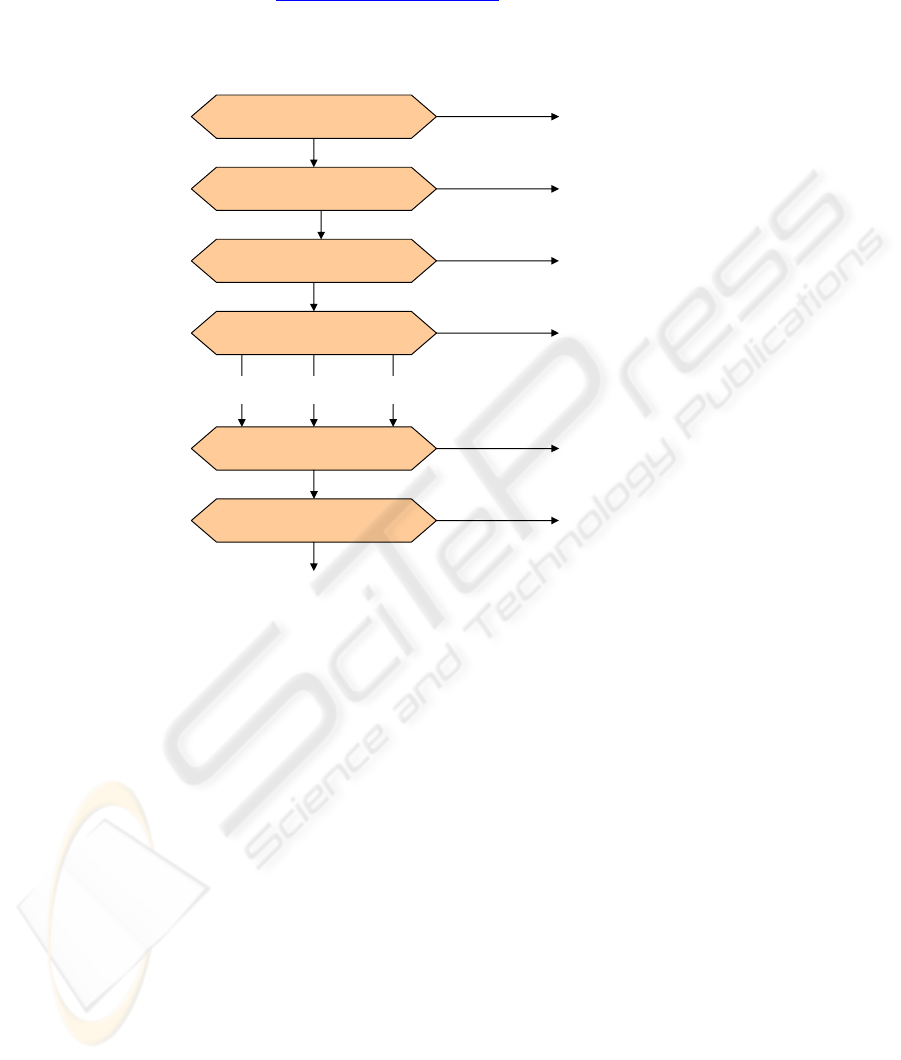

Fig. 4. Logic of the Functioning of Access Control.

context available?

(vacmContextTble)

group available?

(vacmSecuritytoGroupTable)

access entry found?

(vacmAccessTable)

check view type

(vacmAccessTable)

check view

vacmViewTreeFamilyTable)

check variable

vacmViewTreeFamilyTable)

read write notify

noSuchContext

noGroupName

noAccessEntry

noSuchView

notInView

accessAllowed

Yes

359

Iso (1)

Org (3)

Dod(6)

Internet (1)

Private (4)

Enterprises(1)

NetSnmp(8072)

NetSnmpExamples(2)

IntegerMIB(7)

IntegerObjetosMib(1)

Integernum1(1)

Ccitt (2)

Integernum2(2)

MIB created

mngt (2)

mib-II(1)

Iso (1)

Org (3)

Dod(6)

Internet (1)

Private (4)

Enterprises(1)

NetSnmp(8072)

NetSnmpExamples(2)

IntegerMIB(7)

IntegerObjetosMib(1)

Integernum1(1)

Ccitt (2)

Integernum2(2)

MIB created

mngt (2)

mib-II(1)

Iso (1)

Org (3)

Dod(6)

Internet (1)

Private (4)

Enterprises(1)

NetSnmp(8072)

NetSnmpExamples(2)

IntegerMIB(7)

IntegerObjetosMib(1)

Integernum1(1)

Ccitt (2)

Integernum2(2)

MIB created

mngt (2)

mib-II(1)

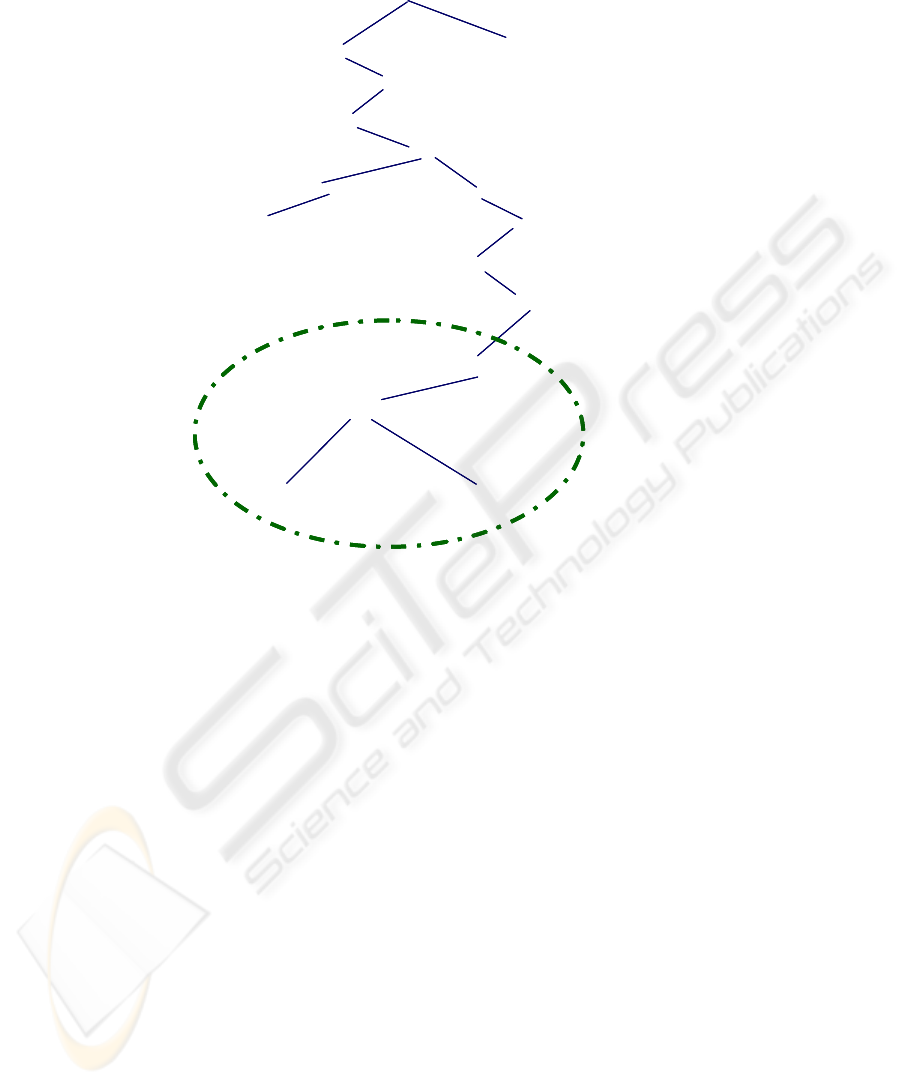

Fig. 5. Structure of the MIB Tree.

References

1. D. Harrington, R. Presuhn: “An Architecture for Describing SNMP Management Frame-

works”, IETF RFC 2271, January 1998.

2. William Stallings: “Security Comes to SNMP The New SNMPv3 Proposed Internet Stan-

dards”, September 2001.

3. J. Case, D. Harrington: “Message Processing and Dispatching for the Simple Network Man-

agement Protocol (SNMP)”, IETF RFC 2272, January 1998.

4. D. Levi, P. Meyer: “SNMPv3 Applications”, IETF RFC 2273, January 1998.

5. U. Blumenthal, B. Wijnen: “User-based Security Model (USM) for version 3 of the Simple

Network Management Protocol (SNMPv3)”, IETF RFC 2274, January 1998.

6. B. Wijnen, R. Presuhn: “View-based Access Control Model (VACM) for the Simple Net-

work Management Protocol (SNMP)”, IETF RFC 2275, January 1998.

7. M. Rose, K. McCloghrie: “Structure and Identification of Management Information for

TCP/IP-based Internets”, IETF RFC 1155, May 1990.

8. http://net-snmp.sourceforge.net/.

360
