A REFERENCE ARCHITECTURE FOR MANAGING

VARIABILITY AMONG TELEOPERATED SERVICE

ROBOTS

Francisco Ortiz, Juan Ángel Pastor, Diego Alonso, Fernando Losilla and Esther de Jódar

Systems and Electronics Engineering Division, Technical University of Cartagena, Campus Muralla del Mar, s/n,

Cartagena, Spain

Keywords: Architectures, Fieldbus, robot control, teleoperation.

Abstract: Teleoperated robots are used to perform hazardous tasks that human operators cannot carry out. The

purpose of this paper is to present a new architecture (ACROSET) for the development of these systems

that takes into account the current advances in robotic architectures while adopting the component-oriented

approach. ACROSET provides a common framework for developing this kind of robotized systems and for

integrating intelligent components. The architecture is currently being used, tested and improved in the

development of a family of robots, teleoperated cranes and vehicles which perform environmentally

friendly cleaning of ship-hull surfaces (the EFTCoR project).

1 INTRODUCTION

Teleoperated mechanisms, such as robots, vehicles

and tools (or a combination of these), perform

inspection and maintenance tasks in hostile

environments. The capabilities and the areas of

application of these systems grow from day to day,

but so does their complexity. As stated in (Coste,

2000), one way of dealing with this complexity is to

use architectural frameworks and tools that embody

well defined concepts to enable effective realization

of systems to meet high level goals.

There have been numerous efforts to provide

developers with architectural frameworks of this

kind (Bruyninckx, 2002), (Nesnas, 2003), (Scholl,

2001). The objects of this paper are twofold: to

present an architectural approach to the development

of control units for these systems and to present an

example of its use in the development of a real

system. The architectural approach, ACROSET, is

based on the latest advances in robotic architectures

and adopts a component-oriented approach.

ACROSET offers a way to re-use the same

components in very different systems by separating

the components from their interaction patterns. It

also provides a common framework for developing

robotized systems with very different behaviours

and for integrating intelligent components. The

architecture is currently being used, tested and

improved in the development of a family of

teleoperated cranes and vehicles for environmentally

friendly cleaning of ship hull surfaces (the EFTCoR

project).

This paper is structured in six sections. Section

two presents the characteristics of the application

domain which determine the architectural drivers

that have guided the design of ACROSET. The third

section presents a brief description of the EFTCoR

missions and mechanisms. Sections four and five

respectively describe the ACROSET architecture

and two of its instantiations. Finally, section six

summarizes the conclusions and future plans.

2 THE TELEOPERATION

DOMAIN

Teleoperated systems cover a broad range of

mechanisms that carry out inspection and

maintenance activities in hostile environments.

Usually these systems perform a small number of

highly specialized tasks. Such specialization implies:

• High variability of functionality and physical

characteristics.

• Different combinations of vehicles,

manipulators and tools.

322

Ortiz F., Ángel Pastor J., Alonso D., Losilla F. and de Jódar E. (2005).

A REFERENCE ARCHITECTURE FOR MANAGING VARIABILITY AMONG TELEOPERATED SERVICE ROBOTS.

In Proceedings of the Second International Conference on Informatics in Control, Automation and Robotics - Robotics and Automation, pages 322-328

DOI: 10.5220/0001165103220328

 SciTePress

• A large variety of execution infrastructures,

including different kinds of processors,

communication links and HMIs.

• A large variety of sensors and actuators.

• Different kinds of control algorithms, from very

simple reactive actions to extremely complex

navigation strategies.

• Different degrees of autonomy, from operator-

driven systems to semi-autonomous robots.

And yet, despite all these differences, teleoperated

systems are normally very similar from a logical

point of view, having many common requirements

in their definition and many common components,

either logical or physical, in their implementation.

These similarities allow the designer to define a

common architecture for all such systems. To be

able to use such architecture for all developments is

extremely useful. It allows rapid development of

systems and reuse of a large variety of components,

with concomitant savings in time and money.

Considering the differences among the systems

mentioned above, it is clear that the main objective

of the architecture is to deal with such variability.

To achieve that, there are a number of points that

must be considered:

• Very different systems should be able to use the

same components. This implies that the

architecture should make a clear distinction

between components and interaction patterns.

• The component implementations could be

software or hardware, probably including

COTS (Commercial off the Shelf).

• It should be possible to derive concrete

architectures for operator-driven systems and

autonomous intelligent systems.

3 THE EFTCOR SYSTEM

A good example in teleoperation domain could be the

EFTCoR project (EFTCoR, 2002), which addresses

the development of a family of robots whose mission

is to retrieve and confine the paint, oxide and

adherences from ship hulls. The EFTCoR system is

part of the European Industry’s current effort to

introduce environmental friendly ship maintenance.

Although the EFTCoR family of robots are

specifically designed for ship hull maintenance, they

still present a broad spectrum of behaviours and

degrees of complexity and as such provide an

excellent test bench for a reference architecture. The

sources of variability in EFTCoR are the following:

• Hull dimensions and shapes differ widely.

• Different areas of any given hull impose very

different working conditions for robots.

• Working areas differ in different shipyards or

even within the same shipyard.

• There are operational differences between

cleaning small, discrete areas (spotting) and full

blasting.

• Other hull maintenance operations can be

included, such as fresh water washing and

painting before and after coating removal.

The tremendous variety described above

generates very different problems, and these require

different robotic systems, each suited to a given type

of shipyard, hull, part of the hull, operation, etc.

It may then be impossible to design a single

robotic system to perform all tasks, but it is still

possible to design the different robotic systems in

such a way that as many components as possible are

shared. EFTCoR’s robotized systems consist of a

primary positioning system capable of covering

large hull areas and a secondary positioning system

mounted on primary system that can position a tool

over a relatively small area (4 to 16 m2). Different

combinations of primary/secondary/tool have been

considered and tested (see Figure 1).

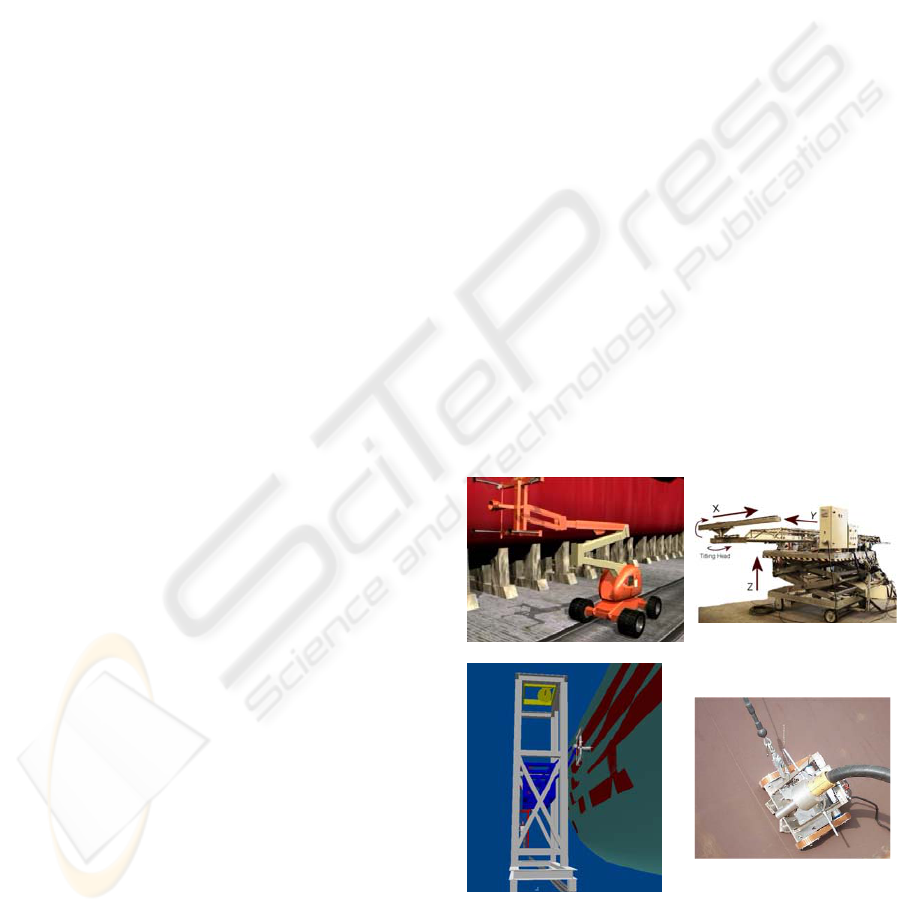

a) XYZ table & cherry-picker b) Scissor crane

c) Tower with a tool positioner d) Climbing vehicle

Figure 1: Different solutions for grit blasting

Finally, it is important to stress that the

EFTCoR is an industrial project and as such should

A REFERENCE ARCHITECTURE FOR MANAGING VARIABILITY AMONG TELEOPERATED SERVICE ROBOTS

323

use components that are common in industrial

facilities (PLCs rather than work-stations, field

buses rather LANs, etc.)

4 THE REFERENCE

ARCHITECTURE

ACROSET (Arquitectura de Control para Robots de

Servicio Teleoperados

) is a reference architecture

for teleoperated service robot control units. The

architecture emerged from previous works at the

DSIE (División de Sistemas e Ingeniería

Electrónica, Universidad de Cartagena, Spain)

(Iborra, 2003), (Ortiz, 2000), and is currently being

used in the EFTCoR project. ACROSET takes

account of the sources of variability explained in

sections 2 and 3 and the architectural drivers

developed to deal with them.

ACROSET is supposed to make very different

systems to use the same components, and therefore

the first step was to define the rules and common

infrastructure that would allow components to be

assembled or connected. To that end, the concepts of

components, ports and connectors were adopted as

defined in (Hofmeister, 2000). The connector

concept allows components’ functionality to be

separated from their interaction patterns, because

such patterns contained within the connectors. The

notation followed to describe the components, ports

and connectors is inspired by the 4 views of

Hofmeister (Hofmeister, 2000) and ROOM (Selic,

1994), which extend the UML notation with

stereotyped classes and special symbols (see

subsection 4.1.)

The subsystems defined by ACROSET are

shown in Fig. 2. The first subsystem of the

architecture, which should be present in every

system, is the Coordination, Control and

Abstraction Subsystem (CCAS). The CCAS abstracts

and encapsulates the functionality of the physical

devices of the system. The CCAS is composed of

virtual components which can be implemented in

either software or hardware, even considering

COTS. This subsystem breaks down into several

components distributed in hierarchical layers (see

section 4.1).

To deal with operator-driven and semi-

autonomous systems, an Intelligence Subsystem (IS)

is proposed. In this way, autonomous behaviours

Control Architecture for Teleoperated Service Robots.

can be added if necessary, interacting with the

functionality offered by the CCAS as another user.

This separation of intelligence and functionality

enhances the modifiability and adaptability of the

system to new missions and behaviours. The

intelligence can be combined with the operator

commands depending on the application or mode of

operation. A User Interaction Subsystem (UIS) is

proposed to interpret, combine and arbitrate between

orders that may come simultaneously from different

users of the system’s functionality (CCAS), since the

system does not concern itself with the source of the

order.

Figure 2: An overview of ACROSET subsystems

Other important aspects besides the

functionality or the intelligence of the system

include the safety and the possibilities of

configuration and management of the application.

To differentiate between functionality per se and the

monitoring of such functionality, a Safety,

Management and Configuration Subsystem (SMCS)

is proposed. Another function of this subsystem is to

manage and configure the initialization of the

application.

4.1 The Coordination, Control and

Abstraction Subsystem (CCAS)

The CCAS of a given system comprises components

that are defined in four layers of granularity:

• Layer 1: Abstract the characteristics of atomic

components, such as sensors and actuators.

• Layer 2: Simple Unit Controllers (SUCs).

• Layer 3: Mechanisms controllers (MUCs).

• Layer 4: Robot controllers (RUCs).

The simplest components modelled by the

architecture are the sensors and actuators, which are

CCAS

Users

Devices

UIS

Stra-

tegies

Coord

Control

Abstract Devices

Intellig. 1

React.

Intellig. 2

SMCS

Mngment

Safety

Config

ICINCO 2005 - ROBOTICS AND AUTOMATION

324

defined at the lowest architectural level. The SUC

components model the control over the actuators

(Figure 3). For example, there will be SUCs defined

to control every joint of a given mechanism. The

SUC generates commands for the actuator according

to:

• The orders that it receives from another

component (through the SUC_Control port).

• The information it receives from the sensors.

• Its installed control policy.

Figure 3: MUC and SUC. 1 actuator - N sensors

The control policy is an interchangeable part of

the SUC. For example, the ControlStrategy of a

given joint may be a traditional control (PID) or may

be changed for a fuzzy logic strategy. The SUCs

usually need to accomplish hard real time

requirements and are generally implemented in

hardware. Where they are implemented in software

they impose severe real time constraints on

operating systems and platforms.

Defined at the third level of granularity is the

Mechanism Unit Controller (MUC). The MUC

component models the control over a whole

mechanism (vehicle, manipulator or end effector).

As Fig. 4 shows, the MUC is a logical entity

composed of:

• An aggregation of SUCs.

• A Coordinator responsible for coordinating

SUC actions according to the commands and

information that it receives.

• Its installed coordination strategy.

The coordination strategy is an interchangeable

part of the SUC component. For example, the

CoordinationStrategy of a given manipulator may

be a particular solution for its inverse kinematics,

the coordinator strategy for a given vehicle could be

a particular navigation strategy, etc.

Although the architecture defines the MUCs as

relational aggregates, they can actually become

components (hard or soft) when the architecture is

instantiated to develop a concrete system. Whether

or not the interfaces of the inner SUCs are directly

accessible is a decision for the architecture

instantiation. In fact, although MUCs may be

implemented in either hardware or software, they

are very commonly commercial motion control

cards that constrain the range of possible commands

to its internal components. COTS elements limit the

flexibility of the approach, in the sense that they do

not always provide direct access to their inner sub-

components or to their inner state.

Finally, at the fourth level, the architecture

defines the RUC (Robot Unit Controller)

component. The RUC component models the control

over a whole robot, for example a robot composed

of a vehicle with an arm and several interchangeable

tools. As Figure 4 shows, the RUCs are an

aggregation of MUCs and a global coordinator that

generates the commands for the MUCs and

coordinates their actions, according to the orders and

the information that it receives and its installed

coordination strategy.

Figure 4: RUC: Robot Unit Controller.

This strategy is an interchangeable part of the

RUC. For example, the CoordinationStrategy of a

robot composed of a vehicle with a manipulator

could be a generalised kinematics solution that

contemplates the possibility of moving the vehicle to

strConfig

+ / MUC_Control~

Coordinator

+ / MUC_DataOut

MUC

+ / SUC_Control~

+ / SUC_DataOut

<<data>

<<contro

+ / sensorDataIn~

+ / actuatorControl

+ / devDataIn~

+ / sensorDataOut

+ / actuatorControl~

+ / devControl

<<data>> <<control>>

Actuator Sensor

Strategy

SUC

Strategy

RUC_Control~

Coordinator

RUC_DataOut

RUC

MUC_Control MUC_DataOut

SUC_DataOut

SUC_Control~

strConfig

data

<<data>

<<control>>

<<data>>

Strategy

sensorDataIn~ actuatorControl

<<data>>

<<control

Actuator

Senso

SUC

MUC

A REFERENCE ARCHITECTURE FOR MANAGING VARIABILITY AMONG TELEOPERATED SERVICE ROBOTS

325

reach a given target. Like the MUCs, the RUCs are

logical components that can become physical

components depending on the concrete instantiation.

In general, the RUC is quite a complex component

that comprises hardware and software components

and can expose a wide variety of interfaces

depending on the complexity of the controlled

system.

4.2 The Intelligence Subsystem (IS)

It is beyond the scope of this paper to give a detailed

explanation of the IS, but we do offer some

considerations at this point. The CCAS is well suited

to operator-driven systems and systems where the

reactive or autonomous behaviour responds to

simple rules that can be added to controllers and

coordinators. However, there are systems where the

autonomous behaviour is anything but simple. In

such cases, the intelligent component needs to

integrate more information and access more

functionality than what is embedded in a given

component. The approach adopted here is to

superimpose “intelligent” autonomous behaviour

and operator-driven behaviour, and to provide the

means of integrating both and resolving the potential

conflicts by means of “arbitration” components

which merge commands from several sources

following different strategies and provide a unique

command to the goal component. This approach

does not entail any change in the components

defined so far, but it does entail new sources of

commands for them. Such “arbitrators” permits the

goal components not to change although new

sources are introduced.

5 ACROSET INSTANTIATION

ON EFTCOR

The ACROSET architecture is being implemented

on a real system, the family of robots in EFTCoR

project. This section presents two instantiations of

the architecture. As we will see, they have been

chosen to illustrate the suitability of ACROSET for

defining the concrete control architectures of two

very different systems.

5.1 ACROSET in teleoperated XYZ table

The first instantiation of ACROSET is used for

developing the control unit of a system composed of

a XYZ table (Fig. 1. a, c) holding the cleaning tool.

This tool consists of an enclosed nozzle for making

the blasting and recovering of residues. The system

can be driven by a human operator and it can also

perform some autonomous tasks. The XYZ table is

supported by a commercial crane whose control is

not considered in this instantiation.

Figure 5: Components of CCAS in XYZ table Control

Unit.

The components integrated in the Coordination,

Control and Abstraction Subsystem (CCAS) are

shown in Figure 5. The RUC encloses all the

functionality required to drive the XYZ table and the

tool. The MUC and SUC included in the RUC

control the XYZ table and the blasting tool

respectively. The MUC coordinates three SUCs, one

for each axis of the table. In this case the actuators

are logically placed inside the SUCs and are

accessed through the SUC interface. This is imposed

by the system’s hardware architecture. In this case,

COTS hardware controllers have been used to

control the electrical motors of the XYZ table.

Therefore, the hardware that is abstracted is not

merely an engine but a complete axis controller. The

actuator is hidden to the control unit and the SUC is

thus a “hardware abstraction component”

contained in a MUC. The SUCs that control the axes

therefore have a software part and a hardware part.

The RUC and the MUC are implemented entirely in

software.

Following ACROSET, the intelligence of the

system, like the fault and configuration

management, is located outside the CCAS. The two

are respectively included in the Intelligence

RUC_Control~

Coordinator

RUC_DataOut

RUC

MUC_Control MUC_DataOut

SUC_DataOut

SUC_Control~

strConfig

data

<<data>>

<<control>>

Strategy

sensorDataIn~ actuatorControl

<<data>>

<<control

eValve

switch

XYZtable:MUC

blastTool:SUC

<<data>>

switch

Axis:SUC

Coordinator

ICINCO 2005 - ROBOTICS AND AUTOMATION

326

Subsystem (IS) and the SMCS, as shown in Figure 2.

The real intelligence included in the IS varies

considerably from system to system. In this

particular case the IS interprets a pre-programmed

sequence of motions and orders that have been

generated by a vision system. The vision system is

an external system, running on a PC, that analyses

the surface to be cleaned, generates trajectories and

delivers them to the IS, which in turn delivers them

to the UIS and supervises their execution. A human

operator can supervise the movements commanded

by the vision subsystem and take corrective action

by means of a joystick. An arbitrator situated in the

UIS determines which is controlling the system at all

times (note that the CCAS only receives orders from

one channel coming from the UIS).

In response to the special industrial requirements

of the EFTCoR project, the system has been

implemented using a PLC

†

SIMATIC S7-300 (4 in

figure 6) and a Field-Bus (PROFIBUS-DP, 2 in

figure 6). The development environment is “STEP

7” from SIEMENS (SIMATIC, 2002). Each SUC,

MUC and RUC has been translated to PLC Function

Blocks (FBs) (SIMATIC, 2002). With the option of

FB instantiation in SIMATIC S7-300 series, it is

possible to program the PLC with a philosophy that

is close to the object-oriented paradigm (each FB

acts as a class which can be instantiated). For

instance, a generic axis controller (SUC) has been

defined to create three instances, the controllers

(SUCs) for the X, Y and Z axes, each with their

particular features. In this case, the SUCs implement

interfaces to the hardware controllers (drivers) of the

electrical motors (6 and 7 in figure 6)

Figure 6: Hardware architecture

The PLC and Field-Bus based solution adopted

is based entirely on standard industrial equipment

(SIEMENS devices interconnected via PROFIBUS-

DP), which facilitates the integrability,

†

Programmable Logic Controller

interoperability and maintainability of the complete

system.

5.2 ACROSET for a teleoperated vehicle

The second instantiation is a caterpillar vehicle

capable of scaling a hull thanks to permanent

magnets (Figure 1- d), carrying a manipulator that

holds a cleaning tool. Like the previous system, the

vehicle can be driven by a human operator and also

performs some autonomous tasks, such as obstacle

avoidance and simple path execution.

Figure 7: Components of CCAS in climbing vehicle

Figure 7 shows the CCAS instantiated for the

control unit in this system. As can be seen in the

figure, two different MUCs have been implemented:

one to control the vehicle and another to control the

manipulator. The first contains one SUC to control

each of the electrical motors that move the vehicle.

On the other side, the manipulator MUC coordinates

two SUCs, one for each manipulator axis. The

vehicle uses the same tool as the XYZ table, so this

SUC is conceptually the same, but it has been

implemented in a different way.

Unlike the previous case, the motion controllers

are not implemented by means of COTS hardware

components, but by means of Ada packages that

implement the interfaces defined by ACROSET. In

this case the implementation allows direct access to

the hardware without mediation by any SUC.

However, as in the previous case, the application has

been designed to allow either a human operator or

an external system to access the CCAS functionality

through the UIS. Two different intelligent

behaviours have been added to the IS: obstacle

avoidance and path execution. The components of

the IS that implement these behaviours obtain the

information they need from the vehicle sensors and

<<control>

eValve

RUC_Control

Coordinator

RUC_DataOut

strConfig

<<data>>

<<control>>

Strate

<<data>

switch

blastTool:SUC

<<data>

encoder

Axis:SUC

Coordinator

wheel:SUC

Coordinator

<<data>> <<control>

eMotor

encoder

<<control>

eMotor

RUC

(1) PG/PC

(2) Field-Bus

(3) Operator Panel

(4) PLC

(5) Sensors

(6) Driver

(7) Motor

A REFERENCE ARCHITECTURE FOR MANAGING VARIABILITY AMONG TELEOPERATED SERVICE ROBOTS

327

generate commands to the CCAS. Integration

between these commands and the operator

commands is resolved by an arbitrator in the UIS.

The execution platform is an on-board

embedded PC. The PC/104 bus (PC104, 2004) is a

widely used industrial standard with many

advantages, such as vibration-resistance, modularity,

mechanical robustness, small form factor (96 x 115

mm), low power consumption, etc. Moreover, it can

be easily extended with boards that provide the kind

of functions needed by robots (digital and analogue

I/O, motion control, PCMCIA expansion, etc). The

chosen OS is RTLinux (Baravanov, 1997), with

which makes it is possible to have a real-time

application running while retaining all the power of

a Linux distribution (though with some restrictions)

underneath.

6 CONCLUSIONS AND FUTURE

WORKS

The use of a common architecture for a domain or

family of systems allows rapid developments and

the reuse of components. This paper has presented a

common architectural framework for the

development of teleoperated service robots control

units (ACROSET), and also two application

examples in the context of the EFTCoR project that

show the ability of ACROSET to cope with the

needs and requirements of very different systems.

The separation of the conventional functionality of

the systems (CCAS) from the intelligent behaviours

greatly facilitates the addition of new functionalities

and the maintenance of applications. The main

drawback is the lack of language support for

expressing a component-oriented style of

programming.

ACKNOWLEDGMENTS

The DSIE wishes to thank the Spanish Government

(CICYT) and the Regional Government of Murcia

(Seneca Programmes) for their support: TIC2003-

07804-C05-02 and PB/5/FS/02.

REFERENCES

Barabanov M.. "A Linux-based Real-Time Operating

System". Master Thesis, New Mexico Institute of

Mining and Technology, Socorro, New Mexico, June

1997.

Bruyninckx, H., Konincks, B. and Soetens, P., “A

Software Framework for Advanced Motion Control”,

Dpt. of Mechanical Engineering, K.U. Leuven.

OROCOS project inside EURON. Belgium. February

2002. Retrieved October 12, 2003 from

http://www.orocos.org

Coste-Manière, E. and Simmons, R., “Architecture, the

Backbone of Robotic System”, Proc. of the 2000

IEEE International Conference on Robotics &

Automation, San Francisco, April 2000.

EFTCoR - Environmental Friendly and Cost-Effective

Technology for Coating Removal. V Framework

Program GROWTH G3RD-CT-00794. 2002-2005

Gamma E., Helm R., Johnson R., Vlissides J., “Design

Patterns: Elements of Reusable Object Oriented

Software”, Addison Wesley, Reading Mass. 1995.

Hofmeister, C. Nord, R., Soni, D., “Applied Software

Architecture”, Addison-Wesley. ISBN 0-201-32571-3.

USA. January 2000.

Iborra, A. Pastor, J.A., Álvarez, B. C. Fernández and

Fernández-Meroño J. M., “Robots in Radioactive

Environments”, IEEE Robotics and Automation

Magazine, vol. 10, no. 4, pp. 12-22, December 2003.

Nesnas, I. et al, “CLARAty: An Architecture for Reusable

Robotic Software”, Jet Propulsion Laboratory, NASA,

Carnegie Mellon University, March 2003.

Ortiz, F.J. et al “GOYA: A teleoperated system for

blasting applied to ships maintenance”. 3rd

International Conference on Climbing and Walking

Robots. CLAWAR´2000. October, 2000.

Scholl, K.U. Albiez, J. and Gassmann, B. “MCA – An

Expandable Modular Controller Architecture”,

Karlsruhe University, Germany, 2001.

Selic, B. Gullekson G., Ward P.T., “Real-Time Object-

Oriented Modeling” (ROOM). John Wiley and Sons,

New York. 1994.

SIMATIC - Working with STEP 7 5.2. ref. 6ES7810-

4CA06-8BA0. SIEMENS manuals. 2002.

PC104. Retrieved May 1, 2004, from

http://www.pc104.org

ICINCO 2005 - ROBOTICS AND AUTOMATION

328
