COMPONENT RUNTIME SELF-ADAPTATION IN ROBOTICS

Daniel Hernandez, Antonio Dominguez, Oscar Deniz and Jorge Cabrera

IUSIANI - ULPGC

Campus de Taﬁra, 350017, Las Palmas de Gran Canaria, Spain

Keywords:

Robotic systems, self-adaptive software components.

Abstract:

Mobile robotic applications have to deal with limited resources and variable execution conditions that must be

appropriately managed in order to keep an acceptable system behavior. This requires the implementation of

runtime adaptation mechanisms that monitor continuously system state and module the resulting performance

as a function of the available resources. As we consider that these adaptation mechanisms should be offered as

a facility to robotic application programmers, we have integrated them inside CoolBOT, a component oriented

framework for programming robotic systems. CoolBOT contributes to reduce the programming effort, pro-

moting code reuse, while the adaptation scheme allows for more robust applications with an extended range

of operation. In this paper we also present a demonstrator that outlines the beneﬁts of using the proposed

approach in the development of real robotic applications.

1 INTRODUCTION

The management of shared resources is an important

subject of research in robotic and sensor-effector sys-

tems. Some authors (Murphy, 2000)(Kortenkamp and

Schultz, 1999), coincide in the necessity of includ-

ing the adaptive aspect in order to build really robust

systems. This is specially important in mobile ro-

botic systems, conﬁgured as tactical multi-objective

designs which are often affected by the shortage of

shared resources (Jones, 1997). When strict guar-

anties of bounded reaction times and rigid operation

frequencies are needed, hard real-time techniques are

the most commonly adopted solution. However, there

are many contexts of application in robotics where

those strict guaranties can be relaxed to a certain ex-

tent, and a soft real-time adaptive control scheme may

in our opinion represent a more convenient solution.

On the other hand, in the context of software

development for robotic applications, the complex-

ity of programming and maintenance (Kortenkamp

and Schultz, 1999) has promoted the proposal of

architectures (Coste-Maniere and Simmons, 2000)

and frameworks (Fleury et al., 1997) (Schlegel and

orz, 1999). Following this tendency we have pre-

sented CoolBOT (Dom

ınguez-Brito et al., 2004), a

component-based software framework aimed at facili-

tating the development of robotic systems without im-

posing any speciﬁc architecture.

The combination of the adaptive control and

component-based software has been considered, out-

side mobile robotics, by some authors (Garlan et al.,

2004) (Oreizy et al., 1999) with promising results.

There are also some examples of adaptive robotic ar-

chitectures (Musliner et al., 1999), but not for soft

real-time frameworks. We consider that CoolBot

could clearly beneﬁt from the integration of run-time

self-adaptive resources, constituting a more useful

tool for robotic application developers.

This paper is organized in the following sections:

brief outline of CoolBOT (2), adaptation mechanisms

(3), experiments with a real mobile robot demonstra-

tor (4) and conclusions (5).

2 CoolBOT

CoolBOT (Dom

ınguez-Brito et al., 2004) is a

component-oriented framework that allows designing

software in terms of composition and integration of

software components. In CoolBOT, components are

active entities that act on their own initiative, carry-

ing out their own speciﬁc tasks, running in parallel or

concurrently, and are normally weakly coupled. More

399

Hernandez D., Dominguez A., Deniz O. and Cabrera J. (2005).

COMPONENT RUNTIME SELF-ADAPTATION IN ROBOTICS.

In Proceedings of the Second International Conference on Informatics in Control, Automation and Robotics - Robotics and Automation, pages 399-402

DOI: 10.5220/0001166403990402

 SciTePress

speciﬁcally, components are modelled as Port Au-

tomata (Steenstrup et al., 1983)(Stewart et al., 1997),

a concept that establishes a clear distinction between

the internal functionality of a component, an automa-

ton, and its external interface, conformed by input and

output port connections (port connections).

The framework introduces two kinds of facilities

in order to support monitoring and control of compo-

nents: observable variables, which represent features

of components that might be of interest from outside;

and controllable variables, that represent aspects of

components which might be externally controlled so,

through them, the internal behavior of a component

can be modiﬁed. In addition, toguarantee external ob-

servation and control, CoolBOT components provide

by default two important ports: the control port and

the monitoring port. Fig. 1 illustrates these variables

and ports in a typical control loop for a component

using another component as an external supervisor.

component

. . .

control monitoring

supervisor

external

Figure 1: A typical component control loop.

Internally all components are modelled using the

same default state automaton that contains all possible

control paths a component may follow. This default

automaton can be always brought externally in ﬁnite

time by means of the control port to any of the con-

trollable states of the automaton, which are: ready,

running, suspended and dead. The rest of states are

reachable only internally, and from them, a transition

to one of the controllable states can be forced exter-

nally. The running state constitutes the part of the

automaton that implements the speciﬁc functionality

of the component, and it is called the user automaton.

Furthermore, there are two pair of states conceived

for handling faulty situations during execution. One

of them devised to face errors during resource allo-

cation (starting error recovery and starting error

states), and the other one thought to deal with errors

during task execution (error recovery and running

error states). These states are part of the support

CoolBOT provides for error and exception handling

in components.

Components are not only data structures, but exe-

cution units as well. In fact, CoolBOT components

are mapped as threads when they are in execution;

Win32 threads in Windows, and POSIX threads in

GNU/Linux.

CoolBOT components are classiﬁed into two kinds:

atomic and compound components.

• Atomic components that have been mainly devised

in order to abstract low level hardware layers to

control sensors and/or effectors; to interface and/or

to wrap third party software and libraries; and to

implement generic algorithms. In this way they be-

come isolated pieces of deployable software in the

form of CoolBOT components. Thanks to the uni-

formity of external interface and internal structure

the framework imposes on components, they may

be used as building blocks that hide their internals

behind a public external interface.

• Compound components are compositions of in-

stances of several components which can be ei-

ther atomic or compound. Compound components

use the functionality of instances of another atomic

or compound components to implement its own

functionality, and in turn, can be integrated and

composed hierarchically with other components to

form new compound components.

Analogously to modern operating systems that pro-

vide IPC (Inter Process Communications) mecha-

nisms to inter communicate processes, CoolBOT

provides Inter Component Communications or ICC

mechanisms to allow components to interact and

communicate among them. CoolBOT ICC mecha-

nisms are carried out by means of input ports, out-

put ports, and ports connections. Communications

are one of the most fragile aspects of distributed sys-

tems. In CoolBOT, the rationale for deﬁning stan-

dard methods for data communications between com-

ponents is to ease inter operation among components

that have been developed independently, offering op-

timized and reliable communication abstractions.

3 ADAPTIVE CONTROL

A robotic application should be able to adjust its

performance as a function of either the available re-

sources or the resources assigned a priori. The objec-

tive is to force a smooth degradation when resources

are not enough to meet application demands, and al-

low a controlled recovery when the system overload

disappears. See (Hern

andez-Sosa, 2003) for a more

complete description.

The CoolBOT framework provides mechanisms to

support the adaptation of component consumption of

computational resources during operation. CoolBOT

adaptation mechanisms include a graceful degrada-

tion procedure when there are not enough resources

available, and a performance status recovery proce-

dure whenever possible. Additional objectives are

ICINCO 2005 - ROBOTICS AND AUTOMATION

400

reactivity, stability and coordination to avoid system

imbalances.

3.1 Elements of Runtime Adaptation

A component, whether atomic or compound, may be

declared as adaptive or non-adaptive. If a compo-

nent is declared as adaptive, it must publish the set

of performance levels at which it can operate. A per-

formance level represents a trade-of between resource

consumption and quality of results (better quality de-

mands higher requirements).

The integration of the dynamic adaptation of com-

ponents inside CoolBOT is designed around two con-

trollable variables: frequency of operation and quality

level. On the frequency axis, a supervisor can modify

the period associated to any of the components un-

der its control, for example, increasing their values to

face CPU saturation. On the quality axis, the supervi-

sors can command lower qualities (sensor resolution,

accuracy of computations, exhaustiveness, etc.) to re-

duce CPU load and latencies at the cost of increasing

uncertainty or decreasing results quality.

The framework will monitor certain operation con-

ditions, named as adaptive observables, at run time.

These include component level measures such as pe-

riod or elapsed/cpu times, and system level measures

such as computational load, battery level or load pro-

ﬁle. Some results from processing can also be used

as elements in adaptive control, using the observable

variable facility offered by the framework.

Depending on these measures and their reference

values some elementary degradation/promotion adap-

tive commands can be triggered on adaptive compo-

nents through their control ports.

3.2 Control Strategies

Several control policies have been designed to or-

ganize system adaptation. Their objectives in-

clude avoiding an unbalanced system degrada-

tion/promotion, reduce settling times and fostering

stability.

3.2.1 Timeout control

Timeouts control adapts, on a hierarchical basis, the

runtime demands of shared resources in the system in

order to guarantee the speciﬁed frequencies of opera-

tion. Firstly, period violations are detected locally in-

side the time-pressured component, where the control

thread generates the corresponding degradation order.

To avoid systems unbalance, however, local control

actions are limited to a scope deﬁned by two homo-

geneity thresholds (minimum and maximum degra-

dation values). If local adaptation resources are not

enough, the component notiﬁes the problem to up-

per levels, the supervisor component, where global

actions can be executed.

3.2.2 CPU load control

The load control loop operates only at global level.

The system load is estimated and compared with a

certain reference level ﬁxed externally. Promotion

and degradation actions are generated accordingly to

maintain the desired load level.

Candidate selection for targeting control actions

plays an important role in adaptation performance. In

general, an agreement between reactivity and stability

must be reached. The most intense reactions are ob-

tained when high frequency, CPU demanding, multi-

ple destination and/or high-resolution sensor compo-

nents are affected.

The supervisors evaluate these parameters as well

as priority to select target components for adap-

tation commands. Several strategies have been

implemented using different target selection crite-

ria: priority-based, combined priority-degradation,

frequency-based and topology-based.

The adaptive aspects are associated naturally in

CoolBOT to control threads (port threads) inside each

atomic component at low level, and supervisor com-

ponents at higher levels (compound components, sys-

tem level). The early separation of control, processing

and communication areas permits the development of

modular and integrable robotic applications.

4 DEMONSTRATOR

In order to illustrate the operation of the adaptation

mechanisms on real-world applications, we have im-

plemented a mobile robotic application as a demon-

strator.

The application is based on a mechanical head (Di-

rected Perception PTU and USB camera) mounted on

a mobile robot (Pioneer). A notebook has been added

for running the application, being connected via USB

and serial ports to the head and the robot.

A minimal multi-purpose system has been de-

signed combining two main objectives, line following

and object detection, that can be prioritized alterna-

tively. In the conﬁguration used for this paper, the

robot must follow, as tight as possible, a trajectory

deﬁned by a line traced on the ﬂoor. Secondarily, the

robot can look at both sides of the route trying to de-

tect some colored balls.

Four CoolBOT components have been used in

the integration of the system corresponding to this

demonstrator: one for controlling the Pioneer robot,

other one for the PTU unit and the camera, another

COMPONENT RUNTIME SELF-ADAPTATION IN ROBOTICS

401

one for line processing and following commands, and

the last one for object detection.

As conﬁgured, on straight-line trajectory segments

both tasks can perform alternatively at a pre-deﬁned

frequency. On curved segments, however, the risk of

loosing the track increases. To avoid this, the move-

ment amplitude and activation period of the object

detection component is modulated according to and

adaptive observable computed from the curvature of

the line that the robot must follow. The modiﬁca-

tion of the scanning amplitude can be considered a

quality-based adaptive control, as processing times

are shortened at the cost of reducing the probability of

ﬁnding color objects. The modiﬁcation of the period,

however, corresponds to a frequency-based adaptive

control.

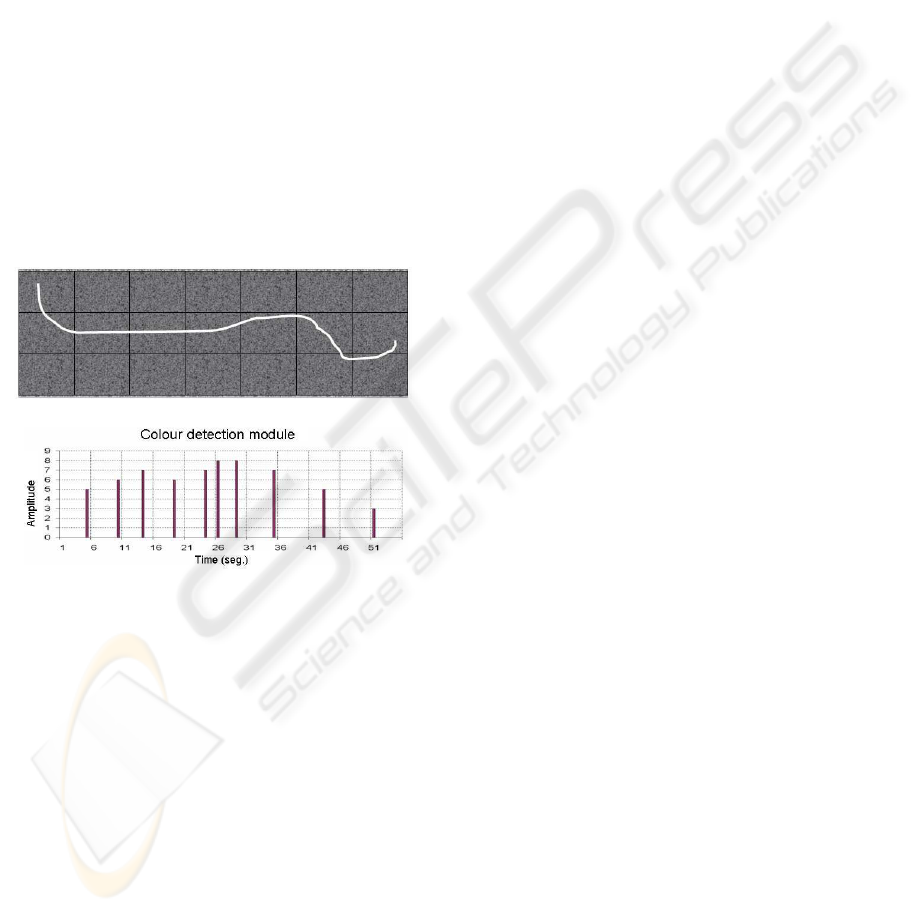

The Fig. 2 represents the executions of the color

detection component task along a trajectory. On

curved segments, both frequency and amplitude of

scanning take lower values. On straight segments

both parameters can increase their values.

Figure 2: Color detection component execution chrono-

gram.

5 CONCLUSION

In this paper, the runtime adaptation mechanisms

available in CoolBOT have been presented. In Cool-

BOT, the control of shared resources has been in-

tegrated in the facilities offered by the integration

framework. If this capacity, is to be used by the pro-

grammer, components must be declared adaptive and

designed with adaptation capabilities. Adaptive com-

ponents can coexist with non-adaptive components in

the same application. These adaptation mechanisms

allows the system to regulate the load that a computa-

tional context may provoke on the system or can be

used to make room for new components when the

computational context changes. The objective has

been to introduce mechanisms that must avoid uncon-

trolled degradation of the system in high load situa-

tions, paving the road to achieve more robust systems.

REFERENCES

Coste-Maniere, E. and Simmons, R. (2000). Architecture,

the Backbone of Robotic Systems. Proc. IEEE In-

ternational Conference on Robotics and Automation

(ICRA’00), San Francisco.

Dom

ınguez-Brito, A. C., Hern

andez-Sosa, D., Isern-

Gonz

alez, J., and Cabrera-G

amez, J. (2004). Integrat-

ing robotics software. IEEE International Conference

on Robotics and Automation, New Orleans, USA.

Fleury, S., Herrb, M., and Chatila, R. (1997). GenoM: A

tool for the speciﬁcation and the implementation of

operating modules in a distributed robot architecture.

In Proceedings of the IEEE/RSJ International Confer-

ence on Intelligent Robots and Systems (IROS), pages

842–848, Grenoble, Francia.

Garlan, D., Cheng, S.-W., Huang, A.-C., Schmerl, B., and

Steenkiste, P. (2004). Rainbow: Architecture-based

self-adaptation with reusable infrastructure. Com-

puter, 9162(10):46–54.

Hern

andez-Sosa, D. (2003). Adaptaci

on computacional en

sistemas percepto-efectores. Propuesta de arquitec-

tura y pol

ıticas de control. PhD thesis, Universidad

de Las Palmas de Gran Canaria.

Jones, S. D. (1997). Robust Task Achievement. PhD thesis,

Institut National Polytechnique de Grenoble.

Kortenkamp, D. and Schultz, A. C. (1999). Integrating ro-

botics research. Autonomous Robots, 6:243–245.

Murphy, R. R. (2000). Introduction to AI Robotics. The

MIT Press.

Musliner, D. J., Goldman, R. P., Pelican, M. J., and Krebs-

bach, K. D. (1999). Self adaptive software for hard

real-time environments. IEEE Intelligent Systems,

14(4):23–29.

Oreizy, P., Gorlick, M. M., Taylor, R. N., Heimbigner, D.,

Johnson, G., Medvidovic, N., Quilici, A., Rosenblum,

D. S., and Wolf, A. L. (1999). An architecture-based

approach to self-adaptive software. IEEE Intelligent

Systems, 14(3):54–62.

Schlegel, C. and W

orz, R. (1999). Interfacing Different

Layers of a Multilayer Architecture for Sensorimotor

Systems using the Object Oriented Framework Smart-

Soft. Third European Workshop on Advanced Mobile

Robots - Eurobot99. Z

urich, Switzerland.

Steenstrup, M., Arbib, M. A., and Manes, E. G. (1983).

Port automata and the algebra of concurrent processes.

Journal of Computer and System Sciences, 27:29–50.

Stewart, D. B., Volpe, R. A., and Khosla, P. (1997). De-

sign of dynamically reconﬁgurable real-time software

using port-based objects. IEEE Transactions on Soft-

ware Engineering, 23(12):759–776.

ICINCO 2005 - ROBOTICS AND AUTOMATION

402
