INTELLIGENT ROBOTIC PERSON FOLLOWING IN

UNSTRUCTURED ENVIRONMENTS

Mahmoud Tarokh and John Kuo

Department of Computer Science, San Diego State University, San Diego, CA 92124, U.S.A.

Keywords: Robotic person following, fuzzy control, image recognition.

Abstract: The paper describes a scheme based on image identification and fuzzy logic control for following a person

by a mobile robot in previously unknown and rough environments. The mobile robot is equipped with a

pan-tilt-zoom camera and sonar range sensors. The person detection system uses color and shape of the

person to be followed, and provides key characteristics of the person’s image to a fuzzy control scheme.

These characteristics are used by fuzzy controllers to determine the actuation signals for the camera pan and

tilt, and the robot speed and steering. Experimental results are reported for both indoor locations consisting

of tours of labs and hallway, and outdoor environments involving traversal over hills and rough terrain.

1 INTRODUCTION

Vision based robotic tracking and following persons

has many applications such as surveillance, motion

capture and human assistance. The major

requirement in these applications is the ability to

track and follow a moving person through non-

predetermined, unstructured and often rough

environments. The robotic person following

consists of two main tasks - person recognition and

segmentation from the surrounding environment,

and motion control to follow the person using the

recognition results.

Frame differencing, which compares

consecutive image frames, is the simplest and fastest

algorithm for detecting moving objects, especially

when the camera is static (Cai 1995, Richards

1995). However, the major challenge in the tracking

task is the detection of person’s motion by a camera

mounted on a moving robot as these two motions

are blended together. A number of approaches have

been proposed to address this issue, e.g. tracking

features (Censi 1999, Zoghlami 1997, Foresti 2003)

and computing optical flow (Srinivasan 1997, Irani

1994). In (van Leeuwen 2002) a method is

proposed to track cars in front using a camera

mounted on the pursuing car. A color based tracking

system capable of tracking color blobs in real time

is implemented on a mobile robot (Schlegel 2000),

but requires the person to wear a shirt of specified

color and does not consider shape. An approach to

recognition of a moving person by a camera

mounted on a robot is provided in (Tanawongsuwan

1999) which also uses color recognition. These

approaches are only effective in environments that

do not contain objects whose color is similar to that

of the person to be tracked. More recently, a

probabilistic approach is proposed which is based

on frame differencing with a compensation for the

robot mounted camera motion (Jung 2004)

There has also been considerable work in the

area of autonomous robot navigation, but very few

addressing person following. In particular

numerous fuzzy-logic base approaches have been

developed for navigation (e.g. see Saffiotti 1997 for

a review). Fuzzy logic has been applied to the wall

following and obstacle avoidance problem

(Braunstingl 1995). Omni-directional cameras,

although expensive, are useful in sensing motion in

every direction (Gasper 2000). Such cameras allow

creation of panoramic images of the environment,

which can be used for navigation and control of a

mobile robot. Research reported in (Weng 1998)

uses vision to guide a mobile robot by comparing

images to a database of images that are created

during an initialization tour of the environment.

Regardless of the approach, navigation and tracking

using maps require that the environment be known

prior to application, which limits flexibility and is

not a valid approach to person following.

A simple vision based robotic person following

was recently proposed for flat environments using a

gray-scale camera that was fixed to a mobile robot

101

Tarokh M. and Kuo J. (2005).

INTELLIGENT ROBOTIC PERSON FOLLOWING IN UNSTRUCTURED ENVIRONMENTS.

In Proceedings of the Second International Conference on Informatics in Control, Automation and Robotics - Robotics and Automation, pages 101-106

DOI: 10.5220/0001166601010106

 SciTePress

platform (Tarokh 2003). The purpose of the present

paper is to enable robust person following in rough

terrain. In this work we employ color and shape for

person identification and pan/tilt camera control for

robust person tracking

2 TRAINING AND DETECTION

The first task in person following is the detection

and segmentation of the person from the scene.

This task consists of two subtasks, namely, training

a detection system and recognition of the person as

he/she moves in the environment. Both these

subtasks employ color and shape characteristics.

In our system, the person appears in front of the

camera at the start of a tour, and images of the

person are captured automatically when the person

takes several poses, i.e. back to camera, and side

view. The system is then trained to recognize the

shape and color of the person’s upper body. We use

H (hue or color), S (saturation or color depth), B

(brightness or lightness) color model, as HSB is

based on direct interpretation of colors and provides

a better characterization compared to other color

models such as RGB for this application. The

averages of H, S and B components for the poses

are recorded, which provide the nominal values

nom nom

S and

nom

B . However since these

values will go through changes during the motion,

we allow deviations

H∆ , S

∆

, B∆ from the nominal

values, which are found experimentally. Thus

during the person following, if an object in the

image has color components within the reference

values

),HHH(

nomref

∆

±= )SSS(

nomref

∆

and

)BB(B

nomref

∆±= , then the object will be a

candidate for the person’s image, and its shape

measures are checked.

We train the shape identification system with

the above mentioned poses. Shape measures must be

independent of the mass (area) of the person’s image

since the mass changes with the distance of the robot

to the person. The three measures that satisfy this

requirement are compactness C, circularity Q and

eccentricity E. Equations for computing these shape

measures are given in (Tarokh 2003), where the

normalized values of the three measures are between

0 and 1. During the training, each of these

measures is evaluated for the person in each of the

above two poses (k = 1,2) and their values

refk,

ref,k

Q and

ref,k

E are stored for the person

following phase. This completes the training of the

system, which takes a few seconds on a standard PC,

and can be considered as an off-line phase.

During person following, the camera takes

images of the scene and the system performs several

operations to segment the person from other objects.

The first operation is to scan every pixel and mark

the pixel as belonging to the person image, e.g. set it

is to white if all its three color components are

within the reference color ranges

ref

H ,

ref

S and

ref

B . This process of checking all pixels is time

consuming, and therefore we speed it up by

considering two observations. First, since the

person’s image occupies a large portion of the

image, it will be sufficient to check pixels on every

other row and every other column for color

verification. This way only a quarter of the pixels

are checked and marked white if they satisfy the

color range. The skipped pixels will be marked

white if the checked pixels around them have been

marked white. The second observation is that there

is a maximum distance that the person can move

between two consecutive frames. As a result, the

person’s pixels in the current frame must all lie

within a circle centered at the centroid (to be defined

shortly) of the previous frame. These two

observations limit the number of pixels to be

checked and speed up the marking of the pixels that

belong to the person’s image.

The final operation is to perform a standard

region growing on the marked pixels so that

connected regions can be formed. Regions smaller in

area than a specified value are considered noise and

are removed. The shape measures values

C ,

and

E for the remaining regions are computed,

where i = 0,1,2,…,m-1 denote the region numbers.

Rather than checking each shape parameter with its

corresponding reference value, we define a single

measure for the closeness of the detected region to

the reference region, i.e. the person’s image during

the training. A possible function

is given in

Tarokh (2003).

The closeness function produces 1 if all shape

measures of the region are the same as the reference

value, and approaches zero if the region shape

measures are completely different. It is noted that for

each detected region, two shape measures are found,

i.e. one for each pose. The region that has the

largest value of closeness

is selected, and if this

value is close to 1, the selected region is assumed to

represent the person. If all the regions have small

values of

, then none is chosen and another image

is taken and analyzed.

The above method of distinguishing the region

corresponding to the person from other detected

regions in the image is simple and yet quite

effective. There are several reasons for this

effectiveness. One is that the robot is controlled

reasonably close to the person being followed and in

ICINCO 2005 - ROBOTICS AND AUTOMATION

102

the direction of person’s motion, as will be seen in

the next section. This allows only few objects in the

camera’s view making the person identification

reasonably easy. Furthermore, the simplicity of

image processing tasks allows fast computation,

making it possible to achieve relatively high sample

rates.

We must now determine several characteristics

of the detected region representing the person in the

image. These characteristics will be used for the

robot control. The area or the mass of the region is

important since it gives a measure as to how close

the person is to the camera mounted on the robot. A

large mass is indicative of a person that is close to

the camera, whereas a small mass implies that the

person is far away. The mass (area) M is simply

equal to the total number of pixels in the region.

The coordinates of the center of the mass, denoted

y,x is defined as

pq pq

0y 0 x 0y 0

y; y x

== ==

∑∑ ∑∑

(1)

where x, y is the coordinates of a pixel in the region,

p is the number of rows and q is the number of

columns of the image. It is noted that we assign the

x-axis across the filed of camera view, and the y-

axis along the field of view, i.e. along the path of the

person. The center of mass is of importance for

person tracking because it provides the coordinates

of the point to be tracked by the robot.

3 FUZZY FOLLOWING

CONTROL

The objective of the robot control is to follow the

person and keep a reasonably constant distance to

him/her. Since there are ambiguities and imprecision

in the image information, we propose to use a fuzzy

control paradigm. The image information, namely

the person’s mass M, the center of the mass

(

y,x ) and their derivatives (

y,x

), are the

sensed/computed quantities. Note that the derivative

(e.g.

) is computed as a change in the quantity

between two samples (e.g.

x∆ ) divided by the

sample time, which is taken as the unit time. Thus

in what follows, we use the derivative and the

difference interchangeably. There are four

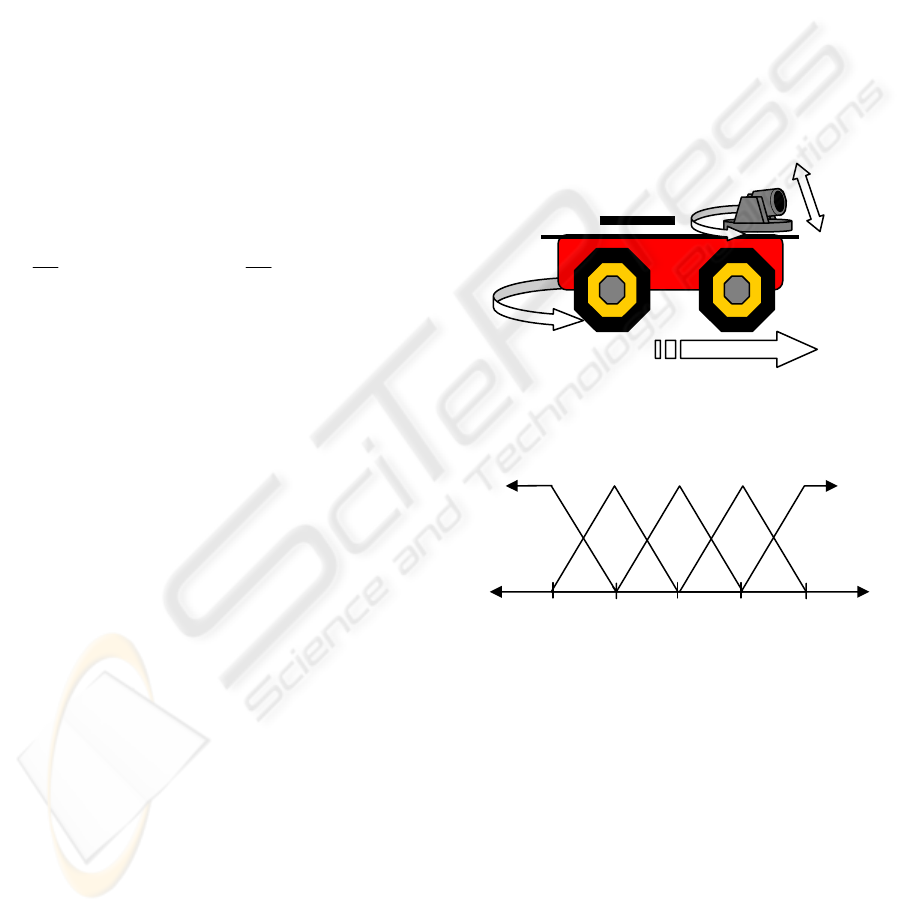

actuation quantities, as shown in Fig. 1. These are

camera pan or yaw angle

, camera tilt or pitch

angle

θ , robot forward/backward speed v, and robot

steering angle

ϕ . For reasons that will become

clear shortly, instead of the current values

and

, the changes to these quantities from the last

values, i.e.

∆

and ϕ

∆

are implemented.

Each of the sensed and actuation quantities is

treated as a fuzzy (linguistic) variable with five

normalized membership function as given in Fig 2.

The steering is not included in this table, and it value

will be determined using the average of the camera

pan (yaw), as will be described later. The fuzzy sets

Set 1, Set 2,…, Set 5 are given specific names for

each fuzzy variable as listed in Table 1, where the

fuzzy variables are shown with a tilde. For example,

the fuzzy sets for the x-axis of the center of the mass

fuzzy variable

that describes motion across the

field of view of the camera are named Far Left,

Center, etc. Similarly, the fuzzy sets for the y-axis

of the mass are called Down, Up, etc. depending

where the person appears in the image.

Figure 1: Robot actuation quantities

Figure 2: Normalized membership function

Each of the sensed and actuation quantities is

treated as a fuzzy (linguistic) variable with five

normalized membership function as given in Fig 2.

The steering is not included in this table, and it value

will be determined using the average of the camera

pan (yaw), as will be described later. The fuzzy sets

Set 1, Set 2,…, Set 5 are given specific names for

each fuzzy variable as listed in Table 1, where the

fuzzy variables are shown with a tilde. For example,

the fuzzy sets for the x-axis of the center of the mass

fuzzy variable

that describes motion across the

field of view of the camera are named Far Left,

Center, etc. Similarly, the fuzzy sets for the y-axis

of the mass are called Down, Up, etc. depending

where the person appears in the image.

-0.5 0.5 -1.0 1.00

Set 5

Set 4

Set 2

Set 1

Set 3

INTELLIGENT ROBOTIC PERSON FOLLOWING IN UNSTRUCTURED ENVIRONMENTS

103

We propose the following scheme that

decomposes the control task into three controllers

for pan, tilt and speed. Steering control will be

discussed later. The main tasks of the camera pan

and tilt controllers are to position the camera so that

the person is in the camera’s sight from which the

person’s whereabouts can be deduced. The purpose

of the robot speed controller is to keep a nearly

constant distance between the robot and the person.

Table 1: Definition of fuzzy variables and associated sets

Neg = Negative, Pos = Positive

Consider first the pan (yaw) controller. When

the person moves to the left, the image of the person

will be shifted to the left of the frame along the

image x-axis if the camera and the robot are

stationary. Thus the person’s center of mass in x-

direction,

x , is an indication of the location of the

person across the field of view. Furthermore,

)1k(x)k(xx

ccc

−−=∆ gives the amount and

direction of the change from the last sample, where

k denotes the current sample (frame) value and (k-1)

denotes the previous value of

x .

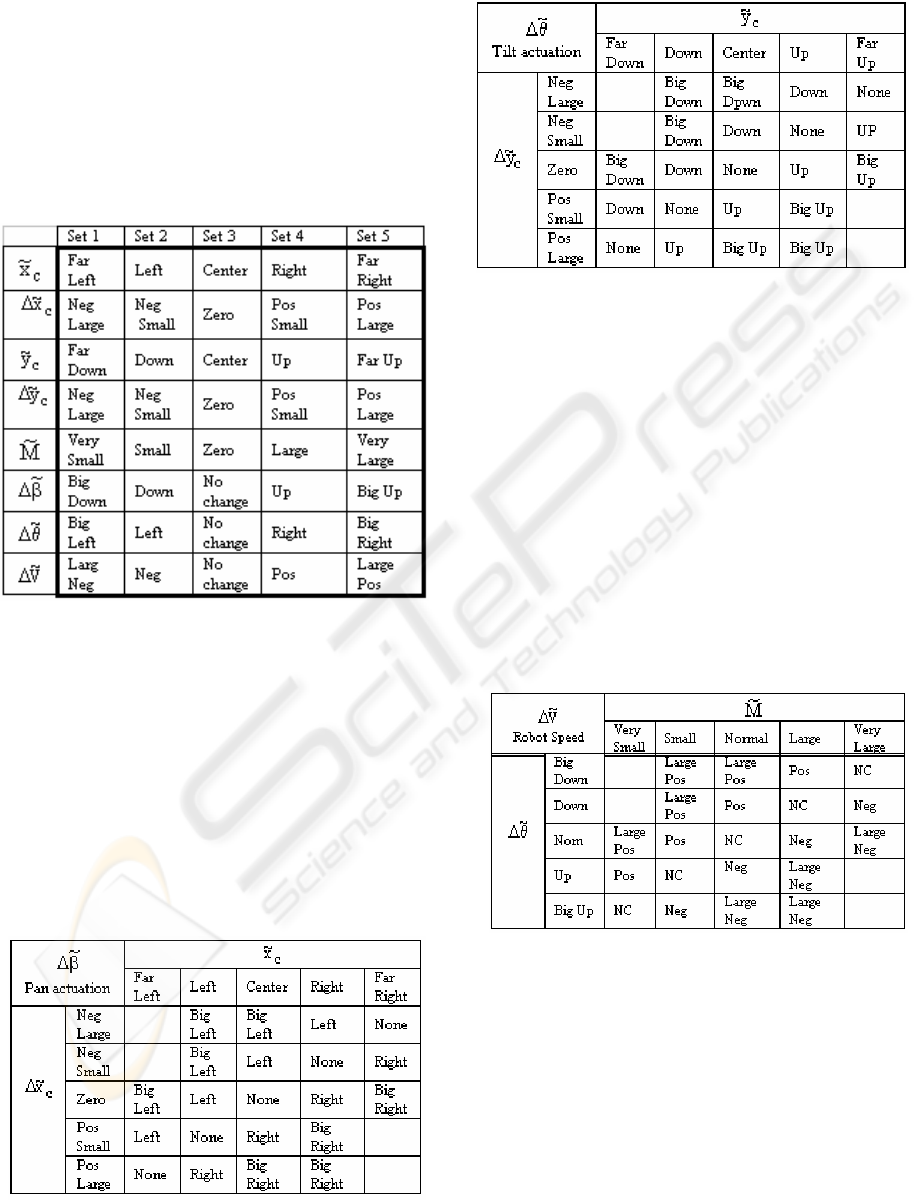

Table 2: Fuzzy rule matrix for camera pan control

Table 3: Fuzzy rule matrix for tilt control

The speed controller takes two inputs, namely the

person’s image mass M and the change in the

camera tilt

∆

. The mass is a measure of the

person’s distance to the camera and the larger this

mass, the closer the person will be to the camera,

and vice versa. The tilt is used to account for hilly

terrain When

∆

is positive as in the case of the

person starting to climb a hill, the robot must slow

down and when

∆

is negative, as in the case of the

person starting to descend a hill, it must speed up.

These considerations lead to the rule matrix given in

Table 4.

The center of gravity defuzzification is used to

determine the crisp value of the camera pan and tile,

and robot speed. The final control quantity is the

steering.

Table 4: Fuzzy rule matrix for speed control

Although it is possible to employ fuzzy rules for

determining the steering control similar to the other

three quantities, it is simpler and more reasonable to

base the robot steering on the pan (yaw) of the

camera. This is due to the observation that the

camera rotates to keep the person in its view and

thus essentially follows the person’s turning

motions, which must eventually cause the rotation

(steering) of the robot. However, it will be

unnecessary and undesirable to steer the robot at the

same rate as the camera pan. In other words, the

camera must track relatively fast and fine motions of

ICINCO 2005 - ROBOTICS AND AUTOMATION

104

the person, whereas the robot must follows the gross

motion of the person which is the average motion

taken over a time period. As a result of this

averaging, the steering is computed as

∫

θ=ϕ

dtK where K is the proportionality constant.

4 EXPERIMENTAL RESULTS

The robot base used in the experiments was an

ActiveMedia Pioneer2 All-Terrain rover, as shown

in Fig. 3. The base dimensions are

cm264950

× ,

has four motorized wheels, and can travel at a top

speed of 1.6 m/s. The Pioneer 2 is capable of

holding 40 kg and has a battery life of 10-12 hours.

The robot has a sonar ring with 8 sensors, which has

an operation range of 15 cm to 7 m. The sonar

sensors, seen in Fig. 3 as circles, are used for

obstacle detection. In case obstacles are detected, a

collision avoidance maneuvering, not described in

this paper takes place.

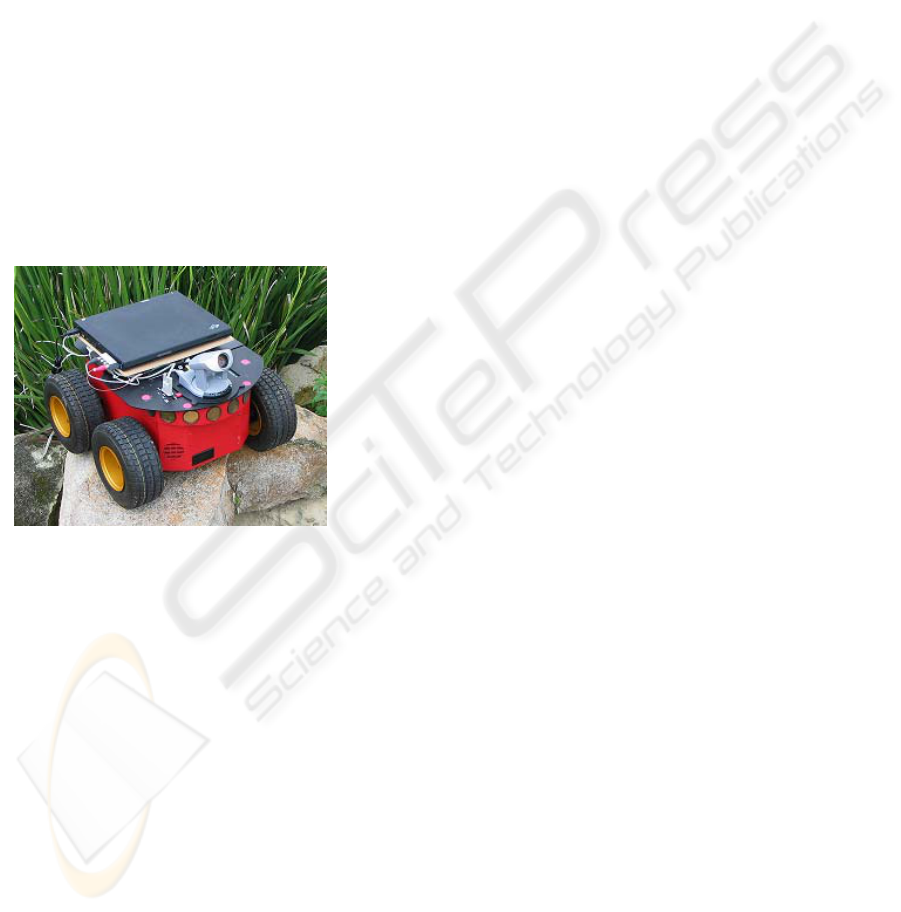

Figure 3: The rover used on experiments

A Cannon VC-C4 camera installed on the Pioneer

2 (Fig. 3), and permits color image capture at

maximum resolution of 640 horizontal lines and 480

vertical lines in the NTSC format. It is connected to

a laptop computer through an Imperx VCE-B5A01

PCMCIA frame gabber, which is specifically

designed for laptops. The frame grabber can achieve

capture rates of 30 frames/second at the lowest

resolution of

120160× in NTSC format, and 5

frames per second at the highest resolution of

480640× . The laptop mounted on the base (Fig. 3)

is an IBM T40 with Windows XP operating system.

It contains an Intel Centrino processor running at 1.5

MHz.

The application uses a variety of software

libraries written by third-party for creating interface

and enabling device control. The libraries for the

user interface are written in Java, whereas libraries

for low motor control are in C++. As a result our

person following code was written both in Java and

C++. The person following application uses the

client server, distributed callback, model view

controller. The cycle (sample) time for performing

various tasks is found to be 0.13 s, or about 8

Extensive indoor and outdoor trials were

conducted with the person following system. Indoor

trials included passing through a door (Fig. 4), and

identification of person to be followed amongst

several persons. Outdoor trials included following

up a steep and winding dirt trail (Fig. 5), a rocky

terrain (Fig. 6) that involved shaking of the rover,

and following with incomplete image and partial

occlusion (Fig. 7).

The successful experiments in rough terrain and

partial occlusion, demonstrate that the person

detection and fuzzy controllers are able to cope with

shaky images and imprecise or incomplete

information. The system even handle full occlusion

in cases where the person does not quickly change

directions or disappear behind other objects for an

extended period of time.

5 CONCLUSIONS

The paper has presented an intelligent based control

method for person following in previously unknown

environments. It consists of a simple person

identification using both color and shape, and fuzzy

controllers for the camera and the robot. It is shown

through various experiments that the system can

function in both indoors and outdoors. The system

has a number of features, which include robustness

to noise due to rough terrain traversal, and to partial

occlusion. It can perform well in difficult locations

such as hallways with tight turns, and winding hilly

outdoor trails. A video showing person following in

various environments has been prepared and will be

shown at the conference.

The system has two limitations. First, it is unable

to perform satisfactory person following when the

person moves fast. The main bottlenecks are image

capture/save and thresholding routine that in

combination take more than half of the total cycle.

The other limitation is that in bright outdoor lights

with distinct shadows, the person identification

system can get confused since it treats the shadows

as objects/obstacles. We are currently investigating

these issues to improve the robustness of the system.

INTELLIGENT ROBOTIC PERSON FOLLOWING IN UNSTRUCTURED ENVIRONMENTS

105

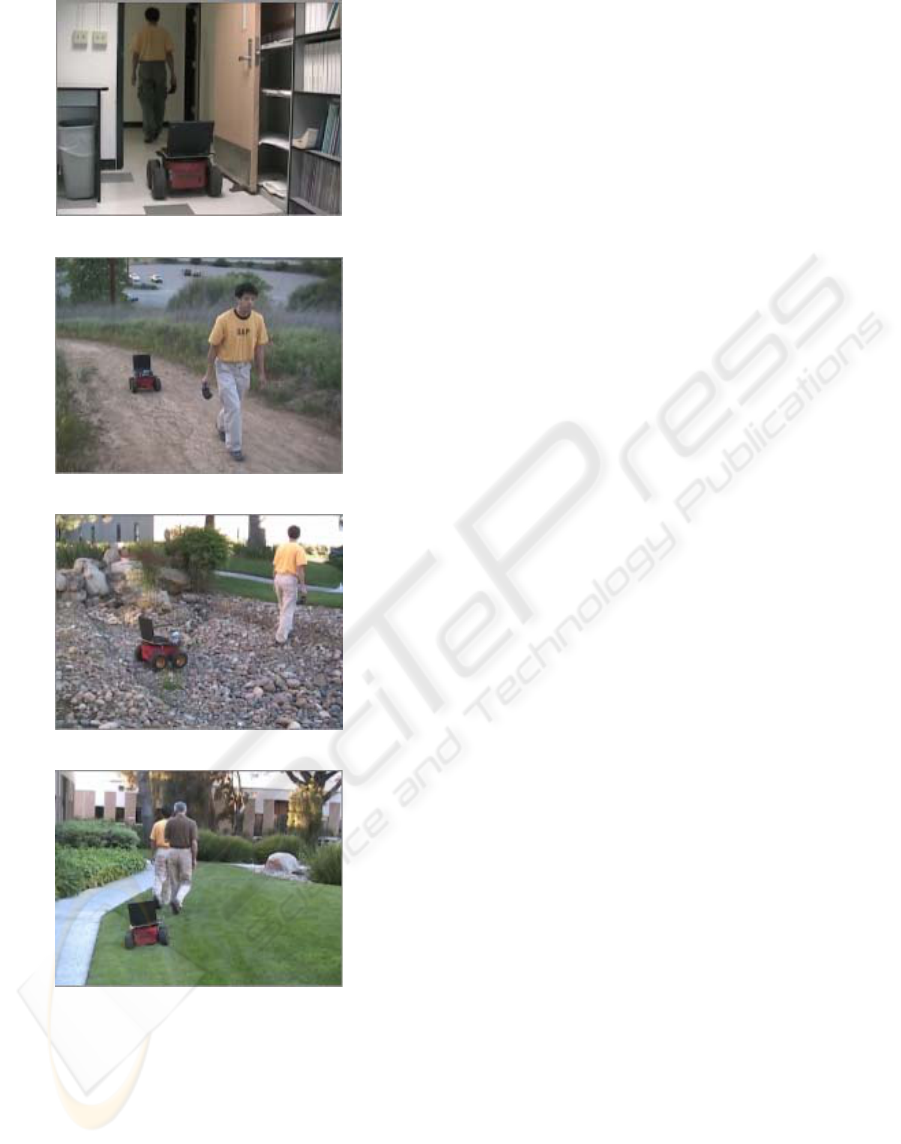

Figure 4: Passage through a door

Figure 5: Following a steep dirt trail

Figure 6: Traversing rough terrain

Figure 7: Coping with partial occlusion

REFERENCES

Braunstingl, R., Sanz, P., and Ezkerra, J. M. 1995. Fuzzy

logic wall following of a mobile robot based on the

concept of general perception, Proc. 7th Int. Conf. on

Advanced Robotics

, pp. 367-376, Spain.

Cai, Q., A. Mitchie and J. K. Aggrarwal

,1995. Tracking

human motion in an indoor environment,

Int. Conf.

on Image Processing

Censi, A., A. Fusiello, and V. Roberto, 1999. Image

stabilization by feature tracking,

Proc. 10

Int. Conf.

Image Analysis and Processing,

pp. 665-667, Venice,

Italy.

Foresti, G. L. and C. Micheloni, 2003. A robust feature

tracker for active surveilance of outdoor scenes,

Electronic Letters on Computer Vision and Image

Analysis,

vol 1, No. 1, 21-34.

Gaspar, J., N. Winters and J. Santos-Victor, 2000. Vision-

based navigation and environmental representation

with omni-directional camera,

IEEE Trans. on

Robotics and Automation

, Vol. 16, No. 6.

Irani, M., . Rousso, and S. Peleg, 1994. Recovery of ego-

motion using image stabilization,

Proc. IEEE

Computer Vision and Pattern Recognition,

pp. 454-

460.

Jung, B, and G. Sukhame, 2004. Detecting moving

objects using a single camera on a mobile robot in an

outdoor environment, Porc. 8

Conf. Intelligent

Autonomous Systems,

pp. 980-987, Amsterdam, The

Netherlands.

Richards, C., C. Smith and N. Papaikolopoulos,1995.

Detection and tracking of traffic objects in IVHS

vision sensing modalities, Proc. 5th Annual Meeting of

ITS America.

Saffiotti, A. 1997. “The uses of fuzzy logic in autonomous

robot navigation: a catalogue raisonn'e, Technical

Report 2.1, IRIDIA. Universite Libr'e de Bruxelles,

Brussels, Belgium.

Schlegel, C., J. Illmann, H. Jaberg, M. Schuster, and R.

Worz, 2000. Integrating vision based behaviors with

an autonomous robot, Journal of Computer Vision

Research, Videre,

1 (4), pp. 32-60.

Srinivasan, S. and R. Chellappa, 1997. Image stabilization

and mosaicking using overlapped basis optical flow

field.

Proc. IEEE Int. Conf. Image Processing.

Tanawongsuwan, R., Stoytchev, A. and Essa, I, 1999.

Robust tracking of people by a mobile robotic agent,.

College of Computing Report, Georgia Institute of

Technology.

Tarokh, M. and P. Ferrari, 2003. Robotic person following

using fuzzy logic and image segmentation, J. Robotic

Systems

, vol. 20, No. 9, pp. 557-568.

Van Leeuwen, M.B., F.C. Greon, 2002. Motion

interpretation for in-car vsion system, Proc.

IEEE/JRS Conf. Intelligent Robots and Systems

Lausanne, Switzerland.

Weng, J., & Chen S. , Vision-guided navigation using

SHOSLIF.

Neural Networks, 1, pp. 1511-1529, 1998.

Zoghami, I. O. Faugeras and R. Deriche, 1997. Using

geometric corners to build a 2d mosaic from a set of

images,

Proc. IEEE Conf. Vision and Patter

Recognition

, pp.420-425.

ICINCO 2005 - ROBOTICS AND AUTOMATION

106
