A GRAPHICAL INTERFACE BASED ON GRAFCET FOR

PROGRAMMING INDUSTRIAL ROBOTS OFF-LINE

Gustavo V. Arnold

∗

, Pedro R. Henriques

Department of Informatics, University of Minho

Braga, Portugal

Jaime C. Fonseca

Department of Industrial Electronic, University of Minho

Braga, Portugal

Keywords:

Compilers, Graphical Interface, Industrial Robots Programming Language, Code Generator.

Abstract:

This paper presents the current development stage of our approach to industrial robot programming, that is

the graphical interface for our environment, that is based on the well-known Grafcet. Our approach focus on

the modelling of the system, rather than on the robot. So, it will improve the programming and maintenance

tasks, allowing the reuse of source code.

1 INTRODUCTION

Today, there are basically two ways for programming

industrial robots: (1) by the use of the industrial ro-

bot programming language (IRPL); (2) or by the use

of off-line programming environments (OLPE). How-

ever, both of them have their own drawbacks:

1. although the forerunner languages, such as AML

(Taylor et al., 1982) or AL (Mujtaba et al., 1982),

have now been superseded by elaborated robot lan-

guages, like ABB Rapid (Automation, 1994), they

require detailed description of the motion of every

joint in the mechanism in order to execute a de-

sired movement; they require specialized knowl-

edge of the language; the robot programs have lim-

ited portability, and signiﬁcant investment must be

made when changing or acquiring a new robot type

or simply when upgrading a new controller from

the same vendor.

2. the most recent off-line programming environ-

ments (for instance, Workspace) do not address the

issue of sensor-guided robot actions; and they are

limited to a robot motion simulator, which provides

no advanced reasoning functionality, nor ﬂexibility

in the tasks.

According to some principles of software engineer-

ing and programming languages evaluating criteria

∗

Gustavo Arnold is a professor at Universidade Cat

olica

do Salvador - Brasil, and is temporarily at Universidade do

Minho to get his PhD degree, supported by a FCT scholar-

ship.

(Sebesta, 1999), it is possible to see that these devel-

opment environments do not attend the user needs, as

can be seen on ﬁgure 1.

Principles OLPE IRPL

User-friendly YES NO

Source Code

Portability YES NO

Expressiveness NO YES

Environment

interaction NO YES

Speciﬁcation

close to the NO NO

problem

Reusability NO NO

Figure 1: Principles of software engineering and program-

ming languages that must be supported by the programming

environments

So, we proposed an integrated, formal and high-

level approach to industrial robot programming

(Arnold et al., 2003), that will attend these users de-

sires. One component of this approach is a friendly

graphical interface, based on the Grafcet speciﬁcation

diagram. This interface is responsible not only for fa-

cilitating the programming task, but also to translate

this diagrammatic speciﬁcation into languages that

belong to different levels of our approach. This in-

terface is user-friendly, the program speciﬁcation is

close to the problem (instead of close to the robot),

and allows environment interaction (which means that

113

V. Arnold G., R. Henriques P. and C. Fonseca J. (2005).

A GRAPHICAL INTERFACE BASED ON GRAFCET FOR PROGRAMMING INDUSTRIAL ROBOTS OFF-LINE.

In Proceedings of the Second International Conference on Informatics in Control, Automation and Robotics - Robotics and Automation, pages 113-118

DOI: 10.5220/0001168501130118

 SciTePress

our implementation will allows the development of

closed-loop systems). It is also expressive, but it still

can be more, depending on the other components that

are under construction. The source code portability

will also be achieved at the end of this implementa-

tion. And the reusability will also be achieved when

extend the graphical interface.

The aim of this paper is to discuss that graphical in-

terface based on the Grafcet, and the associated trans-

lator to RS language (Toscani, 1993) (a reactive sys-

tems programming language).

In the following sections, the most relevant theoret-

ical aspects (like our approach to industrial robot pro-

gramming, in section 2, and the Grafcet in section 3),

and the components already implemented (the graph-

ical interface in section 4, and the translator in section

5) are presented. At the end (section 6), appear the

conclusions and future works.

2 OUR APPROACH TO

INDUSTRIAL ROBOT

PROGRAMMING

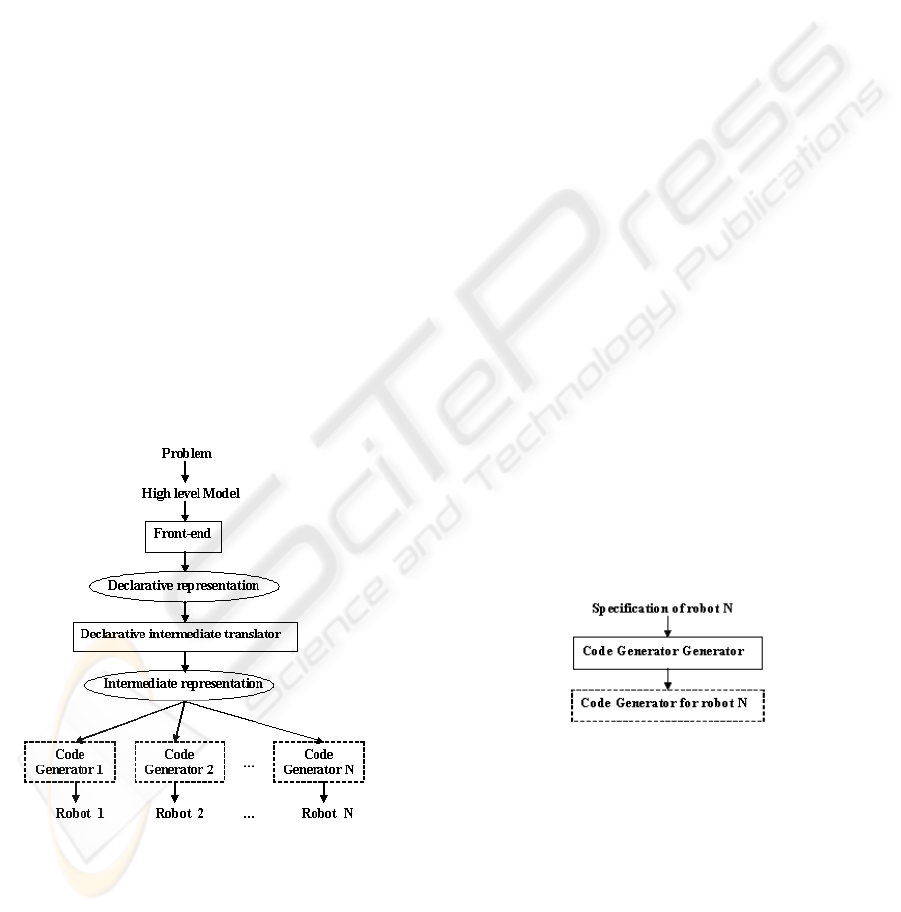

Our approach is described diagrammatically in ﬁgure

2. It should be supported by the following languages

and tools that compose the architecture we want to

defend:

Figure 2: Proposed approach to industrial robots program-

ming.

• a truly high level and declarative language (Grafcet,

RS)

• an easy-to-use front-end

• an intermediate representation (DIR)

• the translators to RS and to DIR

• the code generator

• an automatic generator of the robot code generators

• a robot speciﬁcation language

At the top, there is the problem to be solved. It will

be used an adequate modelling technique, responsible

for decompose the problem into simple problems, that

would be easily programmed; formal models are em-

ployed to describe data structures and operations nec-

essary to solve the subproblems. To describe formally

the overall problem and the subproblems, a truly high

level language, close to the speciﬁcation instead of the

robot, should be used. Then we advocate the use of

an easy-to-use compiler front-end, like Grafcet, that

can interpret the speciﬁcation language and generate

a declarative description, that can be translated into

an intermediate description for the program speciﬁed.

An intermediate representation is used because the

front-end must be focused on the speciﬁcation of the

problem, and not on the robot. So, there will be an-

other component responsible for translating this in-

termediate code into the code of a robot. Because this

compiler back-end is speciﬁc for a single robot, it is

necessary to have a lot of back-ends, each of them

adapted to a speciﬁc target (robot’s architecture and

machine code). To create these code generators, an

automatic generator will be used, as can be seen in

ﬁgure 3. This tool, based on the known intermedi-

ate representation, and on the robot speciﬁcation, that

must be included someway, will produce an optimal

code generator for the speciﬁed robot.

The main objective of this approach is to make the

programming task easy, with the possibility of reusing

the source code to program different industrial robots,

allowing to explore their potentialities.

Figure 3: Automatic generator of code generators.

3 GRAFCET

Because Grafcet (Telemec, 1982) is a well known

speciﬁcation diagram for industrial automation appli-

cations, it was decided to use a graphical interface that

should looks like the Grafcet, as told above.

So before describing the FE interface built, we dis-

cuss the basic concepts that Grafcet uses to represent

automatisms, that are (Grafcet, 2000):

ICINCO 2005 - ROBOTICS AND AUTOMATION

114

• Step, represents a partial state of system, in which

an action was performed. The step can be active or

idle. The associated action is performed when the

step is active, and remains asleep when the step is

idle;

• Transition, links a precedent step (one or several)

to a consequence step (one or several), and repre-

sents the actions ﬂow. It describes a state change.

Changing is under the control of two conditions:

1. every step previous to the transition must be ac-

tive (and the actions executed),

2. a boolean condition associated with the transi-

tion, must be true.

4 GRAPHICAL INTERFACE

The interface that was implemented represents all the

concepts and features present on a Grafcet diagram,

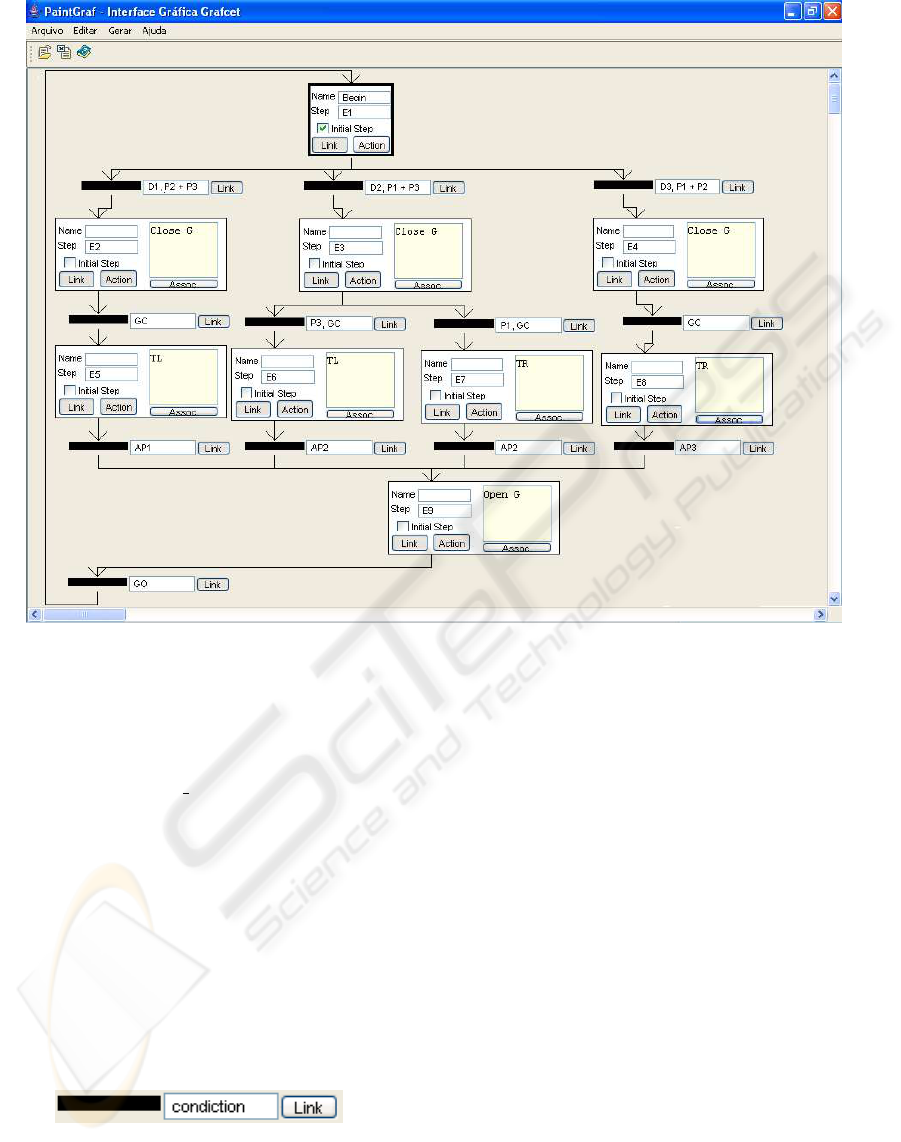

and have a similar appearance. An example of this

interface can be seen on ﬁgure 4

On this example, a robot can move throw three

points, P1, P2 and P3 (P2 at the center, P1 to the left,

and P3 to the right), and at each moment can only be

in one of these positions. There are three buttons, re-

sponsible for indicating the point to where the robot

must make a transfer. When one button is pressed, the

robot must do the following steps:

• Close the gripper;

• Make a transfer to the a left or to the right, depend-

ing on the pressed button and the current position;

• Open the gripper when arriving at the desired posi-

tion.

Based on Grafcet, this example is implemented in

the following way: The step E1, that is the initial one,

represents the rest state for the robot. At this moment,

the robot can be in any of the P1, P2 or P3 positions.

When a button (D1, D2 or D3) is pressed, a position is

selected; then the robot must make a transfer from its

current position to the desired one. The three possibil-

ities (D1 pressed when the robot is on P2 or P3, etc)

are described by the three transitions below E1. The

occurrence of one of these possibilities implies a step

changing to E2, E3 or E4. At any of these steps, the

robot must close the gripper (Close G). After receiv-

ing the information that the gripper is closed (GC),

there is another step changing, to E5, E6, E7, or E8.

At any of these steps, the transfer is done and the ro-

bot moves to the left (TL) or to the right (TR). Steps

E6 and E7 will be chosen depending also on the ini-

tial position of the robot (P3 or P1), because P2 is the

central position. So if the robot is at P1, it must move

to the right, and if it is at P3 it must move to the left.

When the robot arrives at the desired position (AP1,

AP2 or AP3), another step changing is done, and the

robot must open de gripper (Open G). When the grip-

per is opened (GO), the robot returns to its rest state,

the step E1 (although, the robot stays at this current

position).

In the rest of this section, we explain how the

Grafcet constructors were implemented in our editor.

4.1 Steps

The steps are represented as squares. Inside there are

two ﬁelds: the number of this step, that is a manda-

tory ﬁeld (a step number is generated automatically,

but the user can modify it); and the name of the step,

that is an optional ﬁeld (the user can name the step to

make it easy to understand its main goal). There is

a checkbox, called initial, that indicates if this is an

initial step. If it is, the square border becomes thicker.

After inserting a new step (square) into the diagram,

the editor offers two more options, that are the two

buttons inside the square: the ﬁrst one is the link but-

ton, responsible for linking this step to the next tran-

sition(s); the last one is the action button, responsible

for associating actions to this step (ﬁgure 5). When

this action button is pressed, the square is augmented,

at the right side, and a text box appears, where the

user can enter the actions code. The associate button

inside this new right box allows to store these actions

(when they are written) associated to the current step

(ﬁgure 6).

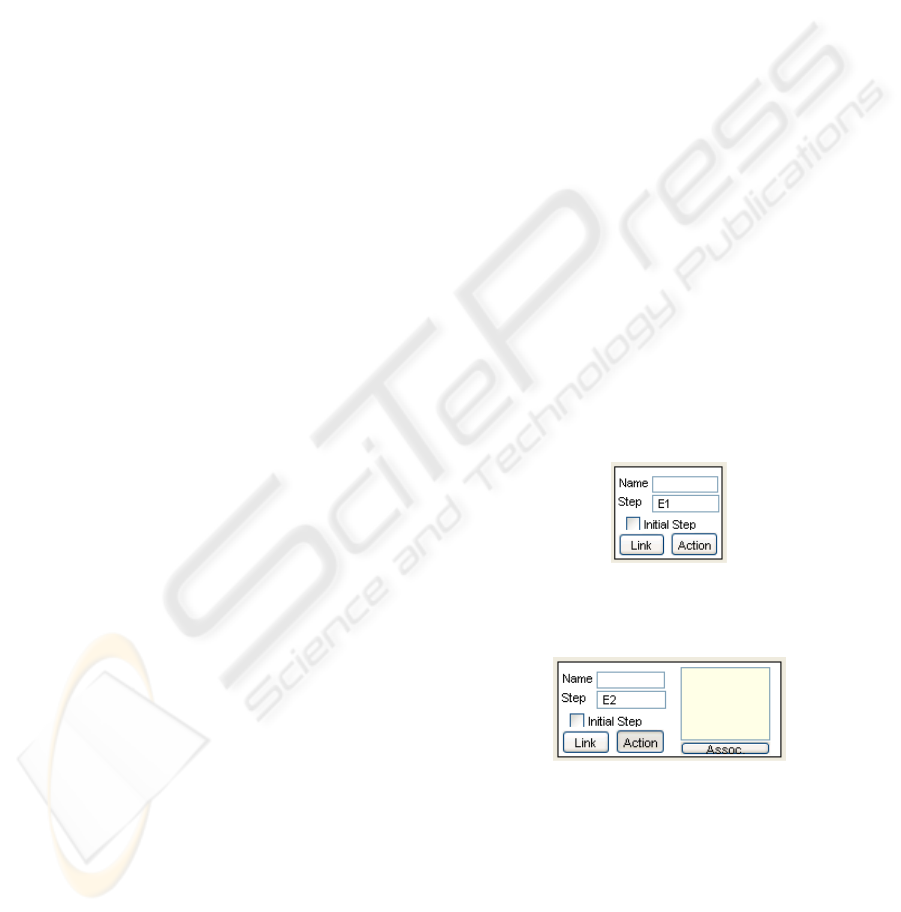

Figure 5: Step graphic representation.

Figure 6: Step and actions graphic representation.

Each action should be written considering the fol-

lowing grammar, which makes possible to represent

all the conditions and actions proposed by Grafcet:

actions -> ( "(" condition ")"

"{" (action ";")+ "}" )+

condition -> cond | condition op cond

cond -> iv | ˜iv | n_step

op -> "," | "|"

action -> command

A GRAPHICAL INTERFACE BASED ON GRAFCET FOR PROGRAMMING INDUSTRIAL ROBOTS OFF-LINE

115

Figure 4: Graphical interface based on Grafcet.

Conditions are written inside ”()” and they are op-

tional; iv corresponds to an input variable that must

be on, while the ∼iv corresponds to an input variable

that must be off, and n

step corresponds to steps

that must be active. If a condition is satisﬁed, the ac-

tion(s) can be executed. If there are more then one

action to be executed for one condition, these actions

must be written inside ”{}”. It is necessary to use a

”;” at the end of each action.

4.2 Transitions

Each transition is represented by a thick horizontal

line, followed by the condition ﬁeld, that must be

written by the user, and by a link button, responsible

for linking this transition to the next step(s) (ﬁgure 7).

Figure 7: Transition graphic representation.

Each condition should be written considering the

following grammar, which makes possible to repre-

sent all the functions proposed by Grafcet:

condition -> expr | condition op expr

expr -> v "+" | v "-" | time |

"(" conditon ")"

time -> t "/" n_step "/" seconds

op -> "," | "|"

where v+ corresponds to set the variable v to 1,

while the v- corresponds to reset the variable v to 0.

4.3 Alternatives and Simultaneous

Sequences

The sequences are generated automatically by the sys-

tem. The user must only link the steps to the transi-

tions and vice-versa. If the user wants to link one

transition to more than one step, a double line is pre-

sented, to show that this is the beginning of a simul-

taneous sequence. Also, if the user links more than

one step to only one transition, a double line is also

presented, but to indicate that this is the end of a si-

multaneous sequence. The other links are treated as

alternative sequences. Each object can be moved to

any position in the window, without loosing the links.

ICINCO 2005 - ROBOTICS AND AUTOMATION

116

5 TRANSLATOR

At this moment, there is only one translator ready,

that is the one that translates the Grafcet graphical

representation into an RS program. The Grafcet el-

ements implemented on the graphical interface were

discussed on previous sections, while the RS lan-

guage and automaton can be seen on(Toscani, 1993)

The variables are deﬁned previously by the user,

but the input, output and internal signals are detected

automatically. The RS internal signals correspond to

the steps, the RS input signals are detected during the

parsing of the conditions (from actions and from tran-

sitions), and the RS output signals are detected during

the parsing of the actions that must be executed.

Some auxiliary RS internal signals are also gener-

ated, if there are more then one action associated to

one condition or step. They are generate to grant the

sequential execution of each of these actions.

All the conditions are written using the inﬁx nota-

tion. So, a boolean expressions analyzer was created.

It is also possible to call the RS compiler, to trans-

late this RS program into an automaton.

To illustrate the idea, ﬁgure 8 shows the generated

RS program for the sample Grafcet speciﬁcation pre-

sented in ﬁgure 4. The up(signal) is responsible for

activating an internal signal, and the emit(command)

is responsible for sending an speciﬁc command to the

environment.

5.1 Steps

Each step of Grafcet is treated as an internal signal of

the RS language. So, for each step an internal signal

is created, if it still does not exist, and included at the

module header of the RS program. If the step is a ini-

tial one, it is added a command up(this step)

at the initially sentence of the module header.

This means that the respective internal signal will be

activated at the beginning, starting the automaton ex-

ecution at this step. The rules are executed if the sig-

nals (internal or input) on the left side of the rule are

on. The internal signals can be signalized internally,

while the input ones are set by the external environ-

ment.

If the step contains some action, it will be parsed

to detect the actions and their respective conditions,

if they exist. For each action, an output signal is cre-

ated and inserted at the module and program headers,

and an emit(this action) command is added

at the point where this action should be executed. The

output signals are responsible for sending commands

to the external environment (as a consequence of the

emit command).

rs_prog testando_programaRS:

input : D1,P2,P3,GC,AP1,GO,D2,P1,

AP2,D3,AP3;

output: Close G, TL, Open G, TR;

module testando_modulo:

input : D1,P2,P3,GC,AP1,GO,D2,

P1,AP2,D3,AP3;

output : Close G, TL, Open G, TR;

t_signal:E1,E2,E5,E9,E3,E6,E7,E4,E8;

initially: up(E1);

D1,P2,E1 ==> emit(Close G), up(E2);

D1,P3,E1 ==> emit(Close G), up(E2);

GC, E2 ==> emit(TL), up(E5);

AP1, E5 ==> emit(Open G), up(E9);

GO, E9 ==> up(E1);

D2,P1,E1 ==> emit(Close G), up(E3);

D2,P3,E1 ==> emit(Close G), up(E3);

P3, GC, E3 ==> emit(TL), up(E6);

AP2, E6 ==> emit(Open G), up(E9);

P1, GC, E3 ==> emit(TR), up(E7);

AP2, E7 ==> emit(Open G), up(E9);

D3,P1,E1 ==> emit(Close G), up(E4);

D3,P2,E1 ==> emit(Close G), up(E4);

GC, E4 ==> emit(TR), up(E8);

AP3, E8 ==> emit(Open G), up(E9);

end module;

end rs_prog.

Figure 8: Example of a generated RS program.

5.2 Transitions

Each Grafcet transition is parsed to detect the condi-

tions, the kind of each element (input variables, auxil-

iary variables, steps), and to analyze the boolean con-

ditions that may exist. Each input variable is added as

an input signal (if it does not exist) at module and pro-

gram headers; each step is added as an internal signal

at module heading (if it does not exist). The auxil-

iary variables were added directly by the user, when

using the graphical interface, but they are included on

the respective rule, to perform the correct behavior.

All of these elements will be included on the left side

of the respective rule, with the internal signals corre-

sponding to the steps that precede this transition.

5.3 Alternatives and Simultaneous

Sequences

The alternative sequences are detected and included

at the end of each rule, by the use of the up(next

step) command. This command is responsible for

activating the internal signal associated to the next

step that must be evaluated. There is no problem in

closing this kind of sequence, because there is no syn-

chronization between the steps of this sequence.

The simultaneous sequences are treated at the same

way, but because one transition will trigger more than

A GRAPHICAL INTERFACE BASED ON GRAFCET FOR PROGRAMMING INDUSTRIAL ROBOTS OFF-LINE

117

one step, it will be included more than one up(next

step), to activate all the internal signals that are as-

sociated to the next steps. Because it is necessary to

synchronize the last steps at the end of this sequence,

each of these last steps will create an internal signal

and activate it. The following step will only be ex-

ecuted if all the internal signals from the precedent

steps are active.

5.4 Basic Algorithm

This section presents the basic algorithm of the trans-

lator described. We think that the algorithm is self-

explanatory and do not deserve more comments.

for each initial step {

add this step as an internal signal;

add up(this step) at initially

sentence;

for each following transition

{

execute the

Transition_evaluating_function;

}

Transition_evaluating_function:

if this transition was not evaluated {

add its elements as variables, input

and internals signals;

evaluate its boolean expression;

create the rules:

{

each element will be on the left

side;

the actions of each next step are

evaluated:

{

their conditions are also

included on the left side;

the actions are included at the

right side by the

emit(action) commands;

}

add this next step as an internal

signal;

add the up(next step) command on

the right side;

go to the following transitions for

this next step and execute the

Transition_evaluating_function;

}

6 CONCLUSIONS

This paper presented a graphical interface for high-

level industrial robot programming, based on the

Grafcet; it was also introduced the respective trans-

lator from Grafcet to RS language. This work is part

of an approach to industrial robot programming, that

will cover all the stages of the programming task,

from the modelling of the system until the robot code

generation.

Both the translator and the Graphical interface were

developed using Java language. Java was chosen be-

cause the goal of this project is to grant portability for

the source code. So, it is important to use a language

that is also platform independent.

As Grafcet is completely implemented, the pro-

gramming task becomes easier. And as the RS trans-

lator generates an efﬁcient and simple automaton, the

generated code must also be efﬁcient and simple, like

the one presented at (Piola, 1998).

The next step is the development of a translator

from the automaton RS to DIR, or from the automa-

ton RS to an industrial robot language. Then we will

address the development of the code generator gener-

ator.

By now, our approach satisﬁes the following cri-

teria of ﬁgure 1: user-friendly, expressiveness, en-

vironment interaction, and speciﬁcation close to the

problem. When the implementation ﬁnishes, all of

the principles in ﬁgure 1 will be granted.

REFERENCES

Arnold, G. V., Henriques, P. R., and Fonseca, J. C. (2003).

A development approach to industrial robots program-

ming. In Proceedings of the 11th International Con-

ference on Advanced Robotics, volume 1, pages 167–

172, Coimbra, Portugal. Institute for Systems and Ro-

botics, University of Coimbra.

Automation, A. F. (1994). Rapid Reference Manual 3.0.

Grafcet (2000). Grafcet homepage.

http://www.lurpa.ens-cachan.fr/grafcet.html.

Mujtaba, M. S., Goldman, R., and Binford, T. (1982). Stan-

ford’s al robot programming language. Computers in

Mechanical Engineering.

Piola, S. J. (1998). Uso da linguagem rs no controle do

rob

o nachi sc15f. Trabalho de Conclus

ao de Curso de

Graduac¸

ao, Departamento de Inform

atica, UCS, Ca-

xias do Sul, Brasil.

Sebesta, R. W. (1999). Concepts of programming lan-

guages. Addison Wesley Longman, Inc., 4nd edition.

Taylor, R. H., Summers, P. D., and Meyer, J. M. (1982).

Aml: a manufacturing language. The International

Journal of Robotics Research, 1(3).

Telemec (1982). O Grafcet – Diagrama Funcional para

Automatismos Sequenciais. Portugal.

Toscani, S. S. (1993). RS: Uma Linguagem para

Programac¸

ao de N

ucleos Reactivos. Tese de doutora-

mento, Depto de Inform

atica, UNL, Lisboa, Portugal.

ICINCO 2005 - ROBOTICS AND AUTOMATION

118
