A FAULT-TOLERANT DISTRIBUTED DATA FLOW

ARCHITECTURE FOR REAL-TIME DECENTRALIZED

CONTROL

Salvador Fallorina, Paul Thienphrapa, Rodrigo Luna, Vu Khuong,

Helen Boussalis, Charles Liu, Jane Dong, Khosrow Rad, Wing Ho

Department of Electrical & Computer Engineering, California State University, Los Angeles,

5151 State University Drive, Los Angeles, CA, USA

Keywords: Distributed data flow, pipelined task mapping, scheduling, fault-tolerance, real-time decentralized control.

Abstract: Complex control-oriented structures are inherentl

y multiple input, multiple output systems whose

complexities increase significantly with each additional parameter. When precision performance in both

space and time is required, these types of applications can be described as real-time systems that demand

substantial amounts of computational power in order to function properly. The failure of a subsystem can be

viewed as the extreme case of a non-real-time response, so the ability of a system to recognize and recover

from faults, and continue operating in at least some degraded mode, is of crucial importance. Furthermore,

the issue of fault-tolerance naturally arises because real-time control systems are often placed in mission-

critical contexts. Decentralized control techniques, in which multiple lower-order controllers replace a

monolithic controller, provide a framework for embedded parallel computing to facilitate the fault-tolerance

and high performance of a sophisticated control system.

This paper introduces a fault-tolerant concept to the handling of data flows in multiproc

essor environments

that are reminiscent of control systems. The design is described in detail and compared against a typical

master-slave configuration. A distributed data flow architecture embraces tolerance to processor failures

while satisfying real-time constraints, justifying its use over conventional methods. Both master-slave and

distributed data flow designs have been studied with regards to a physical control-intensive system; the

conclusions indicate a sound design and encourage the further division of computational responsibilities in

order to promote fault-tolerance in embedded control processing systems.

1 INTRODUCTION

Fault-tolerance may not be an overriding concern in

commodity electronics such as microwave ovens

and wristwatches; indeed, the development of

reliability features for such items may be an

inefficient venture. Fault-tolerance becomes an

essential characteristic of systems, however, when

the cost of failure is significant. The metrics used to

analyze this cost include safety and financial

concerns, so continuous uptime is a topic of interest.

Additionally the lifetimes of engineering systems are

limited by inherent manufacturing defects (Worden

& Barton, 2004), but fault-tolerance can provide for

graceful degradation, thereby creating a grace period

between fully operational and failed states during

which failure costs can be minimized.

The research described in this paper has been

conducted in t

he Structures, Pointing, and Control

Engineering (SPACE) Laboratory. The National

Aeronautics and Space Administration (NASA)

provided funding in 1994 to establish the SPACE

Laboratory at the California State University, Los

Angeles to study the control of complex structures.

A major goal of this ongoing project is to develop

control systems that exhibit fault-tolerance and real-

time response for the James Webb Space Telescope

(JWST), which is scheduled for deployment by

NASA in the year 2011. As the successor to the

currently-active Hubble Space Telescope, a major

specification of the JWST is the use of a larger

optical mirror to improve upon the quality of images

produced by the Hubble. Because there is an

apparent difficulty in transporting a single large

109

Fallorina S., Thienphrapa P., Luna R., Khuong V., Boussalis H., Liu C., Dong J., Rad K. and Ho W. (2005).

A FAULT-TOLERANT DISTRIBUTED DATA FLOW ARCHITECTURE FOR REAL-TIME DECENTRALIZED CONTROL.

In Proceedings of the Second International Conference on Informatics in Control, Automation and Robotics - Signal Processing, Systems Modeling and

Control, pages 109-115

DOI: 10.5220/0001172101090115

 SciTePress

mirror in current launch vehicles, the mirror of the

JWST will be divided into smaller segments whose

overall shape must be dynamically adjusted by an

active control system. However, the quality of

images collected by the telescope is a function of

shaping and pointing precision, among other duties.

Therefore the control processing system must

maintain a maximal level of fault-tolerance and high

performance to maximize the utility of the telescope.

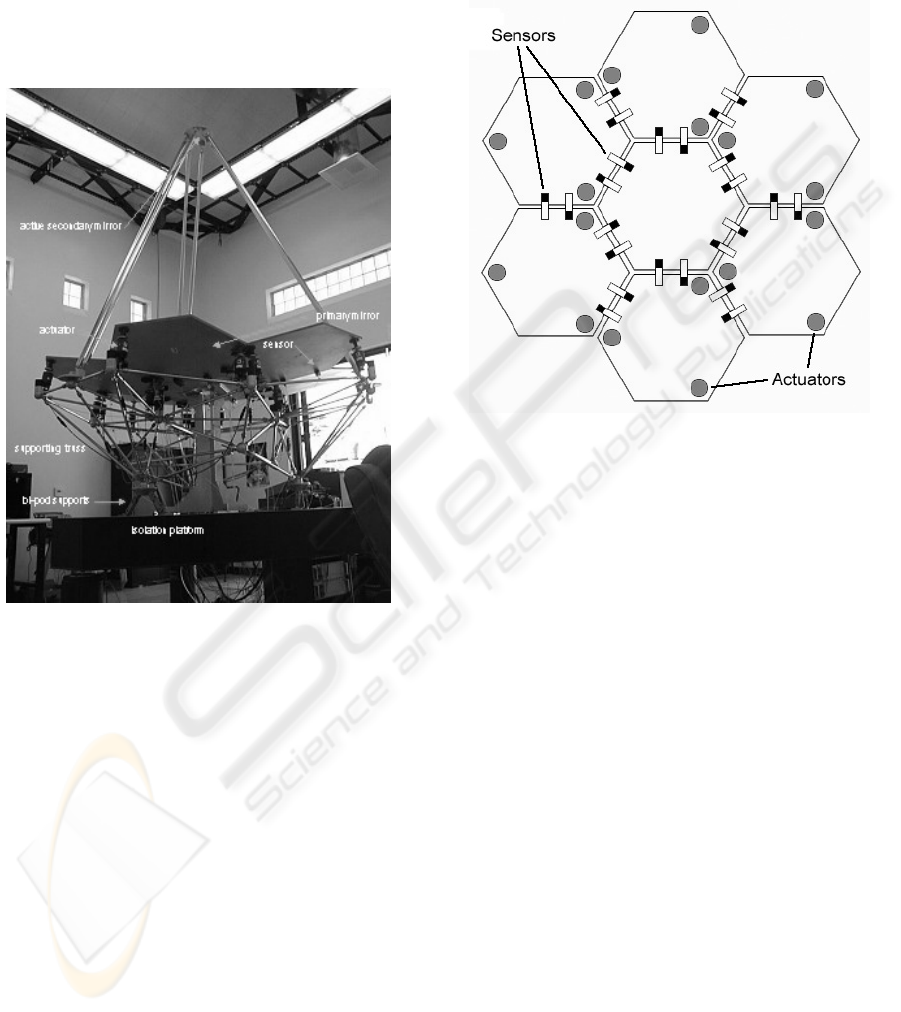

Figure 1: The SPACE testbed

Specifically, in an embedded multiprocessor

platform, the computing system must be able to

transparently perform processing tasks while

adjusting for the failure and recovery of processors.

In the event of processor failure, the computer

architecture must be reconfigured so that working

processors can assume any data handling

responsibilities previously held by failed processors.

In a converse manner, reconfiguration must be

performed when processors are recovered in order to

minimize the reliance of the system on any single

processor. By establishing mechanisms for fault-

tolerance, real-time performance can be realized

even when processor failures occur.

This paper is organized as follows. A description

of the SPACE testbed, on which research for this

project is conducted, is given in Section 2. Section 3

details the theoretical foundations for decentralized

control of the system. In Section 4, control

processing from the perspective of the computing

system is described. Section 5 presents the data flow

architectures under consideration, while Section 6

proposes a design that utilizes the novel data flow

mechanism to achieve processor fault-tolerance in

real-time decentralized control. Concluding remarks

are provided in Section 7 along with future plans.

Figure 2: SPACE testbed primary mirror

2 SYSTEM DESCRIPTION

2.1 Peripheral Structure

The SPACE testbed, pictured in Figure 1, resembles

a Cassegrain telescope with a 2.4m focal length. Its

performance is designed to emulate an actual space-

borne system (Stockman, 1997). As mentioned

above, the large optical mirror of the JWST will be

segmented so as to allow for conveyance via

contemporary launch vehicles. Figure 2 illustrates

the segmented mirror configuration present on the

SPACE testbed. A ring of six actively-controlled

hexagonal panels is arranged around a fixed central

panel. Three voice-coil linear actuators are mounted

to the underside of each panel, providing each with

three degrees of freedom. Twenty-four inductive

sensors are placed at the panel edges to provide

measurements of relative displacements and angles.

During control calculations these 24 sensors are

geometrically virtualized into 18 sensors, in

accordance with the arrangement of the actuators,

for implementation convenience. The actuators and

sensors are linked to the digital control processing

system respectively via digital-to-analog (DAC) and

analog-to-digital converters (ADC).

ICINCO 2005 - SIGNAL PROCESSING, SYSTEMS MODELING AND CONTROL

110

2.2 Embedded Computing System

The SPACE testbed processing system is configured

with four 32-bit TMS320C40 digital signal

processors. These processors feature a 40ns cycle

time and 30 MIPS/60 MFLOPS maximum ratings.

Each processor has 1 MB of local memory and

access to 1 MB of global memory (Figure 3). High-

speed, bidirectional, half-duplex communication

ports provide a maximum of 20 MB/s message

passing throughput amongst processors. Using a

VMEbus interface with a VIC64 chip acting as a bus

arbiter, each of the four processors has direct access

to the sensor input channels (ADC) and the actuator

output channels (DAC), giving rise to a myriad of

possible data flow configurations.

As an important note, the computing architecture

for the SPACE project is fixed. Therefore all

attempts at high performance and fault-tolerance

must be based on the existing hardware.

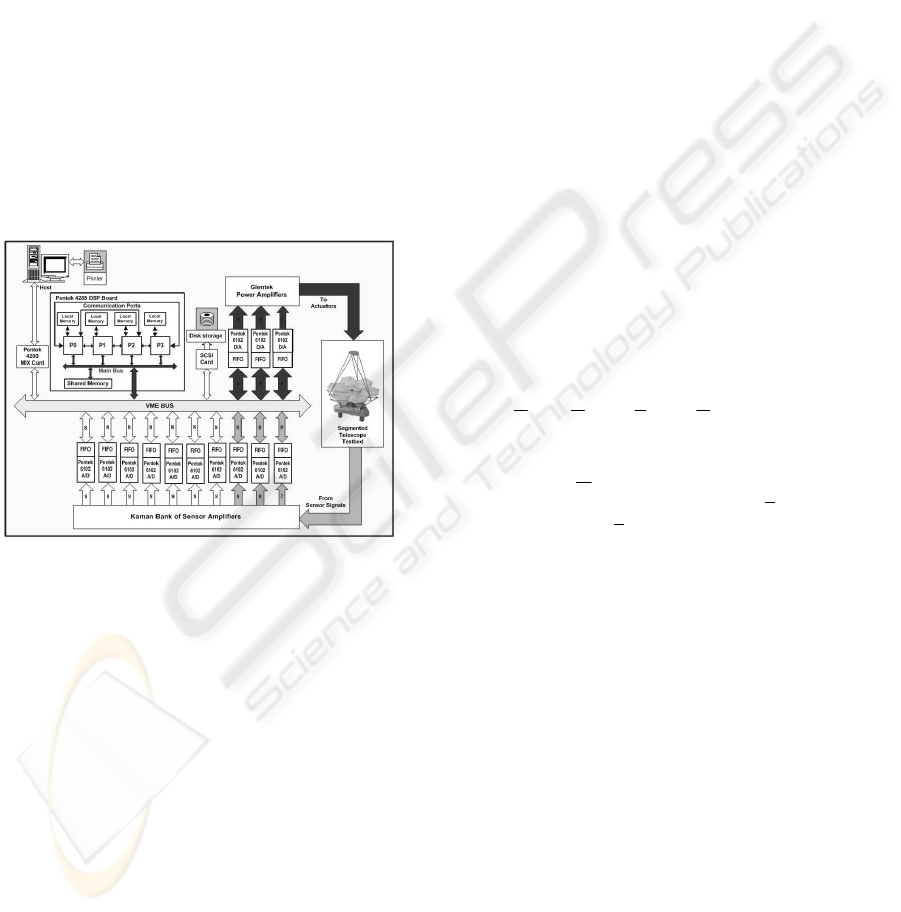

Figure 3: SPACE testbed computing system

2.3 Performance Requirements

To achieve the intended performance goals, any

algorithm designed for this control application must

complete computations in 0.8-1.6 ms per sample;

that is, using a sampling rate of 20-40 times the

system bandwidth of 30 Hz (Boussalis, 1994). This

specification, coupled with the structural complexity

of the telescope, attests to the real-time

computational requirements. Because sporadic

failure of processors to meet this time restriction is

of minor consequence, this application fits the soft

real-time systems category; however, prolonged

non-real-time performance will result in the

degradation of the quality of images collected by the

telescope.

3 DECENTRALIZED CONTROL

FOR THE TESTBED

Control of sizeable structures is an ongoing topic of

interest in space exploration programs. As described

previously, the SPACE testbed consists of a large

number of structural components whose behavior is

guided by a complement of sensors and actuators,

leading to mathematical models that involve

hundreds of states. Even after the application of

classical model reduction techniques, a centralized

control model of the telescope testbed has over 200

states complementing 18 virtual sensors and 18

actuators. Consequently, the design of control laws

based on conventional methodologies becomes

exceedingly unwieldy. Decentralized control then

becomes an increasingly attractive approach in

circumventing this difficulty concerning the

dimensionality problem.

Due to the complex nature of the SPACE

testbed, decentralized techniques are employed for

the development of simplified laws to accomplish

reflector shape control. The result is the physical

decentralization of the structure into six lower-order

subsystems.

The system equations of motion assume the form

dBuBKM

+=+

δδ

. (1)

M refers to the mass matrix, and K the stiffness

matrix, while

is a position coordinate vector, B

and B

are force amplitude matrices, u is a control-

input vector and

d is a disturbance vector. For

control purposes the following state-space

representation of the system is derived from (1).

Cxy

BuAxx

(2)

Decomposing the system (2) into six subsystems

according to the physical structure depicted in

Figure 2 yields (3) as follows.

iii

iiiiiii

xCy

dBuBxAxAx

+++=

∑

(3)

The first term of (3),

iii

xAx

, (4)

is its isolated component, and

A FAULT-TOLERANT DISTRIBUTED DATA FLOW ARCHITECTURE FOR REAL-TIME DECENTRALIZED

CONTROL

111

[

]

δδ

. (5)

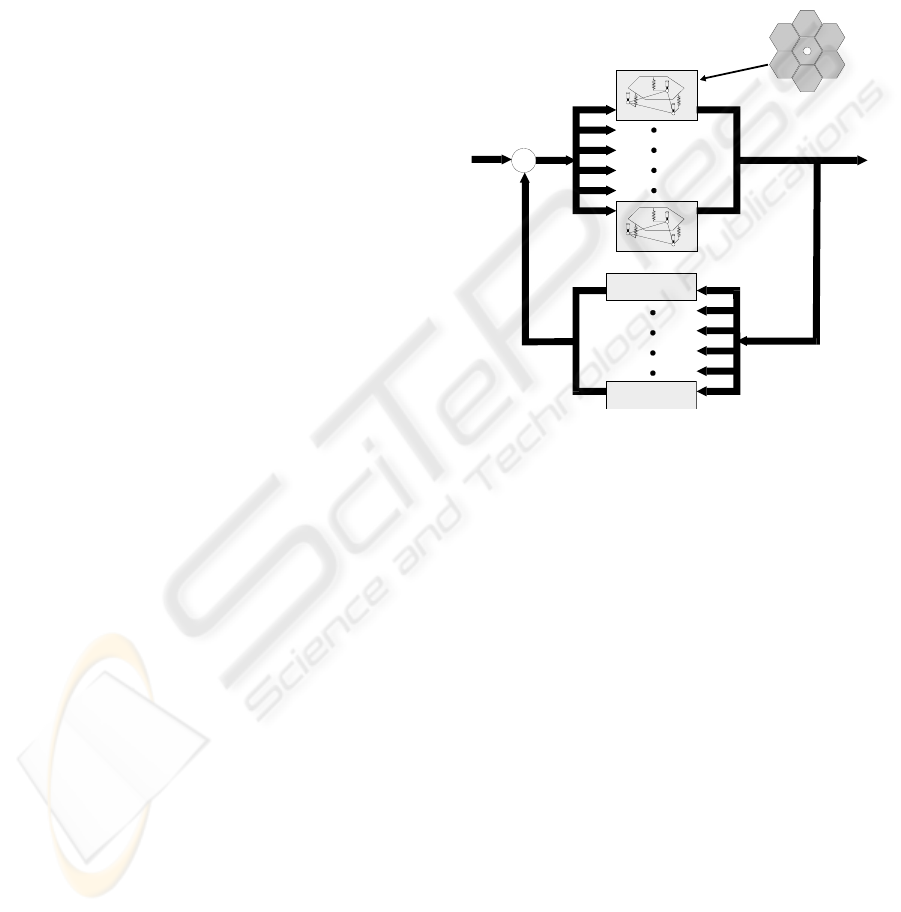

As shown in Figure 4, the system is naturally

decentralized by treating each of the six peripheral

segments of the primary mirror and its associated

supporting structure as an isolated subsystem. Each

decentralized controller can be of arbitrary type, as

hinted in the figure; an H

∞

controller is typically

used for testing. Each subsystem is identified by

three control inputs to the actuators and three control

outputs which are measured by the edge sensors.

Note that the definitions of inputs and outputs are

context-sensitive. The sensor signals are outputs of

the control system, but are inputs to the computing

system. A similar situation exists with regards to

actuator signals. Local control algorithms are

developed for each of the six isolated subsystems.

We consider discrete control algorithms. The

state-space form embodied in (2) is translated to the

discrete form shown in (6).

)()(

)()()1(

111

kxCky

kukxkx

nxrxnrx

mxnxmnxnxnnx

Ψ+Φ=+

(6)

This discrete state equation represents an n

order system with m inputs and r outputs (from a

computing systems perspective), where Ф is the

state transition matrix, x(k) is the state vector, u(k) is

the vector of sensor signals, and y(k) is the actuator

signal vector. In implementing decentralized control

for the testbed, a single 200

-order centralized

controller is replaced by six 12

-order local

controllers that run in parallel to maintain the precise

shape of the primary mirror. Such a replacement

reduces the computational complexity of the control

system, and exposes opportunities for both parallel

processing and fault-tolerance. The control

calculations for each of the six subsystems are given

below with n = 12, m = 3, and r = 3.

)()()(

)()()1(

keDkxCku

kekxkx

×+×=

+×Φ=+

(7)

4 CONTROL PROCESS

DESCRIPTION

Given the nature of digital systems, control

computations are performed in discrete cycles, and

sensor readings are sampled accordingly. A control

cycle begins when processors read sensor signals

from the ADC and geometrically transform them

into virtual points that indicate the displacement and

positions of the panels. The next step consists of

calculating control commands for the six

subsystems. A single control task involves the

control calculations for a single subsystem, given in

(7). Resultant control signals are written to the DAC,

amplified, and sent to the actuators to properly

reposition the panels. As mentioned, these steps

must be executed continuously and within a

specified sampling period in order to ensure quality

shaping and system stability.

Controller

HController

Neural Network Control ler

∞

H Controller

Neural Network Controller

∞

Figure 4: Decentralized control system block diagram

Sequential execution of control tasks using a

single processor is possible, but the disadvantages

that arise include extended execution time and lack

of fault-tolerance. Decentralized controllers present

opportunities for parallel execution during a control

cycle. Parallel processing is thus applied in order to

achieve fault-tolerance and real-time performance.

Based on our model of decentralized control, M = 6

tasks are executed in parallel among P = 4

processors in an iterative fashion.

Whether they are scheduled for execution on

processors in a straightforward, pipelined (Fallorina,

2004, Thienphrapa, 2004), group-pipelined (Roberts,

2004) (see Figure 5), or other fashion, control tasks

must satisfy the following characteristics in order for

this application of decentralized control to work.

1. Each task is not further decomposable.

2. The computational complexities of all tasks are

identical.

3. Each task must complete a control cycle and

cannot be scheduled until its sample of sensor

signals is obtained.

4. There is no data dependency among the

computational tasks, so different tasks can be

ICINCO 2005 - SIGNAL PROCESSING, SYSTEMS MODELING AND CONTROL

112

processed in different control cycles in an

arbitrary order.

The computational dependence between the

subsystems is negligible. Thus the six panels of the

primary mirror do not need to cooperate with each

other to achieve precision shaping because local

controllers perform the alignment against a

calibrated parabolic reference. Note that for a

processor to process any number of tasks (Figure 5),

it must have access to the corresponding sample of

sensor signals, the current state vectors, and a means

of sending the actuator output signals to the DAC.

Therefore the design of fault-tolerant data flow

architectures is of utmost importance.

Figure 5: From top to bottom, straightforward, pipelined,

and group-pipelined task scheduling

5 DATA FLOW ARCHITECTURE

In order to ensure continuous control of the

telescope testbed, an efficient and reliable data flow

architecture needs to be in place that gives each

processor the full set of sensor data.

5.1 Master-slave Data Flow System

One conventional approach structures the flow of

data in a master-slave configuration (Figure 6). In

this method, only one processor, the master, handles

all the data inputs and outputs. The master processor

reads all data from the ADC first-in, first-out (FIFO)

buffers and passes them to each of the slave

processors. Once each processor finishes the control

computations, the results are passed back and

gathered by the master processor, which then

proceeds to send the control commands to the plant.

Figure 6: Master-slave data flow

Master

Slave

Input:

Sensor Data

Output:

Control Commands

This arrangement is simple and straightforward,

but

5.2 Distributed Data Flow System

The proposed distributed data flow architecture

5.3 Comparison

This distributed scheme is more compatible with the

servation, what warrants

discussion of the master-slave architecture is its

widespread use in situations where failure is not a

relies on a single processor. The system can be

made to tolerate any slave processor failure, but in

the event the master processor fails, then the entire

computing system fails.

detailed here describes the development of a

symmetric computer architecture where all

processors operate identically. In this distributed

data flow architecture (Figure 7), all processing

nodes are capable of handling any input and output

of data. In other words, each processor can read

sensor signals from the ADC buffers independent of

other processors, then perform its subset of the

decentralized control calculations (this subset, i.e.

task(s), is assigned based on the task mapping

mechanism in use (Fallorina, 2004, Thienphrapa,

2004, Roberts, 2004)). Upon completing its

calculations, each processor can then independently

send the results to the plant to command the

appropriate actuators.

concept of decentralized control and facilitates fault-

tolerance by removing the reliance of the system on

any single processor. If one or more processors fail

or recover from failure, the architecture is able to

accommodate for these events and resume normal

operations transparently. This is the distinguishing

advantage of the distributed system over the master-

slave configuration. Failure of the master processor

would lead to immediate failure of an entire master-

slave computing system.

In light of this ob

A FAULT-TOLERANT DISTRIBUTED DATA FLOW ARCHITECTURE FOR REAL-TIME DECENTRALIZED

CONTROL

113

pre

high performance, fault-

considered, they were

discounted due to the fixed, specialized nature of the

sible due to rigid power constraints.

Oth

hitecture to

m, various

challenges arise due to its physically centralized data

destructive-read FIFO buffers on different ADC

the ADC

boa

co e

veral bottlenecks in the architecture that do not

have redundancies. However, an abstraction is

created that allows for the design of fault tolerance

ssing concern (e.g. desktop computers), as well

as its ease of implementation. Specifically, the

distributed data flow architecture introduces

synchronization issues; processors must be

synchronized within a control cycle in order for task

scheduling to transpire correctly. Correctly

implementing this mechanism with synchronization

is nontrivial. Such matters can play a role in the

development costs, development time, and reliability

of the end product.

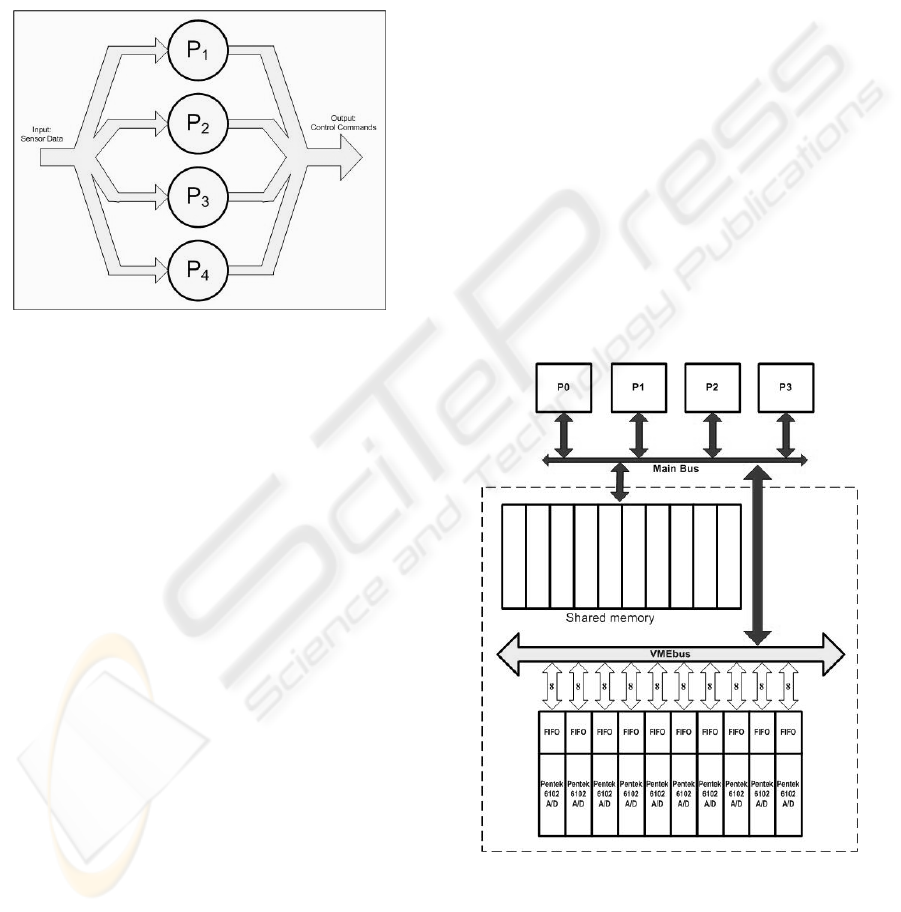

Figure 7: Distributed data flow

5.4 Limitations

Although several works in

tolerant computing were

SPACE testbed.

For instance, hardware and software redundancy

described in the literature (Reinhardt, 2000, Khan

2001) are not fea

er approaches assume workstation environments

(Baratloo, 1995, DasGupta, 1999) that do not exhibit

real-time performance. Due to hardware limitations,

reconfigurable circuits (Blanton, 1998) and

proactive fault detection (Siewiorek, 2004) cannot

be used. Fortunately, the control process is

straightforward and does not require sophisticated

task mapping (Choudhary, 1994).

6 DATA FLOW DESIG

In applying the distributed data flow arc

the SPACE testbed computing syste

bus (Figure 8). Firstly, given the system architecture

and hardware capabilities and limitations, the

implementation of this design method requires more

communication. Sensor data is located in

boards (Figure 8). Therefore, any data read by a

processor is removed from the corresponding buffer

space. If such data is required by the other

processors, point-to-point communication between

the processors will be necessary. Another

practicality is that VMEbus accesses must be time-

shared amongst processors. In addition, task

mapping becomes complicated when integrated with

pipelined task scheduling techniques (Fallorina,

2004, Thienphrapa, 2004, Roberts, 2004).

To implement this distributed data flow

architecture, each processor reads a subset of the

total data and distributes the data amongst each

other. This is achieved by configuring

rds to send interrupt signals to assigned

processors which read data from the interrupt

source. Each time a processor takes data from the

ADC FIFO buffers, it writes that data to shared

memory where any other node can access it. This

step is necessary because the full set of sensor

samples is generally required to process control

commands for any subsystem task. Future work will

address the effects of using only a subset of these

samples. In the end, all of the data is made equally

available to any processor, producing the logical

effect of distributed data flow.

Figure 8: Distributed data flow on the SPACE testbed

The architecture of the system board and the

VMEbus connection to the processors are not

nducive to perfect fault tolerance. There ar

ICINCO 2005 - SIGNAL PROCESSING, SYSTEMS MODELING AND CONTROL

114

that

dered ideas

inc

han

ue to

failure. One facet of fault-tolerance provides for a

to prepare for ultimate failure. More central to this

processor

bec

fault tolerance via test and reconfiguration’, Proc.

any.

bility of Large Scale Systems.

Ph.D. dissertation, New Mexico State University.

d Distributed Systems, vol.

Das ards

Fal al. 2004, ‘A generic pipelined task

Kha 001, ‘Fault-tolerant embedded

Rei ransient fault

Rob

group-

Sie

g at Carnegie Mellon

Sto

Time When Galaxies Were

Thi nt

Wo erview of

bypasses hardware limitations. Furthermore, an

implementation will demonstrate proof-of-concept

that the proposed solution does indeed support fault-

tolerant real-time decentralized control.

Although fault detection is a rich area of interest

in its own right, it is briefly discussed here as it

pertains to the SPACE testbed. The shared memory,

message passing, and interprocessor interrupt

resources can be used to construct various fault-

tolerance mechanisms. Already consi

lude using watchdog, neighbor, and ad hoc

detection methods to indicate the state of processors.

Reconfiguration for faults and recovery must be

efficient in real-time systems. Pipelined task

mapping performs this reconfiguration at the control

task level by dynamically assigning tasks based on

the working state of processors. At the data flow

level, working processors can assume the data

dling duties of failed processors in a state

machine-like fashion. That is, the sensor and

actuator channels that processors access will be

determined by the quantity and identities of the

processors that are failed. The mechanical attribute

of such an approach will foster efficiency.

7 SUMMARY & FUTURE WORK

Costly and mission-critical systems must exhibit

fault-tolerance in order to minimize loss d

grace period between fully functional and

non unctional states during which steps can be taken

project, however, is the uptime. It is desirable for a

space telescope to smoothly continue operation

despite the failure of processors on a multiprocessor

platform, which is a single-event upset in nature and

is a likely occurrence given the operating

environment. With tolerance for processor failure

enabled, a telescope can perform its scientific and

logistical duties with minimal downtime.

The distributed data flow architecture proposed

here has been conceived for fault-tolerant, real-time

decentralized control of a segmented reflector

telescope testbed. In contrast with a master-slave

configuration that has already been implemented,

this approach does not rely on a single

ause the data input-output can be handled by any

processor. This arrangement facilitates continuous

system operation despite any processor failure.

Future work includes completion of the distributed

data flow architecture, detection and reconfiguration.

Various fault detection and reconfiguration schemes

will be tested and analyzed in addition to issues of

sensor, actuator, and signal converter failure.

ACKNOWLEDGEMENTS

This work was supported by NASA under Grant

URC NCC 4158. Special thanks go to all the faculty

and students associated with the SPACE Laboratory.

REFERENCES

Baratloo, A. et al. 1995, ‘CALYPSO: a novel software

system for fault-tolerant parallel processing on

distributed platforms’, Proc. IEEE HPDC, PC, VA.

Blanton, R., Goldstein, S., & Schmidt, H. 1998, ‘Tunable

FTCS, Munich, Germ

Boussalis, H. 1979, Sta

Boussalis, H. 1994, ‘Decentralization of large space-borne

telescopes’, Proc. SPIE Symposium on Astronomical

Telescopes.

Choudhary, A. et al. 1994, ‘Optimal processor assignment

for a class of pipelined computations’, IEEE

Transactions on Parallel an

5, no. 4, pp. 439-445.

Gupta, B. et al. 1999, ‘Generalized approach tow

the fault diagnosis in any arbitrarily connected

network’, Proc. HiPC, Calcutta, India.

lorina, S. et

scheduling algorithm for fault-tolerant decentralized

control of a segmented telescope testbed’, Proc. ASME

DETC/CIE, Salt Lake City, UT.

n, G., & Wee, S. 2

computer system-on-chip for endoscope control’,

Proc. ISIC, Singapore.

nhardt, S. & Mukherjee, S. 2000, ‘T

detection via simultaneous multithreading’, Proc.

ISCA, Vancouver, BC.

erts, J. et al. 2004, ‘Efficient real-time parallel signal

processing for decentralized control using

pipelined scheduling’, Proc. ISNG, Las Vegas, NV.

wiorek, D. et al. 2004, ‘Experimental research in

dependable computin

University’, Proc. WCC, Toulouse, France.

ckman, H. et al. 1997, The Next Generation Space

Telescope: Visiting a

Young, The Association of Universities for Research

in Astronomy, Baltimore, MD.

enphrapa, P. et al. 2004, ‘A generalized fault-tolera

pipelined task scheduling for decentralized control of

large segmented systems’, Proc. CCCT, Austin, TX.

rden, K. & Dulieu-Barton, J.M. 2004, ‘An ov

intelligent fault detection in systems and structures’,

Structural Health Monitoring, vol. 3, no. 1, pp. 85-98.

A FAULT-TOLERANT DISTRIBUTED DATA FLOW ARCHITECTURE FOR REAL-TIME DECENTRALIZED

CONTROL

115
