MODELING AND ANALYSIS OF REDUNDANCY IN REMOTE

MONITORING AND CONTROL SYSTEMS VIA PETRI NETS

Cheng Guo

Software School, Tsinghua University. 12#121,Tsinghua University, Beijing 100084 ,P.R.China

Zheng Qin

Software School, Tsinghua University.

Software School,Tsinghua University, Beijing 100084 ,P.R.China

Keywords: System design, Redundancy, Remote monitoring and control system, Petri nets.

Abstract: This paper presents techniques that enable the modeling and analysis of redundancy in remote monitoring

and control systems. Hardware redundancy and software redundancy are both implemented in the proposed

system organically. To model and analyze the redundancy, a formalism to derive Petri net (PN) model from

state transition diagram is constructed and the monitor compatible condition is considered. Software

redundancy mechanism in manager side is also modeled based on PN. This approach makes redundancy

modeling and analysis possible in terms of well-developed concepts and methods in PN theory. By the

analysis of the PN model, designers can obtain reliable and effective measures that would compare different

schema in the early phases of design, and select the best one. Our approach is illustrated and validated on

STPNPlay by an example.

1 INTRODUCTION

The remote monitoring and control system is

extremely important for most automated

manufacturing processes in large scale and long-

distance distributed system. It receives signals from

sensors, corresponds to exceptional situations, starts

up emergent processes and announces alarms. In the

past years, rapid development of Internet technology

has witnessed monitoring systems changing from

centralized form to multi-centre and distributed

form. Lots of approaches have been proposed to

monitor automated manufacturing systems from a

long distance. However, monitoring and control

systems are becoming more and more complicated

to guarantee its reliability, as more devices are

networked in automated manufacturing systems.

Using redundant devices is a widely adopted method

to ensure the quality when designing high assurance

remote monitoring and control systems. That is to

say, an effective redundancy structure is crucial to

achieve a high–quality system.

This paper presents an effective modeling

approach to

analyze redundancy schemes with

following benefits.

1. Both hardware and software redundancy

mechanism

are modeled in a generalized method.

2. By formalism and monitor compatible condition,

e modeling approach is built up with well-

developed concepts.

3. PN theory offers many effective methods to

eval

uate the performances of our model.

4. The approach presented in this paper can be

erformed in an automatic way.

5. Designers can obtain reliable and effective

measures in the early design phases to compare

different schemes and select the best one.

State transition diagrams are used to illustrate

basi

c components’ functions of both the agent side

and the manager side. Then, corresponding PN

models are proposed to use configurable graphical

interface and mathematical analysis methods of PN

to verify the redundancy structure before the

implementation of the system. During the design

process, the PN models are analyzed by performing

algorithms which statistically assume probabilities

of systems assurance at different levels.

The paper is structured as fo

llows. In section 2 we

discuss some related works. Section 3 describes the

redundancy schemes in remote monitoring and

Guo C. and Qin Z. (2005).

MODELING AND ANALYSIS OF REDUNDANCY IN REMOTE MONITORING AND CONTROL SYSTEMS VIA PETRI NETS.

In Proceedings of the Second International Conference on Informatics in Control, Automation and Robotics - Signal Processing, Systems Modeling and

Control, pages 37-44

DOI: 10.5220/0001175700370044

 SciTePress

control systems. The modeling and analysis

approach is outlined in section 4. Section 5 presents

an illustrative example. Then the paper is closed by

a short conclusion.

2 RELATED WORKS

Remote monitoring and control systems can be

usually divided into two components. One is agent

side and the other is manager side. Currently, more

and more agent side devices are embedded with web

server software to be conveniently monitored by

manager side devices, using web browsers through

the hypertext transfer protocol.

Petri nets (PN), first introduced in 1963, is wildly

used to model and analyze systems with parallel and

concurrent activities. As a graphical-mathematical

tool, several new types of PN have been developed

to analyze different properties of systems in the past

forty years. Classical PN offers methods to

qualitatively analyze system properties such as

reachability, boundedness, liveness, and

conservativeness. Timed Petri nets (TPN) is used to

quantitatively analyze the performance properties.

By changing the numerical variables in TPN into

stochastic ones to form a Stochastic Petri nets

(SPN), Markov Chain Method can be used to

analyze performance properties of systems, which

offers more analytical ways. PN has not only precise

semantics but also powerful analytical methods.

Moreover, many approaches have been proposed to

analyze various systems via PN automatically. This

is why, in this paper, PN is adopted to obtain the

analyzable models of redundancy schemes for

remote monitoring and control systems. With this

approach, both qualitative and quantitative analysis

can be applied to achieve reliable long distance

distributed systems.

3 REDUNDANCY IN REMOTE

MONITORING AND CONTROL

SYSTEMS

Generally, redundancy can be implemented in three

aspects. The first is hardware redundancy which

configures multi-backup for key hardware to

enhance system’s reliability. The second is software

redundancy. By implementing some fault toleration

software, systems can automatically return to the

normal status from the abnormal one. And the third,

information redundancy, adds to system some

necessary data to enhance its reliability. Its merits

are lower redundancy requirements, unified

treatment of information bit and checkout bit.

In general, the more the redundancy backup is

implemented, the higher the system’s reliability and

cost is, and the more complicated the system’s

architecture is. Therefore, redundancy should be

used properly in the weak parts to find a tradeoff

between system reliability and its cost.

In remote monitoring and control systems,

hardware redundancy is often applied to make the

system work properly without any interruption even

when a fault happens. While software redundancy is

the most common way to enhance reliability of

distributed software. In our work, hardware

redundancy and software redundancy are

implemented organically. In the agent side,

hardware redundancy is the solo choice since basic

and major components such as sensors, motors, and

programmable logic controllers do not support high-

grade software programming. Whereas, both

hardware and software redundancy can be adopted

in the manager side due to the advanced capability

of the management stations, often computers.

Our approach develops high assurance systems

with PN model and analysis. As is shown in Fig. 1,

at the stage of functional analysis, state transition

diagrams are used to depict the requirements

corresponding to the purposed system. Then a model

of detailed structure is set up to describe

relationships of the agent side at the stage of

structural modeling. Subsequently, at the

architectural design stage, the approach is completed

by finishing the design of the manager side. By

constructing PN models, we can perform both

qualitative and quantitative redundancy analysis

when designing the agent side and manager side.

Finally, the obtained schema is implemented and

validated. If it does not meet the requirements, the

procedure will return to the beginning. Thus the

system is developed in an iterative and incremental

way.

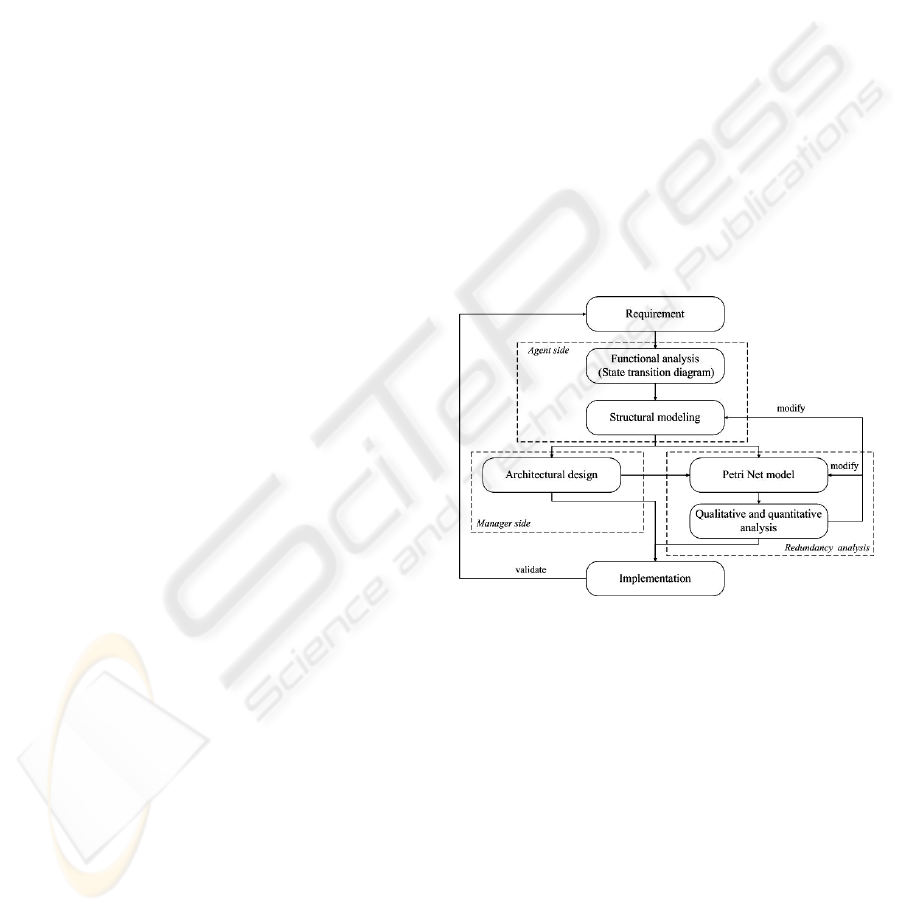

ure 1: The develo

ment

rocedure for s

stem.

ICINCO 2005 - SIGNAL PROCESSING, SYSTEMS MODELING AND CONTROL

4 REDUNDANCY MODELING

AND ANALYSIS

In this section, our redundancy architecture of the

remote monitoring and control system is introduced

first. Then, a formalism to build PN is constructed to

represent the working process of sensors, motors,

and other components of agent side. PN model about

software redundancy is also derived from the

manager side. At last, analysis of redundancy is

discussed.

4.1 Redundancy architecture

Remote monitoring and control system with

redundancy architecture can run properly even when

some parts have faults. The redundancy architecture

presented in our work which implements both

hardware and software redundancy is shown in Fig.

In the agent side, each sensor and motor connects

with two agent nodes with completely the same type.

Application program works in parallel, and realizing

the data sampling and communication tasks. The

comparison algorithm is used by management

stations to automatically find the abnormal agent

node. When the two agent nodes run normally, they

send the same sampling data to network from the

same sensor. Once one of them is wrong, the

comparison program would find it by comparing

data and diagnosing status information. Then the

management station would dynamically remove the

abnormal node, and inform the system manager.

Software redundancy is more complex and harder

to implement compared with hardware backup of

parallel-style. But it needs less resource. Since the

management station is power enough to run

advanced software, software redundancy technology

is a good choice in the manager side. In software

redundancy architecture, tasks are performed by

service processes dynamically generated by fault

toleration program. The states of stations and the

fault toleration program will decide which station

would perform the task. If a task fails, the software

redundancy mechanism will invoke error recovery

method to avoid single task failure. If a station fails,

the fault toleration software will automatically

assign another station to take over the faulted node

and announce fault alarm immediately. The UPS

should be used as power supply of management

stations in real application.

4.2 Modeling of redundancy

structure

To outline our work in a formal way, we introduce

the following definitions of state transition diagram

and Petri net.

Definition 1: A state transition diagram is a 4-tuple

},,,{

qEQSTD

, where

},,,{

21 m

qqqQ 

denotes a finite set of

states,

},,,{

21 n

eeeE 

denotes a finite set of

transitions,

denotes the state transition function defined on

, and ,qQe∀∈ ∃∈

:(,) (,)

qQ qe q qe q

′

′′

∧

∈=∨=

∈

is called the initial state.

Definition 2: A Petri net is a 4-tuple

},,,{

MFTPPN

, where

},,,{

21 m

pppP 

denotes a finite set of

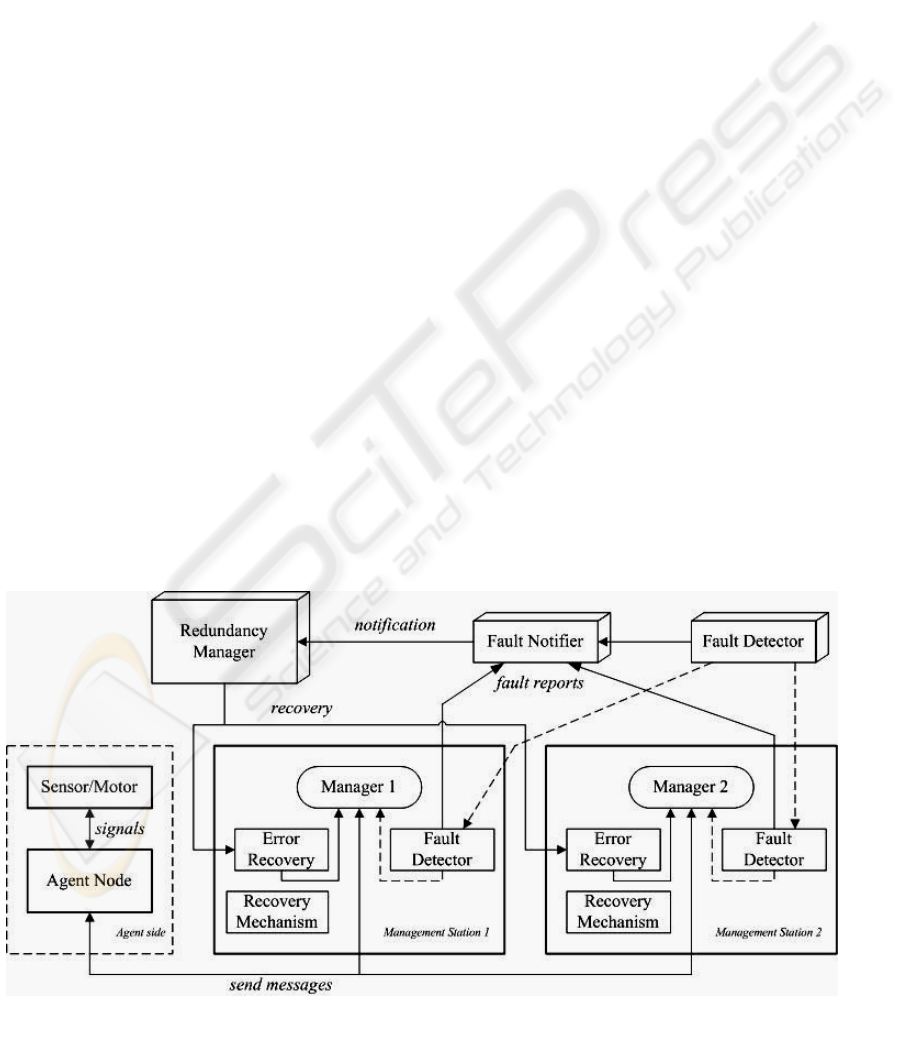

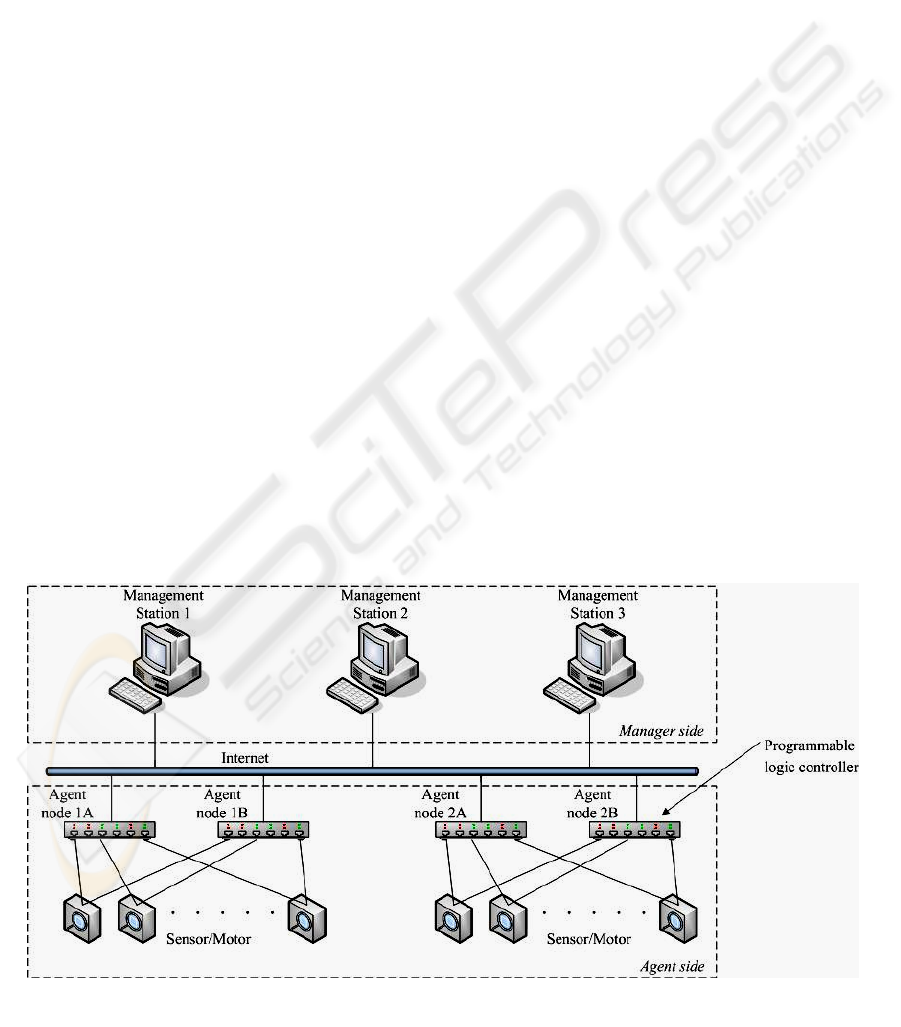

ure 2: Redundanc

architecture.

MODELING AND ANALYSIS OF REDUNDANCY IN REMOTE MONITORING AND CONTROL SYSTEMS VIA

PETRI NETS

places,

denotes a finite set of

transitions,

},,,{

21 n

tttT =

=TP ∩

and

≠TP ∪

is the incidence function defined on

, and denotes the set of arc links

between places and transitions,

)()( TPPT ×× ∪

0),(0),(:,

≠

∨≠∈∃∈∀ ptFtpFTtPp

0),(0),(:, ≠∨

≠

∈∃∈∀ ptFtpFPpTt

is the set of token values defined on P and

is called the initial marking.

4.2.1 PN model of sensors and motors

The sensors and motors often have straightforward

state transition diagrams since they are designed in a

high reliable way with only a few states. The PN

model derived from state transition diagram is

formally specified as follows.

Definition 3: If

},,,{

qEQSTD

= is a state

transition diagram, the Petri net of it,

is defined to be

where

)(STDPN

},,,{)(

MFTPSTDPN =

1. Places and transitions:

, and

QP =

= ,

if 1),( =tpF ),( tp

is defined and

if 1),( =ptF ),( pt

is defined,

3. Initial mapping:

if npM =)(

0 0

, 0

otherwise.

4.2.2 Agent side PN model

Agent nodes are more sophisticated than sensors or

motors due to their processing and control

interaction between sensor/motors and management

stations. They are the most crucial devices having

connecting links between the preceding and the

following in remote monitoring and control systems.

We introduce the following definition to formalize

the agent side PN model.

Definition 4: A state transition diagram

},,,{

qEQS

= is a state transition diagram of

agent node, if

cmio

QQQQ ∪∪

and

, where

cmio

EEEE ∪∪=

ciocmmio

QQQQQQ ∩∩∩ and

ciocmmio

EEEEEE ∩∩∩ , satisfy

the following conditions:

0 io

Qq ∈

},,,{

21 cjccc

qqqQ =

},,,{

21 mjmmm

qqqQ =

baio

EEE ∪=

aoaia

EEE ∪= ,

bobib

EEE ∪=

biaii

EEE ∪= ,

boaoo

EEE ∪=

===

bobiaoaioi

EEEEEE ∩∩∩ and

},,,,{

21 ainaiaiai

eeeE =

},,,,{

21 aonaoaoao

eeeE =

},,,,{

21 bikbibibi

eeeE =

},,,{

21 bokbobobo

eeeE =

2. For any

, if

Ee ∈

),( eq

is defined, then

cio

QQeq ∪∈),(

; for any , if

Ee ∈ ),( eq

is defined, then

mio

QQeq ∪∈),(

mio

QQq ∪

∈

cio

QQeq ∪∈),(

cio

QQq ∪

∈

; and for any

, if Ee ∈ ),( eq

defined, then

mio

QQeq ∪

∈

),(

Remark 1: In an agent node state transition

diagram ,

represents the set of possible

monitor states when the agent node plays the role as

a monitor of sensors and motors,

Q represents the

set of possible control states when the agent node

plays the role as a control of sensors and motors,

represents the set of possible I/O states when

the agent node does some communications.

S Q

Remark 2: Similarly,

E represents the set of

possible monitor transitions when the agent node

plays the role as a monitor,

represents the set of

possible control transitions,

represents the set

of possible I/O transitions.

E represents the I/O

transitions which communicate with sensors and

motors and

E represents the I/O transitions which

communicate with management stations.

represents the I/O transitions which receive a

massage and

E represents the I/O transitions

which send a massage.

E ,

, and

have the same interpretation with respect to the I/O

transitions.

E E

Remark 3: Condition (1) implies that for each

monitor state, there is a corresponding control state;

and for each transition which send messages to

sensors and stations, there is a corresponding

transition which receives messages from sensors and

stations respectively and vice versa.

Remark 4: Condition (2) indicates that the

monitor transitions will always keep the agent node

in the monitor state; and that the control transition

will always keep the agent node in the control state.

To guarantee that a sequence of messages sent can

always be processed, and a sequence of control

actions will always correspond to some monitor

behaviors, we introduce the monitor compatible

condition. To do this, the following notations are

introduced: for any state

, its co-state is

defined as

Qq ∈

∈

, or

ckmk

qqq /= if

mkck

qqq /

; for any transition , its co-

transition is

Ee ∈

ckmk

eee /

if , or

mkck

eee /=

aokaik

eee /

aik

, or

aok

eee /=

bokbik

eee /

bikbok

eee /

; for any sequence

of transitions , its co-sequence of

transitions is

Eeex

∈= …

eex …

. Then an agent node is

said to be monitor compatible if and only if

()( ),

cio mio

EE E E pQ∀∈ ∈∪∪∪

(,) (,)qpxqpx

⇔= .

Since the agent side is composed of agent nodes,

sensors and motors, and two agent nodes with lots of

sensors as well as motors are the elementary

components, we introduce the following definition

to derive the PN model in terms of

and .

S STD

ICINCO 2005 - SIGNAL PROCESSING, SYSTEMS MODELING AND CONTROL

Definition 5: If

and

are two state transition

diagrams of a pare agent nodes,

are

STDSTD ,,



state transition diagrams of sensors and

motors, the elementary agent side PN,

is defined to be

where

;,( STDSTDSSPN 

),,,(),;,(

0121

MFTPSTDSTDSSPN

=

21 r

, ,

121 1ss r

PQ Q Q Q C= ∪∪∪∪∪∪

C∪ },,,,,{

ppppC =

rss

EEEET ∪∪∪∪

121

if 1),( =tpF ),( tp

is defined or

, or ;

),(),(

aiu

eptp = ),(

1),(

ptF

),( pt

is defined or , or

; otherwise, , where

; ; ;

; .

),(),(

aou

pept =

),(

0),( =ptF

rj ,,1 = rssk ,,1,2,1 = 2,1 ssl =

nu ,,1 =

||,,1

Ew =

if , 0 otherwise.

npM =)(

),;,(

121 r

STDSTDSSPN 

is constructed by

connecting

, and

through

additional places

. These new places

represent the communication point between the two

parts. Message exchange between the two parts can

be achieved only through the communication point.

The PN model will specify all the possible monitor

and control actions between an agent node and

sensors by using the execution rule of PN. Thus, the

PN model of agent side has been derived.

S STDSTD ,,



CC ,,



4.2.3 PN model of software redundancy and

the system

Fault tolerant software architecture is widely used to

form a redundancy structure in distributed systems.

Several approaches have been proposed to build

highly available applications. As shown in Fig. 3,

fault tolerance is provided by the replication of

managers, fault detection and error recovery. The

agent side should not be aware of the faults in the

management station or the recovery from faults, nor

should it be aware of the fact that the managers are

replicated. Local fault detectors are monitored by a

global fault detector which detects when a local fault

detector is not available. Managers are continuously

monitored by local fault detectors which are

deployed on each management station. If a fault

occurs, then the local fault detector reports the error

to the fault notifier. The fault notifier analyzes

incoming error reports and sends a notification to the

redundancy manager. When the redundancy

manager receives a notification, it would initiate the

recovery of the manager or assign another manager

to handle it.

We are interested in redundancy model in the early

phases of system design, so that decisions can be

made to choose the best redundancy scheme.

Therefore, we focus on the abstract from

implementation details. In our approach, we first

give a UML model about software redundancy

architecture and then a PN model. The most

sophisticated part in the redundancy structure is the

model of redundancy manager, which should

consider the event queue, dispatcher and

dependency.

The model proposed here is an object model

which can be easily specified by unified modeling

language (UML). Lots of approaches have been

proposed to derive PN model from UML model

automatically, therefore it is easy to get the PN

model of the manager side.

Combining the PN model of agent side and the

PN model of manager side is similar to combining

the PN model of agent node and the PN model of

sensors and motors. Here is the definition.

Definition 6:

(,, , )

aa a a

PNA P T F M

Figure 3: Management side redundancy structure.

MODELING AND ANALYSIS OF REDUNDANCY IN REMOTE MONITORING AND CONTROL SYSTEMS VIA

PETRI NETS

11 1 1

12 1 1

(,; , )

PN S S STD STD∪

12 1

(,; , )

ss s

PNSSSTD STD∪

is the agent side

PN and

is the

manager side PN.

is the possible set of

transitions when manager side communicates with

agent side. Then the system PN

is defined to be

where

),,,(

mmmm

MFTPPNM

⊂

),( PNAPNMPN

),,,(),(

MFTPPNAPNMPN =

DDPPP ∪∪∪∪

},,,,,{

ppppD =

TTT ∪=

if or ,

, or ;

if or ,

, or ; otherwise,

, where

1),( =tpF 1),( =tpF

1),( =tpF

),(),(

biu

eptp = ),(

1),( =ptF 1),( =ptF

1),( =ptF

),(),(

bou

pept = ),(

iuw

0),( =ptF sj ,,1 

; ;

; .

2,1 ssl =

ku ,,1 = ||,,1

Tw =

, 0

otherwise.

)()()()(

0000

pMpMpMpM

=∧=

4.3 Analysis of redundancy

PN model analysis can be both qualitative and

quantitative. Qualitative analysis shows the

structural characteristics and qualitative analysis

shows performance. Both qualitative and

quantitative analysis can be performed in our PN

model.

In our qualitative analysis, we consider the liveness

and boundedness properties. The liveness property

means that the system can be executed properly

without deadlocks, and boundedness property means

that the system can be executed with limited

facilities. For quantitative analysis, appropriate

parameters, such as time period or error probability,

are assigned for the PN model.

Simulations will show us the critical transitions of

the system. Moreover, the sensitivity analysis based

on static cycle methods can also find the critical

timed transitions.

5 AN EXAMPLE

Our illustrative example is a model of an application

about oil well. In this example, there are 3 wells.

Each well, 20 temperature sensors, 20 humidity

sensors, 4 power sensors, 4 current sensors, 4

voltage sensors, and 120 binary sensors are

connected to a pair of agent nodes to be monitored.

As faults occur, corresponding control actions such

as power off the motors and reset the sensors are

taken. Moreover, there are three management

stations for safety in case of managers’ crash. In the

following presentation we focus on the model of

agent nodes and software redundancy.

5.1 PN mode

Based on the state transition diagram, information

can be extracted to build a PN model. The model of

temperature and voltage sensors have 3 places and 4

transitions each, while the model of power and

binary sensors have 2 places and 2 transitions each.

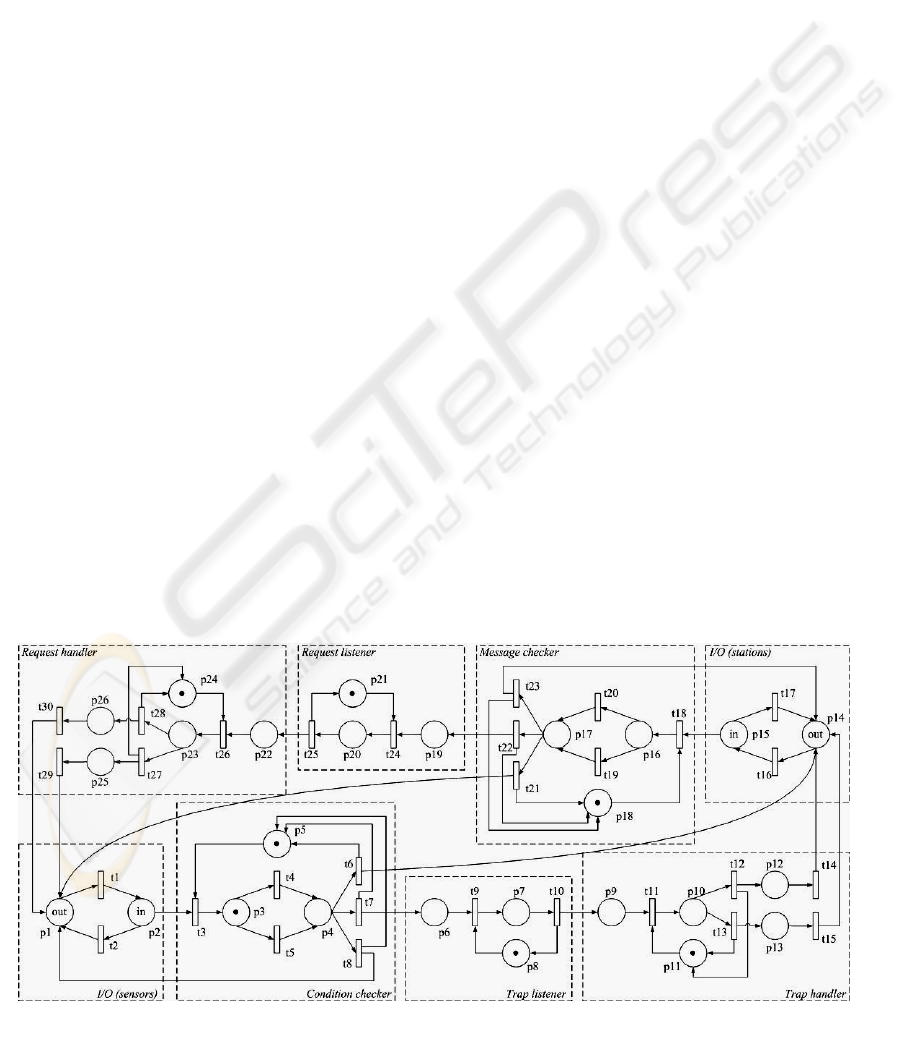

The simplified PN of agent node is shown in Figure

4. It consists of 26 places and 30 transitions. This

PN model satisfies Definition 4 and monitor

compatible condition. That is to say all messages

sent will be processed, and all control actions will

correspond to monitor behaviours.

Without restricting the interfaces and the

implementation of the system, we assume that 4

events, unrecoverable, recovered, task fault, station

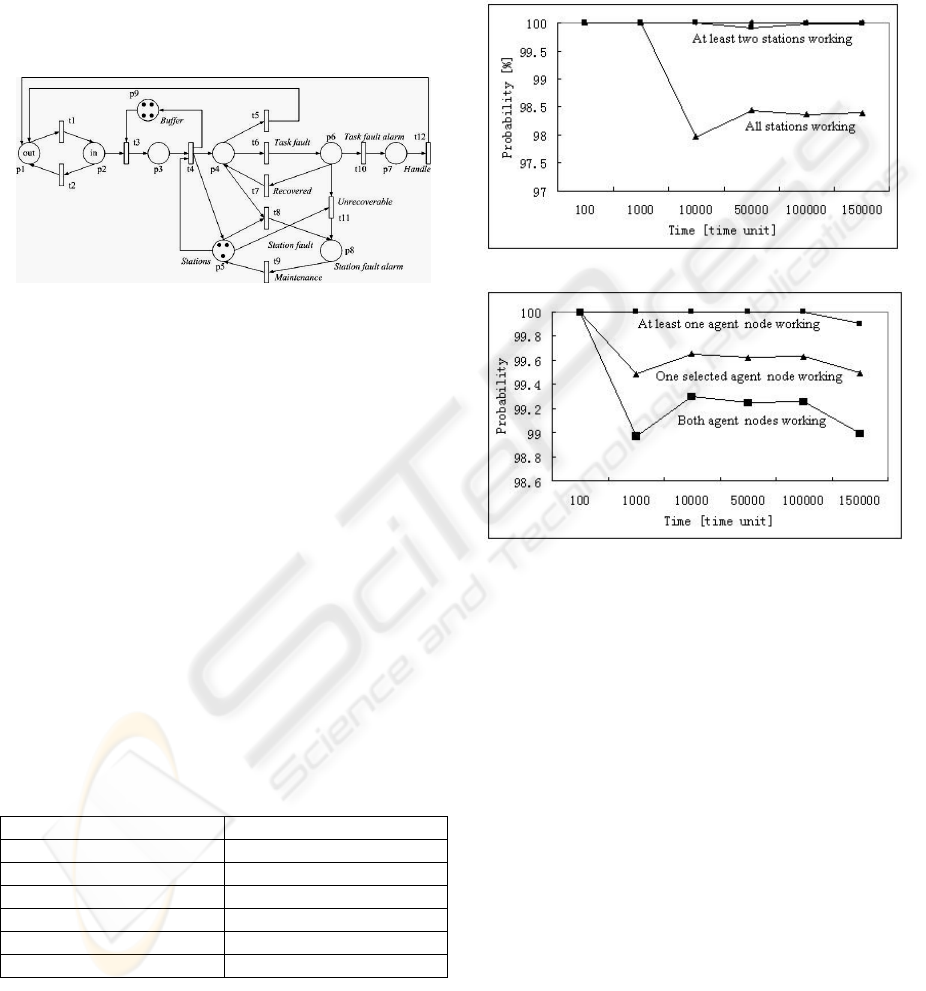

fault are processed by redundancy manager. Figure 5

depicts the PN model of the manager side with 3

stations and a 4 length buffer. t6 causes task fault,

while t7 recovers task fault, and t8, t9 cause station

ure 4: PN model of a

ent node.

ICINCO 2005 - SIGNAL PROCESSING, SYSTEMS MODELING AND CONTROL

fault. If there are no tokens in p5, t4 will never be

triggered. It means that if there are no stations

available, manager side will refuse to receive any

tasks. The failure of a station is effectual only if a

task is deployed on it. t9 and t12 are triggered by

administrators which means that both task fault

alarm and station fault alarm will cause the

administrators to reset the systems. Obviously, these

operations will take a long time and degrade the

reliability level.

By using definition 5 and 6, the PN model of

redundancy about the whole remote monitoring and

control system can be derived now. The software

package STPNPlay is adopted to verify quantitative

properties of the PN model because of its graphical

representation, ease of manipulation, and ability to

perform performance analysis.

5.2 Measurement results

The PN model of the system consists of more than

200 places and 200 transitions. The analysis answers

two questions. One is what is the probability of

having at least one working station and the other is

what is the probability of having at least one

working agent node. In the early phase of the design

usually timed PN transitions with exponential

distribution are used in the model and the designer

estimates the parameters of the distributions. This

assumption enables an analytical solution of the

model. Here we assumed the following parameters:

Modeled occurrence Average time units

Station failure 10,000

Task failure 1,000

Task recovery 10

Local fault detection 10

Global fault detection 100

Agent node failure 10,000

The simulation on STPNPlsy has reached

following results. As Fig. 6 shows, the probability of

having at least one working station is bigger than

99.99%, of having at least two working stations is

99.9% and of having three working stations is

98.4%. Similarly as Fig. 7 shows, the probability of

having at least one working agent node is 99.9%, of

having a selected working agent node is 99.6% and

of having both working agent node is 99.1%.

In early design phase, a critical question is the

comparison of different architectural solutions.

Designers can reduce the design cycle by comparing

different solutions and dwelling on the best fitting

one. In our example, the parameter of the number of

stations and agent nodes can be used to achieve the

required availability. The comparison of systems

with different number of stations and agent nodes is

quite easy and the required modification of the PN

model is straightforward.

ure 6: Probabilit

of havin

workin

stations

ure 5: PN model of mana

ement side.

ure 7: Probabilit

of havin

workin

ent .

5.3 Further work

The results of this study lead to the following

discussion. Since the manager side model developed

here for application to remote monitoring and

control system is based on the object-oriented

concept, reusable models can be grouped into a

library to make the design process more efficient.

Exponential timing is not the most appropriate

assumption of fault handling policy. The analysis

can be performed correctly by using SRN models

with deterministic timed transitions. Security is a

prime concern for many network control systems.

Improving the security by applying security protocol

MODELING AND ANALYSIS OF REDUNDANCY IN REMOTE MONITORING AND CONTROL SYSTEMS VIA

PETRI NETS

should be feasible. Formalism method is becoming

popular in developing systems. With its illation and

math form, it can guarantee the systems properties in

a mathematical way. Thus a powerful and easy

usable formalism method would be a great benefit.

6 CONCLUSION

This paper presents a Petri net based approach to

achieve design and modeling of redundancy in

remote monitoring and control systems. The

complex redundancy architecture can be analyzed

automatically. The analysis can be performed in

early design phase when the system structure and

redundancy behaviour is defined. The manager side

model is object-oriented, which describes software

redundancy architecture. While the agent side model

is more detailed, describing hardware redundancy

architecture. The state transition diagram is

transformed to a PN model which is analyzed by off-

the-shelf tools. The optimal redundancy architecture

can be selected by modeling different redundancy

architectures, considering monitor compatible

condition and subsequent property analysis.

REFERENCES

M. Kunes and T. Sauter, “Fieldbus-Internet connectivity:

The SNMP approach,” IEEE Trans. Ind. Electron.,

vol. 48, pp. 1248–1256, Oct. 2001.

R. L. Kress,W. R. Hamel, P. Murray, and K. Bills,

“Control strategies for teleoperated Internet

assembly,” IEEE/ASME Trans. Mechatron., vol. 6,

no. 4, pp. 410–416, 2001. Focused section on

Internet-based manufacturing systems.

C.A. Petri, “Fundamentals of a theory of asynchronous

information flow”, In Proc. of the IFIP Congress 62,

pp. 386-390, 1963.

D. Harel, "Statecharts: A Visual Formalism for Complex

Systems," Science of Computer Programming Vol. 8

(1987), pp. 231-274.

W. M. Zuberek, “Timed Petri nets in modeling and

analysis of cluster tools,” IEEE Trans. Robot.

Automat., vol. 17, pp. 562–575, Oct. 2001.

R. David and H. Alla, “Petri nets for modeling of

dynamics systems-A survey,” Automatica, vol. 30,

no. 2, pp. 175–202, 1994.

M. K. Molley, “Performance analysis using stochastic

Petri nets”, IEEE Trans. Comput., vol. C-31, pp. 417-

423, 1985.

L. E. Holloway, B. H. Krogh, and A. Giua, “A survey of

Petri net methods for controlled discrete event

systems,” Discrete Event Dyna. Syst., vol. 7, no. 2,

pp. 151–190, Apr. 1997.

R. Zurawski and M. C. Zhou, “Petri nets and industrial

applications: A tutorial,” IEEE Trans. Ind. Electron.,

vol. 41, no. 6, pp. 567–583, 1994. Special Section—

Petri Nets Manufact..

A. Weaver, J. Luo, and X. Zhang, “Monitoring and control

using the Internet and Java,” in Proc. IEEE Int. Conf.

Industrial Electronics, San Jose, CA, 1999, pp. 1152–

1158.

S. Maffeis and D. C. Schmidt. Constructing reliable

distributed communication systems with CORBA.

IEEE Communications Magazine, 14(2), 1997.

John Anil Saldhana, Sol M. Shatz, and Zhaoxia Hu,

“Formalization of Object Behavior and Interactions

From UML Models”

R. S. Srinivasan, “Modeling and performance analysis of

cluster tools using Petri nets,” IEEE Trans.

Semiconduct. Manuf., vol. 11, no. 3, pp. 394–403,

1998. Special Section—Petri Nets Semiconduct.

Manufact.

ICINCO 2005 - SIGNAL PROCESSING, SYSTEMS MODELING AND CONTROL
