COMBINING TWO METHODS TO ACCURATELY ESTIMATE

DENSE DISPARITY MAPS

Agust

ın Salgado and Javier S

anchez

Computer Science Department, University of Las Palmas de Gran Canaria

35017 Las Palmas de Gran Canaria, Spain

Keywords:

disparity map, optical ﬂow, stereoscopic vision.

Abstract:

The aim of this work is to put together two methods in order to improve the solutions for the problem of

3D geometry reconstruction from a stereoscopic pair of images. We use a method that we have developed in

recent works which is based on an energy minimisation technique. This energy yields a partial differential

equation (PDE) and is well suited for accurately estimating the disparity maps. One of the problems of this

kind of techniques is that it depends strongly on the initial approximation. For this reason we have used a

method based on graph–cuts which has demonstrated to obtain good initial guess.

1 INTRODUCTION

In this paper we have put together two methods for

computing disparity maps. The ﬁrst one is based

on graph–cuts energy minimisation (Kolmogorov et

al., 2001), (Boykov et al., 2004). This method has

demonstrated to give good results in integer precision

which is enough for a set of applications. If we are

looking for better accuracy then it is necessary to use

a different technique. In this case we use a method

that we have developed recently and which is de-

scribed in paper (Alvarez et al., 2002). We have also

implemented a similar method for optical ﬂow esti-

mation which is explained in (Alvarez et al., 2000).

These methods are based on an energy minimisation

approach. When we minimize the energy we obtain

a system of PDEs which are then embedded into a

gradient descent method to obtain the solution. One

of the problems of these methods is that they need a

good initial approximation in order to obtain a pre-

cise solution. In previous works we have always used

a correlation based technique to compute this approx-

imation. Comparing graph–cuts and correlation based

methods the ﬁrst one provides more stable solutions.

In this paper we show that the combination of

graph–cuts and PDE based methods improves the ac-

curacy of the solution with respect to other initial ap-

proximation techniques such as correlation. In the

experimental results we compare numerically the dif-

ferent approaches through a synthetic sequence of a

cylinder and also we show several results for a real

stereoscopic pair of images – the Tsukuba sequence.

2 GRAPH-CUTS METHOD

The minimum cut/maximum ﬂow algorithms on

graphs emerged as an increasingly useful tool for ex-

act or approximate energy minimisation in low-level

vision. Stereo is a classical vision problem where

graph-based energy minimisation methods have been

successfully applied. The goal of stereo is to com-

pute the correspondence between pixels of two or

more images of the same scene obtained by cameras

with slightly different view points. Any stereo im-

ages of multi-depth objects contain occluded pixels.

The presence of occlusions adds signiﬁcant technical

difﬁculties to the problem of stereo.

The energy function for a conﬁguration f is of the

form

E(f) = E

data

(f) + E

occ

(f) + E

smooth

(f) (1)

The three terms here include

• a data term E

data

, which results from the differ-

ences in intensity between corresponding pixels;

• a occlusion term E

occ

, which imposes a penalty for

making a pixel occluded; and

210

Salgado A. and Sánchez J. (2005).

COMBINING TWO METHODS TO ACCURATELY ESTIMATE DENSE DISPARITY MAPS.

In Proceedings of the Second International Conference on Informatics in Control, Automation and Robotics - Robotics and Automation, pages 210-214

DOI: 10.5220/0001178102100214

 SciTePress

• a smoothness term E

smooth

, which makes neigh-

boring pixels in the same image tend to have simi-

lar disparities.

3 ENERGY BASED METHOD

The method we use in this paper is energy based. It

has the following features:

• We consider a weakly calibrated stereoscopic sys-

tem. The stereoscopic system is not calibrated and

only the knowledge of the so-called fundamental

matrix is known.

• This method addresses the problem of accurately

determining the dense disparity map while regular-

izing it along the contours of the gray level image

and inhibiting smoothing across the image discon-

tinuities.

• We apply a multi–resolution scheme in order to

avoid convergence to irrelevant minima.

The energy function that we propose for 3D geom-

etry reconstruction is as follows:

E(λ) =

(x) − I

(x + h(λ(x)))

+ C

Φ (∇I

, ∇λ) dx. (2)

In this case we have a matching function, h, that

depends on a scalar function, λ. This scalar function

represents the displacement of pixels on the epipolar

lines. In this case Φ (∇I

, ∇λ) = ∇λ

·D (∇I

)·∇λ,

D (I

∇) is a regularized projection matrix perpen-

dicular to ∇I

D (∇I

) =

|∇I

+ 2υ

(



∂I

∂y

−∂I

∂x



∂I

∂y

−∂I

∂x



+ υ

)

(3)

where Id denotes the identity matrix. This projec-

tion has been introduced by Nagel and Enkelmann in

the context of optical ﬂow estimation.

After minimising this energy and applying a

gradient descent method we obtain the following

diffusion–reaction PDE:

∂λ

∂t

= C div (D (∇I

) ∇λ)



(x) − I

(x)









−b



∂I

∂x



(x)

√

+ b



∂I

∂y



(x)

√

+ b







(4)

The details of this method could be found in paper

(Alvarez et al., 2002).

4 COMBINING GRAPH-CUTS

AND STEREOFLOW METHOD

In this section, we explain how the graph-cuts (kz2)

and the previous explained PDE (stereoFlow) meth-

ods work together for estimating the dense disparity

map. The graph-cuts method labels the image obtain-

ing a disparity map in integer precision. The stere-

oFlow method obtains a disparity map in ﬂoat preci-

sion. To improve the perfomance of our method, we

do not apply the graph-cuts method in the input pair

of images. Using a pyramidal approach we scale the

image ”n” times. The number of scales is a parameter

deﬁned by user.

The basic idea of embedding our method in a pyra-

midal approach is as follows: we replace the images

and I

by I

:= Z(I

) and I

:= Z(I

), where

Z(. . .) is the zoom operator. Thus, we do a 2X

zoom over each image. We start with a large ini-

tial scale σ

. Next, we choose a number of scales

< σ

n−1

< ··· < σ

and for each scale σ

we do

a zoom. When we reach last scale (σ

), we compute

the disparity λ

with kz2 or with a correlation based

technique. Thus, we have an initial approximation.

Next, we compute the disparity λ

as the asymptotic

state of the above PDE with initial data λ

i+1

. So, the

disparity of I

and I

is deﬁned by λ

. In Fig. 1, we

see an example how this algorithm works.

Both correlation–based and graph-cuts methods

spend much CPU time to compute the disparity maps.

As we can see in Fig. 1, the kz2 is applied at the

smallest size of the images, so we assure that it is car-

ried out faster than at larger images. Then the stere-

oFlow technique is applied in the rest of the scales.

5 EXPERIMENTAL RESULTS

In this section we present a comparison between the

graph–cuts stereo method (kz2) and the combina-

tion of our method (stereoFlow) with different ini-

tial approximation (such as kz2 or correlation based

technique). We have used two datasets in our tests:

a stereoscopic pair from the University of Tsukuba

(Fig. 2) and a stereoscopic pair of a synthetic cylin-

der (Fig. 6).

In paper (Kolmogorov et al., 2001), the head of

Tsukuba was used to show the results obtained with

graph-cuts stereo method (kz2) in comparison with

similar methods. We have used the same dataset to

COMBINING TWO METHODS TO ACCURATELY ESTIMATE DENSE DISPARITY MAPS

211

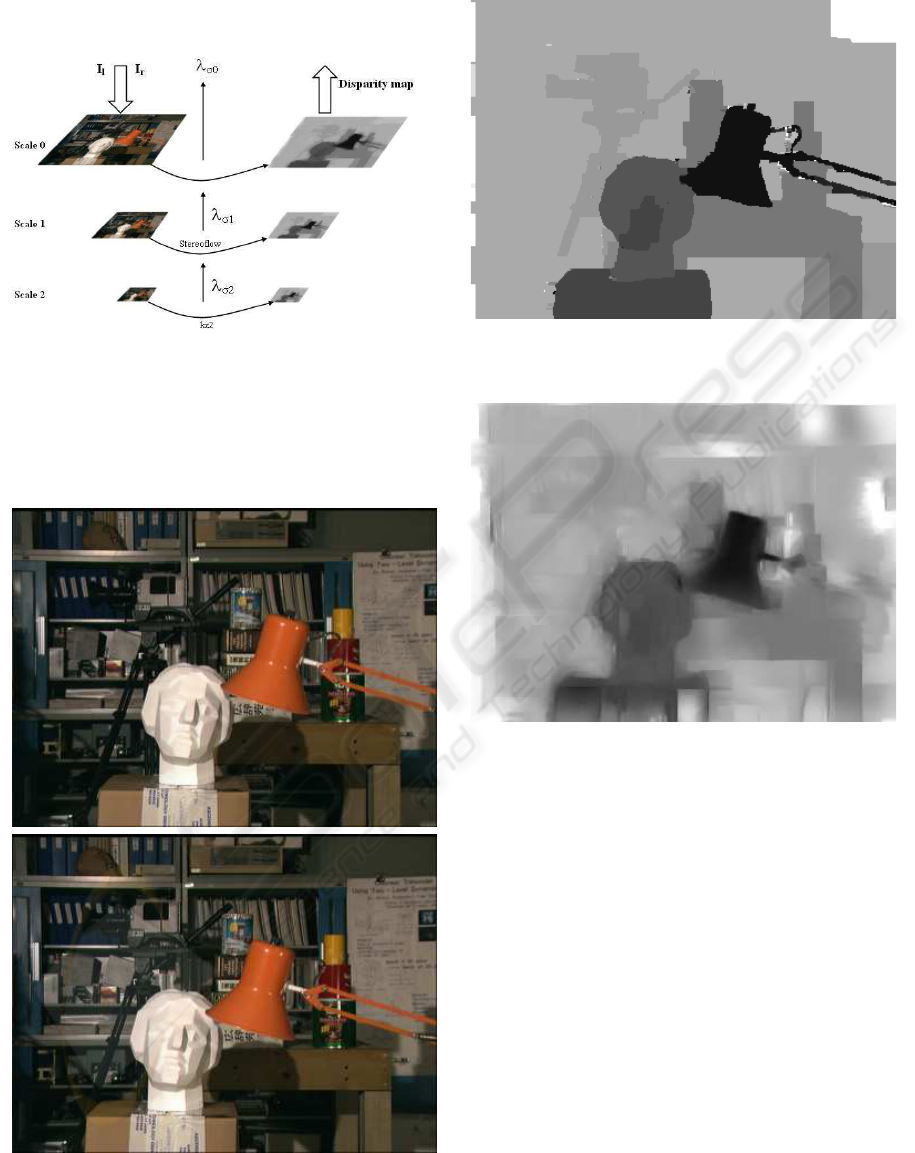

Figure 1: Combination of kz2 and stereoFlow algorithms

Figure 2: Stereoscopic pair for the Tsubuka sequence.

Figure 3: Disparity map obtained through kz2.

Figure 4: Disparity map obtained through correlation +

stereoﬂow.

show how our algorithm improves the initial approxi-

mation given by kz2 (with/without scales).

The number of zooms deﬁned by user depends on

the scene motion. An overzooming (or overscaled)

gives us a bad initial approximation, so our method

converges to irrelevant local minima. In Fig. 3 we can

see the disparity map obtained by kz2. Both correla-

tion based techniques and graph-cuts methods spend

much CPU time so we must decide between a few or

large number of scales.

We have tested our method using the synthetic

cylinder dataset to compare its accuracy with differ-

ent initial approximations. For the initial value we

consider two possibilities. The ﬁrst one is to use the

result of a simple classic method for estimating the

disparity, for instance a correlation based technique.

The second one is to use a graph-cuts method which

gives us a disparity map in integer precision.

We have computed the euclidean error between the

ICINCO 2005 - ROBOTICS AND AUTOMATION

212

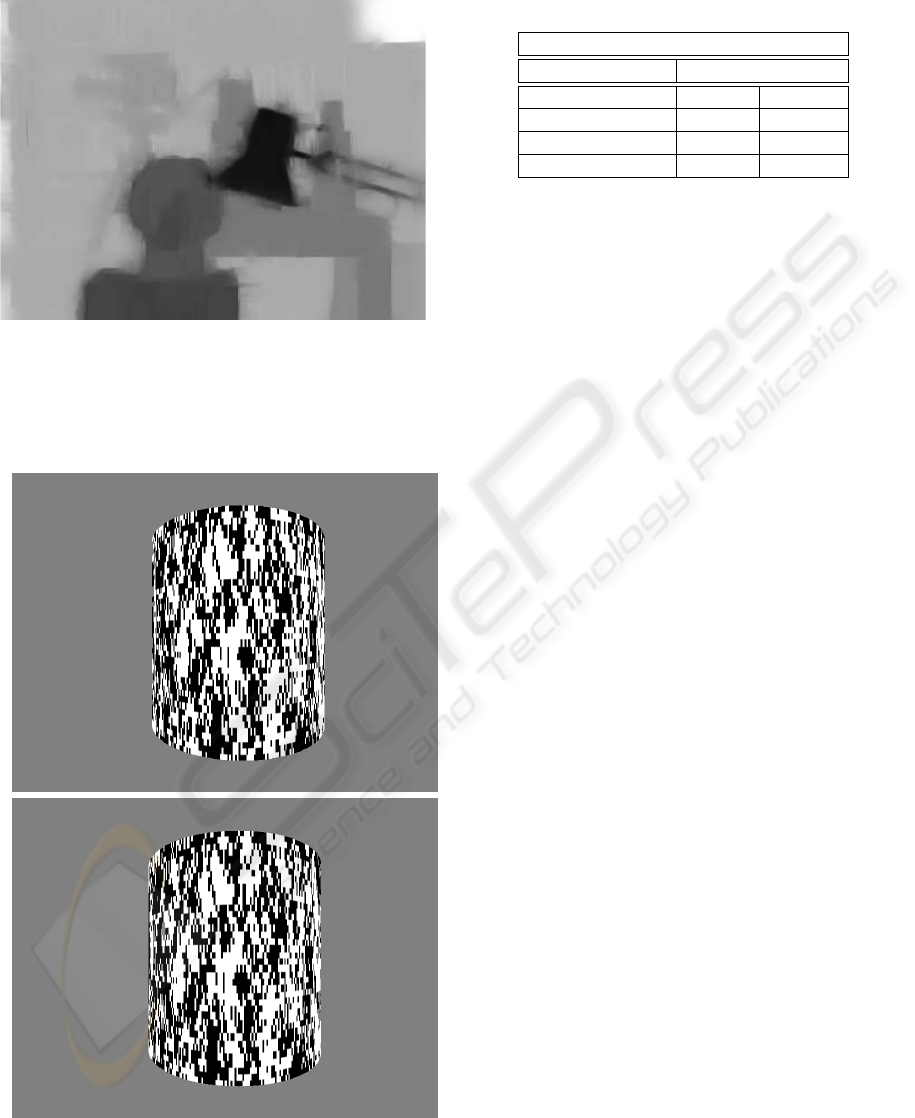

Figure 5: Disparity map obtained through kz2 + stereoﬂow.

Figure 6: Stereoscopic pair for the synthetic cylinder.

Table 1: Euclidean error obtained with cylinder images for

various tests.

Euclidean error

Method Disparity range

Scale=0 Scale=1

kz2 0.24 0.24

Corr+StereoFlow 0.22 0.21

kz2+StereoFlow 0.20 0.19

output of our algorithm and the ideal disparity map,

to see the accuracy of our method. In the table 1

we show the results obtained by the combination of

a correlation–based method with stereoFlow, the re-

sult for the kz2 and the result for the combination of

kz2 and stereoFlow.

From these results we may appreciate that the com-

bination of correlation and stereoFlow method gives

better results than the kz2 method and that the com-

bination of kz2 and stereoFlow improves the solution

of the correlation–based one.

In this table we compare the solution for two dif-

ferent conﬁgurations: In the ﬁrst one the pyramidal

scheme is reduced to only one scale (Scale = 0) and

in the second one we use two scales (Scale = 1). If we

compare them, we may conclude that the use of the

pyramidal approach improves the solutions for both

methods (correlation + stereoFlow and kz2 + stere-

oFlow) and that the result for kz2 + stereoFlow is still

better than using the correlation–based method.

In ﬁgures 8 and 10, we see the visual results for the

synthetic cylinder obtained for each method. Look-

ing at the ﬁgures the result obtained with the latter is

smoother and more accurate. All the experimental re-

sults are improved with the combined method and in

most cases the improvement is greater than a 16% for

the euclidean error for the same scale.

6 CONCLUSIONS

In this work we have combined two different tech-

niques on disparity maps estimation in order to obtain

more accurate and reliable solutions. We have used

a pixel precision method based on graph–cuts as ini-

tialization for another method based on PDEs. The

latter depends on an initial approximation which is

supported by the former one. The solution we obtain

is in ﬂoat precision and the accuracy is considerably

improved. We have compared the combination of the

PDE and graph–cuts with the combination of the PDE

and a correlation–based method. We may conclude

that the use of the kz2 at the ﬁrst stage provides better

results than the correlation method.

COMBINING TWO METHODS TO ACCURATELY ESTIMATE DENSE DISPARITY MAPS

213

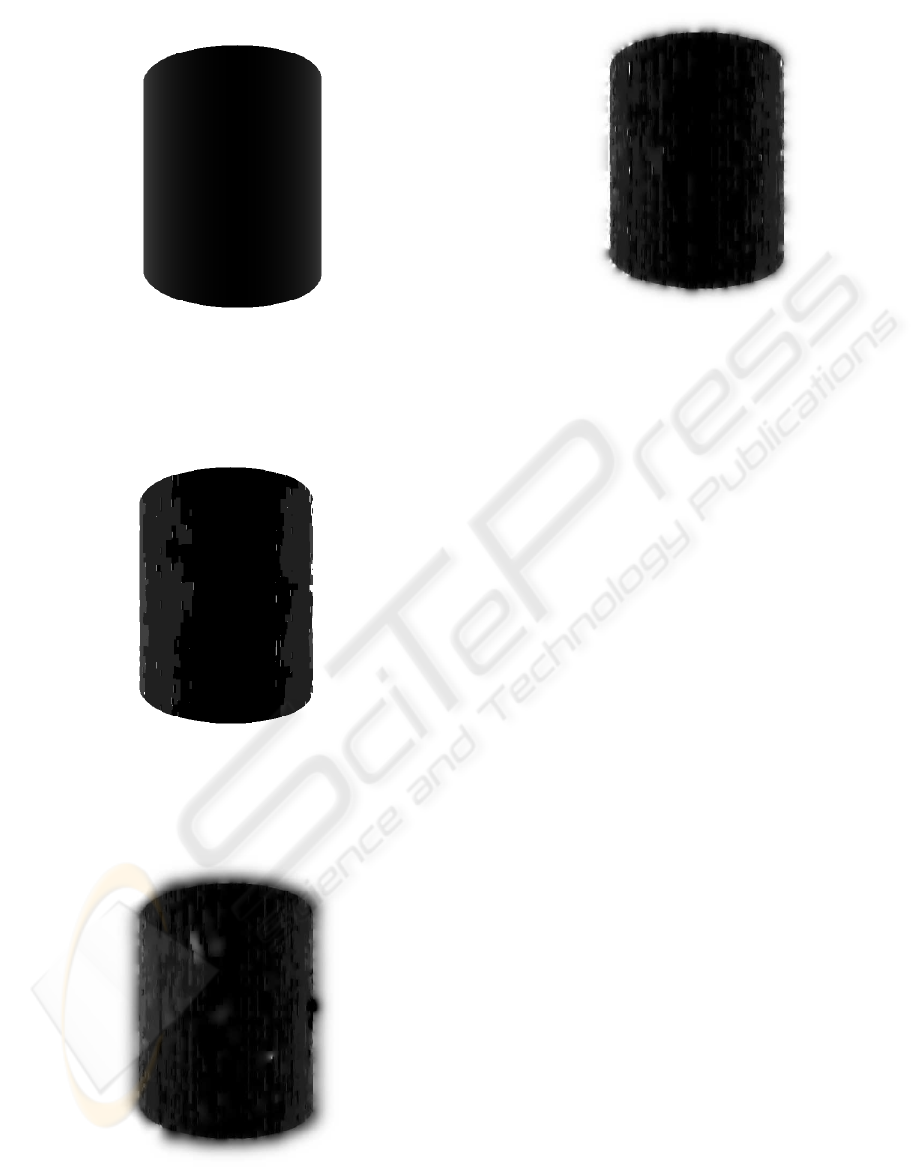

Figure 7: Ideal disparity map for the cylinder images.

Figure 8: Disparity map obtained through kz2.

Figure 9: Disparity map obtained through correlation +

stereoFlow.

Figure 10: Disparity map obtained through kz2 + stere-

oFlow.

REFERENCES

L. Alvarez, R. Deriche, J. S

anchez and J. Weickert. Dense

Disparity Map Estimation Respecting Image Discon-

tinuities: A PDE and Scale-Space Based Approach.

Journal of Visual Communication and Image Repre-

sentation, 13, pp. 3-21. 2002.

L. Alvarez J. Weickert and J. S

anchez. Reliable Estimation

of Dense Optical Flow Fields with Large Displace-

ments. International Journal of Computer Vision, 39,

pp. 41-56, 2000.

V. Kolmogorov and R. Zabih, Computing Visual Corre-

spondence with Occlusions using Graph Cuts. In In-

ternational Conference on Computer Vision (ICCV),

July 2001.

Y. Boykov and V. Kolmogorov, An Experimental Com-

parison of Min-Cut/Max-Flow Algorithms for Energy

Minimization in Vision. In IEEE Transactions on Pat-

tern Analysis and Machine Intelligence (PAMI), Sep-

tember 2004.

ICINCO 2005 - ROBOTICS AND AUTOMATION

214
