SOLVING AN INVERSE KINEMATICS PROBLEM FOR A

HUMANOID ROBOT’S IMITATION OF HUMAN MOTIONS USING

OPTIMIZATION

ChangHwan Kim, Doik Kim and Yonghwan Oh

Intelligent Robotics Research Center

Korea Institute of Science and Technology

P.O. Box 131, Cheongryang, Seoul 130-650, Korea

Keywords:

Human Motion Imitation, Inverse Kinematics Problem, Motion Capture System, Optimization.

Abstract:

Interactions of a humanoid with a human are important, when the humanoid is requested to provide people

with human-friendly services in unknown or uncertain environment. Such interactions may require more com-

plicated and human-like behaviors from the humanoid. In this work the arm motion of a human is discussed

as the early stage of human motion imitation by a humanoid. A motion capture system is used to obtain

human-friendly arm motions as references for the humanoid. However the captured motions may not be ap-

plied directly to the humanoid, since the differences in geometric or dynamics aspects as length, degrees of

freedom, and kinematics and dynamics capabilities exist between the humanoid and the human. To overcome

this difﬁculty a method to adapt captured motions to a humanoid is developed. The geometric difference in

the arm length is resolved by scaling the arm length of the humanoid with a constant based on a length ra-

tio. Using the scaled geometry of the humanoid the imitation of actor’s arm motion is realized by solving an

inverse kinematics problem that is formulated as an optimization problem. The errors between the captured

trajectories of actor arms and the approximated trajectories of humanoid arms are minimized. Such dynamics

capabilities of the joint motors as limits of joint position, velocity and acceleration are also imposed on the

optimization problem. Two motions of one hand waving and performing a statement in sign language are

imitated by a humanoid in dynamics simulation.

1 INTRODUCTION

Interactions between a human and a robot, especially

a humanoid, will have been being more important for

the robot to work with the human in unknown or un-

certain environment. Such interactions may require

more complicated and human-like motions from a hu-

manoid such that the motions are safe and friendly to

humans. The humanoid can be controlled by planning

motions or may be taught by humans to perform com-

plex motions for working with humans. For the sec-

ond case the humanoid may learn certain motions di-

rectly from a human through its cameras and other de-

vices. In other words the humanoid will be required to

move more intelligently if it lives with humans daily

in the future. From this reason the humanoid needs to

imitate human motions.

The process of human motion imitation begins with

measuring human motions as accurately as possible.

The most popular way for the measurement is to use

a motion capture system that can capture the motions

of a human in the form of time trajectories of mark-

ers attached on the human body. These human mo-

tions have been used for animation or human motion

analysis. However those captured motions may not

be applicable directly to the humanoid, since the dif-

ferences between the two characters, human and hu-

manoid, in the geometric and system aspects exist.

On the other hands, the lengths, masses, and move-

ment capabilities of the humanoid are much differ-

ent from those of the human such that the appropriate

conversion of the captured motions to the humanoid

is needed.

The imitation of a human motion by a humanoid

has been studied by some researchers. (Dasgupta and

Nakamura, 1999) presented an adaptation method of

human motion capture data to obtain a feasible walk-

ing pattern for a humanoid. The developed method

used a Fourier expansion to determine desired trajec-

tories of the Zero Moment Point (ZMP) from human

motion capture database. An optimization problem

to compute the reaction forces of the foot against the

ground corresponding to the desired ZMP trajectories,

was formulated. Arm motions were not however dis-

Kim C., Kim D. and Oh Y. (2005).

SOLVING AN INVERSE KINEMATICS PROBLEM FOR A HUMANOID ROBOT’S IMITATION OF HUMAN MOTIONS USING OPTIMIZATION.

In Proceedings of the Second International Conference on Informatics in Control, Automation and Robotics - Robotics and Automation, pages 85-92

DOI: 10.5220/0001180100850092

 SciTePress

cussed in this work.

(Nakaoka et al., 2003) explored a procedure to let

a humanoid (HRP-1S) imitate a Japanese folk dance

captured by a motion capture system. Symbolic rep-

resentations for primitive motions that consisted of

essential arms’ postures and legs’ steps, were pre-

sented. The time trajectories of joint positions were

ﬁrst generated to imitate the primitive motions. These

trajectories were then modiﬁed satisfying mechanical

constraints of the humanoid. Especially, for the dy-

namic stabilities the trajectory of waist was modiﬁed

to be consistent with the desired ZMP trajectory. The

imitation of the Japanese folk dance was performed

in OpenHRP dynamics simulator and was realized by

the real humanoid of HRP-1S as well. As the exten-

sion of this work, (Nakaoka et al., 2004) updated the

forgoing developed method. The updated method fo-

cused more on leg motions using a symbolic descrip-

tion of leg motion primitives in the same Japanese

folk dance. By solving a inverse kinematics problem

for the upper body of a human the arm motions of

the humanoid were determined. The joint positions

obtained from that inverse kinematics problem were

then modiﬁed by the velocity limits of joint motors.

The leg motions were also obtained from the inverse

kinematics problem and were modiﬁed according to

the desired ZMP trajectories. The entire dance was

performed at the half of the speed of the original cap-

tured dance to avoid falling down.

(Pollard et al., 2002) also developed a method to

adapt captured human motions to a humanoid that

consists of only a upper body. The captured upper

body motions of an actor was optimized, minimiz-

ing the posture differences between the humanoid and

the actor. The limits of joint position and velocity of

the humanoid were also involved. However, in these

studies the description of the conversion of the mo-

tion capture data to the humanoid was not made in

that detail.

(Zhao et al., 2004) presented a kinematics mapping

of captured human motion data to a humanoid intro-

ducing a similarity function. The similarity function

was deﬁned using the errors between the joint posi-

tions of an actor and those of a humanoid. The num-

ber of degrees of freedom (DOF) of the humanoid was

assumed to be same as that of the human, which may

not be very realistic.

In the studies mentioned so far the procedure to

obtain the trajectories of joint position and velocity

of a humanoid from human motion capture data has

been explored insufﬁciently. In other words, it was

not clearly described to transform motions of a hu-

man having more DOF to the humanoid having less

DOF. Therefore this work will discuss more details

about that conversion process.

It is one of the key tasks for a humanoid to imitate

human arm motions, since such tasks are essential in

providing people with human-friendly behaviors. It is

also difﬁcult to imitate the arm motions due to com-

plexity and delicateness of the motions. In addition,

incorrect imitation of arm and hand motions may lead

misunderstandings to people about the original mean-

ing. The imitation of human arm motions will be dis-

cussed as the start of human motion imitation.

As mentioned earlier it is difﬁcult to apply captured

human arm motions to a humanoid because of several

differences between a human and a humanoid as fol-

lowed

• arm length difference

• length rate difference of upper and lower arms

• less degrees of freedom of a humanoid than those

of a human

• dynamics capability difference

To resolve the difﬁculty due to the differences

above an efﬁcient method using optimization for con-

verting captured human arm motions to a humanoid

will be discussed. In addition, a simple way to im-

pose limits of joint position and velocity will be pro-

posed. Two human arm motions will be imitated by

the humanoid in dynamics simulation to evaluate the

developed method.

2 GEOMETRIC SCALING OF

HUMANOID ARMS

One of the difﬁculties of adapting human motions to

a humanoid robot is to have the work space of hu-

manoid arms be similar to that of human arms. To re-

solve this difﬁculty (Hodgins and Pollard, 1997) pro-

posed a rule for geometric and mass scaling to adapt

existing simulated behaviors of a character to new

characters. In the proposed rule the geometric scal-

ing for running motion of a human was done using a

scaling factor based on the height and the leg length of

a new character. For other motions a different scaling

factor was selected for more reliable animation.

In this work a scaling rule similar to (Hodgins and

Pollard, 1997) is used. In detail the arm length of

the humanoid robot is scaled by multiplying a dimen-

sionless constant, ρ = (

human

robot

) to it. L

human

de-

notes the sum of the lengths of the upper and lower

arm of an actor as seen in Fig.1. L

robot

is also de-

ﬁned for the humanoid in the same manner. Therefore

the lengths of the upper and lower arms of humanoid

are scaled as ρL

upper

robot

and ρL

lower

robot

. The same scaling

rule is applied to the left or right arm using different

scaling constants, respectively. The boundary of the

work space of the arms may then become similar to

the actor’s. However, the scaled work space may not

be identical to that of the actor due to the differences

ICINCO 2005 - ROBOTICS AND AUTOMATION

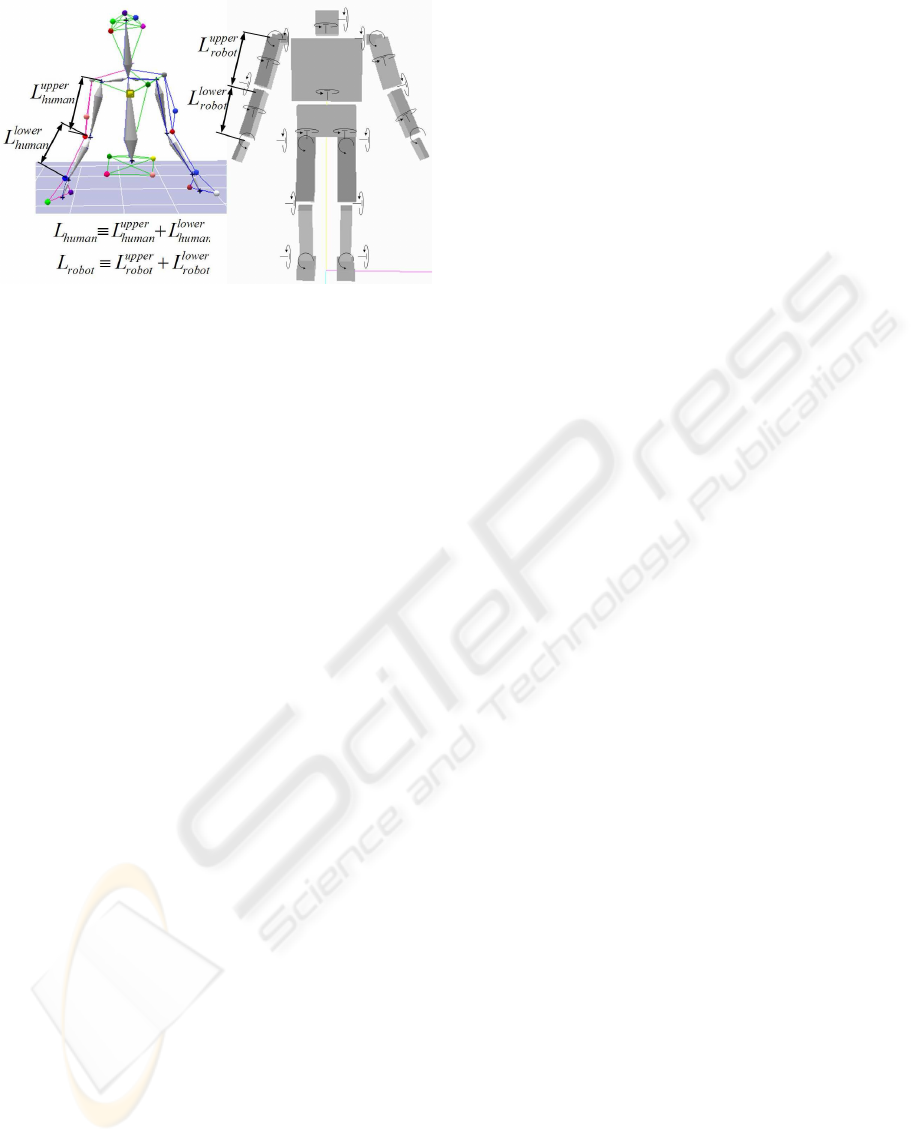

Figure 1: The upper body of a human in capturing (left) and

a humanoid having 27 degrees of freedom (right).

in the length ratios of the arms. Due to this when the

position and orientation of humanoid hands are imi-

tated, the orientation of the upper arm is also forced

to match with human’s at the same time. Based on

the scaled geometry of the humanoid the actor’s arm

motions are imitated by solving an inverse kinematics

problem in the following section.

3 OPTIMIZATION

FORMULATION FOR INVERSE

KINEMATICS

Human motions can be recorded and stored using a

motion capture system. It can be formulated as an in-

verse kinematics problem for a humanoid to perform

these captured motions. In the following subsections

it will be shown that this inverse kinematics problem

can be formulated as an optimization problem consid-

ering motor capabilities.

3.1 Minimization of Errors in Arm

and Hand Postures

The trajectories of humanoid arms can be determined

using the captured position and orientation trajecto-

ries of actor’s hands and upper arms as some re-

searchers like (Lenarcic and Ravani, 1994) had done.

The method presented in (Lenarcic and Ravani, 1994)

is possible to solve the inverse kinematics problem

discussed herein, since the humanoid has 6DOF for

an arm and a hand. The method can solve the

inverse kinematics problem using a generalized in-

verse matrix of the Jacobian of an end-effector (hand

of the humanoid) and joint velocity limits. It may

however be difﬁcult to impose such more general

constraints as dynamic stabilities and avoiding self-

collision on those methods. Furthermore, although

the position and orientation of the humanoid is suc-

cessfully imitated, the arm motion of the humanoid

may be matched incorrectly with that of the actor

due to the difference in degrees of freedom. In other

words, more accurate imitation of the hand motions

may cause more errors in the motion of the upper arm,

since the humanoid has less degrees of freedom, espe-

cially at the wrist, than the actor. Due to this reason a

more general method is needed to minimize the errors

in the trajectories of hand and upper arm simultane-

ously. This can be accomplished using optimization

with weights on hand and upper arm motions sepa-

rately. Additionally, use of optimization allows to im-

pose more general constraints as motor capacities.

An optimization problem is formulated now to de-

termine the optimal postures of the humanoid arms

imitating the actor’s arm motions captured by the mo-

tion capture system. The same optimization problem

is solved repeatedly at each of the time grid points in

the entire motion interval. Once the optimal posture

is obtained at a certain time grid point, this posture is

used as the initial value for the optimization problem

for the next time grid point. Therefore, the increment

of conﬁguration of the humanoid is deﬁned as the op-

timization variable as follows

∆q

= q

− q

i−1

for j = 1 ∼ 6 (1)

where q

is the j

joint in the arm at the i

time

grid point. Notice that the joint numbers j = 1 ∼ 6

are given from the shoulder to the hand for the both

arms as seen in Fig.1. It is also noticed that the op-

timization formulation deﬁned here can be applied to

the both arms. Therefore the solution procedure will

be explored for the right arm through the entire paper

but it can be simply repeated to the left one as well.

Six markers were used when the motion of each

arm of the actor was captured; three markers were at-

tached on the hand (wrist, thumb, pinky), one marker

at the elbow, one on the bicep, and the last one on

the shoulder. First, the error between the actor hand

and the humanoid hand is considered. That error is

deﬁned in terms of the distances between the three

markers on the actor hand and the corresponding three

points on the humanoid hand approximated from the

given conﬁguration. Secondly, the orientation error

between the upper arms of the actor and the humanoid

is involved. Therefore, at the i

time grid point,

t = t

, the error function to be minimized is given

min

∆θ

f(∆θ

) = E

hand

(∆θ

)

W E

hand

(∆θ

)

+ W

elbow

(∆θ

(2)

SOLVING AN INVERSE KINEMATICS PROBLEM FOR A HUMANOID ROBOT’S IMITATION OF HUMAN

MOTIONS USING OPTIMIZATION

where

hand

(∆θ

) =







wrist

) − r

wrist

(∆θ

)

thumb

) − r

thumb

(∆θ

)

pinky

) − r

pinky

(∆θ

)







W = diag [ W

. . . W

]

∆θ

= [ ∆q

. . . ∆q

]

(3)

and W

is a weight for the second term in Eq. (2).

wrist

), r

thumb

) and r

pinky

) are the captured

trajectories of the position vectors of three markers

on the wrist, thumb and pinky of the actor hand,

respectively. Similarly, three points, r

wrist

(∆θ

thumb

(∆θ

), and r

pinky

(∆θ

) are deﬁned on the hu-

manoid hand in terms of the increments of joint posi-

tions and correspond to the three points on the actor

hand.

elbow

k in (2) denotes the magnitude of the vec-

tor representing the orientation difference between the

upper arm of the actor and that of the humanoid as

seen in Fig.2. Its square is written in terms of ∆θ

elbow

(∆θ

(

el/sh

)

el/sh

(∆θ

)

− r

el/sh

(∆θ

)

el/sh

(∆θ

)

(4)

where

el/sh

) = r

) − r

) (5)

el/sh

(∆θ

) = r

(∆θ

) − r

(∆θ

) (6)

where r

) and r

) are the position vectors of

the elbow and the shoulder of the actor at the time

grid point, t

, which are determined from the capture

marker data. r

(∆θ

) and r

(∆θ

) are the approx-

imated position vectors of the elbow and the shoulder

of the humanoid in the conﬁguration, ∆θ

, at the time

grid point, t

As seen in Fig.2 the position and orientation of the

humanoid hand are matched with those of the actor

hand by minimizing the ﬁrst term in the objective

function in (2), since a plane can be deﬁned by three

points. This method has advantages of reducing com-

putation efforts, since it does not need to compute the

orientation angles of the hand from its rotational ma-

trix.

Minimizing the error in the position and orienta-

tion for the hand may not be enough to imitate the

entire arm motions of the actor, since the humanoid

has less degrees of freedom for the arm than the ac-

tor does. Due to this the orientation error between the

upper arm of the humanoid and the actor is reduced

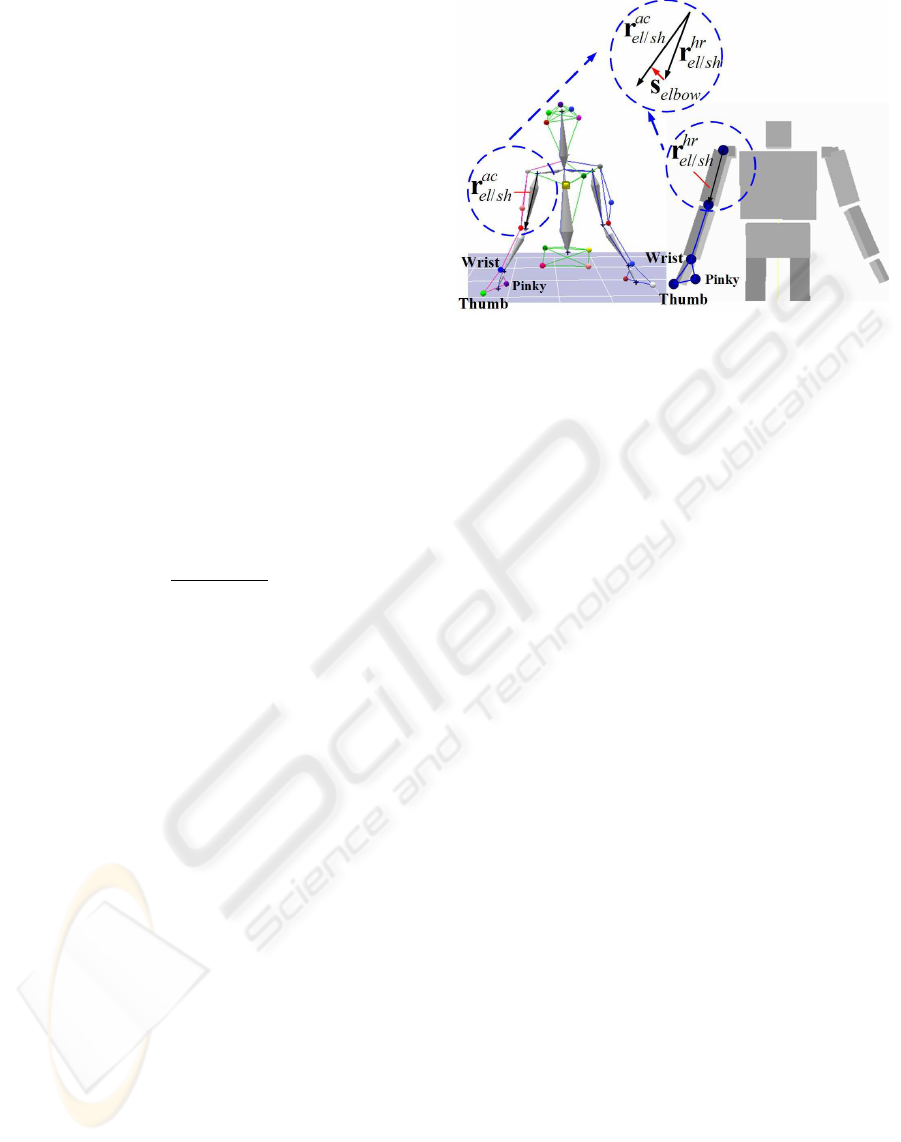

Figure 2: Marker positions on the hands of actor and hu-

manoid, and the vector s

elbow

by minimizing the second term in Eq.(2). Therefore

the proposed method does not calculate the Euler an-

gles for the conﬁguration from the rotational matrices

given in the captured motions. This advantage allows

to obtain analytical gradients of the objective function

and reduce computations for the iterative optimization

process.

3.2 Kinematic Constraints of Motor

Capabilities

The imitation of the arm motions can be limited by

several kinematic constraints as motor capabilities.

The motor capabilities consist of the angle limit, ve-

locity, and acceleration. The angle limits of the joints

are imposed with easy as

lower

≤ q

upper

for j = 1 ∼ 6 (7)

where q

lower

and q

upper

for j = 1 ∼ 6 are the posi-

tion limits of the joints for the arm, and q

= q

)

as in (1).

Recalling Eq.(1), the joint positions at the time, t

can be given in a discrete form as

= q

i−1

+ ∆q

for j = 1 ∼ 6 (8)

where the joint positions, q

i−1

for j = 1 ∼ 6 are

known from the previous time grid point, t

i−1

. The

inequalities in Eq.(7) are then rewritten in terms of the

incremental limits of the joint positions using Eq.(8)

∆q

lower

≤ ∆q

upper

for j = 1 ∼ 6 (9)

where

∆q

lower

= q

lower

− q

i−1

∆q

upper

= q

upper

− q

i−1

(10)

ICINCO 2005 - ROBOTICS AND AUTOMATION

Figure 3: The marker trajectories of the actor’s right hand (solid lines; mm unit) and the optimal trajectories of corresponding

points on the humanoid hand (dash lines) for the motion of waving the right hand.

The capacities of motors at the joints are also lim-

ited by the bounds of motor angular velocities and ac-

celerations as follows

˙q

lower

≤ ˙q

upper

for j = 1 ∼ 6 (11)

¨q

lower

≤ ¨q

upper

for j = 1 ∼ 6 (12)

where ˙q

lower

, ¨q

lower

, ˙q

upper

, and ¨q

upper

for j = 1 ∼

6 are the lower and upper bounds of the joint veloci-

ties and accelerations, respectively. The joint veloci-

ties and accelerations at t

can be written in a discrete

form using the Backward Difference Method (BDM).

Using the BDM the inequalities in Eqs.(11) and (12)

can be rearranged in terms of the increments of joint

position at t = t

∆ ˙q

lower

≤ ∆q

≤ ∆ ˙q

upper

for j = 1 ∼ 6 (13)

∆¨q

lower

≤ ∆q

≤ ∆¨q

upper

for j = 1 ∼ 6 (14)

where

∆ ˙q

lower

= ∆t ˙q

lower

∆ ˙q

upper

= ∆t ˙q

upper

∆¨q

lower

= ∆t ˙q

i−1

) + ∆t

¨q

lower

∆¨q

upper

= ∆t ˙q

i−1

) + ∆t

¨q

upper

(15)

In the equations above ˙q

i−1

) can be determined us-

ing the BDM.

The imitation of the arm motion is done by mini-

mizing the objective function in Eq.(2) subject to sets

of bounds for the joint increments in Eqs.(9), (13) and

(14). This optimization problem is solved using SQP

algorithm for nonlinear programming.

3.3 Gradients

In this work a gradient-based optimization scheme is

used so that the analytical gradients of the objective

and constraint functions are recommended to reduce

optimization iterations. All the constraints in Eqs.(9),

(13) and (14) are the bounds on the optimization vari-

ables, ∆q

for j = 1 ∼ 6 such that their gradients are

simply obtained. The gradient of the objective func-

tion in (2) is given as

∂f

∂∆θ

= 2



∂E

hand

∂∆θ



W E

hand

∂(ks

elbow

)

∂∆θ

(16)

SOLVING AN INVERSE KINEMATICS PROBLEM FOR A HUMANOID ROBOT’S IMITATION OF HUMAN

MOTIONS USING OPTIMIZATION

where using Eqs.(3) and (4)

∂E

hand

∂∆θ







−

∂r

wrist

∂∆θ

−

∂r

thumb

∂∆θ

−

∂r

pinky

∂∆θ













−

∂r

wrist

∂θ

−

∂r

thumb

∂θ

−

∂r

pinky

∂θ







(17)

Equations (1) and (3) were used herein, since ∆θ

− θ

i−1

and θ

i−1

is known. In addition,

∂(ks

elbow

)

∂∆θ

= −



∂r

el/sh

∂∆θ



el/sh

+ 2

(

el/sh

)



∂r

el/sh

∂∆θ



el/sh

(18)

Equations (17) and (18) are determined easily, since

the Jacobians of the position vectors for those equa-

tions are given analytically.

As mentioned before, since all the error terms are

written in terms of the position vectors that are repre-

sented with the joint positions, the gradients above are

obtained analytically. Due to the same reason compu-

tation efforts may be reduced compared with obtain-

ing gradients numerically. The proposed method can

also deal with general constraints given in terms of

the position vectors such as self-collision avoidance.

4 EXAMPLES: WAVING AND

SIGN LANGUAGE

To evaluate the developed method a couple of mo-

tions of an actor were captured by the Hawk Digital

System commercially available from Motion Analy-

sis Inc.. 25 markers were attached on the upper body.

The motions of waving and performing a statement in

sign language were recorded at the rate of 60 Hz with

642 frames and 1978 frames, respectively.

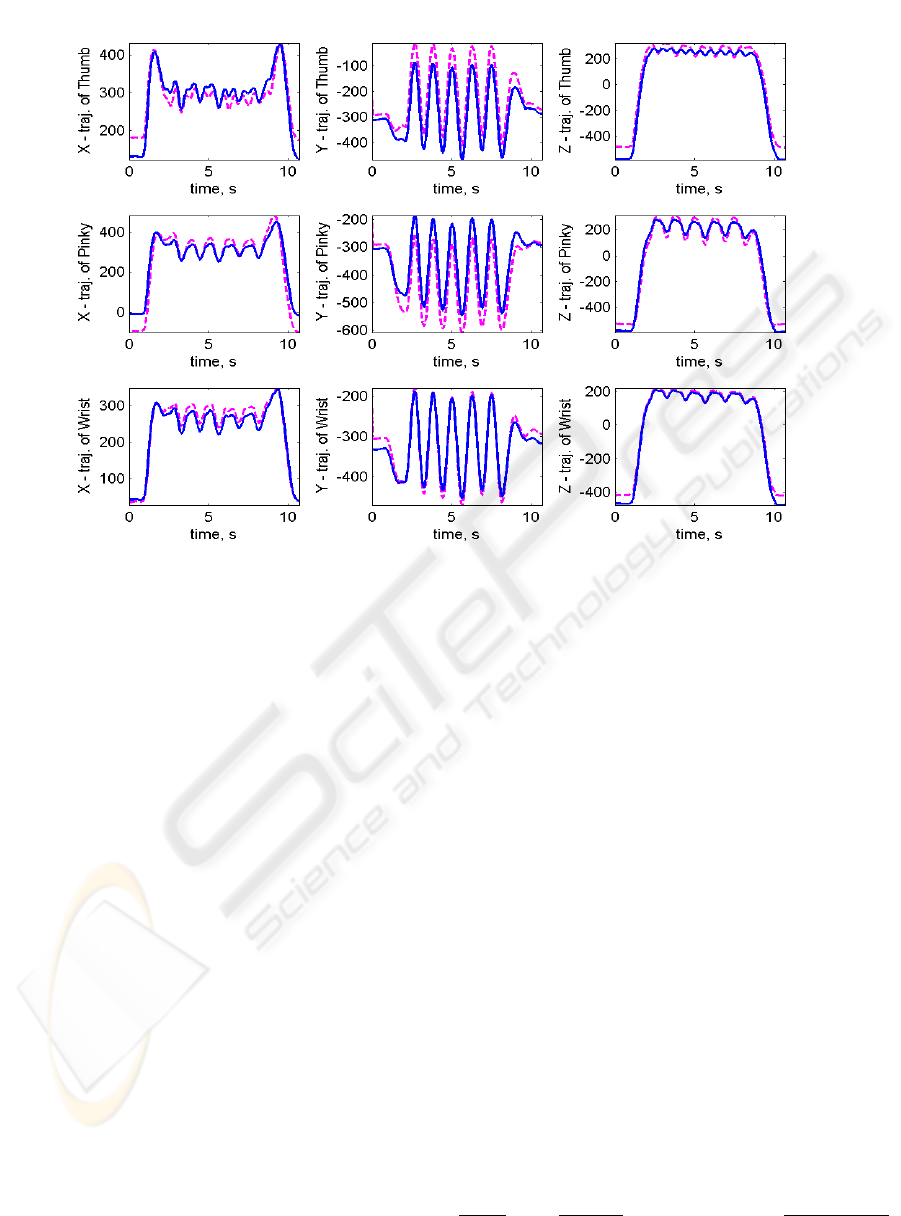

For the motion of waving the captured trajecto-

ries of the three markers on the right hand of actor

and those of the corresponding three points on the

right hand of humanoid are plotted in Fig.3 showing

good agreements with each other. In some parts of

the motion for the thumb and pinky small errors be-

tween the humanoid and the actor was observed. That

may be due to the limits of joint positions and veloci-

ties of the humanoid. Therefore another procedure to

compensate the motion imitated insufﬁciently may be

needed. This is also another task for the future work.

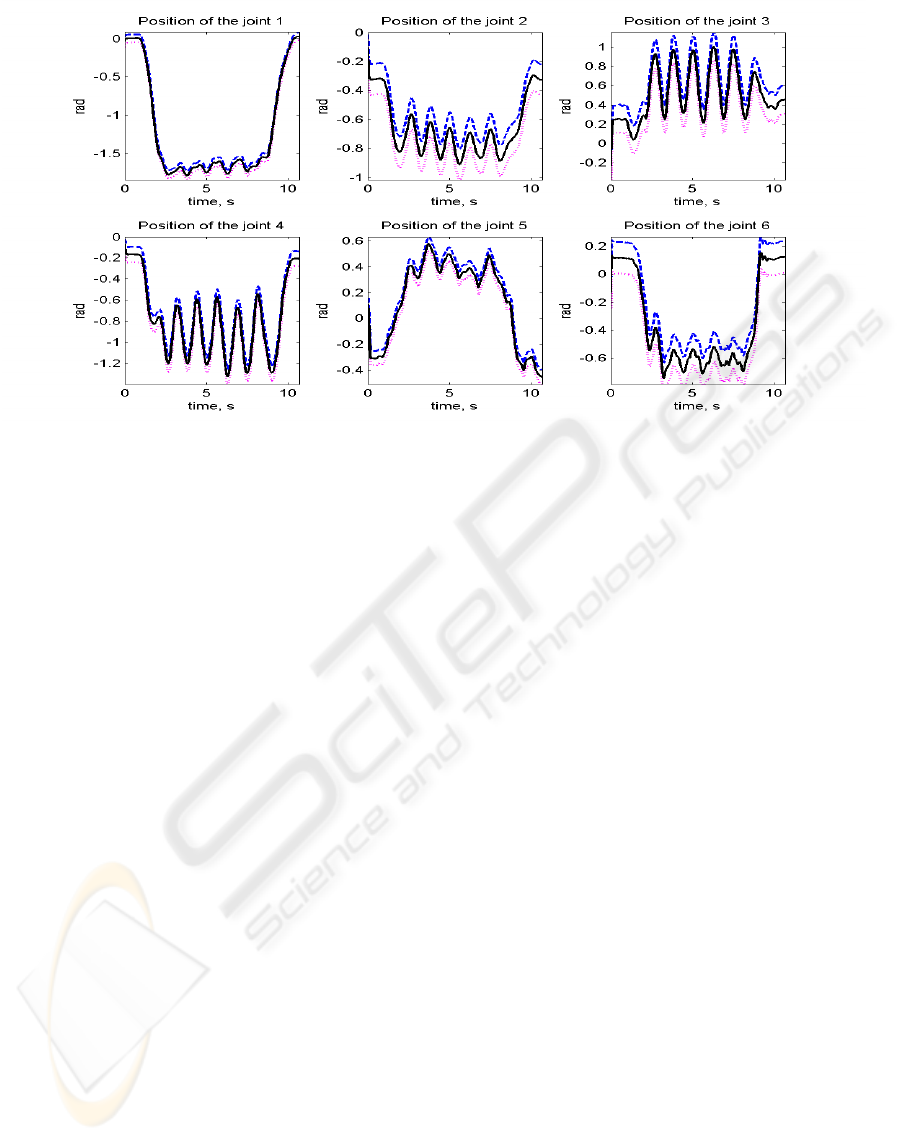

The optimal joint positions obtained from the opti-

mization problem are shown in Fig.4. The ﬁgure also

shows that the joint positions are bounded by the time

varying limits obtained from the position and velocity

bounds of joint motors. These varying limits are ob-

tained from the set of bounds for the joint increments

in Eqs.(9) and (13) in Sec. 3.2. It is noticed that the

bounds by the acceleration limits in (14) are not con-

sidered in this work but it will have to be added in the

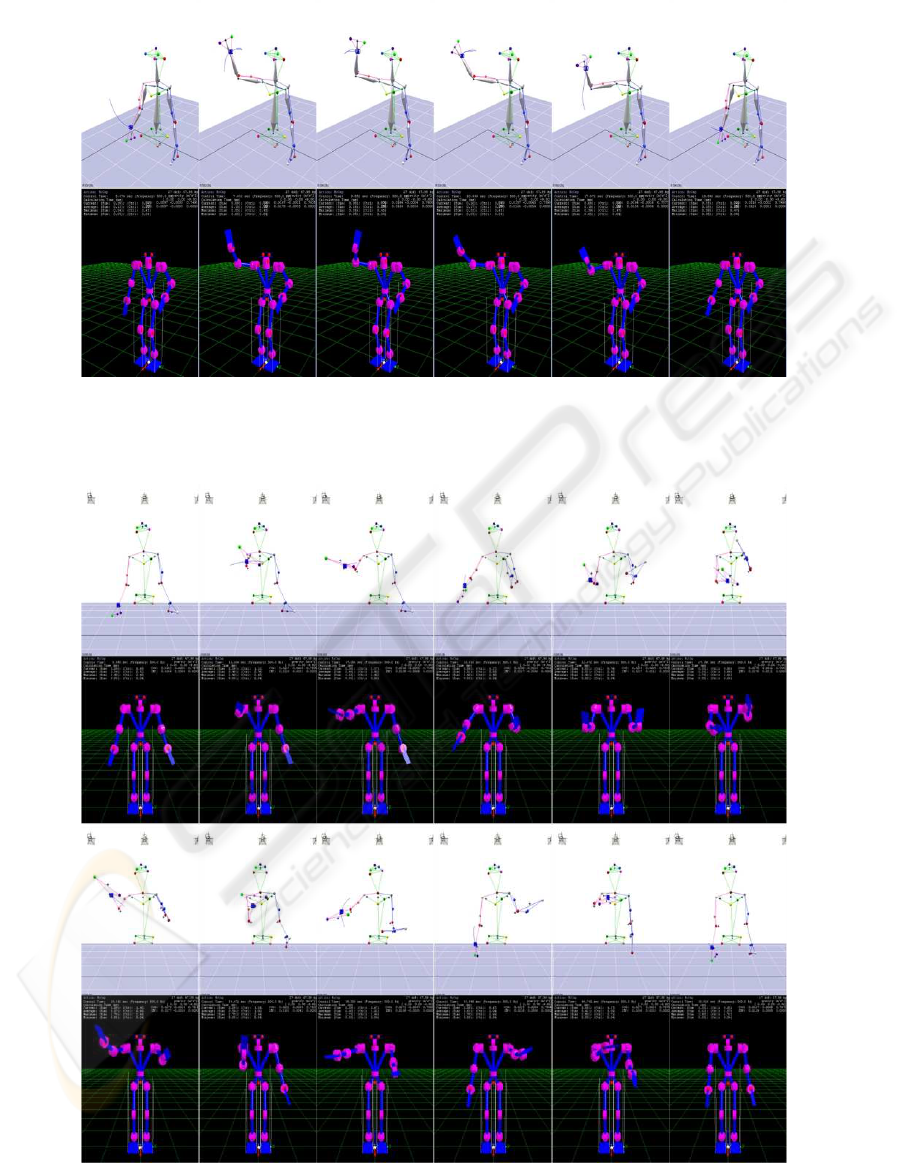

future work. The dynamics simulation for this motion

is given in Fig.5.

In Fig.6 a statement in sign language is imitated by

the humanoid. The statement means, ”I’d like to give

hope and pleasure to you, and I love all of you.”. The

motion imitated is well matched with one performed

by the actor.

Once the joint positions are obtained from the cap-

tured trajectories of the actor arms, the joint veloci-

ties are determined numerically. These joint positions

and velocities are then applied to the humanoid as de-

sired trajectories for controlling the humanoid with

PID controller. The converted two motions are sim-

ulated in the dynamics simulator developed by the

Korea Institute of Science and Technology as seen in

Figs.5 and 6 .

5 DISCUSSION

A method has been proposed to transform the motion

capture data of human arms to joint positions and ve-

locities available to a humanoid. The method was able

to overcome less degrees of freedom in the humanoid.

The proposed method employed a general optimiza-

tion scheme imposing limits on the capacities of the

joint motors such that it could provide a solution pro-

cedure for an inverse kinematics problem. Since the

error terms in the objective function were written in

terms of only the marker’s trajectories, less computa-

tion efforts were needed than obtaining Euler angles

of the arms from rotational matrices. Due to this it

may be useful to control a humanoid in real time. In

addition it is easy to impose general constraints as the

Zero Moment Point (ZMP) and self-collision avoid-

ance on the humanoid motions, because a general op-

timization scheme was used. Two captured motions

of waving and performing a statement in sign lan-

guage have been imitated by the humanoid, showing

good agreements with the captured motions through

dynamics simulation. The method will be extended

to whole body imitation considering dynamic balanc-

ing and self-collision avoidance in the near future.

ICINCO 2005 - ROBOTICS AND AUTOMATION

Figure 4: The optimal joint positions (solid lines) of the right arm for the motion of waving the right hand with upper (dash

lines) and lower (dot lines) limits: The joints 1, 2, and 3 are for the shoulder, the joint 4 for the elbow, and the joints 5 and 6

for the wrist and the hand, respectively.

REFERENCES

Dasgupta, A. and Nakamura, Y. (1999). Making feasible

walking of humanoid robots from human motion cap-

ture data. In International Conference on Robotics

and Automation, pages 1044–1049. Detroit, Michi-

gan.

Hodgins, J. K. and Pollard, N. S. (1997). Adapting simu-

lated behaviors for new charaters. In SIGGRAPH97

Proceedings. Los Angeles, CA.

Lenarcic, J. and Ravani, B. (1994). Advances In Robot

Kinematics And Computational Geometry. Kluwer

Academic Publishers, 101 Philip Drive, Norwell, MA

02061, U.S.A., 1st edition.

Nakaoka, S., Nakazawa, A., Yokoi, K., Hirukawa, H., and

Ikeuchi, K. (2003). Generating whole body motions

for a biped humanoid robot from captured human

dances. In International Conference on Robotics and

Automation, pages 3905–3910. Tapei, Taiwan.

Nakaoka, S., Nakazawa, A., Yokoi, K., and Ikeuchi, K.

(2004). Leg motion primitives for a dancing hu-

manoid robot. In International Conference on Robot-

ics and Automation, pages 610–615. New Orieans,

LA, U.S.A.

Pollard, N. S., Hodgins, J. K., Riley, M. J., and Atkeson,

C. G. (2002). Adapting human motion for the control

of a humanoid robot. In International Conference on

Robotics and Automation. Washington, DC, U.S.A.

Zhao, X., Huang, Q., Peng, Z., and Li, K. (2004). Kine-

matics mapping and similarity evaluation of humanoid

motion based on human motion capture. In Interna-

tional Conference on Intelligent RObots and Systems.

Sendai, Japan.

SOLVING AN INVERSE KINEMATICS PROBLEM FOR A HUMANOID ROBOT’S IMITATION OF HUMAN

MOTIONS USING OPTIMIZATION

Figure 5: Waving the right hand: the captured motion of the actor (the 1

row) and the motion imitated by the humanoid (the

row).

Figure 6: Sign language motions: the captured motions of the actor (the 1

and 3

row) and the motions imitated by the

humanoid (the 2

and 4

row).

ICINCO 2005 - ROBOTICS AND AUTOMATION
