FILLED

Video data based ﬁll level detection of agricultural bulk freight

Fabian Graefe Walter Schumacher

Institut f

ur Regelungstechnik

Technische Universit

at in Braunschweig

Raul Queiroz Feitosa Diogo Menezes Duarte

Department of Electrical Engineering

Catholic University of Rio de Janeiro

Keywords:

machine vision, ﬁll level detection, stereo vision, overload process, automatic overloading.

Abstract:

For automation of a continuous overloading process between two vehicles in motion, two information are

essential. On the one hand there is the relative position between the vehicles to be known. On the other

hand the loading point within the load space of the transport car has to be determined. Often a non optimal

usage of the transport capacity is obtained without moving the overload swivel. In order to optimize the

ﬁlling process by moving load point the distribution of the freight with in the load space has to be measured

during the overload process. In this article the Institut f

ur Regelungstechnik of the Technische Universit

in Braunschweig introduces the system FILLED for video data based ﬁll level detection of agricultural bulk

freight such as chaffed corn or grass.

1 INTRODUCTION

Nowadays more and more powerful machines be-

come available in agriculture. Therefore speeds in

harvesting and harvesting tonnage increase. Keeping

the modern fast continuous overloading machines in a

proper relative position during the whole harvest im-

poses a signiﬁcant stress upon the drivers. In order to

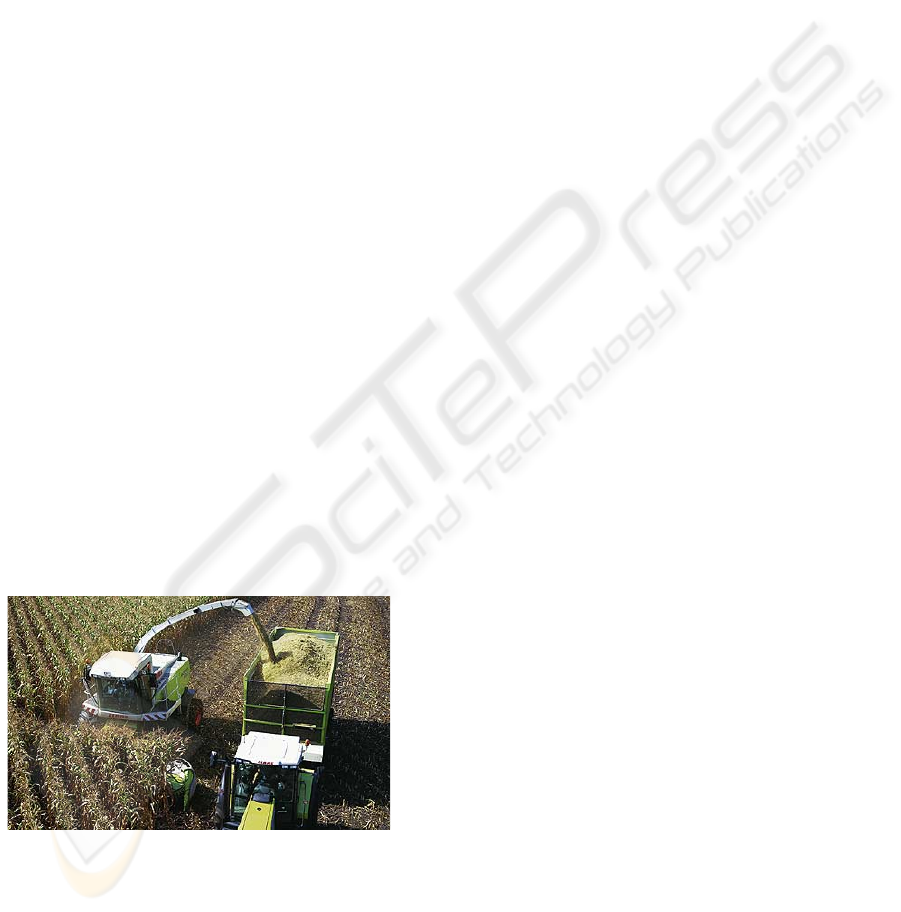

Figure 1: Forage Harvester

disburden the drivers of a harvesting combination of

a forage harvester and a transport unit a cooperation

of the Institut f

ur Landmaschinen und Fluidtechnik

and the Institut f

ur Regelungstechnik of the Technis-

che Universit

at in Braunschweig deals with a system

for automation of this overload process. In this con-

text the Institut f

ur Regelungstechnik is developing

the system FILLED for video based ﬁll level detec-

tion. Most of the ﬁll level sensor systems available

are bound to the storage device. Any modiﬁcation of

the transport car requires an adaptation of the sensor

systems that imply in additional costs. Usually agri-

cultural bulk freight such as chaffed corn or grass does

not ﬁll the load space utterly without variation of the

load point. For automatically adjusting the load point

it is necessary to know the distribution of the freight

within the load space. Therefore any type of ﬁll level

sensor which provides just one local ﬁll level informa-

tion is of less use. Moreover sensors using ultra sonic

methods are unsuitable due to their sensitivity for air

motion and temperature. Radar based sensors systems

usually encounter problems detecting organic mater-

ial. Tests with laser scanners failed due to the cloud

of spraying freight particles in the air. This work pro-

poses a video based ﬁll sensor system that has the po-

tential to overcome all the mentioned troubles. Cam-

eras provide the possibility to obtain a huge amount

of 2D data in a single shot. The measurement range

can be simply adjusted by tuning of focal length. By

using a second camera 3D information can be com-

puted using well known stereo techniques. Moreover

the fast increasing processing power in addition with

powerful mathematically methods of image process-

ing makes video data based sensor systems become

439

Graefe F., Schumacher W., Queiroz Feitosa R. and Menezes Duarte D. (2005).

FILLED - Video data based ﬁll level detection of agricultural bulk freight.

In Proceedings of the Second International Conference on Informatics in Control, Automation and Robotics - Robotics and Automation, pages 439-442

DOI: 10.5220/0001182704390442

 SciTePress

more and more feasible. This article presents the key

features of an automatic video based ﬁll level mea-

surement system (FILLED) that has been developed

by the Institut f

ur Regelungstechnik of the Technische

Universit

at in Braunschweig. The system computes a

3D-model of the freight content using stereo vision.

In the following the way FILLED derives the ﬁll level

from the image data will be explained. In section 2.1

we will provide a close look at the methods that are

used for image capturing. Section 2.2 will introduce

the means of image segmentation. The usage of stereo

vision will be explained in section 2.3. In the end the

strategy for improving the update rate will be pointed

out in section 2.4. Section 3 will provide concrete in-

formation about the prototype of FILLED.

2 SYSTEM DESCRIPTION

The system FILLED measures the ﬁll level by means

of a stereo vision analysis. A 3D-model of the freight

pile surface and the freig car’s upper rims is calcu-

lated. To be more precise the local height of the

freight pile is detected at a sufﬁciently high amount of

points all over load area. The car’s rims are used for

determination of the freight car’s coordinate system.

The points measured are related to the car’s coordi-

nate system. FILLED processes data in three steps:

• Image capturing

• Segmentation

• Stereo vision

2.1 Image Capturing

The object to be measured is in motion during mea-

surement process. This requires that the images of

each stereo pair are captured simultaneously. A crit-

ical aspect of most stereo systems is the correspon-

dence problem. It consists of ﬁnding the projections

of points in 3D space on both cameras as accurately

as possible. To simplify this task the cameras are

geometrically calibrated by using some appropriated

off-line procedure during initialization (Online proce-

dures are thinkable (P.H.S. Torr, 2004)) Before com-

ing into operation a calibration cycle consisting of:

• comparison of both image histograms of one shot

and

• correction of the exposure time and gain are

attained. This procedure is performed once during

initialization. Further the cameras must be calibrated

geometrically by using some appropriated off-line

procedure. It is advisable to repeat this calibration

procedure from time to time.

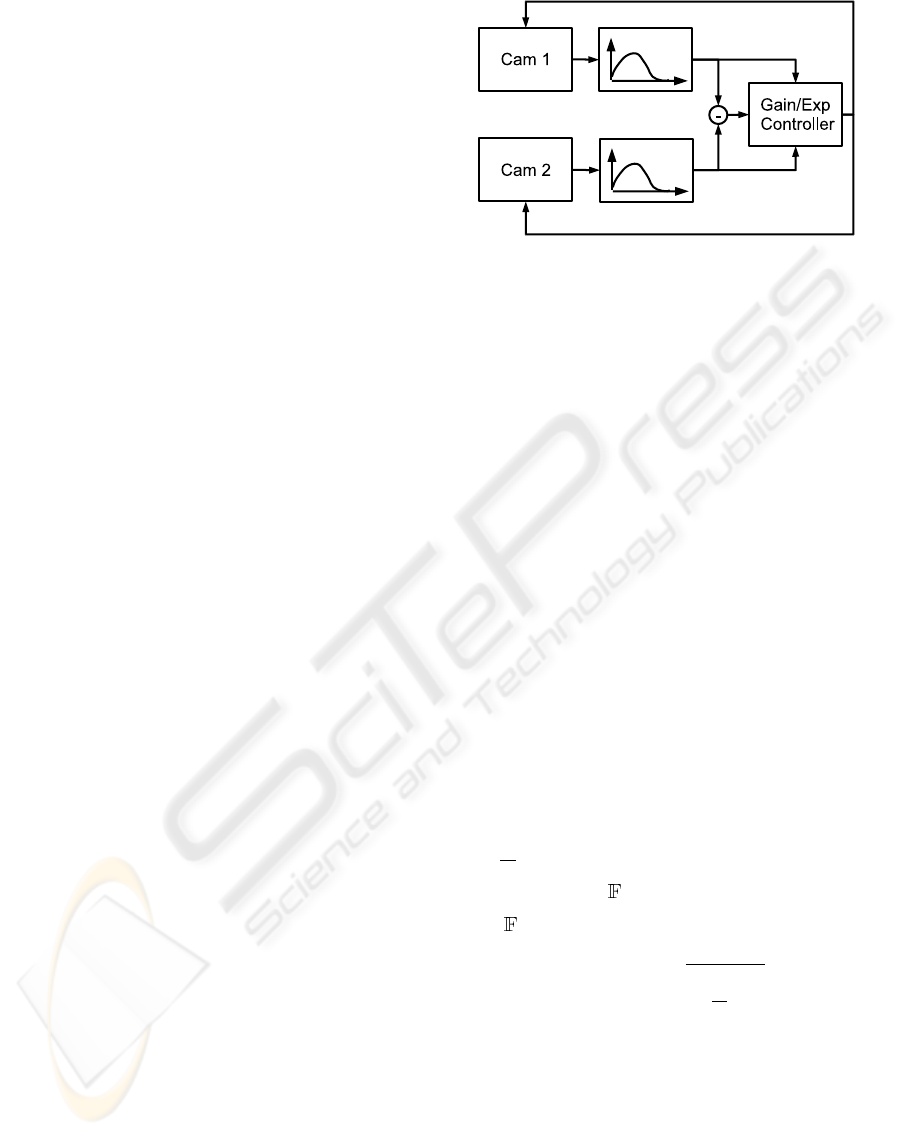

Figure 2: hardware control structure

2.2 Segmentation

In this step the pixels representing the heap on the

image are identiﬁed. The segmentation is executed in

two steps. First the regions showing the freight car are

separated from the rest of the image. The second step

of segmentation locates the image regions containing

the freight heap. With the car’s rims painted red the

borders of the car can be extracted with a color seg-

mentation procedure applied (Will Schroeder, 2003).

In order to reduce the amount of points markes for De

Hough Analysis the remaining datasets are processed

with a canny (Canny, 1986) edge detection procedure.

Using the De Hough transformation on the resulting

bitmap the mapped rims are converted into lines. This

way the limits, the coordinatesystem and thus the in-

terior of the car is deﬁned(Jon Orwant, 2000).

The second step locates the heap on the freight car.

For segregating the heap from the car’s interior the

local frequencies of the textures are analyzed. There-

fore a two dimensional Fourier transformation of a

kernel around a designated pixel P (x, y) is computed.

If F (u, v) is a Fourier coefﬁcient of the transformed

image sample, all points with mean Fourier coefﬁ-

cient

∗

of less than the threshold T

within a certain

frequency range ∆

are suppressed.

∆

: {F (u, v) ∈ r

F,min

< r

F,max

} (1)

+ v

) (2)

P (x, y) =

(

∗

> T

0 else

(3)

2.3 Stereo Vision

For setting up a 3D model of the payload surface a

stereo vision technique is applied to the image region

covering the freight heap. The stereo vision procedure

can be divided into three steps image pre-processing,

point matching and reconstruction of the points in

space.

ICINCO 2005 - ROBOTICS AND AUTOMATION

440

2.3.1 Pre-Processing

The RGB image is initially converted into gray-scale.

After that an algorithm is applied to compensate non-

uniform illumination and to provide a roughly uni-

form contrast all over the image. Figure 3 shows

shadows projected from the freight cars walls in the

regions close to the corners of the freight car. It can

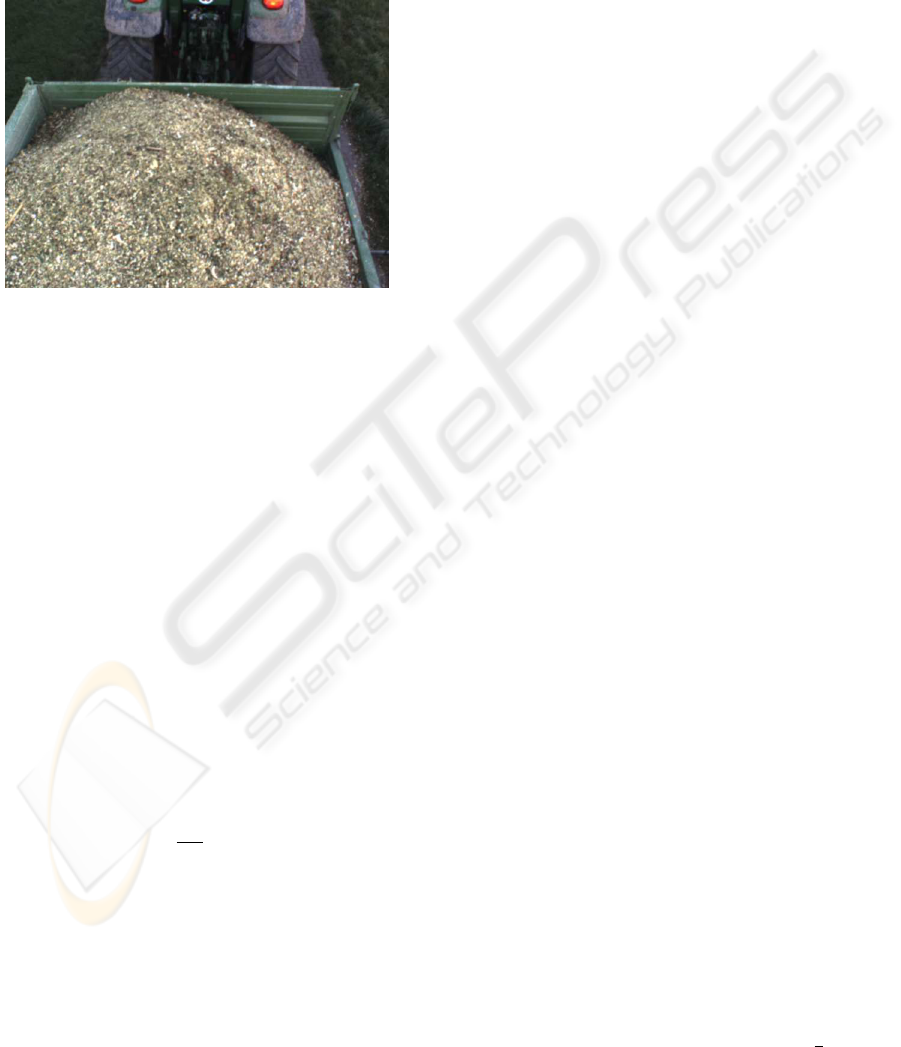

Figure 3: freight car being loaded

also be seen that the top of the freight heap is brightly

illuminated. The procedure to compensate for such

effects bases on the fact that the texture information of

the heap is concentrated in higher frequencies, while

natural illumination variation is represented by low

frequencies. By applying a linear Gaussian high pass

ﬁlter the effects of varying illumination are elimi-

nated.

= h

g hp

∗ f

(4)

Where f

, h

g hp

and ∗ denote the output of the

high-pass ﬁlter, the Gaussian kernel, the input image

and the convolution operator. Now the local contrast

is estimated by applying a linear low-pass ﬁlter to

the absolute value of f

, according to the following

equation:

= h

g lp

∗ |f

| (5)

The local contrast is normalized by dividing every el-

ement of f

by the corresponding value of f

. So

the ﬁnal normalized image f

is obtained by the last

pre-processing operation given by:

(

> 0

0 f

= 0

(6)

2.3.2 Point-Matching

In the second step pairs of corresponding points in the

left and right camera images are located. These points

will be used in the next step to reconstruct the 3D sur-

face model. Points are ﬁrst selected on the left image

in such a way that they are as uniform distributed as

possible over the heap. These points can be stored

in a 3 × N matrix P

, containing in each column

the homogeneous coordinates [x

, y

, 1]

of the N

points selected on the left. With the cameras mounted

in such a way that the baseline is much shorter than

the ﬁxation point on the scene conventional correla-

tion performs well. So let w

(resp. w

) denote

the vector obtained by scanning the window of size

(2n + 1) × (2n + 1) centered at P

= (x

, y

)

(resp. (P

= (x

, y

) ) on the left (resp. right)

image one row at a time. The similarity between the

points at P

and P

is then given by

c(P

, P

) = ~w

· ~w

(7)

where the symbol “·” represents the internal product

operator. The best match P

∗

of P

on the right im-

age is given by:

∗

= arg max ( ~w

· ~w

) P

(8)

To reduce the processing time the search is restrict

to an area A

of size (2m + 1) × (2m + 1) with

m > n on the right image centered at position

, y

). Further improvements can be achived ex-

ploring the epipolar geometry. As (Emanuele Trucco,

1998) states the search for the matching point P

can

be restricted to the segment of its epipolar line con-

tained in the area A

within the right image.

In the third step the object points in 3D space are re-

constructed. (Emanuele Trucco, 1998) proposes an

extended triangulation that provides an optimal ap-

proximated solution for the object points in space.

With the results of the geometry analysis the X and

Y -axis of the car’s coordinate system are identiﬁed

parallel to the car’s rims. The Z-axis is a vector per-

pendular to the X and Y -axis.

2.4 Performance Aspects

One basic problem dealing with video data analysis is

the high amount of data which has to be processed. To

keep processing time below an acceptable value the

De Hough algorithm and the regions of interest are

limited to convenient ranges. This is done by assum-

ing that disparities between images of a single camera

in consecutive frames as well between images of both

cameras acquired at the same time are very low.

3 PERFORMANCE EVALUATION

FILLED has been tested with image data taken during

harvesting process. Figure 3 shows a typical image

that was used for testing. The image capture hardware

consists of two cameras each connected with a PCI-

Framegrabberboard. Two progessive scan cameras

(Paciﬁc FAC 9820, IDS), equipped with a

” CCD

FILLED: Video data based fill level detection of agricultural bulk freight

441

640 × 480, RGB-color, progressivescan sensor have

been implemented. Standard wide angle lenses with a

focal length of 4.8 mm were attached. The De Hough

space has computed with a resolution of ∆ϕ =

100

The R

axis has been mapped on to 255 values.

Good results for stereovision preprocessing could be

obtained using a 40 × 40 kernel for h

. The match-

ing point procedure has been computed within a range

of 120 × 120 pixels around the designated point P

The application will be implemented in C/C++ run-

ning on a standard ofﬁce PC with a 3GHz Pentium 4

processor using Windows 2000. With the functions

of image segmentation that are already implemented

on the target system we obtain a effective update rate

upd

≥ 1Hz. The turnaround time of the modules

of stereo vision still implemented in matlab m-code

falls below 40 seconds. If FILLED is implemented

completely on the target system we expect an overall

update rate of F

upd

≥ 0.1Hz.

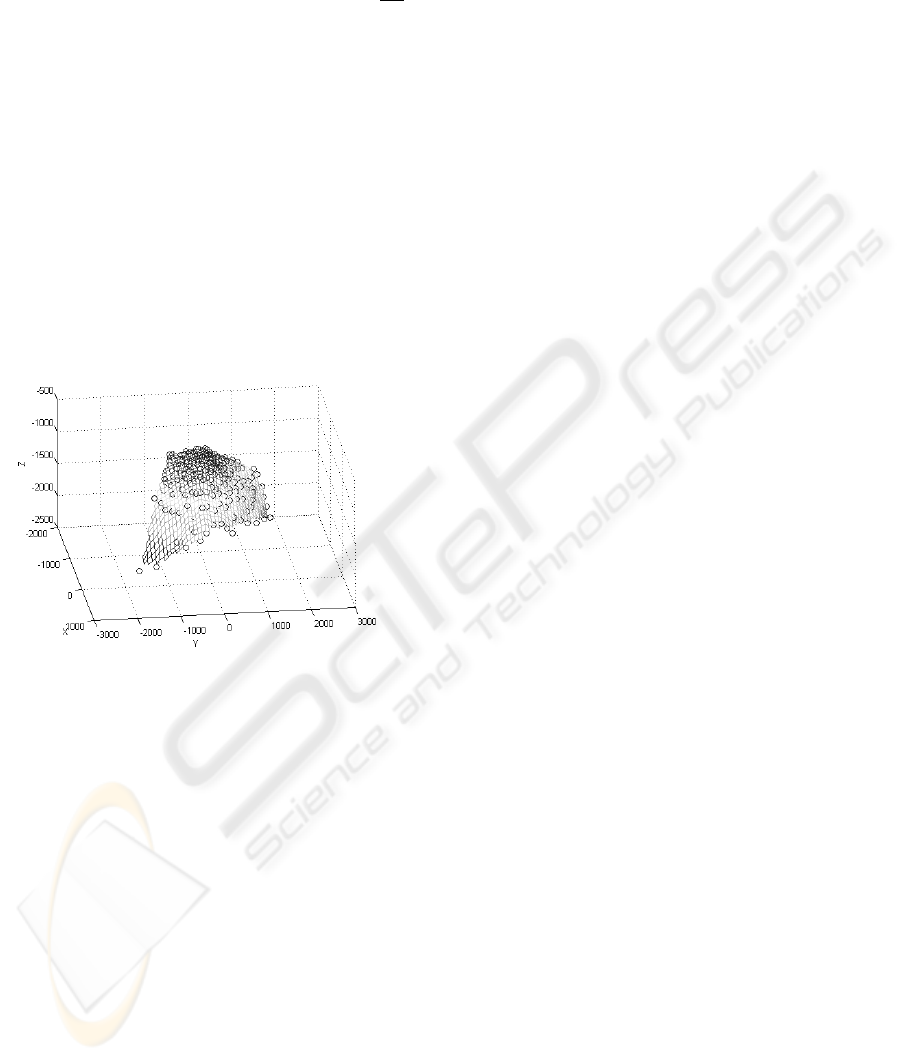

Figure 4: 3D Model of the freight heap

Figure 4 shows the 3D model of the bulk freight

heap. This dataset was derived from the car shown

in ﬁgure 3 as the result of the stereovision analysis.

The surface is reconstructed with regard to the camera

coordinate system. The axis are scaled in milimeters.

4 CONCLUSION

This work introduces a novel sensoring approach to

measure the ﬁll level of agricultural bulk freight. We

believe that the general procedure used in the present

FILLED prototype can adequately adapted to work

with most kinds of bulk freight, and that an assign-

ment of FILLED for many types of transport devices

and for different materials would become feasible. A

further ongoing research on shape from X methods

investigates the possibility of using just a single cam-

era instead of a stereo vision combination. Moreover

usage of a calibrated camera system will provide the

possibility to measure the overloaded volume. Al-

though it becomes obvious that this could be a prac-

tical method of ﬁll level measurement, there are still

problems to be solved. With regard to the speed of

ﬁlling - in our case the harvester processed aproxi-

mately 150 tonns per hour - an update rate of 0.1Hz

would be hardly enough for controlled loading. How-

ever tests evidenced that it is possible to follow the

ﬁlling process. An optimization of the implementa-

tion of the mathematical processes as well as the us-

age of speciﬁc hardware for array mathematic could

be an approach to increase the measurement speed.

Due to the fact that no reliable online calibration

method could be implemented yet, the state of the cal-

ibrated optical system must not changed during mea-

surement. This inhibits the usage of autofocus objec-

tives or objectives which provide a variable magniﬁ-

cation. Using the inline calibration algorithm men-

tioned before requires initialization runs from time to

time to ensure that the epipolar system data are valid.

This means that the overloadprocess has to be inter-

rupted, which is unfavoured for economical reasons.

We think that online calibration methods such as the

eight point algorithm (P.H.S. Torr, 2004) could be a

possible solution for this problem.

ACKNOWLEDGMENT

The authors would like to thank the DFG (German

Research Foundation) for their ﬁnancial support of

this project.

REFERENCES

Canny, J. (Nov 1986). A Computational Approach to Edge

Detection. IEEE Transactions on Pattern Analysis and

Machine Intellegence, Vol 8, No 6.

Emanuele Trucco, A. V. (1998). Introductory Techniques

for 3-D Computer Vision. Prentice Hall (25. Mrz

1998).

Jon Orwant, Jarkko Hietaniemi, J. M. D. (April 2000). Al-

gorithmen mit Perl. ISBN 3-89721-141-6, 1. Auﬂage.

P.H.S. Torr, A. F. (2004). Invariant Fitting of Two View

Geometry or In Deﬁance of the eight point algorithm.

IEEE Transactions on Pattern Analysis and Machine

Intellegence, 26(5), pages 648-651.

Will Schroeder, Ken Martin, B. L. (2003). VTK Toolkit 3rd

Edition An Object-Oriented Approach To 3D Graph-

ics. ISBN 1-930934-12-2, Kitware.

ICINCO 2005 - ROBOTICS AND AUTOMATION

442
