MOTION SEGMENTATION IN SEQUENTIAL IMAGES BASED ON

THE DIFFERENTIAL OPTICAL FLOW

Flavio de Barros Vidal

Victor Hugo Casanova Alcalde

Control and Computer Vision Laboratory

Electrical Engineering Department, University of Brasilia, 70910-900 Brasilia,DF - Brazil

Keywords:

Optical Flow, Motion Segmentation, Sequential Images.

Abstract:

This work deals with motion detection from image sequences. An algorithm to estimate the optical ﬂow using

differential techniques is presented. Noise effects affecting motion detection were taken into account and

provisions to minimize it were implemented. The algorithm was developed within the Matlab environment

using mex-ﬁles to speed up calculations and it was applied to surveillance and urban trafﬁc images. For the

considered cases, the results were quite satisfactory.

1 INTRODUCTION

Image motion segmentation is often coupled with

motion detection, where each region corresponds to

a particular motion model explaining the temporal

changes in that image region (Boult and Brown,

1991).

Several works describe techniques to separate or

extract the motion under certain hypothesis that as-

sures its applicability. Among the image motion ex-

tracting methodologies, we are interested in those

ones based upon optical ﬂow. This technique has

been studied for application in areas such as biomedi-

cine, meteorology, visual inspection systems, process

control and real time urban trafﬁc monitoring (Branca

et al., 1997) (Giachetti et al., 1998).

This work presents an approach to motion segmen-

tation in sequential images. Using the optical ﬂow

concept, applying morphological transformations to

binary images, as well as, spatial processing the im-

age motion can be extracted. This procedure seems

to be independent on motion rigidity, on acquisition

conditions and on scene elements.

Initially the image segmentation for motion extrac-

tion is discussed (section 2). Section 3 deals with

the optical ﬂow concept and its determination using

differential techniques, being the noise inﬂuence dis-

cussed. Section 4 describes the development and im-

plementation of the motion segmentation algorithm.

Finally, in section 5, results from the algorithm appli-

cation to indoors and outdoors images are presented.

2 IMAGE SEGMENTATION

Image segmentation has an important role on image

analysis and computer vision, ﬁnding the regions that

are associated to the objects in a given image. The

methodology is based upon low semantic content in-

formation, directly resulted from the neighborhood

proximities especially restricted, so that it is widely

classiﬁed as a low-level processing.

Segmentation algorithms are generally based on

one of two basic principles: discontinuity and simi-

larity (Gonzalez and Woods, 2000). In the ﬁrst princi-

ple, the approach consists on image partitioning based

on rough changes in brightness. The main interests

here are the detection of isolated points, lines and

edges. In the second principle, the main approaches

are based on threshold levels and on growing, split-

ting and merging regions.

The choice of the segmentation technique depends

on the characteristics of each problem (Hendee and

Wells, 1997). For human beings it is easy to per-

ceive the movement of an object in reference to a

background. Trying to implement this procedure us-

ing computer-based artiﬁcial vision is a complex task.

The proposed algorithm applies image-processing

techniques and performs motion segmentation in an

efﬁcient way for the examples here considered. It

shows to be independent of such factors as motion

rigidity and object shape.

de Barros Vidal F. and Hugo Casanova Alcalde V. (2005).

MOTION SEGMENTATION IN SEQUENTIAL IMAGES BASED ON THE DIFFERENTIAL OPTICAL FLOW.

In Proceedings of the Second International Conference on Informatics in Control, Automation and Robotics - Robotics and Automation, pages 94-100

DOI: 10.5220/0001183500940100

 SciTePress

3 OPTICAL FLOW

The optical ﬂow approximates the image motion ﬁeld

by representing the apparent motion of the image

brightness pattern on the image plane.

In determining the optical ﬂow, two aspects must

be taken into account. One is related to the accuracy

level of data concerning motion direction and inten-

sity. The other aspect encompasses certain properties

related to the computational load required for optical

ﬂow determination under minimal conditions of accu-

racy. The compromise between these aspects depends

on the situation and the expected results. The trade-

offs between efﬁciency and accuracy in optical ﬂow

algorithms are discussed by (Liu et al., 1998).

The methods of determining the optical ﬂow can be

divided (Barron et al., 1994) in: a) differential tech-

niques; b) region-based matching; c) energy-based

methods; and d) phase-based techniques. Initially we

considered the differential techniques. Among them,

one has a particular interest; it uses spatiotemporal

derivatives of the image brightness intensity (Horn

and Schunck, 1981). The optical ﬂow can be obtained

from these variations. This technique assumes that

the motion is intrinsically coupled to image brightness

variations. It assumes as well that the scene illumina-

tion does not change; otherwise, the light changes will

inﬂuence the motion detection.

3.1 Horn & Schunck Differential

Method

According (Horn and Schunck, 1981) the optical ﬂow

cannot be calculated at a point in the image inde-

pendently of neighboring points without introducing

additional constraints. This happens because the ve-

locity ﬁeld at each image point has two components

while the change in brightness at that point due to mo-

tion yields only one constraint. Before describing the

method, certain conditions must be satisﬁed.

For convenience, it is assumed that the apparent ve-

locity of brightness patterns can be directly identiﬁed

with the movement of surfaces in the scene. This im-

plies that, according the object surface that moves, it

does not exist (or there is a little) brightness varia-

tion. This happens, for example, with objects of ra-

dial symmetry, low global contrast and high specular

reﬂectance level. It is further assumed that the inci-

dent illumination is uniform across the surface.

Denoting I(x, y, t) as the image brightness at time

t of the image point (x, y). During motion, it is as-

sumed that the brightness of a particular point is con-

stant, that means

dI (x, y, t)

= 0 (1)

Expanding and rewriting the equation 1

u + I

v + I

= 0 (2)

where: I

, I

and I

represent partial derivatives of

brightness in x, y and t respectively; u and v are the

x− and y−velocity components.

Considering that, the brightness pattern can move

smoothly and independently of the rest of the scene,

there is a possibility to recover velocity information.

The partial derivatives of image brightness are esti-

mated from the discrete set of image brightness mea-

surements. To avoid problems caused by zero values

for the derivatives in the spatiotemporal directions,

the point of interest is located at the center of a cube

formed by eight measurements as shown in ﬁgure 1

(Horn and Schunck, 1981).

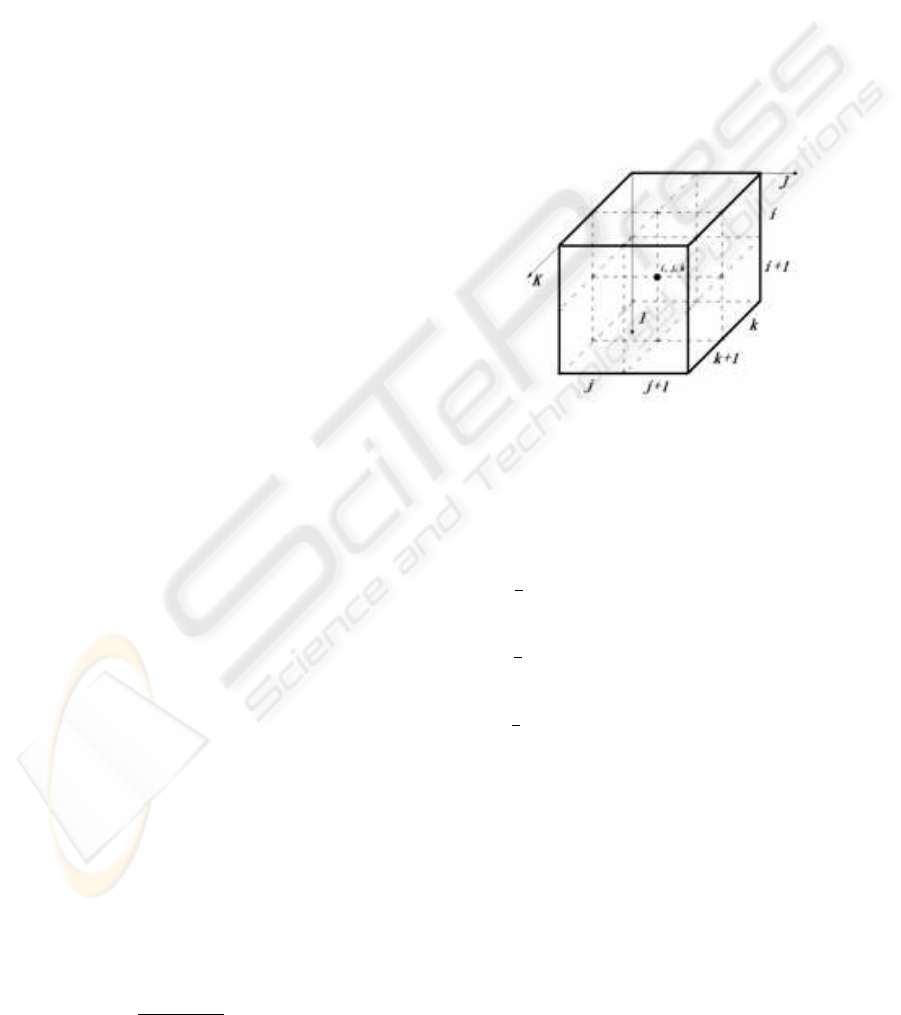

Figure 1: Estimating image partial derivates

Each of the partial derivatives is estimated as the

average of the four ﬁrst differences taken over adja-

cent measurements

≈

i,j+1,k

− I

i,j,k

+ I

i+1,j+1,k

− I

i+1,j,k

i,j+1,k+1

− I

i,j,k+1

+ I

i+1,j+1,k+1

− I

i+1,j,k+1

}

≈

i+1,j,k

− I

i,j,k

+ I

i+1,j+1,k

− I

i,j+1,k

i+1,j,k+1

− I

i,j,k+1

+ I

i+1,j+1,k+1

− I

i,j+1,k+1

}

≈

i,j,k+1

− I

i,j,k

+ I

i+1,j,k+1

− I

i+1,j,k

i,j+1,k+1

− I

i,j+1,k

+ I

i+1,j+1,k+1

− I

i+1,j+1,k

}

(3)

The additional constraint for the velocity calcula-

tion results from the assumption of smoothness of the

velocity ﬁeld. The solution to the optical ﬂow prob-

lem consists therefore in: a) minimize equation 4; and

b) minimize the smoothness measurement of the ve-

locity ﬁeld. Equation (5) is a measure of the departure

from smoothness in the velocity ﬁeld. For minimiza-

tion two errors are deﬁned

= I

u + I

v + I

(4)

and

MOTION SEGMENTATION IN SEQUENTIAL IMAGES BASED ON THE DIFFERENTIAL OPTICAL FLOW



∂u

∂x





∂u

∂y





∂v

∂x





∂y

∂x



(5)

The total error to be minimized will be



+ ξ



dxdy (6)

A weighting factor α

is introduced to associate the

error magnitude with quantization errors and noise.

Using the Gauss-Seidel iterative method (Hilde-

brand, 1974) to minimize equation (6) one obtains u

and v velocity components. The estimated values for

k+1

and v

k+1

are obtained from

k+1

−



+ I





+ I



(7)

k+1

−



+ I





+ I



(8)

In equation (8)

and u

are the average velocities

estimated from the Laplacian of the brightness pattern

in iteration k, in which the neighboring pixels values

are weighted with the mask shown in ﬁgure 2.

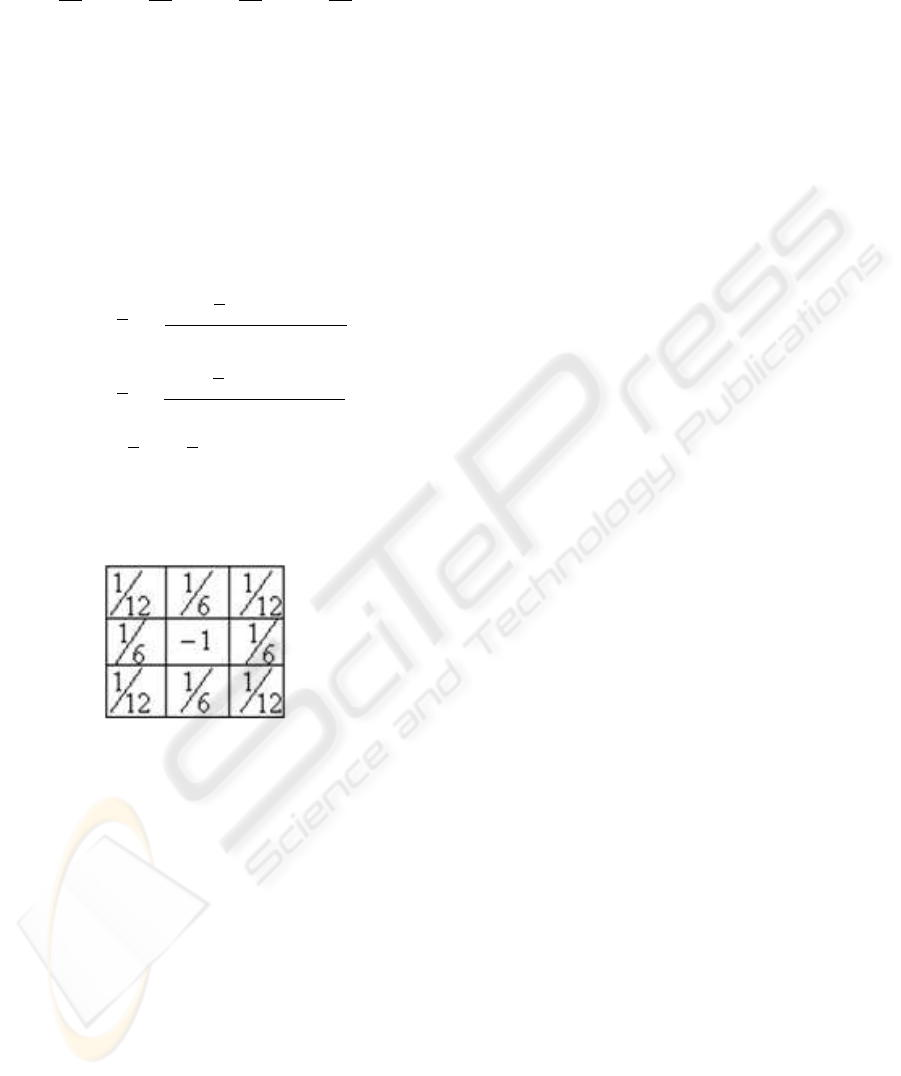

Figure 2: Laplacian estimation mask

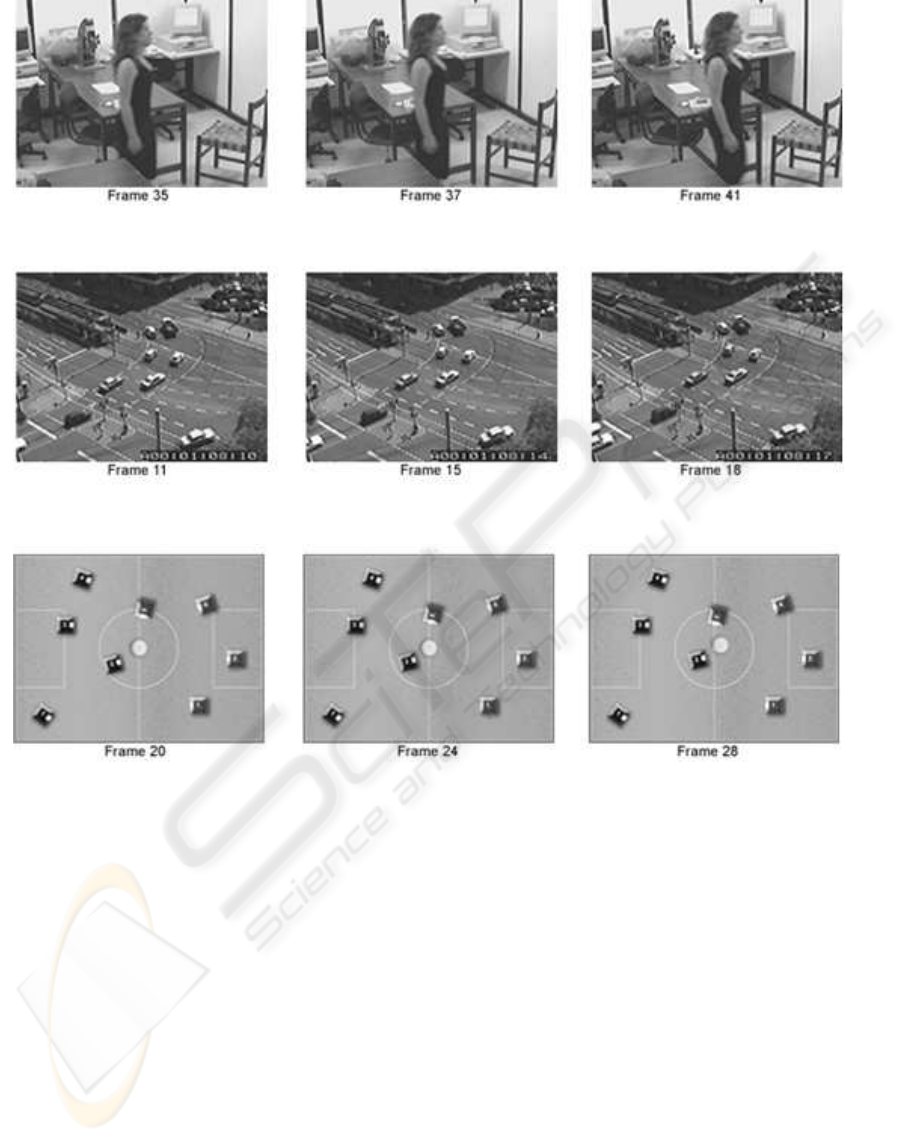

Figure 3 shows the image sequence from: a) sur-

veillance video camera; b) urban trafﬁc monitoring

camera; and c) robot soccer game (synthetic images).

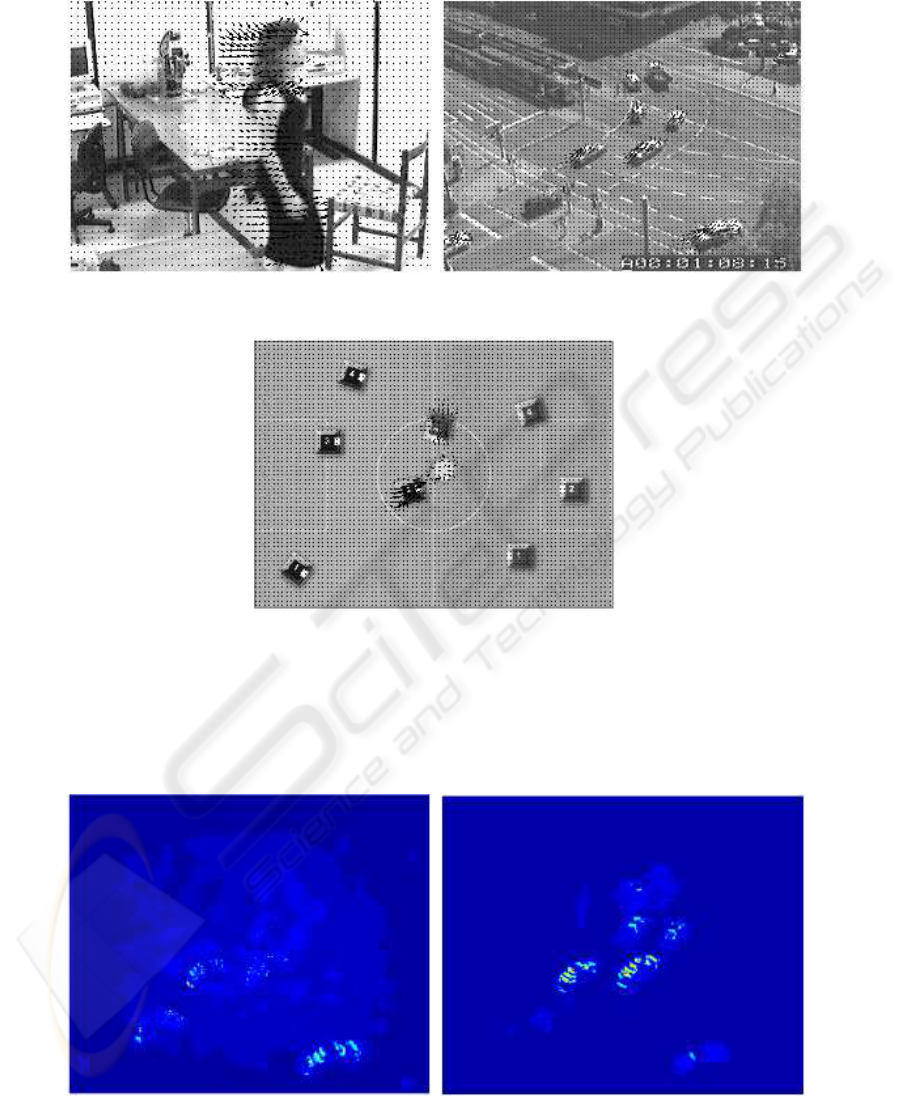

Figure 4 shows the calculated optical ﬂow, sketched

as directional arrows, for the examples in Figure 3.

3.2 Inﬂuence of the α weighting

factor

In equations (7) and (8), the weighting factor α

rep-

resents a threshold effect upon the obtained velocity

ﬁeld. By varying this weighting factor, the sensitiv-

ity level of the motion to undesirable data can be ad-

justed. This effect was applied in the implementation

of the algorithm for motion segmentation. Figure 5

shows the inﬂuence of the weighting factor in motion

segmentation.

4 MOTION SEGMENTATION

ALGORITHM

Most of the image segmentation methods demand a

previous knowledge of the model in order to produce

reasonable results. The algorithm here presented uses

information that is not dependent on the kind of mo-

tion. Initially the time and space information are de-

coupled. After this, the problem consists on segment-

ing the components of the obtained motion map.

4.1 Algorithm Overview

The algorithm consists of three fundamental sections,

as shown in ﬁgure 6. The ﬁrst section of the algorithm

is the extraction of a map that contains information

related to the scene motion intensity.

The motion map is obtained adjusting the α weight-

ing factor during the optical ﬂow calculation. This

adjustment affects the accuracy and intensity levels

of the resulting map.

The second section of the algorithm consists of a

sequence of post-processing techniques to analyze the

obtained map as an image by itself.

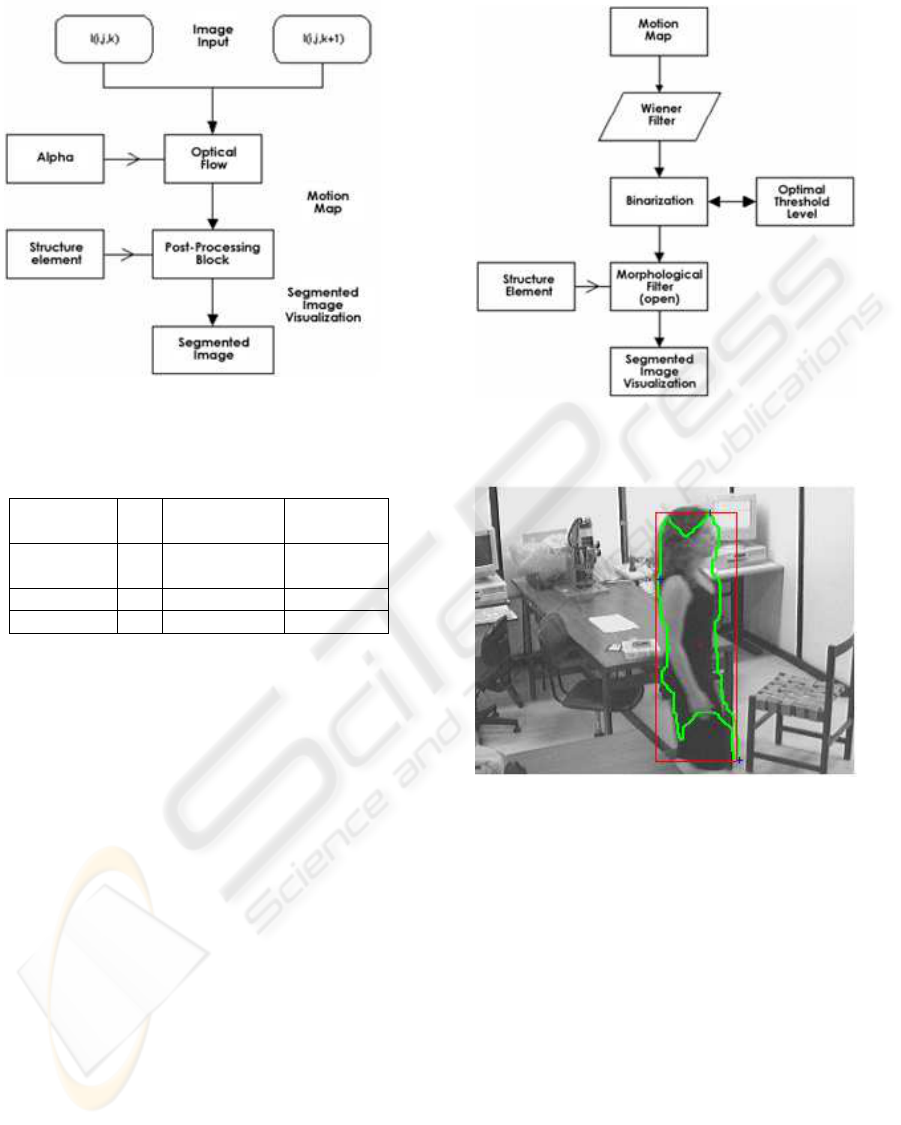

The procedures in the post-processing step (Figure

7) are applied sequentially:

a) Noise ﬁltering - for eliminating noises from the

motion map computation. A Wiener low-pass

adaptive ﬁlter was applied. It uses stochastic in-

formation related to the pixel neighborhood, yield-

ing then satisfactory results (Gonzalez and Woods,

2000).

b) Binarization - for image binarization an optimum

threshold is obtained from the motion map his-

togram; and

c) Morphological ﬁltering - to obtain the contour of

the segmented element. The structure element used

is adjusted according the size of the object to be

segmented.

The third section of the algorithm implements the

interpretation of the obtained segmentation. It ex-

tracts the contour of the region that moved in the im-

age.

5 RESULTS

The motion segmentation algorithm was applied to

the surveillance, urban trafﬁc and robot soccer scenes

and the results in ﬁgures 8, 9 and 10 respectively. All

the sequences were obtained by using a ﬁxed camera,

with 320 x 240 pixels of spatial resolution and with a

1 frame/sec sample image rate.

ICINCO 2005 - ROBOTICS AND AUTOMATION

(a)

(b)

(c)

Figure 3: Applications: (a) Surveillance camera sequence; (b) Urban trafﬁc sequence; (c) Robot soccer game (synthetic)

sequence.

The algorithm was developed within the Matlab en-

vironment. To speed up data processing, sub-routines

in C language for critical procedures were written and

incorporated as mex-ﬁles (a Matlab feature).

Case 1: Surveillance Camera - Figure 8 illustrates

the motion of a single person through an environ-

ment surrounded by many objects. Moreover, there

are some regions with a high degree of ambiguities.

The inﬂuence of ambiguities is higher on the other

methods of determining the optical ﬂow than the ones

that use differential techniques (Barron et al., 1994).

Case 2: Urban Trafﬁc Monitoring - Figure 9

shows many objects moving along different direc-

tions. There are then situations with shape change

(perspective), occlusions and ambiguities.

Case 3: Robot Soccer Game - Figure 10 shows

the robot players performing translation and rotation

movements to implement a soccer game. For syn-

thetic images, the algorithm performs more efﬁciently

due the reduced noise and quantization interference

over the motion segmentation.

For the cases studied, the algorithm segmented the

objects and the moving objects were tracked success-

fully. For the cases studied, the values of a factor and

of the structuring element were adjusted for the best

results. The adjusted values are shown in table 1.

The errors shown in table 1 were calculated from a

comparison of the moving object area to the area of

the region bounded by the algorithm.

MOTION SEGMENTATION IN SEQUENTIAL IMAGES BASED ON THE DIFFERENTIAL OPTICAL FLOW

(a) (b)

(c)

Figure 4: Optical ﬂows using Horn & Schunck method for the cases in Fig. 3. (a) Surveillance camera sequence; (b) Urban

trafﬁc sequence; and (c) Robot soccer game sequence.

(a) (b)

Figure 5: Variation of α factor for the urban trafﬁc sequence, (a) α = 10; (b) α = 100

ICINCO 2005 - ROBOTICS AND AUTOMATION

Figure 6: Algorithm main loop

Table 1: Setup Algorithm Parameters

Sequence α

Structuring

Element Size

Error

Estimative

Surveillance

Camera

1 18 ∼ 10.5%

Urban Trafﬁc 75 7 ∼ 8.3%

Robot Soccer 10 12 ∼ 5.1%

6 CONCLUSIONS

This works presents an algorithm for segmenting im-

age motion by determining an optical ﬂow calculated

through differential methods. The determination of

the optical ﬂow allows varying a weighting factor,

which allows adjusting the sensitivity level of the mo-

tion to undesirable data.

Within the post-processing stage of the algorithm,

a morphological ﬁltering step allows adjusting the

structuring element according to a given situation. As

shown in the results, the limit region motion was suc-

cessfully tracked, with acceptable errors. The algo-

rithm does not use parametrical methods; it needs

not pre-calibration or additional image improvements,

showing then some robustness to motion complexity.

An upgrade to the algorithm would be the inclusion

of the feature of an auto-adjustable structuring ele-

ment that uses information from the motion map. Fur-

ther work would be the conception of a hybrid image-

tracking algorithm to estimate moving regions by dif-

ferential methods and their tracking using region-

based matching techniques. This approach could re-

duce the computational effort and processing time de-

manded by these matching techniques, which search

Figure 7: Description post-processing step

Figure 8: Surveillance sequence segmented

throughout the whole image. Performing the segmen-

tation previously, the search is restricted only to those

regions of interest.

REFERENCES

Barron, J. L., Fleet, D. J., and Beauchemin, S. S. (1994).

Performance of optical ﬂow techniques. In Inter-

national Journal of Computer Vision, number 12:1,

pages 43–77.

Boult, T. E. and Brown, L. G. (1991). Factorization-based

segmentation of motion. In IEEE Workshop on Visual

Motion, pages 179–186. IEEE.

Branca, A., Cicirelli, G., Stella, E., and Distante, A.

(1997). Mobile vehicle’s egomotion estimation from

MOTION SEGMENTATION IN SEQUENTIAL IMAGES BASED ON THE DIFFERENTIAL OPTICAL FLOW

time varying image sequences. In International Con-

ference of Robotics and Automation, pages 1886–

1891.

Giachetti, A., Campani, M., and Torre, V. (1998). The use of

optical ﬂow for road navigation. In IEEE Transactions

on Robotics and Automation, number 14, pages 34–

48. IEEE.

Gonzalez, R. C. and Woods, R. E. (2000). Processamento

de Imagens Digitais.

Hendee, W. R. and Wells, P. N. T. (1997). The perception

of Visual Information. Second edition edition.

Hildebrand, F. B. (1974). Introduction to Numerical Analy-

sis.

Horn, B. K. P. and Schunck, B. G. (1981). Determining op-

tical ﬂow. In Artiﬁcial Intelligence, number 17, pages

185–204.

Liu, H., Hong, T., Herman, M., Camus, T., and Chellappa,

R. (1998). Accuracy vs efﬁciency trade-offs in opti-

cal ﬂow algorithms. In Computer Vision and Image

Understanding, number 72:3, pages 271–286.

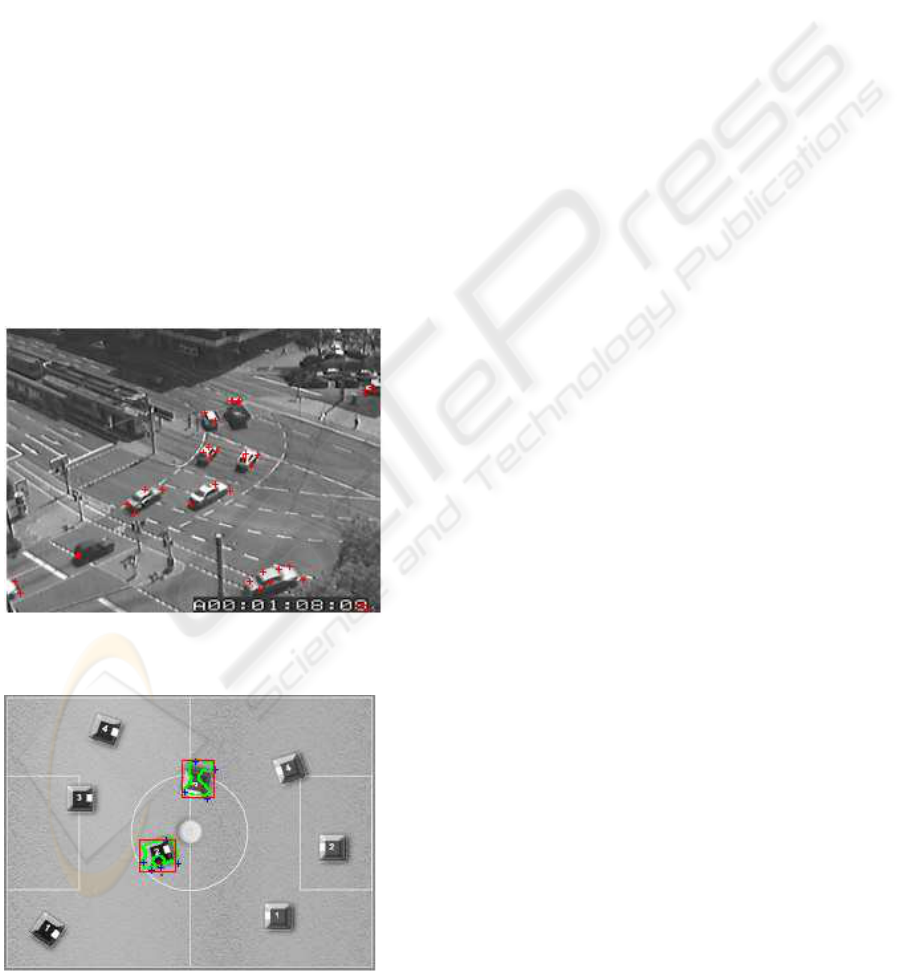

Figure 9: Urban Trafﬁc sequence segmented

Figure 10: Robot soccer sequence segmented

ICINCO 2005 - ROBOTICS AND AUTOMATION

100
