REMOTE CONTROL OF MOBILE ROBOTS

IN LOW BANDWIDTH ENVIRONMENTS

Markus Sauer, Florian Zeiger, Frauke Driewer, Klaus Schilling

Informatics VII: Robotics and Telematics, Julius-Maximilians-Universität Würzburg,

Am Hubland, 97074 Würzburg, Germany

Keywords: Telerobotics, telelearning, teleoperation, low bandwidth connections, mixed reality.

Abstract: Tele-learning experiments with hardware require information about the working environment and the

equipment status as a base. Scenarios with limited bandwidth are of interest for mobile devices as well as

for users in areas with a poor telecommunication infrastructure. While camera images provide a realistic

view on the remote scene, they need a high bandwidth for quality pictures. In this context an approach to

replace transmission of video images is presented. At the example application of tele-learning experiments

with mobile robots, data about vehicle position and orientation are essential. This input is to be determined

by external tracking systems. The preprocessed sensor information can be sent via internet link even under

very low bandwidth conditions. On the students side the robot is visualized in its work space in two- or

three-dimensional virtual environments depending on the performance of the used computer. The paper

describes the external tracking as well as the remote interface enabling access to the experiments under

different conditions and reports about experiences in using this infrastructure.

1 INTRODUCTION

Remote laboratories enable students to perform

experiments with hardware equipments physically

located at distant locations via internet. Telematics

techniques (Halme, 2004, Schilling, Roth, 2001)

offer appropriate methods for remote sensor data

acquisition and tele-operation access. In tele-

education precursor experiments related to web-

robots (Goldberg, Siegwart, 2001) started in the

mid-90ies. Nowadays they are developed into

complete units for selfguided learning, including

tutorials, feedback on learning progress, integrated

simulation models of the experiment, and remote

access to the hardware equipment (Dormido, 2001,

Weinberg et al., 2003).

Advantages of tele-learning include cost

reduction, better utilization and permanent

availability of expensive hardware. The field of

mobile robots is with respect to industrial transport

robots a field of growing economic relevance, while

only in recent years textbooks with a more

consolidated theoretical basis emerged (Dudek,

Jenkin, 2000, Siegwart, Nourbakhsh, 2004). Thus

learning units including hardware experiments in

this field address a growing demand and are used in

this paper as an application example.

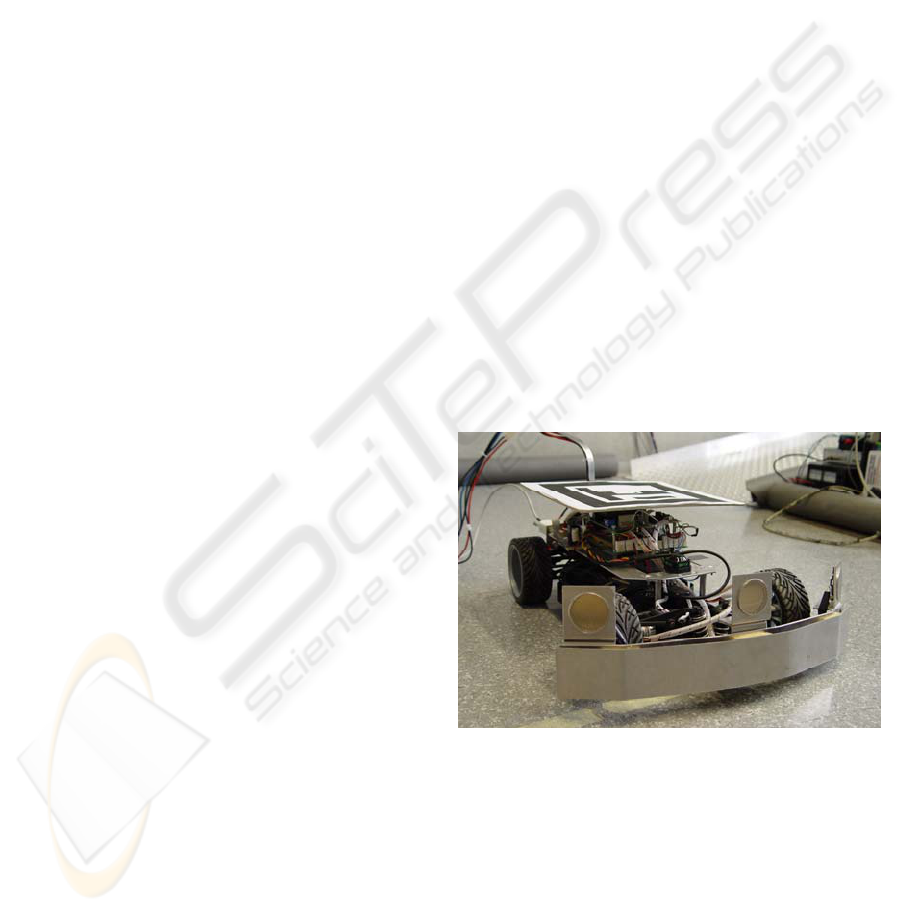

Figure 1: MERLIN Robot with marker.

The laboratory at University of Würzburg

operates a remote-laboratory providing experiments

controlling real mobile robot hardware (Zysko et al.,

2004a / Zysko et al., 2004b). These experiments are

fully integrated into the curriculum and familiarize

the students with problems, which occur during the

operation of real hardware instead of dealing with

idealized models. In many countries, the expansion

of the internet achieved a stage, where the available

upload and download bandwidth, even for home

connections, is high enough to run these

experiments. Nevertheless, providing access to these

163

Sauer M., Zeiger F., Driewer F. and Schilling K. (2005).

REMOTE CONTROL OF MOBILE ROBOTS IN LOW BANDWIDTH ENVIRONMENTS.

In Proceedings of the Second International Conference on Informatics in Control, Automation and Robotics - Robotics and Automation, pages 163-168

DOI: 10.5220/0001184601630168

 SciTePress

remote-laboratories in regions with a poor

infrastructure or on mobile devices like PDAs or

cellular phones requires an economically use of the

available bandwidth. These environments do not

allow the transmission of a good quality video

stream due to the lack of the required connection

performance.

2 SYSTEM ARCHITECTURE

The presented approach enables the user to adapt the

display of experiment data according to the

capabilities offered by the telecommunication link.

Thus, it supports real video streams if sufficient

bandwidth is available and provides a virtual

experiment area if the available bandwidth is too

low. The pose (position + orientation data) of the

robot in its work space is determined by an external

tracking system, which combines sensor data from

different sources to reliable pose information with a

sufficient accuracy. The use of real mobile robot

hardware is fully supported and has to guarantee a

real behavior of the mobile robot and the collected

sensor data even for low bandwidth.

2.1 Remote Laboratory

The remote laboratory is tele-operated via a JAVA

applet and communicates with the robot control

server over a socket connection. The control applet

provides the user all available sensor data like

odometry or gyroscope angles. In addition, the user

can send different experiment specific control

commands for the mobile robot to the control server.

Table 1: Required bandwidth for a colored video stream

quality downlink uplink

very high 342 KB/s 9 KB/s

high 52 KB/s 4 KB/s

medium 29 KB/s 3 KB/s

low 16 KB/s 2 KB/s

minimum 14 KB/s 2 KB/s

Table 2: Required bandwidth for a grayscale video stream

quality downlink uplink

very high 248 KB/s 7 KB/s

high 47 KB/s 3 KB/s

medium 25 KB/s 2 KB/s

low 13 KB/s 2 KB/s

minimum 11 KB/s 2 KB/s

Depending on the available bandwidth, the applet

can provide a video stream of the experiment area.

The tables 1 and 2 show the required up and

downlink bandwidth for a colored and a grayscale

video with four pictures per second. If the available

bandwidth is too low, a virtual experiment area can

be shown in the applet, which is described later.

The remote laboratory itself has four main

components: the robot control server, a camera

server with camera, an external localization system,

and the mobile robot.

The experiment area is a square with a side length

of 3m. The localization systems provide an

intelligent environment for the robot, where it can

localize itself and move. They are installed in the

configuration presented in Figure 2.

VScope

AR Tracking System

MERLIN Robot

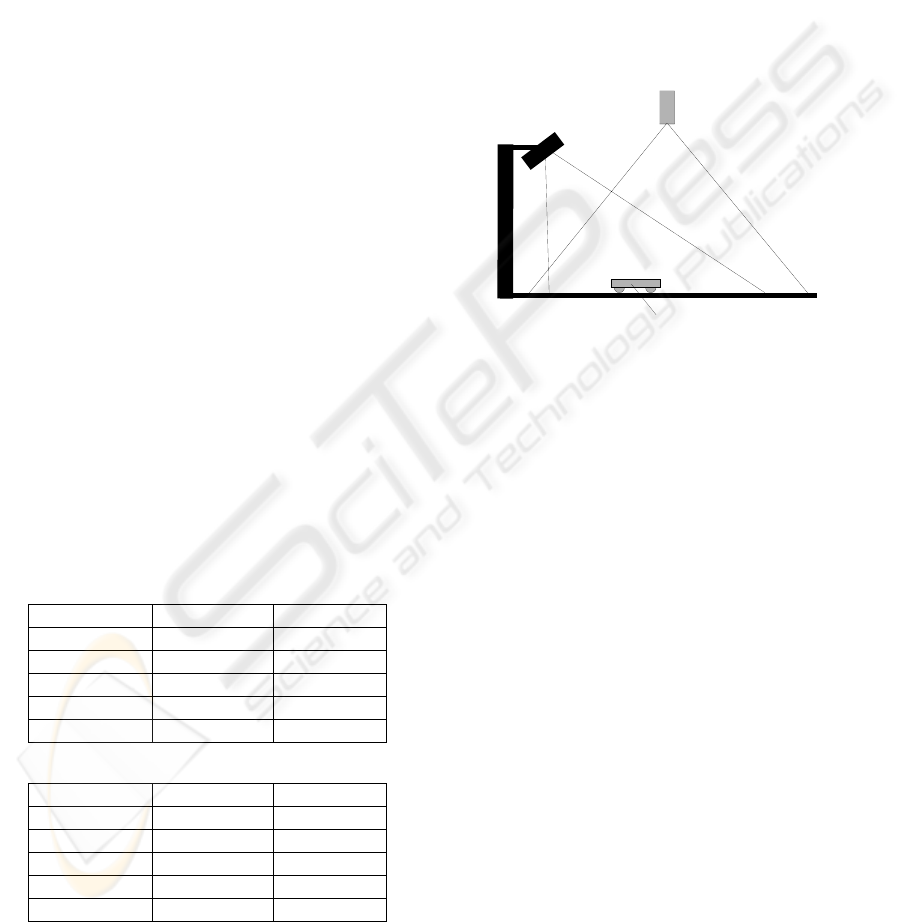

Figure 2: VScope and ARTS configuration

Using this VScope configuration, it is possible to

cover almost 75% of the area. Near the borders, the

VScope system has to be supported by other

localization methods. If the experiment area is

enlarged, two VScopes are used to provide a

sufficient coverage for position determination.

The visual tracking system is mounted in the

center above the experiment area and covers the

complete area as the camera can be moved.

The robot control server is responsible for

different activities. Besides the authentication of the

remote users the server processes the sensor data

from the robot and provides it to the control applet.

Furthermore, control commands received from the

applet are sent to the robot.

The control server includes also the module for

computing the robot's. Here, the data from the

different localization systems are combined in order

to determine the exact position of the robot inside

the experiment area.

2.2 Mobile Robot

The remote-laboratory uses the mobile robot

MERLIN (Mobile Experimental Rover for

Locomotion and Intelligent Navigation, cf. Figure

1). MERLIN was developed first as sensor test

vehicle in the European Mars rover development.

ICINCO 2005 - ROBOTICS AND AUTOMATION

164

Later, it was transferred into the educational

framework (Schilling, Meng, 2002 / Schilling et al.

2003). It is a car-like mobile robot equipped with an

Ackerman steering and two propelled rear wheels.

MERLIN is equipped with several sensors for indoor

and outdoor navigation: hall sensors, wheel

encoders, gyroscope, ultrasonic sensors, VScope

buttons, and a marker for visual tracking. All on

board computations like sensor data acquisition and

preprocessing are done with a C167 microcontroller

board. The communication between the

microcontroller board and the control server is done

via serial port.

3 ROBOT LOCALIZATION

3.1 VScope

The VScope system is capable of tracking objects in

2D or 3D environments. It consists of three

components: the VScope buttons, the VScope

towers, and the VScope microcomputer.

A VScope button has an infrared receiver and an

ultrasonic transmitter. Each button has a unique ID

and each button’s position can be determined

separately. In order to track MERLINs position and

orientation two buttons are needed.

The VScope towers have an infrared transmitter

and an ultrasonic receiver. Starting the VScope

system sends an infrared signal from each tower to

the buttons. The VScope buttons will be activated by

these signals and they start transmitting a

synchronized ultrasonic signal. The VScope towers

receive the signal of each button and send the data to

the VScope microcomputer.

The VScope microcomputer processes the data

sent by the towers and respectively the buttons, and

calculates the absolute position of each VScope

button in Cartesian coordinates. This data is

provided to a PC via serial connection.

The advantage of the VScope system is its high

accuracy. During experiments, an accuracy of the

mobile robot position of about 2mm was achieved if

both markers were in range of the VScope towers.

Unfortunately, the VScope system also has some

disadvantages. The infrared signal from the towers

to activate the VScope buttons is heavily disturbed

by sun light or even the lighting of the room. If

MERLIN is too far away from the VScope towers,

the buttons cannot be activated and determining the

position is impossible. The second disadvantage of

this localization system is the covered area. In the

3m x 3m experiment area, the VScope cannot cover

the border areas due to a limited opening angle for

transmitting and receiving the ultrasonic/infrared

signal at the buttons and towers (cf. Figure 2).

To cope with these restrictions, a visual tracking

and positioning system is installed.

3.2 Visual Tracking

The visual tracking of the MERLIN robot is realized

with the help of two passive markers. One is the

reference marker with known position and the other

one is mounted on the robot and will be tracked.

With the position and orientation estimation of these

two markers the relative position and orientation of

the tracked marker to the reference marker can be

calculated. For the tracking of the reference marker

and the tracked marker the well-known ARToolKit

(Billinghurst et al., 2001) in combination with a

modified version of the Java binding jARToolKit

(Geiger et al., 2002) adjusted for the presented

system is used. This toolkit is designed for video-

based augmented reality systems. To realize an

augmented reality system the six parameters for

position and orientation of the camera or

respectively the position of the eyes of the viewer

relatively to the environment must be determined

continuously. These must be done in addition to the

initial calibration of the camera, which delivers the

intrinsic parameters. The passive markers used by

the ARToolkit have a black frame and some special

patterns within this frame to identify the marker as

shown in Figure 1.

The workflow of the ARToolkit can be divided

into two parts. Before running the system, the

markers are taught once to the system and an initial

camera calibration is done. This information is used

to run an ARToolkit based system. During runtime

at first all black frames eligible in the camera images

and the four corresponding edges for each black

frame are detected with image processing methods.

With the intrinsic, physical camera parameters, the

defined marker size and the four detected edges of

the frame, position and orientation of the marker in

the world coordinate system relative to the camera

capturing the images is estimated. With this

estimated values the inner part of the detected

marker is normalized and the resulting data is used

to identify the marker.

The design of the ARToolkit for augmented

reality purposes, results in a number of advantages

and disadvantages. The most significant

disadvantage of the ARToolkit is that the provided

camera calibration tool of this library delivers quite

poor results for the intrinsic parameters. For

augmented reality this errors are not further

important, because the secondary use of this

parameters for the projection matrix of the virtual

REMOTE CONTROL OF MOBILE ROBOTS IN LOW BANDWIDTH ENVIRONMENTS

165

objects compensates this errors almost completely.

Nevertheless, for absolute localization of markers,

the results from the camera calibration tool without

any adjustments are not good enough. Therefore,

some mechanisms and possibilities were

implemented in the presented system to adjust these

parameters during runtime of the system.

The advantages leading to the decision of this

system are the capability to estimate position and

orientation, identify multiple markers in real-time

and the easy setup of a tracking system with the

ARToolkit and its corresponding passive markers.

In the presented work the ARToolkit is used with

a Pan-Tilt-Zoom (PTZ) camera in combination with

a TV-card from the consumer market to capture

images. The pan, tilt and zoom functionality of the

camera allows to cover a much larger area compared

to a static camera, but results also in new tasks. At

first a robust camera control module must be

implemented, that the system always knows what

are the pan, tilt and zoom values, when the camera is

moving and when the camera has an undefined state.

These pan, tilt and zoom values must be considered

when position and orientation of markers are

calculated.

The procedure of the AR tracking system

(ARTS) has two basic states. In the init state the

position and orientation matrix of the reference

matrix is determined. The best position and

orientation values are achieved, when the marker is

in the center of the camera image, because errors in

distortion correction have least influence in the

center of the image. Therefore, the ARTS always

moves the camera head to center the marker in the

camera image.

After storing the position and orientation matrix

of the reference marker, the ARTS switches to the

robot tracking mode. This matrix is used to

transform the position and orientation information of

the robot marker to position and orientation values

in the coordinate system of the experimental area. In

the robot tracking mode the reference marker is no

longer needed. The ARTS works with the predefined

parameters completely autonomous and controls the

camera head so that it automatically follows the

moving robot.

3.3 Integration of Sensor Data

For determining the pose of the robot in the

experimental area, three localization systems are

available, which have very different properties for

the generate information quality: the VScope, ARTS

and the odometry calculations of the onboard

microcontroller. Table 3 gives an overview of the

relevant properties here.

Table 3: Properties available localization systems

VScope ARTS

onboard

odometry

covered area small large large

precision high mid

low (abs. values)

high (small

relative values)

error

accumulation

no no yes

activation yes no no

An intelligent combination of the three systems

allows eliminating the specific disadvantages of

each individual system. Therefore, at first all raw

pose information from the localization systems are

transformed into the experimental field coordinate

system, with the help of default offsets depending on

the physical setup of the system. Next the most

probable pose of the mobile robot is calculated. This

is realized by using the VScope as the reference

system. As long as VScope data is available, the

calculated pose of the VScope is used and stored.

Additionally, the offset to the ARTS pose data is

calculated and stored. As soon as VScope loses

contact to the buttons on the MERLIN, the ARTS

data corrected with the last stored offset are used as

pose of the MERLIN. This allows compensating

misalignments of the experimental setup and the

offsets of the different coordinate systems, which are

inevitable. On the other hand the calculated

odometry information from the microcontroller can

be used to generate a probability based filter

selecting values from the other localization systems.

The sensor data integration presented here, allows

estimating the pose of the robot at a quality level

accomplishing the requirements for the remote

control task in the experiments.

4 REMOTE INTERFACE

The students receive access to the telelab through a

Java applet. From this applet the student needs to be

able to send control commands to the robot, change

parameters on the robot and receive sensor data, e.g.

odometry. The observation of the experimental area,

i.e. the robots real movements, in real-time and good

quality is also essential for satisfying performance of

the experiment.

As long as the available bandwidth allows

receiving video streams with sufficient quality a user

interface with camera images from the scene and the

numerical display of sensor data is adequate. As this

high bandwidth connection cannot always be

expected, the robust localization system based on

sensor data fusion of VScope, ARTS and odometer

ICINCO 2005 - ROBOTICS AND AUTOMATION

166

is used to have a representation of the data

comparable to video image.

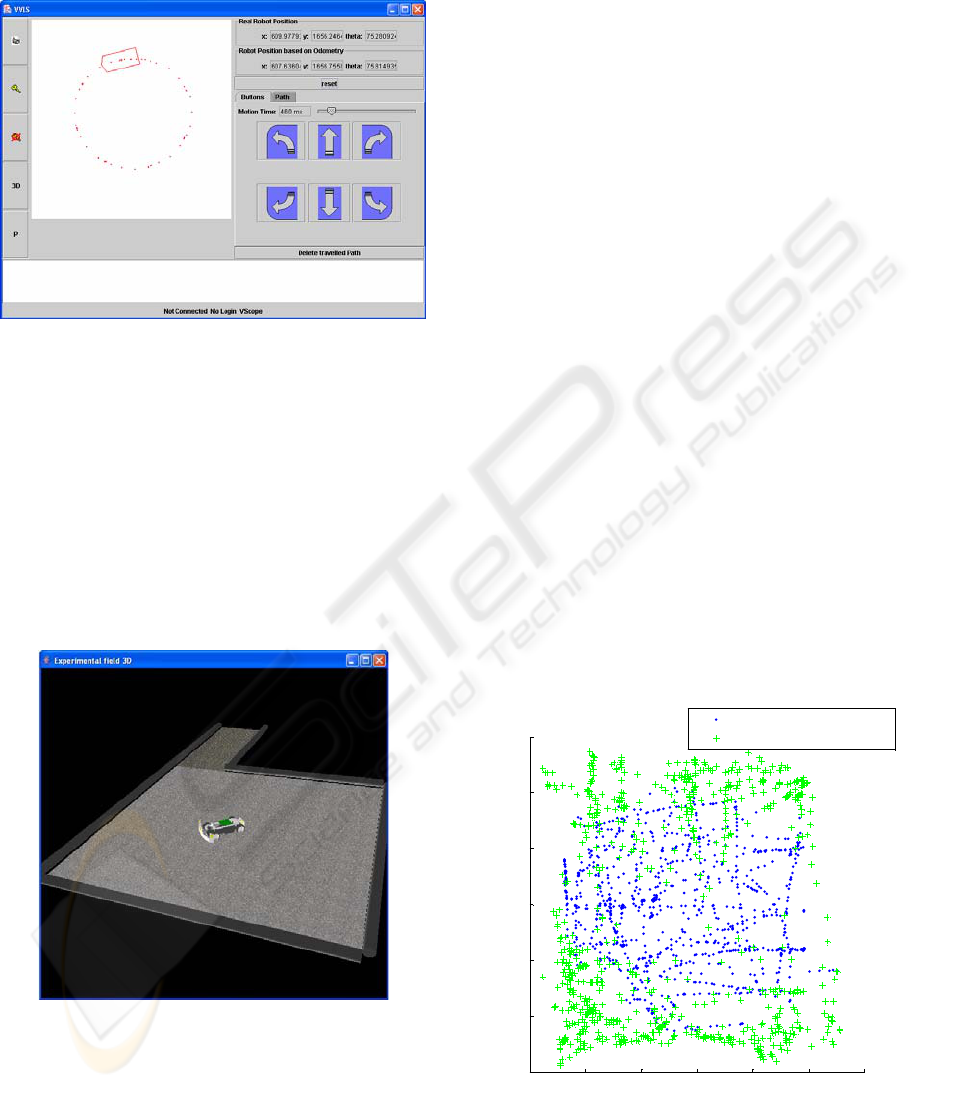

Figure 3: Applet for remote control with navigation

buttons and two-dimensional map

Figure 3 shows the remote control interface

consisting of all features of the former user interface

(Zysko et al., 2004b) and additionally a two-

dimensional map showing the position of MERLIN

in the experimental area. For those, who are able to

download the JAVA 3D library and have a computer

able to deal with 3d calculation, a three-dimensional

view on the scene is provided (cf. Figure 4).

Additionally to the solution for the problem of low

bandwidth connections, this mixed reality

representation has several other benefits.

Figure 4: 3D visualization of the robot in the test field.

The camera could not cover the complete

experimental area without using the pan and zoom

function. If the robot was moved through the

complete area, the student needed to move the

camera behind the robot. This laborious task slowed

down the experiment and decreased the motivation

of the students. The newly implemented remote

control interface based on localization data shows

the complete area in 2D. Moreover, the 3D view

allows the observation of the experiment from all

sides (viewpoints). For the camera view the

automatically following of the ARTS relieves the

student from this task.

Furthermore, the virtual views cannot only

represent the real pose of the robot. It can also show

the data received from the onboard sensors in an

intuitive way. As described in the last chapter the

odometry calculations accumulate errors and are

therefore inaccurate for longer distances.

Understanding this kind of problems with real

hardware and imperfect sensors is one goal of the

experiments. The 2D view can visualize the

difference between real pose and odometry based

pose straightforward. The 2D view displays also the

traveled path (each measured location as a dot) until

the students deletes it. This feature allows better

documentation of the experiment and helps the

student to prepare the report, e.g. by submitting

screenshots.

Moreover, the navigation of the robot, which was

previously done by six buttons for the directions, can

be improved. In the 2D view the student can enter a

path by clicking in front of the robot.

5 EVALUATION AND TEST

The localization module of the robot control server

estimates the pose of the robot. The usage of the

different tracking systems within the experimental

area is shown in Figure 5.

0 500 1000 1500 2000 2500 3000

500

1000

1500

2000

2500

3000

x-position [mm]

y-position [mm]

VScope position

ARTS position

Figure 5: Tracking system usage in the experimental field

REMOTE CONTROL OF MOBILE ROBOTS IN LOW BANDWIDTH ENVIRONMENTS

167

The ARTS covers the border regions of the

experimental field and is used as backup when the

VScope-Button activation fails, as it was planed in

the system design.

Our first system for the tele-laboratory was only

based on video streams as feedback from the virtual

laboratory. With this system we examined the

possibility to perform the remote-experiments from

Tianjin University in China. The available

bandwidth was about 14 Kbytes/s to 21 Kbytes/s.

This bandwidth only allows a low picture quality.

These tests and other performance tests showed that

at least medium picture quality is necessary to

provide certain usability of the experiments for the

students with the video-based system. As presented

in Table 2 a bandwidth of least 25 Kbytes/s

(downlink) and 2 Kbytes/s (uplink) for a grayscale

video stream is required.

Bandwidth tests of the system described here

with the virtual representation of the experimental

setup and the external tracking results in required

bandwidth of about 1,3 Kbytes/s for the downlink

and 0,1 Kbytes/s for the uplink. This strong

reduction of required bandwidth makes it possible

for users with even very low bandwidth internet

connection to perform the experiments.

6 CONCLUSION

The presented work demonstrates an approach to

enable tele-experiments via the internet for limited

link capabilities. This offers possibilities to perform

experiments with the equipment in our university for

remote students from all over the world.

The described system is applied and will be

further optimized in projects with Chinese and

Indian universities, but also for the local students

using modem connections from their homes. The

flexible user interface allowing operation of the

robot in two- or three-dimensional space enables the

student users to choose the optimal visualization

depending on the performance of their computer and

internet connection.

Future work will include investigations on

improved external tracking systems to cover a larger

experiment area and provide a higher precision. The

application potential of such telematics methods

extends beyond tele-learning to industrial fields like

tele-maintenance, home automation, space

exploration and service robotics.

ACKNOWLEDGEMENTS

We appreciated the financial support provided for

part of this research within the “EU-India” program

of the European Union and the PPP China program

by the German Academic Exchange Service DAAD.

REFERENCES

Billinghurst M., Kato H., Poupyrev I.,. 2001. “The

MagicBook: A Transitional AR Interface”, Computers

and Graphics, November 2001, pp. 745-753.

Dormido, S. (ed.), 2001. Proceedings IFAC Workshop on

Internet Based Control Education, Madrid 2001,

Pergamon Press

Dudek, G., Jenkin, M., 2000. Computational Principles of

Mobile Robotics, Cambridge University Press.

Geiger Ch., Paelke V., Reimann Ch., Stöcklein J.

JARToolKit - A Java Binding for ARToolKit. In Proc.

of First IEEE Workshop on AR-Toolkit, Darmstadt,

September 2002.

Goldberg, K., Siegwart R. (eds.) 2001. Beyond Webcams:

An Introduction to On-line Robots, MIT Press 2001.

Halme, A. (ed.), Proceedings IFAC Symposium on

Telematics Applications in Automation and Robotics,

Helsinki 2004, Pergamon Press 2004.

Schilling K., Popescu D., Meng Q., Roth H., 2003. Mobile

Roboter, In D. Schmid, G. Gruhler, A. Fearns (eds.),

eLearning - Experimente und Laborübungen zur

Automatisierungstechnik über das Internet, Verlag

Europa Lehrmittel, p. 137 - 146

Schilling K., Meng Q., 2002. “The MERLIN vehicles for

outdoor applications”, In SPIE conference proc.

„Unmanned Ground Vehicle Technology IV“, Orlando

2002.

Schilling, K., Roth H. (eds.), 2001. Telematics

Applications in Automation and Robotics, Proceedings

IFAC Conference, Weingarten 2001 Pergamon /

Elsevier Science.

Schilling, K., Pérez Vernet M., 2002. Field Vehicle

Teleoperations Support by Virtual Reality Interfaces.

In Proceedings of 15th IFAC World Congress,

Barcelona.

Siegwart, R. Nourbakhsh, I. R., 2004. Introduction to

Autonomous Mobile Robots, Bradford Books.

Weinberg, J. B., Yu X., 2003. Special Issue „Robotics in

Education“, IEEE Robotics & Automation Magazine,

Vol. 10, No. 2 and 3.

Zysko G., Barza R., Schilling K., 2004. Tele Lab Using

Non-holonomic Car-Like Mobile Robot, IFAC

Workshop Grenoble 2004.

Zysko G., Barza R., Schilling K., Lei Ma, Driewer F.,

2004. Remote Experiments on Kinematics and Control

of Mobile Robots, In Proceedings 5th IFAC

Symposium on Intelligent Autonomous Vehicles, IAV

2004, Lisbon.

ICINCO 2005 - ROBOTICS AND AUTOMATION

168
