EVOLUTIONARY LEARNING OF FUZZY RULES IN A

MODIFIED CLASSIFIER SYSTEM FOR MOBILE AGENTS

CONTROL

Eric Vallejo Rodríguez

GRSI, Universidad del Norte, Km.5 Vía a Puerto Colombia, Barranquilla, Colombia

Ginés Benet Gilabert

Dpto. de Informática de Sistemas y Computadores, DISCA, Universidad Politécnica de Valencia, Valencia, España

Keywords: Fuzzy control, Evolutionary Computing, Machine Learning, Artificial Intelligence, Classifier Systems.

Abstract: In this work we present the creation of a platfor

m, along with an algorithm to evolve the learning of FLCs,

especially aiming to the development of fuzzy controllers for mobile robot navigation. The structure has

been proven on a Kephera robot. The conceptual aspects that sustain the work include topics such as

Artificial Intelligence (AI), control advanced techniques, sensorial systems and mechatronics. Topics related

with the control and automatic navigation of robotic systems especially with learning are approached, based

on the Fuzzy Logic theory and evolutionary computing. We can say that our structure corresponds basically

to a Classifier System, with appropriate modifications for the objective of generating controllers for mobile

robot trajectories. The more stress is made on genetic profile than in the characteristics of the individuals

and on the other, the strategy of distribution of the reinforcement is emphasized, fundamental aspects on

which the work seeks to contribute.

1 INTRODUCTION

The autonomous robot navigation in non-structured

environments is one of the most important

technological challenges in the field of mobile

robotics. For this reason, the development of

techniques of control and navigation concentrates

the biggest investigators’ efforts. The real world is

generally non-structured and dynamic; therefore the

robot should acquire dexterities along with security

and robustness to face non-adjusted environments.

Many strategies and paradigms for the solution

the control problem and mobile robots' navigation

in such environments have been proposed. One of

the alternatives for the development of such

controllers is that of learning. The motivation that

impels these works is the long-term vision of

achieving robots easy to use in the real world. To

reach this, robotic systems should be intelligent,

flexible, and the most important thing, easy to

program in an interactive way. It is also very

possible that robots acquire “their learning” in

environments different from those in which it will

finally act, therefore that learning will be made, in

similar environments but not necessarily identical.

The above-mentioned implies big challenges in

different directions, one of them being that related

with learning, its validation and the simplicity in its

implementation.

In this work we have aimed to improve and to

apply

an algorithm on a software platform for the

generation of controllers with fuzzy inference for

learning, developed especially for this purpose. The

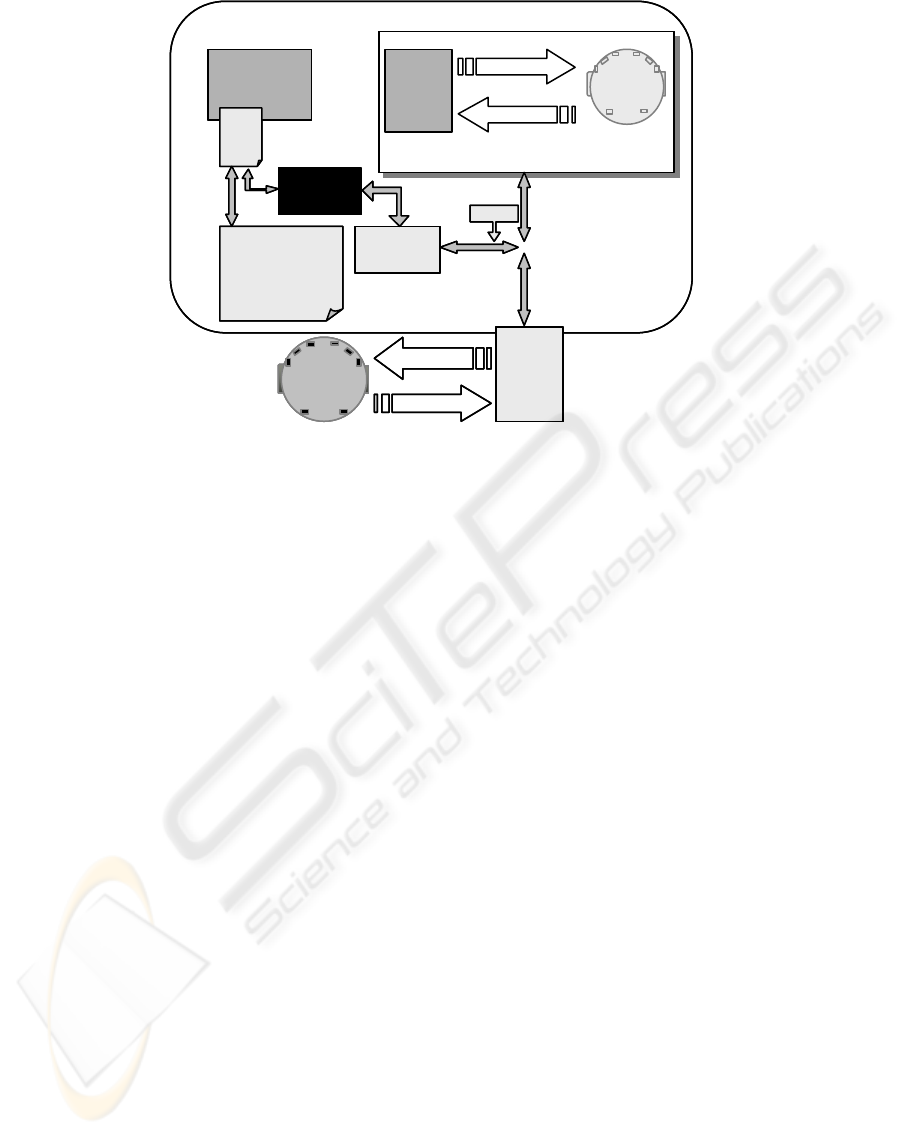

platform facilitates to develop control systems with

blocks of easy interconnection and depuration, and it

also allows the validation operating directly on a

simulated or real robot. For that, we have taken a

very well known mini-robot in the environment of

the groups of I+D in mobile robotics: the Khepera,

developed by the K-Team. On the other hand, we

have had software tools for design and simulation

provided by robot's makers as well as by other

sources, besides MATLAB and some of their

toolboxes.

This article is divided in four parts: in the first

one

the necessary aspects to establish an appropriate

Vallejo Rodríguez E. and Benet Gilabert G. (2005).

EVOLUTIONARY LEARNING OF FUZZY RULES IN A MODIFIED CLASSIFIER SYSTEM FOR MOBILE AGENTS CONTROL.

In Proceedings of the Second International Conference on Informatics in Control, Automation and Robotics - Robotics and Automation, pages 62-69

DOI: 10.5220/0001189000620069

 SciTePress

conceptualization of the work are presented. In the

second, some of the used tools are described. The

third part shows the experimental realization and

results are exposed and in the last one the

conclusions and proposals for later work are offered.

2 INTELLIGENT CONTROL

2.1 Artificial intelligence

The concept of Artificial Intelligence (AI) can have

different connotations, depending on the source

taken as reference and of its point of view. But if

one thing is clear: AI has as one of its objectives the

study of the intelligent behaviour of machines

(Nilsson N., 2001). Another of its pursued purposes

is the development of machines able to execute in a

similar -or better- way tasks developed by biological

organisms and to understand that behaviour. In

short, we can say that AI looks for scientific,

philosophical and engineering objectives.

It is generally considered that a machine is

intelligent if it is able to successfully carry out

similar processes such as those made by biological

entities, based on in imprecise, qualitative and not

very reliable reasoning that also modifies and adjusts

continually with the acquisition of new information.

2.2 Intelligent controllers

The term intelligent control refers to the focus of

control design as well as to the installation of

techniques of AI that emulate certain characteristics

of intelligent biological systems (De Andrés, 2002).

The intelligent control has allowed recapturing old

control problems to give them solution and to

confront other new ones, thanks to the growing

computational capacities. Maybe the paradigm of the

intelligent control is focused on approaches of

biological inspiration, without making clear that the

resulting controllers perhaps drastically differ from

them and that they often seem simply adaptive

controllers (Athans, 1998). The Expert Systems in

systems of direct control, for example, have as

predecessor techniques of conventional control with

controllers based on automata, Petri nets and other

discrete event systems (Passino, 1996).

2.3 Control of mobile robots

For some decades some alternatives have been

considered for the control and guidance of mobile

robots in non-structured partially structured

environments, the natural environment for the

yearned applications of these machines. All of them

could be summarized in three big groups or

paradigms: hierarchical, reactive and hybrid

paradigms (Murphy, 2000), as we see in figure 1.

In hierarchical systems planning includes a

modelling, and they can render an optimal solution if

the problem and the environment are very defined

and the environment doesn't change. In reactive

control system, sensors are directly related to control

actions; planning does hardly exist. These machines

constitute the basic vehicles of Braitenberg

(Braitenberg, 1984) that although they guarantee a

quick answer, the same does not happen in

optimization. They are the bases of architectures

based on behaviours. Hybrid structures possess a

reactive base at a low level and a planning block at a

superior one. The planning block generally contains

a group of simple tasks (behaviours (Brooks, 1985))

that are activated in a dynamic way to endow the

system with intelligent behaviour; it is a level of

deliberative control.

2.3.1 Fuzzy control in robotics

Formal reasoning ends in definitive conclusions;

common reasoning ends in provisional conclusions

(Gulley, 1995). It is difficult to achieve the

systematic representation of ambiguity and

uncertainty, characteristics of common knowledge.

Fuzzy Logic allows the representation, in some way,

Perception

Planni ng

Action

Perception Action

Planni ng

Perception

Action

Perception

Planni ng

Action

Perception

Planni ng

Action

Perception ActionPerception Action

Planni ng

Perception

Action

Planni ng

Perception

Action

Figure 1: Structures of robots' control: to) hierarchical, b) reactive, c) hybrid

EVOLUTIONARY LEARNING OF FUZZY RULES IN A MODIFIED CLASSIFIER SYSTEM FOR MOBILE AGENTS

CONTROL

of uncertainty and ambiguity. This is why it has

been used in artificial intelligent systems as tool to

transfer them common knowledge and experience.

It would be oppressive to mention the numerous

works that demonstrate that the techniques of fuzzy

control turn out to be very effective for handling

reactive mobile robots, because translating values of

sensors in control actions is immediate with rules of

inference in the way IF - THEN, characteristic of

Logic. Let us take as an example the inference

IF (x is A) AND (y is B) THEN (z is C)

that it could be translated in an elementary

behaviour such as “If there is an obstacle in front

and there is free space to the right then, turn to the

right”. On the other hand, if the environment in

which a mobile robot performs is non-structured, the

control system should be able to deal with the

uncertainty and the ambiguity, space where the

fuzzy logic, find their largest action field.

2.3.2 Learning

Learning eliminates the programming of specific

algorithms, building intelligence through experience

in a very similar way to that of biological methods.

As for the methodology of machine learning strictly

speaking, it can be summarized that the base of

knowledge can be modified basically in two ways:

with structural modifications (algorithmic

reconfiguration) or with parametric modifications

(adjusting the parameters of the system). When the

systems are very complex or a model of the system

cannot directly be obtained, the modification of the

base of knowledge is far from the classic techniques

of control. In consequence, countless proposals in

the topic of learning have been presented.

Some systems based on knowledge, as the Fuzzy

Systems and the Expert Systems, find application in

automating characteristics of perception, knowledge

and decision taking characteristic of human

operators. Artificial Neural Nets (ANN) slightly

emulate Natural Neural Nets (NNN). They have

been used, for example, to learn the form of

controlling a system “observing” the actions taken

by an operator. Genetic Algorithms (GA) are used in

computer aided design “to evolve” controllers under

the survival principle for those which better adjust to

a certain objective.

3 ROBOTS SIMULATION

Thanks to simulators, it is possible to design and

prove control strategies in a quick way, observing

and correcting actions or inadequate behaviours

without putting the robot or the environment at risk.

However, it is very desirable that what is developed

in a simulator can be moved immediately way and

without any effort to the real environment.

A great availability of programs exists for the

simulation of robots; some are commercial ones and

others of free distribution. Here we will refer

especially to two programs that we have used

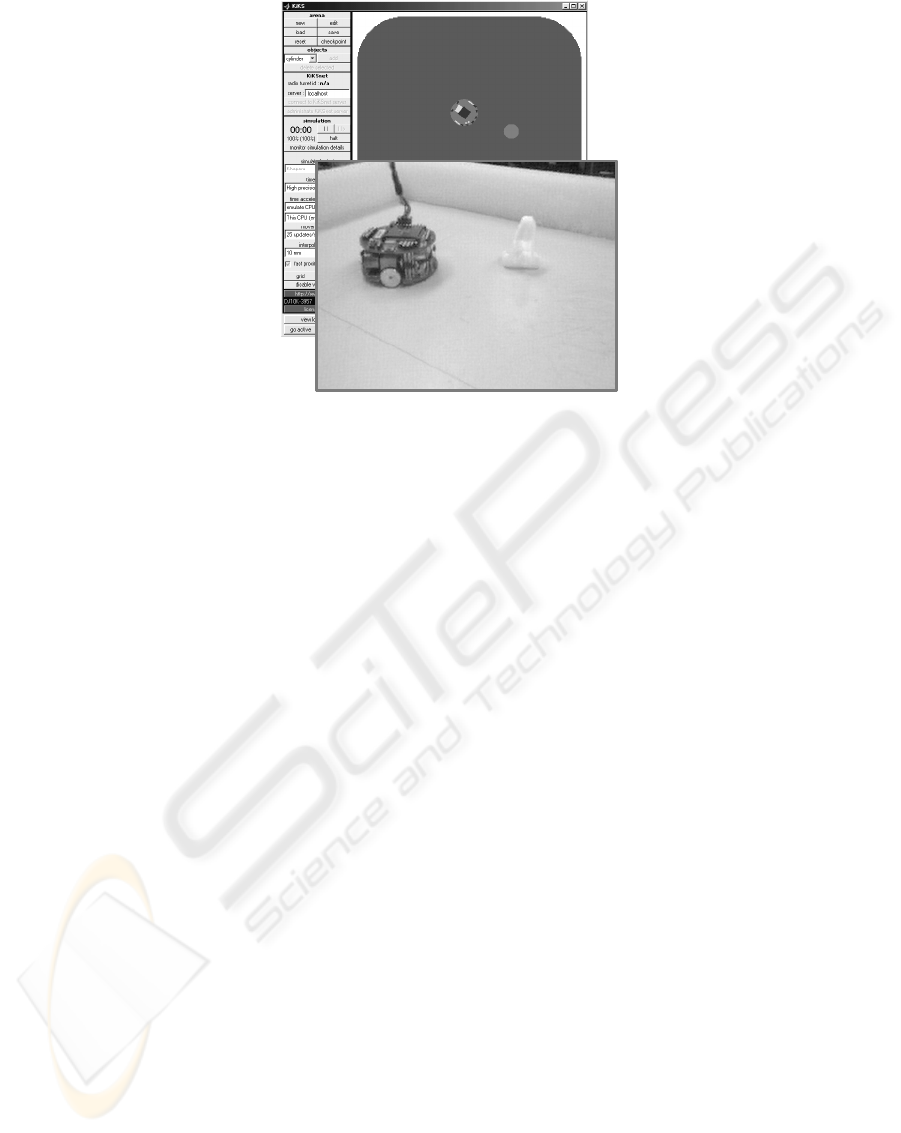

together: the KMatLab, created by the K-Team (K-

Team, 1999) and KIKS, developed by Theodor

Nilsson (Nilsson T., 2001).

3.1 KMatLab

KMatLab was created to operate the Khepera from

MatLab through a series port of the computer. It is a

group of libraries .dll for Windows designed to

configure double communication between the robot

Khepera and MatLab. It also incorporates a set of

libraries under MatLab to execute the instructions of

low level belonging to the Khepera. The set of

instructions of KMatLab possesses mnemonics for

the instructions that make them easier to learn and

follow in the program listing. For example, an

instruction of KMatLab has the form

KSetSpeed(ref, left, right)

where ref is the variable in MatLab that represents

the address from the port series to which the robot

and other parameters of the communication are

connected. Additionally, left and right represent the

values of speed with which the respective controllers

of the robot's motors should be loaded. In fact, the

instruction of the example is completely equivalent

to instruction D of the Khepera (K-Team, 1999).

3.2 KIKS

KIKS (Kiks Is a Khepera Simulator) it is a program

that allows interacting with a simulated Khepera

robot. KIKS is in fact a KMatLab simulator,

although it also allows communication with a real

robot. For this it uses instructions that call to those

equivalent ones in KMatLab with the possibility of

defining it a virtual port for the simulation. As

example of the instructions of KIKS we take

ref = kiks_Kopen([port, baud, 1])

that indicates the system the port that will be enabled

for the robot, the communication speed and the time

out for the communication. This instruction is

exactly equivalent to

ICINCO 2005 - ROBOTICS AND AUTOMATION

Figure 2: Simulated and real environments for Khepera robot

ref = Kopen([port, baud, 1])

of KMatLab. Only very few instructions for the

Khepera are not supported by the KIKS.

4 EXPERIMENTAL WORK

In our work we have approached topics related with

the control of robotic systems navigation with

learning, based on the theory of Fuzzy Logic and

Evolutionary Computing. All the exercises are

executed on the Khepera robot.

4.1 Platform for design of

controllers

In a published work we showed the viability of using

support tools to software design (CASD), using an

experimentation platform module developed on

MatLab, Simulink and some Toolboxes. The idea

was to have a platform for I+D in robots' control and

sensorial whose designs and final verification could

be given in very brief time.

On it were designed and tested behaviour based

controllers developed with Simulink and others of

fuzzy inference (FIS) integrated in Simulink.

Based on this structure, we can generate fuzzy

logic controllers (FLCs) and transfer them to the

robot by means of Simulink or directly with MatLab

through a port of the PC. If the port is defined as

virtual, the controller's actions will go to the

simulated environment (KIKS). If the actions are

directed through a real port, one will have control on

the real robot. When one works from Simulink, the

real environment is managed as a simulated

environment. In figure 2 the graphs of the simulated

(KIKS) and real environments are shown.

4.2 Platform for controller learning

In our experimental work we have decided to look

for solutions to the problems of controllers' fuzzy

generation for learning using technical of

evolutionary computing, creating a method and

some tools of “training” of mobile robots that allow

to validate the acquisition of knowledge on the part

of the machine. Concretely we could say that we

adopt the proposal of Bonarini (Bonarini, 1996) to

which we seek to contribute with some advances.

With this general position we saw the necessity to

modify our first platform, taking it to what we

schematize in figure 3.

Since the MatLab Fuzzy Logic Toolbox doesn't

provide some necessary files for the process of

adopted learning, we opted to add several functions

(files .m) that would extract them. This way we can

have such parameters as the contribution of each

rule to the controller created in each step of the

learning, as well as the generated rules and other

necessary to the process. With these files we can

access, through KMatLab, to any of the two

environments: simulated or real. For our applications

we appeal to the version 6.1R12 of MatLab and the

Fuzzy Logic Toolbox for this version, although there

were not restrictions to use previous or later

versions. In hardware it was used a desk PC with an

AMD XP2000+ processor and 256 MB of memory.

EVOLUTIONARY LEARNING OF FUZZY RULES IN A MODIFIED CLASSIFIER SYSTEM FOR MOBILE AGENTS

CONTROL

Sensors (8)

Motors (2)

Fuzzy Logic

Toolbox

KMatlab

Real

Port

Motors (2)

KIKSKIKS

Sensors (8)

Virtual

Port

FLC

File .m

MATL ABMATL AB

Fuzzy Val ues

Contr ibution

Rule Selection

Sensors (8)

Motors (2)

Fuzzy Logic

Toolbox

KMatlab

Real

Port

Motors (2)

KIKSKIKS

Sensors (8)

Virtual

Port

FLC

File .m

MATL ABMATL AB

Fuzzy Val ues

Contr ibution

Rule Selection

Figure 3: Experimental platform for the generation of controllers for learning

4.3 Evolutionary learning of fuzzy

rules (ELF)

The implemented system is based on the ELF

algorithm developed by Bonarini (Bonarini, 1994,

96), a Q-Learning algorithm adapted to learn fuzzy

controllers (FLCs) in a mobile robot. For doing that

we developed the MatLab platform previously

described and we looked for more efficient way for

such an algorithm incorporating other new concepts.

Some significant differences are focused especially

on the use of genetic algorithms, performance

evaluation functions (PEF) and population's

updating, which improves the algorithm outcome

facilitating its use in dynamic environments.

In this strategy of evolutionary learning, the

mobile robot dynamically learns a set of fuzzy rules.

Specifically, the system learns the combination of

antecedents and the consequence of the rules to

satisfy the requirements specified by the user by

means of an evaluation function. Our

experimentation is made basically through the

mutation operator, since for the particular

application it is more than enough, but the developed

platform does not limit the use of other genetic

operators. The controller is composed by a group of

fuzzy rules whose number is adjusted dynamically

by the system, maintaining the best ones. The

membership functions of the fuzzy sets that

represent the variables of the system are fixed. The

agent can begin with a set of random rules or

previously learned, or without any rule. For different

specified tasks, different FLCs are learned. In

synthesis, our learning method is of the type of

structural modification and it belongs basically to a

Classifier System, with appropriate modifications for

the objective of generating controllers for mobile

robots.

4.3.1 The ELF algorithm

This algorithm starts with having a population of

rules and it has the following relevant

characteristics:

• The total population of rules is divided into

sub-populations whose members share the

same antecedents (labels).

• In each sub-population we have rules with the

same antecedents and different consequents,

competing with each other to propose the best

consequent for the situation described by the

antecedent.

• All sub-populations cooperate to produce the

control action.

In a simple way we can synthesize what has been

presented with graph 4. In this graph we have

divided the population of rules in groups (sub-

populations) a, b, ..., n that gather the rules

possessing the same antecedent but they have

different consequent. From each group a rule is

taken randomly to generate a FLC that then is

proven in the system. Later the contribution of each

rule to the actions is valued to grant it the

corresponding reinforcement.

In ELF the learning cycle is compound by

several trials that in turn are composed of episodes.

ICINCO 2005 - ROBOTICS AND AUTOMATION

FLCFLC

Tes t

and

Reinforcement

a Rules

b Rules

n Rules

FLCFLC

Tes t

and

Reinforcement

a Rules

b Rules

n Rules

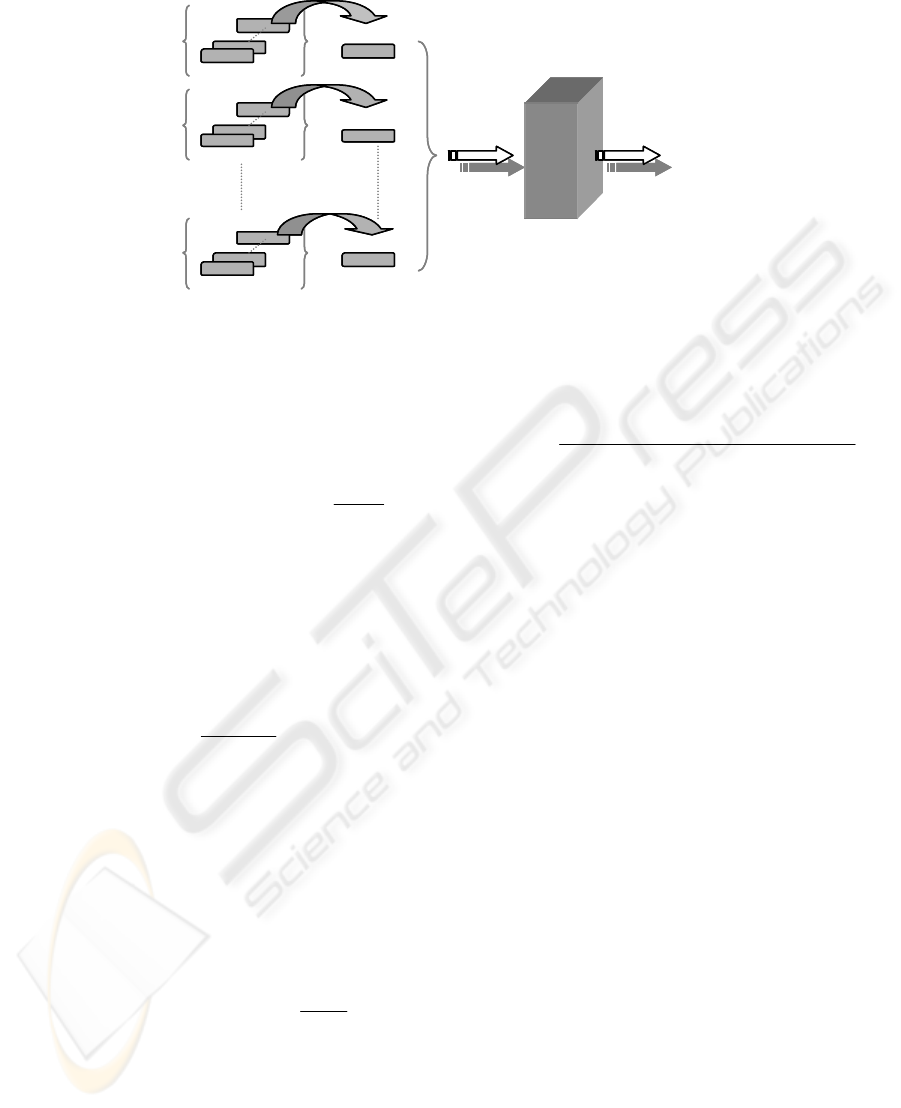

Figure 4: Graphic representation of the ELF algorithm

Each episode is conformed by control cycles that in

fact are detection-action cycles, characteristic of a

purely reactive paradigm.

The consolidation (strength) of a rule is given

by:

where s

represents the strength of a rule in the

present cycle, currcr is a value between [0 ..1] that

represents the contribution of the rule to the actions

given during the current episode and pastcr it is a

measure of the contribution of the activated rule in

previous episodes.

On the other hand

Where

is the rule under trial, s is a state

belonging to the group of states S visited during the

episode E, µ(

) is the degree of concordance of rule

r to state s and R is the set of activated rules.

In order to value the contribution of the rules

activated in previous episodes, a reinforcement

given by this equation is applied

establishing that there is a correlation between an

episode and the past ones. Then

decay=correlation

Since the number of rules could grow

exponentially causing an “explosion of rules”, a

heuristic equation is applied, which maintains an

optimal number of them.

(

)

_ ( _ 0.1) _ _

_max1,

_0.1

Max reinf Max reinf Max vote sp

Max reinf

−∗−

∗

⎡

⎤

⎢

⎥

⎣

⎦

(1)( () (1))

rr r

currc

s s t reinforcement t s t

pastc

=−+ −−∗

Max_reinf is the maximum reinforcement value

and Max_vote_sp is the maximum value so far

obtained by the sub-population’s rules.

4.3.2 Proposal

In our work with ELF We are focused on four

aspects:

• More generalization capacities.

• Better adaptation to non-structured

environments.

()

sSE

rinR

currc

∈

∑

• Smaller limitations with dynamic elements.

• Improving of local minima handling.

To reach these objectives, our theoretical work

has taken us to consider three possible elements to

experience in the algorithm. The first of them is the

possibility to place a penalization value in the

learning process that could have this form in the case

of the mission of obstacles avoidance

pain f s

⎛⎞

⎜⎟

⎝⎠

∑

(1)( () (1))

rr r

currc

s t reinforcement t s t decay

pastc

=−+ −−∗ ∗

where S

represents the reading of sensors. The

readings of the two front sensors are fused, taking its

resultant as that of a unique sensor.

In consideration to the good control actions, we

can add the concept of pleasure that would have the

form

(),

pleasure f m m

∗+

EVOLUTIONARY LEARNING OF FUZZY RULES IN A MODIFIED CLASSIFIER SYSTEM FOR MOBILE AGENTS

CONTROL

representing m

and m

the actions of the left and

right motors respectively.

and

are weighting

values.

A point to consider is to speed up the learning

consists of revising equation for S

, since the

computational work to for the task. The

reinforcement equation for objective searching and

obstacle avoidance could have the form:

where dist_act y dist_inic are, respectively, the

current and initial distances with respect to the

objective and f is a function related with the distance

to an obstacle.

Once the exit of the system is satisfactory in the

learning process, the training stops and the resulting

fuzzy controller can be proven in the same

environment or in another dynamically changing

one. The fuzzy rules are represented as

chromosomes and their parts as genes with the

purpose of using genetic algorithms for learning.

The values of each gene are not strictly 0 or 1, as in

genetic algorithms, but rather they vary with the

value of membership of each variable. This way,

each gene really represents a variable. With our

development platform created with MatLab, vectors

that compose the matrix that constitutes the

controller give the representation of chromosomes.

These vectors include the chromosomes already

mentioned, and other necessary information in the

learning.

4.4 Tests and results

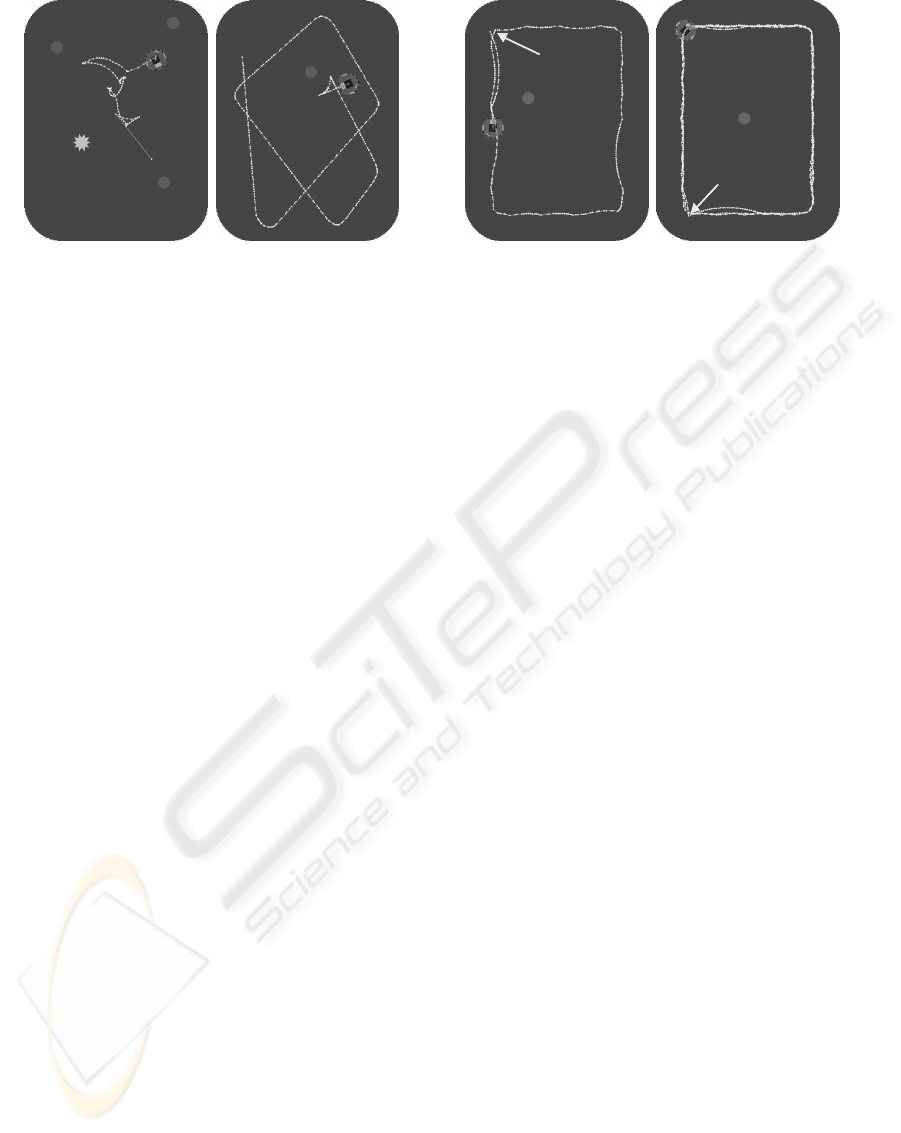

Next we present some results obtained with

controllers for obstacle avoidance (including

navigation in narrow corridors, a recurrent problem

in mobile robotics) and contour following. The

graphics show that the obtained controllers operate

satisfactorily in the selected worlds.

4.4.1 Obstacle avoidance

One of the most required behaviours in autonomous

mobile robotics is navigation with obstacle

avoidance. Controllers that value positively the

displacement at great speed on straight line avoiding

crashes with objects and walls of the environment

have been achieved. In figure 5a) we show the

robot's behaviour during the learning and its later

operation with the learned controller.

The reinforcement equation developed for this

task is

4.4.2 Following of contours

Another very useful task in mobile robotics is the

capacity to surround objects. In figure 5b) we

present two executions. In the first one we have not

placed the valuation to the trajectory on straight line

during the training. In second case this behaviour

has been rewarded. The used reinforcement equation

()(_ _)(_r t g dist inic dist act f dist obs=−∗)

()

distn

lr lr l r

r vel vel vel vel vel vel

∗

⎛⎞

=− ∗ − − + + + ∗−

⎜⎟

⎝⎠

5 CONCLUSIONS AND FUTURE

WORK

5.1 Conclusions

• It was obtained with MatLab a modular

platform where exchanging of models or

environments is immediate and simple.

• The architecture of the control system is

stratified and modular, so each module has a

low complexity and can be learned in short

time.

• The algorithm has been proven in real and

simulated environments giving similar

results, in accordance with what expected.

• The form of consolidating the rules was

studied and we opted for solutions with easy

evaluation simple equations.

• With these strategies, and the reduction of the

search space, it improves the robustness to

data with noise, helped by the representation

of the control modules in terms of fuzzy

rules.

• The results obtained in our experimental

work demonstrate to be successful with

sessions inferior to 500 cycles for simple

tasks as those shown, observing adequate

behaviours in 4 or 5-minute sessions in

trainings with the real robot.

5.2 Future work

We seek to take our experiences with the Khepera to

other robots, such as YAIR, mobile experimentation

robot developed by the Group of Sistemas de

Tiempo Real of Computer Science's of Systems and

Computers (DISCA) Department of the Universidad

Politécnica de Valencia (Spain), and to

TELÉMACO, experimental robot of the Grupo de

Investigación en Robótica y Sistemas Inteligentes of

the Universidad del Norte (Colombia).

()

distn

lr lr l r

r vel vel vel vel vel vel

∗

⎛⎞

=− ∗ − − + + + ∗ −

⎜⎟

⎝⎠

ICINCO 2005 - ROBOTICS AND AUTOMATION

Punto de inicio

Start point

a) b)

Punto de inicio

Start point

a) b)

ure 5: Learnin

and the controller's verification

With the support of other tools, we will be able

to obtain controllers for particular platforms, coded

in high-level languages starting from our simulated

models. It is possible to carry out these structures in

general or of lower level in application languages

and to insert them, in even smaller robots that

possess very few resources.

We are working to add more complex behaviors

and to develop controllers with superior layers.

REFERENCES

Athans, M., 1998 “Why I Despise Fuzzy Feedback

Control” IEEE CDC/98 Debates, Tampa, Florida.

Bonarini, A., 1994 “Evolutionary learning of general fuzzy

rules with biased evaluation functions: competition

and cooperation”. Proceedings. of the IEEE World

congress on Computational Intelligence (WCCI) -

Evolutionary Computation, IEEE Computer Press,

Piscataway, NJ, 51-56.

Bonarini, A., 1996 “Learning behaviors implemented as

Fuzzy Logic Controllers for Autonomous Agents”.

Proceedings of the WEC2, University of Nagoya,

Nagoya, J, 21-24.

Braitenberg, V., 1984, Fourth printing (1994) “Vehicles”,

MIT press, Bradford Books, England.

Brooks, R., 1985 “A Robust Layered Control System for a

Mobile Robot”, A. I. Memo 864, MIT, Artificial

Intelligence Laboratory.

De Andrés, T., 2002 “Homo cybersapiens: La inteligencia

artificial y la humana”. EUNSA, España, ISBN: 84-

313-1982-8.

Gulley, N., et. al., 1995 “Fuzzy Logic Toolbox”.

MathWorks.

Murphy, R., 2000 “Introduction to AI Robotics”, MIT

press, Bradford Books, England, ISBN: 0-262-13383-

Nilsson, N., 2001 “Inteligencia Artificial; una nueva

síntesis”, Ed. McGraw-Hill, España, ISBN: 84-481-

2824-9.

Nilsson, T., 2001 “KIKS User Guide”.

www.tstorm.se/projects/kiks/.

Passino, K., Özgüner Ü., 1996 “Intelligent Control: From

Theory to Application”, Guest Editors’ Introduction to

the IEEE Expert Special Track on Intelligent Control,

Volume 11, No. 2, pp. 28-30.

K-Team, 1999 “Khepera User Manual”, www.k-

team.com.

EVOLUTIONARY LEARNING OF FUZZY RULES IN A MODIFIED CLASSIFIER SYSTEM FOR MOBILE AGENTS

CONTROL
