Structural Persistence of Three Dimensional

Autonomous Formations

Changbin Yu

, Julien M. Hendrickx

, Barıs¸ Fidan

and Brian D.O. Anderson

National ICT Australia Ltd. and

Research School of Information Sciences & Engineering, the Australian National University,

216 Northbourne Ave., Canberra ACT 2601 Australia

Department of Mathematical Engineering, Universit

e Catholique de Louvain,

Avenue Georges Lemaitre 4, B-1348 Louvain-la-Neuve, Belgium

Abstract. Built upon a recently developed theoretical framework, we consider

some practical issues raised in multi-agent formation control in three dimensional

space. We introduce the partial equilibrium problem, which is associated with

unsafe control of a formation in practical 3-dimensional applications. We deﬁne

structurally persistent graphs, a class of persistent graphs free of any partial equi-

librium problem. In real deployment of control of multi-agent systems, forma-

tions with underlying structurally persistent graphs are of interest. We study the

connections between the allocation of degrees of freedom (DOFs) across agents

and the characteristics of persistence and/or structural persistence of a directed

graph. We also show how to transfer degrees of freedom between agents, when

the formation changes with new agent(s) added, to preserve persistence and/or

structural persistence.

1 Introduction

In [1], we have generalized the deﬁnition of persistence to ℜ

for d ≥ 3, seeking

to provide a theoretical framework for real world applications, which often are in 3-

dimensional space as opposed to the plane. We also have derived some new properties of

persistent graphs and given an operational criterion to determine if a graph is persistent.

In this paper, we demonstrate that a persistent formation, as deﬁned in [1], may also

⋆ ⋆ ⋆

The work of Brian D.O. Anderson,Barıs¸ Fidan and Changbin Yu is supported by National ICT

Australia, which is funded by the Australian Government’s Department of Communications,

Information Technology and the Arts and the Australian Research Council through the Back-

ing Australia’s Ability Initiative. Changbin Yu is an Australia-Asia Scholar supported by the

Australian Government’s Department of Education, Science and Training through Endeavours

Programs.

†

The work of Julien M. Hendrickx is supported by the Belgian Programme on Interuniversity

Attraction Poles initiated by the Belgian Federal Science Policy Ofﬁce, and by the Concerted

Research Action (ARC) “Large Graphs and Networks” of the French Community of Belgium.

The scientiﬁc responsibility rests with its authors. Julien M. Hendrickx is a FNRS (Belgian

Fund for Scientiﬁc Research) fellow.

Yu C., M. Hendrickx J., Fidan B. and D.O. Anderson B. (2005).

Structural Persistence of Three Dimensional Autonomous Formations.

In Proceedings of the 1st International Workshop on Multi-Agent Robotic Systems, pages 47-55

DOI: 10.5220/0001194600470055

 SciTePress

suffer from a practical problem where each agent can move to a position which satisﬁes

the constraints on it once all the other agents are ﬁxed but it is not possible to satisfy all

the constraints on all the agents at the same time.

In Section 2, we formally characterize the above problem, which we call the partial

equilibrium problem, and which is closely associated with unsafe control of a forma-

tion in practical 3-dimensional applications. We then introduce the deﬁnition of a struc-

turally persistent graph, a class of persistent graphs free of any partial equilibrium prob-

lem. In real deployment of control of multi-agent system, formations with underlying

structurally persistent graphs are of interest. It is established in Secction 2 incidentally

that in two dimensions, structural persistence and persistence are equivalent.

In Section 3, we focus on the connections between allocation of degrees of freedom

(DOFs) across agents and the characteristics of persistence and/or structural persistence

of a directed graph. We also show how to transfer degrees of freedom between agents,

when the formation changes with new agent(s) added, to preserve persistence and/or

structural persistence. We study cycle-free graphs in ℜ

and show some more powerful

results that exist in this special case, such as the existence of a quadratic time criterion to

verify the cycle-free property and to decide persistence, which automatically guarantees

structural persistence.

We end the paper with concluding remarks in Section 4. Note that all the proofs are

omitted due to space limitations. However, a full version of this work together with the

campanion paper [1] is available in preprint from the authors.

2 Partial Equilibrium Problem and Structurally Persistent

Graphs

Consider a persistent graph G = (V, E) in ℜ

(d ∈ {2, 3, . . .}). The partial equilibrium

problem we want to avoid is the following: There is a subset

V ⊂ V of vertices such

that all the vertices in

V are at ﬁtting positions whatever the positions of the vertices

in V \

V are, but there exists no position assignment for the vertices in V \

V such that

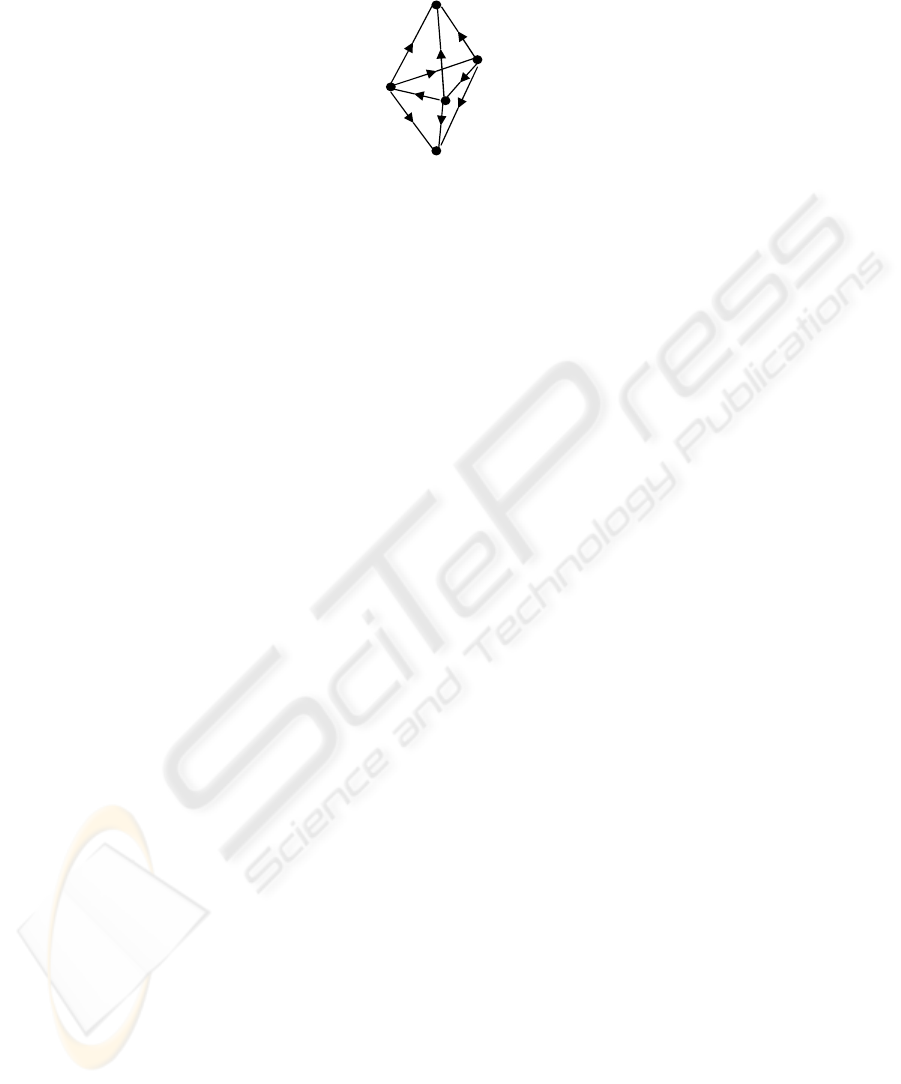

the whole representation is ﬁtting. For example, consider the 3-dimensional persistent

graph

G shown in Figure 1, an associated set

d of desired lengths d

> 0 for all the

edges

−−→

(i, j), and a realization ¯p of

d in agreement with Figure 1. Identify

V with {1, 2}.

Since the vertices 1 and 2 have zero out-degrees, they are at ﬁtting positions for any

representation of the graph, whatever the positions of 3, 4, 5 are. However, there are

representations of

G arbitrarily close to ¯p where the vertices 3, 4, and 5 cannot be at

ﬁtting positions at the same time. From the perspective of formations, in the formation

represented by

G, there exist two leaders, 1 and 2, which are allowed to move freely in

ℜ

without any constraint. This freedom, however, makes it impossible in some cases

for the agents 3, 4, and 5 to meet all the distance constraints on them, although

G is

persistent, according to the deﬁnition given in Section 3 of [1]. In such a case, we will

say that

G is in partial equilibrium.

The existence of such partial equilibrium problems in three and higher dimensional

spaces makes it necessary to analyse persistent graphs further and introduce new con-

cepts such as structural persistence that will be deﬁned in this section. In ℜ

, how-

ever, there is no persistent graph suffering from partial equilibrium problems, as ex-

Fig.1. A persistent graph in ℜ

which is not structurally persistent.

plained later in Theorem 1. Let us consider a persistent graph G = (V, E) in ℜ

(d ∈ {2, 3, . . .}) with a representation p. Let

d be the set of distances corresponding

to p. G is in partial equilibrium, and thus has the partial equilibrium problem if there

exists a non-empty vertex subset

V ⊂ V , a constant ε > 0 and a mapping p

¯ε

indexed

by ¯ε,

¯ε

V → ℜ

|0 < ¯ε ≤ ε

such that for any ¯ε ≤ ε the following hold:

1. d(p(i), p

¯ε

(i)) ≤ ¯ε, ∀i ∈

V .

2. For all i ∈

V , p

¯ε

(i) is a ﬁtting position with respect to

d, irrespective of the posi-

tions of the vertices in V \

V .

3. There exist no ﬁtting representation p

′

: V → ℜ

in B(p, ¯ε)

∆



¯p : V → ℜ

|d(p, ¯p) ≤ ¯ε



with respect to

d, such that p

′

(i) = p

¯ε

(i), ∀i ∈

V .

If a persistent graph is not in partial equilibrium, it is called a structurally persistent

graph. To analyse this concept further, it is deﬁned that for a given directed graph G =

(V, E), a subgraph G

′

= (V

′

, E

′

) is a practically closed subgraph of G if for any vertex

i ∈ V

′

, d

′

(i) ≥ min{d, d

(i)}, where d

′

(i) denotes the number of outgoing edges

incident to the vertex i of a graph G

′

. We remark that a closed subgraph is always a

practically closed subgraph, since each vertex of it satisﬁes the criterion deﬁned above.

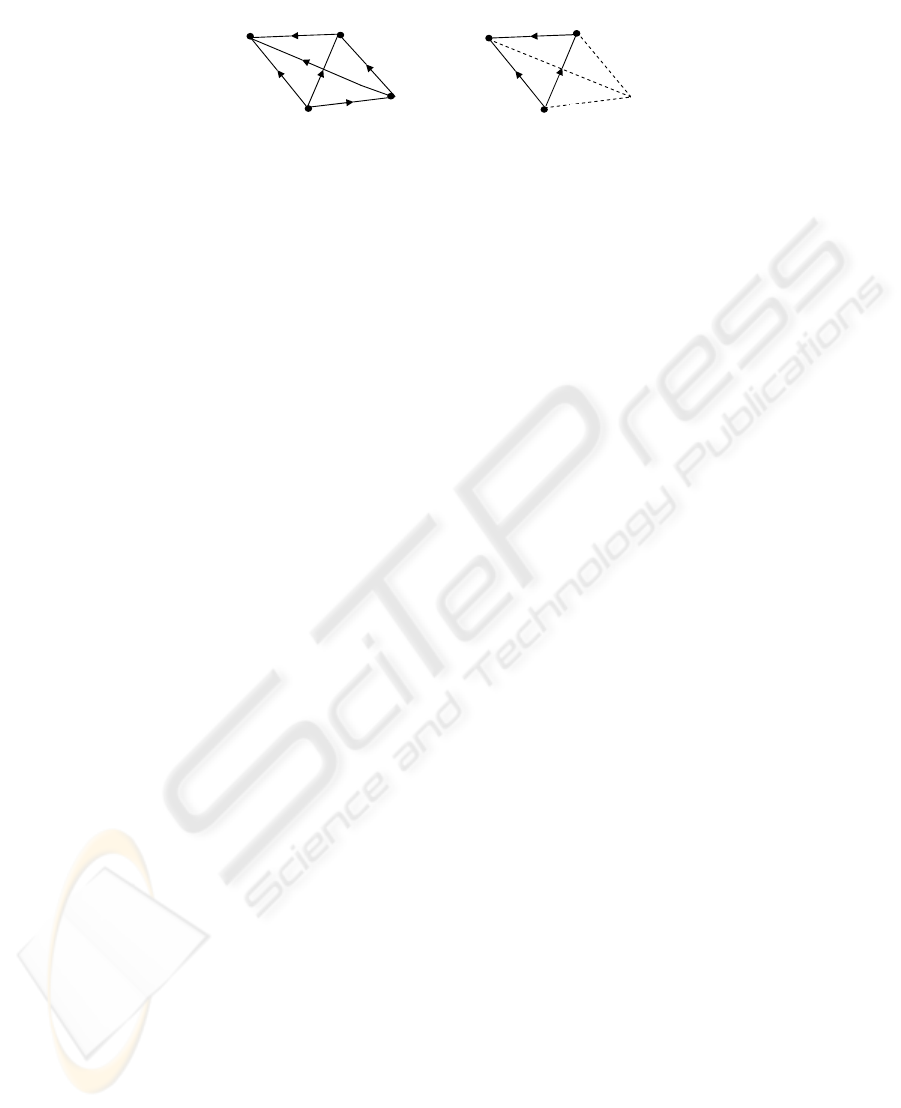

In the 2-dimensional example shown in Figure 2, where V

′

= {1, 2, 3}, G

′

is a

practically closed subgraph of G but not a closed subgraph of G. All the outgoing edges

of 1 and 2 in G remain in the subgraph G

′

. Vertex 3, on the other hand, has two outgoing

edges in G

′

(making G

′

a practically closed subgraph) and another one not in G

′

. From

a perspective of formations where vertices denote agents and edges denote awareness,

in G, although 3 is aware of 4, it may not be able to react to correctly maintain its

distance from 4 because its position is locked by the constraints with respect to the

vertices 1 and 2.

The relation between partial equilibrium problems and practically closed subgraphs

is examined in the following propositions.

Proposition 1 Consider a persistent graph G = (V, E) in ℜ

(d ∈ {2, 3, . . .}) with a

representation p and a set

d of distances corresponding to p. Let G

′

= (V

′

, E

′

) be a

subgraph of G where V

′

is a non-empty vertex subset of V . Then, G

′

is a practically

closed subgraph of G if and only if there exist a constant ε > 0 and a mapping p

¯ε

indexed by ¯ε,



¯ε

: V

′

→ ℜ

|0 < ¯ε ≤ ε , p

¯ε

is the restriction of p → V

′



such that

for any ¯ε ≤ ε the following hold:

G’

Fig.2. A practically closed subgraph in ℜ

1. d(p(i),p

¯ε

(i)) ≤ ¯ε, ∀i ∈ V

′

, for all p

¯ε

in the mapping set.

2. For all i ∈ V

′

, p

¯ε

(i) is a ﬁtting position with respect to

d, irrespective of the

positions of the vertices in V \V

′

Proposition 2 Consider a persistent graph G = (V, E) in ℜ

(d ∈ {2, 3, . . .}) with a

representation p and a set

d of distances corresponding to p. G is structurally persistent

if and only if every non-empty practically closed subgraph of G is persistent.

The following theorem, which uses Proposition 2, states that there is no partial

equilibrium problem in ℜ

, as mentioned in the beginning of the section.

Theorem 1 Any persistent graph G ∈ ℜ

is structurally persistent and has all its

practically closed subgraphs persistent.

Proposition 2 states that a graph is not structurally persistent if and only if it contains

a practically closed subgraph that is not persistent. Development of this notion leads to

the following proposition, which gives another necessary and sufﬁcient condition for a

persistent graph to be structurally persistent.

Proposition 3 Let G = (V, E) be a persistent graph in ℜ

. G is structurally persistent

if and only if there is no non-persistent closed subgraph of G with less than d vertices.

The following corollary, which is a major result of the section, and which immedi-

ately follows from Proposition 3, gives a more explicit necessary and sufﬁcient condi-

tion for 3-dimensional persistent graphs to be structurally persistent. It also gives more

insight for the problem encountered in the example in Figure 1.

Corollary 1 A persistent graph G = (V, E) in ℜ

is structurally persistent if and only

if there is at most one leader

in G.

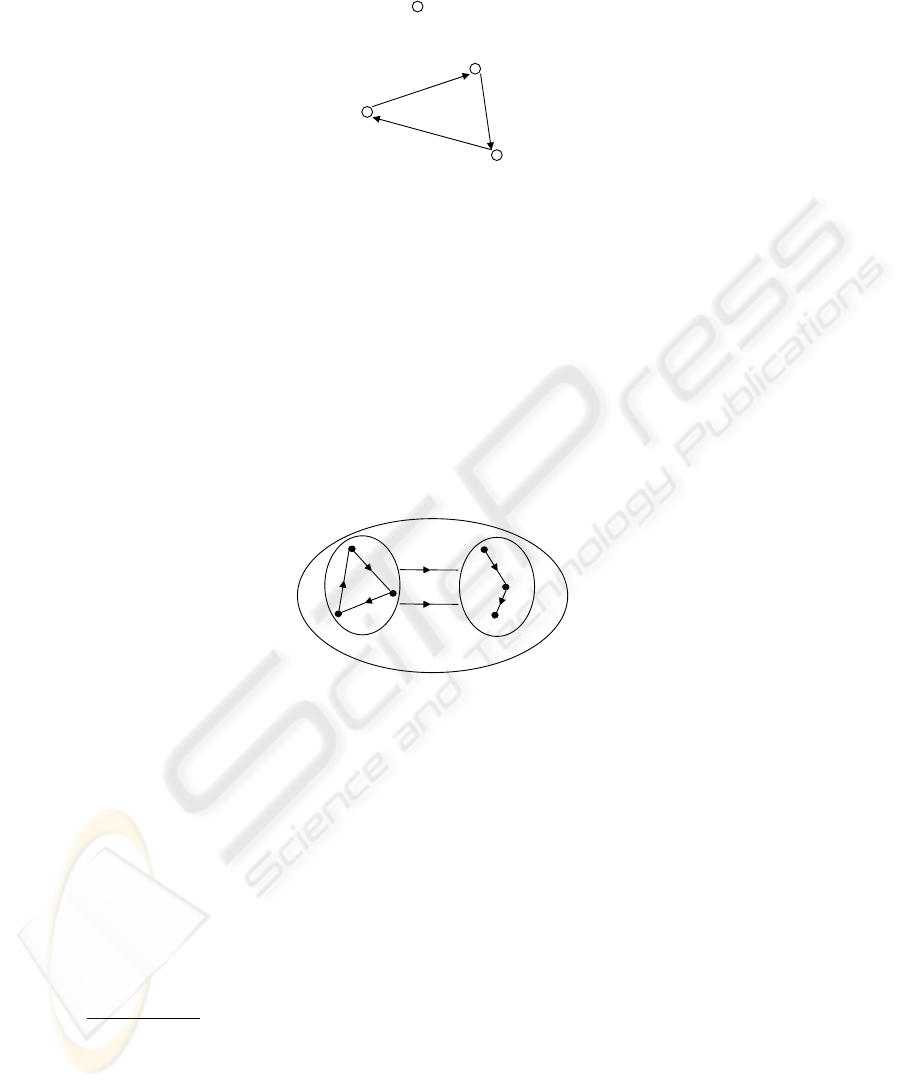

Remark 1 For some dimensions d > 3, one can have a non-persistent closed subgraph

with less than d vertices in a graph that has only one leader. An example in ℜ

is shown

in Figure 3. In general, in a given d-dimensional persistent graph, the presence of a

non-persistent closed subgraph can be checked by looking only at the vertices with out-

degree less than d − 1, which are ﬁnite in number because of the bound on the total

DOF count.

6-DOF

5-DOF

Fig.3. A non-persistent closed subgraph in ℜ

that does not have two leaders. Note that in ℜ

the total DOF count of a persistent graph can be up to 21.

Remark 2 In contrast to the case d = 3, for d ≥ 4, a non-persistent closed subgraph of

a persistent graph can be connected. Consider, for example, the 4-dimensional directed

graph G = (V, E) shown in Figure 4. G is constraint consistent because no vertex has

an out-degree larger than 4. Moreover, it is minimally rigid and it can be obtained by

removing an edge from the complete graph K

, which is trivially rigid. On the other

hand, the closed subgraph G

of G is non-rigid and hence non-persistent. Therefore, G

is not structurally persistent. Note that G

is connected although it is non-persistent.

all possible

edges from

G1 to G2

Fig.4. A 4-dimensional persistent graph with a non-persistent and connected closed subgraph.

3 Allocation of DOFs in ℜ

and Trilateration

In Section 2, we have seen that for a directed graph, persistence is not enough to avoid

partial equilibrium problems. In the following subsections, we study how the way de-

grees of freedom happen to be allocated to the vertices of a directed graph is a key de-

terminant of the structural persistence or otherwise of that graph. In an application sce-

nario, this corresponds to giving/restricting the autonomy of certain agents (abstracted

as degrees of freedom of vertices) of the formation [2].

An agent is a leader if it has no constraints on its movement, e.g. in Figure 1, both agents

represented by vertices 1 and 2 are leaders. In associated graphs, corresponding vertices have

no outgoing edges.

3.1 DOF Allocation and Transfer via Directed Trilateration in ℜ

In this section, we study the properties of the directed version of Henneberg-like vertex

addition in 3 and higher dimensions, which is an abstraction of the event that new

agents join a formation, one at a time. We give examples of applying such operations to

manipulate DOF allocation of persistent graphs, in particular, in ℜ

Let us consider a persistent graph G = (V, E) in ℜ

(d ∈ {2, 3, . . .}) where |V | ≥

d. A directed d-vertex addition, DVA (d, n) where n ∈ {0, . . ., d}, transforms G to

another persistent graph G

′

= (V

′

, E

′

) where V

′

= V ∪ { i }, E

′

= E ∪ {

−−−→

(i, k) :

∀k ∈ V

} ∪

−−→

(j, i) : ∀j ∈ V

}, V

, V

⊆ V , V

∩ V

= ∅, |V

| = d − n , |V

| = n

, and DOF (j) ≥ 1 , ∀j ∈ V

provided that the vertices of V

∪ V

do not lie in any

q-dimensional hyperplane where q < d.

We note that from Lemma 2 of [1], constraint consistency is preserved with the

directed d-vertex addition deﬁned above. Moreover, from the following lemma which

is drawn from [3,4], we see that the rigidity is also preserved.

Lemma 1 [3, 4] A graph obtained by adding one vertex to a graph G = (V, E) in ℜ

and d edges from this vertex to other vertices of G is rigid if and only if G is rigid.

Hence by Theorem 2 of [1], the graph obtained after applying a directed d-vertex

addition on a persistent graph in ℜ

is persistent, i.e., the d-directed vertex addition

deﬁned above preserves the persistence of the graphs.

Remark 3 Consider a persistent graph G = (V, E) in ℜ

. Let G’ = (V’, E’) be the graph

obtained by applying the operation DVA(d,n) to G, where V’=V ∪ {i}. Then we have:

DOF

′

(i) = n ; DOF

′

(j) ≤ DOF

(j), ∀j ∈ V. and DOF

(j) − DOF

′

(j) ∈

{0, 1} , ∀j ∈ V.

In the remaining part of this section, we only consider ℜ

, although results can

be easily expanded to higher dimensions. As a more convenient nomenclature in ℜ

we use the term directed trilateration operation, abbreviated DT(·), DT(n) in place of

directed 3-vertex addition or DVA(3, n).

An undirected graph formed by a sequence of trilateration operations starting with

an initial undirected triangle, often called a trilateration graph, is guaranteed to be

generically rigid in ℜ

and globally rigid in ℜ

. A trilateration graph can always be con-

structed/deconstructed using a polynomial time algorithm, where a reverse trilateration

can be performed by removing a vertex with degree 3 at each step. Note that a seed with

3 vertices is needed to initiate a trilateration sequence. However, two different directed

triangular seeds can start a directed trilateration operation in ℜ

as deﬁned in Figure

5(a) and Figure 5(b) are called the leader-ﬁrst follower-second follower (L−F F −SF )

and the balanced triangle (B

) seeds, respectively.

Remark 4 The leader-ﬁrst follower-second follower seed is analogous to the leader-

follower structure deﬁned for a 2-dimensional cycle-free graph [5]. The set of DOF

counts of the seed vertices is {3 ,2 ,1}. The balanced triangle is nothing more than a

directed triangle (cycle) in a cyclic graph and the corresponding DOF count set is {2

,2 ,2}.

Non-existence of V

means the corresponding DVA(n) cannot be performed for the graph.

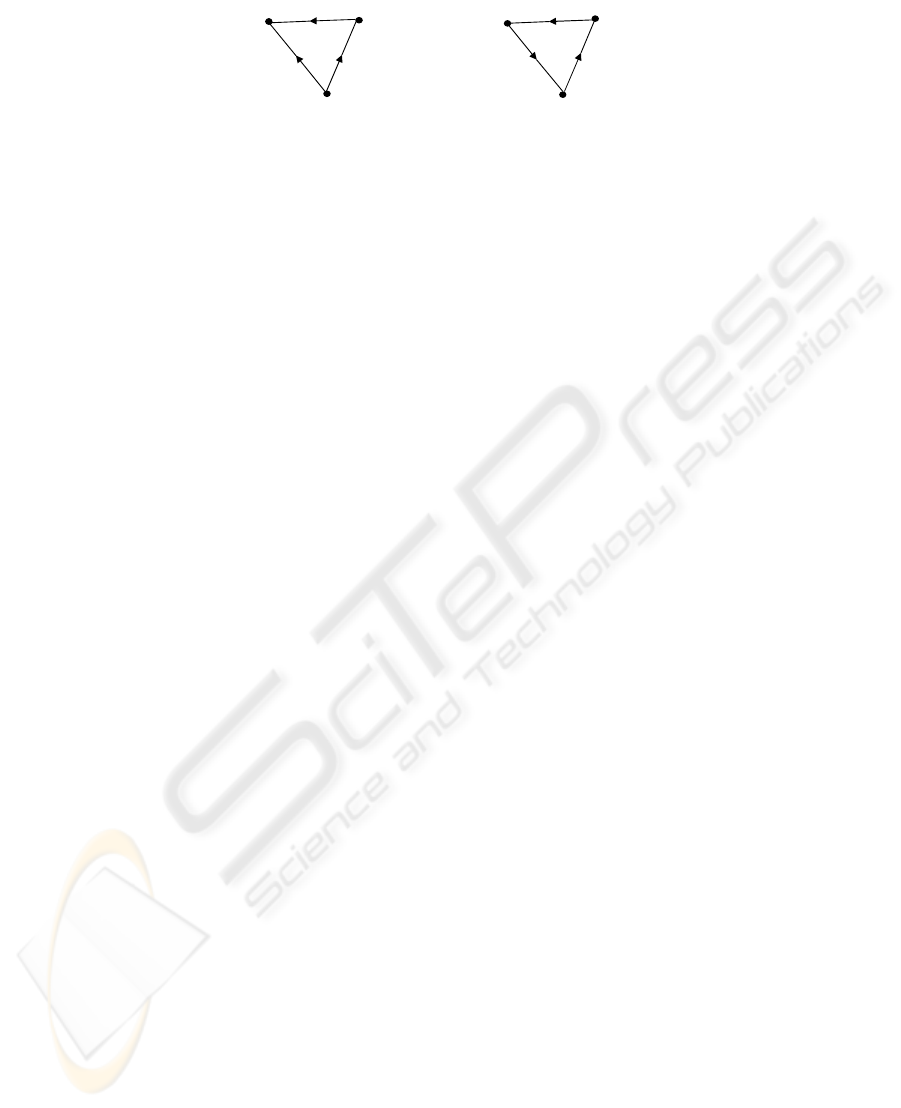

(a) (b)

Fig.5. The two directed triangular seeds.

Speciﬁcally in the application to 3 dimensional agent formations, note the meanings

of the DT(i) operation for different i can be interpreted as follows,

– DT(3) means election of a new leader.

– DT(2) may result in either breaking/restoring the balanced control structure, or

election of a new ﬁrst-follower.

– DT(1) may also result in either breaking/restoring the balanced control structure at

more a detailed level, or creation/change of second follower.

– DT(0) preserves the control structure and no decision has to be made by pre-

existing agents.

Noting that in a 3-dimensional persistent graph, there are at most 6 DOFs (as op-

posite to 3 DOFs in the ℜ

case) to be allocated among the vertices, we can list the

following six types of DOF allocation (abbreviated DOF allocation state S

to S

with

DOF counts of vertices):

– S

= {3, 2, 1, 0, 0, . . .} , S

= {2, 2, 2, 0, 0,. . .}

– S

= {3, 1, 1, 1, 0, 0, . . .} , S

= {2, 2, 1, 1, 0, 0,. . .}

– S

= {2, 1, 1, 1, 1, 0, 0,. . .} , S

= {1, 1, 1, 1, 1, 1, 0, 0,. . .}

Further, we deﬁne a transient type of DOF assignment S

= { 3, 3, 0, 0, . . .}, which

can (only) be obtained by applying a DT(3) operation to S

. S

is named “transient”

because it apparently allows two leaders simultaneously in control of a formation, and

hence this creates instability and we want the DOF assignment to avoid this state. Recall

that the underlying directed graph of such a formation is a persistent graph with a partial

equilibrium problem, i.e. it is persistent but NOT structurally persistent (An example of

a graph that is in transient state S

can be seen from Figure 1).

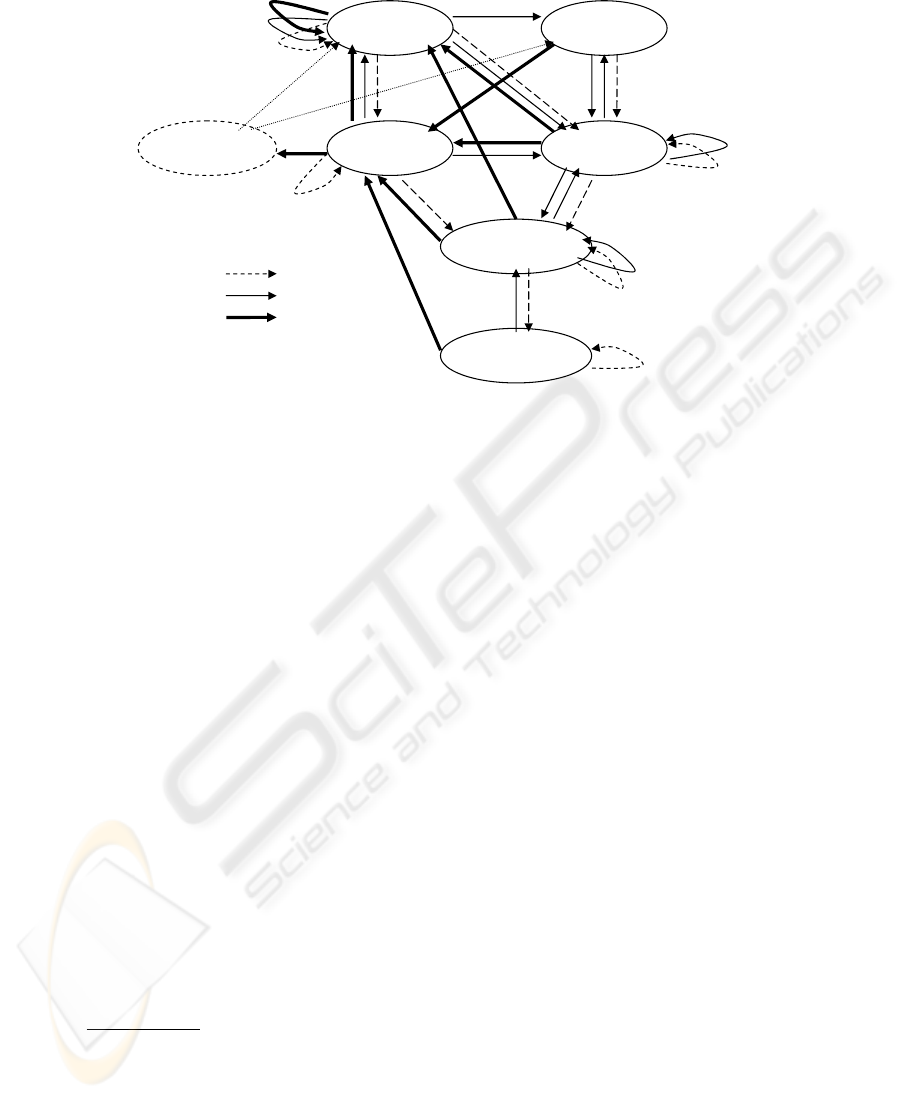

We study the transformational relationship between the possible distribution of

DOFs by applying the appropriate DT(·) operation using the “state transition diagram”

shown in Figure 6. We have the following observations:

– Starting from any one of the two directed triangular seeds, we can build any graph

with any of S

- S

by adding at most three vertices using directed trilateration.

– Any desired DOF reallocation pattern(with no allocation to a speciﬁc vertex) can

be achieved by at most four directed trilaterations starting with any of the six types

of DOF allocation.

– Any desired stable DOF reallocation pattern can be achieved by at most three di-

rected trilaterations starting with any stable DOF allocation.

3, 2, 1, 0, 0… 2, 2, 2 , 0, 0…

3, 1, 1, 1, 0, 0 … 2, 2 , 1 ,1, 0 , 0…

2, 1, 1, 1,1, 0, 0…

1,1, 1 ,1 ,1,1, 0, 0…

3, 3, 0, 0 …

Legend:

DT(1)

DT(2)

DT(3)

Fig.6. The state transition diagram for directed trilaterations.

The observed results above gives an upper bound on the number of agents required

in order to perform a system reconﬁguration operation, such as replacement or elimina-

tion of leaders/ﬁrst-follower/second-follower, or change to balanced cooperative control

of 3 leaders. And it also gives the possible consequences in a closing ranks problem

where the lost agent has a certain positive number of DOFs .

3.2 Cycle-Free Graphs

Persistence of cycle-free graphs in ℜ

was studied in [5]. In this section, we derive a

simple criterion to decide the persistence and structural persistence of cycle-free graphs

in ℜ

. We also show an explicit way to build all the persistent cycle-free graphs.

Proposition 4 A graph obtained by adding one vertex to a graph G = (V, E) in ℜ

and

at least d edges leaving this vertex is persistent if and only if G is persistent.

We thus know that a cycle-free graph obtained by successively adding vertices all

with out-degree d, i.e. DVA(d,0), to an initial seed of a cycle-free persistent graph con-

taining only d vertices is persistent.

Next,we focus on cycle-free persistent graphs in ℜ

, which have important applica-

tion in safe control of multi-agent formations.

The closing ranks problem for a given rigid formation which has lost a single agent, is to

ﬁnd new links between some agent pairs which, if maintained cause the resulting formation to

again be rigid.

Theorem 2 A cycle-free graph in ℜ

having more than 2 vertices is persistent if and

only if it has a closed subgraph which is the leader-ﬁrst follower-second follower trian-

gle, and every other vertex has an out-degree larger than or equal to 3.

Moreover, every cycle-free persistent graph in ℜ

can be obtained from an original

seed composed by the leader-ﬁrst follower-second follower by adding vertices one by

one in the way described in Proposition 4, i.e., each vertex is added with every incident

edge outwardly directed.

We can also progressively deconstruct the cycle-free (persistent) graph by recur-

sively removing one vertex at a time, where that vertex has at least 3 outgoing edges

until we obtain the leader-ﬁrst follower-second follower triangle. We conclude from

these observations that the computational complexity of verifying both persistence and

cycle-free properties of 3-dimensional graphs is quadratic in the number of vertices. In

other word, if the deconstruction process cannot proceed for the graph, then the graph

we are dealing with is not a persistent cycle-free graph. Note the cycle-free property

allows only one leader in the graph, thus following Corollary 1, we have

Proposition 5 All cycle-free persistent graph in ℜ

are also structurally persistent.

4 Conclusion and Further Works

In this paper, we considered some practical issues raised in multi-agent formation con-

trol in three dimensional space, building upon a recently developed theoretical frame-

work. We introduced the partial equilibrium problem. We deﬁned structurally persistent

graphs, a class of persistent graphs free of any partial equilibrium problem, noting that

for d = 2, structural persistence is no different to persistence. We studied the connec-

tions between the allocation of degrees of freedom (DOFs) across agents and the char-

acteristics of persistence and/or structural persistence of a directed graph. We proposed

directed d-vertex addition operations for ℜ

. We also showed how to reallocate degrees

of freedom between agents, when the formation changes with new agent(s) added, to

preserve persistence and/or structural persistence. Finally, we gave some powerful re-

sults about cycle-free persistent graphs in ℜ

References

1. J.M. Hendrickx, B. Fidan, C. Yu, B.D.O. Anderson, and V.D. Blondel. Rigidity and persis-

tence of three and higher dimensional directed formations. To appear in the 1st International

Workshop on Multi-Agent Robotic Systems–MARS05’ as a companion of this paper.

2. C. Yu, B. Fidan, and B.D.O. Anderson. Persistence acquisition and maintenance for au-

tonomous formations. Submitted to the 2nd International Conference on Intelligent Sensors,

Sensor Networks and Information Processing, 2005.

3. W. Whiteley. Matroid Theory, volume 197 of Contemporary Mathematics, pages 171–311.

American Mathemtical Society, 1996.

4. W. Whiteley. Handbook of Discrete and Computational Geometry, chapter Rigidity and Scene

Analysis, pages 893–916. CRC Press, 1997.

5. J.M. Hendrickx, B.D.O. Anderson, V.D. Blondel, and J.-C. Delvenne. Directed graphs for

the analysis of rigidity and persistence in autonomous agent systems. Submitted to the Int. J.

Robust Nonlinear Control, 2005.
