HRV Computation as Embedded Software

George Manis

University of Ioannina

Dept. of Computer Science

P.O. Box 1186, Ioannina, 45110, Greece

Abstract. The heart rate signal contains useful information about the condition

of the human heart which cannot be extracted without the use of an information

processing system. Various techniques for the analysis of the heart rate variability

(HRV) have been proposed, derived from diverse scientiﬁc ﬁelds. In this paper we

examine theoretically and experimentally the most commonly used algorithms

as well as some other interesting approaches for the computation of heart rate

variability from the point of view of the embedded software development. The

selected algorithms are compared for their efﬁciency, the complexity, the size of

the object code, the memory requirements, the power consumption, the real time

response and the simplicity of their interfaces. Figures giving a rough image of

the capability of each algorithm to classify the subjects into two distinct groups

presenting high and low heart rate variability are also presented, using data ac-

quired from young and elderly subjects.

1 Introduction

Heart rate variability is a research topic which constitutes the interest of many re-

searchers causing the number of publications in the ﬁeld to increase day by day and

different algorithms and application methods to be examined. Heart rate variability

refers to the beat-to-beat alterations in heart rate. Various analysis methods have been

proposed which can be categorized as statistical, geometrical, frequency and time de-

composition analysis methods as well as non-linear ones. Guidelines for standards and

measurement are summarized in [1]. A summary of measures and models is presented

in [2]. A review article examining the physiological origins and mechanisms of heart

rate can be found in [3].

Embedded systems are small computing components designed to constitute part of

other, larger systems, e.g. electrical appliances, medical devices, etc. They consist of

software modules usually running on low-cost processors dedicated to perform speciﬁc

tasks; for example the task which controls the anti-block system of a car can be as-

signed to a speciﬁc processor. Algorithms developed for such systems have different

philosophy than those designed for general purpose computing systems, where power-

ful processors and almost unlimited resources have been assumed. The design of light-

weight embedded software algorithms for the computation of HRV is an interesting

This research was funded by the European Commission and the Greek Ministry of Education

through EPEAEK II

Manis G. (2005).

HRV Computation as Embedded Software.

In Proceedings of the 1st International Workshop on Biosignal Processing and Classiﬁcation, pages 150-157

DOI: 10.5220/0001195401500157

 SciTePress

problem and to the best of the author’s knowledge no previous work has been done

towards this direction.

In this paper we study the most widely used algorithms for HRV analysis. As a

basis the guidelines suggested in [1] are used. All methods presented there for the com-

putation of HRV are examined. Some alternative approaches are also investigated. The

intention is not to construct an embedded system which calculates the variability of the

heart rate signal but study algorithms for this purpose. Thus, we work only in software

level and take into consideration the effect of the software level in the system hardware.

2 Requirements and Design Choices

The design philosophy of an embedded system is very different from that of a con-

ventional software application. In the latter the application developers take only very

primitive decisions about the hardware or the operating system; they select the underly-

ing architecture based on commercial criteria (number of available machines, possible

customers, etc.).

Things are very different when designing an embedded system. Money still makes

the world go round, but the target now is a very speciﬁc task for a very speciﬁc architec-

ture. Decisions should be made in both hardware and software levels, the one affecting

the other in a remarkably high degree. We isolate the factors that affect those decisions

and are related to our problem.

It is not a new or surprising request that every information processing system has

to produce accurate and reliable results. The accuracy of the computation is connected

with the capability of the algorithm to classify the subjects correctly. It should be noted

that the problem of selecting the best algorithm with unbiased classiﬁcation is still open,

lot of research has been done and is still to be done. In this paper we present the results

of our experiments to give an indication of the ability of each method to classify the

subjects. We used three different sets of data but only one of these sets is presented here

since all results were similar.

An important factor which is of special interest and should be kept as low as possible

is the ﬁnancial cost. Suppose an embedded architecture which is part of a widely used

electrical appliance. A small reduction in the cost may result into a huge amount of

money if multiplied with the number of appliances produced. The cost of the hardware

is mainly affected by the selection of the processor, and the memory capacity and speed.

The cost of the processor as well as the memory requirements depend on the com-

plexity of the algorithm, the size of the code, the necessary space for storing data and the

required system performance. We are interested in what we can do from the algorithmic

point of view in order to reduce these requirements as much as possible. Thus, we re-

design the algorithms and implement them in ANSI C. We use techniques like integer

arithmetic, shifting instead of divisions where possible, loop unrolling, replacement of

library function calls etc. and investigate all known techniques for code optimization.

We evaluate the produced algorithms for accuracy again, for efﬁciency, for the size of

the code and the memory requirements. The results are used for comparative study.

In order to calculate the above characteristics for each algorithm we use the JouleTrack

151

tool [4]. Experiments were performed for StrongARM SA-1100 processor for operating

frequency of 206MHz.

Another interesting issue in the embedded system design is the ability to produce

results in real time. We break this requirement into two smaller: (i) the time interval

between two successive sets of input data should be enough so that all necessary calcu-

lations are completed and (ii) the system should produce output in a constant rate and

for every set of input data. The second requirement is not always possible, necessary or

it can be very expensive.

In a HRV system the actual input is in general the ECG signal, from which the se-

quence of beats are constructed by proper algorithms for detection of individual heart-

beats. The rate of the heartbeats is approximately, one per second. Thus, necessary

calculations for each beat should be completed in one second, plenty of time for both

simple and complex algorithms. When for coherence and redundancy of results the

HRV index is computed with more than one algorithm in parallel, the one second time

interval may not be enough. In this case a more powerful processor and/or faster mem-

ory units might be necessary. The ability to produce results for every input beat instead

of only producing the ﬁnal result at the end is desirable but not necessary. The physi-

cian needs only the ﬁnal value of the index after all computations have been completed.

However, the capability of the algorithm to produce intermediate results is an interest-

ing feature. As an example consider the case of 24 hours recordings, where an early

approximation of the ﬁnal result might be useful.

The growing importance of power consumption minimization affects drastically the

design of the embedded systems, since they are often part of mobile devices which

obtain energy through their batteries. The autonomy of these devices as well as the life

of the battery depend on the power consumption. Power consumption is mainly affected

by the selection of the processor and the memory system.

In order to have an estimation for the energy requirements we calculate the power

consumption for each algorithm. Each machine code instruction consumes a different

amount of power: indexed access to memory is more expensive than the direct one, mul-

tiplications are mode expensive than additions etc. We calculate the power consumption

of each algorithm using again the JouleTrack tool [4].

Another factor that affects the ﬁnancial cost and the power consumption is the inter-

face of the software with the rest of the embedded system. The device that the physician

will use must provide the maximum information, however, sometimes it is possible to

simplify the application interface without affecting signiﬁcantly the functionality, for

example a numerical display can sometimes substitute a graphical screen. The commu-

nication of an embedded software with the rest of the system is usually done through

speciﬁc hardware. Generally this is not expensive, however it should be kept to mini-

mal. In the HRV computation problem some algorithms produce only a single number

as an output while some other require a high deﬁnition graphical interface.

Finally, embedded systems are of low weight and small size. Mobile telephones are

typical examples where size and weight seems to be a challenge and affect drastically

the commercial value of the product. Small program size, low memory requirements,

low power consumption and simple application interface result into smaller and lighter

chips and batteries.

152

Day by day, the cost of the hardware is signiﬁcantly reduced, processors are becom-

ing more and more powerful and memory capacities larger, while batteries are getting

smaller and smaller and much lighter. However, the need for efﬁcient, lightweight, cost-

effective algorithms producing accurate and reliable results remains and will always be

interesting. Especially in problems like the HRV analysis, which ﬁnds application in

the development of wearable devices as well, the cost, the size and weight will always

be a challenge.

3 Methods

In [1] the most common methods for HRV analysis are presented. Examined here are the

standard deviation of RR intervals (SDNN), the standard deviation of the average RR

interval calculated in over short (usually 5 min) periods (SDANN), the square root of

the mean squared differences of successive RR intervals (RMSSD), the number succes-

sive RR intervals greater than x (usually 50ms) divided by the total number of intervals

(pNNx), the standard deviation of differences between adjacent intervals (SDSD), the

total number of all RR intervals divided by the height of the histogram of all NN inter-

vals (TI), the baseline width of the minimum square difference triangular interpolation

of the highest peak of the histogram of the intervals (TINN) and the power spectrum

density (PSD). We also examine the local linear prediction (LLP) and least squared ap-

proximation (LSA) which calculate the average prediction and approximation errors of

the timeseries [5] and the local fast approximation (LFA) which approximates the signal

with less accuracy but faster than LSA. Discrete Wavelet Transform (DWT) analyzes

the signal using wavelets and calculates the standard deviation in every scale of analysis

[2].

4 Implementation Issues

Several techniques for reducing the requirements of the embedded software develop-

ment were used in implementation level. The most interesting ones will be discussed in

this section trying to show how important the implementation level is and how much it

affects the system performance and the design choices at the hardware level.

We used integer arithmetic instead of a ﬂoating point one. Arithmetic operations

are much less expensive when operands are integer numbers. The size of an integer

in a typical processor is equal to the size of a word, usually much longer but never

smaller than two bytes even in low-performance cost-effective processors. An accuracy

of at least 2

levels for representing data has been proved more than acceptable for our

problem and does not affect the ﬁnal results.

Next, we eliminated expensive operations and/or library calls. Library calls are usu-

ally expensive parts of computation, since most of the times they perform complicated

operations. Moreover, the calling mechanism increases the total execution time, the

memory requirements, the size of the object code and the power consumption. Although

this overhead is not always signiﬁcant, it should not be ignored. We eliminated function

calls by modifying the algorithms where possible, or by replacing the call with other

operations more lightweight and faster.

153

Heuristic code optimization was also done depended on the the special charac-

teristics of each algorithms. Techniques like loop unrolling, reduction of the number

of memory accesses, or code size minimization can be characterized as heuristic ap-

proaches. We used the trial and error approach in the programming language level and

studied the effects in the assembly level. Some optimizations led to very good results.

5 Experimental Results

In this section we will present our experimental results. We will present graphs giving

indications about the capability of each method to classify subjects and tables with the

comparative experimental results for each algorithm including complexity, object code

size, memory and energy requirements and execution time.

Table 1. Comparative experimental for various HRV measures

SDNN SDANN RMSSD SDNNi SDSD pNN50 TI TINN

Obj. code before linking (KB) 1 1 0.9 1.1 1.3 1 0.9 0.7

Obj. code after linking (KB) 27 27 27 27 27 25 19 19

Obj. code linked & optim. (KB) 18 18 18 18 18 18 19 19

Memory requirements O(n) O(n/k) O(1) O(k) O(k+n/k) O(1) O(h) O(h)

Complexity O(n) O(n) O(n) O(n) O(n) O(n) O(n) O(n)

Average complexity O(n) O(n) O(n) O(n) O(n) O(n) O(n) O(n)

Exec. time before optim. (µs) 33381 8823 25541 33834 48269 17481 7738 7767

Exec. time after optim. (µs) 33381 2597 2319 3246 3154 2756 7738 7767

Power cons. before optim.(µJ) 11887 3142 9095 12048 17189 6225 2756 2775

Power cons. after optim.(µJ) 11887 925 826 1156 1123 981 2756 2775

Interface scalar scalar scalar scalar scalar scalar scalar scalar

Real time response no yes yes yes no yes yes yes

As mentioned in a previous section, the selection of the algorithm that categorizes

the subjects in an unbiased way is still open and is out of the scope of this paper. We

just present the results of our experiments to give a rough image of the classiﬁcation

capabilities of each algorithm.

We used three different sets of data and the results were similar. The ﬁrst set con-

sisted by 24 hours long signals from subjects with unremarkable medical histories and

normal physical examinations and subjects with angiographically conﬁrmed coronary

disease. Recordings were acquired using a Holter device. The second set consisted again

of control and patient subjects with coronary artery disease. Each recording was ap-

proximately 2 hours long and acquired using a digital electrocardiograph in a hospital.

The experiments presented here used a third data set described in [6]. Five young (21 -

34 years old) and ﬁve elderly (68 - 81 years old) rigorously-screened healthy subjects

underwent 120 minutes of continuous supine resting while continuous electrocardio-

graphic (ECG) signals were collected. All subjects provided written informed consent

154

SDNN SDANN RMSSD SDNNi

SDSD pNN50 TI TINN

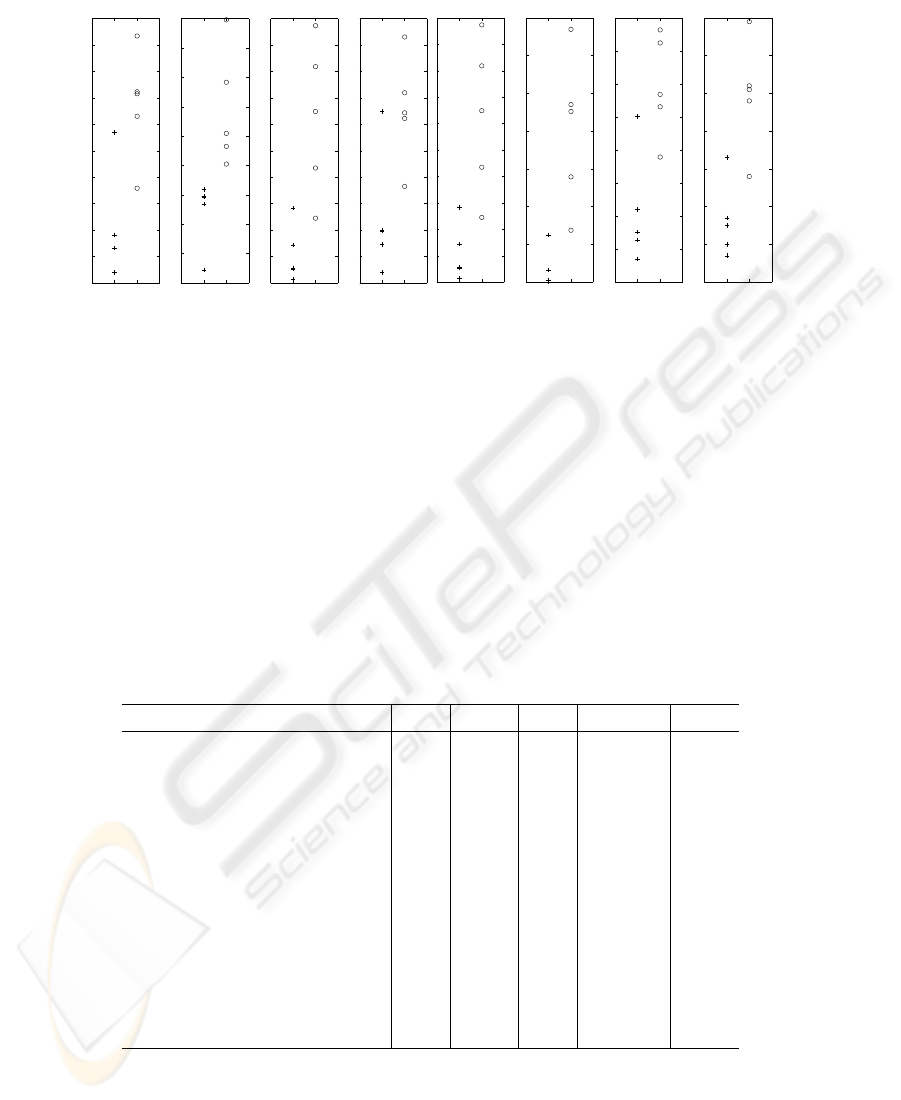

Fig.1. Categorization results for SDNN, SDANN, RMSSD, SDNNi, SDSD, pNN50, TI and

TINN. Circles (“o”) are for younger subjects and crosses (“+”) for elderly ones

and underwent a screening history, physical examination, routine blood count and bio-

chemical analysis, electrocardiogram, and exercise tolerance test. Only healthy, non-

smoking subjects with normal exercise tolerance test, no medical problems and taking

no medication were admitted to the study. All subjects remained in a resting state in si-

nus rhythm while watching a movie to help maintain wakefulness. The continuous ECG

was digitized at 250 Hz. Each heartbeat was annotated using an automated arrhythmia

detection algorithm, and each beat annotation was veriﬁed by visual inspection. The RR

interval time series for each subject was then computed. Figures 1, 2 and 3 present the

classiﬁcation of subjects for all investigated algorithms.

Table 2. Comparative experimental for various HRV measures

LLP LSA LFA PSD DWT

Object code before linking (KB) 0.9 1.1 1.6 2.2 1.4

Object code after linking (KB) 25 27 26 28 27

Obj. code linked & optimized (KB) 18 19 19

Memory requirements O(k) O(k) O(k) O(n) O(n)

Complexity O(n

) O(n) O(n) O(nlog

n) O(n)

Average complexity O(nk) O(n) O(n) O(nlog

n) O(n))

Exec. time before optimiz.(µs) 65014 132981 50384 489748 477908

Exec. time after optimiz.(µs) 2994 5292 3575

Power consumpt. before optim. (µJ) 23151 47355 17942 174399 170183

Power consumpt. after optim.(µJ)

1066 1885 1273

Interface scalar scalar scalar vector vector

Real time response yes yes yes no no

155

1 2 3 4 5 6 7 8

Categorization with Wavelet Decomposition

Scales of Analysis

Mean Length of Detail Coefficients

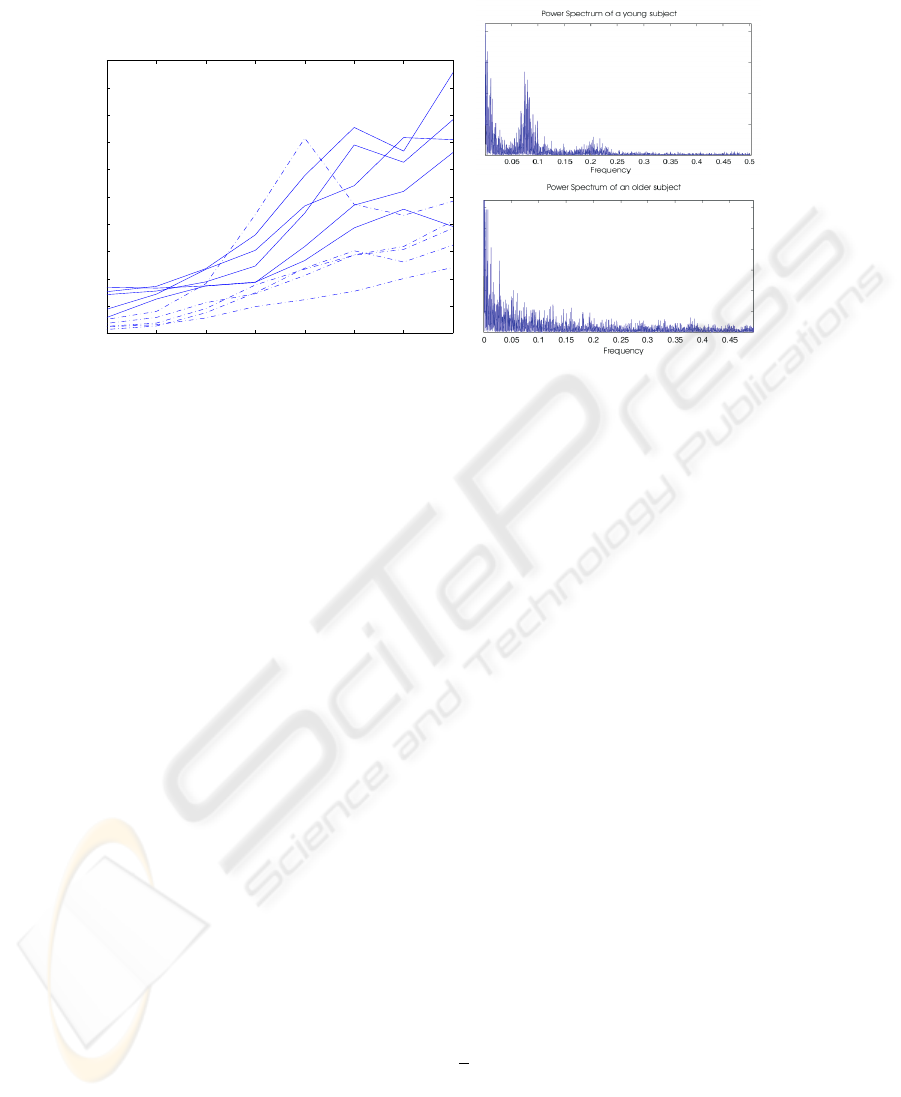

Fig.2. Left: Categorization results for Haar Wavelets Decomposition, dotted thin lines are for

elderly subjects and solid lines for younger ones. Right: Power Spectrum Density of a normal

subject (up) and a subject than presents decreased heart rate variability (down), the power in the

case of the elderly subject exhibits a continuous broadband spectrum

In the following, the experimental results presented in tables 1-2 will be discussed,

taking into consideration the size of the object code, the memory requirements, the

complexity, the execution time, the power consumption, the interface and the ability to

response in real time. Experiments were performed for StrongARM SA-1100 processor

for operating frequency of 206MHz using the JouleTrack tool[4].

The size of the object code is investigated before and after linking as well as after

the optimization. The size of the code before linking is interesting in the case in which

more than one HRV indices are implemented in embedded software. The optimized

code results from the application of the optimization techniques presented in a previ-

ous section. The differences appearing in tables 1-2 vary from 0.9KB to 2.2KB before

linking and from 18KB to 19KB after linking and optimization.

The complexity of the algorithms is O(n) in most of the cases, where n is the size

of the signal. An exception to the rule is the LLP algorithm which presents a relatively

high complexity O(n

). However the average complexity is only O(nk), where k is

the size of the sliding window and can be reduced to O(n) when the calculation of the

predicted value uses the value of the previously predicted point. The P SD calculation

present a complexity of O(nlogn).

The memory requirements have been computed in a similar way. The algorithms

SDN N, P SD and DW T need to store the whole signal in an array, thus the spacial

complexity is O(n). The calculation of the indices SDNNi, LLP , LSA, LF A need

to store only a vector with size k, equal to the size of the sliding window. The SDANN

metric requires O(n/k), since we need to store one value for each sliding window. The

same with SDSD, or more precisely O(k +

), since we also have to keep a vector

with the sliding window. TI and T INN use a vector of length h to store the histogram,

156

LLP

LSA LFA

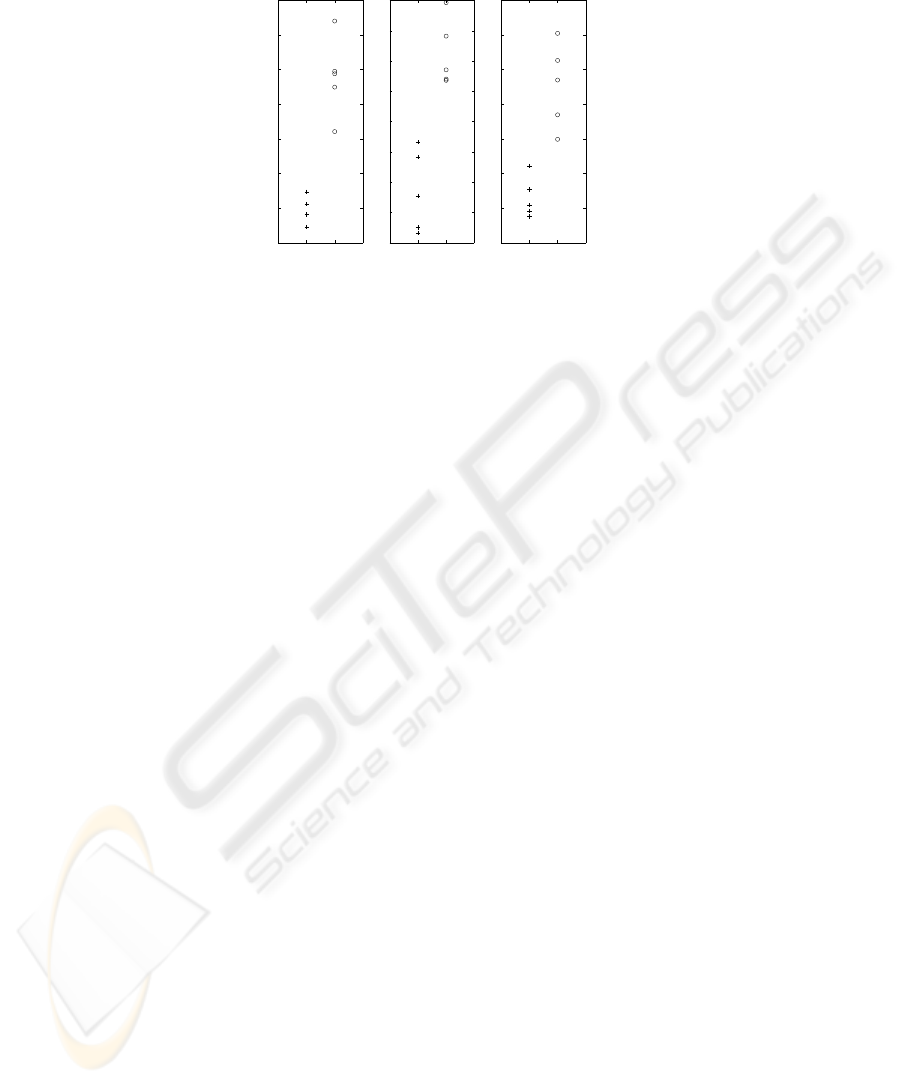

Fig.3. Categorization results for LLP, LSA and LFA. Circles (“o”) are for younger subjects and

crosses (“+”) for elderly ones

where h is the size of the vector that stores the histogram. The memory required for the

calculation of the RMSSD and pNN x indices is constant and independent from the

size of the input or the parameters of the algorithm.

Experimental results for the execution time and the power consumption are also

presented before and after optimizations. The size of the input is 8192 samples and the

same input has been used for all algorithms. The differences for both execution times

and power consumption presented in tables 1-2 are sometimes remarkable. As long as

the interface of the system is concerned, all algorithms return a single value as a result

except the time and frequency analysis methods as shown in table 2, which produce a

vector of values. For these algorithms a graphical interface would also be useful. Apart

from the SDNN , P SD and DW T which require that the whole signal is available

before the ﬁrst output is produced, all other algorithms can be considered as real time.

References

1. European Society of Cardiology: Heart rate variability, standards of measurement, physiolog-

ical interpretation and clinical use. European Heart Journal 17 (1996) 354–381

2. Teich, M., Lowen, S., Vibe-Rheymer, K., Heneghan, C.: Heart rate variability: Measures and

models. In: Nonlinear Biomedical Signal Processing Vol. II, Dynamic Analysis and Mod-

elling, New York (2001) 159–213

3. Berntson, G., Bigger, J., Eckberg, D., Grossman, P., Kaufmann, P., Malik, M., Nagaraja, H.,

Porges, S., Saul, J., van der Molen, P.S.M.: Heart rate variability: Origins, methods, and

interpretive caveats. Psychophysiology 34 (1997) 623–648

4. Sinha, A., Chandrakasan, A.: Jouletrack - a web based tool for software energy proﬁling. In:

Design Automation Conference. (2001) 220–225

5. Manis, G., Alexandridi, A., Nikolopoulos, S.: Diagnosis of cardiac pathology through predic-

tion and approximation methods. In: Seventh International Symposium on Signal Processing

and its Applications, Paris, France (2003)

6. Iyengar, N., Peng, C.K., Morin, R., Goldberger, A., Lipsitz, L.: Age-related alterations in the

fractal scaling of cardiac interbeat interval dynamics. Am J Physiol 271 (1996) 1078–1084

157
