DIAMOND : A Physical Multiagent Systems Codesign

Approach

Jean-Paul Jamont

and Michel Occello

Institut National Polytechnique de Grenoble, LCIS, 26000 Valence, France

Universit

e Pierre Mend

es, LCIS/INPG, 26000 Valence, France

Abstract. Multiagent systems are well suited to specify requirements for open

physical complex systems. However, up to now, no method allows to build soft-

ware/hardware hybrid multiagent systems. This paper presents an original method

for designing physical multiagent systems.

1 Introduction

Complex artiﬁcial cooperative physical systems are involved in application domains

as pervasive computing, intelligent distributed control or wireless computing. Physical

systems have a physical reality which does not apply only to the entities but also to the

environment in which they evolve. The system and its environment are strongly related.

In this context, the system elements integrate generally a software part and a hardware

part (electronic cards, sensors, effectors). The high dynamics, the great heterogeneity of

elements and the openess make a multiagent approach highly proﬁtable for these artiﬁ-

cial complex systems. But the existing multiagent design lifecycles have to be modiﬁed

to take into account software/hardware hybridation particularities.

This paper aims to present our approach called DIAMOND (Decentralized Iterative

Multiagent Open Networks Design) for the design of open multiagent physical complex

systems.

Our method can be qualiﬁed of codesign because it uniﬁes the development of the

hardware part and the software part : the partitioning step is pushed back at the end

of the life cycle. A multiagent phase allows the management of collective features. A

component phase is used to design the elementary entities of the system (the agents)

and to facilitate the hardware/software partitioning. By lack of place in this paper, we

focus only on some steps of the method. They are described and illustrated through an

robotic design case study.

2 Overview of the DIAMOND method

Our iterative lifecycle. The DIAMOND method is built to design physical multia-

gent system. Four main stages, distributed on a spiral cycle (ﬁg 1), may be distin-

guished within our physical multiagent design approach. The deﬁnition of needs deﬁnes

Jamont J. and Occello M. (2005).

DIAMOND : A Physical Multiagent Systems Codesign Approach.

In Proceedings of the 1st International Workshop on Multi-Agent Robotic Systems, pages 177-182

DOI: 10.5220/0001195901770182

 SciTePress

what the user needs and characterizes the global functionalities. The second stage is a

multiagent-oriented analysis which consists in decomposing a problem in a multiagent

solution. The third stage of our method starts with a generic design which aims to build

the multiagent system, once one knows what agents have to do without distinguishing

hardware/software parts. Finaly, the implementation stage consists in partitioning the

system in a hardware part and a software part to produce the code and the hardware

synthesis.

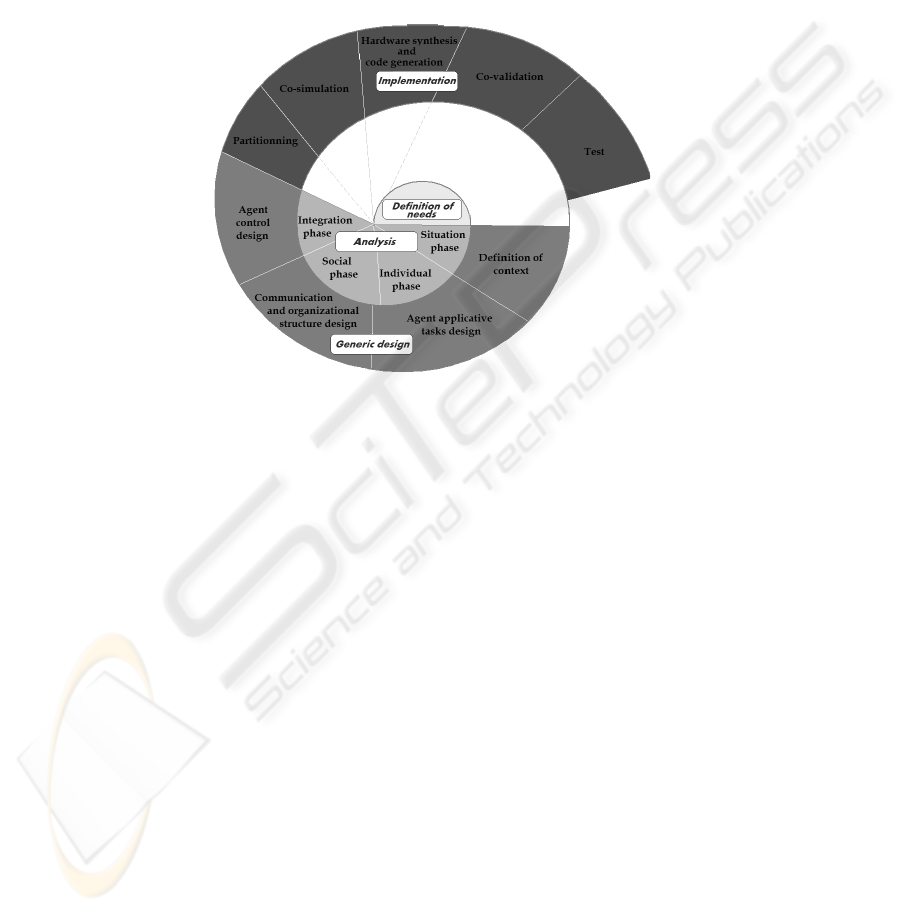

Fig.1. Our lifecyle

Most existing multiagent methods usually distinguish only analysis and design phases

[1]. Very few methods deal with other phases. We can ﬁnd for example a deployment

phase in MASSIVE [4] or Vowels [5]. This deployment phase takes in our particular

ﬁeld a great importance since it includes the hardware/software partitioning. To cover

the whole lifecycle, different formalisms are required to express different things at dif-

ferent levels [2], for this reason we adopt a lifecycle using four stages mixing different

expressions using more or less formal paradigms and languages (agents, components,

Finite State Machines, Hardware Deﬁnition Languages). The most current lifecycle

used in multiagent methods is the classical cascade lifecycle.

A last and major difference between DIAMOND and other multiagents approach

is, as said previously, that DIAMOND uniﬁes the development of the hardware part

and the software part. In a traditional system design, the partitioning step stands at the

beginning. In fact, a hardware requirement and a software requirement are created from

the system requirement. The software part of the system is built using a multiagent

method and its associated lifecycle.

The case study. To illustrate the various phases and activities of our method, we

will use a case study dealing with robotic design. To make the illustration easily under-

standable, we will adopt simpliﬁed system requirements. The experimental conditions

are inspired by [3]. Robots evolve on a football ﬁeld. A video recorder system makes it

possible to know the position of each robot as well as of the ball. These positions are

periodically broadcasted to all robots. If the ball goes out of the limits of the ﬁeld, a

robot of the nonfaulty team recovers the ball and plays (the order is given by the ref-

eree). If a robot has no more battery or is dysfunctioning, the match is stopped (the

order is given by referee for human safety reason) and the robot is withdrawn from the

ﬁeld: all robots must be then motionless. At the beginning of a match the robots must

be located in their camp and the referee decides to give the gardian role to one robot of

each team. So, the game is open and the team, which marks the higher number of goals

in 90 minutes, wins.

3 Deﬁnition of needs

This preliminary stage begins by analysing the physical context of the system (identify-

ing workﬂow, main tasks, etc...). Then, we study the different actors and their participa-

tive user cases (using UML use case diagrams), the services requirements (using UML

sequence diagram) of these actors.

The second step consists in the study of the modes of steps and stops. This activity

is very signiﬁcant because it enable to structure the global running of the system. It is

generally wishable that the system functions in autonomy. But working with physical

systems imposes to know all the other possible behaviors precisely when the system

starts, when it goes under maintenance etc.

This activity puts forward a restricted running of the system. It allows to specify the

ﬁrst elements necessary for a minimal fault-tolerance. Moreover, it enable to identify

cooperative (or not) situations and to deﬁne recognition states in order to analyse, for

example, the self-organizational process of an application. This activity allows to take

into account the safety of the physical integrity of the users possibly plunged in the

physical system.

We have deﬁned 15 differents modes that we regroup in 3 families. The stops modes

which are related to the different procedures for stopping and to deﬁne associate recog-

nition states. The steps modes which focuses on the deﬁnition of the recognition states

of normal functionning, test procedures etc. The failing operations modes which con-

centrates the procedure allowing to a human maintenance team to work in the system

or to specify rules for restricted running.

Application to our case study. We ﬁnd the following actors. The referee (logical actor)

manages match parameters (choice of a goalkeeper and a camp for each team, veriﬁca-

tion that robots respect the rules) and authorise the human to withdraw a robot when all

robots are motionless. The manager (physical actor) withdraws robot when a problem

occurs. The ball (physical actor) moves under the robot actions. The opposing team

(physical/logical actor) shares the ﬁeld with us. The camera system broadcasts the co-

ordinate of each robot and of the ball.

There is two user cases. The conﬁguration expresses that the referee chooses a ﬁeld and

a goalkeeper for each team. This user case triggers another one : the game opening the

game. For our application, the identiﬁed modes are:

1. Modes of stops: Two modes of stops must be characterized: other modes are not

exploited.

– Idle: In a idle mode, the robots must be motionless.

– Stops requested on normal mode : when a robot dysfunction occurs, the referee

can decide to freeze the game.

2. Modes of steps:

– Normal mode: in this mode all the robots must answer to the referee requests,

there is no emergency stop.

– Mode of preparation: during the preparation phase the robots are positioned

on the ground. Robots should neither move nor use their actuators. This mode

ends when the parameters setting period starts.

– Mode of test: one can want to calibrate the maximum power for shooting.

3. Failing modes: only the management of the emergency stop is relevant in our ap-

plication.

– Mode of stop aiming to ensure the safety: If an emergency stop is activated,

robots do not have the right to move or use their effectors.

4 Multiagent-oriented analysis

The multiagent stage is handled in a concurrent manner at two different levels. At the

society level, the multiagent system is considered as a whole. At the individual level,

the system’s agents are built. This integrated multiagent design procedure encompasses

ﬁve main phases discussed in the following.

Application to our case study : situation phase. Each robot can know its geographical

position, the position of the ball and of the other robots. Dimensions of the ground are

known and the ﬁeld of each team is communicated at the beginning of each part. The

positions of each robot can be memorized at different dates to estimate displacements,

directions of the robots and their trajectories. The trajectory of the ball obeys to physical

law. Agent can estimate this trajectory and act on it.

The active entities are the robot-players. The ball is a passive entity which obeys to

agent action (shooting) by a displacement according to the physic laws.

Application to our case study : Individual phase. The agent world representation

consists in a collection of triplets (id,x,y) and in the ﬁeld dimension.

In our application, robot players are modeled by agents. Their individual capabilities

can be speciﬁed using a tree to show the different action levels.

We specify the agent context with a context diagram (see ﬁg 3).

After one iteration to take into account the society phase, individual behaviors are

implemented using ﬁnite state machine. We can deﬁne an agent with a goalkeeper be-

havior. Other agent can alternate two differents behaviors (shooter or defender). For

example, the goalkeeper behavior deﬁne that the agent must always to be on a possible

trajectory of shooting.

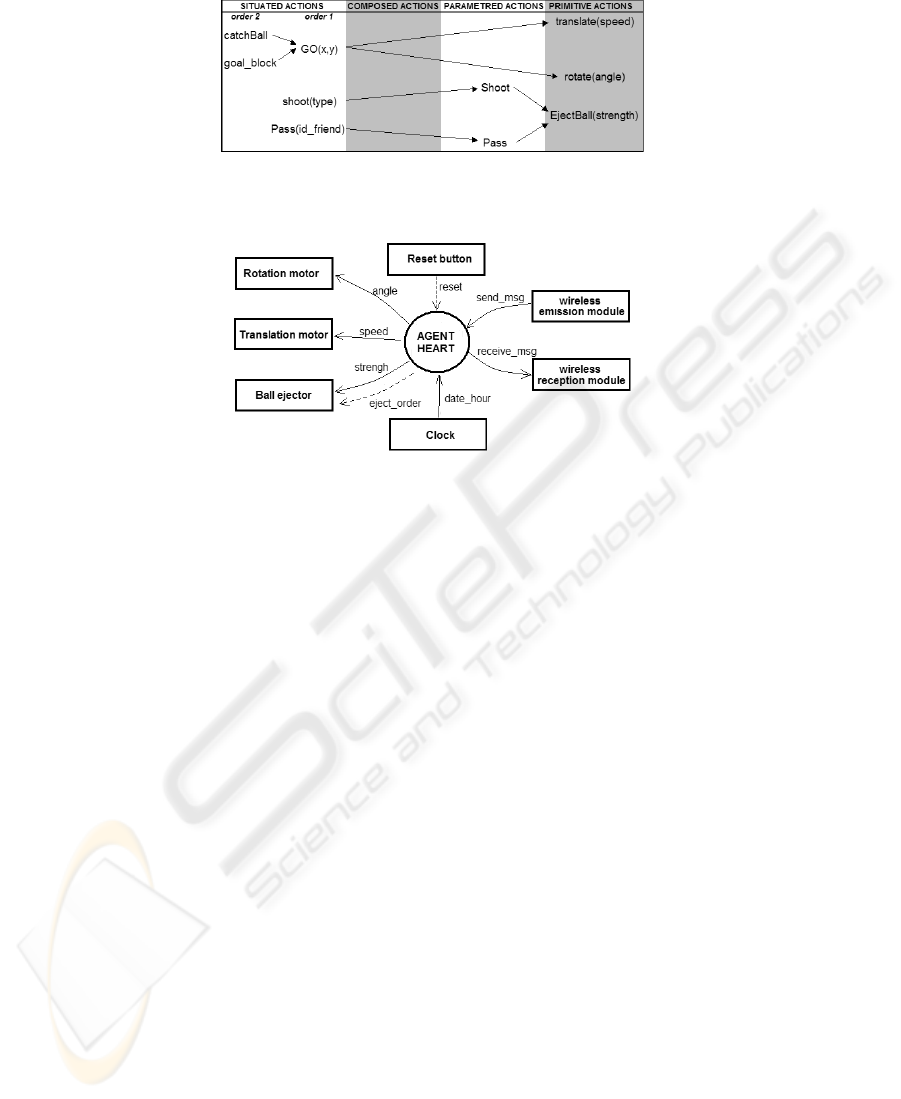

Fig.2. Actions scheme

Fig.3. Context diagram

Application to our case study : Society phase. Representation of others: The other

players positions can be known by the capture of information from the video system

(WIFI module). Their directions can be estimated if agent can memorize the previous

positions. The friend intention can be announced.

Interactions between the agents are carried out by exchange of messages. An agent

must be able to communicate with its team to diffuse its intention. It can use a peer-to-

peer communication to solve a conﬂict or to choose a trajectory with a friend.

Collaborative actions can be instantiated : a player can request the ball when it has

an occasion of shooting. It can ask somebody to change position to attract an opponent

elsewhere.

Organization. A TEAM according to the requirement is composed of a goalkeeper

and three other agents which can be SHOOTER or DEFENDER.

Collective behavior. As seen previoulsy, ﬁnite state machines can implemented col-

lective behavior.

Application to our case study : Integration phase. We illustrate this phase with two

examples.

Inﬂuence 1: If agent wants to move to a point, somebody (friend or not) can be on its

trajectory.

Correction 1: If the agent on the trajectory is a friend, the agent owning the ball has the

priority.

Inﬂuence 2: Two agents request the ball for shooting.

Correction 2: Agent use an election protocol (they exchange an estimation of their

sucess probabilities).

5 Conclusion

We work currently on the tool associated with the method that we propose. It is created

using the Java language. The part which relates to the creation of agents creation with

components, manual partitioning and automatic generation of code are operationnal.

This work proposes some innovative contributions in term of hybrid software/physical

multiagent lifecycle. It proposes components used as tools for integration, allowing

software or hardware derivation. Components are thus used in this approach as units of

implementation but further as unit of design allowing the assembly.

Our future work concerns the MASC tools (MultiAgent System Codesign) associ-

ated with the DIAMOND method.

References

1. Scott A. DeLoach, Mark F. Wood, and Clint H. Sparkman. Multiagent systems engineering.

International Journal of Software engineering and Knowledge Engineering, 11(3):231–258,

2001.

2. Daniela E. Herlea, Catholijn M. Jonker, Jan Treur, and Niek J. E. Wijngaards. Speciﬁcation of

behavioural requirements within compositional multi-agent system design. In LNCS, volume

1647, pages 8–27. Springer-Verlag, 1999.

3. H.-P. Huang, C.-C. Liang, and C.-W. Lin. Construction and soccer dynamics analysis for an

integrated multi-agent soccer robot system. In Natl. Sci. Counc. ROC(A), volume 25, pages

84–93, 2001.

4. J. Lind. Interative Software Engineering for multiagent systems: The MASSIVE Method, vol-

ume 1994 of LNCS/LNAI. Springer Verlag, 2001.

5. P.-M. Ricordel and Y. Demazeau. From analysis to deployment: A multi-agent platform sur-

vey. In Proceedings of the First International Workshop on Engineering Societies in the Agent

World, pages 93–105, London, UK, 2000. Springer-Verlag.
