CHARACTERISTICS OF THE BOOLEAN WEB SEARCH QUERY

Estimating success from characteristics

Sunanda Patro and Vishv Malhotra

School of Computing, Private Box 100, University of Tasmania, Hobart 7001 Australia

Keywords: Boolean query, web search engines, precision, recall.

Abstract: Popular web search engines use Boolean queries as their main interface for users to search their information

needs. The paper presents results a user survey employing volunteer web searchers to determine the

effectiveness of the Boolean queries in meeting the information needs. A metric for measuring the quality of

a web search query is presented. This enables us to relate attributes of the search session and the Boolean

query with its success. Certain easily identified characteristics of a good web search query are identified.

1 INTRODUCTION

Web search engines are central to the Web browsing

today. Popular web search engines index the

information on the Web in a manner that allows the

web searchers to quickly locate some information of

interest to them most of the times. These days few

users bookmark or memorise many sites to surf the

Web. A user survey (Spink, 2002) in 1999 reported

that some 70% of the information-seeking web-

interactions begin through a search engine. Another

survey in 2000 (Holscher and Strube, 2000) reported

this number to be 81%. The increased sophistication

of the search engines would reduce the need to

remember site addresses and increase the proportion

of searches that begin from a search engine over

time.

There have been many surveys to characterise

user interactions with the search engines. Some

researchers have focused on the transaction logs to

determine nature of the search sessions and the

characteristics of queries written by the users. Others

have used questionnaire-based survey to determine

what the searchers seek to do.

We have not seen any survey that relates the

characteristics of a search session or the query with

the success they have in satisfying users’

information needs. The issue is important for it alone

can tell us how effective are the Boolean query

interfaces of the popular web search engines in

helping the searchers satisfy their information needs

by locating the best documents. A user survey

(Broder, 2002) reports that over two-thirds of the

users, when asked about the topic of their search,

state: I seek a good site on this topic, but I don’t

have a specific site in mind. More than three-

quarters of the surveyed users desire to access the

best site regarding this topic.

Analyses of the web search logs, for example,

Jones et al (1998), Jansen (2000), Jones et al (2000)

however, suggest that users do not make full use of

the resources and facilities provided by the search

engines. A typical query tends to be simple with

only one to three words or phrases in it. An average

query session lasts only one or two attempts at query

refinement. The anecdotal evidence suggests that the

users seeking uncommon and poorly understood

information face a difficult task in searching the

Web for their information needs.

This paper reports a survey that relates the

properties of the search sessions with the success

achieved by the searchers in meeting their

information needs. Unlike the logs of transactions

used by the other researchers, we used volunteers to

search the Web for specified information. The

success of the human effort was compared against

the search queries synthesised by a program. The

program is known to perform better than humans at

very high level of confidence (alpha=0.0001). This

allows us to assign objective measures to the

successes of human queries. However, it makes the

process very labour-intensive. The volunteers had to

download a lot of pages for their queries as well as

for the synthesised query and then classify each

document as being relevant or non-relevant to the

information needs. This limits the amount of data we

collect to draw inferences.

The paper is organized as follows. Section 2

339

Patro S. and Malhotra V. (2005).

CHARACTERISTICS OF THE BOOLEAN WEB SEARCH QUERY - Estimating success from characteristics.

In Proceedings of the First International Conference on Web Information Systems and Technologies, pages 339-344

DOI: 10.5220/0001226403390344

 SciTePress

explores results from related works to lay down

context and background for the survey results.

Section 3 gives an overview of the survey and

defines metrics to measure the quality of the queries.

Section 4 contains the analysis of the data collected

from the survey. Section 5 is the concluding section

of the paper.

2 THE RELATED WORKS

The information seeking interactions over the Web

often start with a search using a search engine. With

the exception of dynamically changing information

sources such as news items, search engines are

effective tools for locating the information.

However, it is not uncommon for the web-savvy,

domain experts (Holscher and Strube, 2000) to

bookmark certain specialised and trusted websites to

quickly access information that they believe meets

their need for quality. Likewise, other users too may

bookmark some trusted sites for reference; for

example, a site providing information about the

medical emergencies.

The continuing need to bookmark the sites may

be viewed as an evidence of a limitation of the

current web search paradigm. Experienced web

users report lack of domain knowledge regarding the

individual search question as a significant obstacle

in construction of a query (Holscher and Strube,

2000). Query construction remains a challenging

task in certain circumstances for an average

searcher.

An analysis of usage logs from a digital library

(Jones et al 1998) and a direct user survey (Holscher

and Strube, 2000) report that the user queries are

short and generally consist of 1, 2 or 3 words (terms)

only. Domain savvy users construct queries with

well chosen but fewer words than those who do not

know the search domain well. Average query

lengths have been reported to be between 2 to 3

words. A typical searcher tends to rely on the default

operator for the search engine to define their queries

(Jones et al 1998). An average query is 2.21 words

long with a standard deviation of 1.05. The reported

length of a typical user session, as measured by the

number of queries in a session, to satisfy the user’s

information need is also short. Few sessions extend

beyond 4 queries. Average session length of 2.04

queries is reported by Jones (2000). Significantly,

they report that 64.4% of the queries do not lead to

the searcher viewing any document. The above

reported facts combine to suggest that a session is

concluded once the searcher has viewed a document.

The average number of the documents viewed by the

users has been reported to be about 2.5. No viewing

together with viewing of one or two of the top

ranked links account for over 90% of the post search

viewing actions.

To summarise, the web search queries used for

information searching are not very sophisticated. It

is unclear how effectively the web searchers are able

to locate the most relevant document for their

information needs.

3 THE SURVEY AND METRICS

The survey reported in this paper explores the

following question: How well does the common

Boolean query paradigm supports human searchers

in devising web search query that simultaneously

support good coverage (recall) and good precision

when the search domain is relatively unfamiliar to

the searcher. Are there clues to spot a good query?

Before presenting the results from our survey, we

define the metrics that we will use to measure the

quality of the query.

3.1 Measuring Quality of a Query

Information retrieval literature (Chakrabarti 2003,

Baeza-Yates and Ribeiro-Neto, 1999, Witten and

Frank 2002) is the main influence on the web search

practices and measurements. Recall and precision

are often quoted as the common metrics. Given a

corpus of documents containing r relevant

documents and n non-relevant documents, let q be

the number of documents a query selects. Suppose

the precision of the query be p. That is, query selects

q*p relevant documents and the remaining q*(1-p)

documents are non-relevant to the information needs

of the search. Recall for the query is computed as

q*p/r. As a single metric to measure the quality of a

query, F-factor or harmonic mean of the recall and

precision is often used in information retrieval

literature (Manning and Schtze 1999; Powers 2002).

The measure is defined as 2/(1/p+r/(q*p)).

However, the Web is a huge and ever-expanding

collection of documents and resources. Nor is it fully

indexed – only a fraction of the documents on the

Web have been indexed by the search engines. Thus

it is not possible to use traditional information

retrieval based metrics to quantify the quality of a

web search query. It is not possible to provide values

for r for every conceivable information need.

Precision is commonly used measure of the web

query quality. We will use P@20 – the number of

relevant documents among the first 20 links returned

by a query – as the measure of precision in this

paper.

WEBIST 2005 - WEB INTERFACES AND APPLICATIONS

340

Recall is more difficult to determine. Instead we

define coverage as a measure of the utility of the

documents accessed by the query. Let e be the

estimated number of documents a query returns.

Google prints this estimate for each query. We

prefer the coverage to have values in the same range

as precision, 0 to 20. For a query with precision p

that locates e documents, we estimate the number of

relevant documents returned by the query to be e*p.

The marginal utility of the relevant documents to

the searcher decreases with size. All reported

surveys have suggested that users are more likely to

view the top ranked links from the output of a web

search query than those lower down (see for

example, Jones, 1998 and Jones, 2000). We choose

to use logarithm to base 2 of e*p as measure of the

utility of the returned links. This utility will be used

as the metrics to express query coverage.

The choice of the base is somewhat arbitrary but

is motivated by the following remark in Jones

(2000): 12.7% of all viewed documents were located

at the first position in the result list. The next most

common location was the second position (6.8% of

viewed documents). The interest has diminished to

about one-half for the second ranked document.

3.2 How the Data was Obtained

To collect data for this exercise, we first identified a

number of topics to search. Each topic area was

identified by a single word keyword. For each of

these topics we prepared a short description in the

form a checklist to provide a consistent basis to

describe the nature of information that is to be

searched.

For each topic, the title keyword was used to

search and download about 25 or more pages. These

pages were then classed as relevant or irrelevant

based on the checklist. The classified pages were

then used to synthesise a query that selects relevant

documents while rejecting irrelevant documents

using the algorithm detailed in (Malhotra et al 2005).

In each survey session, a volunteer was given a

topic to search along with the checklist and some

sample relevant documents. All volunteers used

Google search engine for their search starting with

the single topic word as their first query. We shall

refer to this query as a naïve query. The volunteer

then refined the query to select the best collection of

documents. No constraint was placed on the

volunteer regarding the time, number of tries or

quality of their query.

The volunteer specifies the final query when they

have the query formed. In each session, twenty

documents were downloaded using the volunteer’s

query and another 20 were downloaded using the

synthesised query. The volunteer then classified the

two sets of documents based on their understanding

of the information needs consistent with the

checklist provided to them.

A total of 39 sessions were surveyed. Some

topics were searched by more than one volunteer.

Likewise some volunteers helped us with more than

one topic. Statistical summary of the data is

provided in Table 1.

Table 1: Summarising statistics for the survey and other

data reported in Table 1.

Naïve 1-

word query

User devised

query

Synthesised

query

Statistics

cover

age

cover

age

cover

age

Minimum 0.5 14.6 10 8.4 12 12.6

Average 6.3 18.6 14.9 14.4 18.2 15.8

Maximum 17 20 20 20 20 20

Median 6 19.4 15 13.9 19 14.9

Std. Dev. 3.9 1.6 2.8 2.8 1.8 2.5

4 ANALYSIS AND INFERENCES

4.1 Session Length and Termination

Condition

A number of influences determine the perseverance

of the volunteers to devise a query that they believe

effectively satisfy the information need. The session

lengths observed in the survey consists of one to

three refinements (after the initial query) giving an

average session length of 2.64. The session length in

our survey matches with those observed by the other

researchers using different sources of data. Average

session lengths of 2.02 and 2.8 queries are quoted in

(Silverstein et al, 1999) from different researchers.

Precision of the query emerges as one of the

main criteria used by the volunteers to access the

query quality. No session returning less than 10

relevant documents among the top ranked 20

retrieved links was observed in the survey. Also, we

note that all human queries have precision equal to

or above the original naïve query – no volunteer has

returned the original naïve query as their final

choice. Again we believe that the precision of the

naïve query sets a lower-bound on the precision for

the volunteers. Every volunteer tried to exceed this

target value.

Human users (that is, volunteers) do not seem to

regard coverage of the query as a vital factor. Some

queries given by the volunteers had lower harmonic

mean of coverage-precision combine then the

CHARACTERISTICS OF THE BOOLEAN WEB SEARCH QUERY: Estimating success from characteristics

341

original naïve query. Yet our observations support

the following hypothesis at 99.99% confidence level

(alpha = 0.0001): F-factor value of the users’

Boolean web search query is more than the

corresponding value for a naïve single word query

for the topic.

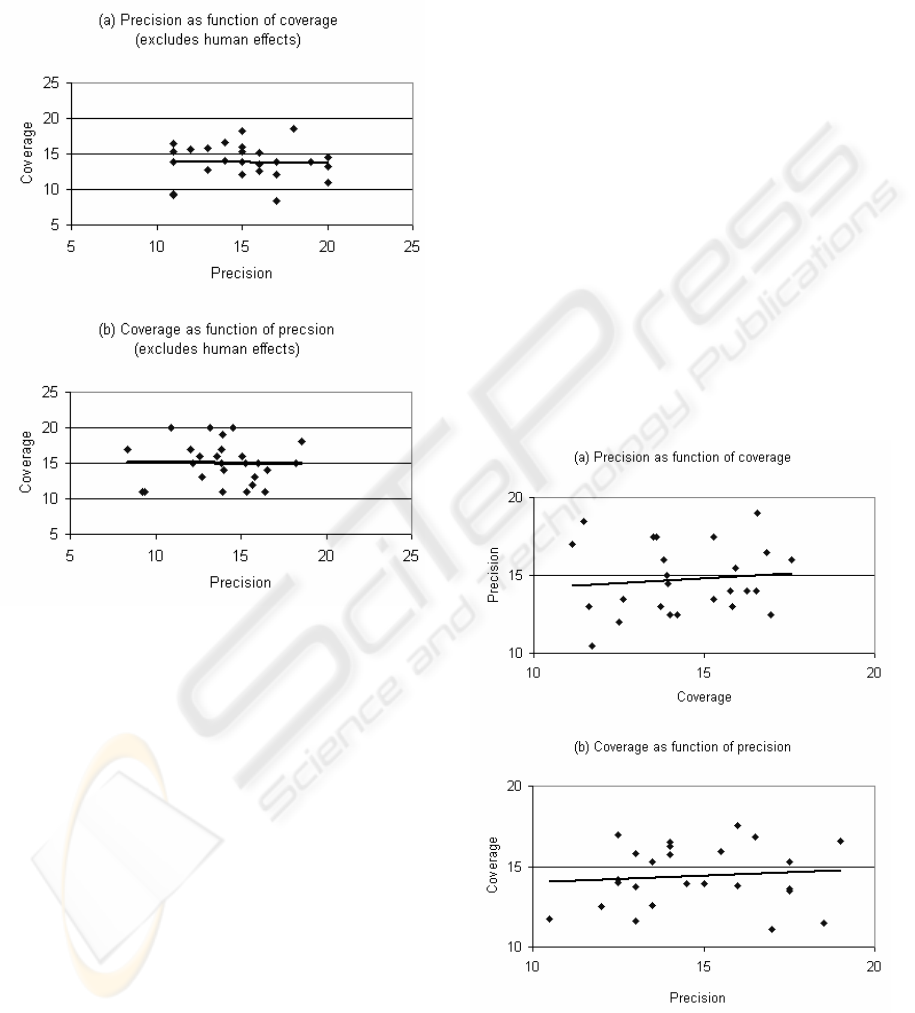

Figure 1: Relationships between precision and coverage of

volunteer queries with the effects of query averaged out.

Average value of the range variable emerges as the best

prediction in these graphs. (Note: the trend line in (b)

overlaps the grid line at C=15).

4.2 Trading Coverage for Improved

Precision

The basic premise in devising a Boolean web search

query to select relevant documents is that one can

increase precision of the query by sacrificing some

coverage. Ranking algorithms used by the web

search engines to order the links play their part in

this process.

This trade-off needs to be analysed to separate

the effects of the query from those inherent in the

topic due to the volume and nature of its presence on

the Web. If we consider only those samples from

survey which had the topics repeated, we may

expect the effects of good queries cancelled against

the poor queries for the same topic; thus the plotted

relationships between precision (P) and coverage (C)

will only be influenced by the Web specific

properties of the topics.

Figure 1 depicts the relationship between

precision and coverage for these samples in the

survey. As is evident from these graphs, topic of the

search does not contribute to any (positive or

negative) trend between metrics precision and

coverage. The correlation coefficient between these

metrics is only 0.03 over these cases.

To determine the relationships between precision

and coverage in the presence of query effects we

consider all samples of the survey. In this case

precision and coverage values for topics surveyed

multiple times have been replaced by their average

values. We note a significant correlation coefficient

of 0.3 between the precision and coverage. In turn,

as evident in Figure 2, the linear regression

relationships between the metrics were determined

to be: P = 0.28C+10.8 and C = 0.32P+9.6.

The positive correlation between precision and

coverage and also between coverage and precision

highlights a fundamental property of a good query.

A better query is one that returns higher values for

precision together with good coverage. Thus, F-

factor is an appropriate measure of the query quality.

Figure 2: Observed relationships between precision and

coverage induced by the variations in the query quality.

WEBIST 2005 - WEB INTERFACES AND APPLICATIONS

342

4.3 Characteristics of a Good Query

The number of attempts made by a volunteer to

improve the query had palpable benefit to the

precision of the query over the initial naïve query.

Average increase in precision noticed from a single

attempt to improve the query is 7.2, from two

attempts the increase is 9.3, and from three attempts

it is 13. A part of this improvement is attributable to

the extra choices that become available from

multiple attempts to pick the best case. At the same

time, a committed volunteer is likely to make more

attempts at improving the precision of the query;

thus contributing to the observed trend. A quadratic

trend line showing precision as function of attempts

to improve is shown in Figure 3.

The number of terms (T) in a query is one of the

primary characteristic of a Boolean query. The

expected precision of a query increases nearly

linearly with the number of terms in query (T): P =

2.28T+7.4 for number of terms T<5 (see Figure

4(c)). Thereafter, there is a drop in the average

precision for T=5.

We had no case of a volunteer’s best query with

6 or more terms. We believe that human users begin

to have difficulties in effectively organising Boolean

queries with 5 or more terms. A previously reported

transaction log based analysis (Jones, 1998) has

reported that less than 10% of user queries in the log

records had 5 or more terms.

Table 2: Average query precision as a function of terms in

query and number of attempts to improve query.

Terms in query 2 3 4 5 >5

Query improved

1 time

11 14.3 16 15

Query improved

2 times

case

13.7 16.8 13.3

case

Query improved

3 times

Too few cases

Figure 3: Average precision as a function of number of

attempts to improve the query.

Figure 4 and Table 2 provide an evidence of a 3-

way connection between the terms in a user query,

number of attempts made to improve the query and

the average precision of the queries. The average

precision improves with the number of terms (T) up

to 4 and then drops sharply as human ability to

organise Boolean query with many terms declines.

Figure 4: Precision of queries as function of terms in

query. Two common cases of number of attempts to

improve query are shown separately in (a) single attempt

and (b) two attempts. Figure (c) shows linear relationship

between number of terms and precision for up to 4 terms

The better-quality of the queries with 3 or 4

terms, evident in Figure 4, is further elaborated in

Table 3 which shows the fractions of queries

showing below average and above average

performance within various groupings. First row

shows the cases where the volunteer made only one

attempt to improve the query and the final precision

of the query was below average. Arguably in plain

English, the specifying expression translates to

volunteer found the search difficult. In this row the

fraction of queries with below average precision

CHARACTERISTICS OF THE BOOLEAN WEB SEARCH QUERY: Estimating success from characteristics

343

decreases with the number of terms in the query.

The bottom row in the table shows that the fraction

of queries with above average precision improves

with the number of terms till it hits the high mark

where humans start to be overwhelmed by the size

of Boolean expression.

We suggest that a query with fewer than 3 terms

alert us to the possibility that the searcher is finding

it difficult to identify appropriate domain terms (or

jargons) for the query. More than 4 terms makes it

difficult to organise the terms in an effective

Boolean query. The best performing query sizes,

however, do not coincide with the most common

query size. The most common size of the queries as

reported in (Jones et al, 1998) is 2 terms and it

accounts for about third of all queries.

Other researchers have reported that domain-

savvy searchers use a small number of domain

specific terms in their search query. Our observation

is not inconsistent with those findings. To further

test our inference, we grouped the volunteer queries

into three nearly equal size groups based on their

performance relative to the synthesised queries.

Queries with precision up to 2 units below the

corresponding synthesised query were marked good.

Those that had precision 5 or more units below the

synthesised queries were marked poor. The group in

the middle had 14 cases. Table 4 shows the

distribution of terms in the two groups.

The proportion of queries in good group with 4

terms is about three times as high as in the poor

performing group.

Table 3: Fraction of queries with stated precision

characteristics as function of terms in query.

Terms in query 2 3 4 5

(precision of user query <

average precision) among

queries with single

improvement attempt

100% 44% 20% 0%

Query precision > average

precision

0% 50% 93% 29%

5 CONCLUSIONS

Four terms and above average coverage emerges as

a good predictor of a successful Boolean web search

query. Indeed, all samples with this property in our

data have above-average precision of 15 or more.

One-half of these queries achieve perfect precision

score of 20.

To further improve odds for success choose 4-

terms, above average coverage with several attempts

to improve query Minimum precision delivered by

these queries in our survey is 19.

Table 4: Distribution of terms in two groups of volunteer

queries marked good and poor.

Number of terms Good queries Poor queries

Count 13 12

2 0% 8%

3 31% 42%

4 54% 17%

5 15% 33%

Total 100% 100%

REFERENCES

Baeza-Yates, R., and Riberio-Neto, B. (1999). Modern

Information retrieval, Addison-Wesley, Reading, Ma.

Brin, S. and Page, L. 1998. The Anatomy of a Large-Scale

Hypertextual Web Search Engine. Computer Networks

30(1-7) pp. 107-117

Broder, A.Z. (2002). A taxonomy of web search. SIGIR

Forum 36(2) pp. 3-10

Chakrabarti, S. (2003). Mining the Web: Discovering

knowledge from hypertext data, Morgan Kaufmann

Publishers, Amsterdam

Hölscher, C. and Strube, G. (2000). Web search behavior

of Internet experts and newbies. Computer Networks

33(1-6) pp. 337-346

Jansen, B.J. (2000). The effect of query complexity on

web searching results, Information Research, 6(1)

Jones, S., Cunningham, S.J. and McNab, R. (1998). Usage

Analysis of a Digital Library. In: Third ACM Conf. on

Digital Libraries, Pittsburgh, PA, USA. June 23-26.

Jones, S., Cunningham, S.J., McNab, R.J., Boddie, S.J.

(2000). A transaction log analysis of a digital library.

Int. J. on Digital Libraries 3(2) pp. 152-169

Malhotra, V., Patro, S. and Johnson, D. (2005). Synthesise

web queries: Search the Web by examples, Int. conf. on

enterprise information systems, Maimi, Florida.

Manning, C.D. and Schtze, H. (1999). Foundations of

statistical natural language processing, MIT press,

Cambridge, MA

Powers, D.M.W. (2003). Recall and precision versus the

bookmakers, Joint International conference on

cognitive science. pp. 529-534

Silverstein, C., Henzinger, M., Marais, H., and Moricz, M.

1999. Analysis of a Very Large Web Search Engine

Query Log, ACM SIGIR Forum, 33(1) pp. 6-12.

Spink, A. (2002). A user-centered approach to evaluating

human interaction with Web search engines: an

exploratory study. Inf. Process. Manage. 38(3).

Witten, I.H. and Frank, E. (2000). Data mining: practical

machine learning tools and techniques with Java

implementations. Morgan Kaufmann Publishers, San

Francisco.

WEBIST 2005 - WEB INTERFACES AND APPLICATIONS

344
