FORMAL VERIFICATION OF TRANSACTIONAL SYSTEMS

Mark Song

Department of Computer Science - Centro Universit

ario UNA

Jose Claudio Resende, 80 - Cep 30455-590 - Belo Horizonte - Brasil

Adriano Pereira, Sergio Campos

Department of Computer Science - Universidade Federal de Minas Gerais

Av. Antonio Carlos, 6627 - CEP 31270-901 - Belo Horizonte - Brasil

Keywords:

web applications, design speciﬁcation, model checking, formal veriﬁcation, transformation patterns.

Abstract:

Today, the trend in software is toward bigger, more complex systems. This is due in part to the fact that

computers become more powerful every year leading users to expect more from them. People want software

that is better adapted to their need which, in turn, merely makes software more complex. This trend has

also been inﬂuenced by the expanding use of the internet for exchanging all kinds of information. As a new

computational infra-structure has become available, new distributed applications which were previously too

expensive or too complex have become common. In this context, web based systems has become a popular

topic for business and academic research. However, web applications tend to generate complex systems.

As new services are created, the frequency with which errors appear has increased signiﬁcantly. This paper

presents the UML-CAFE, an environment which can be used to help the designer in the development of

transactional systems, such as web based ones. It is divided into the UML-CAFE Methodology, a set of

transformation patterns, and the UML-CAFE translator to describe and map UML speciﬁcations into a formal

model to be veriﬁed.

1 INTRODUCTION

Web based systems has changed the way organiza-

tions perform their activities. E-commerce systems,

for example, have simpliﬁed the access to goods and

services and has revolutionized the economy as a

whole. However, web based applications tend to

generate complex systems - transactional systems in-

volve concurrent operations which demand transac-

tional integrity. Besides, as new services are created

the frequency with which errors appear increase sig-

niﬁcantly. Guaranteeing the correctness of such sys-

tems is not an easy task due to the great amount of

scenarios where errors may occur, many of them very

subtle. Such task is quite hard and laborious if only

tests and simulations, common techniques of system

validation, are used.

New approaches can be used in order to improve

the quality of the software and to guarantee the in-

tegrity of critical systems. Formal Methods (Huth

and Ryan, 2000) is one such approach. They con-

sist of the use of mathematical techniques to assist in

the documentation, speciﬁcation, design, analysis and

certiﬁcation of computational systems. Model check-

ing (Clarke et al., 1999), a special formal method ap-

proach, is sufﬁciently interesting and promising since

it consists of a robust and efﬁcient technique to au-

tomatically verify the correctness of several system

properties, mainly regard to identiﬁcation of faults

in advance. This paper presents an environment

that uses formal method techniques, a standard nota-

tion (the Uniﬁed Modeling Language - UML (OMG,

2003)), and a set of transformation patterns to design

and enable the automatic veriﬁcation of transactional

systems, specially web based ones.

The paper is organized as follows. In Section 2, the

UML-CAFE environment is presented. Section 3 an-

alyzes the related works, and Section 4 presents some

conclusions and future work.

2 THE UML-CAFE

ENVIRONMENT

The UML-CAFE is an environment (Figure 1) which

can be used to help the designer in the development

of transactional systems, such as web based ones. It

is divided into the following components: the UML-

CAFE Methodology, a set of transformation patterns

194

Song M., Pereira A. and Campos S. (2005).

FORMAL VERIFICATION OF TRANSACTIONAL SYSTEMS.

In Proceedings of the First International Conference on Web Information Systems and Technologies, pages 194-197

DOI: 10.5220/0001227601940197

 SciTePress

(used to describe and map UML speciﬁcations into

a formal model) and the UML-CAFE translator (a

tool which automatically translates the UML speci-

ﬁcations into the formal model to be veriﬁed).

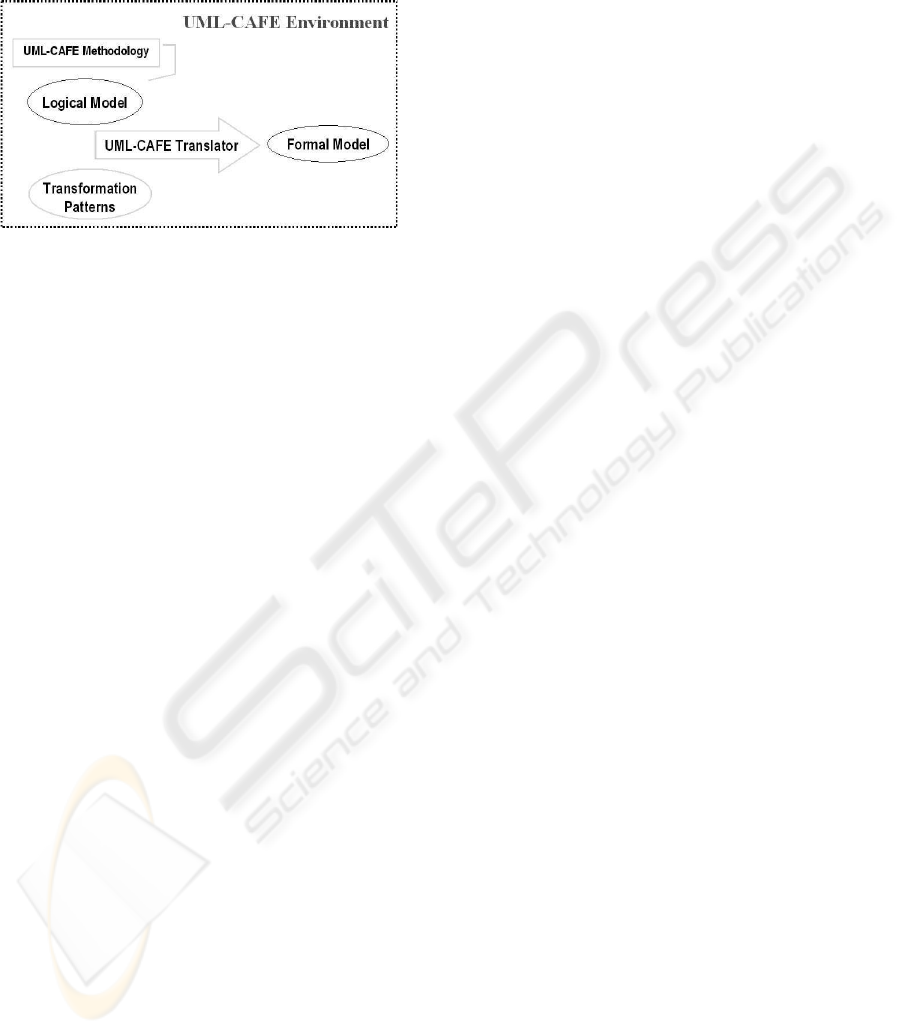

Figure 1: The UML-CAFE Environment

2.1 Toward an Web Based System

Methodology

A successful development project satisﬁes or exceeds

the customer’s expectation, is developed in a timely

and economical fashion, and is resilient to change and

adaptation. The development, in general, proceeds as

a series of iterations that evolve into the ﬁnal system.

Each iteration consists of one or more of the follow-

ing methodology components: requirements capture,

analysis, design, implementation, and test.

Usually, to build a complex system the developer

abstracts different views of it, builds models using

some notation, veriﬁes that the models satisfy the re-

quirements, and gradually adds details to transform

the models into implementation. In this context, an

uniﬁed notation plays an important role once a sym-

bol can mean different things to different people.

In our work, it is adopted a general-purpose visual

modeling language (UML) to specify and construct

the artifacts of a software system. In order to trans-

late the UML speciﬁcations into formal model to be

veriﬁed, it has been proposed a set of transformation

patterns. The next subsection introduces our pattern

system.

2.2 Transformation Patterns

In software design, it is quite common not to solve

every problem from ﬁrst principles. Expert designers

reuse solutions that have worked for them in the past.

When they ﬁnd a good solution, they use it again and

again.

Consequently one can ﬁnd recurring patterns in

many systems. These patterns solve speciﬁc de-

sign problems and make designs more ﬂexible and

reusable. A designer who is familiar with such pat-

terns can apply them immediately to solve a problem.

2.3 The UML-CAFE Methodology

The UML-CAFE is a methodology to design trans-

actional applications with model checking support.

It is divided into four phases inherited from Formal-

CAFE (Pereira et al., 2002): conceptual, application,

functional, and execution. It can help the designer

to specify and verify the system under development.

The main idea of UML-CAFE is to detect and cor-

rect errors before they propagate to later stages. The

following subsections describe each phase of UML-

CAFE.

2.3.1 Conceptual Phase

The ﬁrst phase which captures the requirements of the

system is divided into three stages:

Stage 1: In the ﬁrst stage, the system is described

as a set of business rules.

Stage 2: Based on the business rules presented

in stage 1, the designer has to describe the actors,

their actions, the negotiated object and its states. The

designer builds the class diagram deﬁning the static

structure of the model, in particular, classes and types,

their internal structure, and their relationships to other

classes. Each actor and the negotiated object is repre-

sented by a parameterized class.

Stage 3: At this point the designer describes in de-

tail the sequence of actions that each actor can exe-

cute. Actions are described by a transition graph as-

sociated to each class. The statechart shows the state

space of a given actor. Each state deﬁne an action that

can be executed. Transitions deﬁne a valid sequence

of operations that can be executed - a none state must

be deﬁned to indicate that no action is under execu-

tion.

Note that the class diagram and associated action’s

graphs are used to generate the ﬁrst version of the

model to be veriﬁed. Each parameterized class is

translated into a module in the formal model. Ac-

tions are represented by a variable named action and

each transition graph describes a change in the value

of the corresponding action variable. In this phase the

designer is able to verify if the business rules are spec-

iﬁed correctly. For example, is it true that all actions

described can be executed? The designer applies the

completeness pattern in order to verify such fact:

• Name: Completeness Pattern.

• Intent: To verify if all possible values of an attribute are

modeled/achieved.

• Input: At(name, attribute, domain).

• Mapping: EF ( p )

Completeness( At(name, attribute, domain) )

Append( MODULE At.name )

repeat

FORMAL VERIFICATION OF TRANSACTIONAL SYSTEMS

195

select v in At.domain; mark v;

label ( SPEC EF (attribute = v ) )

until all v in At.domain is marked

The following code checks the completeness prop-

erties:

...

MODULE Actor

(id)

...

--Completeness Model Checking Pattern:

--EF (ACTION = <A>)

SPEC EF (action = action

)

...

SPEC EF (action = action

)

2.3.2 Application Phase

The second phase deﬁnes the behaviors of the system.

It describes the life cycle of the negotiated object, its

interactions with the actors and actions. Moreover,

the states are modeled and the system’s functionality

is described - a context diagram is presented. Proper-

ties, such as completeness and invariants, are veriﬁed.

At this phase, all elements are modeled through use

cases, as deﬁned by the following stages:

Stage 4: Each use case is documented with a ﬂow

of events required to accomplish its behaviors - a ﬂow

of events is a sequence of transactions, or events, per-

formed by the system. It should contain detailed in-

formation written in terms of what the system should

do, regardless of how the system accomplishes the

task.

Stage 5: Here, the statechart diagram is used to

model the discrete stages of a system’s lifetime. The

statechart diagram shows the sequence of states that

the negotiated object goes through, the events that

cause a transition from one state to another, and the

actions that result from a state change.

Each state represents a snapshot during the life of

a system which satisﬁes some condition or waits for

some event. Transitions are represented by actions

which indicate the operation executed by an actor.

There is also a guard condition that must be met be-

fore the transition is taken. As long as the guard con-

dition remains false, the transition will not occur.

Stage 6: In this stage the developer reviews in

detail the precedent stages and collects, for each

use case, additional information such as invariant

and consistency properties. These properties are de-

scribed in the documentation section which is part of

the UML class speciﬁcation.

The UML-CAFE has been designed to be an incre-

mental methodology. So, as the design evolves new

information must be added to the formal model. Mod-

ules are created and incrementally modiﬁed as the

design evolves. This is the main idea of the UML-

CAFE methodology - errors can be identiﬁed early in

the design and corrected before they propagate to later

stages. Again, the designer is able to verify if the de-

sign match the business rules speciﬁed. For example,

some business rules describe the consistency aspects

of the system - is it always true that if the system is

in a state where a property p is true than from now

on, q will be always true? Other rules specify the in-

variant aspects - is a property p always true? In time,

is there any state of the negotiated item that can not

be reached? The last one can be checked using the

completeness pattern. The consistency and invariant

patterns are used to model the other properties. The

following generated code checks the consistency and

invariant properties:

...

MODULE name(id, ...)

...

-- consistency Pattern:

-- AG ( expression

-> AG ( expression

) )

SPEC AG ( expr

-> AG ( expr

) )

...

-- Invariant Pattern: AG ( expr )

SPEC AG ( expr )

2.3.3 Functional Phase

This phase models the services provided by the sys-

tem. While each action comprises simple operations

such as allocating an item for future purchase, ser-

vices perform full transactions - actually, services are

sequences of actions. This phase is divided into three

stages:

• Stage 7: A set of services is deﬁned for the use

cases previously identiﬁed. Now, each use case

is completed with a description for the service re-

quired.

• Stage 8: Once services are deﬁned, the designer

describes the interaction among instances - the

UML sequence diagram is used to specify each ser-

vice.

• Stage 9: Each service consists of a sequence of

actions. Note that although actions are atomic by

deﬁnition, not every sequence of actions is atomic.

So, in this stage the services and their concurrent

aspects are described. The designer identify all se-

quences that must be executed isolated or consid-

ered as an atomic transaction.

Our experience pointed out that some concurrent

activities can not be fully described by sequence

diagrams. The isolation pattern can be used in this

phase to isolate conﬂicting services.

2.3.4 Execution Phase

The execution environment describes the interconnec-

tion between the components and the customers in-

WEBIST 2005 - INTERNET COMPUTING

196

terface. The deﬁnition of the execution environment

must be coherent with the description of the services

and functionalities that compose the functional phase.

This description must be done in terms of paradigms

of implementation, and system primitives. Examples

of paradigms are client-server, remote procedure calls

and message exchange. In this phase it is used physi-

cal diagrams such as deployment diagrams and com-

ponent diagrams - they are used to give descriptions

of the physical information about a system. Note that

business rules are not affected by the execution envi-

ronment. So, none additional checking must be done

in this phase.

3 RELATED WORK

Model checking has been successfully applied to the

veriﬁcation of several large complex systems such as

an aircraft controller, a robotic controller, a distrib-

uted heterogeneous real-time system, and a multime-

dia application (Campos et al., 1999).

There is much interest in improving embedded sys-

tem functionalities, where security is a critical factor.

The use of softwares in this systems enable new func-

tionalities, but create new possibilities of errors. In

this context, formal methods might be good alterna-

tives to avoid them (Corbett et al., 2000).

In many software development phases, such as de-

sign and coding, complexity is addressed by the deﬁ-

nition and use of abstractions (Fontoura et al., 2000).

For complex speciﬁcation problems (Silva and Lu-

cena, 2004), abstraction is just as important. In our

work we deﬁne a set of transformation patterns so that

it can be applied to model checking of transactional

systems: the designer describes the elements of the

application using a modeling language (UML) (Song

et al., 2003) as deﬁned in the UML-CAFE methodol-

ogy, and the elements of the model are automatically

projected into the formal model to be veriﬁed. Note,

that our approach does not demand that the designer

knows formal methods, nor it implies speciﬁc knowl-

edge in temporal logic.

4 CONCLUSIONS AND FUTURE

WORK

In this paper we propose a methodology to specify

and verify web based systems. This technique can

increase the efﬁciency of the design of web appli-

cations. We use a high level modeling language to

formalize the speciﬁcation of the system and a set of

model checking patterns to map (automatically trans-

lation) the speciﬁcations into the formal model to be

veriﬁed. This approach can lead to more reliable,

less expensive applications that are developed signiﬁ-

cantly faster.

We are currently studying other features of web

based systems that we have not yet formalized, as

well as the possibility of generating the actual code

that will implement the system from its speciﬁcation.

REFERENCES

Campos, S., Ribeiro-Neto, B., Bertini, L., and Macedo, A.

(1999). Formal veriﬁcation and analysis of multime-

dia systems. In Proceedings of the Seventh ACM Int.

Multimedia Conference (ACMMM’99), pages 131–

140, Orlando, FL.

Clarke, E. M., Grumberg, O., and Peled, D. A. (1999).

Model Checking. The MIT Press, Cambridge, Massa-

chusetts.

Corbett, J. C., Dwyer, M. B., Hatcliff, J., Laubach, S.,

areanu, C. S., Robby, and Zheng, H. (2000). Ban-

dera: extracting ﬁnite-state models from java source

code. In International Conference on Software Engi-

neering, pages 439–448.

Fontoura, M., Pree, W., and Rumpe, B. (2000). Uml-f:

A modeling language for object-oriented frameworks.

14th European Conference on Object Oriented Pro-

gramming (ECOOP 2000), pages 63–82.

Huth, M. R. and Ryan, M. D. (2000). Logic in Com-

puter Science - Modelling and reasoning about sys-

tems. Cambridge University Press.

Mota, E., Clarke, E., Oliveira, W., Groce, A., Kanda, J., and

Falcao, M. (2003). Veriagent: an approach to integrat-

ing uml and formal veriﬁcation tools. In Proceedings

of the Sixth Brazilian Workshop on Formal Methods

(WMF’2003).

OMG (2003). Uml resource page.

http://www.omg.org/uml.

Pereira, A., Song, M., Gorgulho, G., Meira Jr., W., and

Campos, S. (2002). A formal methodology to specify

e-commerce systems. In Proceedings of the 4th Inter-

national Conference on Formal Engineering Methods,

Lecture Notes in Computer Science, Shanghai, China.

Springer-Verlag.

Silva, V. and Lucena, C. (2004). From a conceptual frame-

work for agents and objects to a multi-agent system

modeling language. In: Sycara, K., Wooldridge, M.

(Edts.), Journal of Autonomous Agents and Multi-

Agent Systems.

Song, M., Pereira, A., Lima, F., Gorgulho, G., Campos,

S., and Meira Jr., W. (2003). Extending uml to spec-

ify and verify e-commerce systems. In Proceedings

of the Fifteenth International Conference on Software

Engineering Knowledge Engineering, San Francisco,

USA.

FORMAL VERIFICATION OF TRANSACTIONAL SYSTEMS

197
