A META-MODEL FOR THE DIALOG FLOW NOTATION

Matthias Book, Volker Gruhn

Chair of Applied Telematics / e-Business, University of Leipzig

Klostergasse 3, 04109 Leipzig, Germany

Nils Mirbach

adesso AG

Stockholmer Allee 24, 44269 Dortmund, Germany

Keywords:

Web engineering, Dialog Flow Notation, metamodelling.

Abstract:

While the separation of presentation and application logic is widely practiced in web-based applications today,

many do not cleanly separate application and dialog control logic, which leads to inﬂexible implementations

especially when multiple presentation channels shall be served by the same application logic. We therefore

present a notation for specifying the complete dialog ﬂow of an application separately from the application

logic and show how to construct a formal metamodel for it using the OMG’s Meta-Object Facility (MOF).

This allows the validation of dialog ﬂow models, as well as the generation of machine-readable dialog ﬂow

speciﬁcations from graphical models.

1 INTRODUCTION

Complex web-based applications are typically im-

plemented according to the Front Controller pattern

(Singh et al., 2002) today. While it follows the Model-

View-Controller (MVC) paradigm (Krasner, 1988),

many applications do not cleanly separate application,

presentation and control logic when using this ap-

proach. In the popular Struts Web Application Frame-

work (Apache Project, 2005), for example, the con-

troller dispatches incoming requests to actions that

implement or invoke the application logic. After-

wards, they tell the controller which view to display

next, and the controller forwards the request to the

appropriate page. Since the next page to display is

determined by individual actions, the dialog control

logic is distributed over all actions and entwined with

the application logic inside them.

This combination leads to a number of problems:

Firstly, the actions can only make relatively isolated

and local dialog ﬂow decisions, but are unaware of

the “big picture” of the application’s complete dia-

log ﬂow. Secondly, the hard-coded decentralized im-

plementation of the dialog control logic is relatively

inﬂexible, almost unsuitable for reuse and hard to

maintain or extend. Finally, achieving device inde-

pendence would require additional effort and possi-

bly redundant work: While the dialog ﬂows for vari-

ous client devices may differ depending on their in-

put/output capabilities, the application logic should

be independent of those speciﬁcs – however, their

close coupling may prevent the reuse of actions on

multiple presentation channels. Instead, each presen-

tation channel would require its own set of actions to

implement the individual dialog ﬂows for the respec-

tive devices.

To address these challenges, we already presented a

Dialog Control Framework (DCF) (Book and Gruhn,

2003) that decouples not only application and presen-

tation logic, but also dialog control logic and dialog

ﬂow speciﬁcation from each other. In this approach,

pages (or dialog masks, as we call them) and actions

do not explicitly call other masks and actions, but gen-

erate events that are handled by a central dialog con-

troller. The dialog controller determines the receivers

of events by looking them up in an object-oriented

model of the whole application’s dialog ﬂow, and then

calls the mask or action speciﬁed in the model. This

awareness of the “big picture” enables the dialog con-

troller to manage complex dialog structures – in par-

ticular, it allows the nesting of so-called dialog mod-

ules at arbitrary levels. The strict separation of dialog

control logic and application logic also enables conve-

nient reuse of actions in different dialog ﬂows adapted

for various devices.

Having such a framework that can be reused as a

black box to control the dialog ﬂow of any web-based

application, we just need a way of providing it with a

Book M., Gruhn V. and Mirbach N. (2005).

A META-MODEL FOR THE DIALOG FLOW NOTATION.

In Proceedings of the First International Conference on Web Information Systems and Technologies, pages 64-71

DOI: 10.5220/0001228000640071

 SciTePress

model of that dialog ﬂow in an efﬁcient manner. For

this purpose, we developed the Dialog Flow Notation

(DFN), a graphical notation that allows the speciﬁ-

cation of complex, modular dialog ﬂows for multiple

presentation channels (Book and Gruhn, 2004). The

DFN was developed with the aim of producing im-

plementable speciﬁcations: Its diagrams should not

merely have descriptive, but also constructive power

and be directly translatable into a dialog ﬂow model

that can be used by the framework. This way, we

strive to reduce the development effort and eliminate

the error sources that a manual re-implementation of

the modeled dialog ﬂows would incur.

The Object Modeling Group’s model-driven de-

velopment (MDD) approach seems well-suited to

achieve this goal: Its Meta-Object Facility (MOF)

(Object Management Group, 2002) enables us to cre-

ate a Dialog Flow Metamodel that formally deﬁnes

all elements of the DFN and the constraints that need

to be satisﬁed when building dialog graphs with it.

Using this metamodel, we can equip a graphical mod-

eling tool with semantic awareness about the dialog

ﬂow models that users design, enabling it to check

the models for syntactic and semantic validity and

to generate machine-readable speciﬁcations from the

model.

In this paper, after an overview of related work on

the subject of web application modeling (section 2),

we will give a brief introduction into the Dialog Flow

Notation (section 3) and then present its meta model

(section 4) along with a discussion of the issues that

had to be resolved in its design. Using the DFN meta

model, we implemented a plugin for the Eclipse IDE

that allows the graphical modeling of dialog ﬂows.

We conclude with a brief presentation of this tool and

an outlook on further opportunities for using the meta

model in dialog ﬂow speciﬁcation and dialog control.

2 RELATED WORK

There is a number of ongoing efforts to model web

applications using UML. (Conallen, 1999) deﬁned

a UML proﬁle with stereotypes for components,

classes, methods and association in order to distin-

guish server and client components, server pages etc.

This approach comprises modeling both layout and

implementation aspects, but does not support modu-

larisation except by the use of frames.

Although they extend Conallen’s UML proﬁle,

(Gorshkova and Novikov, 2002) do not add a means

for modularisation. Instead, they focus on modeling

the user interface and separate its functional model

from its presentation characteristics. This way, they

reach a more robust model, which is restricted to

design-time use, however. Both approaches share the

advantage of UML tool support for modeling, but also

the disadvantage of lacking modularisation and con-

structive use of the models in application develop-

ment.

In order to employ the models in the immediate im-

plementation of the application, semantic information

in the form of a meta-model is necessary. (Muller

et al., 2003) examined how the MDA vision can be

applied to web engineering and developed a platform-

independent model for web applications that allows

the generation of whole executable applications. The

complete model of such an application consists of

three parts: the business model, the hypertext model

and the presentation model, which are similar to the

actions, dialog ﬂow and masks of the Dialog Flow

Notation used in our approach.

The approach of Muller et al. goes a step fur-

ther than e.g. (Schattkowsky and Lohmann, 2002),

who developed a UML proﬁle for small and medium-

sized web applications. When developing web appli-

cations with their proﬁle, code fragments for business

logic and presentation logic can be generated from

the model as a starting point for further implemen-

tation by the developers. After this big generation

step, the models are discarded. In contrast, the di-

alog ﬂow model introduced in this paper is updated

together with the application logic and used continu-

ously at run-time.

A big generation step is also characteristic of

the Web Modeling Language (WebML) (Ceri et al.,

2000), which supports the speciﬁcation of complex

web pages on a conceptual level. WebML distin-

guishes a structural model, a composition model and

the topology of links between pages. In addition, it

allows developers to deﬁne layout requirements and

features a personalisation model. However, WebML

is a proprietary language with its own XML represen-

tation and code generation tools, and therefore does

not belong to the MDA standard.

3 DIALOG FLOW NOTATION

The Dialog Flow Notation (DFN) speciﬁes the se-

quence of UI pages and processing steps in an ap-

plication, and the data exchanged between them. It

models the dialog ﬂow as a transition network called a

dialog graph. The notation refers to the transitions as

events and to the states as dialog elements. These el-

ements are further divided into hypertext pages (sym-

bolized by dog-eared sheets and referred to by the

more generic term masks in the DFN) and business

logic operations (symbolized by circles and called ac-

tions here). Every dialog element can generate and

receive multiple events. Which element will receive

an event depends both on the event and the generating

A META-MODEL FOR THE DIALOG FLOW NOTATION

check

name,

passwd

submit

incorrect

has

admin

rights?

correct

check

status

not yet

logged

in

no

already logged in

mark

user as

logged

in

done

User Authorization

create new

account

yes

is admin

is user

cancel

Figure 1: User Authorization dialog module

element (e.g., an event e may be received by action

if it was generated by mask M

, but be received by

action a

if generated by mask M

). Events can carry

parameters containing form input submitted through a

mask or data produced by the business logic to facil-

itate communication between elements. They are not

bound to HTTP requests or responses, but can also

link two actions or two masks.

The DFN also provides dialog modules (symbol-

ized by boxes with rounded corners) which encap-

sulate dialog graphs and enable the speciﬁcation of

nested dialog structures. When a module receives an

event from the exterior dialog graph that it is embed-

ded in, traversal of its interior dialog graph starts with

the initial event. When the interior dialog graph ter-

minates, it generates a terminal event (symbolized

by a circular anchor point in the interior dialog graph

and an arrow in the exterior dialog graph) that is prop-

agated to the super-module and continues the traversal

of the exterior dialog graph (Figure 1). For more com-

plex dialog structures, the DFN offers a number of

additional event and element types (Book and Gruhn,

2004) that we will not discuss here in detail for the

sake of brevity.

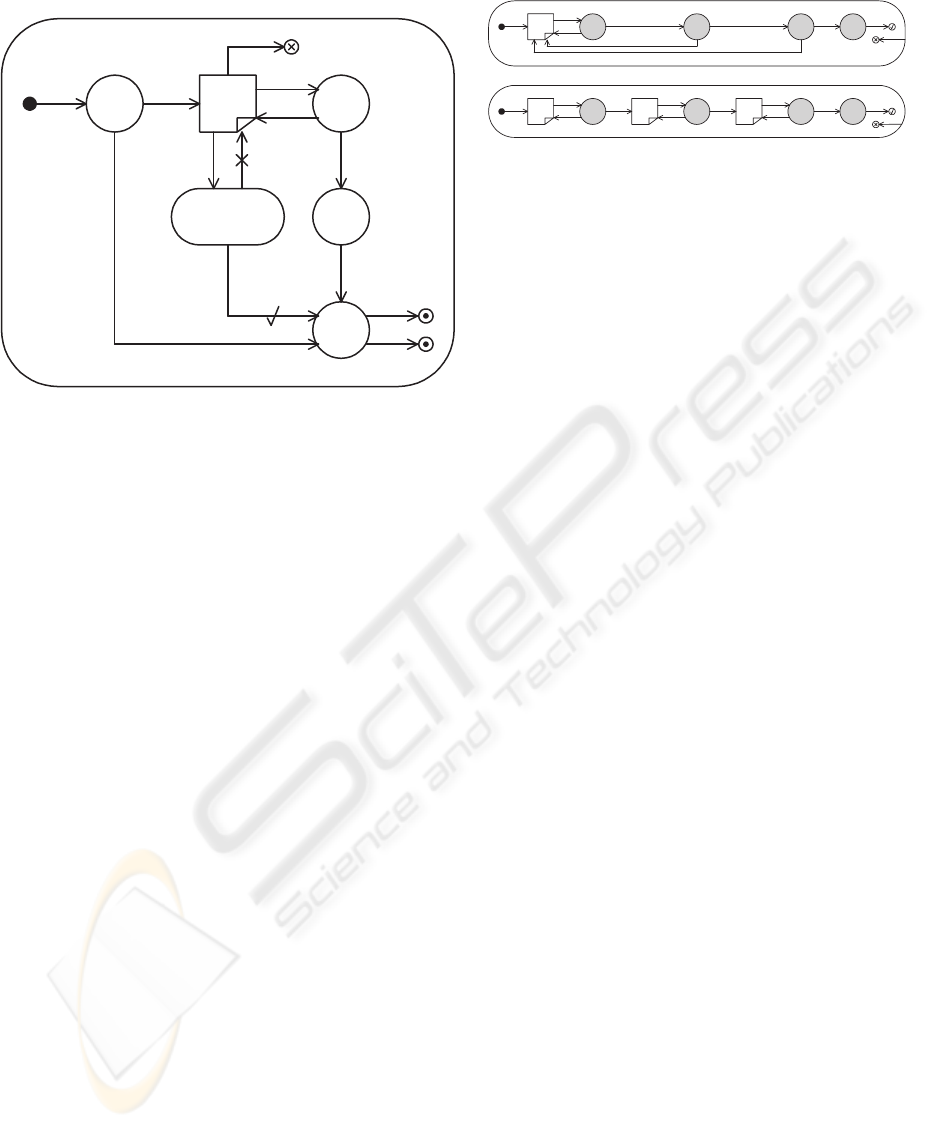

To cater to the different interaction patters required

for different client devices, the DFN allows the spec-

iﬁcation of dialog ﬂows for different presentation

channels in multiple versions of a module and distin-

guishing them with channel labels (Figure 2). While

the channels employ different dialog masks according

to those devices’ I/O capabilities, they use the same

actions for processing the users’ input, as indicated

by the shading. This enables developers to reuse the

device-independent business logic on multiple chan-

Checkout [WML]

Enter

address

check

address

submit

incorrect

Enter

shipping

data

correct

check

shipping

data

submit

incorrect

Enter

billing

data

correct

check

billing

data

submit

incorrect

correct

place

order

ok

Checkout [HTML]

Enter

address,

shipping,

billing

check

address

submit

incorrect

correct

check

shipping

data

correct

check

billing

data

correct

place

order

ok

incorrect

cancel

Figure 2: Checkout dialog module variants for HTML and

WML presentation channel

nels.

In order to support an efﬁcient transition from spec-

iﬁcation to implementation of dialog ﬂows, we devel-

oped the Dialog Flow Metamodel described in the

following section. It formally describes all elements

and constraints of the DFN and enables us to generate

machine-readable speciﬁcations in the XML-based

Dialog Flow Speciﬁcation Language (DFSL) from

graphical dialog ﬂow models. These speciﬁcations

can then be parsed by the Dialog Control Framework

(DCF) which serves as an application- and device-

independent interface between presentation and busi-

ness logic.

4 DIALOG FLOW METAMODEL

Without a formal speciﬁcation of the DFN, the dia-

log ﬂow models could not be used directly for dialog

control since the graphical diagrams would have to be

translated manually into the corresponding DFSL rep-

resentation required by the DCF. This slow and error-

prone process of dealing with two unvalidated and

unsynchronized representations of the same model

would reduce the efﬁciency of the software devel-

opment process considerably. To enable automatic

validation and transformation of the model represen-

tations, we developed the DFN metamodel. In this

process, we had to resolve three issues that are dis-

cussed in the following sections:

4.1 Formal Speciﬁcation

The ﬁrst issue was to ﬁnd a suitable formalism for

the complete description of DFN models with their

rich syntax and semantics. We chose the Meta-Object

Facility (MOF) standard (Object Management Group,

2002) which deﬁnes formal metamodels for platform-

independent metadata and mappings to speciﬁc plat-

forms. MOF uses an object modelling framework

for the deﬁnition of information models for meta-

data, which essentially is a subset of UML class di-

agrams that provides four main concepts for mod-

elling: Classes model MOF meta-objects, associa-

tions model binary connections between them, data

WEBIST 2005 - INTERNET COMPUTING

types model primitive or external data, and packages

unitize the models. The Essential MOF (EMOF) stan-

dard and the Eclipse Modeling Framework (EMF), its

implementation on the Eclipse platform, provide only

a subset of these constructs that is sufﬁcient for simple

and pragmatic metamodelling. While EMOF proved

to be mostly rich enough to describe all constructs of

the DFN, workarounds had to be found for some as-

pects:

• Hierarchical structure: While the DFN supports

and encourages the speciﬁcation of dialog modules

that are nested into each other at run-time, the mod-

ule speciﬁcations themselves are not hierarchical

in nature (in analogy to objects’ methods that may

also call each other at run-time without exhibiting

a hierarchical relationship in their implementation).

Since the metamodel requires its elements to be hi-

erarchically structured in order to be displayed and

serialized properly, however, any references to sub-

modules inside a module were modeled as siblings

of the actual module deﬁnitions at the root level.

• Graphical representation: Since the DFN itself

does not contain any information about the graphi-

cal representation and layout of the individual nota-

tion elements in a diagram, this information had to

be supplemented in the metamodel. Each notation

element received additional position and size at-

tributes in order to make this information persistent

and displayable. This could be realized either by

incorporating the layout information directly into

the metamodel or by specifying the necessary in-

formation separately in its own package. To avoid

the unnecessary complexity of cross-package refer-

ences, we chose to specify the layout information

directly in the metamodel.

• Clarity: Convenience and clarity also affected the

design in other ways. The DFN provides vari-

ous types of events which connect various types

of model elements under certain constraints. An

explicit speciﬁcation of all these n : n relations

would have “polluted” the metamodel with many

associations. To retain clarity, we implemented the

constraints in the model elements themselves and

used inheritance to propagate them among similar

classes of elements: Every model element has an

isTargetFor and an isSourceFor method

that decide if a certain event can be used to con-

nect this element to a certain other element.

• Constraints: More important than the constraints

that were implemented instead of being modeled

for reasons of clarity are those constraints which

are deﬁned in the DFN itself. From widely used

constraints for multiplicity, which can be designed

into the metamodel itself, to complex, context-

sensitive ones, constraints are the heart of valida-

tion in metamodelling. We will discuss their imple-

mentation in more detail in the following section.

4.2 Constraint Implementation

With the DFN metamodel being expressive enough to

cover every correct DFN model, the second challenge

was the formalization of constraints that must be en-

forced on the model to ensure its validity.

Simple constraints are easy to specify within the

metamodel by using MOF constructs like associations

and multiplicities. These kinds of constraints are eas-

ily designed by connecting model elements, but they

can decrease the clarity. To enforce more complex

notation rules, constraints have to be implemented in

the model elements themselves. As an example for a

relatively simple constraint implementation, consider

the following isTargetFor method of the Action

class, specifying that actions can receive terminal,

compound, initial and abort events, but no other event

types:

public boolean isTargetFor(EventElement e) {

if (e instanceof TerminalEvent)

return true;

if (e instanceof CompoundEvent)

return true;

if (e instanceof InitialEvent)

return true;

if (e instanceof AbortEvent)

return true;

return false;

}

The following more complex example implements

a constraint which determines that a Module element

can only generate a terminal event if it is not a so-

called common compound and if its dialog graph con-

tains a suitable Terminal Anchor element. Since these

conditions are context-sensitive (i.e. they depend on

the presence and attributes of other elements that the

designer may use in a concrete model), they cannot be

expressed in terms of metamodel constructs but must

be implemented in a validation routine of the respec-

tive metamodel element. The following excerpt from

the isSourceFor method of the Module class il-

lustrates their implementation:

public boolean isSourceFor(EventElement e) {

if (this.isCommonCompound()) return false;

// search for free RegularTermAnchors

if (e instanceof Event) {

Module toSearch = getModule();

if (!getModule().isRoot())

toSearch = (Module)getModule()

.getRootCompound();

Iterator it = toSearch.getInteriorGraphs()

.iterator();

while (it.hasNext()) {

Iterator anchors = ((InteriorGraph)it.next())

.getEventAnchors().iterator();

while (anchors.hasNext()) {

EventAnchor anchor = (EventAnchor)anchors

.next();

if ((anchor instanceof RegularTermAnchor)

&& ((RegularTermAnchor)anchor)

.getRegularTermEvent() == null)

return true;

}

A META-MODEL FOR THE DIALOG FLOW NOTATION

// ...

return false; // if no condition met

}

The EMF’s Validation Framework uses both the

simple constraint speciﬁcations expressed in the

metamodel and the complex constraint implemen-

tations in the isTargetFor and isSourceFor

methods to identify invalid constructs in DFN mod-

els and highlight them in the graphical editor.

4.3 Model Transformation

The third implementation challenge was the trans-

formation of the valid DFN model into DFSL doc-

uments that can be interpreted by the Dialog Control

Framework. Based on the structural information in

the DFN metamodel, each concrete DFN model can

automatically be serialized in the XML Metadata In-

terchange (XMI) 2.0 format by the EMF. The result-

ing ﬁle is human-readable, but does not require any

manual processing to make DFN models machine-

readable, which removes a slow and error-prone step

from the application development process.

Since the DCF does not yet support the OMG stan-

dard XMI 2.0, the speciﬁcation still has to be trans-

lated into the Dialog Flow Speciﬁcation Language

understood by the framework. For this purpose, we

chose XSLT as the transformation language for sev-

eral reasons: Firstly, there is a direct mapping from

XMI to DFSL since the DFSL only uses a subset of

the semantic data, so the transformation only involves

reducing the XMI document’s contents to the data re-

quired by the framework and building a new XML ﬁle

from it using DFSL syntax. Possible synchronization

problems between the two representations of a DFN

model, caused by the batch-like execution of XSLT,

do not occur due to the nature of the development

process, which requires only one transformation be-

fore executing the dialog ﬂow in the framework.

The ﬁnal transformation is included in the develop-

ment process of web applications through the integra-

tion of an export wizard into the DFN editor.

4.4 Metamodel Elements

After discussing the major issues encountered in the

design of the metamodel, some worthwhile aspects

regarding individual model elements should be men-

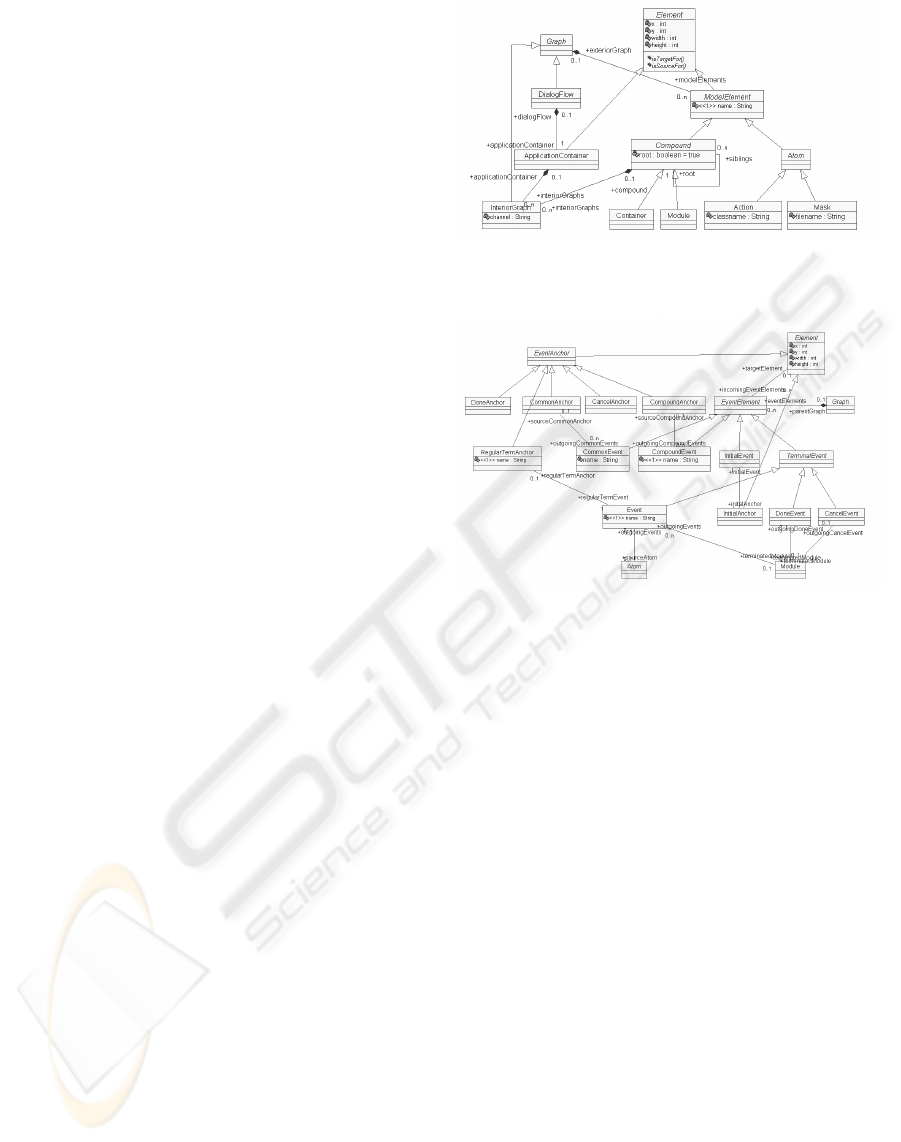

tioned here. Figure 3 shows an excerpt from the com-

plete metamodel that contains classes modeling dia-

log elements.

The Element class plays a central role in the DFN

metamodel. An Element has a position and a size

which are used to display it in a graphical editor, as

well as constraints for linkage with events deﬁned

in the isTargetForand isSourceFormethods.

Figure 3: Metamodel excerpt: Dialog elements

Figure 4: Metamodel excerpt: Dialog events

These characteristics are inherited by every Element

subclass.

Most atomic and compound notation elements

(masks, actions, modules and containers) are modeled

as subclasses of the ModelElement class, where the

Compound class has a self-reference to itself to real-

ize the sibling relationship described in section 4.1.

Also, the so-called application container that contains

the dialog graph the user will initially traverse upon

entering a web-based application is modeled sepa-

rately here to put it on top of the metamodel’s class

hierarchy. Both compounds and the application con-

tainer can contain multiple interior dialog graphs that

in turn contain model elements. By giving differ-

ent channel identiﬁers to different InteriorGraph in-

stances, we can specify variants of the same dialog

graph for different devices.

This containment hierarchy is a central concept of

the DFN metamodel that is used both by the graph-

ical representation and the serialization mechanism.

Apart from these containment relations, model ele-

ments are also characterized by the type of their in-

coming and outgoing events. These are represented

in the metamodel by the classes shown in Figure 4.

As mentioned before, inheritance was used to ex-

press the relations between elements and events for

WEBIST 2005 - INTERNET COMPUTING

the sake of clarity. This is reﬂected in the metamodel

by specifying the targetElement association only be-

tween the EventElement and Element classes, and let-

ting all other event classes inherit this characteristic

from EventElement. Since this construct potentially

allows any element to receive any event, constraints

for the allowed combinations must be implementated

in the isTargetFor method, as shown in section

4.2.

Another worthwhile aspect to mention is the use

of anchors within the metamodel. While e.g. termi-

nal events use anchors in the interior graph to connect

the dialog ﬂow with the exterior graph, other events

that are called directly by the DCF (such as the initial

event) were originally drawn without an anchor. For a

consistent representation in the metamodel, we added

corresponding anchor elements to the metamodel for

every event that is not generated or received by a reg-

ular element. This way, events in DFN models always

connect two elements.

The graphical editor provides the advantages com-

monly associated with metamodelling: It supports

modelling and enables automatic validation and trans-

formation of domain-speciﬁc concepts, with the lat-

ter two steps being essential for increased efﬁciency

in the software development process compared to a

manual approach. If the DCF supported the DFN

metamodel directly, it could have been integrated with

the DFN editor, and the additional transformation step

into the DFSL could also have been avoided.

4.5 Metamodel vs. UML Proﬁle

As a meta-metamodel, MOF is capable of describ-

ing new metamodels, as shown in Fig. 5. However,

domain-speciﬁc modeling could also be achieved by

extending UML through its proﬁle mechanism. Hav-

ing described the DFN metamodel, one might there-

fore ask why we did not choose to specify the DFN

using an UML proﬁle instead of developing our own

metamodel. To answer this question, we need to con-

sider which way provides the most beneﬁt for mod-

ellers and developers.

(Muller et al., 2003) propose that the development

of a new metamodel is justiﬁed if the semantic dis-

tance between UML and the developed language is

too large, and (Desfray, 2000) holds that the deﬁnition

of a new metamodel is justiﬁed if the described do-

main is well-deﬁned and possesses its own accepted

quantity of main concepts.

Since the DFN was inspired by Statecharts (Harel,

1987) and their concepts resemble each other (apart

from semantic peculiarities of the dialog control do-

main), a solution using UML proﬁles could have been

chosen in this case. However, we chose to develop

a new metamodel for several reasons: The DFN ap-

plies to the well-deﬁned domain of web application

development, which qualiﬁes it for a metamodel of its

own, according to Desfray. In addition, UML proﬁles

have some disadvantages compared to new metamod-

els, e.g. insufﬁcient transitivity in the derivation of

properties (Atkinson et al., 2000).

In addition to these more academic reasons, there

were other, more pragmatic ones: The biggest ad-

vantage of UML could be the support of many tools

that are provided by different vendors. Unfortunately,

though, there do not seem to be any robust tools that

provide UML 2.0 proﬁle support, which negates the

biggest advantage of UML proﬁles. Pending a solu-

tion for this problem in the future, it would be inter-

esting to examine whether the DFN metamodel can be

represented as an UML proﬁle and whether the mod-

elling tools available then can signiﬁcantly increase

productivity. At this time, however, we found that the

combination of Eclipse’s EMF and Graphical Edit-

ing Framework (GEF) provides comprehensive sup-

port for the implementation of a CASE tool for the

DFN based on a new metamodel.

5 DFN CASE Tool

To demonstrate the feasibility of our approach to di-

alog ﬂow speciﬁcation and evaluate the advantages

and drawbacks of metamodelling, we implemented a

CASE tool for the DFN. Our plugin for the Eclipse

IDE can manipulate DFN models, validate them and

transform them into DFSL documents.

The choice of Eclipse as the development plat-

form was inﬂuenced by (L

uer, 2003), who judged

it as the perfect candidate for the integration of ex-

perimental tools. The DFN CASE tool was devel-

oped as two Eclipse plugins – the DFN metamodel it-

self, implemented using the Eclipse Modeling Frame-

work (EMF), and a graphical editor to manipulate

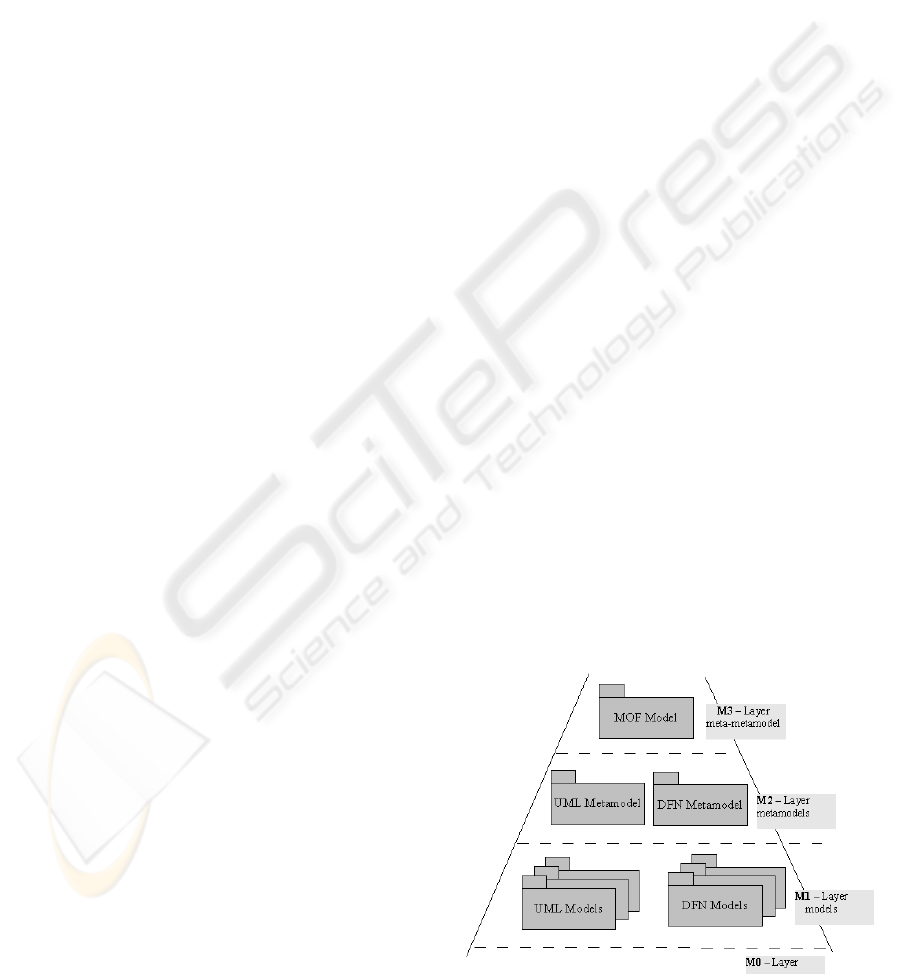

Figure 5: Relationship of MOF, UML and DFN

A META-MODEL FOR THE DIALOG FLOW NOTATION

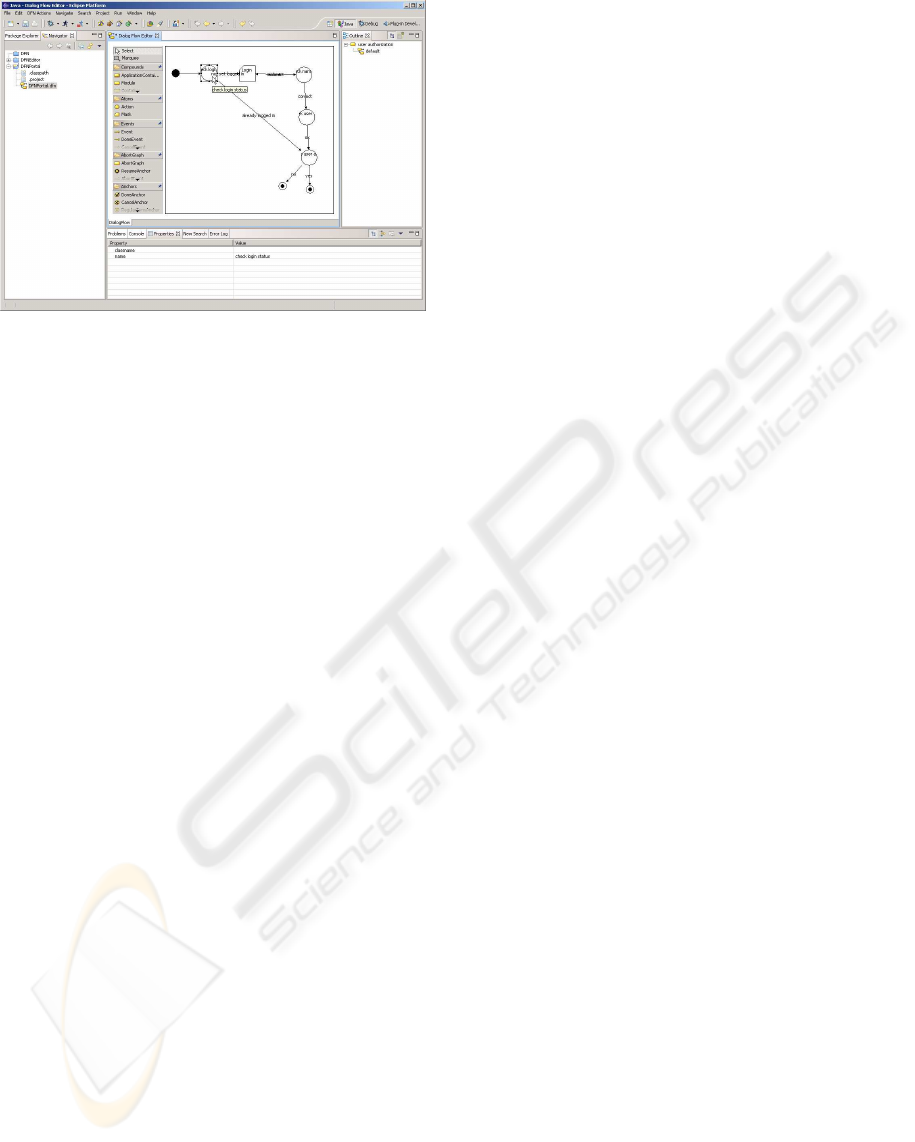

Figure 6: Model of the User Authorization module in the

DFN CASE tool

DFN models, implemented using the Graphical Edit-

ing Framework (GEF). Since the EMF provides a

powerful event mechanism, it was easy to integrate it

into the MVC architecture of the GEF. This way, the

editor can beneﬁt from the metamodel with its default

XMI serialization and validation.

One of the most important features of the DFN

CASE tool is the validation of DFN models and high-

lighting any errors. This way, violations of the DFN

rules can be recognized and eliminated without test-

ing the application. MOF and EMF provide only few

concepts to specify such constraints, which simpli-

ﬁes the development of metamodels, but limits the

choices for validation. A commonly used concept are

upper and lower bounds for attributes and associations

in the metamodel, which can be validated automati-

cally by the validation framework of EMF. The vali-

dation framework also provides basic mechanisms for

the implementation of more complex constraints (e.g.

the Object Constraint Language (OCL) in UML 2.0).

As an example, the screenshot of the DFN CASE

tool in Figure 6 shows the graphical representation

of the User Authorization module introduced in Fig-

ure 1. The following excerpt gives an impression of

the serialized XMI representation of this dialog ﬂow

model:

<dfn:DialogFlow xmi:version="2.0"

xmlns:xmi="http://www.omg.org/XMI"

xmlns:xsi=

"http://www.w3.org/2001/XMLSchema-instance"

xmlns:dfn="http:///dfn.ecore"

xmi:id="dfn_1086773516859">

<modelElements xsi:type="dfn:Module"

xmi:id="dfn_1086773516860" x="73" y="93"

width="80" height="40"

name="user authorization">

<modelElements xsi:type="dfn:Action"

xmi:id="dfn_1086773516863" x="89" y="47"

width="40" height="40"

incomingEventElements="dfn_1086773516877"

name="check login status"

outgoingEvents=

"dfn_1086773516868 dfn_1086773516872"/>

</interiorGraphs>

</modelElements>

</dfn:DialogFlow>

Given the DFN model in its serialized form, the

XSLT transformation then produces DFSL docu-

ments as input for the DCF. As an example, the fol-

lowing is an excerpt from the User Authorization

module’s DFSL representation:

<?xml version="1.0" encoding="UTF-8"?>

<dfs-flows xmlns:xmi="http://www.omg.org/XMI"

xmlns:xalan="http://xml.apache.org/xalan">

<in-module name="user authorization">

<on-init>

<call-action>

check login status

</call-action>

</on-init>

<ex-action name="check login status">

<on-event name="not yet logged in">

<call-mask>Login</call-mask>

</on-event>

<on-event name="already logged in">

<call-action>

has user admin rights

</call-action>

</on-event>

</ex-action>

</channel>

</in-module>

</dfs-flows>

The requirements for the DFN CASE tool were

derived from our Dialog-Driven Software Process

Model (DDPM) that advocates modeling the dia-

log ﬂows coarsely early in the software development

process with a focus on modules and masks, and then

reﬁning it iteratively by adding actions that provide

the application logic that is required to drive the envi-

sioned user interface. Another source of requirements

were our experiences from the development of AR-

GuS, a web-based travel planning system that was still

built without modeling tool support. The DFN CASE

tool can be integrated smoothly into the DDPM with-

out the need for additional processing steps.

6 CONCLUSIONS

In this paper, we presented issues and solutions that

were encountered in the development of a metamodel

for the Dialog Flow Notation (DFN). The aim of this

metamodel is to increase the efﬁciency of the develop-

ment process for web-based applications by providing

tool support for the design and validation of dialog

ﬂow models and the automatic generation of dialog

ﬂow speciﬁcation documents.

In order to achieve this goal, several issues had to

be resolved: Firstly, we had to ﬁnd a formal speciﬁ-

cation mechanism for the DFN that can be used for a

complete description of DFN models with their rich

syntax and semantics. This was accomplished by the

choice of the MOF standard and its implementation in

the EMF. Secondly, constraints imposed by the DFN

rules had to be incorporated into the metamodel in

WEBIST 2005 - INTERNET COMPUTING

order to enforce them in the process of model valida-

tion. These constraints were partly modelled as MOF

constructs and partly implemented. Finally, a way for

transforming valid DFN models into DFSL speciﬁca-

tions had to be developed. This was accomplished

by generating the XMI representation of the graphi-

cal model using the EMF and then translating it into

DFSL using XSLT.

To formalize the DFN, we chose to develop a new

metamodel instead of realizing it as a UML pro-

ﬁle because of theoretical and practical reasons: The

DFN has its well-deﬁned domain and enough seman-

tic distance from UML to justify an own metamodel,

and UML 2.0 proﬁles are not supported properly by

today’s tools. We therefore implemented the DFN

CASE tool as an Eclipse plugin to demonstrate the

feasibility of the metamodelling approach for dialog

ﬂow speciﬁcation. While the ﬁrst practical experi-

ences with the tool are promising, an experimental

evaluation of its impact on the web application de-

velopment process is still a topic of further research.

The development of the DFN CASE tool will con-

tinue in the future. It would be desirable to support

more aspects of web application development, e.g. by

generating further artefacts such as Java class stubs

for implementing the actions and JavaServer Pages

for implementing the masks. Although the full im-

plementation of these artefacts will remain the devel-

oper’s task, the CASE tool should be able to main-

tain the synchrony between model elements and their

code representation, and allow prototypic dialog ﬂow

execution at design time. This way, the develop-

ment process can be streamlined by avoiding frequent

copying and pasting of class structures and lengthy

testing of simple use cases.

Combining all possibilities offered by the DFN

metamodel, the following scenario can be conceived:

The development of a web application using the DFN

is completely integrated into the Eclipse IDE. While

the dialog ﬂow is designed in the graphical editor, an-

other DFN tool generates stubs for actions and masks

in the same project. This yields a dialog ﬂow that

can be executed directly by a Dialog Control Frame-

work plugin. While the dialog ﬂow is reﬁned and en-

hanced incrementally, the according artefacts are im-

plemented in parallel. This would enable an agile de-

velopment approach, which produces executable code

very early, and is guided by the model of the dialog

ﬂow that is tailored to the users’ requirements.

ACKNOWLEDGMENTS

The Chair of Applied Telematics/e-Business is en-

dowed by Deutsche Telekom AG.

REFERENCES

Apache Project (2005). The Apache Struts web application

framework. http://struts.apache.org.

Atkinson, C., K

uhne, T., and Henderson-Sellers, B. (2000).

To meta or not to meta. Journal of Object-Oriented

Programming, 13(8):32–35.

Book, M. and Gruhn, V. (2003). A dialog control frame-

work for hypertext-based applications. In Lin, H. and

Ehrich, H., editors, Proceedings of the 3rd Interna-

tional Conference on Quality Software (QSIC 2003),

pages 170–177. IEEE Computer Society Press.

Book, M. and Gruhn, V. (2004). Modeling web-based dia-

log ﬂows for automatic dialog control. In 19th IEEE

International Conference on Automated Software En-

gineering (ASE 2004), pages 100–109. IEEE Com-

puter Society Press.

Ceri, S., Fraternali, P., and Bongio, A. (2000). Web Model-

ing Language (WebML): a modeling language for de-

signing Web sites. Computer Networks, 33:137–157.

Conallen, J. (1999). Modeling web application archi-

tectures with UML. Communications of the ACM,

2(10):63–70.

Desfray, P. (2000). UML proﬁles versus metamodeling

extensions... an ongoing debate. In UML In The

.Com Enterprise: Modeling CORBA, Components,

XML/XMI And Metadata Workshop, Palm Springs.

Gorshkova, E. and Novikov, B. (2002). Exploiting UML

extensibility in the design of web information sys-

tems. In Proceedings of the Fifth International Baltic

Conference on Databases and Information Systems.

Kluwer.

Harel, D. (1987). Statecharts: A visual formalism for com-

plex systems. Science of Computer Programming,

8(3):231–274.

Krasner, G. (1988). A cookbook for using the model-view-

controller user interface paradigm in Smalltalk. Jour-

nal of Object-Oriented Programming, 1(3):26–49.

uer, C. (2003). Evaluating the Eclipse platform as a com-

position environment. In 3rd International Workshop

on Adoption-Centric Software Engineering (ACSE

2003), Portland.

Muller, P.-A., Studer, P., and Bezivin, J. (2003). Platform in-

dependent web application modelling. In Proceedings

of the 6th International Conference on UML, Lecture

Notes in Computer Science, volume 2863, pages 220–

233. Springer.

Object Management Group (2002). Meta-object facility

(MOF), v1.4. Technical report.

Schattkowsky, T. and Lohmann, M. (2002). Rapid develop-

ment of modular dynamic web sites using UML. Pro-

ceedings of the 5th International Conference on UML,

Lecture Notes in Computer Science, 2460:336–350.

Singh, I., Stearns, B., and Johnson, M. (2002). Design-

ing Enterprise Applications with the J2EE Platform.

Addison-Wesley, 2nd edition.

A META-MODEL FOR THE DIALOG FLOW NOTATION
