SEMANTIC DISCOVERY OPTIMIZATION

Matching composed semantic web services at publishing time

Andreas Friesen, Michael Altenhofen

SAP Research, CEC Karlsruhe, Vincenz-Prießnitz-Str. 1, D-76131, Germany

Keywords: Semantic discovery, Semantic Web Services

Abstract: This paper describes an algorithm optimizing the discovery process for composed semantic web services.

The algorithm can be used to improve discovery of appropriate component services at invocation time. It

performs semantic matchmaking of goals of a composed service to appropriate component services at

publishing time. The semantic discovery problem at invocation time is therefore reduced to a selection

problem from a list of available (already discovered) component services matching a goal of the composed

service.

1 INTRODUCTION

In the last few years a new approach to design

(integrate) software applications, called Service-

oriented Architecture (SOA), arose and became very

popular. The main idea of that approach is to build

applications through composition of loosely coupled

components called services. This approach promises

to increase interoperability and to reduce integration

costs.

Today, a standardized technological realization

of SOA, called Web Services, is available and

becomes more and more widespread. Web Services

consist of three core technologies: SOAP (Simple

Object Access Protocol) (Box, 2000), WSDL (Web

Service Description Language) (Christensen, 2001)

and UDDI (Universal Description, Discovery and

Integration) (Bellwood, 2002). There are numerous

emerging additional technologies on top of Web

Services dealing with workflows, transactions,

security and so on (W3C: http://www.w3c.org,

OASIS: http://www.oasis-open.org). However, the

above technologies support only manual integration

of the Web Services into composite applications.

This is because their semantics are not explicitly

described in a formalized way and therefore can be

understood only by humans but not by machines.

In order to enable automated usage of Web

Services several competing initiatives are

developing infrastructures, so-called Semantic Web

Services, which combine Semantic Web and Web

Services technologies (e.g.,

W3C SW: http://www.w3.org/2001/sw/,

SWWS: http://www.swsi.org/,

SDK: http://www.sdkcluster.org.)

Web Service usage comprises many aspects of

Web Services, e.g., publication, discovery, selection,

composition, mediation, negotiation, invocation,

monitoring, compensation and recovery. Within this

big picture, the paper describes an optimization of

semantic discovery in the context of composed web

services.

2 ATOMIC/COMPOSED

SERVICES

Services published to a registry can be divided into

two classes: atomic services and composed services.

An atomic service does not use any further services

to perform its functionality. Opposed to that, a

composed service relies on a set of composed or

atomic services. We call this set component services

of the composed service.

However, a composed service making an

ultimate decision about the set of its component

services at design time will probably become non-

optimized or even unable to perform its task for the

following reasons:

• New, more optimal component services may

have been added to the registry in the meantime.

• The properties of the existing services may

change (become more/less optimal or

usable/unusable for the composed service).

347

Friesen A. and Altenhofen M. (2005).

SEMANTIC DISCOVERY OPTIMIZATION - Matching composed semantic web services at publishing time.

In Proceedings of the First International Conference on Web Information Systems and Technologies, pages 347-350

DOI: 10.5220/0001229703470350

 SciTePress

• Existing services may be removed from the

registry.

In order to protect itself from becoming less

optimal or unable to perform its tasks a composed

service has to:

• Discover component services in order to detect

new, changed or removed services

• Select from the discovered set of available

services the services used for the current

execution of the service according to some

optimization algorithm

A composed service discovers a component

service using some goal. Since a composed service

also has to be published to a registry its goals used to

find appropriate component services are known to it

at publishing time and do not change as long as the

service does not change or has been removed.

However, at the time being the goals of a composite

service used to discover its component services are

hidden in its internal business logic (also known as

orchestration) and can therefore only be used by the

service itself.

The above considerations show that a composite

service, in order to keep its functionality optimized,

has to discover its component services again and

again either at each invocation or at some other time

intervals specified by its internal logic.

3 SEMANTIC DISCOVERY

Semantic discovery of Web Services means

semantic reasoning over a knowledge base where a

goal describes the required web service capability as

input. Semantic discovery adds accuracy to the

search results in comparison to traditional Web

Service discovery techniques, which are based on

syntactical searches over keywords contained in the

web service descriptions (Keller, 2004), (Motik,

2004). The additional accuracy of a match is

expensive in terms of required computational power.

The expensiveness of semantic matchmaking has

several aspects influencing the design of the

Semantic Web Services infrastructure in different

ways (Paolucci, 2004). Besides the accuracy of a

semantic match, also the following two aspects have

to be considered:

• Response time

• Scalability

Response time specifies how long semantic

discovery takes to find a set of web services

matching a goal. This criterion can restrict or even

prohibit service usage in certain scenarios, where a

Web Service has to be discovered and directly

invoked and the total time for discovery and

invocation has to be short. For instance, a composed

service may semantically discover required

component services at runtime. If potential service

requesters of the composed service expect short

response times this service becomes unusable to

them even if the functionality offered by the service

meets their needs.

Scalability specifies how many semantic

discovery requests can be processed within a given

unit of time. If a composed service identifies its

component services using time-consuming semantic

discovery techniques each time it is invoked,

discovery may become a bottleneck.

A practical approach to the above problems is to

execute semantic discovery only if necessary, e.g. by

buffering results from former searches. An even

better approach would be to do semantic

matchmaking or some sub-steps of this process

ahead of the current discovery request. Since goals

and service capabilities rely on the same ontological

concepts, it is possible to match a service capability

to the ontological concepts even if the goal is not

known at that point in time. In (Paolucci, 2004) an

OWL-S/UDDI matchmaker is proposed that

performs reasoning at publishing time in order to

find matches of different quality (exact,

subsumption, plug-in, intersection, fail) between

capabilities and the ontological concepts they rely

on. Matchmaking is often used as a synonym for

semantic discovery. The matches found are stored as

lists (identifying the different qualities of the match)

attached to the ontological concepts. The matching

of goals and capabilities is therefore reduced to

computing intersections between capabilities lists of

the concepts used in the goal. A goal is semantically

described, e.g., in:

• OWL-S through inputs and outputs (OWL-S,

2003)

• WSMO through postconditions and effects

(Roman, 2004)

4 OPTIMISATION APPROACH

We propose to make the goals of the composed

service used to discover component services part of

its public description (public to a registry, but not

necessarily to other clients of the registry). This

would allow the application of a new discovery

algorithm, which reduces the efforts to discover

component services at invocation time significantly.

In fact, using the algorithm described below, the

discovery process during the service invocation will

take a constant time in order to find a set of services

matching the goal, so the overall process identifying

WEBIST 2005 - WEB INTERFACES AND APPLICATIONS

348

component services takes a constant time for

semantic discovery plus the time for the selection

from a list of services matching the goal. (The

selection time remains dependent on an internal

algorithm of the composed service.)

Before introducing the algorithm let’s consider

what is the additional value of having goals

explicitly published in the web service description

(e.g., as a list). If the goals are known, the discovery

process can be executed by a registry at publishing

time and the list of the available services matching

the goal can be stored (linked in some way to the

goal) in the registry. This means that, if the service

sends a discovery query with the goal to a registry,

the registry first tries to find the goal and returns in

case of success the list of services linked to it. Only

if the goal could not be found, the registry starts the

semantic discovery in the “traditional way”. This

does not yet solve the problem of detecting new,

changed and removed services possibly impacting

the functionality of the composed service, since the

service could make the discovery once and store it

for the further use internally (outside of the registry).

So what is needed is a way to update the list of

available services linked to the goal if something

changes (e.g., a new service is added to the registry,

or an existing service is changed or removed).

The following observation allows achieving the

required behavior. A goal presents in fact a partial

description of the service capability, e.g. in WSMO

a goal is described through postconditions and

effects while a service capability is described by

preconditions, assumptions, postconditions and

effects. This means, that if a registry can find

matching service capabilities using a goal then it can

also find matching goals using service capabilities.

5 OPTIMIZATION ALGORITHM

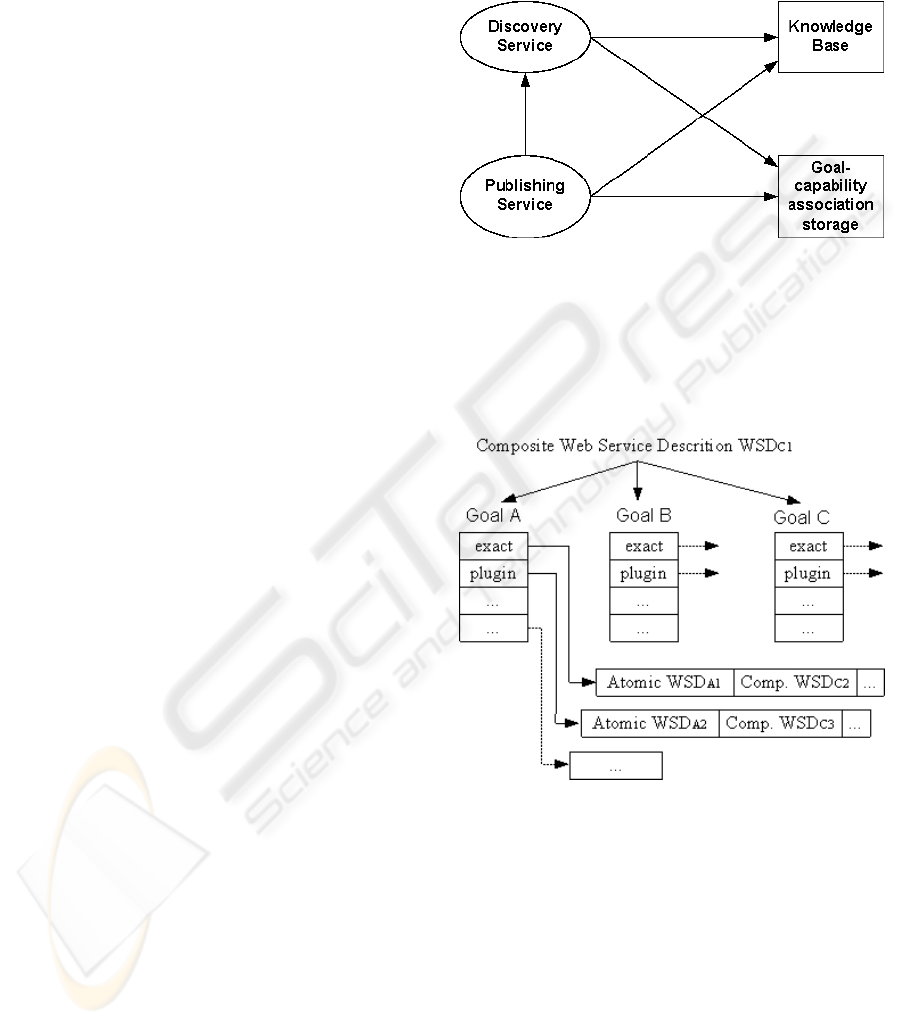

The key abstractions of a registry used for semantic

discovery can be described by the following key

abstractions illustrated in Figure 1:

• Discovery Service

• Publishing Service

• Knowledge Base

• Goal-Capability Association Storage

(GCA-Storage)

Discovery Service provides an interface allowing

execution of semantic search queries against the

Knowledge Base.

Publishing Service provides an interface to add

new services or to update or remove existing

services from the knowledge base of the registry.

The published services are stored in the

Knowledge Base.

The Web Service Description (WSD) of a

composed service is modified (extended) in a way

that the goals a composed service uses to find

component services are described explicitly in its

Web Service description.

We introduce a GCA-Storage able to store

associations (links) between explicitly described

goals in the WSD of a composed service and the

WSDs of potential component services (containing

matching service capabilities). The GCA-Storage is

illustrated in Figure 2.

The Publishing Service is modified in a way

allowing the operations described in the algorithm

below.

The Discovery Service is modified in a way such

that not only a goal can be used to find service

capabilities but also a service capability can be used

as a search criterion in order to find goals explicitly

stored in the directory.

The following algorithm performs semantic

discovery at publishing time and keeps the goal-

service association storage consistent for any

changes of goals or service capabilities published to

the registry.

Figure 1: Key abstractions of a registry

Figure 2: Goal-capability association storage

SEMANTIC DISCOVERY OPTIMIZATION: Matching composed semantic web services at publishing time

349

publishService(wsd){

choose (wsd){

newAtomic: perform InsertNewAtomic

updateAtomic: perform UpdateAtomic

deleteAtomic: perform DeleteAtomic

newComposed: perform

InsertNewComposed,

InsertNewAtomic

updateComposed: perform

UpdateComposed,

UpdateAtomic

deleteComposed: perform

DeleteComposed,

DeleteAtomic

}

InsertNewComposed: Extract goal descriptions

and use the discovery service to find matching

service capabilities. Store the lists of found service

capabilities to the GCA-Storage (associating them

with the matching goals).

UpdateComposed: Remove old associations

(between goals and service capabilities) from the

GCA-Storage, find and store new associations in the

GCA-Storage (Further optimization possible, e.g.

compare the new and old WSD version to find

differences between old and new goals. If a goal has

not changed no action is required, i.e. no reasoning

is required and the already existing association

remains valid.)

DeleteComposed: Remove associations for the

goals contained in the WSD from the GCA-Storage

InsertNewAtomic: Use discovery service with

service capability as search criterion in order to find

matching goals and store found matches to the

GCA-Storage.

UpdateAtomic: Delete old associations from

GCA-Storage. Use discovery service to find new

matches and store them in the GCA-Storage.

DeleteAtomic: Remove associations for the

service capability contained in the WSD from the

GSA-Storage.

Note that a composed service can act as an

atomic service (component service) for other

composed services. Therefore, after an operation for

the composed service has been performed, an

associated operation for the atomic service must

follow (associating herewith its service capability

with goals of some other services).

The proposed optimization approach can be used in

different business scenarios. Of special interest are

scenarios with composed services aggregating

functionality of supplying component services, e.g.,

in the example of a Virtual Travel Agency

(Stollberg. 2004). A composed service in such

scenario can profit from the introduced optimization

procedure if it can express its (possibly dynamically

changing) requirements on the resources (it expects

to be provided by component services) as a set of

semantically described goal descriptions.

6 CONCLUSION

The introduced approach demonstrates that at least

for composed services in applicable business

scenarios the semantic matchmaking between goals

and service capabilities can be executed at the

publishing time instead of invocation time. This

approach reduces also the total number of semantic

queries due to buffering of existing matches in the

goal-service association storage. The introduced

algorithm ensures that the goal-service association

storage can be kept consistent for any changes of

goals or service capabilities, if they are published to

the registry.

ACKNOWLEDGEMENT

The work is partially funded by the European

Commission under the project DIP.

REFERENCES

Bellwood, T., 2002. Bellwood, T. et all; UDDI Version

2.04 API Specification, July 2002, http://uddi.org/

Box, D., 2000. Box, D. et all; SOAP 1.1, May 2000,

http://www.w3.org/TR/2000/NOTE-SOAP-20000508/

Christensen, E., 2001. Christensen, E., et all; Web Service

Description Language (WSDL) 1.1, March 2001,

http://www.w3.org/TR/wsdl

Keller, U., 2004. U. Keller, R. Lara, A. Polleres, “WSMO

Web Service Discovery”,

http://www.wsmo.org/2004/d5/d5.1/v0.1/20041112/

Motik, B., 2004. B. Motik, C. Preist, S. Grimm, „Variance

in e-Business Service Discovery“, ISWC 2004,

http://www.fzi.de/wim/publikationen.php?id=1238

OWL-S, 2003. http://www.daml.org/services/owl-

s/1.0/owl-s.html

Paolucci, M., 2004. N. Srinivasan, M. Paolucci and K.

Sycara, "Adding OWL-S to UDDI, implementation

and throughput”, SWSWPC 2004, 6-9, 2004,

Roman, D., 2004. D. Roman, H. Lausen, U. Keller, et all,

Web Service Modeling Ontology (WSMO),

http://www.wsmo.org/2004/d2/v1.0/20040920/

Stollberg, M., 2004. M. Stollberg, R. Lara, et all, WSMO

Use Case “Virtual Travel Agency”,

http://www.wsmo.org/2004/d3/d3.3/v0.1/

WEBIST 2005 - WEB INTERFACES AND APPLICATIONS

350
