A DISTRIBUTED INFORMATION FILTERING : STAKES AND

SOLUTION FOR SATELLITE BROADCASTING

Sylvain Castagnos, Anne Boyer, Franc¸ois Charpillet

LORIA - INRIA Lorraine

Campus Scientiﬁque, B.P. 239

54506 Vandoeuvre-l

es-Nancy Cedex, France

Keywords:

Collaborative ﬁltering, user proﬁling, distributed algorithm, internet broadcasting per satellite, privacy.

Abstract:

This paper is a preliminary report which presents information ﬁltering solutions designed within the scope

of a collaboration between our laboratory and the company of broadcasting per satellite SES ASTRA. The

latter have ﬁnalized a system sponsored by advertisement and supplying to users a high bandwidth access

to hundreds of web sites for free. This project aims at highlighting the beneﬁts of collaborative ﬁltering by

including such a module in the architecture of their product. The term of collaborative ﬁltering (Goldberg et al.,

2000) denotes techniques using the known preferences of a group of users to predict the unknown preference

of a new user. Our problem has consisted in ﬁnding a way to provide scale for hundreds thousands of people,

while preserving anonymity of users (personal data remain on client side). Thus, we use an existing clustering

method, that we have improved so that it is distributed respectively on client and server side. Nevertheless, in

the absence of numerical votes for marketing reasons, we have chosen to do an innovative combination of this

decentralized collaborative ﬁltering method with a user proﬁling technique. We have also been submitted to

constraints such as a short answer time on client side, in order to be compliant with the ASTRA architecture.

1 INTRODUCTION

The ASTRAcompany

, located in Luxembourg, has

conceived a service of Web sites broadcasting per

satellite called Sat@once. This service is spon-

sorised by advertisement and free for the users, pro-

viding that they are equipped with a DVB receiver.

The satellite bouquet contains hundreds of Web sites

which are sent to about 118.000 persons

via a high

bandwidth and one-way transmission.

Users who have a standard internet connection, in

addition to the satellite reception, can select (through

the client application called Casablanca) Web sites

that particularly interest them, either by choosing

items in a list provided by the server or by suggesting

new contents. This means, the users receive above all

those sites of the bouquet for which they have shown

a particular interest. The users votes are also sent to

server, in order to do a classiﬁcation of the most popu-

lar sites. These ones will then be included in the bou-

http://www.ses-astra.com/

This estimation has been done in November 2004, ac-

cording to number of persons who have downloaded the

client application.

quet

during the next update which takes place every

week.

This approach however presents two major draw-

backs for users. On the one hand, the amount of

available sites is very important. This makes it dif-

ﬁcult for the users to consult all of these documents

(also called ”items”) in order to spot, in a reasonable

amount of time, pieces of information which preoc-

cupy them. Consequently, votes are often based on

some presumed interest for an item, and not according

to an experience feedback. Results provided by such

a system are thus not always satisfying enough. On

the other hand, people generally don’t take the time

to skim through the whole list of items and restrict

possibilities from the beginning.

In order to cope with these problems, our goal con-

sists in designing both the client and the server mod-

ules which provide users with documents likely to

interest them but that they shouldn’t have consulted

spontaneously. These processes of investigation re-

quire techniques of collaborative ﬁltering. In practical

The bandwidth of satellites being limited, it is not pos-

sible to include all the sites. Hence the need to select the

most popular ones.

299

Castagnos S., Boyer A. and Charpillet F. (2005).

A DISTRIBUTED INFORMATION FILTERING: STAKES AND SOLUTION FOR SATELLITE BROADCASTING.

In Proceedings of the First International Conference on Web Information Systems and Technologies, pages 299-304

DOI: 10.5220/0001231302990304

 SciTePress

terms, it amounts to identifying active user to a set of

persons having the same tastes and, that, in function

of his/her preferences and his/her past readings. This

system starts from the principle that users having ap-

preciated the same documents have the same topics of

interests. Thus, it is possible to predict pieces of data

likely to live up users’ expectations by taking advan-

tage of experience of a similar population.

The common feature of most of existing collabo-

rative ﬁltering methods is to be centralized. Even if

the research of nearest neighbors among some thou-

sands of candidates in real time is no longer a prob-

lem, the transition to hundred thousands of users or

more remains an open issue. According to (Breese

et al., 1998), the bottleneck due to a large user pop-

ulation of potential neighbors in conventional collab-

orative ﬁltering algorithms is problematic. (Sarwar

et al., 2001) have paved the way by proposing an al-

ternative: they suggest to compute recommendations

by identifying items that are similar to other items the

user has liked. They suppose that the relationships

between items are relatively static. Nevertheless, this

approach is unlikely to work in the context investi-

gated in this paper, since the number of users is there

far more important than the number of items. More-

over, the bouquet (that is to say items it contains) can

change radically from one week to the next. There-

fore, we have chosen to explore ways to distribute

computations.

Furthermore, centralization of data is in contra-

diction with the agreement of 28 January 1981

of the Council of Europe and with instructions of

the Commission Nationale de l’Informatique et des

Libert

(CNIL), unless users are handled with

anonymity. As a matter of fact, the conﬁdentiality

of any information related to the users constitutes an

european legal obligation. In France, it is the CNIL

organization that is responsible for the protection of

private life and for the preservation of personal data.

In order to distribute the model, we have thus

decided to split a clustering collaborative ﬁltering

method into client and server parts. However, this is

not enough to solve all the problems ASTRA is con-

fronted with, since this ﬁltering method requires to

have explicit numerical or boolean votes. For mar-

keting reasons

, this kind of votes is not suitable, be-

cause it underpins some negative valuations of items

by users. We will show, in section 3, how to bypass

this difﬁculty with an assistance function to the votes.

We then present the clustering algorithm in section 4.

Part 5 is dedicated to a discussion about the advan-

tages and drawbacks of the model. At last, Part 6

http://www.cnil.fr

ASTRA doesn’t want that users could positively reject

items for which companies have paid the inclusion in the

bouquet.

presents our perspectives of research. Beforehand,

we would like to familiarize reader with the global

architecture of our information ﬁltering system in the

following section.

2 ARCHITECTURE

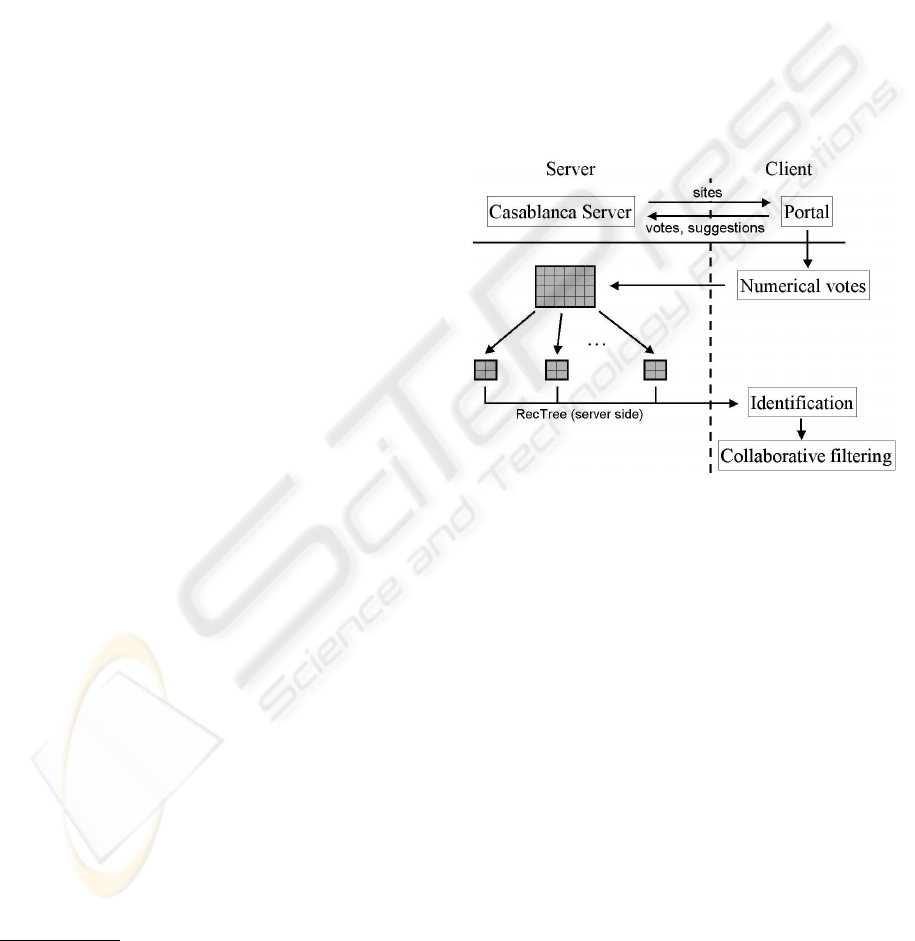

The architecture of our information ﬁltering system

is shown on ﬁgure 1. This model associates a user

proﬁling method based on the Chan formula (Chan,

1999) (cf. infra, 3 Assistance to votes, p. 3) and a new

version of the hierarchical clustering algorithm, also

called RecTree (Chee et al., 2001) (cf. infra, 4 Clus-

tering algorithm, p. 3). This new version presents the

advantage to be distributed.

Figure 1: Architecture of information ﬁltering module.

Web sites are sent via satellites from the

Casablanca server to the client. Moreover, users

who also have a standard internet connection can sent

non-numerical votes (cf. infra, 3 Assistance to votes,

p. 3) and suggestions for new contents to the server.

This system interfaces itself with our information ﬁl-

tering module thanks to DLL ﬁles.

In order to distribute the system, the server part has

been separated from the client side. The assistance

function to the votes determines numerical votes for

the items according to the users’ actions. Then, these

numerical votes are sent to the server, together with

the non-numerical ones. The server thus has at its dis-

posal, as input parameters, the matrix of users votes

and a database including sites and descriptors. In this

way, the server has no information about the popu-

lation, but anonymous votes. Users preferences are

stored in the proﬁle on clients. Thus, the conﬁdential-

ity criterion is duly respected.

The RecTreealgorithm aims at reducing quantity

of data that needs to be processed. The ofﬂine compu-

tations of RecTree allow to build typical users pro-

WEBIST 2005 - WEB INTERFACES AND APPLICATIONS

300

Adapted Chan formula:

Interest(item) = F requency(item) . (1 + IsF avorite(item)

+ Duration(item) + Recent(item) + P ourcentV isitedLinks(item))

With: Duration(item) = max

visited items



time spent on pagesof item

size of the item



And: Recent(item) =

date(last visit) − date(log beginning)

date(present) − date(log beginning)

(1)

Interest(item) must be normalized to correspond to scale of votes.

IsF avorite(item) equals 1 if the item has been voted by the user (non-numerical vote) and 0 else.

At last, P ourcentV isitedLinks(item) corresponds to the number of visited pages divided by the number of

pages on the item.

ﬁles. In this way, it is no longer necessary to consider

the whole votes matrix, but only the votes of those

persons belonging to the group of the active user. This

not only reduces the number of people that need to be

considered, but also the number of items: it is point-

less to keep documents that none of the group mem-

bers has read. In this way, we avoid the problem of

bottleneck of collaborative ﬁltering on client side: the

active user can very quickly be assigned to one of the

typical users groups.

3 ASSISTANCE TO THE VOTES

In the Casablanca client application, users have

the possibility to check boxes corresponding to the

sites that interest them most among those contained in

the bouquet. However, we can’t describe these non-

numerical votes as boolean. Indeed, we can’t differ-

entiate in the system items which don’t interest the

active user (negative votes) from those he/she doesn’t

know or has simply omitted to check. This kind of

votes is not sufﬁcient to do relevant predictions with

collaborative ﬁltering methods.

For this reason, we have chosen to determine nu-

merical marks without any rating

from the users. An

other advantage of this method is to increase the num-

ber of votes in the matrix. In order to do that, we have

chosen to develop an assistance function to the votes

based on the formula of Philip CHAN (Chan, 1999).

We have adapted this formula so that it can deal with

items (cf. infra, formula 1, p. 3). Whereas the orig-

inal formula was designed for Web pages, the items

we are focusing on correspond to Web sites, that is to

say sets of pages. The duration of consultation for a

Ideally, the numerical votes should be submitted to

their approval for checking.

speciﬁc item thus corresponds to the cumulative time

spent on each of its pages for example.

This assistance function undertakes to estimate

marks that user is likely to allocate for different sites

from implicit criteria (such as time or frequency that

user takes to consult a page

). The system analyses

log ﬁles of the active user to get back useful data. But

all pieces of informations consulted in these log ﬁles

remain on client side. Only numerical votes which

have been deduced from this process are sent anony-

mously to the server. They are required for the use of

RecTree clustering algorithm.

4 CLUSTERING ALGORITHM

The hierarchical clustering algorithm, also called

RecTree(Chee et al., 2001), tries to divide the set of

users into cliques. The algorithm of Chee et al was

purely centralized, such as most of existing collabo-

rative ﬁltering methods. Our contribution consists in

distributing this process: in this section, we explain

how to build typical users proﬁles on server side and

how to identify the active user to a group. From now

on, this second step takes place on client side. More-

over, the identiﬁcation phase has been optimized so

that answer time is very short. the client part thus

provides predictions in real time.

Table 1 proposes an example of votes characterized

by integers going from 1 to 10. This graduation is

arbitrary. The precision of this scale must be chosen

by the designer of the system, providing that users

could make the distinction between items they like,

they don’t like or those whose let them indifferent.

Figure 2 illustrates organization forms of groups in

These are pieces of information easily and legally sal-

vageable in Web browser of client.

A DISTRIBUTED INFORMATION FILTERING : STAKES AND SOLUTION FOR SATELLITE BROADCASTING

301

Pearson correlation coefﬁcient:

w(u

, u

) =

r∈R

∩R

(eval(u

, r) − v)(eval(u

, r) − v)

r∈R

∩R

(eval(u

, r) − v)

r∈R

∩R

(eval(u

, r) − v)

(2)

With: w(u

, u

) the distance between u

and u

;

eval(u

, r) the valuation of r by u

;

v the average mark of the resource;

the items marked by u

;

Table 1: Example of matrix of votes.

R1 R2 R3 R4 R5

User 1 6 7 6

User 2 4 7 7

User 3 7 6 5

User 4 6 6 7

the above example. Users are divided up in clusters

according to a distance calculated between them.

Figure 2: Hierarchical organization of users.

The RecTree algorithm is a model-based ap-

proach, described as a clustering method. However,

it is managed as a memory-based approach because

all the pieces of information are required for similar-

ity computation. It allows, within the scope of our

architecture, to limit the number of persons consid-

ered in the prediction computations. Thus, process-

ing time for the sorting of site (cf. infra, 6 Perspec-

tives, p. 6) will be shorter and results will be poten-

tially more relevant since observations will be about a

group closer to active user (Ungar and Foster, 1998).

A way to popularize this process amounts to consid-

ering that active user asks a group of persons having

same tastes as him/her for their opinions

. Each leaf

of the RecTree tree corresponds to a proﬁle of typi-

cal users.

The computer process is obviously transparent for

users.

The ﬁrst step consists in associating the global

matrix including users votes for each resource to

the root of the tree. Afterwards, the set of users

is divided up into two sub-groups using the nearest

neighbours method, also called K-means(Herlocker

et al., 1999). The latter consists, ﬁrstly, in choosing

randomly k centers in the users/items representation

space. In our case, the number k equals 2, since we

must subdivide population into two sub-sets. Then,

each user is positioned in the cluster of nearest center

(ﬁgure 3).

Figure 3: Users/items representation space.

Metrics used to determine distance in comparison

with these centers is the Pearson correlation coefﬁ-

cient (Resnick et al., 1994) (cf. infra, formula 2, p. 4).

Literature shows that Pearson correlation coefﬁ-

cient works well (Shardanand and Maes, 1995), be-

cause it only takes into account items commonly val-

uated by compared users and disregards missing data.

Once groups of persons have been formed as previ-

ously mentioned, the position of isobarycentre is re-

calculated for each cluster and this operation is re-

peated from the beginning until we have obtained a

stable state (where centers no longer move after re-

calculation of their position). The nearest neighbours

algorithm complexity is in o(k

n) for k clusters and

n users. Once this ﬁrst subdivision has been done,

operation is renewed on each of the two obtained sub-

groups until we have reached the wished tree depth.

Thus, the more we go down in the structure and the

more clusters are speciﬁc to a certain group of similar

users. Consequently, the more we glance through the

tree in depth, the more persons share the same opin-

ion concerning the assignment of a certain mark for a

WEBIST 2005 - WEB INTERFACES AND APPLICATIONS

302

given article. The whole complexity of the construc-

tion of the tree yields o(n.log

n), where n is the num-

ber of users.

Subsequently, the identiﬁcation phase of the active

user to one of cliques is in o(2p) on client side, where

p corresponds to depth of the tree. The latter is built

so that cliques hold just about the same number of

persons for a given depth.

5 DISCUSSION

The novelty of our model lies in the fact that we have

mixed a distributed collaborative ﬁltering with a user

proﬁling technique. In this way, we tackle problems

of scale and of anonymity in information ﬁltering sys-

tems. Furthermore, we have adapted to constraints of

satellite broadcasting in order to highlight the beneﬁts

of such a system for industry.

To assure that answer time on client side will be

short is essential too. But it is difﬁcult to conform to

this requirement if database contains a great number

of users. Indeed, in order to secure conﬁdentiality of

data concerning active user, the identiﬁcation phase

of those to a group must be done on client side. That

means we must retrieve pieces of data relating to pop-

ulation on clients. To avoid an overloading of user

terminal by sending all of the votes matrix, typical

users proﬁles are created with the help of RecTree

algorithm (cf. supra, 4 Clustering algorithm, p. 3).

In a ﬁrst time, the server undertakes to split all of

users in cliques from the votes matrix (algorithm in

o(n.log

n)). Then, the tree structure is sent to client

where the identiﬁcation phase of the active user to

a group takes place (algorithm in o(2p)). Thus, the

number of persons taken in consideration is limited,

because only those belonging to the same clique than

active user are retained

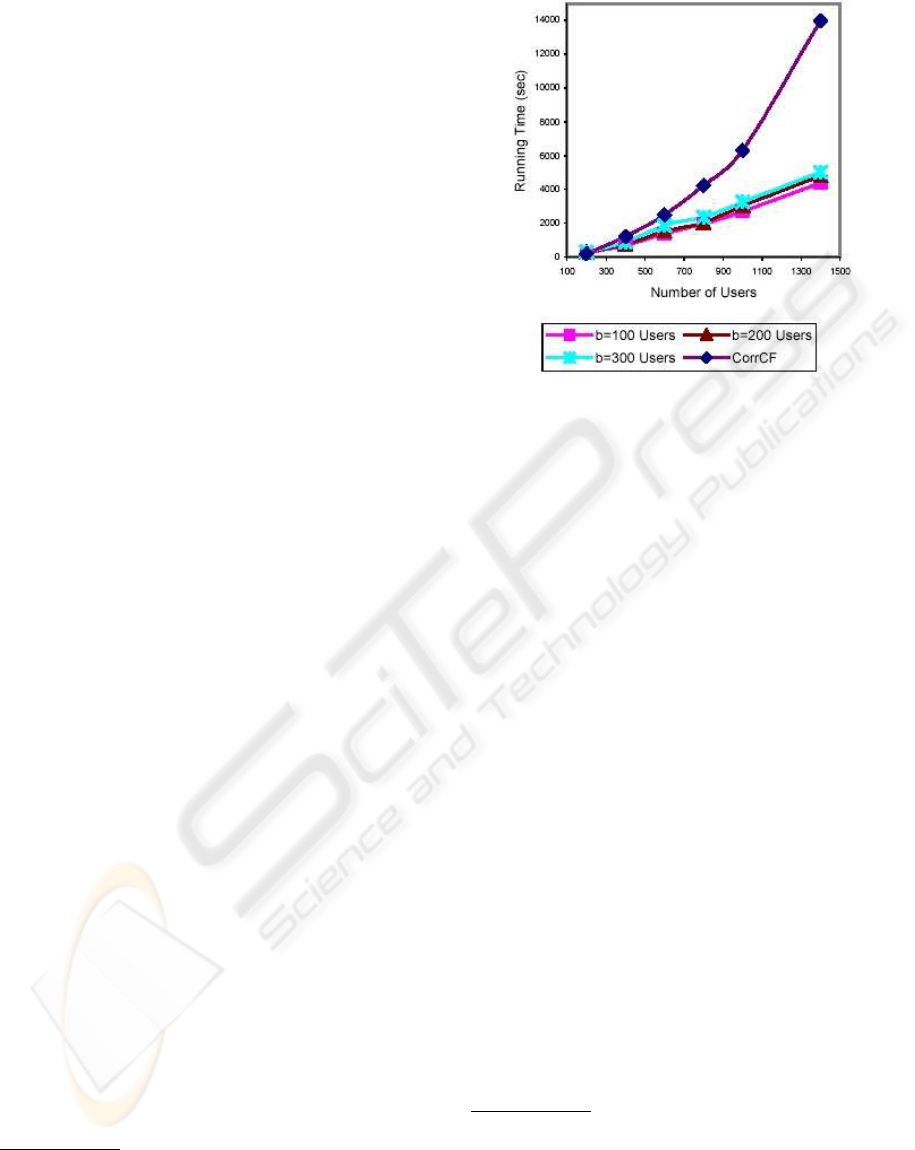

The ﬁgure 4 shows the answer time comparison

done in (Chee et al., 2001) between correlation-based

collaborative ﬁlter, called CorrCF (Resnick et al.,

1994), and RecTree with different partition sizes

b. The data for this study was drawn from the

EachMovie database

We can note that answer time increases linearly

in function of the number of users. If we extend

this straight line to 120,000 users, we will obtain in

theory around four days and half of computations.

This estimation seems huge. Nevertheless, this value

has been calculated by considering that the matrix of

We call back that it is possible to choose depth of the

tree: if the latter is not excessive, studied groups will be

smaller than the entire population but still disparate and

consequently able to suggest novelties to user.

http://www.research.digital.com/SRC/eachmovie/

Figure 4: Ofﬂine performance of RecTree (Chee et al.,

2001).

votes was almost full

. But statistics of ASTRAshow

there are only around 6,000 regular voters and 50,000

occasional voters. Moreover, the estimated answer

time remains much lower than a standard method

(CorrCF) and is less than the period of bouquet up-

date. Renewing periodically the server side compu-

tations can of course augur for slight differences bet-

ween last votes and preferences taken into account in

prediction computation. But these differences should

be minimal because of the great number of users. This

way to proceed also assures that the system is stable

in case of addition of documents, because these ones

will only be considered after reiteration of server side

computation. Furthermore, RecTree algorithm has

two major advantages:

• this method was easily divisible in two parts, re-

spectively runnable on client and server side;

• the online part of computations, that is to say iden-

tiﬁcation of user to a group, is in o(2p). Thus, an-

swer time on client side won’t be penalized by the

use of this algorithm. This part of computations

has been optimized in our model, in comparison

with the centralized RecTree algorithm of Chee

et al. The online part of Chee’s algorithm was in

o(b), where b was the number of users in each par-

tition. Users had consequently to wait for a few

seconds. In our version, the complexity of client

Indeed Chee et al have selected randomly, in the

EachMovie database, users who have marked at least 100

items which is approximately the number of sites included

in the ASTRA satellite bouquet. We can also notive that

these tests have been done in 2001 and that, according to

Moore’s law, the performance of microprocessors doubles

approximately every 18 months.

A DISTRIBUTED INFORMATION FILTERING : STAKES AND SOLUTION FOR SATELLITE BROADCASTING

303

part only depends on the depth of the tree and the

answer time will be much faster.

6 PERSPECTIVES

We have presented an algorithm that carries out dis-

tributed collaborative ﬁltering on large databases and

in relatively short time. This project is still in progress

and we are currently working on validating the assis-

tance function to the votes. There is to check if the

user proﬁles built with this function are in agreement

with the marks that users would chose for the same

items if they were authorized to do it. This evaluation

requires the use of the system by real users.

Moreover, thanks to our collaboration with Jean-

Charles Lamirel and Randa Kassab (Kassab et al.,

2005), we are considering combining this distributed

collaborative ﬁltering model with content-based ﬁl-

tering techniques to sort items in increasing order of

importance for active user on client side. Indeed, the

cache size of the client application is limited and it can

be useful to favour the most relevant items if there is

not enough space. Content-based techniques will also

allow us to manage suggestions of new contents in the

bouquet: for the moment, when a user suggests a site,

nobody has voted for it and we can’t include it in the

RecTree computations.

ACKNOWLEDGEMENT

We want to thank the company ASTRA and the re-

search center Henri Tudor which have encour-

aged this work.

REFERENCES

Breese, J. S., Heckerman, D., and Kadie, C. (1998). Em-

pirical analysis of predictive algorithms for collabo-

rative ﬁltering. In Proceedings of the fourteenth An-

nual Conference on Uncertainty in Artiﬁcial Intelli-

gence (UAI-98), pages 43–52, San Francisco, CA.

Chan, P. (1999). A non-invasive learning approach to build-

ing web user proﬁles. In Workshop on Web usage

analysis and user proﬁling, Fifth International Con-

ference on Knowledge Discovery and Data Mining,

San Diego.

Chee, S. H. S., Han, J., and Wang, K. (2001). Rectree : An

efﬁcient collaborative ﬁltering method’. In Proceed-

ings 2001 Int. Conf. on Data Warehouse and Knowl-

edge Discovery (DaWaK’01), Munich, Germany.

Goldberg, K., Roeder, T., Huptan, D., and Perkins, C.

(2000). Eigentaste : a constant time collaborative ﬁl-

tering algorithm. Technical Report M00/41, IEOR and

EECS Departments, UC Berkeley.

Herlocker, J. L., Konstant, J. A., Borchers, A., and Riedl,

J. (1999). An algorithmic framework for performing

collaborative ﬁltering. In In Proceedings 1999 Con-

ference of Research and Development in Information

Retrieval, pages pages 230–237, Berkeley, CA.

Kassab, R., Lamirel, J.-C., and Nauer, E. (2005). Novelty

detection for modeling user’s proﬁle. In International

Conference FLAIRS 2005, Clearwater Beach, Florida,

USA.

Resnick, P., Iacovou, N., Suchak, M., Bergstorm, P., and

Riedl, J. (1994). Grouplens: An open architecture for

collaborative ﬁltering of netnews. In Proceedings of

ACM 1994 Conference on Computer Supported Co-

operative Work, pages 175–186, Chapel Hill, North

Carolina. ACM.

Sarwar, B. M., Karypis, G., Konstan, J. A., and Reidl, J.

(2001). Item-based collaborative ﬁltering recommen-

dation algorithms. In World Wide Web, pages 285–

295.

Shardanand, U. and Maes, P. (1995). Social information ﬁl-

tering: Algorithms for automating “word of mouth”.

In Proceedings of ACM CHI’95 Conference on Hu-

man Factors in Computing Systems, volume 1, pages

210–217.

Ungar, L. and Foster, D. (1998). Clustering methods for col-

laborative ﬁltering. In Proceedings of the Workshop

on Recommendation Systems, Menlo Park California.

AAAI Press.

WEBIST 2005 - WEB INTERFACES AND APPLICATIONS

304
