RAPID PROTOTYPING OF MULTIMEDIA ANALYSIS SYSTEMS

A Networked hardware/software solution

Fons de Lange

Philips Research, High Tech Campus 31, Eindhoven, The Netherlands

Jan Nesvadba

Philips Research, High Tech Campus 23, Eindhoven, The Netherlands

Keywords: Network interfaces, Distributed multimedia analysis, Prototyping, Early feature evaluation

Abstract: This paper describes a hardware/software framework and approach for fast integration and testing of

complex real-time multimedia analysis algorithms. It enables the rapid assessment of combinations of

multimedia analysis algorithms, in order to determine their usefulness in future consumer storage products.

The framework described here consists of a set of networked personal computers, running a variety of

multimedia analysis algorithms and a multi-media database. The database stores both multimedia content

and metadata – as generated by multimedia content analysis algorithms – and maintains links between the

two. The full hardware/software solution functions as a test-bed for new, advanced content analysis

algorithms; new algorithms are easily plugged-in into any of the networked PCs, while outdated algorithms

are simply removed. Once a selected consumer system configuration has passed important user-tests, a more

dedicated embedded consumer product implementation is derived in a straightforward way from the

framework..

1 INTRODUCTION

Product innovation is a key process in consumer

electronics business. Without new products and

product features, no consumer electronics company

can survive. However, the development of new

products is a considerable cost factor, while there is

no guarantee that a product will be a success in the

market. This dilemma is getting bigger by the

increasing rate at which increasingly complex

consumer electronics products and features are

introduced in the market by an increasing number of

competitors from both the consumer electronics and

computer industry at increasing development costs

per product. So how to get out of this dilemma? First

of all, product development should become faster

and cheaper. Ways to achieve this is to buy software

instead of making it (Lange, 2001), adopt a standard

platform architecture that facilitates component

integration and replacement (Ommering, 2002}, and

use these in combination with well defined platform

components and standardized component interfaces.

Secondly, once a product is created, it better have

the right set of features that will give it a competitive

edge over other products in the market. To maximize

the chances of product-survival in the market,

different product concepts and feature sets must be

assessed. Furthermore, this must be done adequately

(to really understand the functionality of the new

product), it must be done quickly (for time to market

reasons), and last but not least it should be easy to

realize in a real product architecture (to minimize

the development effort). Figure 1 gives a view on

product-concept assessment, shown as four phases:

1. Imagine

This is about envisioning and imagining a new

product. An example of a product vision is a

Personal Video Recorder that enables a user to

find and watch any TV program that has been

broadcast during the last few months for a set of

preferred channels.

2. Invent

Here, one has to think about the types of

features and the enabling technologies required

for the envisioned product. An example of an

important enabling technology is Content

Analysis (Nesvadba, 2003) such as Similar

104

de Lange F. and Nesvadba J. (2005).

RAPID PROTOTYPING OF MULTIMEDIA ANALYSIS SYSTEMS - A Networked hardware/software solution.

In Proceedings of the First International Conference on Web Information Systems and Technologies, pages 104-109

DOI: 10.5220/0001232801040109

 SciTePress

Content Hopping that is required to enable a

user to find favourite TV programs.

Imagine

Inspect

Implement

Invent

Envision and imagine a new product.

Example:

Personal Video Recorder with Advanced Content Navigation

Invent new

features.

Example:

Content

Analysis, e.g.

“Sponge Bob virtual channel[3]”

Implement, re-use & integrate features into one prototype

Example:

Implement Content Matcher algorithm, integrate with feature extractor

Inspect system behavior

Example:

Check

system

functioning

Measure # OPS per feature

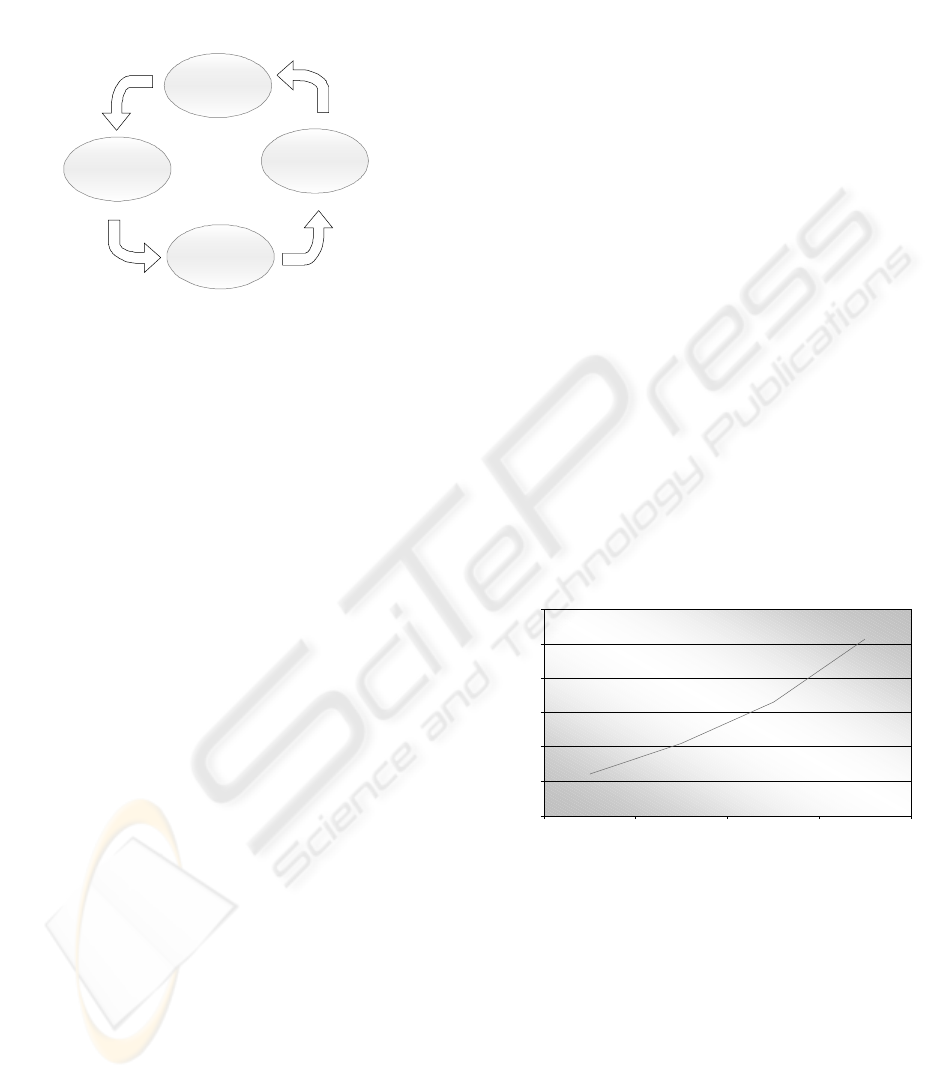

Figure 1: Early evaluation of features to assess future

product concepts based on multimedia analysis.

3. Implement

To increase the understanding and learn more

about the possibilities, benefits and (technical)

limitations of an imaginary product, critical

parts must be prototyped. An effective way of

doing this is to look for any technology –

available inside or outside the company – that is

relevant to the product concept and easy to

integrate with other technologies. System

functionality that is crucial to the product, but

which is not available anywhere must first be

invented and then created from scratch.

Examples of basic technologies for content

analysis – to support the personal video

recorder product-concept example – can be

found in several research projects, e.g. in

CASSANDRA (Nesvadba, 2003).

4. Inspect

Once a prototype is created that implements

sufficient functionality of the envisioned

product, one can analyze the system behaviour,

determine component interfaces / interactions

and measure important characteristics of

specific feature combinations, e.g. the memory,

streaming bandwidth and performance

requirements. Consider a specific feature for an

imaginary personal video recorder such as a

football match detector. By prototyping and

analyzing its behaviour one can determine if it

is accurate enough, if it is feasible in

combination with other features – with respect

to performance and memory usage – and last

but not least, if the feature is attractive and easy

to use. This will further stimulate the

imagination and ingenuity; see Figure 1, leading

to an improved product concept.

As mentioned above, a complicating factor is that

features, if implemented and available at all, are

very much in their infancy and subject to frequent

changes as applied by the algorithm designer. This

problem is especially true for multimedia analysis in

storage systems, where content analysis supports the

content retrieval and navigation process.

Here, multimedia analysis is the key enabling

technology for using mass storage devices, such as

hard disk and flash, in consumer systems holding

audio, video and photo content.

Since hard-disk capacity grows rapidly into the

Terabyte range (Maxtor, 2004), see Figure 2,

advanced viewing, searching and browsing

functionality is essential for a successful

introduction of mass storage devices in Consumer

Electronics (CE) products. For, a 1 Terabyte device

can already store over 200 DVDs, 2000 CDs, or

200,000 MP3 songs (5 MB per song). It is obvious

that within the next decade, with growing hard disk

capacity, it becomes an impossible job to find a

particular MP3 song among 1 million others.

Conclusively, the only way to find content is to use

metadata to summarize and describe the content,

which can then be used by a user to more efficiently

search for specific content.

100

1000

10000

100000

1000000

1985 1990 1995 2000

Year

Storage capacity in MB

Figure 2: Trend for Hard Disk storage capacity. Creating

massive capacity for multimedia content.

In the domain of AV content analysis, many new

algorithms, such as commercial detection,

speech/music discrimination, film detection, overlay

text detection (Dimitrova, 2002) (McKinney, 2003)

(Nesvadba, 2003), etc. are developed at an

increasing rate at Universities and Consumer

Electronics Companies and are exchanged between

such parties in cross-organizational co-operations

and projects (MultimediaN, 2005). These algorithms

enable audio video content to be segmented such

that content- viewing, browsing and searching can

RAPID PROTOTYPING OF MULTIMEDIA ANALYSIS SYSTEMS: A Networked hardware/software solution

105

be greatly enhanced. All these algorithms are

different with respect to how they are designed and

implemented. Often they are developed with

different programming tools, using different

programming languages and having different

communication models for interacting with their

environment.

Frequent practice is to use embedded systems and

dedicated signal processors to evaluate such signal

processing features in real time (Cassandra, 2003),

while PCs are used for analyzing higher level non

real-time features such as graphics user interfaces

for media interaction (Hollemans, 2005). Both the

embedded systems and PC based feature evaluation

is typically based on different architecture models

than what is used on a consumer device. This will

complicate the mapping of any of the evaluated (and

approved) features to existing product line

architectures.

All these problems can be tackled by a PC based

design methodology. This is described in this paper,

illustrating how this is done for complex real-time

content analysis applications that are expected to be

used in advanced new storage products of the future.

The methodology described in this paper, enables

easy integration of many algorithms at the same

time, by offering scalable performance through PC

networking. Furthermore, early evaluation of

multimedia analysis features and algorithms is

possible (for assessing future product-concepts) by

packing each feature as-is into components and by

providing standard technology and tools/platform to

flexibly interconnect them. By sticking to standard

Consumer Electronics interface standards such as

UHAPI (Philips, 2005), the mapping of prototypes

to embedded system hardware is greatly enhanced.

In our prototyping framework, each component is

an independent executable program that

communicates with other components via TCP/IP

and UPnP networking (UPnP, 2005). Basic TCP/IP

is used for streaming data over the network, while

UPnP is used to enable applications to automatically

find components, set-up connections between them

and to control them irrespective of their location in

the network.

The next section describes the principles of the PC

based prototyping approach. Section 3 describes

how these algorithms and applications are

prototyped and integrated in one system based on

PC technology. Finally, section 4 presents the major

conclusions.

2 PROTOTYPING APPROACH

When considering new product concepts based on

multimedia content analysis, one should not

concentrate on minimizing the hardware, CPU /

memory requirements for each content analysis

feature, but instead one should assess their

usefulness in combination with other features. As a

consequence, the assessment of product concepts in

the early stages of design requires a powerful

prototyping system with ample CPU and memory

resources. Moreover, implementation and

integration of new experimental algorithms should

be easy and fast. Finally, the mapping of a selected

set of algorithms to an embedded system must be

straightforward and with minimal effort.

The prototyping system we use for the

assessment of CE products with multimedia content-

analysis features satisfies these requirements through

powerful PCs, off-the-shelf PCI cards, standard PC

development tools and networking technology.

Content-analysis algorithms are modeled as black

box components with standardized interfaces that

are invariant across all platforms, which facilitates

the mapping process. Only the algorithms need to be

tuned for a specific hardware platform, while

optimized implementations of interconnection

technology are available for each platform, offering

the same interfaces across all platforms.

As an example of this approach, consider a

simple streaming application as depicted in Figure

3a and its implementation in software (Figure 3b). It

shows two software components, i.e. Component A

and Component B, that are controlled via interfaces

by component Control and stream AV data to each

other via a channel offering streaming interfaces.

When components are prototyped on different

PCs in the network, additional entities must be

introduced that handle the networking of control and

streaming data. Figure 4 shows this for a system

consisting of three PCs, each one running a different

component. This may be necessary when a first

implementation of feature A and B is badly

optimized (or not hardware assisted) and together

demand more performance than a single PC can

handle. Figure 3b and 4 also show the important

interfaces for control and streaming.

The channel component in Figure 3b merely

implements an interface to shared memory, which is

used in an embedded system to buffer the data

between stream processing elements.

WEBIST 2005 - INTERNET COMPUTING

106

Component A

Control

Channel Component B

Shared

memory

Control API

Control

Control API

Streaming interfaces

a) Streaming

Application

b) Software

Architecture

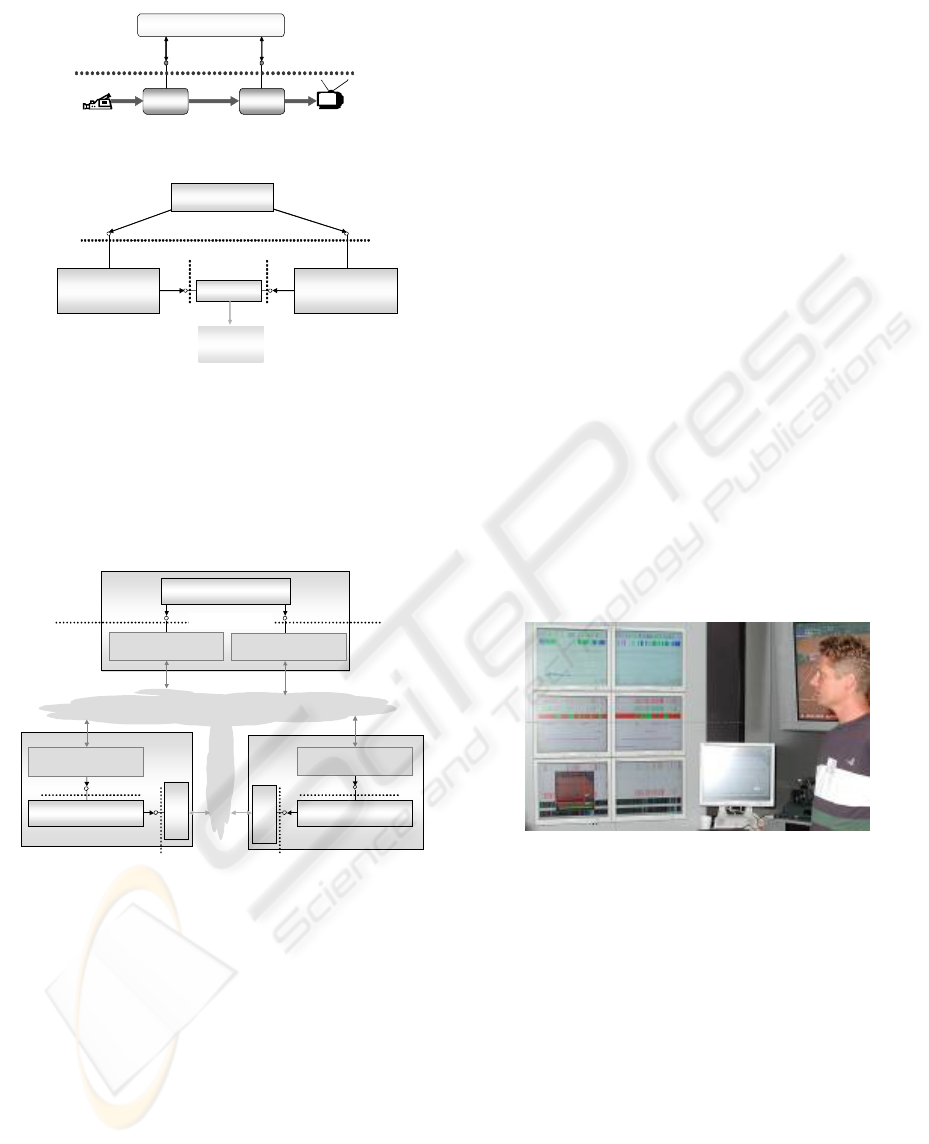

Figure 3: Streaming application & corresponding SW

architecture

For the networked case (Figure 4) the channel is

split in two half channels to preserve the streaming

interface. The buffering of streaming data can be

done indirectly via some memory server in the

network or directly by standard network buffers.

PC-1

PC-2

Stub B

Proxy A

Control

PC-3

Stub A

Proxy B

Component B

Networking

Component A

Control interfaces

Control interface Control interface

½ channel

Streaming interface Streaming interface

Figure 4: Control and streaming in the multi-PC network

It is key that both the streaming and the control

interfaces are well defined and widely used in

embedded system architectures of consumer

products, as to facilitate the mapping of PC

prototypes to real product architectures. In our

prototyping framework, all components and

interconnection technology adhere to the UHAPI

(Philips, 2005) interface standard for controlling

stream processing functionality and C-HEAP

(Nieuwland, 2001) /YAPI (Kock, 2000) as the

interface for passing streaming data between signal

processing components. All these interfaces must be

preserved when implementing systems on a PC

network, see Figure 4.

The approach as described above enables adequate

assessment and testing of new features and

combinations of features before doing the actual

product development. As a result, requirement

specifications will be more accurate, feature

interactions are better understood beforehand and

resource requirements of features can be obtained by

measurement.

3 IMPLEMENTATION RESULTS

We have built a content analysis system based on the

technology described in section 2. It is a system

demonstrating more than 40 different content

analysis algorithms running on more than 8 PCs that

concurrently stream data to one another via the

network. These algorithms analyze audio/video

signals in real-time; their output is displayed on

different computer displays, see Figure 5, and stored

into a SQL database. At the same time, the audio /

video signal is stored in a real-time file system.

Offline, further content analysis is done, e.g. to

detect and analyze key-frames, and results are

communicated with a graphics user interface.

Figure 5: Part of system set-up: 6 LCD screens showing

multimedia analysis results.

Among other things, the GUI shows key-frames as

thumbnail pictures on the screen, which a user can

select to start a replay of the stored audio/video

content from the position that corresponds to the

thumbnail picture, see Figure 6.

The overall system architecture is depicted in

Figure 7. A digital signal is captured, decoded and

re-encoded with the Philips PNX7100 MPEG2

Codec which extracts some low-level parameters

out/of the video signal, e.g. average luminance and

color per frame.

RAPID PROTOTYPING OF MULTIMEDIA ANALYSIS SYSTEMS: A Networked hardware/software solution

107

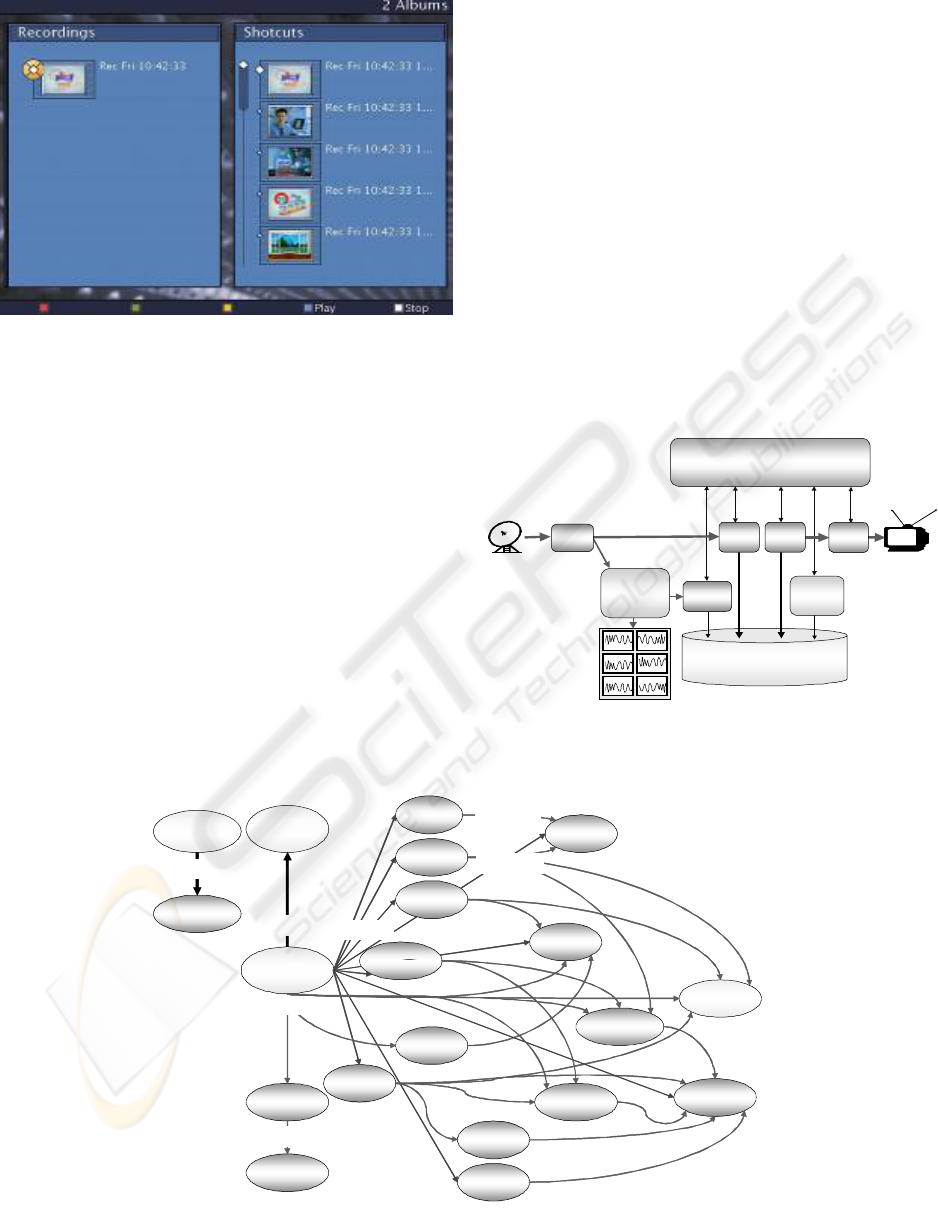

Figure 6: Menu for chapter-based content browsing,

generated from multimedia content analysis.

The same thing is done for audio but no special

hardware is used for this except for a simple audio

capture card for PC.

The actual content analysis part, Real Time

Content Analysis in Figure 7, is quite complex: the

complete set of real-time content analysis algorithms

has been clustered into 11 streaming tasks and

distributed over 8 PCs. They communicate with each

other and display tasks via stream channels. Figure 8

shows this part of the architecture in more detail. It

shows several components, performing audio and

video content analysis, MPEG encoding and storage.

The AV stream is separated into an audio and a

video stream. The Automatic Speech Recognition

module extracts spoken words from the audio stream

and stores them as ASCI into the meta database via

the Metadata Record component. In parallel the

Audio Analysis module classifies the audio content

into classes such as speech, music, noise, silence and

cheering (McKinney, 2003). The video stream is the

input for various Video / Multimedia Content

Analysis (VCA, MCA) modules, such as the Film

Mode discriminator, which separates into video and

2:2/3:2 pull-down mode (Haan, 2000). Furthermore,

the Face Detection module identifies faces and their

location (Nesvadba, 2004). Consecutively, the Face

Recognizer tries to find the matching ID, i.e. name,

of the face instance by means of a biometrics

database. Additionally, the Signature

Recognition/Matching matches extracted video

signatures with a signature database to identify

repeating content. An Overlay Text Detection

module identifies and localizes text instance, e.g.

subtitles, in the video content.

AV database

Offline

Content

Analysis

Real Time

Content

Analysis

Metadata

Record

Graphics User Interface (GUI)

Record

Play

Decode

Re-

encode

LCD

Displays

Figure 7: Top level view of content analysis system

GUIVCA

Speech

Recognition

PNX

Metadata

Record

AV Record

RT file system

MPEG2Decode

Stradis

AV Play

RT files ystem

Audio

Analysis

GUIACA

SceneBased

Chaptering

GenericSystem

FilmDetector

OverLayTxt

detect

FaceDetector

DCT

Face

Recognition

GUIMMCA

FaceDetector

OverlayStradis

Signature

Recognition

FrameRef_t

PNXFeatures_t

FrameRef_t

MPEG2_data_t

ASR_out_t

ACA_out_t

GenSys_out_t

FilmDetect_out_t

FaceRecog_out_t

FaceDetectAC_out_t

SceneBasedChap_out_t

SignatureRecog_out_t

MPEG2_data_t

XXMMCA

FaceDetectDCT_out_t

xxMMCA_out_t

OverLayTxtAC_out_t

Figure 8: Multimedia analysis tasks concurrently running on different PCs, communicating via the network.

WEBIST 2005 - INTERNET COMPUTING

108

Finally, two Multimedia Content Analysis (MCA)

modules extract high-level semantics such as the

Scene Boundary Detector (Nesvadba, 2004-1),

which segment the content items into meaningful

semantic scenes. In parallel, a Commercial Block

Detector (Dimitrova, 2002) indexes commercial

instances.

The central component, indicated by

PNX,

performs both low-level feature extraction and

MPEG2 encoding. Moreover, it generates a time-

code on video frame basis, which is fed to all

content analysis components. They use the time-

code to provide a time stamp for all generated

features. This way all subsequent processing is able

to display and store the extracted features in a

synchronized way.

Each component transmits the features it has

extracted over a network channel to another

component. Since each component generates unique

metadata features, each pair of communicating

components must

know the type of the data being

transmitted. To this purpose over 12 metadata data

types were defined, see Figure 8, enabling each

component to correctly interpret any metadata

received.

All stream processing components/ tasks stem

from many different sources/development groups

within Philips. By encapsulating them by a thin shell

– implementing the required streaming and control

interfaces – they were easily integrated into one

content analysis system.

4 CONCLUSIONS

To enable fast evaluation of content analysis

systems, to come to sensible solutions that are easy

to use, PC based prototyping is a must. This is

extremely important to be able to understand the

feasibility of future

Consumer-Electronics (CE)

storage products that heavily depend on advanced

content analysis features.

To assure that PC based system solutions are

created that can be mapped onto more resource

constrained systems with a different architecture,

standardized interfaces are used for control and

streaming (Philips, 2005) (Nieuwland, 2002) (Kock,

2000), by using interconnection technology that is

designed for the platform at hand, and by optimizing

the feature-implementation for each underlying

HW/SW platform. Experiences with the large-scale

prototyping activities we have carried out

(Nesvadba, 2003) for the assessment of future

content-analysis systems, show that a PC based

prototyping approach enables the integration of

many different media processing features in a short

time and that it allows for accurate analysis of the

resource (CPU/ memory) requirements of such

components.

REFERENCES

Haan, G. de 2000. Video processing for multimedia

systems. In ISBN: 90-9014015-8, Eindhoven.

Hollemans G., 2005. MediaBrowser: In

http://www.research.philips.com/technologies/misc/ho

melab/downloads/homelab_365.pdf

Dimitrova, N., 2002. Real time commercial detection

using MPEG features. In 9th International Conference

on Information Processing and Management of

Uncertainty in Knowledge-Based Systems, IPMU 2002.

Kock, E. de, 2000. YAPI: application modeling for signal

processing systems. In Proc. 37th DAC.

Lange, F. de., 2001, The Philips-OpenTV Product Family

Architecture for interactive Set-Top boxes. In 4

product family engineering, Springer Verlag, ISBN 3-

540-43659-6, pages 187-206.

Ma, Q., 2001. Virtual TV Channel Filtering, Merging

and Presenting Internet Broadcasting Channels. In

SIGNotes Information Processing Society of Japan.

Maxtor, 2004. “Big Drives”, Maxtor Technologies. In

http://www.maxtor.com/_files/maxtor/en_us/documenta

tion/white_papers/big_drives_white_papers.pdf .

Nesvadba, J., 2004-1. Low-level cross-media statistical

approach for semantic partitioning of audio-visual

content in a home multimedia environment. In Proc.

IEEE IWSSIP’04.

Nesvadba, J., 2004. Face Related Features in consumer

Electronic environments. In IEEE SMC, Den Haag,

The Netherlands.

Nesvadba, J., 2005. Local real-time multimedia analysis.

http://www.research.philips.com/technologies/storage/

cassandra

McKinney, M., 2003. Features for audio and music

classification. In 4th International Symposium on

Music Information and Retrieval. Baltimore, Maryland

Nieuwland, A., 2002. a Heterogeneous Multi-processor

Architecture and Scalable and Flexible Protocol for the

design of Embedded Signal Processing Systems. In

Journal of Design Automation for Embedded Systems,

Kluwer Academic Publishers, vol. 7, no. 3.

MultimediaN, 2005. Multimedia analysis, database

technology, and human computer interaction. In

http://homepages.cwi.nl/~mk/multimedianonline/

Ommering, R., 2002. Building product populations with

software components. In ISCE 2002, pages 255-265.

Philips, 2005. UHAPI, a new Application Programming

Interface for the CE Industry. In http://www.uhapi.org .

UPnP, 2005. The Universal Plug and Play Forum. In

http://www.upnp.org .

RAPID PROTOTYPING OF MULTIMEDIA ANALYSIS SYSTEMS: A Networked hardware/software solution

109
