BUILDING WEB APPLICATIONS WITH XQUERY

Integrating technologies in web development

Javier J. Gutiérrez, María J. Escalona, Manuel Mejías, Jesús Torres

Department of Computer Languages and Systems.University of Seville.

Keywords: XQuery, web development, web engineering, portal strategies, XML, Data management, technologies

integration.

Abstract: Today, it is needed to apply a set of heterogeneous technologies to implement every layer or element in a

web application. These technologies must be combined and must work together. This one implies the need

for heterogeneous development teams with heterogeneous formation and high costs in tools and formation.

This work shows how XML with XQuery could be a valid technology to unify the technologies used in web

development. This works shows how XML and XQuery is a valid selection to unify the used technologies in

web development. Thus, it is possible decrease costs in tools and formation applying only one technology in

web development. To justify why XML with XQuery is a valid technology to implement a whole system

this work shows, at first time, the main characteristics of XQuery focused in web development. At second

time, this work shows how to apply those characteristics in a web development and how to implement every

layer or component of a web application with XQuery. Finally, this work exposes a brief overview about the

open-source tools available to implement a web application with XQuery.

1 INTRODUCTION

This section exposes the problem described in this

work and solution proposed. Next sections describe

how to apply this solution, its advantages and

inconveniences, open-source tools to apply it and

conclusions and future work.

1.1 The land of 1,000 technologies

The song “The land of 1,000 dances” enumerates a

long list of modern dances in the 60s. Now, in 21th

century, we still have 1,000 dances and maybe more,

and we also have 1,000 technologies and maybe

more, to build a web application.

Web software systems have become more

important and complex software. Web software is

based on novel computing technologies.

Sophistication of web systems has increased rapidly.

First web systems were static set of information

stored into static HTML pages. Second generation

were simple applications that accepted data from

HTML pages and process or stored these data.

Today, web systems are sophisticated, interactive

programs with complex user interfaces and large

amount of integrated back-end software (Offutt,

2002), (Ye-Wu, 2004).

This fact brings the need for using a

heterogeneous set of technologies and tools to

develop a web system. Web software is build with

many different technologies like: scripting languages

that run on the client, interpretive languages that run

on the server, general purpose programming

languages, data manipulation languages and

databases (Ye-Wu, 2002). Table 1 shows an

example of these technologies.

Table 1: An overview of technologies used in web

development.

Clients MS Internet Explorer, Opera, Firebird,

Amaya, Safari, etc.

User Interface HTML, XHTML, DHTML, CSS,

Macromedia Flash, XML-XSLT, etc.

User

components

JavaScript, VBScript, ActiveX, Java

Applets, etc.

Server

components

Java Servlets, PHP, ASP, ASP.NET, Perl,

Webservices, etc.

Data

components

Access, SQL Server, Oracle, MySQL,

PostgreSQL, etc.

This heterogeneous set of technologies (and many

more) have to cooperate together to implement a

363

J. Gutiérrez J., J. Escalona M., Mejías M. and Torres J. (2005).

BUILDING WEB APPLICATIONS WITH XQUERY - Integrating technologies in web development.

In Proceedings of the First International Conference on Web Information Systems and Technologies, pages 363-372

DOI: 10.5220/0001234403630372

 SciTePress

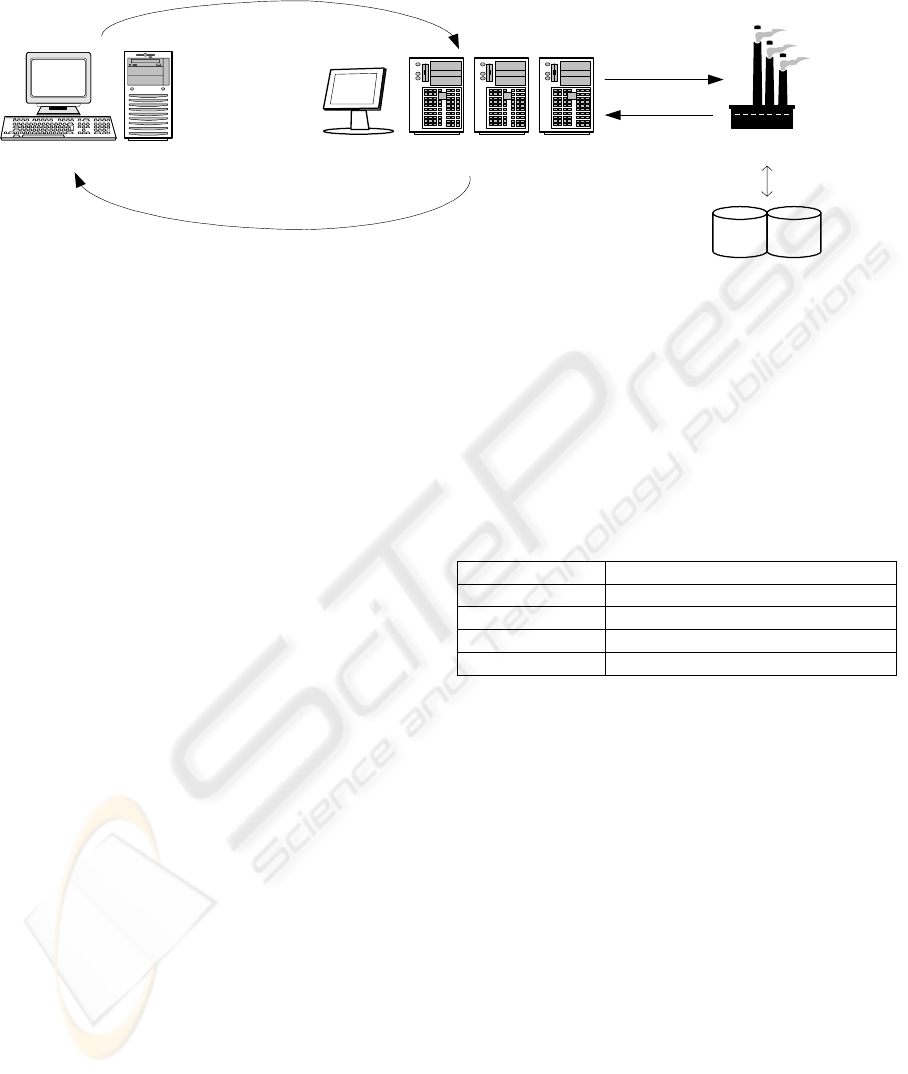

Figure 1: Web application layers

web application. So, a web application results in a

multi-platform software environment. This fact

brings many problems:

– Many experts in several technologies are

needed.

– Bigger cost in personal and formation.

– Heterogeneous technologies make hard

testing process (Offutt, 2002).

These problems can be avoided unifying the

technologies of web development. Next section

introduces the pair XML and XQuery as an

integrated tool to built web applications.

1.2 An integration solution

Classic layers of a web application are: user

interface, business logic and data management.

Figure 1 shows these layers and the communications

among them.

Many of technologies are focused in one of the

layers in figure 1, as showed in table 1.

A first integrator effort has been made with XML

(World, 2004). Although originally designed for

large-scale electronic publishing, XML plays an

increasingly important role in data exchange on the

Web. Some authors expect that XML will become

the lingua franca of the Web, eventually replacing

HTML (Mignet, 2003). In this way, there is a

proposal to apply web syntactical rules over HTML

called XHTML (XHTML, 2004).

XML is good to store information and to describe

the semantic of that information. In web systems,

XML can be used to describe the information,

business rules, user interfaces, configuration of the

application, etc. Although data is stored in a

relational database, it can be extracted in an XML

structure (Marchal, 2001).

However, XML cannot describe the active parts

of a web application. XML resolves the half of the

problem only. We still need technologies to

manipulate and process XML. Another problem is

that, nowadays there is also a heterogeneous set of

technologies to manipulate XML. Table 2 shows and

example of open-source tools for Java technology

(McLaughlin, 2002).

Table 2: Techniques and tools to XML process

Techniques Tools

APIs DOM, SAX

XML-Binding JAXB, XML-Beans

Dynamic Beans Apache Betwixt, Codehaus XStream

Others Apache Digester, Apache XMLIO

Each one of these technologies is oriented to a

concrete scenario. For example, to create objects

from XML when XML-Schemas or DTDs are

available, XML-Binding tools use to be the best

option. But, if the task is to load a simple

configuration file described with XML tags, lighter

tools are a better options. Light tools are Apache

XML-IO or SAX API.

A modern technology that might unify the

process of XML in the different layers of a web

application is XQuery (W3C1, 2002). Next section

introduces XQuery and shows how to built every

layer of a web system.

2 AN INTRODUCTION TO

XQUERY

XQuery is a powerful query language for XML data.

Some of its strong points are: it has native support

for handling over forty built-in data types, powerful

2: Execution

3: Result

4: Answer

Client Server

Code

Data

1: Request

WEBIST 2005 - WEB INTERFACES AND APPLICATIONS

364

constructs for bulk data processing, like expressing

joins, aggregation, and so on, support for text

manipulation, and a notion of document ordering

that provides a foundation for a variety of interesting

document-oriented queries (Brundage, 2004).

After several years of development in the W3C,

XQuery is starting to gain significant traction as a

language for querying and transforming XML data.

Though the W3C XQuery (W3C1, 2002)

specification has not yet attained recommendation

status, and the definition of the language has not

entirely stabilized, it is already beginning to appear

in a variety of commercial and open-source

products. Examples include XML database systems,

XML document repositories, and XML-based data

integration offerings.

An XQuery expression is composed of a

maximum of 5 different sections, each one with its

own mission. All sections are showed and described

in figure 2.

An XQuery program or script is a just an

expression with some optional function and other

definitions. So 3+4 is a complete, valid XQuery

program that is evaluated to the integer 7.

Next section describes the main characteristics of

XQuery language that might be applied to web

systems development.

2.1 Main characteristics to web

development

This section does not want to be a complete

description of XQuery. Nowadays there are many

good books to learn all characteristics of XQuery

and how to apply them, like (Brundage, 2004),

(Katz, 2003) and the documents of the standard in

(W3C1, 2002).

The main goal of this section is to expose a

resume of the characteristics presented in XQuery

that makes itself adequate to web development.

Characteristics studied in this section are listed in

table 3.

Table 3: XQuery characteristics to web development.

– Queries in XML.

– XML transformation in HTML or XML.

– Functions.

– External functions.

– Open-source tools available.

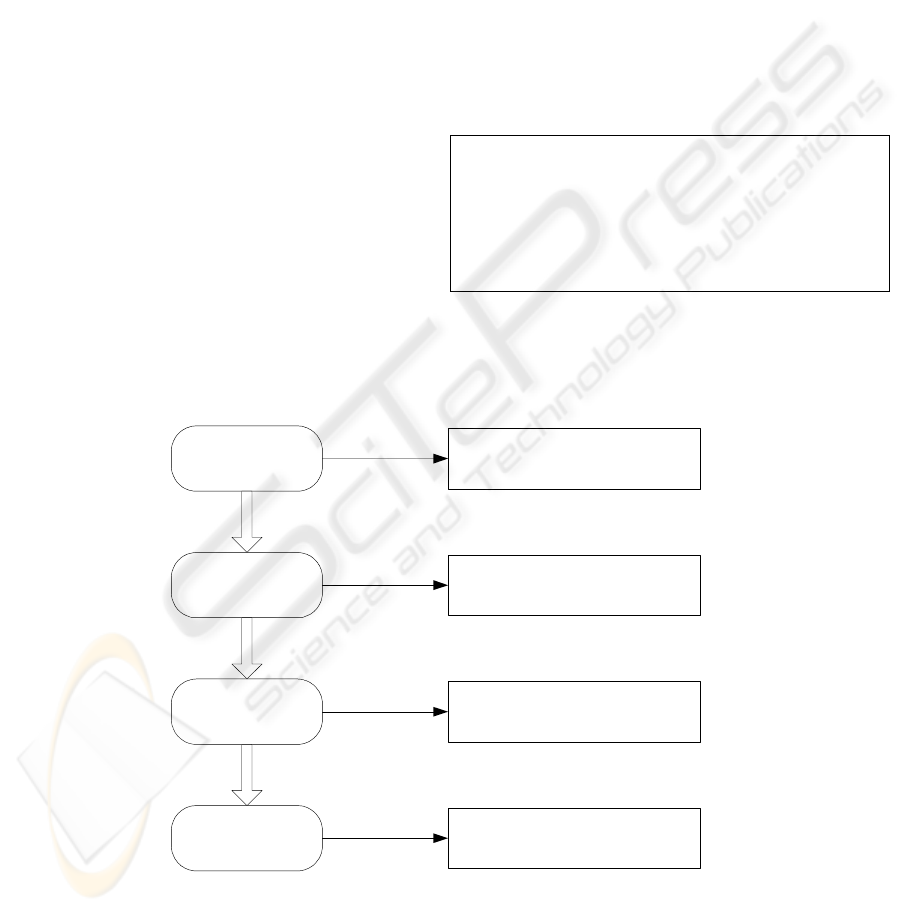

Figure 2: Sections in a XQuery expression

For y Let

Create tuples

Where

Filtrate tuples

Order by

Order the tuples

Return

Transform the tuples

BUILDING WEB APPLICATIONS WITH XQUERY - Integrating technologies in web development

365

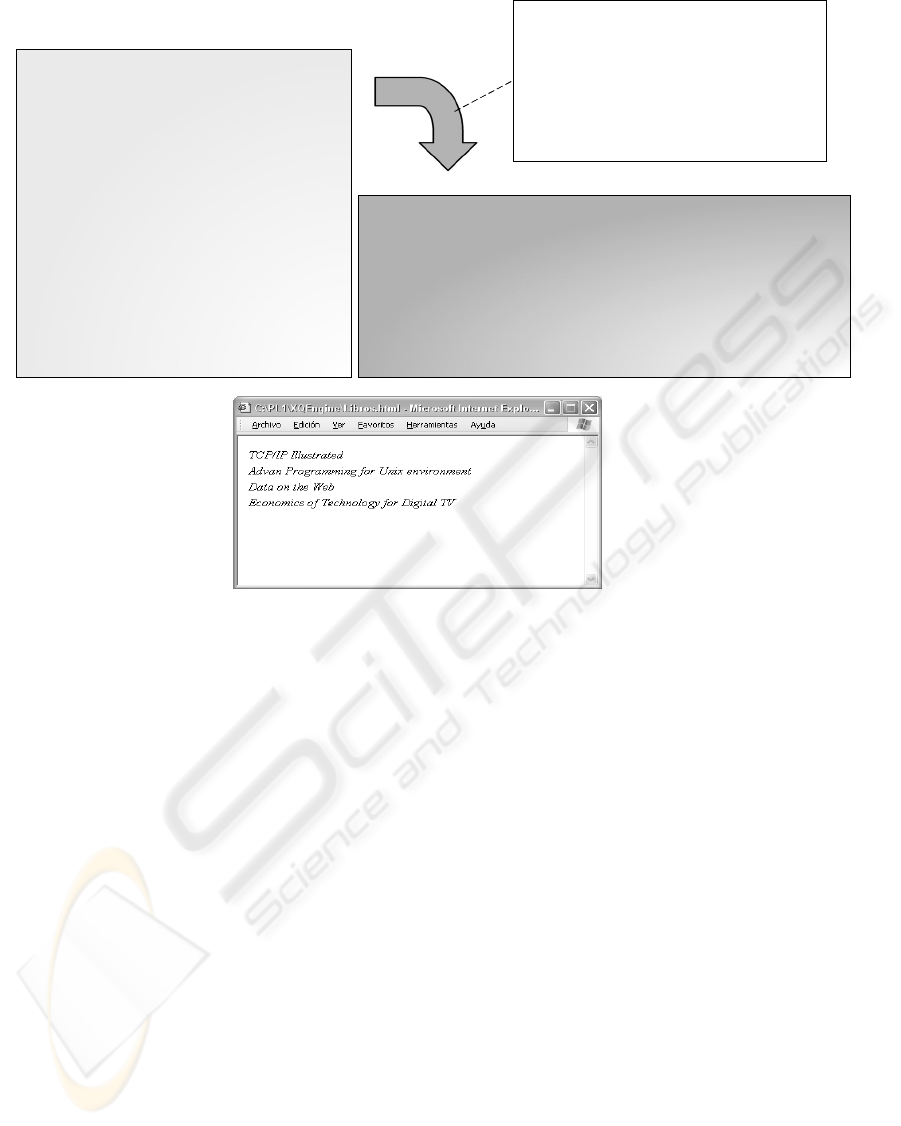

Figure 3: Transform an XML structure into HTML.

Characteristics in table 3 are described in sections

below.

2.2 XML search

XQuery is a concise but flexible query language for

XML. So, its main goal is to specify queries and to

perform it over a XML dataset. XQuery is based on

the structure of XML and leverages this structure to

provide query capabilities for the same range of data

that XML stores.

It is possible to include many search parameters

in a query. It is possible to search for tags without

matter their location into XML structure, or to

search for tags inside a concrete XML structure. It is

also possible to obtain new XML structures from

exiting XML structures. For example, from a XML

structure containing books with the editorial of each

book, it is possible to generate a new XML structure

with editorials, and all books edited by each

editorial.

2.3 XML transformation

XSLT allows to describe XML transformations, that

is, operations that take an XML structure and

generates one or several XML structures as output

(Robert, 2001). Some authors estimate that probably

80 percent of the actual usage of XSLT is for

transforming XML to HTML. This might be handled

by treating the result document as a well-formed

XML tree, with the transformation being followed

by a serialization phase that translates this tree into

an HTML or XHTML output file (Katz, 2003).

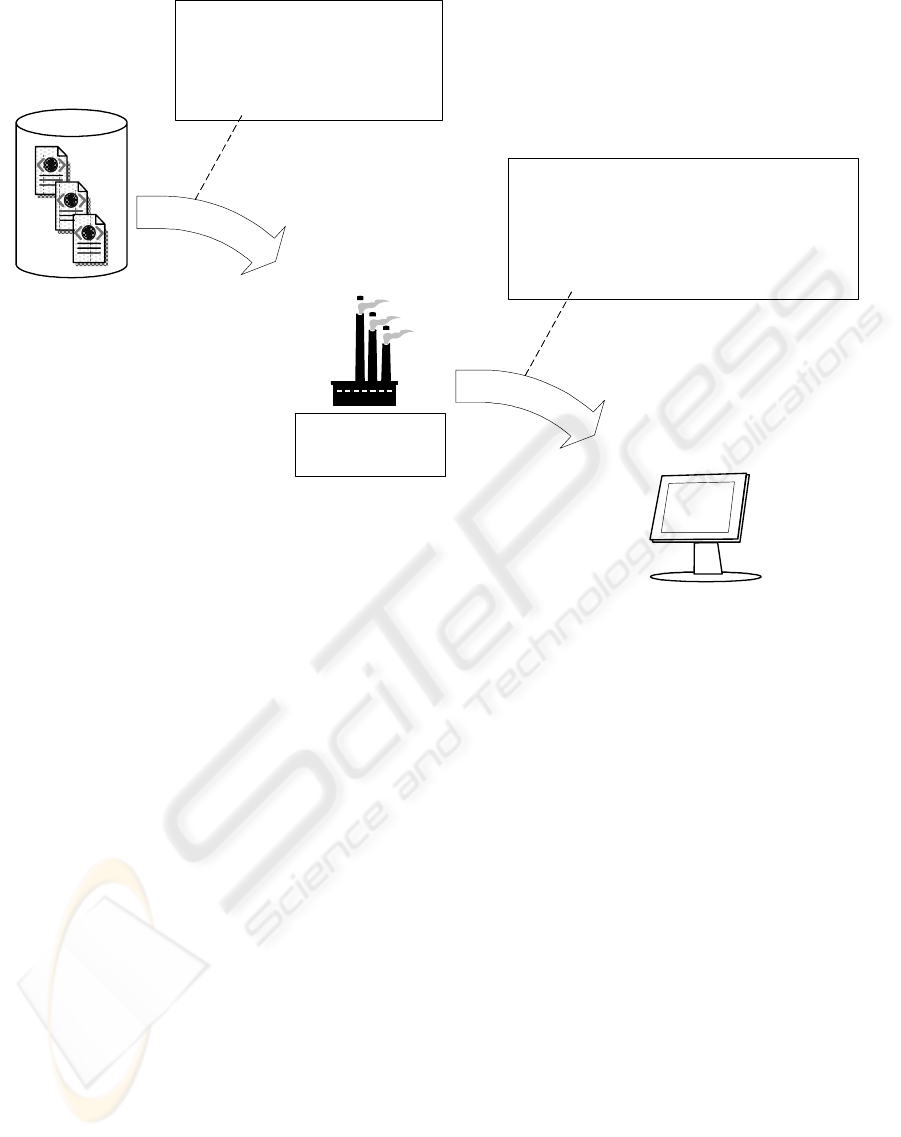

Figure 3 shows an XQuery expression that

transform a XML structure into an HTML structure.

Figure 3 also shows how is rendered that HTML

structure into a web browser.

One of the main problems until now is that

HTML does not satisfied XML syntactical rules.

This problem makes hard to transform an XML

structure in HTML, and does not allow using all

possibilities offered by HTML. As seen before, there

is a new standard called XHTML (XHTML, 2004)

that satisfied XML syntactical rules. This standard is

been rapidly implemented with main browsers and,

<titulo>TCP/IP Illustrated</titulo>

<autor>

<apellido>Stevens</apellido>

</autor>

<editorial>Addison-Wesley</editorial>

</libro>

<titulo>Programming for Unix env.</titulo>

<autor>

<apellido>Stevens</apellido>

</autor>

<editorial>Addison-Wesley</editorial>

</libro>

<body>

<table>

<tr><td><I>TCP/IP Illustrated</I></td></tr>

<tr><td><I>Advan Programming for Unix environment</I></td></tr>

<tr><td><I>Economics of Technology for Digital TV</I></td></tr>

</table>

</body>

</head></html>

{

for $b in doc("libros.xml")/bib/libro

return

<tr> <td> <I> { string( $b/titulo ) }

</I> </td> </tr>

}

</table> </body>

</head> </html>

WEBIST 2005 - WEB INTERFACES AND APPLICATIONS

366

nowadays it is possible to use it in web

development.

XQuery is more easy and intuitive than XSLT.

Transforms described with XQuery expressions are

easier to understand, maintenance and modify than

transform expressions written in XSLT.

2.4 Functions

When an XQuery expression becomes large and

complex, it is often much easier to understand if it is

divided into functions. These functions can be

reused in other parts of the expression. Functions

can be recursive, which is a good help for processing

the recursive structure of XML (Brundage, 2004).

It is possible to organize functions in library

modules. These modules can be used and imported

by any query. Every module in XQuery is either a

main module, which contains a query body to be

evaluated, or a library module, which has a module

declaration but no query body. A library module

begins with a module declaration, which provides a

URI that identifies the module for imports.

Functions defined in library modules are

namespace-qualified. This means that functions with

same name can exist into different namespaces. Any

module can import another module using a module

import, which specifies the URI of the module to be

imported. It may also specify the location where the

module can be found.

2.5 External functions

XQuery allows calls to external functions

implemented in the same language than the

environment under XQuery engine is in execution,

such as Java or C#. The environment can provide

external functions and variables to XQuery. To

access to external elements, a query must declare

them in its prologue. The mechanism by which this

is done varies from one implementation to the next.

XQuery itself provides only the syntax to use when

declaring these externals, shown in table 4.

Table 4: External function definition.

define function out($v as xs:integer)

as xs:integer external

External functions are equal to ordinary user-

defined functions except that the external keyword is

used instead of a function body. XQuery does not

specify how such functions and variables are made

available by the external environment, or how

function parameters and arguments are converted

between the external environment and XQuery, so it

depends of the vendor implementation.

3 APPLYING XQUERY IN WEB

DEVELOPMENT

XML is one of the most important technologies in

web development. One of the main objectives in

design of XQuery is to allow that XQuery can be

applied like a XML manipulation and transformation

language. Thus XQuery offers tools to work with

XML. Moreover, XQuery can be successfully

applied in environments where XML works. Some

of the most important applications in web

environments are showed in table 5.

Table 5: XQuery in web development

- Management XML native databases in the same

way than SQL manages relational databases.

- Generate web interfaces in the same way than

XSLT.

- Call web-services.

- Syndication with RSS.

In section 2, main characteristic of XQuery to

web development have been defined. This section

shows how to apply those characteristics to

implement each layer showed in figure 1.

3.1 User interface

This work has described, in sections before, how it is

possible to build web user interfaces using XQuery

in a similar way than XSLT. This generation

interface technique has been improvement with the

inclusion of XHTML and CSS in web browsers.

The main differences between XSLT and XQuery

are of two kinds. First, they have different

requirements, and therefore a design decision that

was appropriate for XSLT would not necessarily be

right for XQuery, and vice versa. The second kind of

difference results from their being designed by

different people from different communities and

computing traditions, with different beliefs about

what constitutes good design, and different

experiences as to what works well and what doesn't.

There is one important difference between XQuery

and most template systems: With XQuery, it is also

possible to define functions that return HTML

fragments, and to pass those fragments though to

other functions. With most template systems, it is

BUILDING WEB APPLICATIONS WITH XQUERY - Integrating technologies in web development

367

only possible to create output fragments as strings,

and pass them around as strings.

3.2 Business logic

Functions and external functions are the main tools

to build business logic with XQuery. Although

XQuery main objective is to process XML, it also

has a complete type system

The type system of XQuery is the same than

schema type system (Robert, 2001). There are two

sets of types in XQuery. First are the built-in types

that are available in any query or function. Second

are the types imported into a query from a specific

XML-Schema or DTD.

Not all data in XQuery must be XML structures.

It is possible to write expressions that return an

<xs:integer> or define parameters in a function like

<xs:char>. XQuery can also works with untyped

data, strongly typed data, or mixtures of the two.

When XQuery has not information to know the type

of the data is processing, XQuery applies a set of

rules to infer an appropriate type

This one allows writing business logic in a

similar way that, for example, PHP, without object

orientation.

3.3 Data layer

To implement data layer, it is possible to use a

database server which supports recovering of data in

XML structures. However use of SQL statements

will be mandatory. Nowadays XQuery has no direct

integration with SQL and, furthermore, the objective

is to minimize the number of different technologies

applied. By this reason, we suggested to implement

data layer with native XML databases.

The concept of native XML database is not a

precise technical term. Essentially, this concept

refers to a database designed specifically for the

storage and retrieval of XML documents, and the

term is used to contrast such a system with a

database that merely provides an XML interface to

data whose intrinsic data model is something

different (Katz, 2003).

Main characteristic of a native XML database is

the use of the XML data model at the query

language interface to the system, and in all its other

interfaces. We have reviewed some of these

interfaces and seen how XQuery represents only a

small part of the facilities that a real system needs to

offer.

Native XML databases, in the same way than

classic relational databases, cannot be applied to all

kind of systems. Native XML databases are

designed for use in systems when information can be

expressed with XML structures in an easy and

natural way.

An example of a native XML database with

XQuery support can be found in (Exist, 2003)

3.5 Web architecture based in

XQuery

Architecture of a web system developed with XML

and XQuery is showed in figure 4 and detailed in

next paragraphs.

Data is stored into several XML structures. These

structures are stored and indexed in a native XML

database or in a collection of XML files.

A set of XQuery expressions selects data needed

for business logic and builds new XML structures

with selected data.

Then, selected data is sent to business layer. In

this layer, a set of XQuery functions or external

functions is applied over these XML structures to

add new elements, for example totals or special

offers. A final XML structure contained all

information to display to the user is built and sent to

user interface layer.

Finally other XQuery expressions are applied

over final structure to transform it into a browser-

compatible structure, for example HTML or

XHTML, and it is sent to the client to be displayed.

Table 6 describes an application of this

architecture implemented in a book on-line

catalogue similar to Amazon.

Table 6: A brief description of an on-line catalogue in

XQuery.

First, an XQuery expression selected XML

structures of books that will be showed in the

browser. Later, this structures are processed to a set

of functions to add special offers (like 2x1), special

prices of to add similar books. A final XML

structure is generated with this information. Another

XQuery expression transforms the final XML

structure into HTML or XHTML.1

Next section describes open-source tools

available to develop web applications with XQuery.

WEBIST 2005 - WEB INTERFACES AND APPLICATIONS

368

Figure 4: Web architecture with XQuery.

4 A BRIEF COMPARATIVE OF

OPEN-SOURCE TOOLS

Open-source community has developed very

important tools in web engineering. Some examples

are web servers like Apache or Tomcat (Tomcat,

2003), or languages like PHP or PERL. One of the

factors of rapid and wide diffusion of open-source

tools is the available of high quality tools that have

became into a standard in web engineering. Thus,

this section shows a brief overview of XQuery web

tools

First fact to notice is the number of open-source

XQuery tools is limited. Open-source XQuery

engines found are (Qexo, 2003), (Qizx, 2003),

(Saxon, 2003) and (XQEngine, 2003). It is out of the

scope of this work to perform a complete analysis

and comparative among them. This section analyzes

the characteristics of each tool focused on web

development.

A first analysis reveals that XQEngine and Saxon

do not allow any web integration. Thus both are

discarded.

Next section studies web integration capabilities

of Qizx and Qexo. Both engines can be added as a

module into a web server. Both generate web pages

when requested by a browser. However, the process

to generate output is different.

4.1 Compiling XQuery to Servlets

Qexo includes a tool to compile an XQuery

expression into a Java Servlet. This Servlet can be

executed in any server that supports Servlets, like

Tomcat (Tomcat, 2003)

Qexo allows performing the compilation

dynamically or by anticipation. Dynamic

compilation is performed when an XQuery

expression is compiled only when server receives

the first request for that expression. Before answer,

Qexo compiles expression to a Servlet if that Servlet

does not exit. Then, Servlet is executed and its

output is sent to client.

Anticipate compilation means that all XQuery

expressions are compiled to Servlets. Then those

Servlets are uploaded to the server.

for $b in doc("books.xml")//book

let $c := $b//author

where count($c) > 2

order by $b/title

return $b/ titulo

Código

Bussiness layer

Transform

functions

Presentation layer

{

for $b in doc("libros.xml")/bib/libro

return

<tr> <td> <I> { string( $b/titulo ) }

</I> </td> </tr>

}

</table> </body>

</head> </html>

Data layer

BUILDING WEB APPLICATIONS WITH XQUERY - Integrating technologies in web development

369

4.2 Inserting XQuery into HTML

pages

Qizx offers a different solution from Qexo. It is

possible to include XQuery expression directly into

HTML files. Qizx also offers a proprietary extension

to manipulate elements from the web execution

environment. This extension allows to read HTTP

headers and to access to GET and POST values.

Web server has to be configured to mapping

HTML files with XQuery included. When a request

for a file of this type is received, server must to

execute Qizx with requested file. Qizx process

XQuery expressions and includes their result into

HTML code.

Table 7 shows an example of a HTML file with

XQuery expressions. Figure 5 shows how this file is

rendered into a browser.

Table 7: Example of HTML file with XQuery expressions.

(::pragma qizx:serialization

media-type=text indent=no include-content-type=yes method=XML ::)

declare namespace session = "java:javax.Servlet.http.HttpSession"

<h2>Echo of your request:</h2>

<hr/>

<p>Received on { request:get-server-name() } from {

request:get-remote-host(), " address: ", request:get-remote-addr()

}</p>

<ul>

<li><b>method: </b>{ request:getMethod() }</li>

<li><b>protocol: </b>{ request:getProtocol() }, { request:getScheme() }</li>

<li><b>request-uri: </b>{ request:getRequestURI() }</li>

<li><b>locale: </b>{ request:getLocale() }</li>

<li><b>content-length: </b>{ request:getContentLength() }</li>

<li><b>session: </b>{

let $s := request:getSession() return

( "id=", session:getId($s),

", last access=", session:getLastAccessedTime($s),

", timeout=", session:getMaxInactiveInterval($s),

session:setMaxInactiveInterval($s, xs:int(10) ) )

}

</li>

</ul>

<hr/>

<a href="source.xqsp?src=echo">source code</a>

</body> </html>

WEBIST 2005 - WEB INTERFACES AND APPLICATIONS

370

Figure 5: HTML file with XQuery expressions.

The possibility to merge HTML with XQuery

makes development of web applications easy and

intuitive. However with this strategy it is possible to

acquire bad habits presents in other languages like

PHP. These bad habits drive to spaghetti scripting,

where all layers are merged in a few big and

monolithic scripts. This makes the development

process hard and the maintenance process a titanic

task.

Adequate strategy, in our opinion, is neither

inserts XQuery into HTML, nor inserts HTML into

XQuery. An application must be completely

generated with XQuery and, final HTML, must be

generated with XQuery expressions.

5 CONCLUTIONS

XQuery has several characteristics that allow to

apply it in web development. This work has

described these characteristics, how to apply them to

web development, and existing open-source tools to

realize them.

Thus, we conclude that today XQuery and its

open-source tools can be used to build a real web

system.

Two main advantages using XQuery in web

development are: in first place, it is a W3C standard

with mature open source tools. This open sources

tools, as showed in section 4, are adaptable to web

environments. In second place, XQuery is a

technology that might replace a set of heterogeneous

technologies. This means less human, formation and

development tools costs and resources.

XQuery standard is not closed yet. It is a draft

since 2002. However it is a stable draft and big

changes are not expected. There are an important

number of tools based in XQuery, not only open-

source, but commercials too.

However XQuery draft does not included all

elements needed to web development. First lack is

absence of mechanism to manipulate web elements,

like URL or forms. This one obligates tools to

implement proprietary solutions incompatibles with

other tools. There is also not a standard to define

calls to external functions. Different tools are

incompatible among them again.

Is XPath a valid alternative?. We do not think so.

XPath (W3C, 1999) is a language for addressing

parts of an XML document. XPath does not include

the same flexibility than XQuery. For example,

XPath returns what it found, not allowing to

transform results. XPath does not support functions.

Thus, XPath is one of the pillars of XQuery, but

XPath, by itself, is not enough to build web

applications.

We suggest a set of actions to improve XQuery as

web development tool. First action will be the

definition of a communication mechanism between

XQuery expressions and web environment. This

mechanism has to be proposed like a standard o like

a section of the actual standard. Second action will

be the development of new tools and the adaptation

of exiting tools to this standard.

Actually, the market of web development has

grown up very fast in a short time. Today there are

several technologies and tools very matures.

Frameworks like Struts have become in a standard

and development tools like Rails over Ruby are

changing the way to built web application. Thus, we

suggest a third additional action. XQuery has to

develop and offer to web community frameworks

similar to exiting. These frameworks will allow,

first, to facility the transition process to XQuery and,

BUILDING WEB APPLICATIONS WITH XQUERY - Integrating technologies in web development

371

second, to avoid implementation the same basic

concepts once and another.

REFERENCES

Brundage, Michael. 2004. XQuery: The XML Query

Language. Addison Wesley.

Exist. 2003. http://exist.sourceforge.net/

Katz, Howard; Chamberlin, Don, et-al. 2003. XQuery from

the Experts: A Guide to the W3C XML Query

Language. Addison Wesley

Marchal, Benoît. 2001. XML by Example. QUE.

McLaughlin, Brett. 2002. Java and XML Data Binding.

O'Reilly.

Mignet L, et-al. 2003. The XML Web: a First Study. Proc.

of International World Wide Web Conference.

WWW2003. Budapest. Hungary.

Offutt, Jeff. 2002. Web Software Applications Quality

Attributes. Quality Engineering in Software

Technology (CONQUEST 2002), pages 187-198,

Nuremberg, Germany.

Qexo. 2003. http://www.gnu.org/software/qexo/

Qizx/open. 2003. http://www.xfra.net/qizxopen/

Robert Gardner, John; Rendon, Zarella L. XSLT and

XPATH: A Guide to XML Transformations. 2001.

Prentice Hall.

Saxon. 2003. http://saxon.sourceforge.net/

Apache Tomcat 4.1. 2003.

http://jakarta.apache.org/tomcat/

W3C. 2004. The sixth public Working Draft of XHTML

2.0. http://www.w3c.org/TR/2004/WD-xhtml2-

20040722/

XQEngine. 2003. http://xqengine.sourceforge.net/

W3C XML Path Language (XPath) Version 1.0. 1999.

http://www.w3.org/TR/xpath

W3C XQuery Drafts. 2002.

http://www.w3.org/TR/XQuery/

W3C. 2002 XML Query Use Cases.

http://www.w3.org/XML/Query, August 2002.

World Wide Web Consortium. 2004. eXtensible Markup

Language (XML) 1.0. http://www.w3.org/XML/.

Ye Wu and Jeff Offutt. 2002. Modeling and Testing Web-

based Applications. ISE Technical ISE-TR-02-08.

Ye Wu, Jeff Offutt, Xiaochen Du. 2004. Modeling and

Testing of Dynamic Aspects of Web Applicationsy.

Submitted for journal publication.

WEBIST 2005 - WEB INTERFACES AND APPLICATIONS

372
