ON-THE FLY ANNOTATION OF DYNAMIC WEB PAGES

Mamdouh Farouk

Department of Computer Science,Faculty of Computers and Information, Assiut University, Assiut, Egypt

Samhaa R. El-Beltagy

Department of Computer Science,Faculty of Computers and Information, Cairo University, 5 Tharwat Street, Giza, Egypt

Mahmoud Rafea

Central Lab for Agricultural Expert Systems, Agric

ltural Research Center, Ministry of Agriculture and Land Reclamatio

El-Nour St., Dokki, Giza, Egypt

Keywords: Semantic web, Annotation, DB annotation, XML

Abstract: The annotation of web pages is a critical task for the success of the semantic web. While many tools exist to

facilitate the annotation of static web pages, annotation of dynamically generated ones has not been

sufficiently addressed. This paper addresses the task of annotating web pages whose dynamic content is

derived from a database. The approach adopted is based on annotating a database schema based on public

ontologies and using this database annotation to generate a dynamic web page’s content annotation on the

fly. This paper both presents details about the adopted approach as well as a tool that supports this approach.

1 INTRODUCTION

The semantic web presents a vision in which

software agents will be able to understand and use

web content to perform tasks that aid Internet users.

This will enable web pages as well as databases and

other web resources to be ‘machine-available’

(James, 2002). In order to realize this vision of the

semantic web, web resources have to be

semantically annotated in a format that enables web

agents to understand web contents where semantic

annotation refers to the process of providing

additional information (metadata) to existing data so

as to describe their content and context. As a result,

metadata that describe web resources have been

identified as key to creating the Semantic Web

(Handschuh, 2001). After obtaining metadata, it

should represented in a

format which facilitates

reasoning services from operation over the metadata,

thus enhancing their processing power (Kopena,

2003). Using ontologies in the annotation process

makes the final annotation more usable.

Annotating web resources is no trivial task due to

the current size of these resources. Supporting this

task through the development of tools that can

facilitate it is imperative for its success. As a result

much work has been carried out to make this process

an easier one. The aim of this work is to address this

issue in relation to pages whose content is

dynamically derived from databases.

2 BACKGROUND

During the last few years, many tools [manual and

semi-automatic] were developed to facilitate the

semantic annotation process. Manual or semi-

automatic tools try to extract the ‘meaning’ of a web

page and represent this meaning (metadata) in a

format, which can enable search agents to perform

reasoning on it. An example of such tools is the

MnM tool, which provides both automated and

semi-automated support for annotating web pages

with semantic contents (Vargas, 2002). However,

most of the developed semantic annotation tools are

devoted to the task of annotating static web pages

(HTML pages) even though a large majority of

current web sites are made up of largely dynamic

web pages that are generated based on scripts that

327

Farouk M., R. El-Beltagy S. and Rafea M. (2005).

ON-THE FLY ANNOTATION OF DYNAMIC WEB PAGES.

In Proceedings of the First International Conference on Web Information Systems and Technologies, pages 327-332

DOI: 10.5220/0001234703270332

 SciTePress

access databases and/or respond to specific user

variables (Siegfried, 2003). Contents of such pages

change according to its user. Failing to annotate

these web pages, results in a failure to integrate them

as part the semantic web vision. In the following

sections, we describe a system/tool that was

developed specifically to address this issue and that

is capable of supporting the task of creating

annotations for web pages, which derive their

content from a database.

3 SYSTEM OVERVIEW

In this work, we propose an approach to annotate

dynamic web pages that are generated based on data

retrieved from a database. Our approach is designed

and implemented for Active Server Pages (ASP), but

can generalize to any dynamically generated web

pages that access a database. The generated

annotations are represented in DAML. The

technique proposed to annotate dynamic websites

depends on dynamic generation of annotations

according to SQL queries contained in pages within

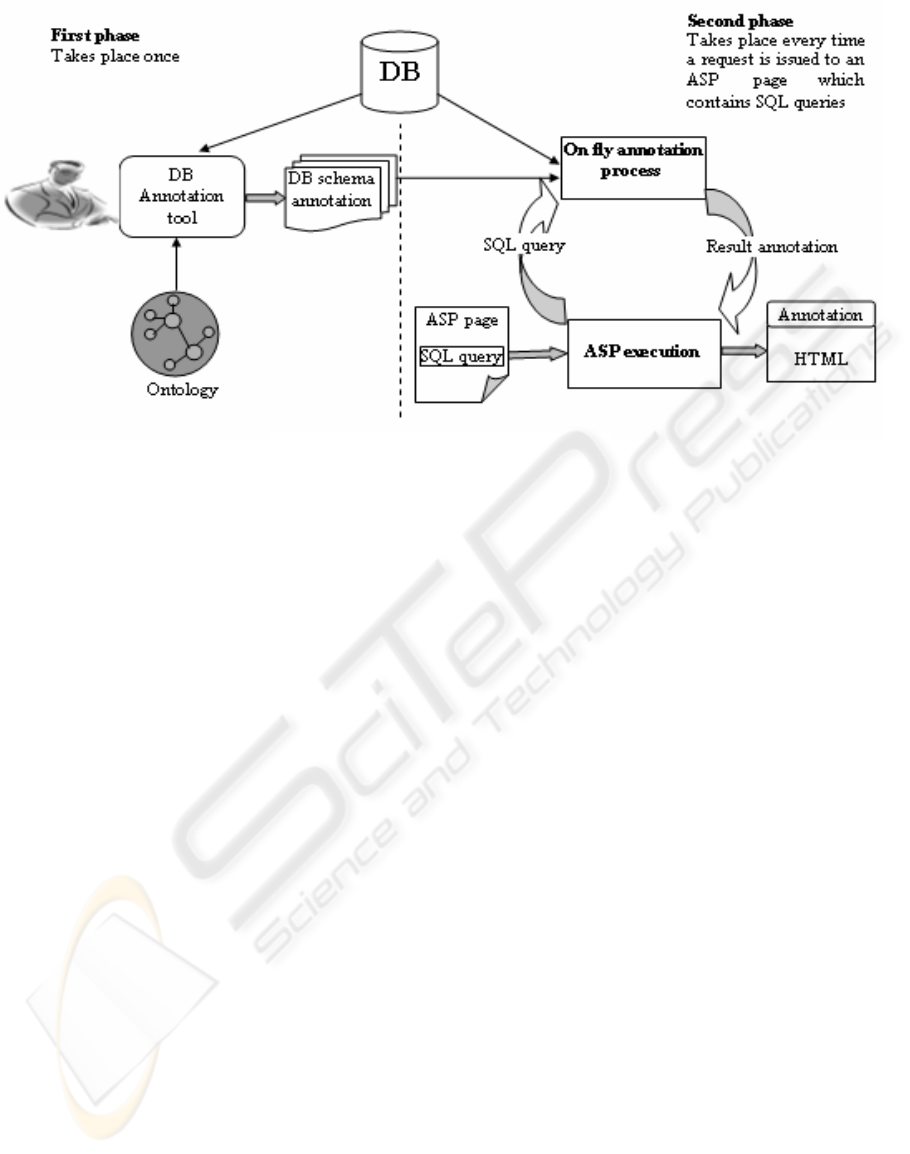

such sites. . Figure 1 shows the general architecture

of our proposed dynamic web page annotation tool.

As shown in figure 1, two phases are proposed

for the annotation process. The first phase involves

annotating the database schema of the DB used by

some given application. In this phase, a user

manually maps database objects to some predefined

ontology classes. This task is facilitated by the

developed tool. The output of this phase is an XML

document that describes the DB schema. In the

second phase, on the fly automatic annotations are

generated and augmented to a query’s result. The

input to this process is the SQL query contained in a

web page as well the XML file generated in the first

phase and the output is the generated annotation. In

the next few subsections more details are provided

for each of these phases.

3.1 Annotating the database schema

In our work, automating data annotation relies

largely on successfully annotating the schema of the

database from which data is to be retrieved. In this

process, a user describes various DB objects and

relations that exist between these objects based on a

predefined ontology. This description is represented

in a generic formal structure, (we’ve chosen XML)

so as to be easy to use.

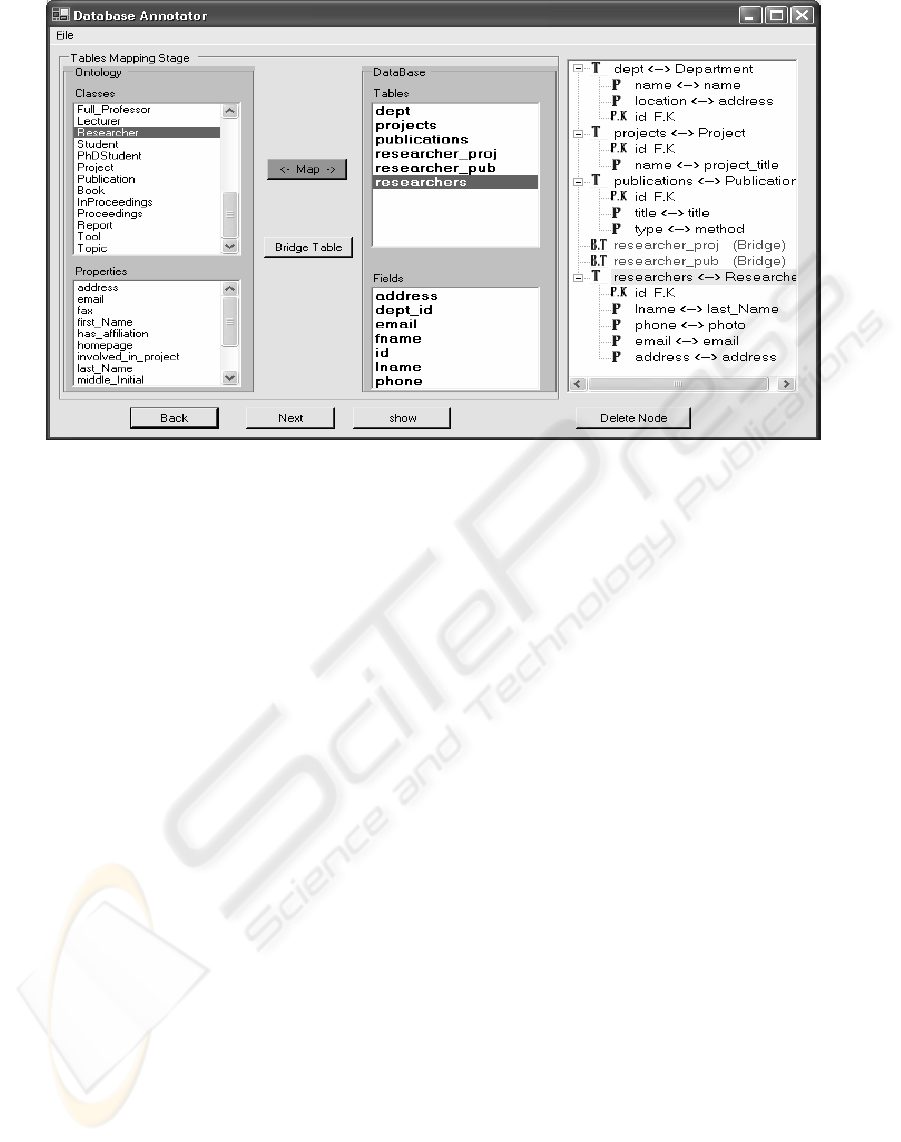

Figure 1 shows the model for database schema

annotation process. A database annotator tool (DBA)

was implemented to facilitate this process. The DBA

accesses the database and loads its schema in a

graphical user interface. The DBA also allows a user

to select ontology, loads the ontology and displays

its structure. Through the graphical user interface,

the user can annotate the DB schema using the

ontology classes.

The DB schema annotation process is divided

into the following steps:

- Annotation of database tables: in this step, a user

describes database tables by mapping them to

ontology classes and mapping the table’s fields to

the class’ properties.

- Annotation of relations between tables: in this

step, a user describes the type of relationship that

exists between the database tables.

Figure 1: General architecture

WEBIST 2005 - WEB INTERFACES AND APPLICATIONS

328

3.1.1 Annotation of database tables

To map a DB table to an ontology class, the DBA

tool creates a table element and maps fields in this

table to properties of a class selected from the used

ontology. The mapping is represented using another

nested element called field. This is done for each

field in the database table. Sometimes fields in the

DB table need not be assigned to any property in the

ontology, e.g., a record’s auto-increment field.

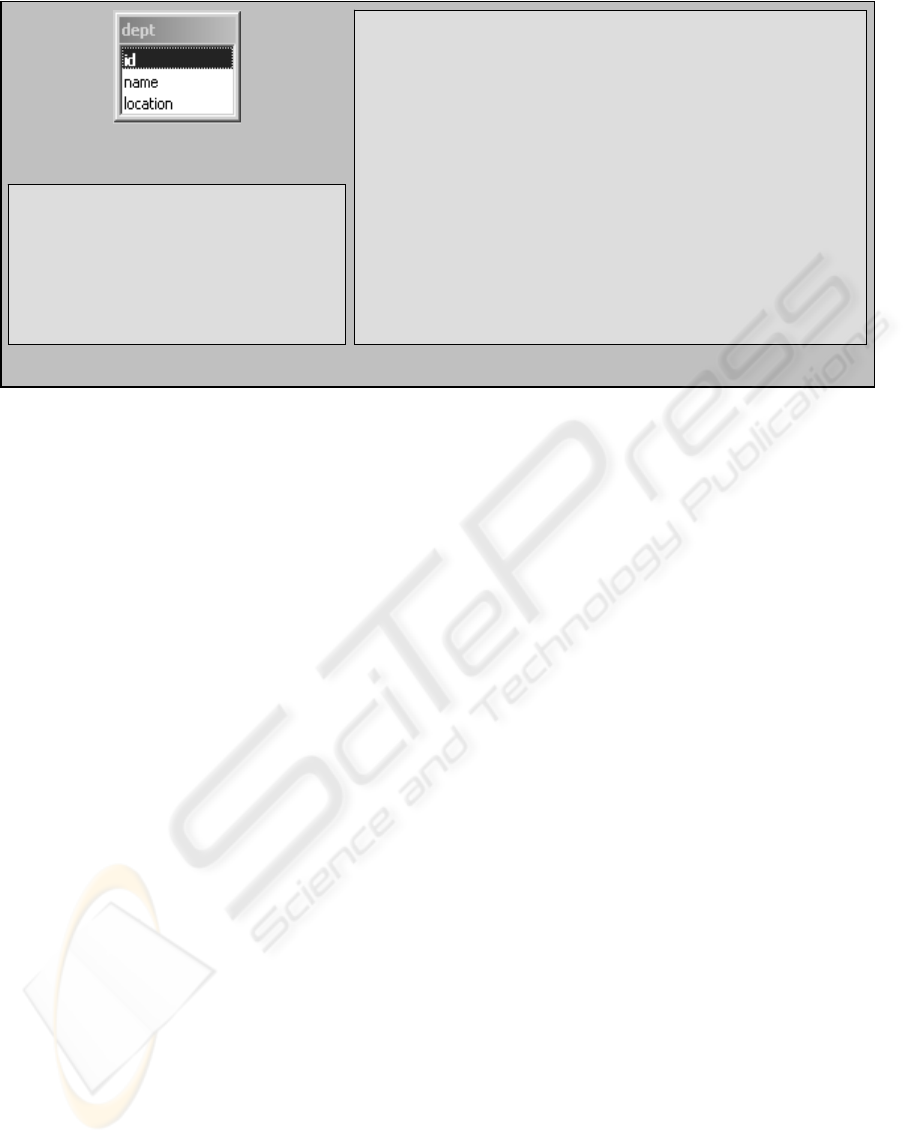

To further illustrate and clarify this process,

assume that we have a “dept” table in our database

as defined in figure 2 (a). Also, assume that the

selected ontology has a “Department” class defined

as in Figure 2 (b). Mapping between the table and

the ontology will result in the annotation of the

“dept” as shown by the XML representation

provided in Figure 2 (c). In this figure, the “dept”

table is represented with the table element. The

attribute “name” provides the name of the table in

the original database, while the attribute “RTClass”

provides the name of the ontology class to which

this table can be mapped (in this case: Department).

In a similar manner, the table’s field “location” is

mapped to the class property “address” and the

table’s field “name” is mapped to the class property

“name”. Finally, a primarykey element defines the

primary key field(s) of a DB table, which is used in

the query result annotation process (explained later)

to distinguish between different DAML created

instances.

3.1.2 Annotation of relations between tables

Annotating the relationships that exist between DB

objects is critical to making rich annotations to data

that will be retrieved from the database. Of

particular interest, is the annotation of one-to-many

and many-to-many types of relationships.

Annotating one-to-many relationships: When two

tables are related together through a one-to-many

type of relationship, one of these tables will contain

the primary key of the other table as a foreign key.

To annotate this relationship, the tool creates a

foreignkey element to represent the relationship

between these tables. Within the foreignkey

element, the name attribute is used to represent the

foreign key field within the table element

representing the table which contains the foreign key

field. The XML representation of the foreign key

takes the following structure:

<foreignkey name=”ForeignKey” RTProperty=”

OntologyClassProperty”

RTTable=”ReferenceTable”/>

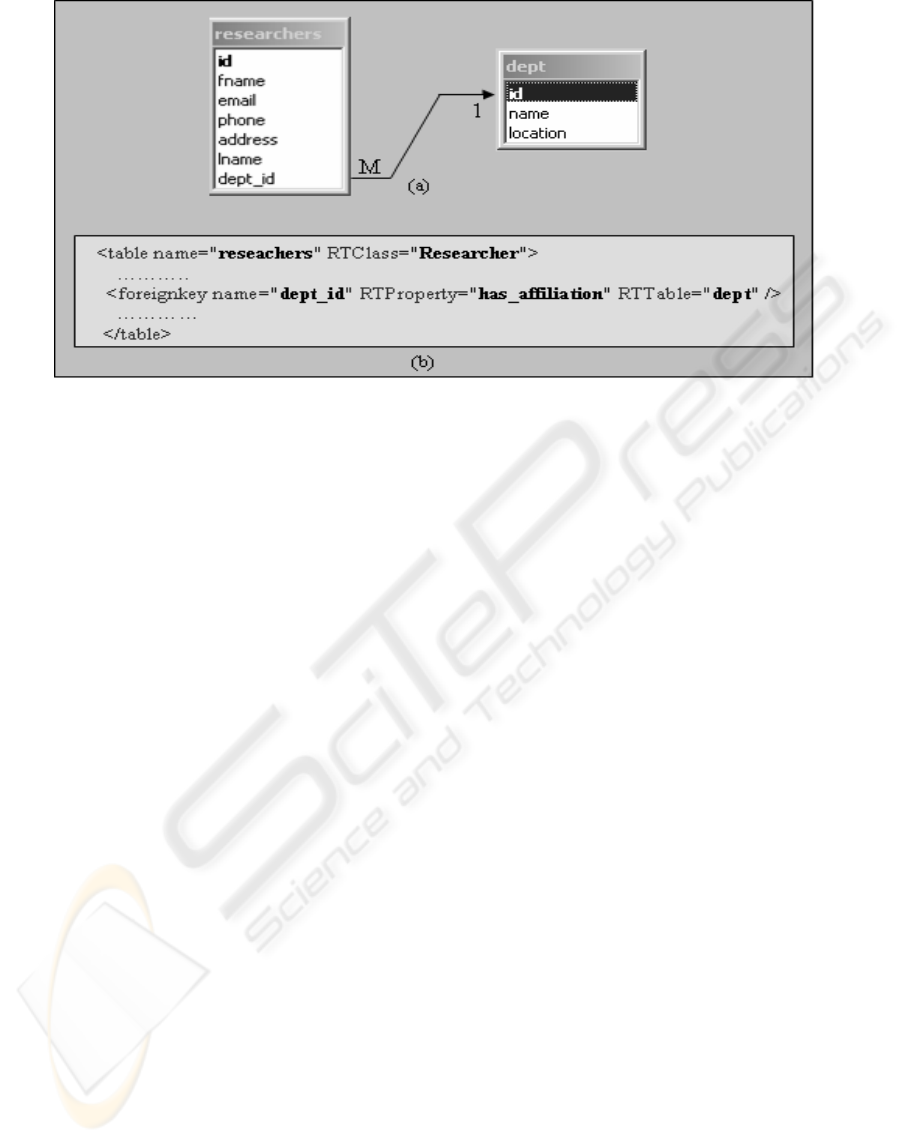

To illustrate further, figure 2 (a) shows a one-to-

many relationship between the researcher table and

the department table (each researcher can work in

only one department and a department will typically

have many researchers working within it). A

researcher is affiliated to a dept, so within our

selected ontology this relationship is called

“has_affiliation”. To annotate the relationship

between these two tables (researcher and dept), a

<foreignkey> tag is added under the <table> tag of

the researcher table. Within this tag, the primary key

of the department in which the researcher works is

represented by the name attribute, the name of the

relationship is represented by the RTProperty (Refer

to Property) attribute (which is a property previously

defined in the used ontology) and finally the name of

the table to which the researcher is related is

represented using the RTTable (Refer To Table)

attribute. Figure 3 (b) shows this annotation.

<daml:Class rdf:ID="Department">

<rdfs:label>Department</rdfs:label>

</daml:Class>

<daml:Property rdf:ID="Name">

<rdfs:domain rdf:resource="#Department" />

<rdfs:range rdf:resource="http://www.w3.org/TR/xmlschema-2/#string" />

</daml:Property>

<daml:Property rdf:ID="address">

<rdfs:domain

rdf

resource="#Department" />

<rdfs:range rdf:resource="http://www.w3.org/TR/xmlschema-2/#string" />

</daml:Property>

<daml:Property rdf:ID="Phone">

<rdfs:domain rdf:resource="#Department" />

<rdfs:range rdf:resource="http://www.w3.org/TR/xmlschema-2/#string" />

</daml:Property>

table name="dept" RTClass="Department">

</primarykey>

table

(

)

(

)

(

)

Figure 2: table annotation example

ON-THE FLY ANNOTATION OF DYNAMIC WEB PAGES

329

Annotating many-to-many relationships: When

two tables are related together by a many-to-many

type of relationship, a bridge table is created to link

the two tables. Within the bridge table, the

relationship is further broken into two relations each

of which is a one-to-many relation. So, to annotate a

many-to-many relationship, the following steps are

carried out:

1- Create a <bridgetable> tag to relate the two

tables. Relating between the two tables is done

through embedding two foreignkey elements in

the bridge table. One of these is used to describe

the relationship between the first table to the

second, while the second is used to describe the

relationship between the second to first.

An example of a many-to-many relationship is

that which exists between researchers and

publications. A researcher can have many

publications, and a publication can be authored

by multiple researchers. So, the bridge table

created to represent this relationship will have

two foreignkey elements, one that states that a

publication has an author which is a researcher,

and another that states that a researcher has

publications. This can be represented as

follows:

2- For each table involved in a many-to-many

relation (researcher and publications in the given

example): add a <has_relation> tag and set the

“with” attribute value to the name of the bridge

table as follows:

<has_relation with="researcher_publ"/>

A tool has been created to facilitate this

annotation process is illustrated in figure 4.

3.2 On the fly automatic annotation

of a query’s result

When a request for a dynamic web page is received

on the server, the server executes the requested

page’s script and returns the HTML result to the

client. Our goal is to annotate the result so as to

enable semantic manipulation of the page by sending

back the annotation embedded in the HTML result.

To achieve this goal, when the server executes the

requested page, the annotator generates an

annotation for the result simultaneously according to

the new page’s contents which are determined by the

SQL query(s) executed in that page. This process

employs the generated DB schema annotation

described in section 3.1. The second phase, shown in

figure 1, illustrates the process model of “on the fly

annotation”. The execution of a web page results in

a call to a function that takes the SQL query as input

and returns the annotation of the query result as

output. The process of annotation generation occurs

on the fly as part of the dynamic page’s execution.

The following three steps are applied to generate the

annotation for a result of an SQL query encountered

within a dynamic web page:

- Step 1: Primary keys values of all records

contained in the result are fetched

Figure 3: one-to-many relation annotation

bridge_table

name

researcher_pub

<foreignkey name="researcher_id"

RTProperty="has_author"

RTTable="researcher" />

<foreignkey name="publication_id"

RTProperty="has_publication"

RTTable="publications" />

</bridge_table>

WEBIST 2005 - WEB INTERFACES AND APPLICATIONS

330

Figure 4: Database annotation tool

- Step 2: An ontology instance for each retrieved

record is created

- Step 3: Relationships between the created instances

are identified.

Each of the above steps is detailed in the following

subsections

3.2.1 Step 1: Fetching primary key values of

all records contained in a query result

The first step to annotate the result of an SQL query

is to obtain the primary key values for all records,

returned in the query’s result. This can be done

easily by generating an SQL query from the original

incoming query to retrieve the desired primary key

values. The generation of this new query depends on

the annotation of the DB schema, which is queried

to get the primary key fields for each table. So, to

generate this query we do the following:

(1) Get the names of the queried tables from the

original query (this can be obtained from the

from clause).

(2) For each table get the primary key field(s) from

the XML DB schema annotation.

(3) Construct a select query to retrieve primary key

values using the primary key field values

obtained from the previous step and with the

“from” and “where” clauses corresponding to

their counterparts in the original query. The

resulting query is in the following form :

Select (tableName.PK_Field)

(From

clause) (Where Clause);

The (tableName.PK_Field) is constructed using

steps 1 and 2, and the (From clause) and (Where

Clause) are obtained from the original query.

For example, given the following original query:

select * from dept where name=’CS’;

After applying the above steps, the generated query

will be:

select dept.id from dept where name=’CS’;

The result of executing the generated query will

be a list of primary key values, which are used in the

next step.

3.2.2 Step 2: Creating an ontology instance

for each of the retrieved records

In this step, an ontology instance is created for each

record retrieved as part of the query result. To create

an ontology instance for a specific record, the

ontology class corresponding to the table from

which the record is retrieved, is obtained from the

XML DB schema file. Then, an empty instance of

that class is created and its property values

instantiated with values from the retrieved record

fields according to the mapping between fields and

properties in the DB schema annotation. For

example, if the retrieved records were obtained from

the “researcher” table and have primary keys 3 and

7, in this step, two instances from the ontology class

corresponding to the researcher table (“Researcher”

class), are created for each record. To do this, a new

query is constructed to retrieve all fields' values in

these two records from the “researcher” table. The

properties' values of the created instances are filled

with these retrieved field’s values according to the

mapping between fields and properties in the DB

schema annotation.

ON-THE FLY ANNOTATION OF DYNAMIC WEB PAGES

331

3.2.3 Representing relationships between the

created ontology instances

In this step we relate the instances created in the

previous step based on the relationship that exists

between these instances and other objects in the

database. In the example given, assuming a

relationship exists between researchers and projects

where a research can work on multiple projects, we

need to represent a relationship between the

retrieved researchers and the specific projects they

are working on. To do so, the tool performs a search

for all relations that can exist between a researcher

and other database objects by checking relations that

exist between the researcher table and other DB

tables in the XML DB annotated schema. For the

researcher table in the XML file (represented by a

table element), the tool will find that a tag

<has_relation_with="research_project"/> exists; this

means that there exists a many-to-many relationship

between the researcher table described in the

“research_project” bridge table. So, if in the

previous step, an instance was created for a

researcher whose record has a primary key called id

with the value of 7, in this step, the tool will create

a query on the bridge table to get all projects, that

have a researcher with id= 7 (this represents projects

in which this researcher is involved in). The tool

then creates instances for each project record

retrieved from the query. The tool also refines the

attributes in each instance. The “persons_involved”

attribute in the project instances are set to the URI of

the instance of the researcher with id = 7 and the

“involved_in_project” attribute in the researcher

instance, is set to the created instances.

The final result of the annotation process is the

set of related instances generated from the above

steps. These instances that contain semantic

information about the page content will be added to

header of the HTML that is sent to the client.

4 CONCLUSION

The success of the semantic web depends on the

easy creation of ontology-based metadata through

the use of semantic annotation tools. This work

presented an approach whereby annotation of

dynamic pages, which derive their content from

databases, can occur on the fly. The proposed

technique generates annotations according to the

retrieved data by annotating a database schema,

creating a direct link between the structure of the

database (tables and fields of a relational database)

and concepts/properties in ontology, and finally

using this in the annotation process. The proposed

technique is powerful, simple, and easy to

implement. Implementing this approach enables

semantic manipulation of such web pages thus

contributing to the establishment of the semantic

web vision.

ACKNOWLEDGMENTS

This work was sponsored by the European

Community’s FP6 Information Society

Technologies programme under contract IST-

001935, EVERGROW (www.evergrow.org).

REFERENCES

James, H., Berners-Lee, T., Eric, M., 2002. Integrating

Applications on the Semantic Web. In Journal of the

Institute of Electrical Engineers of Japan, Vol 122(10),

October, 2002, p. 676-680.

Handschuh, S., Staab, S., 2002, Authoring and annotation

of Web pages in CREAM, in: Proceedings of the 11th

International World Wide Web Conference (WWW),

Honolulu, Hawaii, ACM Press, 7–11 May 2002, pp.

462–473.

Vargas-Vera, M., et al., 2002, MnM: Ontology Driven

Semiautomatic and Automatic Support for Semantic

Markup, In European Knowledge Acquisition

Workshop 2002, Springer-Verlag, 2002, pp. 379–391.

Kopena, H., and Willim, C. R., 2003, “DAMLHiessKB: A

Tool for Reasoning with the Semantic Web”, IEEE

Intelligent Systems, MAY/JUNE 2003, pp. 74-77.

Siegfried, H., Raphael, V., Staab, S., 2003, Annotation for

the Deep Web, IEEE Intelligent Systems,

SEPTEMBER/OCTOBER 2003, pp. 42-48.

WEBIST 2005 - WEB INTERFACES AND APPLICATIONS

332
