THE DESIGN OF THE MIRAGE SPATIAL WIKI

Nels Anderson, Adam Bender, Carl Hartung, Gaurav Kulkarni,

Anuradha Kumar, Isaac Sanders, Dirk Grunwald and Bruce Sanders

Dept. of Computer Science

University of Colorado

Keywords:

Location based systems, ubiquitous computing, wiki, Internet systems.

Abstract:

Location based services can simplify information access but despite the numerous efforts and prototypes that

attempt to provide location based services, there are very few such systems in wide spread use. There are

three common problems that face the designers of location based systems - the basic location technology, the

complexity of establishing a service for a particular location and the complexity of maintaining and presenting

information to users of the systems. This paper outlines the software architecture of and experience with the

Mirage Spatial Wiki. We describe the design decisions that have led to a system that is easy to deploy and use.

1 INTRODUCTION

This paper describes the software architecture of and

experience with the Mirage Spatial Wiki, a location

based information system that is easy to deploy and

use. Location based services are designed to sim-

plify information access by using the current location

to direct the user to relevant information. There are

many examples of such systems (we discuss many of

them in §5) and almost as many goals for those sys-

tems. Some location based systems are intended to

be globally accessible using a variety of access de-

vices. These systems commonly use a combination

of GPS satellite positioning coupled with other sys-

tems for indoor positioning and assume data access

is via existing wireless networks or cellular data net-

works such as GPRS. Other location based systems

depend on a speciﬁc infrastructure, such as location

systems for cellular phone networks, which rely on

proprietary RF detection for location and provide ser-

vice via WAP or other protocols designed for mo-

bile phones. These systems are intended for large-

scale commercial deployments and provide services

such as way-ﬁnding, location-speciﬁc shopping in-

formation or tour-guides for cities (Cheverst et al.,

2000). Some other location systems are intended for

smaller scale deployments that are focused on more

speciﬁc business needs, such as locating resources

(e.g. printers, meeting rooms, etc) within a speciﬁc

building or providing an automated docent as a tour

guide(Hightower and Borriello, 2001). Again, these

systems commonly use a variety of location detec-

tion systems, ranging from infra-red or ultrasound

“beacons” to radio network signal strength. Often,

these systems rely on specialized hardware compo-

nents or large or complex software environments and

are tightly integrated to speciﬁc applications.

Systems involving geo-spatial coordinates, such as

those obtained from GPS satellites, are difﬁcult to in-

tegrate with approaches that use beacons; these lat-

ter systems are commonly referred to as semantic or

proximate location systems. Their goal is to pro-

vide information about objects in a particular refer-

ence frame, not to establish a mapping of an ob-

ject in an absolute coordinate system. Depending

on the intended application, knowing that the near-

est fax machine is “down the hall in room 422” may

be more meaningful than knowing the speciﬁc lati-

tude/longitude of the device. Even in the presence of

a system to assign objects locations in a coordinate

space, the maintenance of such a mapping is complex

and possibly pointless in environments where acquir-

ing geo-spatial information is difﬁcult or impossible

(such as in buildings when using current GPS tech-

nology).

This paper describes the software architecture of a

system we developed to provide location based ser-

vices in educational environments. The system is

based on past experience with “beacon” based loca-

tion systems similar to the infrastructure used in the

Anderson N., Bender A., Hartung C., Kulkarni G., Kumar A., Sanders I., Grunwald D. and Sanders B. (2005).

THE DESIGN OF THE MIRAGE SPATIAL WIKI.

In Proceedings of the First International Conference on Web Information Systems and Technologies, pages 48-55

DOI: 10.5220/0001235300480055

 SciTePress

Cooltown system. The difﬁculty in deploying the pre-

vious system guided the design choices and compro-

mises made in the eventual system. Overall, the sys-

tem relies much more on Internet enabled applications

and seeks to maximize the existing infrastructure. The

resulting system is very easy to deploy, very scalable

and easy to maintain. We have demonstrated that we

can “map” a large building in less than two hours and

provide rapid access to a “spatial wiki” that simpliﬁes

the sharing of location-based information.

In this paper, we provide an overview of the system

in §2 and then discuss speciﬁc details of the system in

§3. We compare the system to prior work in Section 5

and summarize our ﬁndings in §6.

2 SOFTWARE ARCHITECTURE

As part of a broader educational program, we wanted

to deploy a location based system in a university set-

ting to provide information about laboratory equip-

ment, contact information for people in a speciﬁc de-

partment as well as class-room speciﬁc information

such as schedules and an electronic “lost and found”.

One of the over-arching goals for our design was to

provide a system that allowed the users of the system

to easily develop new uses for the system and for the

system to require little maintenance. In our initial ex-

periment, we used infrared beacons to identify rooms

and depended on an existing 802.11 wireless network

to provide network connectivity. This system proved

to be unwieldy because the number of beacons needed

was prohibitive and the beacons were difﬁcult to use

in practice since infrared signals are fairly directional.

Based on our earlier experience, we developed a

system that would address the following goals:

• It should not require additional system hardware

components to be installed,

• It should support the targeted applications (lab spe-

ciﬁc information, etc)

• It should be extensible enough to enable new appli-

cations,

• It would be easy to maintain,

• And, it should work with common portable com-

puter operating systems,

The resulting system, called the Mirage Spatial

Wiki, uses “beacons” provided by a ubiquitous 802.11

network to provide a semantic location service. Stan-

dard 802.11 networks have limited range in most

buildings and robust installations of such networks

typically deploy numerous access points across multi-

ple frequencies or channels to provide sufﬁcient cov-

erage and bandwidth. The beacons from these indi-

vidual stations can be used to provide approximate

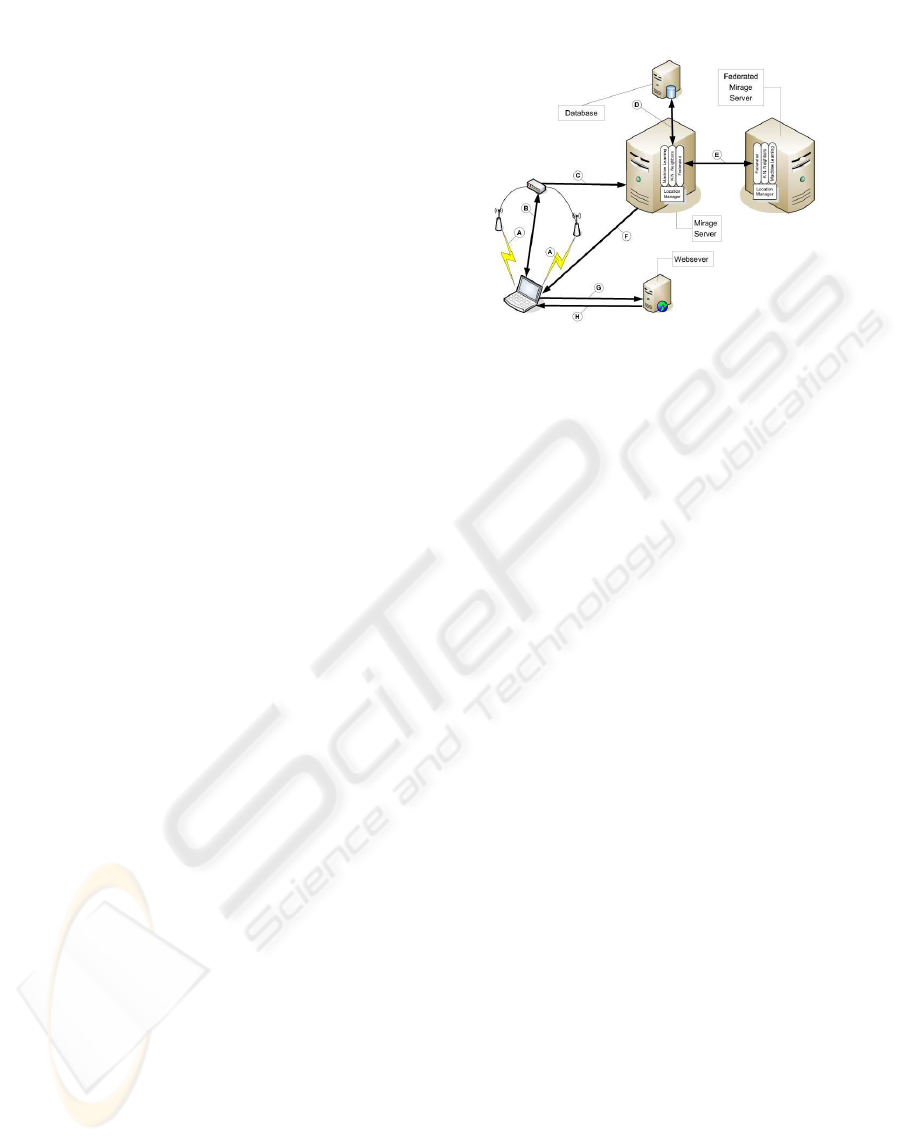

Figure 1: Components in Mirage Location Service and their

interaction during a query. The laptop receives station bea-

cons from the local access points (A), and uses the Mi-

rage desktop locater to launch a web browser that relays the

access point information through the network (B) to the

subscribed Mirage server (C) as an HTTP request. The

subscribed Mirage server uses uses the different location

blades to resolve the request; the blades communicate with

the database (D). If the location blades can not resolve

the query, the subscribed Mirage server can forward the re-

quest to a federated Mirage server (E). If no location is

determined, the default location is used. The URL corre-

sponding to the resolved location is returned to the laptop

as an HTTP redirection (F). The laptop then contacts the

webserver speciﬁed in the HTTP redirection (G) and is

given the actual content corresponding to the location (H).

location; using these beacons has the side beneﬁt that

it simpliﬁes the network design – access points not

only provide location information, they also provide

the data network needed for indoor location based ser-

vices.

Earlier systems used “RF triangulation” (Bahl and

Padmananbhan, 2000) to approximate a geo-spatial

location service; our own experience with this ap-

proach resulted in failure, because RF signals exhibit

signal fade and signiﬁcant multipath characteristics in

many institutional buildings, particularly those made

of concrete. When using RF triangulation, we found

that the location would rapidly “jump” from one spa-

tial estimate to another. Moreover the system re-

quired considerable calibration and training to pro-

vide enough information for the RF triangulation sys-

tem, and calibration was needed when furniture was

moved around or even when doors were left open

rather than closed. Thus, rather than focusing on de-

termining precise locations, we emphasized the no-

tion of semantic locations deﬁned as different “land-

ings” that had some external signiﬁcance. For exam-

ples, a classroom, a portion of a hallway or lobby or

THE DESIGN OF THE MIRAGE SPATIAL WIKI

a speciﬁc ﬂoor in a building. By shifting to semantic

locations, we could use different location calculation

systems that traded geo-spatial accuracy for the abil-

ity to correctly identity the coarser-grained seman-

tic space. We eventually found two algorithms that

worked well when using noisy data sources such as

the RF signal strength from 802.11 network beacons.

The ﬁrst algorithm, based on the K nearest-neighbor

matching algorithm, works well with limited training

data and provides sufﬁcient accuracy to give room-

level locations. The second algorithm, based on a

back-propagation neural network, provides more ac-

curate in-room positioning, but requires considerably

more data to achieve such accuracy.

Both of these semantic location algorithms require

training data. Although some location based systems,

such as PlaceLab (Schilit et al., 2003), distribute that

data to client computers, that design appeared to be

overly complex. There are three motivations for us-

ing client-side location data. The ﬁrst is to provide

location information even when a network connection

to a centralized location server is not available. The

second is to insure that the location system is scalable

as the number of clients increases and the third rea-

son is to enhance privacy in location based systems.

Although these design goals are laudable, they’re less

important for the system goals we envisioned. First,

since our location based system relied on a network

to access location-based applications, there was lit-

tle point in having location information without net-

work connectivity. We felt that scalability could be

addressed using conventional network load balanc-

ing techniques, and developed a design that allows

us to partition the components used in the full loca-

tion based application. Lastly, although privacy is an

important issue, the privacy-revealing information ex-

posed by network connections would not be directly

visible to the location system and there are other ways

to disguise such information (Gruteser and Grunwald,

2003).

The resulting system relies on a small desktop ap-

plication that uses the underlying operating system to

record information from available access points, in-

cluding the hardware MAC addresses, the network

names (SSID) and received signal strength. Due to the

design of the 802.11 protocol, this information can be

collected from all available networks, including those

that use security protocols or to which the user does

not actually have access. We developed similar appli-

cations for Windows/XP, Mac OS-X and two common

Linux desktop environments (Gnome and KDE). In

each case, the application records the information and

launches a web browser with a URL request directed

to a web application on a speciﬁc Mirage server.

The Mirage server determines the closest “landing”

corresponding to the location information using one

or more of the available “location blades”. Each “lo-

Figure 2: Example Deployment Scenario

cation blade” may report a degree of certainty in a

particular decision. If the location can not be deter-

mined using local information, the speciﬁed Mirage

server may communicate with other Mirage servers

using an optional federated network architecture.

There is a corresponding URL associated with

each “landing”; using the HTTP protocol, the Mirage

server directs the client browser to the speciﬁed URL.

Figure 1 illustrates the sequence of operations. As

illustrated, the system is composed of three distinct

parts (the location server(s), the database for loca-

tion information and the web server for the location

based applications), but all of these components can

be hosted on a single system if desired.

Rather than develop a complex application frame-

work, it is possible to use existing Web applications

in conjunction with the Mirage location system. One

of the continuing challenges facing any information

space is the need to provide the information needed

by the users of that space and to insure that infor-

mation is up-to-date. Our initial system uses a WIKI

(MediaWiki-Foundation, 2004) collaboration tool to

simplify maintenance of these information spaces.

Each “landing” is represented by a page in the

Wiki, and the content of that page can be edited by

users of the system. A sample page is shown in Fig-

ure 3. In our application, each landing includes a

schematic map for the region and includes links to ad-

jacent landings. That map is added as a hand-edited

graphic indicating the intended physical space repre-

sented by the “landing”. Figure 2 shows the sample

building used in the initial deployment. The build-

ing is the primary building in an engineering depart-

ment. The building is divided into different depart-

WEBIST 2005 - INTERNET COMPUTING

Figure 3: Screen Capture Showing Location

ments with a range of physical space represented by

each department; each labeled department is a “land-

ing” in our current deployment. Not shown in the

building is an ofﬁce tower that occupies the region

labeled ECOT; each ﬂoor of that 8 story structure is

also a “landing”. Currently, each “landing” occupies

considerable physical space, but this is an artifact of

our prototype system. We have demonstrated that we

can subdivide a small physical region into a number

of “landings” that measure ≈ 100×100 sq. ft. For ex-

ample, the region labeled “ECCS” can easily be sub-

divided into four distinct regions.

The trade-off between the granularity of a “land-

ing” and the certainty in identifying which “landing”

the user may be visiting is a key compromise in the

system we designed. Unlike earlier systems that at-

tempted to provide meter-level resolution of physical

location, such as Radar, we opted to address larger

regions and provide navigational and training mecha-

nisms to allow the user to locate their true location

from the list of possible locations. The long-term

effectiveness of this technique can not be assessed

without a longitudinal usability study, but our ad hoc

assessment is that it provides considerable utility –

rather than force the software to be completely ac-

curate, we push part of the responsibility back to the

user. Overall, the system provides a usable location

based service for the intended applications.

3 DESIGN DECISIONS

The Mirage system relies on the ability to repre-

sent physical location using information gleaned from

wireless networks. Using three of the more common

pieces of information readily available from operating

system calls: MAC address, Signal Strength, and Sig-

nal Set Identiﬁer (SSID) we are able to form a frame-

work in which we can represent a unique location as a

combination of these attributes. To better understand

how the Mirage system is capable of deducing loca-

tion it is beneﬁcial to follow the life of a query in the

system.

Upon launching the desktop client the underlying

system calls are made to query surrounding wireless

networks, the three quantities necessary to represent

location are gathered and parsed into an appropriate

URL on the Mirage system. Once the query reaches

the Mirage system a series of checks are made to ver-

ify that the MAC addresses and their corresponding

SSID’s have been seen together before. This is a

crude check to warn Mirage of possible change to the

physical layout of the network (i.e. an access point

was moved or renamed). Since the SSID is the most

arbitrary quantity in the set this is by no means a guar-

antee but rather a hint that Mirage may not perform as

accurately as before. Once the veriﬁcations have been

made an “encoding-pair” scheme is formed in which

each MAC address is attached to its corresponding

signal strength and the total number of encoding pairs

being submitted is pre-pended and the query is passed

to the ﬁrst “location blade”, the K Nearest Neighbor

module.

Mirage currently makes use of two separate and

well-known machine-learning algorithms to help

make a determination of location. The ﬁrst of those

and the more general of the two is a weighted K Near-

est Neighbor (KNN). The reason for choosing KNN

is two fold: a) There is no training time to build a

model, and b) It can easily produce a ranking system

that provides feedback on what else is nearby.

The KNN algorithm depends on the deﬁnition of

a metric in a speciﬁc “feature space”; in general this

can be a signiﬁcant challenge, however for our sys-

tem it is a straightforward hashing. Using each MAC

address as a unique offset into a vector, Mirage en-

codes the signal strengths into an n-dimensional vec-

tor, where n is the number of unique MAC addresses

that have been seen by the desktop client. It is well

documented that the KNN model is decidedly inef-

fective if the feature space has more than ten dimen-

sions (Russell and Norvig, 2002); in the case of Mi-

rage we may have a space of 1000 or more dimen-

sions corresponding to 1000 unique MAC addresses

in the deployment area. Thus far in trials, we’ve ob-

served ≈ 100 unique MAC addresses on single ﬂoor

of a building. However, these vectors are very sparse,

having only 4 or 5 non-zero entries; again in practice

the most we have ever observed on a single query is

7 non-zero entries – i.e. seven unique access points.

It is a unique feature of this kind of data that has an

THE DESIGN OF THE MIRAGE SPATIAL WIKI

almost implicit feature reduction mechanism; it is un-

likely that network administrators would install many

more wireless access points to compete for the three

available wireless channels.

Once the query vector has been encoded it must

be compared with the training set data. The training

data is pulled from the database server and formed

into vectors using the same hash that created the query

vector. It is important to note that in order to reduce

the size of the “online training set” (the set of data ac-

tually used to compute a given location) and therefore

the overall computation time for a given query, it is

necessary to prune the training data to include only

those entries which are “nearby”. For a training item

to be nearby it must have at least one MAC address

in common with the query, this helps prevent some

data items which may have generally low signal val-

ues from throwing the system off and also validates

the use of the metric. Once the online training set is

complete the metric is applied to each item in the set

and a distance is computed between it and the query.

In this case the metric used is the standard Euclidian

distance, with a slight modiﬁcation for weighting. In

order to give more weight to a MAC address that the

query and the training item have in common we use

a multiplier to reduce the value of the term. In effect

this helps to correct for outlier signal values, which

may be very weak and so undercut the distance cal-

culation. The results of all the distance calculations

are then sorted in ascending order and the ﬁrst K val-

ues are selected from the list. In general K is an odd

number and is usually less than ten. Mirage uses a K

of three that was derived via empirical testing. Each

training example is also tagged with a classiﬁcation;

in this case it happens to be a “landing”. Using the

ﬁrst K values, a majority computation is performed

to determine the most common classiﬁcation of the

K nearest neighbors. This is the value assigned to

the query. In the case of a three-way tie the ﬁrst or

closest neighbor is used as the classiﬁcation. This

process then begins again, removing all training ex-

amples from the online data set with the classiﬁca-

tion initially assigned to the query and proceeds until

all the classiﬁcations have been assigned a ranking.

Upon completion a set of classiﬁcations is produced

in order of proximity to the query. These results are

then returned to the web server and the appropriate

results web page is generated, as shown in Figure 3.

We speciﬁcally chose to limit the number of re-

turned locations because our initial testing indicated

that users were less receptive to a system that pre-

sented a large number of alternative locations – they

felt the system was defective rather than realizing the

importance of the probability of a particular location

estimate.

The generation of the base training set for use with

KNN is a very quick process. Using an automated

desktop client that uses the same database interface

as the end user version, an administrator can collect

wireless network data at a speciﬁed interval (i.e. every

two seconds during a scan) and submit the informa-

tion via a web based mechanism. The administrator

simply indicates the current “landing” and then walks

through the physical area corresponding to the land-

ing. Once the data reaches the Mirage server it is

parsed into encoding pairs, tagged with a “landing”

classiﬁcation and inserted into the database. The data

is then immediately ready for use by the next call of

the Mirage system.

The second level of location detection in the Mi-

rage system is done using a back propagation neural

network. This technique can provide a signiﬁcantly

ﬁner granularity in terms of distance than KNN (in

practice the neural net model has achieved accuracy

on the order of ±1.5m), however there is a signif-

icant overhead associated with training the network.

We modeled the neural network algorithm on a sim-

ilar project at the University of Trento, Italy (Battiti

et al., 2002) and choose a three layer, fully connected

neural network structure. A fully connected neural

network implies that every node in layer n is con-

nected to every node in layer n + 1 except for the

output layer, which has no upward connections. The

input layer size is equal to the number of unique MAC

addresses in the nearby vicinity. This is potentially a

much smaller set than that which is used by the KNN

module, because the system has already performed a

level of determination. It is only necessary to include

MAC addresses present in training examples with the

same classiﬁcation. This also means the network will

have to learn a much smaller variance with regards to

the input layer. The hidden layer of the network con-

sists of ten nodes; this parameter was derived empir-

ically and further investigation may prove to change

its size. The output layer of the network consists of

two nodes, one representing the x coordinate and the

other representing the y coordinate. The result which

is presented at these outputs will represent the models

prediction of the physical location in (x, y) space of

the user that generated the query. In order to build the

model, the network must be trained on a set of data

speciﬁc to the physical location it is to model. Each

“landing” as speciﬁed by the KNN module will have a

corresponding neural net that has been trained speciﬁ-

cally on examples that are considered to be physically

connected to it. Of course what belongs to a certain

landing is somewhat at the discretion of the admin-

istrator who ﬁrst trains the system. The data itself is

very similar to the data used in the KNN module (i.e.

encoding pairs) except that the landing classiﬁcation

is now an (x, y) coordinate pair.

This is perhaps the biggest draw back to the neural

network approach, as it requires a very extensive

training set. Once a training set has been loaded, the

WEBIST 2005 - INTERNET COMPUTING

network is presented each example and the signal is

propagated to the output layer, the deviation of the

output and the stored classiﬁcation is determined us-

ing Euclidian distance in the plane. This error signal

is sent back down through the layers and used to ad-

just the weights in the network. This process is re-

peated for each example in the training set and a run-

ning total of the squared error is kept to monitor the

network progress. The training is terminated once the

error rate per pass through the data or “epoch” has

crossed below a minimum threshold. At this point

the network structure is stored and can be used for

classiﬁcation of new examples. The neural networks

generally train within a minute or two but can have

a training time as high as ten minutes depending on

training set size. Once the model is built and stored,

queries can be passed to it and encoded as a vector.

This vector is then presented to the input layer of the

network; the resulting signals are propagated upward

to the output layer and produce a set of coordinates.

These coordinates are then passed to the web server

and used to generate a location on the ﬂoor plan.

Although the neural network system can provide

fairly accurate location determination, it is still sensi-

tive to vagaries of RF propagation. In general, we’ve

found that the users of the prototype prefer to be pre-

sented with information that provides a higher assur-

ance of their location and which facilitates navigation

to the speciﬁc items of interest. Thus, rather than at-

tempting to determine e.g. the speciﬁc location of

a user in a hallway, it is better to display the whole

hallway and allow the user to zero in on the speciﬁc

room of interest. Since the rapid KNN classiﬁcation

system is able to accurately determine location for

≈ 100 × 100 ft. regions, this places little practical

burden on the user.

4 EXPERIMENTS

To examine the accuracy of Mirage, we designed sev-

eral experiments to populate the system with varying

numbers of training data points for different locations.

We then launched the system at different positions

within the trained location and recorded the rank re-

turned by the system. A rank of 1 means the sys-

tem returned our correct location, whereas a rank of 2

means the system thought our location was 2nd most

likely. All training data for these experiments was en-

tered and taken using an Apple iBook. All training

data points were taken at 2 second intervals walking

down the centers of hallways, or across rooms.

Our ﬁrst experiment was in a seven story ofﬁce

tower to examine the effects of physical barriers be-

tween landings. For ﬂoors 2-6 and 8 we used 90

points of training data per ﬂoor in order to create

existing landings for our experiments. On ﬂoor 7

we trained the system using 30, 45, 60, and 90 data

points. For each level of training, we then launched

the system at 10 different positions and recorded the

rank given to the 7th ﬂoor. For each of the 30,

35, 60, and 90 data points our system returned an

average rank of 2.0, 1.7, 1.8, and 1.2 respectively.

We conducted an ANOVA analysis comparing the

importance of the number of training samples vs.

the wireless card used to evaluate a location. That

analysis indicated that the amount of training was

more signiﬁcant than the type of card used, but the

predictive accuracy of the ANOVA model was very

low. Given The “mean rank” across different wireless

cards ranged from 1.2 − 1.7.

Next, we used the building’s lobby to test landings

without physical barriers. We used the system to di-

vide the lobby into 3 logical zones (1 larger, and 2

smaller) which did not have any physical barriers. We

trained the two smaller areas with 60 data points and

the large area with 90. We then proceeded as before

and took 5 readings in each area, moving progres-

sively toward the invisible borders of the areas. Our

system returned an average rank of 1.0 for all three

partitions, indicating that our system is accurate even

in the absence of physical barriers.

Our ﬁnal experiment addressed many small land-

ings in close proximity to one another. We trained

four smaller classrooms on the edges of a large class-

room. The smaller classrooms were trained with 20

data points while the larger classroom was trained

with 30. We then took readings in two of the smaller

classrooms and the one larger classroom in random

locations. Once again, our system returned an aver-

age rank of 1.0 for all three of the classrooms, show-

ing that our system is accurate in the presence of many

landings in close proximity.

From our experiments we can see that physical bar-

riers tend to affect the accuracy of the system. This

makes sense since radio propagation can be greatly

affected by shadowing affects produced by different

objects. However, even with such variances our sys-

tem was highly accurate; we think the accuracy could

be improved by training using a number of different

brands of wireless cards and using that card-speciﬁc

data for location queries.

5 PRIOR AND RELATED WORK

The beneﬁts of location detecting systems have been

well explored and documented over the past decade or

so. The advent of systems such as GPS and the cellu-

lar telephone network have allowed a multitude of ap-

plications to be developed using their wide infrastruc-

ture. However, there are several downfalls with the

THE DESIGN OF THE MIRAGE SPATIAL WIKI

previously mentioned technologies. GPS, for exam-

ple, has trouble providing accurate readings indoors,

and both GPS and cellular networks require special-

ized hardware and software to be able to use. These

problems have led to the development of a handful of

systems which attempt to use more common hardware

and ubiquitous infrastructures to provide location in-

formation.

Many systems now use ’beacons’ such as 802.11

wireless access points and cellular towers, to help de-

termine location. In all of these systems, the beacons

must be recorded (Byers and Kormann, 2003) in some

fashion in order to determine location. An example

of such a system is PlaceLab (Schilit et al., 2003).

The PlaceLab client notes the current beacons which

it sees, and then checks a previously populated data-

base to attempt to determine the user’s location. The

database is pre-populated either with location infor-

mation provided by the owner of the network, or by

“war-driving” where a user travels through a city with

a GPS unit marking the location of any seen beacon.

In either case, previous access point location infor-

mation must be known and entered into the system

before the client can report accurate data. However,

the beneﬁt of such a system is that it works indoors as

well as outdoors.

PlaceLab was also designed to provide location de-

tection in the absence of a data network. In practice,

installing PlaceLab on a laptop requires installing an

SQL database, a webserver and desktop clients. By

providing “client side” location information, Place-

Lab not only provides location services in the absence

of network connectivity, it also preserves anonymity

by not exposing location information or queries to

centralized systems.

A few other speciﬁcally indoor location systems in-

clude RADAR (Bahl and Padmananbhan, 2000) and

Cricket (Priyantha et al., 2000). RADAR uses spe-

cial base stations that process the signal strength in-

formation of RF signals. The locations of the base

stations must be previously known for this system,

and the system requires extensive training. In our

own implementation of a system similar to this, we

found that the training data was very sensitive to room

and building conﬁgurations. Each major change in

that conﬁguration (e.g. moving a metal ﬁling cabinet)

required retraining. In part, this was caused by the

over-speciﬁcation of the ﬁnal location; in many cases,

users are willing to trade precision for accuracy. Sim-

ilarly, the Cricket location system uses special bea-

cons that emit ultrasonic pulses combined with radio

signals to determine distance measurements. Again,

the location of the beacons must be previously deter-

mined and a mapping must be established between

geo-spatial coordinates and the semantic coordinates

of the tagged items.

The Cooltown system (Kindberg et al.,

2002)(Caswell and Debate, 2000) uses infrared

beacons to mark speciﬁc locations and regions. An

earlier implementation of our system used Cooltown

“beacons” to designate locations at the level of indi-

vidual rooms. We found that maintaining the beacons

was cumbersome. Moreover, considerable software

was needed to detect and react to the beacons. One

beneﬁt of IR-based systems such as Cooltown is that

the system can determine the direction the user is

facing and then use that information to guide the

user. However, the complexity of guiding users to

point their IR receivers in the intended direction is

considerable; we theorize that it would be better

to simply present a photo to the user indicating the

direction that they should face to make sense of the

information presented. We plan on evaluating this

decision for a museum docent we are deploying.

Another system utilizing only 802.11 access points

is the ActiveCampus system (Griswold et al., 2002).

ActiveCampus uses the reported RF signal strength

from currently seen access points and infers the user’s

location by a least-squares ﬁt algorithm; the loca-

tion of the access points must be known in advance.

However, the ActiveCampus system provides the lo-

cation service independent of an underlying applica-

tion framework. This means the locations can be used

by applications such as “chat” or “grafﬁti”, but it also

means that there is little support for casual or ad hoc

use of location information.

Our system differentiates itself from the above ap-

proaches by not necessarily needing to know the ex-

act locations of access points, or know their locations

in advance. If a user comes across an unknown ac-

cess point, they can create a landing at that location

which other users can connect to later. Also, our sys-

tem learns from use where speciﬁc access points are,

and never needs to be given strict location information

about any access point. Furthermore, our system re-

quires no special hardware because it uses the existing

802.11 infrastructure. Conveniently, this infrastruc-

ture is being deployed rapidly in a large percentage of

places where people spend most of their time.

In addition, our system protects a user’s privacy

while still being extensible in such a way that if a user

wishes to reveal more information about him/herself,

other features are possible such as a buddy list or ’last

seen at’ person ﬁnder.

6 CONCLUSION

Overall, our experience with Mirage has demonstrate

the tradeoff between accuracy and usability as well

the necessity of using existing Internet applications

where possible. At the current time, it is possible to

“map” a sizable building in a few hours and to pro-

WEBIST 2005 - INTERNET COMPUTING

vide meaningful location-based content in a similar

amount of time. This implies that location-based sys-

tems may be able to move from being academic “sci-

ence projects” to being usable systems that address

the needs of an increasingly mobile workforce. It also

opens new applications for location based systems,

including meetings, conferences and other temporary

events.

Both the K Nearest Neighbor and neural network

models appear to offer advantages in the Mirage sys-

tem. The KNN system has a very low setup time and

can become accurate with a very sparse training set.

It also can be updated rapidly and facilitates rapid de-

ployment of location base information space. Unfor-

tunately, it is not able to pick out the subtle differences

once the distances become very close together, such

as in the same room. On the other hand the neural

network approach requires a high overhead of train-

ing examples and training time so it is not nearly as

easily conﬁgured. However, once in place it can pro-

duce extremely accurate results. Current investigation

is being directed at producing very high-resolution

training sets for use in the neural network to possibly

extend accuracy even further and the corresponding

work on determining how to incorporate that more ac-

curate information into meaningful location based ap-

plications. In either case the Mirage system provides

an ensemble approach to location determination that

is capable of satisfying both the “quick and dirty” set

up and the much more ﬁnely tuned requirements.

The modular structure of the “location blades”

should allow us to interface to different data sources

to provide useful location information even in

the absence of speciﬁc training sets. For ex-

ample, the Wireless Geographic Logging Engine

(http://www.wigle.net) provides pervasive mappings

of wireless information to approximate geo-spatial

information. It should be possible to build “feder-

ated” Mirage server that uses that information to di-

rect users to existing location-based search engines,

such as those provided by Google or Yahoo.

At the current time, the Mirage system is being de-

veloped under an “open source” development model

that will allow the rapid expansion of location-based

systems. The complete system will be available for

download in May 2005.

REFERENCES

Bahl, P. and Padmananbhan, V. N. (2000). Radar: An in-

building rf-based user location and tracking system. In

IEEE INFOCOM 2000, Tel-Aviv, Israel. IEEE Com-

puter Society Press.

Battiti, R., Le, N. T., and Villani, A. (2002). Location-aware

computing: a neural network model for determining

location in wireless lans. Technical Report Technical

Report DIT-02-083, Informatica e Telecomunicazioni,

University of Trento.

Byers, S. and Kormann, D. (2003). 802.11b access point

mapping. In Communications of the ACM, volume

46, no. 5, pages 41–46.

Caswell, D. and Debate, P. (2000). Creating web represen-

tations for places. In In Proceedings of the Second In-

ternational Symposium on Handheld and Ubiquitio,us

Computing (HUC 2000), Bristol, UK.

Cheverst, K., Davies, N., Mitchell, K., and Friday, A.

(2000). Experiences of developing and deploying a

context-awar tourist guide: The guide project. In

Proceedings of MOBICOM 2000, Boston, MA. ACM

Press.

Griswold, W. G., Shanahan, P., Brown, S. W., , R. B.,

Ratto, M., Shapiro, R. B., and Truong, T. M. (2002).

Activecampus — experiments in community-oriented

ubiquitous computing. In Technical Repeort CS2003-

0750, UC San Diego. Computer Science and Engi-

neering.

Gruteser, M. and Grunwald, D. (2003). Enhancing location

privacy in wireless lan through disposable interface

identiﬁers: a quantitative analysis. In Proceedings

of the 1st ACM international workshop on Wireless

mobile applications and services on WLAN hotspots,

pages 46–55. ACM Press.

Hightower, J. and Borriello, G. (2001). Location systems

for ubiquitous computing. IEEE Computer, 34(8):57–

66.

Kindberg, T., Barton, J., Morgan, J., Becker, G., Bedner, I.,

Caswell, D., Debaty, P., Gopal, G., Frid, M., Krishnan,

V., Morris, H., Pering, C., Schettino, J., Serra, B., and

Spasojevic, M. (2002). People, places, things: Web

presence for the real world. MONET, 7(5).

MediaWiki-Foundation, T. (2004). Mediawiki develop-

ment. http://mediawiki.sourceforge.net.

Priyantha, N. B., Chakraborty, A., and Balakrishnan, H.

(2000). The cricket location-support system. In Pro-

ceedings of the 6th ACM MOBICOM, Boston, MA.

Russell and Norvig (2002). Artiﬁcial Intelligence, A mod-

ern Approach. Prentice Hall Series in Artiﬁcal Intel-

ligence. Prentice Hall. Chapter 20 Statistical Models

(pg 733).

Schilit, B. N., LaMarca, A., Borriello, G., Griswold,

W., McDonald, D., Lazowska, E., Balachandran, A.,

Hong, J., and Iverson, V. (2003). Challenge: Ubiqui-

tous location-aware computing and the “place lab” ini-

tiative. In The First ACM International Workshop on

Wireless Mobile Applications and Services on WLAN

(WMASH 2003). ACM Press.

THE DESIGN OF THE MIRAGE SPATIAL WIKI
