QOS-AWARE MULTIMEDIA WEB SERVICES ARCHITECTURE

Ikbal Taleb, Abdelhakim Hafid

Network Research Laboratory, University of Montréal, Pavillon André-Aisenstadt

H3C 3J7, Canada

Mohamed Adel Serhani

Concordia University, 1455 Maisonneuve Blvd West, Montreal, Quebec,

H3G 1M8, Canada

Keywords: Web Services, End-to-End QoS, Web Services QoS Broker, Network Resource Management.

Abstract: Due to the increasing growth of Web Services, Quality of Service (QoS) is becoming a key issue in web

services community. Providers and clients need to use QoS-aware architectures to get/ensure end-to-end

QoS. The QoS delivery to clients is highly affected by the web service performance itself, by the hosting

platform (e.g., Application Server) and by the underlying network (e.g., Internet). Thus, even if web

services together with hosting platform provide acceptable QoS, they also require sufficient available

network resources to deliver end-to-end QoS. In this paper, we propose a solution approach to the problem

of end-to-end QoS support for web services. Our approach rely on the utilization of a web service, called

Network Resources Manager (NRM), to take care of the QoS support in the network connecting the client

host and the matching web service location. NRM either relies on the network QoS capabilities (e.g.,

Integrated Services, Differentiated Services, Multiprotocol Label Switching), if any, or uses a measurement-

based scheme to estimate the quality that can be delivered between the two locations. One of the key

differentiator of our solution is that it does not require any changes to the currently used infrastructure by

the users and web services providers.

1 INTRODUCTION

In Service Oriented Architectures (SOA), both

service providers and service users should be able to

define QoS related statements. This is needed to

enable QoS-aware service publication, discovery,

and usage. For web services, QoS concerns the non-

functional aspects of the service being provided to

the users.

Estimating and guarantying QoS are important

for both Web service (WS) clients and WS

providers. For clients, when selecting a suitable WS

prior to service usage, it is important to be informed

of the QoS status. For WS providers, it is a

competitive edge over others that provide the same

web services without QoS support.

Multimedia Web Services present additional

challenges that are different from those of traditional

Web services. QoS of a streaming session depends

on a combination of factors, ranging from the

characteristics of the streaming sources (e.g., link

capacity, availability, and offered rate) to the

characteristics of the network paths (e.g., available

bandwidth, packet loss rate, etc.).

The design of Network Resources Manager

(NRM) providing mechanisms, measurement

strategies and network information of interest to

realize high quality streaming sessions between WS

Clients and WS provider is therefore a challenging

task.

The proposed architecture aims at supporting

end-to-end QoS at two levels (server level and the

network level). For that purpose, it employs a third

party broker (Adel, 2004) to assure QoS

specification and monitoring at the server level, and

a third party NRM to guarantee the QoS at the

network level. Both components cooperate together

to support end-to-end QoS between providers and

their clients.

133

Taleb I., Haﬁd A. and Adel Serhani M. (2005).

QOS-AWARE MULTIMEDIA WEB SERVICES ARCHITECTURE.

In Proceedings of the First International Conference on Web Information Systems and Technologies, pages 133-139

DOI: 10.5220/0001236101330139

 SciTePress

This paper is organized as follows. Section 2

introduces web services and presents related work

on QoS in the context of Web Services (WSs)

including discussions on the limitations of existing

approaches. Section 3, describes the NRM

architecture. Section 4 presents the implementation

of the proposed architecture and the simulations-

based evaluation of NRM. Section 5 concludes the

paper and presents future research directions.

2 BACKGROUND

2.1 Web Services

A Web service is a software system identified by a

URI (Uniform Resource Identifier), whose public

interfaces and bindings are defined and described

using XML (eXtensible Markup Language). Its

definition can be discovered by other software

systems. These systems may then interact with the

Web service in a manner prescribed by its definition,

using XML based messages conveyed by Internet

protocols. (Web Service Architecture, 2003)

A web service is invoked from any application;

but executed in the remote host server. Web services

usually use Hypertext Transfer Protocol (HTTP) as a

fundamental communication protocol which carries

exchanged SOAP messages between clients and web

services.

Web Services (WSs) provide a new architecture

paradigm for building distributed computing

applications based on XML. The

Web service

functionalities are exposed through an interface

description and are publicly available for use by

other programs. Web services make use of standard

Internet protocols, such as: SOAP (Simple Object

Access Protocol) which is an XML based protocol

for messaging and remote procedure calls. WSDL

(Web Services Description Language) which is a

formalized XML based language for describing web

services. UDDI (Universal Description, Discovery

and Integration) which is specification for

publishing and discovering web services description

through public registries.

Web Services Architecture, is based on the

interactions between three roles: service provider,

service registry, and service requester. The

interactions involve publish, find, and bind (interact)

operations.

2.2 Related Work

Research on web services has focused more on

functional and interfacing issues, i.e., Simple Object

Protocol (SOAP), Web Services Description

Language (WSDL) and Universal Description,

Discovery and Integration (UDDI). Recently, QoS

issues began receiving more attention from the web

services community. QoS is not new to distributed

computing systems community, but in web services

there are new issues related to web services

properties. For web services, QoS have to include

network properties according to the public network

(i.e., Internet). Clients are using Internet to invoke

web services; currently, the Internet treats all traffic

equally as ‘best effort’ and provides no support for

QoS.

A sizeable amount of research on Web services

QoS concern semantic definition of web services

and QoS constraints. DAML-S (DAML-S, 2002)

supports semantic description of web services,

including specification of functionalities and QoS

statements. IBM introduced (Keller, 2002) WSLA

(Web Service Level Agreements), which is an XML

specification of SLA (Service Level Agreement) for

Web Services, focusing on QoS constraints. A

Carleton University group (Tosic, 2003) developed

the Web Service Offerings Language (WSOL) for

the formal specification of various constraints,

management statements, and classes of service for

Web Services. None of those address the problem of

providing end-to-end QoS when a web service, that

satisfies the user QoS requirements, is invoked.

A. Shaikh Ali and al. (Ali, 2003) from Cardiff

University propose UDDIe, as a new registry and an

extension to the UDDI standard. UDDIe supports

the recording of user defined properties associated

with a web service, and to enable its discovery based

on these properties. This work extends the UDDI to

integrate QoS descriptions and search-operations

capabilities. However, when a web service, that

satisfies the user QoS requirements, is selected, there

is no guarantee that the network will support the

requested QoS. For example, if the published audio

quality of a web service (e.g., music player) is “CD

quality” and the user requires audio quality of “CD

quality”, the web service will be selected as

satisfying the user requirements; however, the user

will get this quality only if the network has enough

availabe resources to provide this quality.

M. Tian et al. (Tian, 2003) introduce a scheme of

QoS integration in web services. It is based on an

XML schema for Web Services QoS definition; it

includes mechanisms for efficient selection of QoS-

aware web services, support of dynamic QoS

mapping at runtime, and support of instant QoS

information delivery. They introduce an entity,

called QoS proxy, which is located between the

transport layer and the web service layer. Its role is

to mark outgoing packets in the case of DiffServ

(Blake, 1998) enabled network. It can be also used

WEBIST 2005 - INTERNET COMPUTING

134

with other networking technologies, such ATM and

UMTS. The main drawback of this approach is that

it requires changes to the protocol stack in all

involved entities (i.e., users and providers). This is

in addition to security concerns; indeed, malicious

users can mark their outgoing packets to get the best

service available (e.g., Expedited forwarding).

In this paper we present an architecture that

allows the service broker to select web services that

can be delivered while satisfying the user end-to-end

QoS requirements. Our proposed architecture does

not require any changes to the protocol stack of

involved entities. Indeed, our proposed approach is

based on a web service, called Network Resource

Manager (NRM), that is responsible of ensuring that

the network (between the selected web service and

the user) supports its part of the required end-to-end

QoS. NRM is invoked only when the web service

provider provides its part of the required QoS (e.g.,

in terms of CPU of the server executing the web

service). Thus, our proposed architecture extends

exiting approaches (e.g., UDDIe) to support end-to-

end QoS. For example, when UDDIe returns one or

more web services that satisfy the user requirements

including QoS requirements, NRM can be used to

identify the web service, if any, that when invoked

will satisfy the user end-to-end QoS requirements.

The Network Resources Manager (NRM) is a web

service capable of measuring and checking end to

end QoS properties that helps in selecting suitable

web services.

3 NRM WEB SERVICE

The Network Resource Manager (NRM) is a

fundamental addition to the WS QoS-based broker

Architecture (Adel, 2004); it is involved in a number

of the broker’s tasks. It will play a major role in

delivering end-to-end QoS guarantees in SOA.

As a Web Service, the NRM publishes its

interface description in the UDDI/UDDIe registry to

respect the Service Oriented Architecture. Once

available via registries, interested components can

invoke their operations.

The NRM WS performs a number of key

operations that are necessary in supporting the

operations of the QoS broker. Its main objective is

the support of QoS in the network that is used to

deliver the requested web service from the

provider’s web service hosting platform to the user’s

location.

The key task of NRM is to assist the WS QoS

Broker in the web services selection process in

response to a user request. Indeed, when the QoS

broker identifies list of web services that satisfy the

user requirements, it invokes the NRM to check the

capability of the network, between the web service

location and the user location, to support he required

QoS.

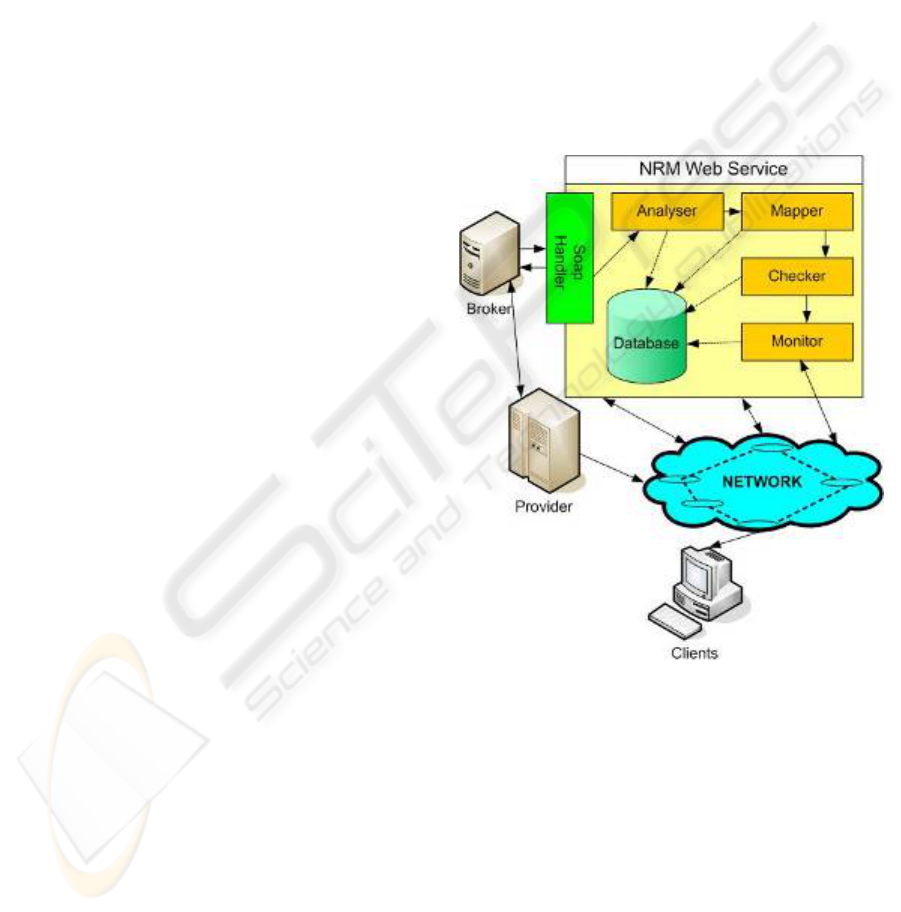

NRM implements the SOAP handler class to

intercept messages coming from the broker (Figure

1). Upon receiving an invocation request, the

handler forwards the request to the NRM analyzer

that parses the request and extracts information of

interest, such as QoS parameters and their values.

Then, the analyzer sends the extracted information

to the NRM Mapper that performs mapping of QoS

parameters provided by the broker and QoS

parameters of the network. The Mapper provides the

NRM checker with the QoS parameters to be

supported by the network.

NRM (or rather the NRM checker) uses a

number of mechanisms to realize this task. If the

underlying network supports QoS, such integrated

services (IntServ (Braden, 1994)) or differentiated

services (DiffServ (Blake, 1998)), then NRM uses

these capabilities to support QoS. For example, in

the case of IntServ, it uses RSVP (Braden, 1994)

(Resource Reservation Protocol) to make the

necessary resources reservation to meet the required

QoS. In the case of DiffServ enabled network, it

marks outgoing packets according to the required

QoS (e.g., use Expedited Forwarding (EF) marking

to support voice/video) to provide differentiated

Figure 1: Broker and NRM interactions

QOS-AWARE MULTIMEDIA WEB SERVICES ARCHITECTURE

135

services or it can use the services of a bandwidth

broker (Stattenberger, 1998), if any, to provide, if

possible, the required QoS.

In cases where no such mechanisms are

supported by the network, NRM (monitor in

Figure1) makes use of measurement techniques to

estimate the state of the network between the web

service location and the user location; it uses for

example probes to measure the delay and loss rate

between the two locations.

NRM also performs periodic measurements

between different points in the network to gather

statistics about the state of the network; the results of

the measurements, stored in the NRM database, can

be used to estimate/predict the state of the network

and thus helps in estimating the QoS that will be

likely delivered between two points in the network

(e.g., between a web service and a user location)

3.1 Operations Scenario

We assume that there is a number of WS Providers

that have published their MWS (Multimedia Web

Services) using a UDDI standard registry, or an

UDDIe [4] registry to integrate QoS Data within the

published WSDL. A web portal (i.e., a web based

user interface) allows users to search for web

services (e.g., video-on-demand). More specifically,

the user enters a description of the service he/she is

looking for. (Video on demand) including QoS

requirements. The following steps are executed:

The client (Web/Java Application) searches and

binds to the QoS broker web service; then, it invokes

the QoS broker with the user request as an attribute

(arrow 1 in Figure 2).

The BWS starts a process to retrieve a list, L, of

WSs, from UDDI registries, that match the user

requirements including QoS requirements (arrows 2

and 3).

The BWS considers the first web service, MWS,

in L and calls the NRM web service to check

whether there are sufficient available network

resources to support MWS between MWS location

and the user (arrow 4). Note that before invoking

NRM, BWS searches and binds to NRM; NRM is

just another web service.

The NRM WS analyzes the BWS Request and

identifies key information it needs to process the

request (arrow 5); examples are: IP address of the

user, IP address of the server running MWS, and the

requested QoS attributes.

If the network connecting the user and MWS is

QoS-enabled, then, NRM will make use

protocols/schemes provide by the network. If the

network is IntServ-enabled, thus, NRM will use

RSVP to make resources reservation between the

user and MWS. If the network is DiffServ-enabled,

then NRM will mark the outgoing packets (e.g.,

video traffic generated by MWS) according to the

requested QoS or will make use of the network

bandwidth brokers if they are available. If the

network is not QoS aware, then NRM use probes to

check the status of the network (or rather network

path) between the user and MWS. In the prototype

implementation of NRM (see Section 5), NRM

marks outgoing packets assuming that the network is

DiffServ enabled.

If NRM is successful in reserving the required

resources or estimates (in the case the network is not

QoS aware) that there are enough resources to

support the request, it returns an accept response to

BWS; otherwise, it returns a rejection (arrow 6).

If BWS receives a rejection, it considers the next

web service in the list L and calls NRM and repeats

the same process (arrows 4 and 5). This process ends

when an accept response is received or when all web

services in the list L are considered without any

success. In the case of an accept, MWS is returned

to the user; in he other case, a rejection is set to the

user

If the user receives a rejection, then it gives up or

changes his/her request in terms of QoS

requirements (i.e., starts a renegotiation); otherwise,

he/she uses the WSDL document provided by the

Broker (arrow 7) to bind to MWS and invokes the

service (arrow 8). Then, the provider server starts

media streaming towards the client using RTP

protocol (arrow 9).

NRM can be as complex and/or as sophisticated

as the NRM providers want. For example, NRM can

support advance reservation (Hafid, 2005); in this

case, in response to BWS invocation, NRM checks

resources availability across all the involved

networks, computes, and returns to BWS the QoS

that can be supported for the time the request is

made (i.e., immediately), and at certain later times

carefully chosen. As an example, if the requested

QoS cannot be supported for the time the service

request is made, the proposed approach allows to

compute the earliest time, when the user can start the

service with the desired QoS.

4 IMPLEMENTATION

We implemented a Multimedia web service (i.e.,

video-on-demand) that provides users with the

functionality of selecting and playing a movie.

Movies and their metadata are stored in a MySql

local database. We implemented in MWS several

functions to access data and to send and receive

Media contents.

WEBIST 2005 - INTERNET COMPUTING

136

We also implemented NRM as a web service that

uses DiffServ marking (Blake, 1998) to provide

acceptable video quality. The underlying network,

connecting users and our MWS instances is DiffServ

enabled.

In our prototype implementation, we used Bea

Weblogic (Bea WebLogic, 2004) Workshop to

design web services with a J2EE compliant

environment. The Weblogic Server is the main

platform deploying and publishing web services.

The Java Media Framework API is included to send

Video-Audio content via the network (internet). JMF

(JMF, 2004) uses RTP protocol (UDP based) to

transmit and receive data.

The user is provided with different classes of

QoS, he/she can select when requesting a movie;

each class of QoS is characterized by the cost of the

bandwidth (see Table 1). For example; a high quality

video requires 5 Mbps; thus, to support high quality,

the video server should have the resources to support

the high quality and the network path, between the

user and the video server, should allow for the

transmission of 5 Mbps.

Table 1: Offered Services

QoS

Classes

Video

Quality

Cost

Bandwidth

needed

Class 1 High 5$ 5mbps

Class 2 Good 2$ 2mbps

Class 3 low 1$ 100 kbps

To check whether the WS provider is able to

support a user request, we assume the existence of a

table that specifies the maximum numbers of users

that can be supported given a QoS class (the

capacity of a service to support a given number of

clients can be easily measured; thus, we can drop the

table assumption). It also keeps track of the number

of users using the service. With this information, one

can easily infer whether a new request can be

supported or not by the video server. For the

network QoS support, NRM marks video packet

with Expedited Forwarding (EF) marking to assure

better QoS for video traffic.

Table 2: Example of Video Server availability

QoS

Classes

Video

Quality

Available

ports

Max

ports

Used

ports

Class 1 High 2 5 3

Class 2 Good 14 15 1

Class 3 low 10 25 15

Total 26 45 19

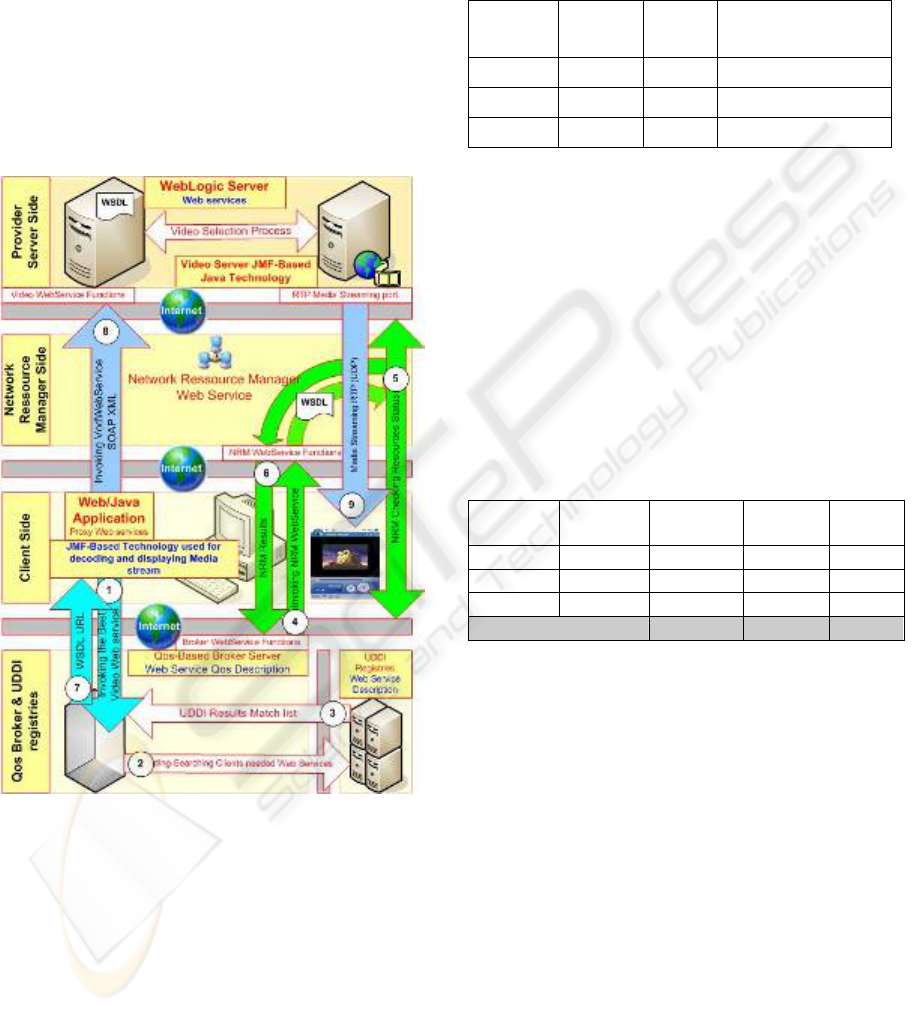

Figure 2 depicts the interactions between the

different components of the prototype

implementation. Numbered arrows represent the

order of interactions in time. Each arrow includes a

description of the corresponding interactions; for

example, arrow (1) depicts the invocation of the web

service broker by the client while arrow (9) depicts

the video streaming using RTP.

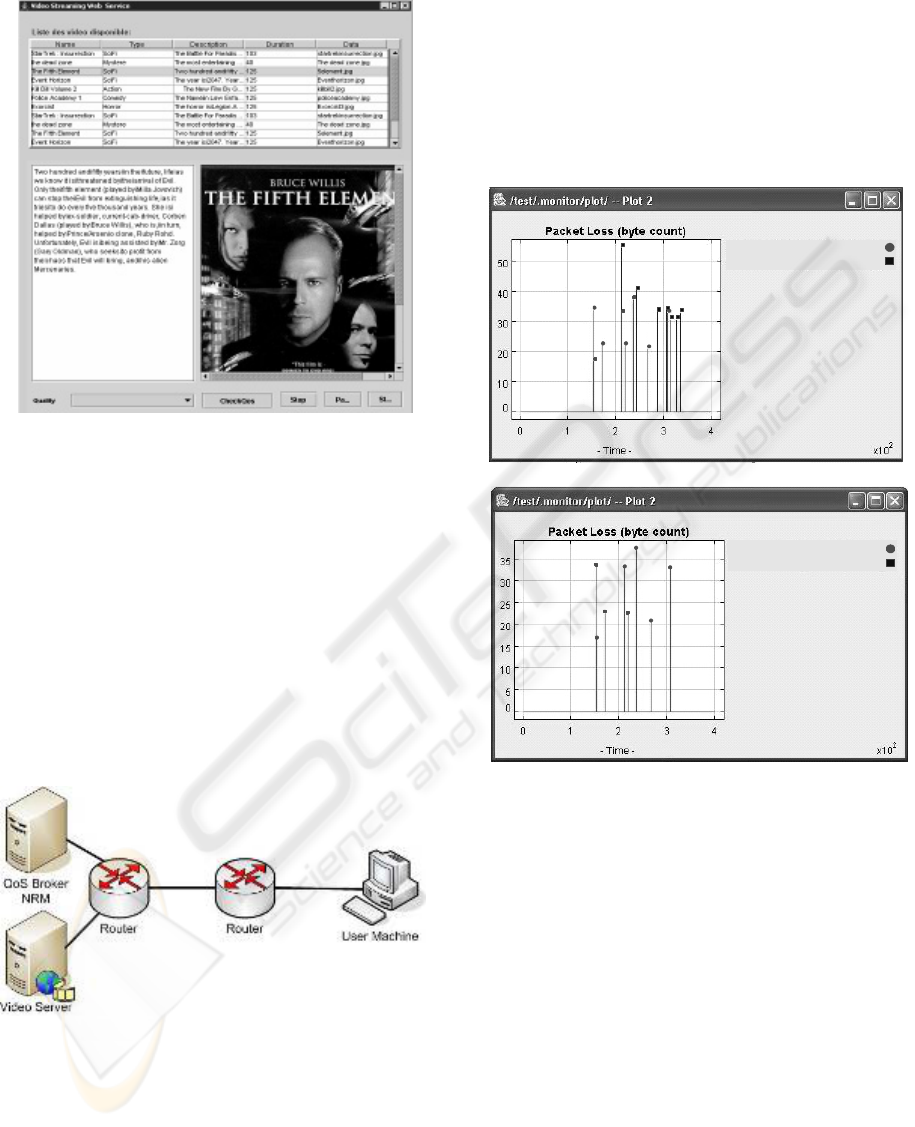

Figure 3 shows the multimedia web service

interface to the client; indeed, when the client binds

to the selected web service (in this case a video-on-

demand service), it is provided with graphical user

interface to select the movie he/she wants to play.

Figure 2: Architecture Components

QOS-AWARE MULTIMEDIA WEB SERVICES ARCHITECTURE

137

4.1 Simulations

We run simulations to evaluate the video quality

delivered to the user using our prototype with NRM

and without NRM support; the objective is to show

that when NRM is used the user is assured to get

better QoS. In fact, when the network is overloaded

with traffic of other applications (such as FTP), if

NRM is not used, the user receives degraded QoS

(the video traffic is not marked accordingly). In the

case, NRM is used, the user receives the requested

QoS; in this case, NRM marks the video packet with

EF marking.

The network test-bed makes use of a local area

network, consisting of computing nodes and routing

elements. Figure 4 depicts the network setup, with

the computing nodes representing the user, the video

server, and the QoS Broker with the NRM web

service. For the routing elements we used the

iproute2 package in the Linux operating system,

which has DiffServ capability. The network link

between the two routers has a capacity of 0.75

Mbps.

In Figure 4, NRM uses Router capabilities to

mark outgoing packets from the server, towards the

user machine, with the appropriate marking (i.e.,

Expedited Forwarding: EF (Blake, 1998)). It does so

by accessing the router, via Telnet, and performing

the required configuration.

Figures 5.a shows the loss rate incured, between

the video server and the user, by two video flows.

Each flow is generating 0.4 Mbps of video traffic

(thus, execeeding the capacity of the network link).

The video flows started without involving NRM;

indeed, the QoS broker selects the web service

(video server in this example) based on the

functionality requirements and QoS requirements of

the web service provider (in this case the capacity of

the video server to serve the users). The flows

receive Best Effort (BE) service. Both of the flows

incur losses (see Figure 5.a); thus, the QoS delivered

to the user is degraded and does not meet his/her

(end-to-end) QoS requirements.

Figure 5.b shows the loss rate incured between

the video server and the user of two flows; each flow

is generating 0.4 Mbps of traffic. The first flow

Figure 3: VoD Web Service Client

Figure 4: Testbed Setup

Loss rate for BE VoD source2

Loss rate for BE VoD source1

Loss rate for EF VoD source2

Loss rate for BE VoD source1

Figure 5: Loss Rate of two BE flows and EF and BE

flows.

WEBIST 2005 - INTERNET COMPUTING

138

starts generating traffic without involvement of

NRM; thus, it receives BE treatement by the

network. The second flow starts generaing traffic

with NRM involvement; indeed, NRM receives a

request from QoS broker (in response to a user

request to watch a movie) to check the availability of

resources to deliver video traffic at 0.4 Mbps. NRM

sends an accept response to start the second flow

(video traffic) after configuring the router (to which

the video server is connected) to mark the packets

belonging to the second flow with EF. Figure 5.b

shows that the second flow does incur no data

losses; only the first flow incures data losses (BE

flow). The reason is that the router treats EF traffic

differently than BE traffic; it processes/forwads

packets marked with EF first before

processing/forwarding packets marked with BE.

These two simple scenarios show the need for

NRM to provide end-to-end QoS for web services.

Even if web services providers have the hosting

platform with the capacity to provide QoS to their

users, they will not succeed in satisfying end-to-end

QoS without taking into account the QoS support in

the network(s) connecting their hosting plaform to

their users. NRM web services can be used to fill the

network QoS gap that exit in today’s web services

deployment.

5 CONCLUSION

In this paper, we presented a solution approach to

the problem of end-o-end QoS support for

multimedia web services. Our solution does not

require any changes to the currently available

infrastructure of the users and web services

providers. More specifically, we presented the

design and implementation of Network Resources

Manager web service. It is just another web service

that is published in web services registries. It is

searched, retrieved, and invoked by the web service

broker. Its main role is the support, if possible, of

QoS in the network connecting the matching web

service location and the user location. The QoS

support depends on the network capabilities in terms

of QoS support (e.g., DiffServ-enabled, IntServ-

enabled, and MPLS-enabled). If he network is not

QoS-aware, NRM uses measurement-based

approach to estimate the QoS between the two end

points.

We are currently working to enhance/improve

the capabilities of NRM including QoS renegotiation

and advance reservation of resources.

ACKNOWLEDGMENTS

The authors would like to thank Youcef Khene, from

University of Paris VI, France, for his help running

the simulations.

REFERENCES

Adel, M., S., A. Hafid, Sahraoui, H. and Benharref, A.,

2004. QoS broker-based architecture for Web

Services. In NOTERE.

Ali, S. A., Omer, F. R., Rashid, A. and David, W. W.,

2003. UDDIe: An Extended Registry for Web

Services. In Symposium on Applications and the

Internet Workshops (SAINT'03), Florida, IEEE

Computer Society.

Blake, S., Black, D., Carlson, M., Davies, E., Wang, Z.,

and Weiss, W., December 1998. An Architecture for

Differentiated Services. RFC 2475.

Braden, R., Clark, D., Shenker, S., 1994. Integrated

Services in the Internet Architecture: an Overview,

RFC1633.

BEA WebLogic platform, 2004. http://www.bea.com

DAML-S Coalition, 2002. DAML-S: Web Service

Description for the Semantic Web. In Proceeding of

the International Semantic Web Conference.

JMF, 2004. Java Media Framework API.

http://java.sun.com/products/java-media/jmf/

Hafid, A., Maach, M., Drisi, J., 2005. DARSION: A

Distributed Advance Reservation System for

Interconnected Optical Networks. In Proceedings of

the 9th IEEE/IFIP Optical Network Design and

Modeling (ONDM’05).

Keller, A., and Ludwig, H., 2002. The WSLA framework:

Specifying and Monitoring Service Level Agreements

for Web Services. IBM Research Report.

Rosen E., Viswanathan, A. Callon, R., April 1999.

Multiprotocol Label Switching Architecture”, draft-

ietf-mpls-arch-05.txt.

Stattenberger, G. and Braun, T., 2003. Performance of a

Bandwidth Broker for DiffServ Networks, TR,

Institute of Computer Science and Applied

Mathematics, University of Bern, Switzerland.

Tian, M., Gramm, A., Naumowicz, A., Ritter, H.,

Schiller, J., 2003. A Concept for QoS Integration in

Web Services. 1st Web Services Quality Workshop

(WQW 2003), in conjunction with (WISE 2003), Italy.

Tosic, V., Pagurek, B., Patel, K., 2003. WSOL- A

Language for the Formal Specification of Classes of

Service for Web Services. International Conference

on Web Services, June 23-26 2003: LV, Nevada, USA.

Web Services Architecture, 2003. http://www.w3.org/

QOS-AWARE MULTIMEDIA WEB SERVICES ARCHITECTURE

139
