A SECURE FRAMEWORK FOR MANAGING TRANSACTIONAL

PROPERTIES OF BUSINESS OBJECTS

Charles A Shoniregun

School of Computing and Technology,

University of East London

Longbridge Road, Barking Campus,

Dagenham Essex,

RM8 2AS, UK.

Ziyang Duan, Subhra Bose

Reuters America Inc.

3 Times Square, 18th Floor

New York, NY 10036

Alex Logvynovskiy

Business,Computing and Information Management (BCIM),

London South Bank University

Borough Road,

SE1 0AA, UK.

Keywords: ACID, data modelling, NML, STM, web service, XML.

Abstract: A business object is a set of well-structured, persistent data associated with some predefined transactional

operations. Maintaining the transactional correctness of business objects is very important, especially in

financial applications. The object’s correctness has to be guaranteed at any time during the lifecycle of the

object. This requires that each simple operation is correct, i.e., satisfies the ACID property, and the object is

in acceptable states before and after each operation. The correctness of each simple transaction can be

secured and guaranteed by using a transactional database or a transaction monitor. However, the combined

effect of executing a set of simple transactions may violate some business rules and leave the object in an

unacceptable state. The proposed model is based on Heirarchical Statechart to specify the allowable states

and transitions on a business object during its life cycle. The paper describes an XML-based framework to

support application development based on this model. The framework includes an XML language for model

specification, a set of tools for model definition, testing and simulation, and a set of APIs to provide

business object management functionalities at runtime. The model and framework allows secure

transactional properties of a business object to be defined formally and declaratively, and provides

correctness guarantees at runtime. The framework facilitates fast product development and integration in a

service-oriented architectural model, and provides great flexibilities for persisting data in either XML or

relational databases. The experience of how to use the framework in developing a financial transactions

system and the tradeoffs is based on comparison between XML and relational databases.

A Shoniregun C., Duan Z., Bose S. and Logvynovskiy A. (2005).

A SECURE FRAMEWORK FOR MANAGING TRANSACTIONAL PROPERTIES OF BUSINESS OBJECTS.

In Proceedings of the Second International Conference on e-Business and Telecommunication Networks, pages 57-65

DOI: 10.5220/0001407200570065

 SciTePress

1 INTRODUCTION

Trading systems generally involve complex business

logic and data transactions. The business logic

reflects the business rules which might be different

from one system to another depending on the target

market, geographic location of the market and

traders using the systems. For example, the trading

rules for a stock market are different from those for

a bond market, and the New York stock market has

different rules from the Tokyo stock market.

Business rules might change as new requirements

arise from business practice. In addition, a trading

system needs to accommodate many concurrent

users and handle heavy volumes of transactions,

each of which might involve a large amount of

money. For example, billions of shares change their

hands at markets such as NYSE and NASDAQ

every day. Therefore, trading systems are required to

be highly scalable, reliable, and with high

performance guarantee. The follwoing example

illustrates a typical trading system, where a trading

process contains the following stages:

• Initiation: two traders find each other (using

some search facilities) with a matched trading

interest (e.g., one party wants to sell some stock

shares and the other is interested in buying some

shares of the same stock.) and start to contact

each other. \item

• Negotiation: two traders negotiate on the detail

of the trade until a mutual agreement is reached.

• Settlement: the back-office of each trader’s

institute confirms the deal and settles the

transaction.

The trading system coordinates and monitors the

whole trading process. The detail of each step is

logged and the trading history can be queried

afterwards. The system is integrated with other

information systems to provide traders with

information such as real-time market data, and

integrated with participating institutions’ back-office

systems for transaction settlement.

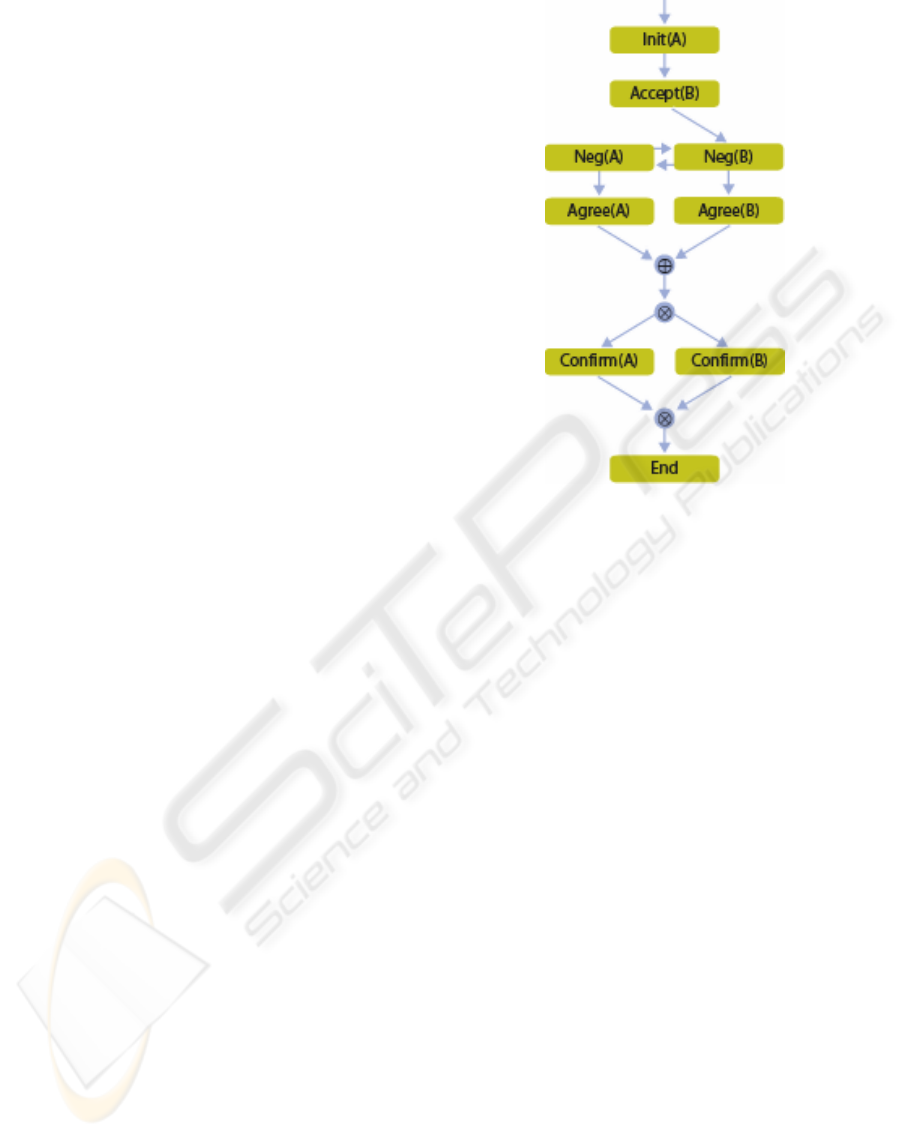

The Figure 1 illustrates the example represented

in a commonly used workflow notation

(Hollingsworth, 1995), in which boxes represent

tasks, edges represent the execution control flows,

⊕

represents or-join,

⊗

represents and-split and and-

join.

There are several challenges in developing such

a system:

• Business rules specification. Business rules are

generally complex and can only be understood

by business experts, who do not necessarily

have any technical background. Even worse, no

single person might have a complete picture of

all business requirements. This imposes a

challenging problem on system designers and

developers, demanding them to spend a

significant amount of time on understanding and

documenting business processes before

development can be started.

• Software reusability. With the adoption of OOD

(Booch et al, 1999; Coad and Nicola, 1993) and

component-based development methodologies

(Buschmann et al, 1996), trading systems can be

designed in a more structural way and

Reusability is improved. However, since

underlying trading data and business logic are

usually different from one trading system to

another, many components still need to be

modified to reflect new data models and

business requirements before they can be reused

in the new system.

• Business rules evolvement. Conventionally,

business rules are hard coded in different

software components. When business rules

evolve, those software components have to be

updated to reflect the new requirements. To

make things worse, once the business rules are

dispersed and encoded into multiple software

Figure 1: A negotiation workflow

ICETE 2005 - GLOBAL COMMUNICATION INFORMATION SYSTEMS AND SERVICES

components, they become incomprehensible

and intractable, making maintenance and

upgrade difficult.

• System integration. A trading system is often

deployed in several different companies and

needs to be integrated with their existing

systems. Each company has its own legacy

systems and regulations to do business (such as

security requirements, preferred software and

hardware configurations, etc.). It is important to

provide an interoperable interface to facilitate

system integration.

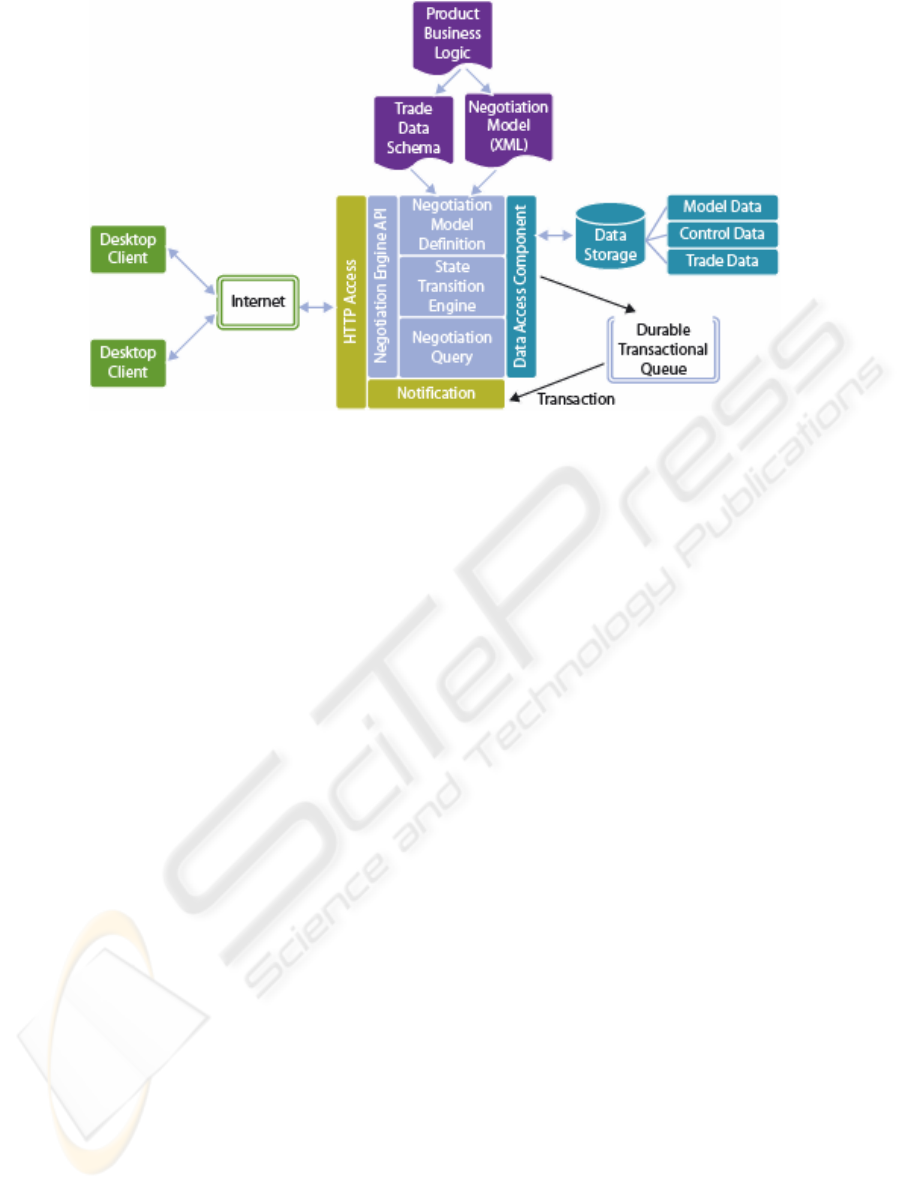

To address the above problems, an XML-based

framework for trading system development was

introduced. The framework provides the following:

• A Negotiation Modelling Language (NML) is

introduced to model business rules.} NML is an

XML-based language that is friendly to both

business people and system developers. At the

same time, it enables one to specify business

rules for a trading system precisely.

• The specification of business rules is separated

from its implementation. Specifically, business

rules are specified in NML declaratively as a

business process, and an engine is developed to

coordinate the execution of business processes

based on their NML specifications. This

separation promotes software reusability and

supports business rules evolvement elegantly.

• The data model of a trading system is separated

from its implementation. The data model is

specified in XML Schema, and stored in a

relational database for persistence and query

support. To enhance interoperability with other

trading systems, FpML (Financial products

Markup Language) (FpML.org, 2001), an

industry standard protocol for complex financial

products, is used to specify the negotiation

detail of a business process. The separation of

the data model from its implementation

promotes software reusability since two trading

systems might only differ in their data models,

and one can develop a new trading system by

changing only the data model specification.

• Interoperability is facilitated in the form of web-

services. The adoption of web-services interface

greatly facilitates interoperability and the

integration of a trading system with information

systems at different participating companies and

organisations.

With the standardisation and maturity of many

XML specifications and tools, it is expected to adopt

more industry standards in areas such as web service

orchestration and XML data query and update.

2 RELATED WORK

Workflow systems provide a way to separate the

control logic from the system components, and the

control logic is specified at a high level. workflows

are computational models of business processes

(Hollingsworth, 1995). A Workflow Management

System (WFMS) provide a set of tools to specify,

manage and coordinate the execution of business

processes as workflows. Many workflow systems

have been developed for office automation and

document sharing (Schael, 1998; Mohan, 1997).

During the past several years, different workflow

systems have been developed, such as Exotica,

ConTract and Mentor (Mohan et al, 1995; Reuter

and Schwenkreis, 1995; Wodtke et al, 1996).

Though workflow models are intended to be

general for all kinds of business processes including

trading processes, many current workflow products

are only available for special markets such as health

care, telecommunication, etc. They generally are

intended for end-users in a special application

domain, but not for developers to build new

applications in a different domain. This paper has

also looked at some commercial general-purpose

workflow systems, such as IBM’s Flowmark,

Tibco’s BPM and Microsoft’s Biztalk. These

software shows that workflow-based integration

systems are promising. However, it was found that

these systems are not suitable for large-scale trading

applications either because they do not meet the

performance requirements or they don’t provide the

necessary functionalities.

A SECURE FRAMEWORK FOR MANAGING TRANSACTIONAL PROPERTIES OF BUSINESS OBJECTS

A state transition model was used to specify

business rules rather than using a general workflow

notation. A workflow model is more powerful to

model complex concurrent systems with long-lived

transactions. A trading process, as a whole, can be

viewed as a long-lived transaction that may last for

days or months. However, each step in the process is

a short transaction, and the whole process can be

viewed as a sequence of state-based, event-driven

short transactions. Thus, the system can be easily

modelled as a state-transition machine. It has been

proved that the state transition model is expressive

enough for most trading systems. Trading systems

usually must have high throughput. The state

transition model is simpler, and an execution engine

based on it can be implemented more efficiently,

without the overhead to handle long-lived

transactions. In addition, a state-transition model is

unambiguous and easily understandable to both

business and technical people.

XML has appeared as a new standard for data

representation and exchange over the World-Wide-

Web. XML Schema is used to specify semi-

structured data types in XML. Many works have

been done on understanding semi-structured data

types and their relationship with relational data

(Milo et al, 2000; Hosoya and Pierce, 2000;

Fernandez et al, 2005). There exist several native

XML databases, which do not provide the required

efficiency and scalability that a trading system

requires.

The Web-services based on SOAP and WSDL

are widely supported in industry recently. Many

standards have been proposed for web-service based

business process orchestration, such as BPEL4WS

(IBM, 2002) by IBM, Microsoft, etc. In the model,

communications among distributed components also

communicate through WSDL based web-service

interfaces. However, NML mainly focuses on

tracking the state transitions within a business

process; whereas BPEL4WS focuses on the interface

definition and service orchestration of a business

process.

3 AN OVERVIEW OF THE

FRAMEWORK

The negotiation engine is the main component of the

application server tier. It provides the following

functionalities: (1) defining and managing the

negotiation models; (2) coordinating the execution

of negotiation processes; (3) querying negotiation

data; and (4) administrating the system. The

functionalities is available to clients via a set of

APIs.

An overview of this framework is presented in

Figure 2, which shows three-tier architecture: the

client tier, the application server tier, and the data

storage tier.

The data storage tier uses a relational database at

the back end. The negotiation engine retrieves and

manipulates data in the data storage through the

Data Access Component.

The framework provides a business logic

specification language, Negotiation Modeling

Language (NML). The model specification is based

on state transition diagram, with additional

information such as negotiation participants and

their roles. A negotiation engine uses the model to

Figure 2: System architecture

ICETE 2005 - GLOBAL COMMUNICATION INFORMATION SYSTEMS AND SERVICES

manage the negotiation process execution. A

simplified example is given below:

<negotiation-model>

<roles>

<role>Active</role>

<role>Passive</role>

</roles>

<state>Start</state>

<state>Contacting</state>

<stubState>Contacting</stubState>

...

</states>

<name>Initiate</name>

<allowed_source_roles>

<role>Active</role>

</allowed_source_roles>

<state_from>Start</state_from>

<state_to>Contacting</state_to>

<new-roles>

...

</new-roles>

</transition>

</transitions>

</negotiation-model>

In general, each negotiation model specification

has the following elements:

•

Roles

: The allowed roles in a trading process.

Each role has a distinct name.

<roles>

<role>Talker</role>

<role>Listener</role>

</roles>

•

States

: The set of states in the state transition

diagram. There must be a start state named

Start.

<state>Start</state>

<state>Initiating</state>

...

</states>

•

Transitions

are a set of legal transitions in a

process. A simplified transition specification

contains the following elements: state_from is

the start state of a transition. state_to is the

target state of a transition.

Assertion

is a

Boolean XPath expression on the data model

whose value decides if the transition is enabled

or disabled.

Action

specifies a sequence of

actions can be performed if a transition is

successful. Such actions can be updating part of

the data, or making a web service call. Name is

the name of a transition. Allowed_source_role

and allowed_dest_role are allowed roles for the

source and destination party in a transition.

New_role is the role that a participant will take

after the transition. Notification_rule specifies

the reference to an XML file that actually

defines the notification rule, which is discussed

later.

For example, the following XML fragment

specifies a transition called Initiate, which transits

the negotiation instance from the Start state to the

Initiation state when invoked. In addition, it can

only be invoked by a party with role Talker, and the

destination party with role Listener. If the transition

finishes successfully, the negotiation instance will be

in Initiation state, and the talker and the listener

switch their roles.

<name>Initiate</name>

<state_from>Start</state_from>

<state_to>Initiating</state_to>

<allowed_source_role>Talker</allowed_source_rol

<allowed_dest_role>Listener</allowed_dest_role>

<source_new_role>Talker</source_new_role>

<dest_new_role>Listener</dest_new_role>

</transition>

•

Notification

: When a transition finishes, the

system will notify each party the result and the

current version of the payload. Notifications of

different form might be sent in different

situations, and clients might only accept the

message formatted in a certain way. As a result,

notifications are specified as a set of rule based

actions. A notification rule takes the following

form:

</notification>

...

Where condition is a Boolean XPath expression

decides if the notification rule is enabled; Prefix and

Suffix are headers and footers added on the message,

and Message specifies the message body as an XSL

transformation on the data model. The state

transition machine is formally described with role

assignments, assertions, and actions. For simplicity,

only a flat model is described.

Definition 1.

State Transition Machine (STM) is

defined by a tuple as follows

= (

, q

where

A SECURE FRAMEWORK FOR MANAGING TRANSACTIONAL PROPERTIES OF BUSINESS OBJECTS

•

is a finite set of

states

•

is a finite set of symbols called

event

alphabet

•

is a finite set of symbols called

participants

•

is a finite set of symbols called

roles

•

Α = {Α: Π → Ρ}

is a set of partial functions

called

role assignments

. Each

€∈ €Α

corresponds to a different assignment of roles to

participants.

•

is a finite set of

actions

•

is a finite set of Boolean expressions called

the

assertions

•

δ: Σ × Ε × Ρ × Χ → (Σ × Α × Θ)

is a partial

function called the

transition function

•

€∈ €Σ

is the

initial state

•

€∈ €Σ

is the

final state

The STM works in the following fashion:

• STM is in a state

(initially, it is in the initial

state

);

• If an event

is initiated by some participant

with the role

, and if there exists

such that

δ(

,€

)€=€(

,€

)

and

evaluates to

true, then the STM will consume the event and

go into state

, and participants will be assigned

to roles according to

;

• Otherwise, the STM will stay in the state

with

the input event and role pair consumed.

The above process is repeated until the STM

enters the final state

4 DATA MODELING

The assumption is that the actual payload

(negotiation details) can be defined using XML

schema and represented as an XML document. For

example, FpML is using to describe the payload in

many financial applications. The data model defines

a consistent view of the negotiation data with control

data and payload data. The control data works with

any types of payload data.

In order to query and modify payload data

efficiently, the mappping of data specified in XML

schema to relational database DDL is introduced.

For simplicity, the data type is modelled in the

following BNF form:

type := SimpleType

| type, type

| type*

| type | type

| tag[type]

SimpleType := String | Boolean | Numeric

The root element in the form tag[type] is shown

in Figure 3. The restriction to this approach is that

recursive definitions of a complex data type are not

allowed to avoid unbounded depth of nested

elements. The design goal of the mapping approach

is to provide efficient query and update

functionalities through XML, therefore the purpose

is to minimise the number of generated tables and

reduce the possible join operations during a query.

There are some other restrictions on the details-

schema, mainly features that are not supported in the

current version. For example, derived types, attribute

data, imported type or schema etc. The following is

a valid schema.

R := A, B

A := m[C*]

B := h[C | D]

C := e[F]

D := g[F]

F := String

The root element is defined as a[R].

Any type definition can be represented as a finite

tree with SimpleType nodes as the leaves and

complex types as none-leaf nodes. Edges are

annotated with element names if there is one. The

tree can be construct recursively according to a

simple algorithm. The detail is beyond the scope of

this paper. The above example can be transformed

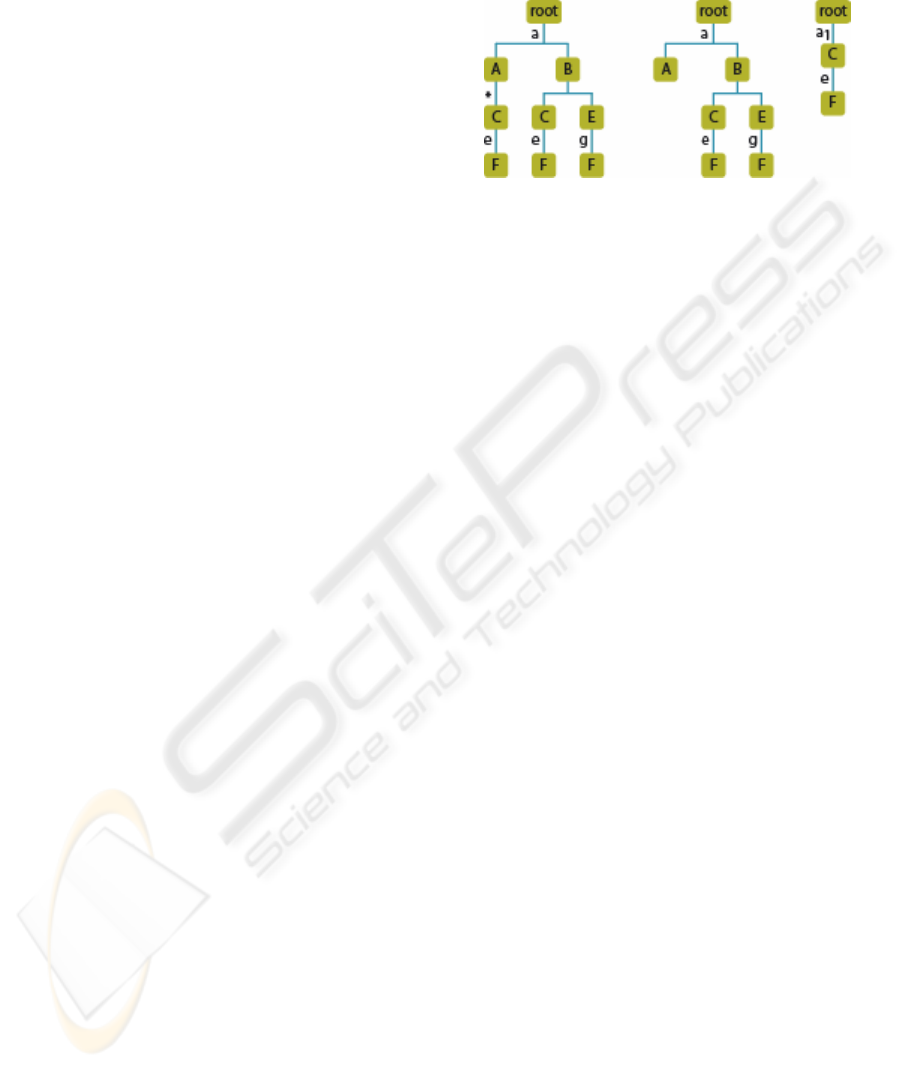

into a tree in the following form:

The tree is transformed into a forest by cutting

all the edges marked “*’’. For each new tree with

node N as the root, a new root element is added and

the edge is annotated with the name constructed by

concatenating all the edge names separated by “_’’

in the root to node N path in the original tree, and an

unique ID is appended at the end to avoid ambiguity.

For each tree, a table is generated in the

relational database. The table name is the

concatenation of the edge name between the root

element and its child node. For each leaf node in the

tree, a column in the table is added. The column

name is also a concatenation of its ancestors as up to

the element that is used in the table name. The

column type is decided by its corresponding simple

Figure 3: Root elememts

ICETE 2005 - GLOBAL COMMUNICATION INFORMATION SYSTEMS AND SERVICES

data type. In addition, each table has an id column

for correlation purposes.

To provide convenience and efficiency, the XML

schema is extended in several ways. For example, a

table name and column name can be specified

explicitly instead of using the automatically

generated names; An element can be designated as

opaque so that its contents will be saved in a single

text column as an XML string; Indexes can be

defined to speed up the queries.

QueryML is an XML language designed to

perform queries on negotiation data. It is based on

the data model and the mapped payload schema to

allow the user to create powerful queries intuitively.

It can be easily converted into SQL, which can be

run against its internal database.

An objective is to replace QueryML with a

standard querying language such as XQuery. At

present XQuery is not well supported by third party

vendors yet. Current standards such as SQL or

XSLT only meet part of the needs. SQL cannot be

used directly because only XML-schema, but no

database schema, is exposed to external applications;

XSLT is a transformation language and is not

suitable to be used as a general XML query

language. The internal data representation is

relational, therefore the SQL query from the XML

query is easily constructed and efficiently executed.

A QueryML statement is defined on a given data

model. The query will return a data set. Each

element in the data set is of the data type defined in

the data model. RootElementName is the root

element of the data to be queried, and is used as the

root element name of the query result. In simple, the

syntax of QueryML is:

query := <DataSet>

statement

</RootElementName>

</DataSet>

statement := <and>statements</and>

| <or>statements</or>

| <minus>statement, statement</minus>

| atomic

statements := statement+

atomic := <exp>Boolean XPath expression<exp>

An atomic statement denotes a query on the data

set such that elements in the query result satisfies the

XPath expression. The and, or, and minus statement

represents intersection, union, and subtract of

subquery result sets, respectively. The QueryML can

be translated into SQL statement using and, or and

subqueries easily.

In addition, an update datagram is used to

specify the data image before and after the update

operation to do updates on the XML data. Unlike the

query statements which are performed in the

relational database.

5 WEB SERVICE INTERFACE

Interfaces of the framework are accessible through

the SOAP and WSDL based Web Services. For

process logic control, there are two important end

points: Initiate and Transition. A successful Initiate

request will initiate a new process instance and

notify all the participants. A successful transition

request will do a transition on the process instance

and notify each party of the updated state and data.

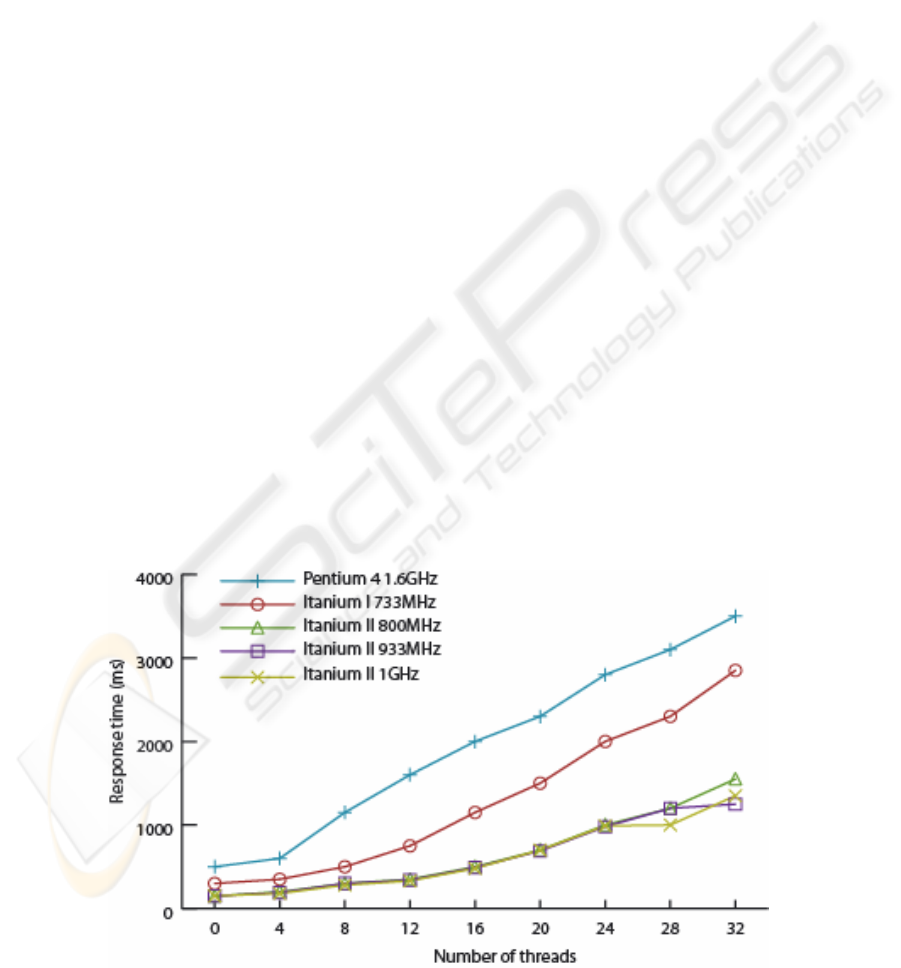

Figure 4: Performance test result

A SECURE FRAMEWORK FOR MANAGING TRANSACTIONAL PROPERTIES OF BUSINESS OBJECTS

In addition, interfaces are provided to do query via

the QueryML and configuration and management.

All communications among the clients are

through the framework. A client send a request to

server, the server validate the request, and perform

database transactions, then notify all related clients

of the result. Each client exposes a call back

interface to the server for notification purpose.

When a transition succeeds, it can optionally

make web service calls according to the model

specification. This can be used to perform arbitrary

tasks, such as sending an email, write a log file, or

invoke another transition.

6 RESULTS AND DISCUSSION

The framework has been used in developing several

mission critical trading products. It has been proved

that the development cycle is reduced about one

third comparing to original approaches. Man power

is also saved by approximately the same amount.

The reason is that the framework is now shared as a

common backend for multiple products and

maintained by a small group. In addition they

produce a contract (the control logic and data model

specification) for the product development team to

follow. Each product development team does not

need to worry about the backend control any more.

They only need to focus on building the client

interfaces. The result is a group of specialists take

control of the business logic specification and

execution at a high level, and another group of

specialists take control of the interface design and

system integration. Both groups have higher

confidence about their work and better productivity

(see Figure 4 for futher details). The framework was

developed on the windows platform with Oracle 8i,

Oracle 9i or SQL Server 2000 as the database server.

The test shows the performance is excellent with a

modest hardware configuration. When using the new

IA64 platform, the performance can be further

improved.

One benefit is that the application logic layers of

several products are running the same framework.

The differerence between the approaches can be

found in the control logic and data model

specification, which are described in several XML

files. A centralised deployment of the server or a set

of servers can handle many different products. Many

different servers and products would have to be

deployed and managed separately otherwise. With

the use of web service, client software can be

deployed easily across organisation boundaries.

7 CONCLUSION AND FUTURE

WORK

The XML-based framework for developing trading

systems was introduced. The prospects of the

framework are as follows: an XML based

negotiation modelling language to specify a trading

process declaratively; a way to integrate data with

the control logic at a high level, a mechanism to map

XML-Schema data model into relational database

and an XML based query language based on it; a

high performance execution engine to manage and

coordinate the business process; A set of predefined

web service interfaces to smooth-line the integration

of different clients and legacy systems and to

simplify installation and deployment. The result of

the research shows that the development time and

cost is greatly reduced. In addition, through constant

maintenance the system will be secure, but no

mechanism is 100 per cent failsafe and the cost of

security provision has to be weighed up against the

risk for and consequence of any loss, together with

the additional consideration of enabling

straightforward access (Shoniregun et al, 2004).

REFERENCES

Booch, G., Rumbaugh, J. and Jacobson, I., 1999. The

Unified Modeling Language User Guide. Addison-

Wesley.

Buschmann, F., Meunier, R., Rohnert, H., Sommerlad, P.

and Stal, M., 1996. Pattern-Oriented Software

Architecture: A System of Patterns. John Wiley &

Sons.

Coad, P. and Nicola, J., 1993. Object-Oriented

Programming. Yourdon.

Fernandez, M., Simeon, J. and Wadler, P., 2005. An

Algebra for XML Query. Online at:

http://www.cs.bell-labs.com/ wadler/topics/xml.html

(Access date: January 2005).

FpML.org., 2001. Financial products Markup

Language(FpML) 1.0. FpML.org, May. Online at:

http://www.fpml.org/spec/2001/rec-fpml-1-0-2001-05-

14/index.html (Access date: January 2005).

Hollingsworth, D, 1995. The workflow reference model.

Workflow Management Coalition TC00-1003, January.

Online at:

http://www.wfmc.org/standards/docs/tc003v11.pdf

(Access date: January 2005).

ICETE 2005 - GLOBAL COMMUNICATION INFORMATION SYSTEMS AND SERVICES

Hosoya, H. and Pierce, B., 2000. Xduce: a typed xml

processing language. In Proceedings of Third

International Workshop on the Web and Databases

(WebDB2000).

IBM, 2002. BEA Systems, and Microsoft. Business

Process Execution Language for Web Services,

Version 1.0. Online at: http://www-

106.ibm.com/developerworks/library/ws-bpel/ (Access

date: January 2005).

Milo, T., Suciu, D., and Vianu, V., 2000. Typechecking

for XMLtransformers. In Proceedings of the ACM

Symposium on Principles of Database Systems.

Mohan, C., Alonso, G., Gunthor, R., Kamath, M., and

Reinwald, B., 1995. An overview of the exotica

research project on workflow management systems.

Proc. 6th Int’l Workshop on High Performance

Transaction Systems, Asilomar, September.

Mohan, C., 1997. Recent trends in workflow management

products, standards and research. In Proc. NATO

Advanced Study Institute (ASI) on Workflow

Management Systems and Interoperability, Istanbul,

August.

Reuter, A. and Schwenkreis, F., 1995. Contracts - a low-

level mechanism for building general purpose

workflow mangement systems. Bulletin of the

Technical Committee on Data Engineering, 18(1):4,

March.

Schael, T., 1998. Workflow management systems for

process organisations. Lecture Notes in Computer

Science, 1096.

Shoniregun, C., Logvynovskiy, O., Duan, Z., Bose, S.,

2004. ‘Streaming and Security of Art Works on the

Web’. In the Proceedings of the IEEE Sixth

International Symposium on Multimedia Software

Engineering (IEEE-MSE2004), Miami, Florida, USA.

Wodtke, D., Weissenfels, J., Weikum, G., and Kotz

Dittrich, A., 1996. The mentor project: Steps towards

enterprise-wide workflow management. Proc. 12th Int.

Conf. on Data Engineering, New Orleans, Louisiana.

A SECURE FRAMEWORK FOR MANAGING TRANSACTIONAL PROPERTIES OF BUSINESS OBJECTS
