A REUSABLE INTELLIGENT AUTHORIZATION DESIGN FOR

WEB SERVICES SOFTWARE SECURITY

Weider D. Yu, Archana Mansukhani

Computer Engineering Department, San Jose State University, San Jose, California, 95192-0180, USA

Keywords: Web Services, authorization layer, security, inference engine, reusability, Service Oriented Architecture

(SOA), expert system rules.

Abstract: Web services are a new way of thinking in distributed computing. They are an important step towards

service-oriented architecture (SOA). Web services are used to obtain service in an open, platform

independent way. Recent focus on web services has been in the area of security, which is an ongoing

concern in many areas and is very pertinent to web services technology. This paper describes the design of a

reusable authorization layer for web services software. This layer resides separate from the web services

themselves and uses a rule based inference engine for determining authorization and access rights. It also

uses different types of access control to formulate feature-rich rules.

1 INTRODUCTION

The industry has seen a rapid growth in web services

security since the beginning of 2004. Many new

standards have been established to deal with various

aspects of security. OASIS (Organization for the

Advancement of Structured Information Standards)

has defined several standards for web services

security. Two of the standards are relevant to

authorization: XACML (XML Access Control

Markup Language) which is a language for

specifying access control rules and policies, and

SAML (Security Assertions Markup Language),

which is a protocol for specifying authentication and

authorization. However, there are no standards exist,

for defining an authorization framework for web

services. The expected WS-Authorization standard

is still under observation.

This paper proposes a reusable authorization

layer, which is separate from the web services

themselves. All web services requests pass through

the authorization layer. An authorization decision is

made at this layer and passed onto the web services

(Alotaiby, Chen, 2004), (Chaari, 2004).

This paper proposes to use logic rules in

determining access rights. A logic based inference

engine is used in determining the outcome of each

authorization decision. Rules are fired depending on

the facts and conditions for an authorization request.

Using this approach effectively establishes a

separate authorization layer at which authorization

decisions are made. Furthermore, the framework of

the authorization layer can be reused in multiple web

services in order to service various authorization

needs.

2 AUTHORIZATION LAYER

The purpose of this research work is to design a new

architectural framework to provide authorization

functionality. Although authentication is an

important step towards authorization, strict

authentication is assumed to be available and it is

outside of the scope of this paper.

Figure 1 shows an overview of the architectural

framework of the system. It is assumed that web

services requests are authenticated before being

processed by the authorization layer. The main goal

of this design is to separate all authorization related

functionalities so that they can be designed and

implemented independently from the rest of the web

services implementation. This enables the reusability

of authorization functionality.

The authorization layer parses the incoming web

service request and produces various parameter data

required for authorization. It then formats the input

data into the appropriate type required by the

inference engine. The inference engine uses the

input and its authorization rules to determine the

298

D. Yu W. and Mansukhani A. (2005).

A REUSABLE INTELLIGENT AUTHORIZATION DESIGN FOR WEB SERVICES SOFTWARE SECURITY.

In Proceedings of the Second International Conference on e-Business and Telecommunication Networks, pages 298-303

DOI: 10.5220/0001408202980303

 SciTePress

appropriate access rights for the request. A set of

authorization rules is used to determine which user

or service can access what component or service

(Chandramouli, 2001), (Indrakanti, 2004).

2.1 Language syntax for specifying

Authorization rules

The authorization rules in the approach are specified

using a special functional language of predicate

calculus type. Some common notations are used. ∀

is the universal qualifier and indicates for all or for

every instance. ∃ is the existential qualifier and

indicates that there exists at least one instance. The

symbol ⇒ indicates that there is an if-then

relationship.

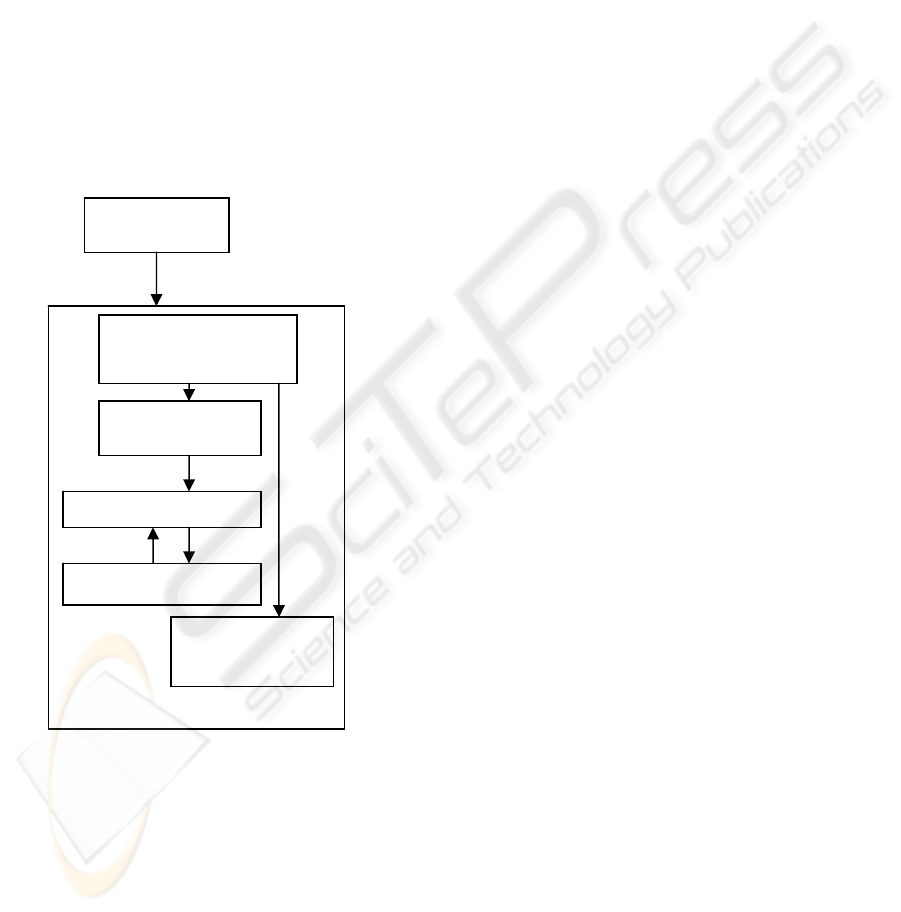

Figure 1: System Architecture

If a company employee as a client user wants to

connect to his/her company computer from outside

the company environment, then the client’s role is

changed from on_site employee to off_site employee,

and the client’s access rights to certain resources are

modified based on the policy of the company’s off-

site employee access rights. These policies are

company dependent. The rules for specifying such

access restriction are expressed as:

∀x [on_site_emp(x) ⇒ access(E)]

∀x [off_site_emp(x) ⇒ access(E’)]

where on_site_emp(x) is a predicate for x is an

on_site employee. access(E) is a relationship

between the employee x and the component E that

implies that the employee x is authorized to access

the resource component E (and the resource

component E’ is a subset of E). In this case, the

resources in the company are represented by

components.

The factual data required to support the predicate

must be analyzed and the employee status is

determined during the authentication stage. This

information is passed on to the authorization layer or

it must be included in the SOAP (Simple Object

Access Protocol) request received at the

authorization layer.

In another example, the rule below is for some

off_site employees who have unrestricted access

rights to the resource component E:

∃y [off_site_emp(y) ⇒ access(E)]

2.2 Data for Authorization

Certain client or user related data are required from a

web service request to make authorization decisions.

Such data may be user or service id, role used for

accessing the service, team to which the user

belongs, task being worked on by the user, and

certain other data related to the particular service.

The data required depends on the authorization

types supported. This kind of data may be either

directly obtained from the requesting client or

obtained via an XML schema for the client’s web

service SOAP request. The security of the data must

be enforced against malicious intruders.

3 MAJOR DEVELOPMENT

BENEFITS

Several major benefits can be achieved with the

approach:

• Using an expert systems shell allows greater

flexibility in defining rules. Authorization

designers can use rule-oriented facilities

provided by the shell to define and manage

authorization rules. Without this, it is a

cumbersome task to manage rules using a

database and no tools.

HTTP/SOAP

Parser &

Parameters

Authorization Rules

Web Services

Methods

Web Service

Inference Engine

Authorization Layer

Main Functions

A REUSABLE INTELLIGENT AUTHORIZATION DESIGN FOR WEB SERVICES SOFTWARE SECURITY

299

• Access control using rules fits naturally into

the conceptual framework of the expert

system shells whereby rules are “fired”

depending on existing facts. These facts can

relate to roles, location, user, requesting

service, task, context, team, time and so on

(Mattas, 2003), (Motta, Furuie, 2003),

(Moyer, Abamad, 2001).

• Authorization rules become portable. They

can easily be ported and used in other web

services for similar types of access.

Separating the rule definitions as well as

execution from the underlying services

effectively separates the authorization layer

thus rendering it reusable and extendable.

4 ARCHITECTURAL DESIGN

AND IMPLEMENTATION

The web services example described in section 2.1

was implemented using the proposed architectural

design. A short description of the web services

example is given below.

4.1 Resource Components Used in a

Case Study

A company, AMS Inc., wants to use the Service

Oriented Architecture (SOA) concept to deploy

certain internal intra-company services as well as its

external commercial services via web services. The

company also wants to make part of its ERP

(Enterprise Resource Planning) system available in

the web services.

Figures 2 and 3 show detailed resource

components for some subsystems of the ERP system

that must be exposed as web services. The resource

components are typically structured to form various

resource component hierarchies. As the scope of an

ERP system is large, only the following subsystems

are shown in the paper: Project Management (PM)

and Human Resource Management (HRM).

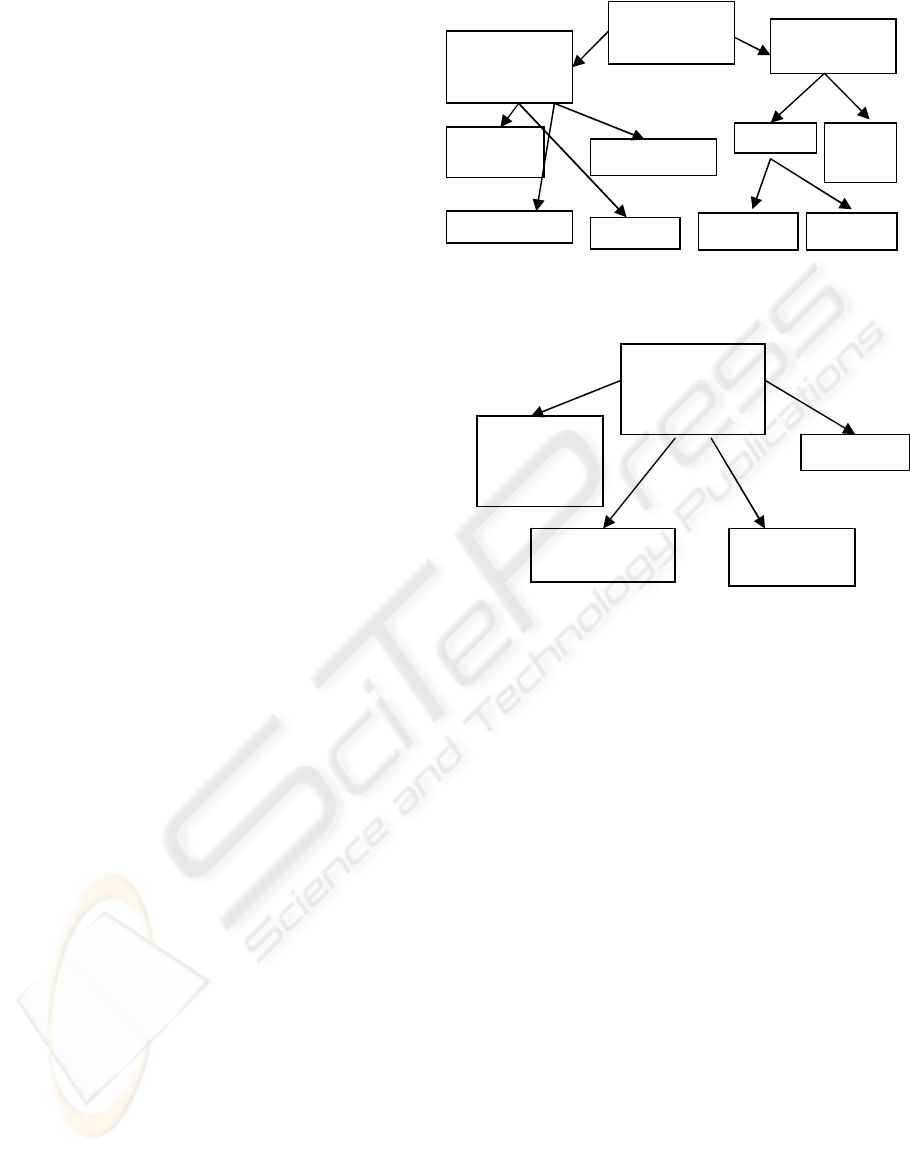

Figure 2: Components of Project Management

Figure 3: Components of Human Resource Management

4.2 Resource Component Access

Requirements Analysis

A special requirement analysis is conducted to

provide a detailed requirement specification

document regarding various authorized access rights

to the resource components. Some of the

requirements defined for the resource components

include:

• A product engineer in a team is allowed to

access resource components managed by

that product team only.

• A quality assurance engineer has access

rights to all the resource components for

which he/she is responsible, which may span

multiple teams.

• All employees can access the resource

components, which are directly related to

themselves, such as company policy and

employee benefits.

Project

Management

Requirement

Planning/

Tracking

Development

Time

Sheet

Project

Accounting

Expense

Reporting

Approval

Project Life

Cycle

Testing

Human

Resource

Management

Human

Resource

Account

Employee

Benefits

Payroll

Employee

Information

ICETE 2005 - SECURITY AND RELIABILITY IN INFORMATION SYSTEMS AND NETWORKS

300

• A manager can access any resource

components for all the teams managed by

him/her.

4.3 Inference Engine Used

CLIPS, a well-known rule based expert system tool,

is used as the inference engine in the implementation

of the authorization layer. Rule-based knowledge

representation scheme is used to represent the

specific knowledge of resource access rights. The

system performs reasoning capabilities based on

pattern matching.

The inference engine and the rules constructed by

using CLIPS and other program components for the

authorization layer can be easily integrated in C/C++

programming environment. This is a major

advantage achieved by using CLIPS as the inference

engine tool.

4.4 Authorization Rules

Specifications Using ARS

Authorization Rule Specifier (ARS) is a new special

purpose language, designed to be used for specifying

authorization rules in the system.

It is required during the requirement analysis

stage to define a set of meaningful shorthand

notations for expressing the resource components to

be used. Some of the examples are shown:

• PM stands for Project Management. And

PM-PA-TS means that Time Sheet (TS),

which is a part of the Project Accounting

(PA), which is in turn a part of Project

Management (PM).

• PM-PLC-[DEV | PT | RM | T] means that

[Development | Planning & Tracking |

Requirement | Testing] component, which is

a part of Project Life Cycle (PLC), which is

a part of Project Management (PM).

• HRM stands for Human Resource

Management, and HRM-[EI | EB] means

that [Employee Information | Employee

Benefits] is a part of Human Resource

Management (HRM).

The authorized access right granted at a certain

level of an organizational resource component

hierarchy does not imply the access rights to the

resource components at its lower level. It simply

means that the user can be considered for giving

access rights to the components at the lower level.

All the required authorization rules are specified

using the language ARS. Other than the quantifiers,

logical connectives are also available in ARS, such

as ∧ (AND), ∨ (OR), and ¬ (NOT), which can be

used to specify logical expressions in authorization

rules.

Some authorization rules for the example are

shown below:

1. (∀x)[loc-secure(x) ∧ context-teamtask(x)

⇒ access(PM)]

2. (∃x)[access-PM(x) ∧ ¬ (role-user(x) ∨ role-

customer(x)) ⇒ access(PM-PA-TS)]

3. (∃x)[access-PM(x) ∧ team-A(x) ∧ role-

engineer(x) ∧ task-dev(x) ⇒ access(PM-

PLC-DEV)]

4. (∀x)[access-HRM(x) ∧ role-employee(x)

∧ time-office_hours(x) ∧ ¬ (role-user(x) ∨

role-customer(x)) ⇒ access(HRM-EI) ∧

access(HRM-EB)]

5. (∀x) (∃y)[access-PM(x) ∧ role-manager(y)

∧ task-dev(x) ∧ role-direct_support(y, x)

⇒ access(PM-PLC-PT) ∧ access(PM-PLC-

RM) ∧ access(PM-PLC-DEV)]

4.5 Semantic Interpretations of the

Rules

The semantic interpretations of the above rules are

stated below:

1. Any client user (x) who would like to be

granted with access rights to resource

components from a secure location, and the

client user (x) is in a context environment

involving team tasks, then the client user

(x) can access those resource components

of Project Management (PM).

2. There exists someone (x) who is specially

authorized to access the resource

components of Project Management (for

x’s team) and the person’s (x’s) role is

neither a customer nor a user, then the

person (x) can access the Time Sheets (TS)

component which is a part of Project

Accounting (PA) of PM.

3. There exists someone (x) who is in a team

A and has access to resource components of

Project Management for the team. If the

A REUSABLE INTELLIGENT AUTHORIZATION DESIGN FOR WEB SERVICES SOFTWARE SECURITY

301

person (x) is an engineer and involved in a

development task, then the person (x) can

access the development component portion

in Project Management-Project Life Cycle

(PM-PLC) for the team A.

Any employee (x) (not an user or a

customer) who has access rights for the

resource components of Human Resource

Management (HRM) can access their

information and benefits during office

hours by accessing Employee Benefits (EB)

and Employee Information (EI)

components in HRM. A person who is not

an employee cannot access this

information.

For any person (x) who has access right for

the resource components of Project

Management and whose task involves

development, if there exists a person (y)

who is a manager and the person (x) is

directly supported by the person (y), then

the person (x) can access the resource

components: planning and tracking (PM-

PLC-PT), requirement (PM-PLC-RM) and

development (PM-PLC-DEV) for the

team’s project.

4.6 Implementation Architecture

The authorization layer of the web service was

implemented in .NET using managed C++

extensions. A CLIPS

wrapper was compiled as a

separate module and linked with the web service.

This wrapper contains the authorization layer, as

shown in Figure 1.

The data required for authorization may be obtained

in various ways. For example, location of a user may

be obtained by modifying the SOAP header to

retrieve the IP address of the user, which is used for

performing location based access control. The

authentication module, based on the user account,

may be used to specify roles.

Once information about the user such as role,

location, context, task, team etc. is obtained, the

authorization layer uses that information and

contacts the inference engine. Depending on the

facts asserted about the user, certain rules will fire.

As each rule fires, it leaves a fact in the working

memory of the inference engine. After all possible

rules have fired; the facts remaining in the working

memory determine what access rights the user

should be granted.

5 COMPARISON WITH

RELATED WORK

There is no standard that exists for specifying how to

implement authorization for a web service. However

OASIS has defined two standards related to

authorization and access control. XACML is a

language for specifying access control policies and

rules. SAML is a framework for communicating

user authentication and authorization information in

the form of assertions. The .NET framework also

provides a way of authorizing web services requests.

A comparison with these three authorization

approaches is presented in this section.

Flexibility: In the inference engine based

authorization approach, different types of

authorization may be used depending on the

application. The case used has demonstrated the use

of role based, team based, task based, user based,

time based, and context based among others. Other

forms of access control, not covered here, may be

added.

.NET based authorization approach only allows

user or role based access control. This limits the

application flexibility and requires defining

everything in terms of roles and users. In addition,

.NET based authorization does not provide fine-

grained control. The XACML based approach does

not prescribe any particular type and is as flexible as

the inference engine based authorization. SAML

supports attribute based authorization, and is

typically used to support authentication in a limited

way.

Extensibility: The inference engine based

authorization can be extended with ease. It is not

limited to role based or location based access control

only. As new access control models are introduced

in the future, the new rules provided can be

integrated into the system without requiring too

much effort.

In the .NET approach, this advantage is harder to

achieve. XACML and SAML are both extensible as

a new XML schema may be easily defined to

support a new authorization type.

Maintainability: In the inference engine based

authorization approach, there is only one

authorization layer at the organization level and the

access control rules are stored at one location, thus

the maintenance tasks become easier and simpler.

ICETE 2005 - SECURITY AND RELIABILITY IN INFORMATION SYSTEMS AND NETWORKS

302

In the other approaches, authorization must be

specified for each web service and implemented

along with the web services.

Testability: The inference engine based

authorization approach provides an interactive

specification and testing environment to test the

access control rules before their deployment. CLIPS

provides a command line tool and the web services

administrator can use the tool to enter rules, assert

facts, define functions, define global variables and

thus test the rules.

In .NET SAML and XACML based

authorizations, there is no such capability.

Reusability: The access control rules used in an

inference engine based authorization can be easily

reused for other web services using a similar access

control policy. The rules can be either ported to or

shared with other web services.

In all the other approaches, the access control

mechanism is embedded in each web service

individually. Even if the same access control rules

are to be used in each web service, the same

programming effort is repeated to engineer the rules

into every web service.

6 CONCLUSIONS

This paper presents an approach to designing a

reusable authorization layer that may be used for

web services software

authorization. Access rights

may easily be defined by a set of rules.

Authorization may be granted or denied depending

on these rules defined for the application. Rules can

be specified in a language of predicate calculus type.

The design is based on using multiple

authorization methods to construct rules. Rules may

also be constructed hierarchically. The access

control of authorization types can be role-based,

location-based, context-based, task-based, or team-

based.

The design meets all the goals originally envisioned.

Separating the authorization into a layer that resides

above the normal web services makes the system

reusable. It can be easily plugged into another

system.

Adding an expert system adds several

advantages; rules become easily maintainable and

reusable. Flexible and rich rules may now be

composed and the result is obtained by executing the

authorization rules in the inference engine. The

abilities of composing and testing rules are available

before applying them in the system.

REFERENCES

Alotaiby, F.T., Chen, J.X. 2004. “A Model for Team-

based Access Control (TMAC2004),” Proc. Of

IEEE Information Technology: Coding and

Computing, pp. 450-454.

Chaari, S. et al., 2004. “An authorization and access

control model for workflow,” Proc. Of IEEE

Control, Comm. and Signal Processing, pp. 141-

148.

Chandramouli, R., 2001. “A framework for multiple

authorization types in a healthcare Application

system,” Proc. Of Computer Security Applications

Conference, pp. 137-148.

Indrakanti, S. et al., 2004. “Authorization service for web

services and its Implementation,” Proc. Of IEEE

International Web Services Conference, 2004. pp.

774 – 777.

Mattas, A.K. et al., 2003. “Towards dynamically

administered role-based access control,” Proc. Of

International Workshop in Database and

Expert Sys. Applications, pp. 494-498.

Motta, G.H. Furuie, S.S., 2003. “A contextual role-based

control authorization model for electronic patient

record,” IEEE Trans. on Inform. Technology in

Biomedicine, vol. 7, no. 3, 202 – 207.

Moyer, M.J., Abamad, M., 2001. “Generalized role-based

access control,” Proc. Of 21

International

Conference on Distributed Computing Systems, pp.

391-398.

http://www.ghg.net/clips/CLIPS.html.

http://www.oasis-open.org/committees/

download.php/2406/oasis-xacml-1.0.pdf.

http://www.oasis- open.org/committees/

download.php/11902/saml-2.0-os.zip

A REUSABLE INTELLIGENT AUTHORIZATION DESIGN FOR WEB SERVICES SOFTWARE SECURITY

303
