ON THE EVALUATION OF A SECURE SOLUTION TO ACCESS

802.11 NETWORKS

Fernando da Costa Junior, Luciano Gaspary, Jorge Barbosa,

Gerson Cavalheiro, Luciano Pﬁtscher

Universidade do Vale do Rio dos Sinos

Programa Interdisciplinar de P

os-Graduac¸

ao em Computac¸

ao Aplicada

Av. Unisinos, 950 – 93.022-000 – S

ao Leopoldo, Brazil

Jos

e Dirceu G. Ramos

Hewlett Packard do Brasil

Keywords:

WiFi networks, data reception rate, PDA energy consumption, IPSec.

Abstract:

Despite offering the possibility to develop and distribute a new set of applications to its users, the widespread

and unrestricted use of mobile computing depends on the provisioning of a secure network environment. Re-

garding the communication established from mobile devices such as PDAs (Personal Digital Assistants), one

of the most currently used standards is the IEEE 802.11b, which presents known security ﬂaws. To overcome

them, some alternative setups are commonly deployed, based on link, network, transport or application-layer.

In this paper we evaluate the impact on data reception rate and energy consumption of IPSec-based PDAs

access to 802.11b (WiFi) wireless LANs. As a result of this work we identify the overhead imposed by the

security mechanisms and the capacity of the device to run CPU and network-intensive applications.

1 INTRODUCTION

The miniaturization of electronic components and the

growing offer of wireless communication technolo-

gies have stimulated the development of small and

high capacity computational devices, which enable

the concrete implementation of the mobile computing

concept. In a mobile context it is common to have

portable devices such as PDAs interconnected to the

wired network infrastructure through wireless links.

The easiness of connection and physical mobility of

these devices leads to the possibility of providing the

users of this technology with a new set of applications

(e.g. location-aware and video on demand). How-

ever, in order to execute these applications in a pro-

duction environment some security issues need to be

addressed.

One of the most currently used standards to allow

network connectivity from mobile devices is the IEEE

802.11b, which has several security ﬂaws (Cam-

Winget et al., 2003). In order to overcome them, some

alternative security setups, ranging from link to appli-

cation layer, have been widely deployed in production

environments (e.g. IPSec and SSL). These additional

components are essential to enable the secure commu-

nication of millions of devices using IEEE 802.11b

This work was partially developed in collaboration

with HP Brazil R&D.

that have already been sold, and cannot be replaced

by other equipment without extra investments.

Regardless of the security mechanism used, it leads

to an overhead in terms of both the data sent/reception

rates achieved by the mobile device and its energy

consumption. Identifying this overhead and determin-

ing which applications can be executed by mobile de-

vices such as PDAs (keeping their autonomy) is valu-

able, because one can adjust security mechanisms to

achieve the best tradeoff between security and con-

sumption.

In this paper we evaluate the impact on data re-

ception rate and energy consumption of IPSec-based

PDAs access to 802.11b wireless LANs. We have

chosen IPSec because it is the most current, widely

adopted setup. Furthermore, since it is a network-

layer technology, all applications can take advantage

of the security mechanisms that it provides: authenti-

cation, privacy, and integrity.

The paper is organized as follows: section 2 de-

scribes some related work. Section 3 presents the

setup conﬁgured to achieve a secure wireless network

environment. In sections 4 and 5 we detail the ex-

periments carried out. Section 6 presents some ﬁnal

considerations.

da Costa Junior F., Gaspary L., Barbosa J., Cavalheiro G. and Pﬁtscher L. (2005).

ON THE EVALUATION OF A SECURE SOLUTION TO ACCESS 802.11 NETWORKS.

In Proceedings of the Second International Conference on e-Business and Telecommunication Networks, pages 74-79

DOI: 10.5220/0001416800740079

 SciTePress

2 RELATED WORK

Measuring and characterizing the current limits of

portable devices in terms of both communication ca-

pabilities and energy consumption, to mention just a

few aspects, are issues that have been gaining atten-

tion recently. This topic grows in importance when

secure wireless communications are demanded. Since

a lot of extra computation is required to guarantee

properties such as authentication, privacy, and in-

tegrity, the feasibility to run a variety of applications

is directly affected.

Potlapally, Ravi, Raghunathan, and Jha present in

(Potlapally et al., 2003) an analysis of the energy con-

sumed by mobile devices when using several com-

binations of security mechanisms in SSL-based ap-

plications. Various cryptography (RSA, DSA, and

ECDSA) and hashing (MD2, MD4, MD5, SHA,

SHA1, and HMAC) algorithms have been used in the

experiments.

Other work related to PDA energy consumption

was published by Karri and Mishra in (Karri and

Mishra, 2003). The authors measure the energy con-

sumed by the device (i) when secure WAP (Wireless

Application Protocol) sessions are established and (ii)

during secured data transfer. An additional contri-

bution of the paper is the proposal of techniques to

reduce energy consumption. By applying techniques

based on information compression, session negotia-

tion protocol optimization, and hardware acceleration

of crypto-mechanisms, the energy consumed for ses-

sion establishment has been reduced by more than 6.5

times, when compared to the normal power consump-

tion. Similarly, the energy for data transmission has

diminished more than 1.5 times.

The overhead introduced by WEP (Wireless Equiv-

alent Privacy) and IPSec protocols in IEEE 802.11b

wireless networks has been measured by Maciel et al.

in (Maciel et al., 2003). The data throughput achieved

by desktop computers (with wireless cards attached

to them) has been calculated under two different con-

ﬁgurations: employing (i) solely WEP and (ii) both

WEP and IPSec. This comparison is of little practi-

cal utility, however. WEP becomes unnecessary when

IPSec is used, because besides being vulnerable, the

ﬁrst leads to an undesired additional overhead.

In this paper we measure the data reception rate and

the energy consumed by a Personal Digital Assistant

with and without the employment of IPSec protocol.

We identify the type of applications that can be ef-

ﬁciently executed by the portable device even when

security mechanisms are employed. We also charac-

terize how much these mechanisms impact the auton-

omy of the PDA.

3 A SECURE WIRELESS LOCAL

AREA NETWORK SETUP

There are several approaches that can be applied to

secure current IEEE 802.11b wireless networks with

no extra investments in hardware: IPSec (IP Secu-

rity) (Kent and Atkinson, 2004), CIPE (Crypto IP En-

capsulation) (cip, 2004), and VTUN (Virtual Tunnel)

(vtu, 2004) at the network-layer; SSL (Secure Socket

Layer) (Freier et al., 1996) at the transport-layer;

SET (Secure Electronic Transaction) (set, 2004), and

OpenVPN (ope, 2004) at the application layer.

CIPE, VTUN, and OpenVPN are not supported

by mobile device operating systems such as PalmOS

and PocketPC 2003. SSL and IPSec are by far the

most deployed schemes. The former is used to pro-

vide application-speciﬁc end-to-end encrypted trans-

fers. The latter, on the other hand, offers a general

purpose cryptographic tunnel capable of providing se-

cured communication to any application running on

the PDA. Due to this generality, we have chosen to

use IPSec in our experiments.

The setup is composed of a L2TP (Layer 2 Tun-

neling Protocol) (Townsley et al., 1999) and an IPSec

server (FreeS/WAN (fre, 2004)) running on the gate-

way (ﬁgure 1). L2TP/IPsec is one the mechanisms

that can be used by Pocket PC 2003 to acquire a

virtual IP address from the internal network. This

scheme has been chosen because (i) it is used by

Pocket PC 2003’s built-in VPN client (which is free!)

and (ii) it is an ofﬁcial IETF standard.

We have conﬁgured the IPSec server to run in tun-

nel mode, i.e. both the header and the payload of

packets sent/received by the PDA to/from the gateway

are encrypted. Although this is a very conservative

setup, it has been used so that worst case measure-

ments could be made.

The authentication process used was PSK (Pre-

shared Key). A Pre-shared Key is a secret pass-

word that is shared by both sides of the IPSec tun-

nel. Preferably, the PSK is distributed through “out-

of-band” medium, such as phone call, paper, face to

face, and should not be transmitted over public net-

works.

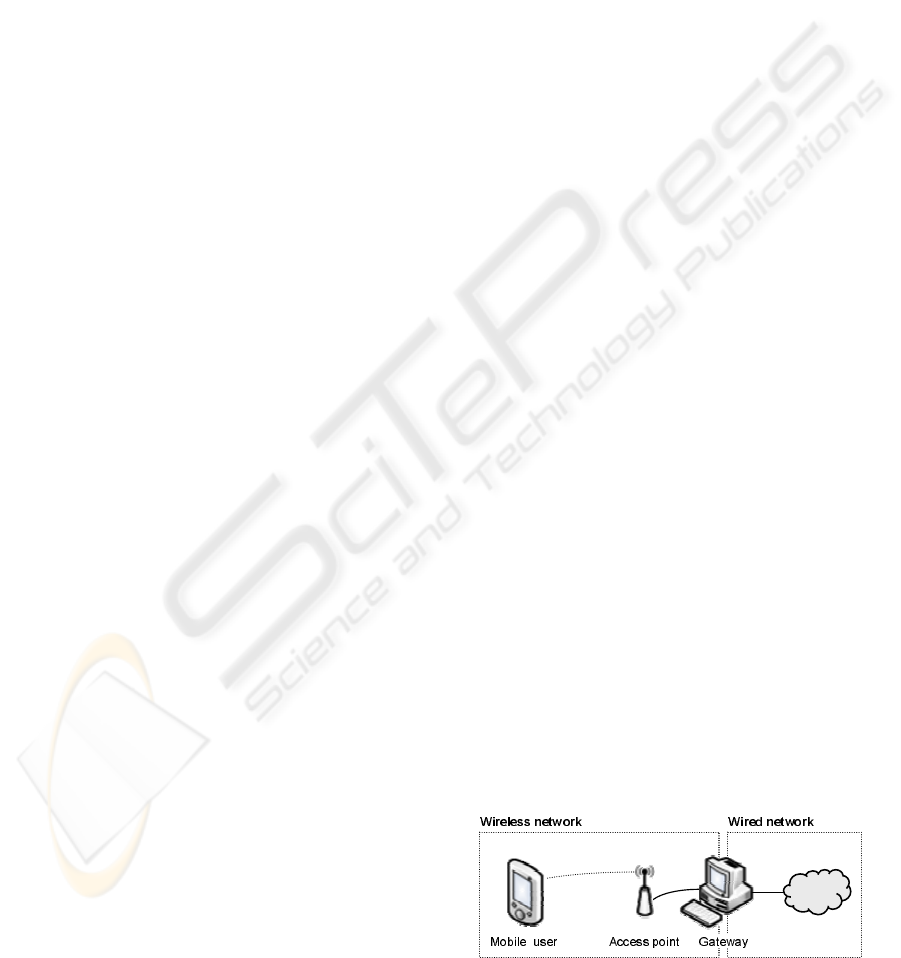

Figure 1: IPSec-based PDAs access to 802.11b wireless

LANs

ICETE 2005 - WIRELESS COMMUNICATION SYSTEMS AND NETWORKS

4 EXPERIMENTAL SETUP

Mobile devices face problems on battery working

time and packet processing, which get critical when

CPU and network-intensive applications are executed.

Due to these restrictions, it is important to ﬁgure out

the impact of the security mechanisms intended to be

used in the wireless network infrastructure (the idea

is to avoid imposing many extra limitations to the use

of the device). To better understand the relation be-

tween data reception rate and energy consumption un-

der different scenarios, we have carried out some ex-

periments (described henceforth).

4.1 Testing Environment

The setup of the experiments was composed of a

client and a server (gateway). The client was an iPAQ

5550 with a 400MHz Xscale processor 128MB RAM,

running Pocket PC 2003 operating system. The gate-

way was an Intel Celeron 500MHz 128MB RAM. In

order to provide support for IPSec in the gateway,

we have installed the following software: Debian

Linux, kernel 2.6 (ker, 2004) (with native support for

IPSec), FreeS/WAN

, and L2TP. The communication

between the client and the gateway was done through

a Linksys WAP11 access point (IEEE 802.11b), lo-

cated around 15 meters far from the client.

The energy consumed by the mobile device during

the data transmissions has been measured through the

battery output voltage and the electric current data,

which were acquired with an oscilloscope. The circuit

implemented for acquiring these signals is showed

in ﬁgure 2. The oscilloscope used was an Agilent

54622D MegaZoom, 100MHz, 200MSa/s. To mon-

itor the electric current, a shunt resistor of 0.1Ω has

been applied.

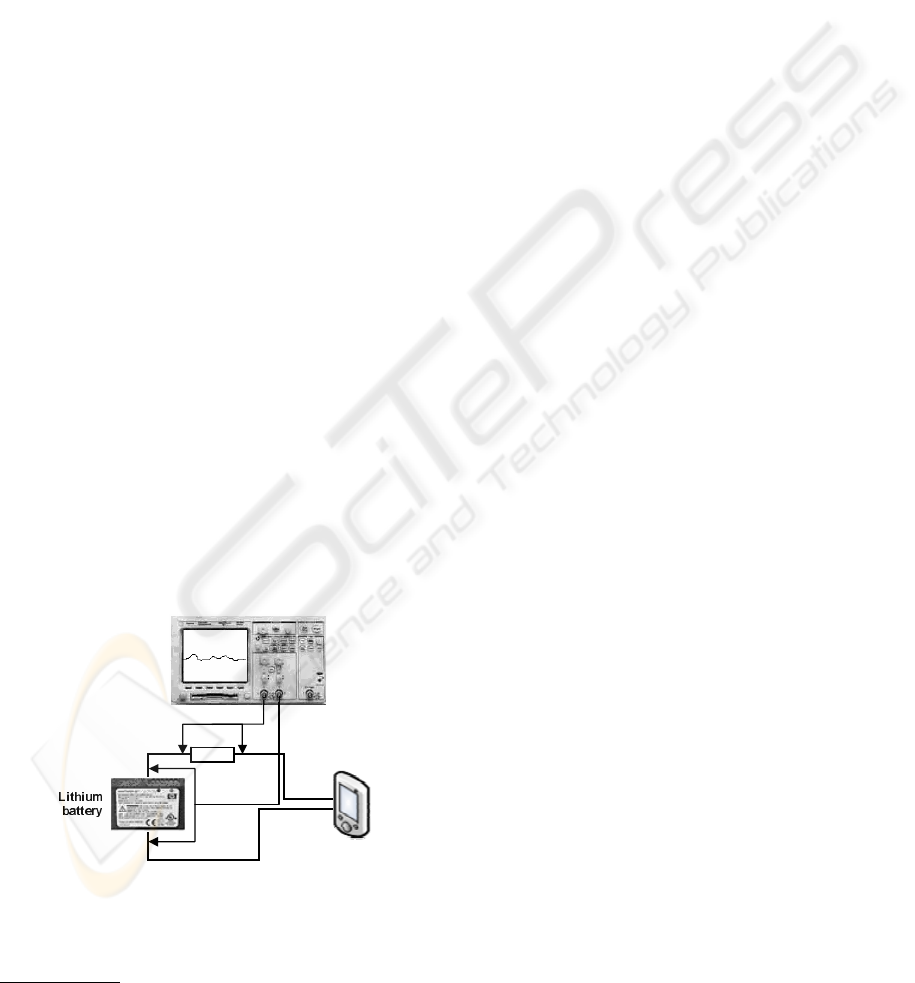

Figure 2: Circuit for measuring the energy consumed by the

mobile device

The determination of the energy consumed (W) has

FreeS/WAN had to be patched to support NAT-T (Tra-

versal NAT for UDP packets).

been obtained by the integration of the voltage x elec-

tric current, and can be expressed by the following

equation: W =



v.i.dt(Joule).

4.2 Experiments

We have carried out three experiments in order to ver-

ify the impact of IPSec on the mobile device. Each

experiment has been repeated ﬁve times to calculate

the average and the standard deviation. To execute

them we have developed two applications. The ﬁrst,

running on the gateway, was responsible to send UDP

packets to the mobile device. The second, running on

the PDA, was responsible to analyze the number of

received UDP packets so that we could measure the

reception rate in Mbps.

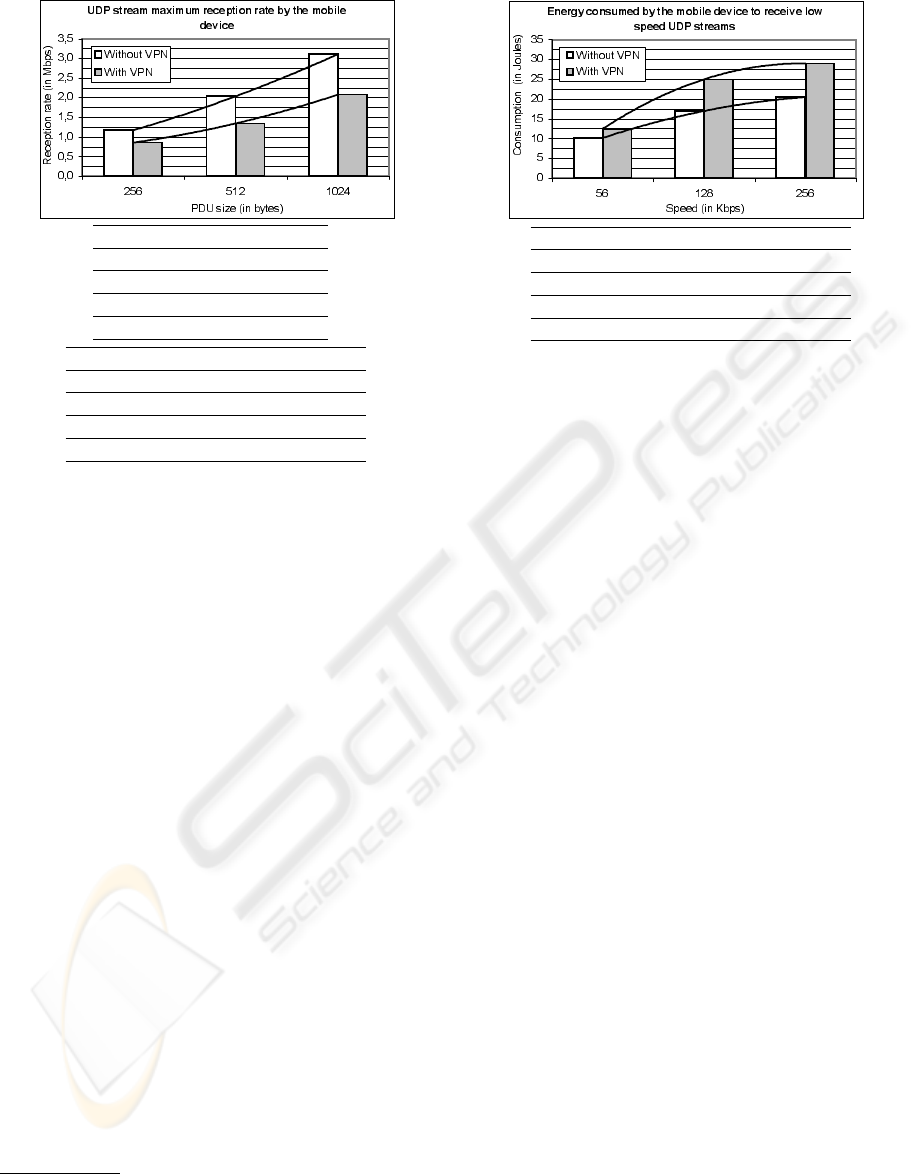

The ﬁrst experiment assessed the maximum recep-

tion rate achieved by the mobile device (using IPSec).

In this test we analyzed the data ﬂow with no speed

control during a 180-second period. We have used

different PDU sizes: 256, 512, and 1024 bytes. 3DES

and SHA1 algorithms have been applied, respectively,

for encryption and integrity checking.

The second experiment aimed at measuring energy

consumption and packet reception rate in controlled

speed UDP stream transmissions. We have divided it

in two groups: low speed (56, 128, and 256Kbps) and

high speed stream transmissions (1, 2, 4, and 8Mbps).

In low speed tests each transmission lasted 8 minutes

(for better accuracy), while in high speed tests they

ran for 3 minutes. For all these tests 1024-byte PDUs

have been used. Again, IPSec trafﬁc has been en-

crypted using 3DES and SHA1.

In order to get a more reﬁned view on energy con-

sumption and packet reception rate we have repeated

the previous UDP stream transmission at 2Mbps us-

ing several PDU sizes (256, 512, 1024, and 2048

bytes).

In the third experiment we have evaluated the im-

pact of using some combinations of encryption and

hashing algorithms on the PDA energy consumption.

We transmitted 1024-byte UDP packets at 2Mbps

from the gateway to the PDA, using DES and 3DES

cryptographic algorithms combined with SHA1 and

MD5 integrity algorithms.

5 RESULTS

Figure 3 shows the maximum UDP stream reception

rate achieved by the mobile device. From the graph

one can observe that although the nominal capacity of

WiFi wireless LANs is 11Mbps, the maximum recep-

tion rate achieved by the PDA was 3,109Mbps (using

1024-byte PDUs). This low rate is due to the mobile

device limited CPU, which is not able to process so

ON THE EVALUATION OF A SECURE SOLUTION TO ACCESS 802.11 NETWORKS

PDU Without VPN With VPN

Pkts rcvd Pkts rcvd

256 107.644 78.762

512 93.756 61.820

1024 71.633 47890

PDU Without VPN With VPN

Avg Std Dev Avg Std Dev

256 1,168 0,039 0,855 0,004

512 2,035 0,013 1,342 0,048

1024 3,109 0,066 2,079 0,012

Figure 3: Maximum reception rate achieved by the mobile

device

many packets in a short time period. As expected, the

PDU size affects directly the reception rate regard-

less of whether IPSec is used or not. However, the

use of IPSec always cause the reception rate to de-

crease compared to the non-encrypted transmission:

27% with 256-byte PDUs, 34% with 512-byte PDUs,

and 33% with 1024-byte PDUs.

In the second experiment two aspects have been

analyzed: successful packet reception rate and en-

ergy consumption overhead

. As already mentioned

in section 4.2, this experiment has been divided in

two groups: high speed and low speed stream trans-

missions. The packet reception rate for the low speed

data stream transmissions was almost 100%. This was

expected, since in the previous experiment we have

shown the PDA is able to cope with the 3,109Mbps

reception rate.

Figure 4 shows the energy overhead consumed by

the mobile device to receive low speed UDP streams.

The consumption is directly affected by the transmis-

sion speed (the higher the speed, the higher the num-

ber of packets to be processed). It is worth observing

in the graph how much the use of IPSec affects energy

consumption in each transmission rate. The overhead

of using IPSec at 56kbps is 18%. This difference gets

bigger as the transmission rate increases, achieving

47% for 256kbps. Taking into account the total bat-

The overhead has been calculated by decreasing the

PDA absolute energy consumption value after a ﬁxed period

data transmission from the energy consumed by the device

during an equivalent time period when it was idle.

Speed Without VPN With VPN

Avg Std Dev Avg Std Dev

56 10,200 23,091 12,500 12,261

128 17,000 2,646 25,000 9,899

256 20,500 2,121 29,000 11,314

Figure 4: Mobile device energy consumption overhead to

receive low speed UDP streams

tery energy is 13.72KJ (measured prior to the experi-

ments), the consumption of 25J to receive a 8-minute

UDP stream at 128Kbps using 1024-byte packets cor-

responds to 0,001% of the battery capacity.

For the high speed data stream transmissions it is

valuable to illustrate two graphs: successful packet re-

ception rate (ﬁgure 5) and energy consumption over-

head (ﬁgure 6). The ﬁrst shows the number of UDP

packets received and processed by the mobile device

in relation to the number of packets transmitted by the

gateway under different speeds (from 1 to 8Mbps).

From the graph one can infer that 2Mbps is the max-

imum reception rate the PDA using IPSec is able to

handle with less than 20% of packet loss. When VPN

is not used this rate grows up to 4Mbps. Above these

rates the PDA receives less than 60% of the packets,

which is not acceptable for applications such as video

streaming.

The second graph (ﬁgure 6) shows the energy over-

head consumed by the mobile device to receive high

speed data stream transmissions. Since its maximum

reception rate is 3.109Mbps (ﬁgure 3), the energy

consumption reaches the maximum value between 2

and 4Mbps (around 90J). The PDA consumes 37%

more energy when IPSec is used to transmit/receive

streams at 1Mbps, and 64% at 2Mbps. At 4Mbps and

8Mbps the energy consumed does not grow propor-

tionally, because the number of packets received and

processed is similar to what happens at 2 Mbps (ﬁgure

5); most of the packets are lost in these rates.

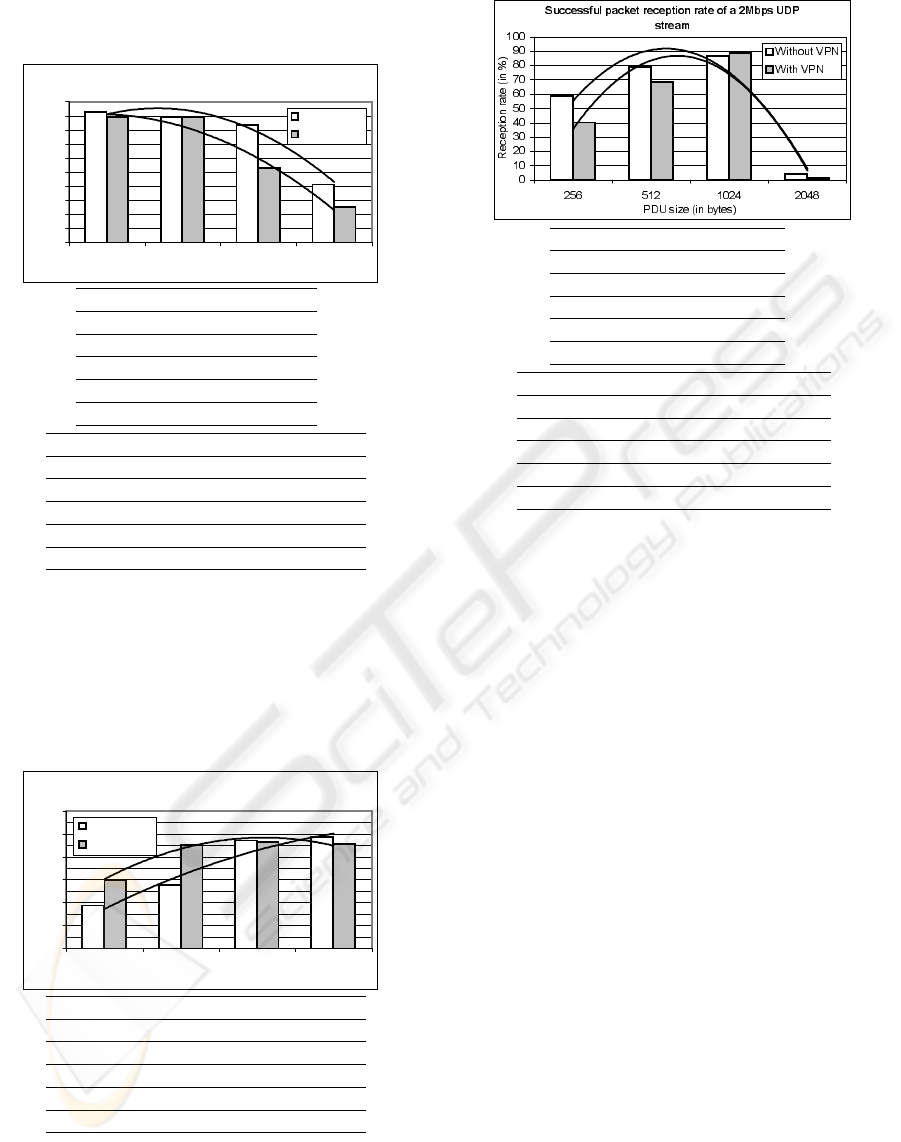

Figures 7 and 8 illustrate a zoomed view of the

mobile device successful packet reception rate and

energy consumption overhead when UDP streams at

2Mbps are transmitted to it. As one can notice in ﬁg-

ure 7, the reception rate increases as larger packets

are used (up to 1024 bytes). When 2048-byte long

packets are transmitted by the gateway, they are frag-

ICETE 2005 - WIRELESS COMMUNICATION SYSTEMS AND NETWORKS

Successful packet reception rates of high speed UDP

streams

100

1248

Speed (in Mbps)

Reception rate (in %)

Without VPN

With VPN

Speed Without VPN With VPN

Pkts rcvd Pkts rcvd

1 20.864 19.975

2 39.990 39.995

4 75.203 47.834

8 73.885 45.125

Speed Without VPN With VPN

Avg Std Dev Avg Std Dev

1 92,729 9,793 88,778 0,050

2 88,867 0,031 88,878 0,003

4 83,558 0,034 53,148 0,276

8 41,047 0,192 25,069 0,004

Figure 5: Mobile device successful packet reception rates

of high speed UDP streams

Energy overhead consumed by the mobile device to

receive high speed UDP streams

100

120

1248

Speed (in Mbps)

Consumption (in Joules)

Without VPN

With VPN

Speed Without VPN With VPN

Avg Std Dev Avg Std Dev

1 37,333 4,243 59,333 0,000

2 55,083 5,620 90,333 0,000

4 94,333 8,185 93,333 0,000

8 97,333 2,828 90,833 0,707

Figure 6: Mobile device energy consumption overhead to

receive high speed UDP streams

PDU Without VPN With VPN

Pkts rcvd Pkts rcvd

256 106.273 72.514

512 71.167 61.748

1024 39.058 39.983

2048 867 324

PDU Without VPN With VPN

Avg Std Dev Avg Std Dev

256 59,041 8,630 40,285 5,452

512 79,074 1,758 68,609 2,377

1024 86,796 0,566 88,850 0,024

2048 3,851 0,651 1,440 0,314

Figure 7: Packet reception rate of a 2Mbps UDP stream

using different PDU sizes

mented and the mobile device reception rate drops un-

expectedly to less than 10%. This is a good indicative

that network intensive applications such as streaming

video should be tuned to use the largest packet size

that can be sent without fragmentation.

The energy overhead consumed by the mobile de-

vice to receive a 2Mbps UDP stream is shown in ﬁg-

ure 8. The use of IPSec imposes a considerable over-

head in the energy consumption compared to the non-

encrypted transmissions: 3,72% for 256 byte packets,

27,67% for 512 byte packets, 50,22% for 1024 byte

packets, and 53,12% for 2048 byte packets. Regard-

ing the consumption associated with the ﬁrst three

transmissions, they are almost equivalent. This is ex-

plained in ﬁgure 7, where one may notice the packet

reception rates increase as less, larger packets are

transmitted by the gateway. When 256 byte PDUs

were used, 72.514 packets have been received and

processed by the PDA. On the other hand, only 39.983

packets have been received when 1024 byte PDU

were transmitted. A lot of the consumption in the ﬁrst

case is related to header protection. Therefore, the

best tradeoff between successful reception rate and

energy consumption is reached when 1024-byte long

packets are used.

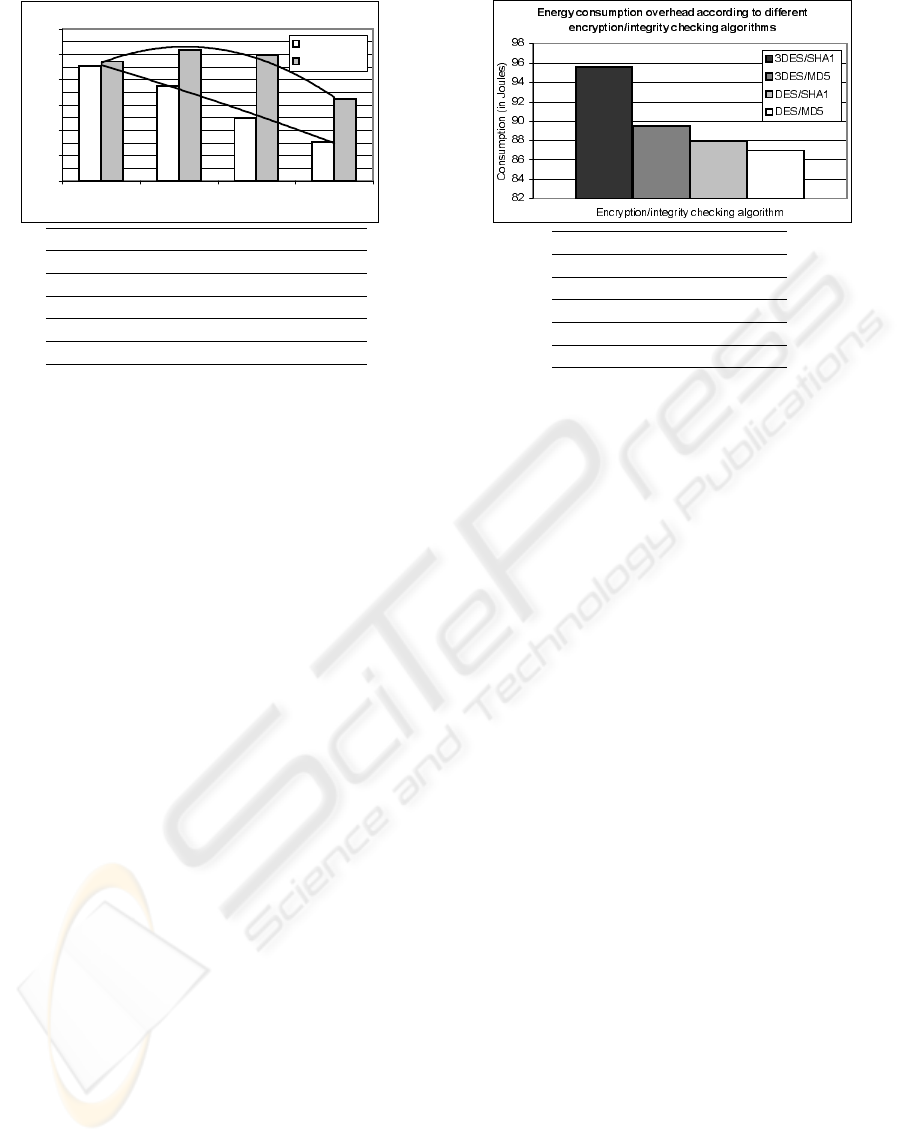

Figure 9 shows the results of the third experiment,

where we have assessed the impact of using different

encryption (DES and 3DES) and integrity checking

(MD5 and SHA1) algorithms on the PDA energy con-

ON THE EVALUATION OF A SECURE SOLUTION TO ACCESS 802.11 NETWORKS

Energy consumption overhead of a 2Mbps UDP stream

100

120

256 512 1024 2048

PDU size (in bytes)

Consumption (in Joules)

Without VPN

With VPN

PDU Without VPN With VPN

Avg Std Dev Avg Std Dev

256 90,494 12,021 93,994 8,485

512 74,494 0,707 102,994 1,414

1024 49,494 0,707 99,438 0,707

2048 30,438 2,121 64,938 1,414

Figure 8: Energy consumption overhead to receive a 2Mbps

UDP stream

sumption. As depicted in the graph, the combination

3DES/SHA1 is the most computational intensive. It

is explained by the higher complexity of both algo-

rithms compared to DES/MD5 (Stallings, 2002).

6 CONCLUSIONS

In this paper several approaches to solve some of the

existing ﬂaws in 802.11b networks have been com-

mented. Then we have described the IPSec-based

setup and the testing environment. The experiments

carried out aimed at assessing the impact on data re-

ception rate and energy consumption of IPSec-based

PDAs access to 802.11b wireless LANs.

From the results obtained, it is important to high-

light the maximum reception rate achieved by the mo-

bile device is less than 50% of the nominal capac-

ity (it gets worse when IPSec is used). The PDA

energy consumption increases considerably when the

security mechanisms are employed. It is also worth

mentioning that the mobile device does not cope well

with fragmentation. Depending on the number and

size of the UDP packets it is not able to process

more than 50% of them. Finally, we found out

3DES/SHA1, which are the the most common used

encryption/integrity checking algorithms, are the ones

that consume more. In a mobile computing envi-

ronment, where maximizing the battery working time

is highly desirable, DES/MD5 could alternatively be

used.

Algorithms Consumption

Average Std Dev

3DES/SHA1 95,605 6,658

3DES/MD5 89,438 2,121

DES/SHA1 87,938 0,000

DES/MD5 86,938 1,414

Figure 9: Energy consumption using different encryp-

tion/integrity checking algorithms

REFERENCES

(2004). Crypto ip encapsulation. http://www.extra300.nl.

(2004). Linux frees/wan. http://www.freeswan.org.

(2004). Linux kernel archives. http://www.kernel.org/.

(2004). Openvpn. http://openvpn.sourceforge.net.

(2004). Secure electronic transaction. http://www.setco.org.

(2004). Virtual tunnels over tcp/ip networks.

http://vtun.sourceforge.net.

Cam-Winget, N., Housley, R., Wagner, D., and Walker, J.

(2003). Security ﬂaws in 802.11 data link protocols.

In Communications of the ACM.

Freier, A. O., Karlton, P., and Kocher, P. C. (1996). The ssl

protocol version 3.0. In IETF Internet Draft.

Karri, R. and Mishra, P. (2003). Optimizing the energy con-

sumed by secure wireless sessions: Wireless transport

layer security case study. In Mobile Networks and Ap-

plications.

Kent, S. and Atkinson, R. (2004). Security architecture for

the internet protocol. In IETF RFC 2401.

Maciel, P., Nunes, B., Campos, C., and Moraes, L. (2003).

Sobrecarga introduzida nas redes 802.11 pelos mecan-

ismos de segurana wep e vpn/ipsec. In 3rd Brazilian

Workshop on Security of Computing Systems.

Potlapally, N., Ravi, S., Raghunathan, A., and Jha, N.

(2003). Analyzing the energy consumption of security

protocols. In Dept. of Electrical Engineering, Prince-

ton University.

Stallings, W. (2002). Network Security Essentials. Prentice

Hall.

Townsley, W., Valencia, A., Rubens, A., Pall, G., Zorn, G.,

and Palter, B. (1999). Layer two tunneling protocol

l2tp. In IETF RFC 2661.

ICETE 2005 - WIRELESS COMMUNICATION SYSTEMS AND NETWORKS
